PEUGEOT SERVICING25
∀
All driving conditions. oArduous conditions. * According to destination.
A AND C SERVICE LEVELS AND THE INTERMEDIATE VISIT
Level
Operations Description of operation 1st service
A C Intermediate
DRAIN/REFILL- Engine oil∀∀- Bleed fuel filter (diesel)∀∀∀- Oil filter∀∀- Fuel filter* (petrol)∀REPLACE- Fuel filter element (diesel)∀- Air filter element∀- Spark plugs (petrol)∀- Engine oil (check + top-up)∀∀- Manual gearbox oil (check + top-up)∀∀- Battery (check + top-up) if cap is removable∀∀LEVEL- Screen wash front/rear (check + top-up)∀∀∀∀- Coolant (check + top-up)∀∀∀∀- Brake fluid (check + top-up)∀∀∀- Power steering fluid (check + top up according to specification)∀∀∀- Operation of lights and indicators∀∀∀- Condition of glass, headlamp and light lenses and mirrors∀∀- Horn∀∀- Windscreen washer jets∀∀- Condition of wiper blades∀∀- Condition and tension of the ancillary drive belts∀∀- Handbrake∀∀- Condition of hydraulic circuits (hoses and covers)∀∀CHECK- Condition of rubber boots and gaiters∀∀∀- Brake pads∀∀ #- Play in hubs, link rods, ball joints, flexible mountings∀- Shock absorbers∀- Rear drum brake lining wear∀- Condition and pressure of tyres (including spare wheel)∀∀∀- Emission control check as per current legislation (petrol)∀∀∀- Smoke opacity (diesel)∀∀- Passenger compartment filter (according to specification)∀∀ #- Visual check of the whole vehicle∀∀
SERVICE*Courtesy vehicle∀
ROAD TEST∀∀

10-02-2003
DIESEL
DIESEL
PETROL PETROL
26

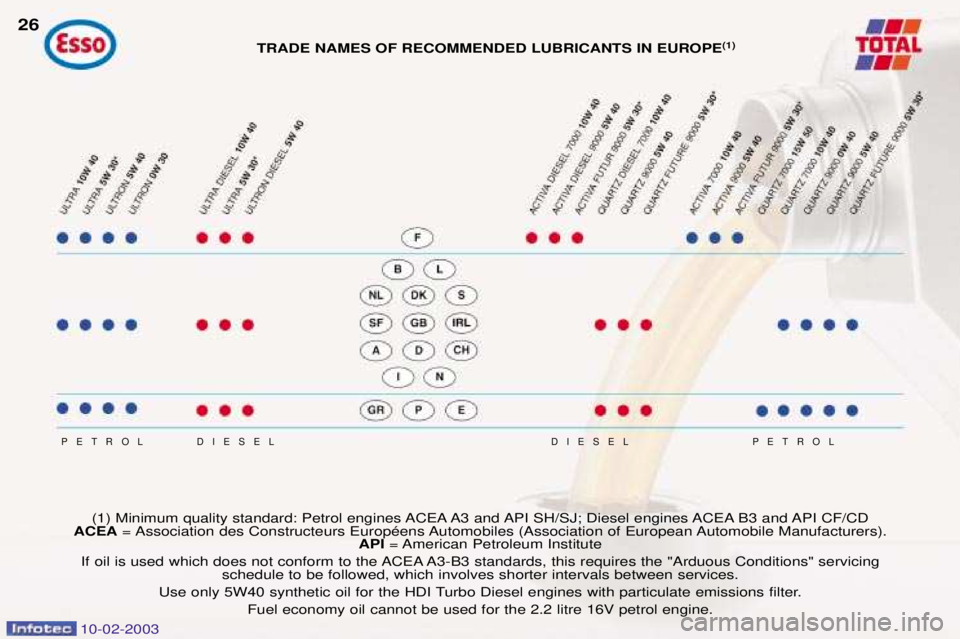

(1) Minimum quality standard: Petrol engines ACEA A3 and API SH/SJ; Diesel engines ACEA B3 and API CF/CD
ACEA = Association des Constructeurs EuropŽens Automobiles (Association of European Automobile Manufacturers).
API= American Petroleum Institute
If oil is used which does not conform to the ACEA A3-B3 standards, this requires the "Arduous Conditions" servicing schedule to be followed, which involves shorter intervals between services.
Use only 5W40 synthetic oil for the HDI Turbo Diesel engines with particulate emissions filter. Fuel economy oil cannot be used for the 2.2 litre 16V petrol engine.TRADE NAMES OF RECOMMENDED LUBRICANTS IN EUROPE
(1)

10-02-2003
27

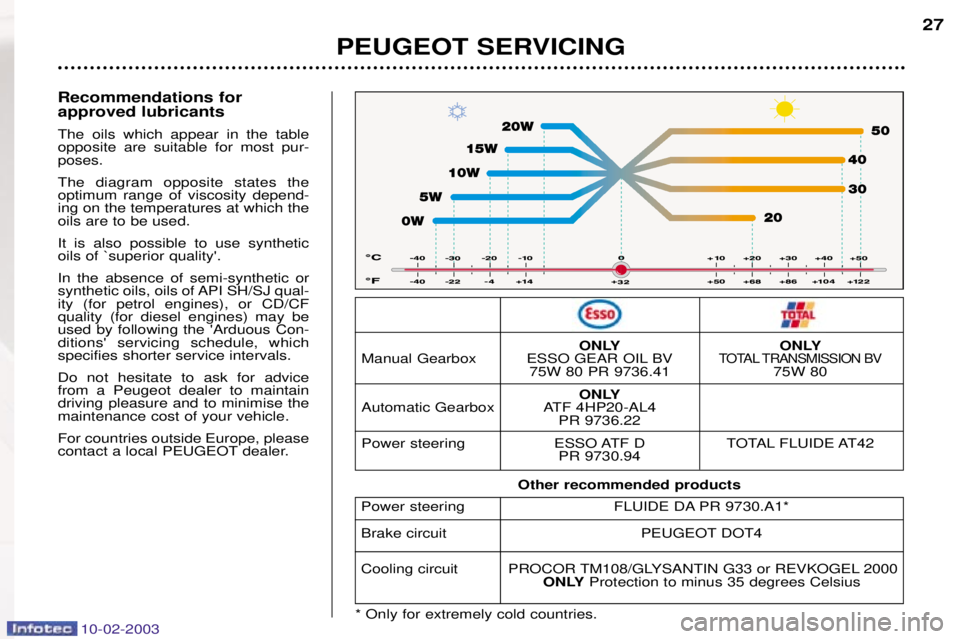

Recommendations for approved lubricants The oils which appear in the table opposite are suitable for most pur-poses. The diagram opposite states the optimum range of viscosity depend-ing on the temperatures at which theoils are to be used. It is also possible to use synthetic oils of `superior quality'. In the absence of semi-synthetic or
synthetic oils, oils of API SH/SJ qual-ity (for petrol engines), or CD/CFquality (for diesel engines) may beused by following the 'Arduous Con-ditions' servicing schedule, whichspecifies shorter service intervals. Do not hesitate to ask for advice from a Peugeot dealer to maintaindriving pleasure and to minimise themaintenance cost of your vehicle. For countries outside Europe, please
contact a local PEUGEOT dealer.
ONLY ONLY
Manual Gearbox ESSO GEAR OIL BVTOTAL TRANSMISSION BV75W 80 PR 9736.41 75W 80
ONLY
Automatic Gearbox ATF 4HP20-AL4 PR 9736.22
Power steering ESSO ATF D TOTAL FLUIDE AT42 PR 9730.94
Power steering FLUIDE DA PR 9730.A1*
Brake circuit PEUGEOT DOT4
Cooling circuit PROCOR TM108/GLYSANTIN G33 or REVKOGEL 2000ONLYProtection to minus 35 degrees Celsius
* Only for extremely cold countries. Other recommended products
PEUGEOT SERVICING

10-02-2003
INSTRUMENTS AND CONTROLS
28

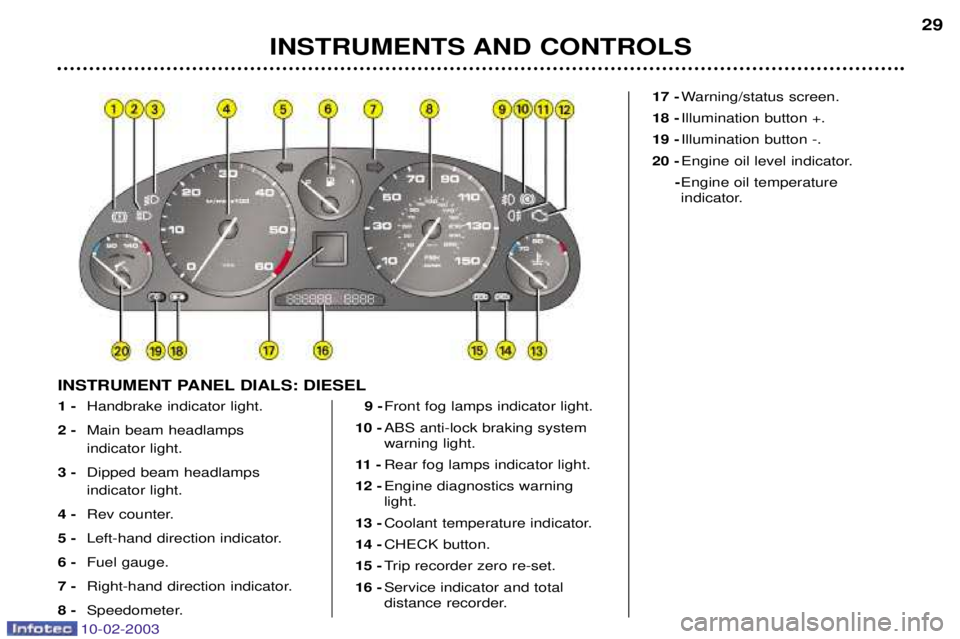

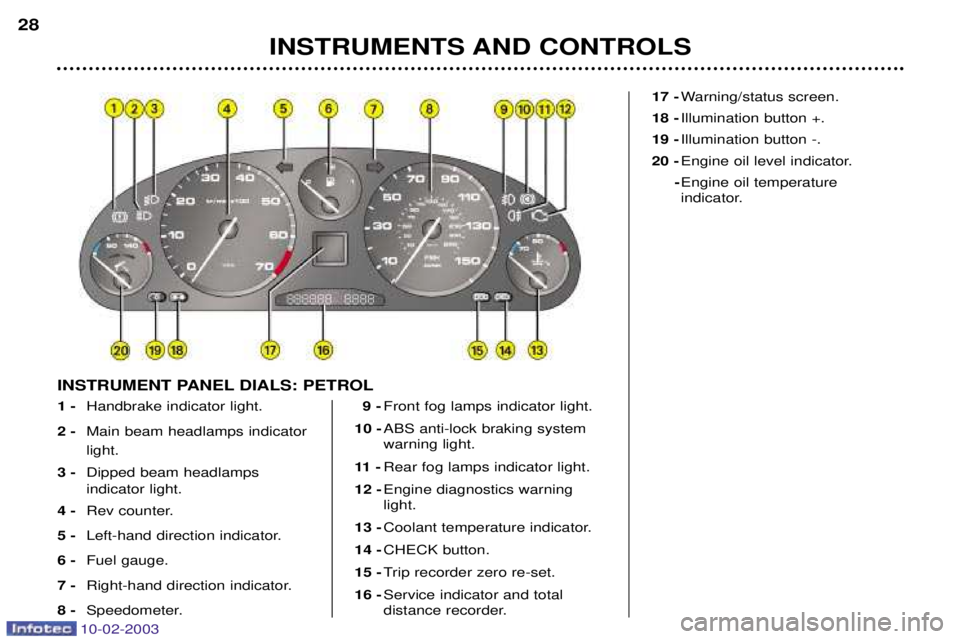

1 -
Handbrake indicator light.
2 - Main beam headlamps indicator light.
3 - Dipped beam headlamps indicator light.
4 - Rev counter.
5 - Left-hand direction indicator.
6 - Fuel gauge.
7 - Right-hand direction indicator.
8 - Speedometer. 9 -
Front fog lamps indicator light.
10 - ABS anti-lock braking system warning light.
11 - Rear fog lamps indicator light.
12 - Engine diagnostics warninglight.
13 - Coolant temperature indicator.
14 - CHECK button.
15 - Trip recorder zero re-set.
16 - Service indicator and total
distance recorder. 17 -
Warning/status screen.
18 - Illumination button +.
19 - Illumination button -.
20 - Engine oil level indicator.
- Engine oil temperature
indicator.
INSTRUMENT PANEL DIALS: PETROL

10-02-2003
INSTRUMENTS AND CONTROLS29
1 -
Handbrake indicator light.
2 - Main beam headlamps indicator light.
3 - Dipped beam headlamps indicator light.
4 - Rev counter.
5 - Left-hand direction indicator.
6 - Fuel gauge.
7 - Right-hand direction indicator.
8 - Speedometer. 9 -
Front fog lamps indicator light.
10 - ABS anti-lock braking system warning light.
11 - Rear fog lamps indicator light.
12 - Engine diagnostics warninglight.
13 - Coolant temperature indicator.
14 - CHECK button.
15 - Trip recorder zero re-set.
16 - Service indicator and total
distance recorder. 17 -
Warning/status screen.
18 - Illumination button +.
19 - Illumination button -.
20 - Engine oil level indicator.
- Engine oil temperature
indicator.
INSTRUMENT PANEL DIALS: DIESEL

10-02-2003
INSTRUMENTS AND CONTROLS
30
INDICATOR LIGHTS
With the key in the accessories position (1st notch): the battery charge warning light illuminates on the instrument panel disp lay.
With the ignition on (2nd notch): the following three warning lights illuminate on the sides of the instrument panel:
Brake fluid level and brake force distribution fault warning light. This light should go out after 3 seconds.If the warning light remains on, or if it comes on when the engine is running and the vehicle is moving, it indicates an excessive drop in the brake fluid level or a malfunction of the brake force distribution.
Stop immediately. Contact a PEUGEOT dealer.
Anti-lock braking system (ABS) warning light This should go out after 3 seconds.
If the warning light remains on or comes on above 8 mph (12 km/h), this indicates a malfunction of the ABS.
However, the vehicle retains conventional servo-assisted braking.
Contact a PEUGEOT dealer.
Engine diagnostics warning lightThis should go out 3 seconds after the engine starts.
If it flashes with the engine running, this indicates a malfunction in the injection or the ignition system. There is a risk of damage to the catalytic converter (petrol engine only).
If it is on continuously, this indicates a fault in the emission control system.
Contact a PEUGEOT dealer as soon as possible.
At the same time, on the instrument panel display:
If no malfunction has been detected: the OK light comes on after two seconds (following a black screen), in the
absence of indicator lights showing the status of vehicle functions. If these indicator lights are present, the OKbut-
ton will come on after these. You may start your vehicle.
If a 'minor' malfunction has been detected: the warning light for the faulty function comes on. Certain indicator
lights showing the status of vehicle functions may also come on, followed by the OKindicator light. You can start
your vehicle; however, contact a PEUGEOT dealer as soon as possible.
If a 'major' malfunction has been detected: the corresponding warning light comes on. Certain indicator lights showing
the status of vehicle functions may also come on. The OKindicator light does not come on. Do not start your vehicle.
Contact a PEUGEOT dealer. Afterwards, if the passenger air bag is disarmed, the corresponding indicator light will come on.

10-02-2003
INSTRUMENTS AND CONTROLS31
Coolant temperature warning light This symbol is accompanied by an audible signal and the message 'Engine temperature too high' on the multi-function display.
It is linked to the STOPwarning light. Stop immediately.
Warning: wait for the engine to cool.
If necessary, top up the level.
With the engine running and the vehicle moving The instrument panel display temporarily shows:
Ð lights indicating warnings, when these occur,Ð vehicle function status indicator lights, when a change occurs.Certain warning lights may be accompanied by an audible signal and a
message on the multi-function display. List of warning symbols MANUAL CHECK (vehicle autotest)
 Press the "CHECK" button on the
instrument panel.
With the ignition key in the acces-sories position, with the ignitionswitched on, with the engine runningor when the vehicle is moving, thisfunction informs you at all times ofthe following: Ð any current warnings,
Ð the status of functions which it is possible to switch on or off (wind- screen wipers, automatic switch-ing on of lights, cruise control, dis-arming of passenger air bag, etc.).
The corresponding warning lightsare displayed in succession on theinstrument panel screen. If a warning or a change of status occurs during the CHECKmode, the
corresponding indicator lights will bedisplayed at the end of this mode.
CHECK mode entry indi-cator light (vehicleautotest) This comes on when you press the 'CHECK' button.
CHECK mode exit indica-tor light (vehicle autotest) This comes on at the end of the CHECK mode.
Engine oil pressure warning light This symbol is accompanied by an audible signal and the message 'Insufficient engine oil pressure' or 'Engine oil level low' on the
multi-function display.
It is linked to the STOPwarning light.
Stop immediately if this comes on when the engine is running.
If there is a lack of oil in the lubrication circuit, top up the level.
Contact a PEUGEOT dealer as soon as possible.
Puncture warning light This symbol comes on accompanied by an audible signal and the mes- sage 'Punctured tyre(s) detected' on the multi-function display.
It is linked to the STOPwarning light. Stop immediately.
Change the damaged wheel.
Have it repaired by a PEUGEOT dealer.

10-02-2003
INSTRUMENTS AND CONTROLS
32
STOP warning light This comes on after the engine oil pressure, coolant temperature orpuncture warning lights, to which it is linked.
Stop immediately. Contact a PEUGEOT dealer.
Brake fluid level and brake force distribution fault warning light This is linked to the light on the instrument panel.Display of this warning light accompaned by an audible signal and the message 'Brake fluid low'indicates an
excessive drop in the brake fluid level.
Display of this warning light, accompanied by an audible signal and the message 'Braking system faulty' on the multi-func-
tion display indicates a malfunction of the brake force distribution system.Stop immediately in both cases. Contact a PEUGEOT dealer.
Dynamic stability control (ESP/ASR) warning light Display of this warning light, accompanied by an audible signal and the message 'ESP/ASR system faulty'on the
multi-function display indicates a system malfunction.
Contact a PEUGEOT dealer.
Handbrake warning light Display of this warning light, accompanied by an audible signal (vehicle moving) and the message 'Handbrake on'
on the multi-function display, indicates that the handbrake is applied or has not been released correctly. Battery charge warning light This comes on each time the ignition key is in the accessories position (1st notch).Display of this warning light when the engine is running is accompanied by an audible signal and the message 'Bat-
tery charge fault' on the multi-function display.
This can indicate:Ð faulty operation of the charging circuit,
Ð loose battery or starter terminals,Ð a cut or slack alternator belt,Ð an alternator fault.
Contact a PEUGEOT dealer.

10-02-2003
INSTRUMENTS AND CONTROLS33
Tyre under-inflation warning light Display of this warning light is acompanied by an audible signal and the message 'Tyre(s) pressure low'on the
multi-function display.Have the tyre pressure checked as soon as possible.
Low coolant level warning light (except 2 litre 16V and 2.2 litre 16V petrol engines) Display of this warning light is accompanied by an audible signal and the message 'Cooling circuit level low'on
the multi-function display .
Stop immediately.
Warning: wait for the engine to cool before topping up.
The cooling system is pressurised.In the event of breakdown and to prevent the risk of scalding, unscrew the cap by two turns to allow the pressure to drop. When the pressure has dropped, remove the cap and top up the level.
Contact a PEUGEOT dealer.
Seat belt not fastened warning light Display of this warning light is accompanied by an audible signal and the message 'Seat belt not fastened' on the
multi-function display.With the engine running, the warning light comes on when the driver's seat belt is unfastened. Electronic immobiliser warning light Display of this warning light is accompanied by an audible signal and the message 'Electronic theft protection
faulty' on the multi-function display.
It indicates a malfunction of the electronic immobiliser system.
Contact a PEUGEOT dealer.

10-02-2003
INSTRUMENTS AND CONTROLS
34
Water in diesel filter warning light (according to country) Display of this warning light is accompanied by an audible signal and the message 'Water in diesel filter'on the
multi-function display.There is a risk of damage to the injection system.
Contact a PEUGEOT dealer as soon as possible.Front brake pad wear warning lightDisplay of this warning light is accompanied by an audible signal and the message 'Brake pads worn'on the multi-
function display.
For your safety, have the pads replaced by a PEUGEOT dealer as soon as the warning light comes on.Low fuel level warning lightDisplay of this warning light is accompanied by an audible signal and the message 'Fuel level low'on the multi-
function display.
When the warning light comes on, you have enough fuel to drive approximately 30 miles (50 km). The tank capac- ity is approximately 80 litres. Fuel cap warning lightDisplay of this warning light is accompanied by an audible signal and the message 'Fuel cap open'on the multi-
function display.It comes on if the fuel tank cap is not correctly screwed on or is missing. Door/bonnet/boot open warning light Display of this warning light with the engine running is accompanied by an audible signal and an illustration on the
multi-function display, showing which opening has not been correctly closed. Air bag warning light Display of this warning light is accompanied by an audible signal and the message 'Air bag faulty'on the multi-
function display.
Contact your PEUGEOT dealer.
