PEUGEOT 607 2003 Owners Manual

TECHNICAL DATA
168
Engines Gearbox Model codes:
¥ Kerb weight
¥ Gross vehicle weight (GVW)
¥ Gross train weight (GTW)*
¥ Braked trailer weight (within GTW limit)
¥ Recommended nose weight 2 litre 2.2 litre 2.2 litre 24V 24V
16V 16V 16V V6 injection V6 injection
Manual Manual Auto. Manual Auto.
9DRFNB 9D3FZB 9D3FZE 9DXFXB 9DXFXE 1436 1 455 1 475 1 560 1 580Ð 2 035 2 055 2 140 2 160
3 635 (1) - 3 835 (2) 3 555 (1) - 3 855 (2) 3 940 (1) - 3 940 (2) 3 660 (1) - 3 960 (2)
ÐÐÐÐÐÐÐÐÐÐ
Engines Gearbox Model codes:
¥ Kerb weight
¥ Gross vehicle weight (GVW)
¥ Gross train weight (GTW)*
¥ Braked trailer weight (within GTW limit)
¥ Recommended nose weight 2 litre 2.2 litre 2.2 litre
HDI 16V HDI 16V HDI
Manual Manual Auto.
9DRHZB/HSB9D4HXB 9D4HXE
1490 1 535 1 550 Ð 2 115 2 130
Ð 3 715 (1) - 3 865 (2) 3 330 (1) - 3 630 (2)
ÐÐ Ð
* The speed of a towing vehicle is limited to 60 mph (100 km/h). (1) 12 % gradient. (2) 8 % gradient. Note: When the external temperature is higher than 45¡C, restrict the gross train weight. For vehicles with a 2.2 litre 16V
HDI engine with automatic gearbox, towing is not possible

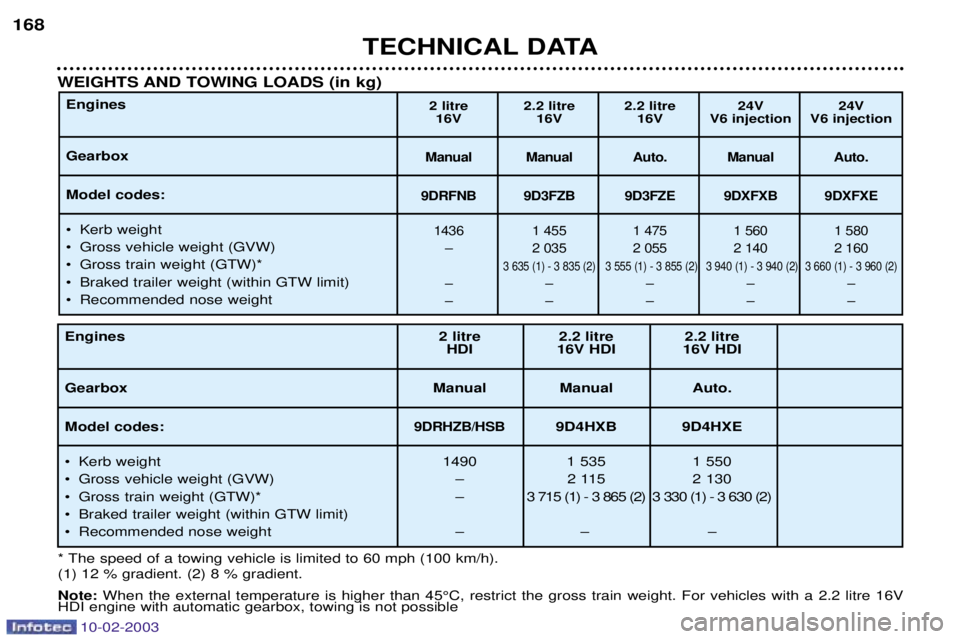

WEIGHTS AND TOWING LOADS (in kg)
10-02-2003

TECHNICAL DATA169
DIMENSIONS (in mm)
10-02-2003

TECHNICAL DATA
170

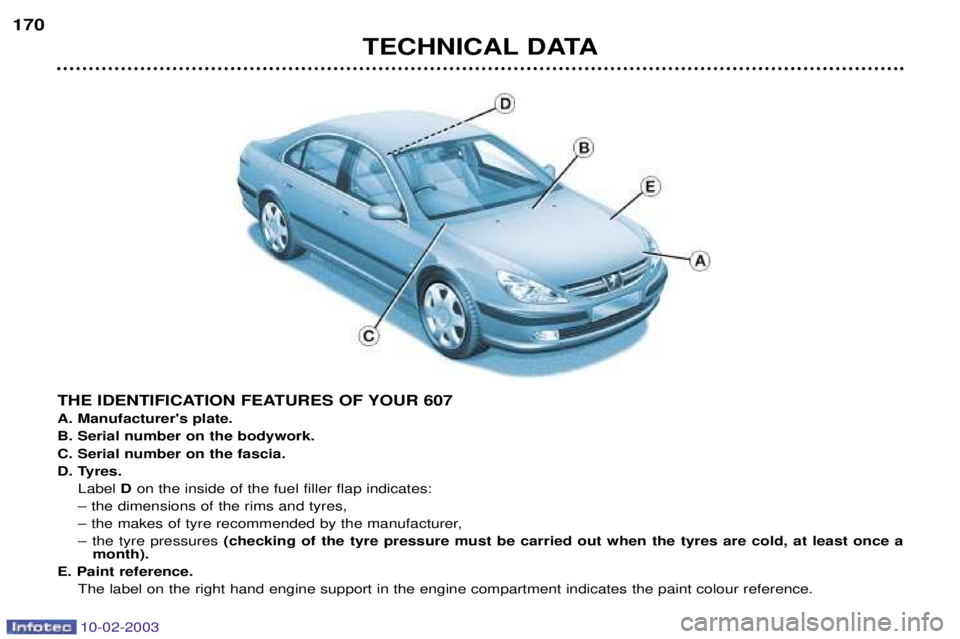

THE IDENTIFICATION FEATURES OF YOUR 607 A. Manufacturer's plate.B. Serial number on the bodywork.C. Serial number on the fascia.
D. Tyres.Label Don the inside of the fuel filler flap indicates:
Ð the dimensions of the rims and tyres,
Ð the makes of tyre recommended by the manufacturer,Ð the tyre pressures (checking of the tyre pressure must be carried out when the tyres are cold, at least once a
month).
E. Paint reference. The label on the right hand engine support in the engine compartment indicates the paint colour reference.
10-02-2003
