YOUR AT A GLANCE2
Page 2 of 171
3YOUR AT A GLANCE
1-Lights and direction indica- tors stalk.
2- Steering wheel adjustment.
3- Driver's front air bag.
- Horn.
4- Instrument dials.
5- Windscreen wash/wipestalk.
- Trip computer stalk.
6- Audio remote control stalk.
7- Hazard warning lightsswitch.
8- Central adjustableheating/ventilation vents andair flow regulation.
9- Sunshine / brightness
sensor.
10 - Windscreen demisting vents.
11 - Passenger air bag.
12 - Glove compartment.
13 - Side adjustableheating/ventilation vents andair flow regulation. 14 -
Door window demisting vent.
15 - Passenger airbag disarming switch.
16 - Front seats heating switch.
17 - Rear ashtray.
- Rear lighter.
- Rear seats heating switch.
18 - Rear footwell heating vent.
19 - Two-position armrest withcompartments.
20 - Handbrake.
21 - Electronically controlledsuspension switch.
- Doors and boot lockingswitch.
- Sunroof switch.
- Rear blind switch.
22 - Front ashtray.
- Front lighter.
23 - Gear lever.
24 - RM2 audio system or RT2audio/telephone system with
PEUGEOT call button. 25 -
Heating/ventilation controls.
26 - Multi-function display.
27 - Steering lock and ignition.
28 - Fuse box.
29 - Speakers location.
30 - Electric mirror controls.
- Window controls.
- Rear window locking control.
31 - Headlamp height adjust- ment.
32 - ESP disarming switch.
33 - Alarm button.
34 - Cruise control.
35 - Memory buttons for:
- Front seat settings
- Electric mirror settings
15-07-2002
Page 3 of 171
15-07-2002
YOUR AT A GLANCE4
THE REMOTE CONTROL KEY
From the driver's door, the key allows you to lock or unlock thedoors, the boot and the fuel fillerflap, as well as to fold back oropen out the exterior mirrors .
The remote control in the keyperforms the same function at adistance. Locking with the remote control Press button A.
This is confirmed by fixed lighting of the direction indicators forapproximately two seconds. Unlocking with the remote control key Press button B.
This is confirmed by rapid flash- ing of the direction indicators. With the vehicle unlocked, theboot is opened using the pushbutton located on the right rearside, in the 'zero' of the 607badge. Opening the boot with the remote control key
Keep button Cpressed.
Key in ignition If you leave the key in the ignition, this is indicated by abuzzer upon opening the driv-
er's door. Locating the vehicle
To locate your vehicle in a car park, press button A; the cour-
tesy lights come on and thedirection indicators flash forapproximately twenty seconds. Driving position memorised by the remote control key When locking the doors, the remote control key memorisesthe position of the driver's seatand the driving mirrors.Each remote control key mem-orises a specific setting. When unlocking the doors, the driver's seat and the driving mir-rors assume the position memo-
rised by the remote control key, ifthis position has been changed inthe meantime. Note:
do not press the buttons of
your remote control key out ofrange of your vehicle as there isa risk that you could render itinoperative. It would then be nec-essary to reprogramme it. Deadlocking This renders the internal and external door locking controlsinoperative and permits the auto-matic closing of the windows andthe sunroof. With the key: lock the vehicle and keep the key in the locked position forapproximately one second.
With the remote control: press button Ato lock the
vehicle (the direction indicator lights remain on for approxi-mately two seconds),
within five seconds, press but-ton Aagain to deadlock the
vehicle (the direction indicatorlights remain on for approxi-mately two seconds).
102
Page 4 of 171
YOUR AT A GLANCE5
STARTING
STOP position:
The ignition is switched off.
1st notch, Accessories position:The ignition is switched off butthe accessories still function. 2nd notch, Running position: The ignition is on. Starting position:
Operates the starter. Starting a diesel engine If the temperature is highenough, the pre-heat indi- cator light does not comeon and you can start
immediately.
If the indicator light comes on,wait for it to go out before operat-
ing the starter. If the engine stalls, it is neces- sary to return the key to the'Stop' position before re-starting. CHECK
(vehicle autotest)
Automatic check
With the ignition on (2nd notch)
If no malfunction has been detected: In the absence of
vehicle function status indi-cator lights, the OK light is
displayed after two seconds
on the instrument panel screen.Otherwise, it will be displayed afterthese indicator lights come on.
If a 'minor' malfunction has beendetected: the warning light for the
faulty function is displayed on theinstrument panel screen. Certainindicator lights showing the status ofvehicle functions may also come on,followed by the OKindicator light.
If a 'major' malfunction has beendetected: the corresponding warn-
ing light is displayed on the instru-ment panel screen. Certain indicatorlights showing the status of vehicle
functions may also come on. TheOK indicator light does not come
on. Do not start your vehicle.
Contact a PEUGEOT dealer. Afterwards, if the passenger airbag is disarmed, the correspondingwarning light will come on.
With the engine running or if the vehicle is moving, the instrument
panel screen temporarily displays:
Ð lights indicating warnings, when
these occur,
Ð vehicle function sta- tus indicator lights, when a changeoccurs.
The display of certain indicatorlights is accompanied by an audi-ble signal and a message on the
multi-function display. Manual check Press the "CHECK" button on the
instrument panel.
With the ignition key in the accessories position, with the ignition switched on,with the engine running or the vehiclemoving, this function informs you at alltimes of the following:
Ð any current warnings,
Ð the status of functions which it is possible to switch on or switch off (windscreen wipers, automaticswitching on of lights, cruise con-trol, disarming of passenger airbag, etc.).
The corresponding warning lights aredisplayed in succession on the instru-ment panel screen. If a warning or a change of status occurs during the CHECKmode, the
corresponding indicator light(s) will bedisplayed at the end of this mode.
31
Never run the engine in a confined space.
Do not make any modi-fications to the steeringlock.
15-07-2002
Page 5 of 171
15-07-2002
YOUR AT A GLANCE6
STEERING WHEEL
STALKS LIGHTS
Front and rear lights (ring A)
Lights off. Side lights.
Dipped / main beam headlamps. Front and rear fog lamps(ring B)
Front fog lamps. Neutral position of the ring. Rear fog lamps.
Parking lights
To switch on the parking lights on
the traffic side, with the engine
off, place the direction indicator
lights stalk on the traffic side.
Automatic switching on of lights
This occurs if the light is poor, as well as in cases of continuous operation of the windscreen wipers, and stops as soon as the light has becomebright enough or the windscreen wipers have stopped. To activate or disarm the function, place the key in the accessories position (1st notch), place the lights stalk in position 0and press the
end of the stalk for more than two seconds.
Do not cover the sunshine / brightness sensor located in the centre of the fascia. It helps to regulate the air condi-tioning, the automatic switching on of the lights and theautomatic adjustment of the instrument panel bright-ness. Windsreen wipers 3
Rapid wipe
2 Normal wipe
1 Automatic wipe
0 Off
Automatic wipe In position 1, the wipers operate
automatically and adjust their speed to the intensity of the rain-fall. When the ignition has been switched off for more than oneminute with the control in awipe position, it is necessaryto reactivate this function.
To do this, move the control to any position, then return to therequired position.
109111
Page 6 of 171
15-07-2002
YOUR AT A GLANCE8

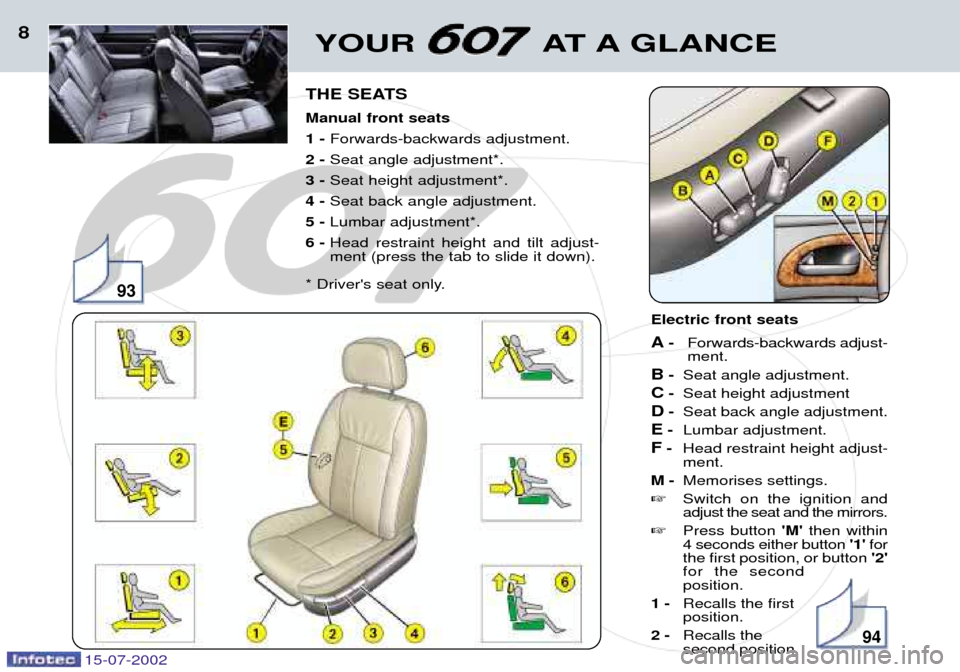

THE SEATS Manual front seats 1 - Forwards-backwards adjustment.
2 - Seat angle adjustment*.
3 - Seat height adjustment*.
4 - Seat back angle adjustment.
5 - Lumbar adjustment*.
6 - Head restraint height and tilt adjust- ment (press the tab to slide it down).
* Driver's seat only.
Electric front seats A- Forwards-backwards adjust- ment.
B - Seat angle adjustment.
C - Seat height adjustment
D - Seat back angle adjustment.
E - Lumbar adjustment.
F - Head restraint height adjust-ment.
M - Memorises settings.
Switch on the ignition andadjust the seat and the mirrors.
Press button 'M'then within
4 seconds either button '1'for
the first position, or button '2'
for the secondposition.
1 - Recalls the firstposition.
2 - Recalls thesecond position.
94
93
Page 7 of 171
CRUISE CONTROL Cruise control enables the vehi- cle to maintain a steady speed
programmed by the driver, with-out the accelerator beingpressed. In order for it to be memorised, the speed of the vehicle must begreater than 25mph (40km/h) or40mph (60km/h) depending onengine. OperationPlace the ring of stalk A in the ONposition.
The indicator lightcomes on, accompa-nied by an audiblesignal. FRONT AIR BAGS Disarming the passenger air bag*
with the ignition off, insert thekey into slot
1and turn it:
Ð to the 'ON'position, the pas-
senger air bag is armed,
Ð to the 'OFF'position, the pas-
senger air bag is disarmed.
Operating check When the passenger airbag is disarmed, thewarning light comes onwhen the ignition isswitched on (2nd notch),
accompanied by an audible sig-nal and the message 'Passenger
air bag disarmed' . Front air bag faulty
If this warning lightcomes on, accompaniedby an audible signal andthe message 'Air bag
faulty' , contact a
PEUGEOT dealer to have thesystem checked. Passenger air bag precautions
Disarm theair bag ifyou installa rear-facing childseat.
Arm the airbag for anadult pas-
senger.
Never place your feet or anyobject on the fascia.
* According to country
YOUR AT A GLANCE11
128130
15-07-2002
Page 8 of 171
YOUR AT A GLANCE7

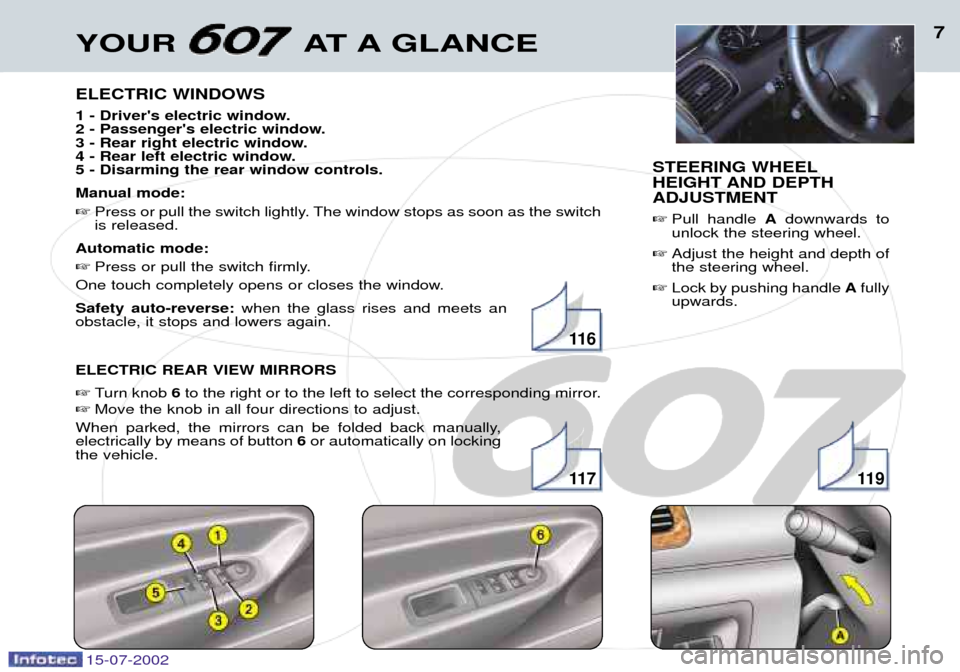

ELECTRIC WINDOWS
1 - Driver's electric window.
2 - Passenger's electric window.
3 - Rear right electric window.
4 - Rear left electric window.5 - Disarming the rear window controls. Manual mode: Press or pull the switch lightly. The window stops as soon as the switch is released.
Automatic mode: Press or pull the switch firmly.
One touch completely opens or closes the window. Safety auto-reverse: when the glass rises and meets an
obstacle, it stops and lowers again. ELECTRIC REAR VIEW MIRRORS Turn knob 6to the right or to the left to select the corresponding mirror.
Move the knob in all four directions to adjust.
When parked, the mirrors can be folded back manually, electrically by means of button 6or automatically on locking
the vehicle. STEERING WHEEL
HEIGHT AND DEPTHADJUSTMENT
Pull handle Adownwards to
unlock the steering wheel.
Adjust the height and depth of the steering wheel.
Lock by pushing handle Afully
upwards.
11 6
11 711 9
15-07-2002
Page 9 of 171
15-07-2002
14
FUEL FILLER FLAP Opening / Closing: Locking and unlocking of the fuel filler flap, the doors and boot is simultane-ous (except when selective unlockingis initialised; in this case press theunlocking button of the remote controlonce). FILLING WITH FUEL This must be carried out with the engine and the ignition switched off.
A hook is provided inside the fuel filler flap to hold the filler cap.
A label affixed to the inside of the fuel filler flap informs you which fuels are authorised or prohibited. The tank capacity is approximately 80 litres.When the minimum level of the tank is reached, this light comes on, accompanied by an audible signal and the message 'Fuel
level low' on the multi-function display.
You have enough fuel to drive approximately30 miles (50 km).
OPENING THE BONNET From inside:
pull the handle downwards.
From outside: lift the catch and raise the bonnet.
YOUR AT A GLANCE
108108
Page 10 of 171
YOUR AT A GLANCE9
REAR PARKING
ASSISTANCE
This system, installed in the rear
bumper, detects any obstacle (per-son, vehicle, tree, gate, kerb...)located behind the vehicle.
To activate With the engine running, the sys- tem is activated as soon asreverse gear is engaged; a bleepsounds to inform you that it isactive. The proximity information is given by an audible signal, con-sisting of bleeps which becomemore and more rapid as the vehi-cle approaches the obstacle. When the distance between the rear of the vehicle and the obsta-cle is less than approximatelytwenty-five centimetres, the signal becomes con-tinuous. The system ceas- es to be activewhen you changeto neutral. TYRE UNDER-INFLATION DETECTION Sensors check the tyre pressure during driving, and trigger a warn-ing if there is a malfunction (speedgreater than 15 mph (25 km/h).
Tyre under-inflation
When this warning light comes on, accompaniedby a bleep and the mes-sage 'Tyre(s) pressure
low', have the tyre pressure
checked as soon as possible. Puncture
Display of this warning light, accompanied by anaudible signal and themessage 'Punctured
tyre(s) detected', is fol-
lowed by illumination of the
STOP warning light.
Stop immediately, avoiding allabrupt manoeuvres with thesteering wheel and the brakes. Change the damaged (punctured or very under-inflated) wheel andhave the tyre pressure checkedas soon as possible. Note: if the damaged wheel is
stored temporarily in the boot, it will again send this message as areminder of the necessity of hav-
ing it repaired. This will prevent asimilar warning being displayed. Sensor(s) not detected
Display of this warninglight, accompanied by anaudible signal and themessage 'X tyre pres-
sure sensor(s) missing', indi-
cates that one or more wheelsare not being detected.
Contact a PEUGEOT dealer to replace the faulty sensor(s).
Warning: this message is dis-
played when one of the wheels is at a distance from the vehicle(being repaired) or when a wheelwithout a sensor is fitted (winterfitting). This system does not eliminate the need to check the tyre
pressure regularly.
129140
