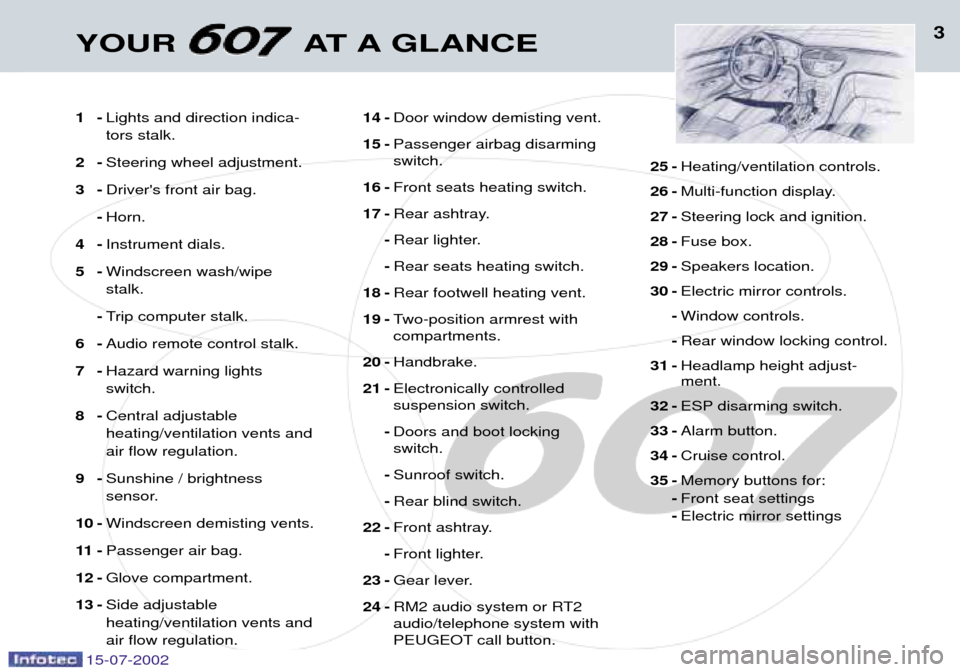

3YOUR AT A GLANCE
1-Lights and direction indica- tors stalk.
2- Steering wheel adjustment.
3- Driver's front air bag.
- Horn.
4- Instrument dials.
5- Windscreen wash/wipestalk.
- Trip computer stalk.
6- Audio remote control stalk.
7- Hazard warning lightsswitch.
8- Central adjustableheating/ventilation vents andair flow regulation.
9- Sunshine / brightness
sensor.
10 - Windscreen demisting vents.
11 - Passenger air bag.
12 - Glove compartment.
13 - Side adjustableheating/ventilation vents andair flow regulation. 14 -
Door window demisting vent.
15 - Passenger airbag disarming switch.
16 - Front seats heating switch.
17 - Rear ashtray.
- Rear lighter.
- Rear seats heating switch.
18 - Rear footwell heating vent.
19 - Two-position armrest withcompartments.
20 - Handbrake.
21 - Electronically controlledsuspension switch.
- Doors and boot lockingswitch.
- Sunroof switch.
- Rear blind switch.
22 - Front ashtray.
- Front lighter.
23 - Gear lever.
24 - RM2 audio system or RT2audio/telephone system with
PEUGEOT call button. 25 -
Heating/ventilation controls.
26 - Multi-function display.
27 - Steering lock and ignition.
28 - Fuse box.
29 - Speakers location.
30 - Electric mirror controls.
- Window controls.
- Rear window locking control.
31 - Headlamp height adjust- ment.
32 - ESP disarming switch.
33 - Alarm button.
34 - Cruise control.
35 - Memory buttons for:
- Front seat settings
- Electric mirror settings
15-07-2002

YOUR AT A GLANCE9

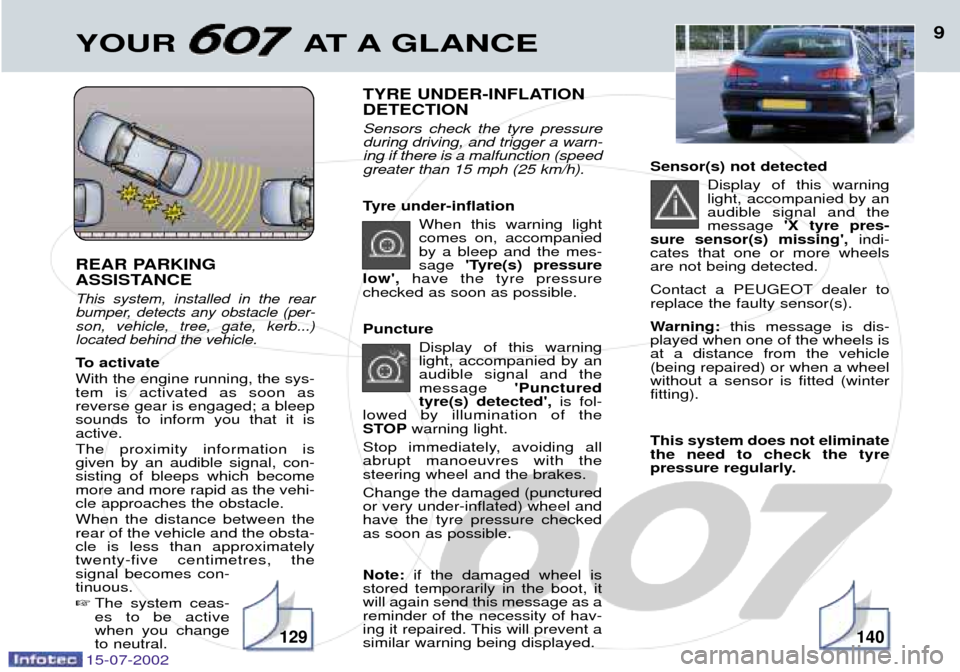

REAR PARKING
ASSISTANCE
This system, installed in the rear
bumper, detects any obstacle (per-son, vehicle, tree, gate, kerb...)located behind the vehicle.
To activate With the engine running, the sys- tem is activated as soon asreverse gear is engaged; a bleepsounds to inform you that it isactive. The proximity information is given by an audible signal, con-sisting of bleeps which becomemore and more rapid as the vehi-cle approaches the obstacle. When the distance between the rear of the vehicle and the obsta-cle is less than approximatelytwenty-five centimetres, the signal becomes con-tinuous.  The system ceas- es to be activewhen you changeto neutral. TYRE UNDER-INFLATION DETECTION Sensors check the tyre pressure during driving, and trigger a warn-ing if there is a malfunction (speedgreater than 15 mph (25 km/h).
Tyre under-inflation
When this warning light comes on, accompaniedby a bleep and the mes-sage 'Tyre(s) pressure
low', have the tyre pressure
checked as soon as possible. Puncture
Display of this warning light, accompanied by anaudible signal and themessage 'Punctured
tyre(s) detected', is fol-
lowed by illumination of the
STOP warning light.
Stop immediately, avoiding allabrupt manoeuvres with thesteering wheel and the brakes. Change the damaged (punctured or very under-inflated) wheel andhave the tyre pressure checkedas soon as possible. Note: if the damaged wheel is
stored temporarily in the boot, it will again send this message as areminder of the necessity of hav-
ing it repaired. This will prevent asimilar warning being displayed. Sensor(s) not detected
Display of this warninglight, accompanied by anaudible signal and themessage 'X tyre pres-
sure sensor(s) missing', indi-
cates that one or more wheelsare not being detected.
Contact a PEUGEOT dealer to replace the faulty sensor(s).
Warning: this message is dis-
played when one of the wheels is at a distance from the vehicle(being repaired) or when a wheelwithout a sensor is fitted (winterfitting). This system does not eliminate the need to check the tyre
pressure regularly.
129140
15-07-2002

15-07-2002
YOUR AT A GLANCE10

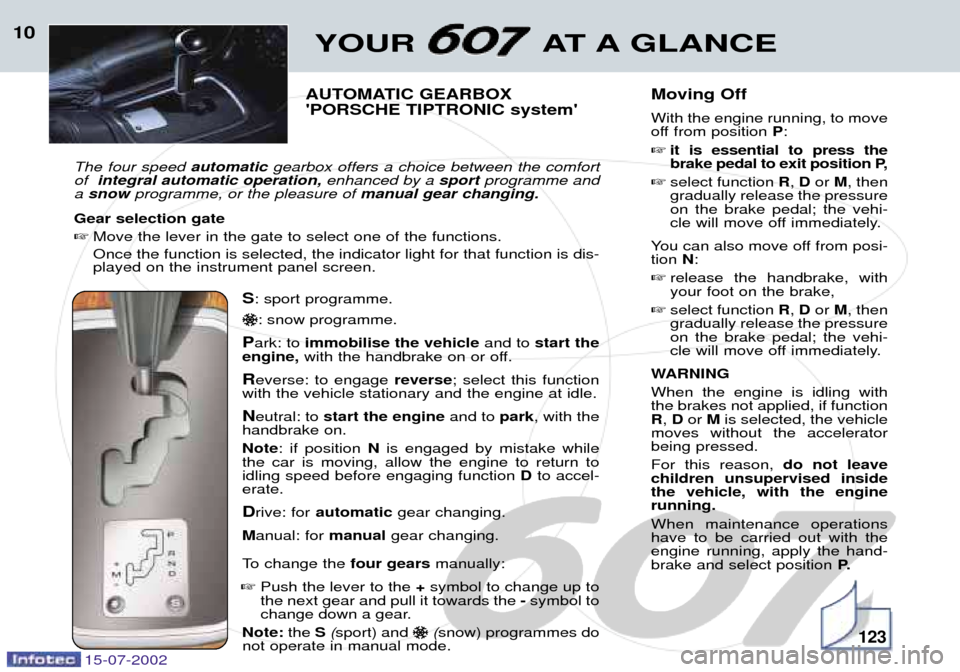

AUTOMATIC GEARBOX 'PORSCHE TIPTRONIC system'
The four speed automaticgearbox offers a choice between the comfort
of integral automatic operation, enhanced by a sport programme and
a snow programme, or the pleasure of manual gear changing.
Gear selection gate  Move the lever in the gate to select one of the functions.Once the function is selected, the indicator light for that function is dis- played on the instrument panel screen.
S: sport programme.
: snow programme.
P ark: to immobilise the vehicle and to start the
engine, with the handbrake on or off.
R everse: to engage reverse; select this function
with the vehicle stationary and the engine at idle. N eutral: to start the engine and to park, with the
handbrake on. Note : if position Nis engaged by mistake while
the car is moving, allow the engine to return to idling speed before engaging function Dto accel-
erate. D rive: for automatic gear changing.
M anual: for manualgear changing.
To change the four gears manually:
 Push the lever to the +symbol to change up to
the next gear and pull it towards the -symbol to
change down a gear.
Note: the S (sport) and
(
snow) programmes do
not operate in manual mode.
Moving Off With the engine running, to move
off from position P:
 it is essential to press the
brake pedal to exit position P,
 select function R, D or M, then
gradually release the pressureon the brake pedal; the vehi-
cle will move off immediately.
You can also move off from posi-tion N:
 release the handbrake, withyour foot on the brake,
 select function R, D or M, then
gradually release the pressureon the brake pedal; the vehi-
cle will move off immediately.
WARNING When the engine is idling with the brakes not applied, if functionR , D or M is selected, the vehicle
moves without the acceleratorbeing pressed. For this reason, do not leave
children unsupervised inside the vehicle, with the enginerunning. When maintenance operations have to be carried out with theengine running, apply the hand-brake and select position P.
123

15-07-2002
PEUGEOT SERVICING25

All driving conditions oArduous conditions * According to destination
A AND C SERVICE LEVELS AND THE INTERMEDIATE VISIT
Level
Operations Description of operations1st serviceACIntermediate visit
DRAIN AND REFILL- Engine oil.- Bleed fuel filter (diesel only).- Oil filter.- Fuel filter* (petrol).REPLACE- Fuel filter (diesel).- Air filter element.- Spark plugs (petrol).- Engine oil (check + top up).- Manual gearbox oil (check + top up).- Battery (check + top up) if cap is removable.LEVELS- Screen wash (check + top-up)- Coolant (check + top up).- Brake fluid (check + top up).- Power steering fluid (check + top up, according to specification).- Operation of lights and indicators.- Condition of glass, headlamp and light lenses and mirrors.- Horn.- Windscreen washer jets.- Condition of wiper blades.- Condition and tension of the ancillary drive belts.- Handbrake.- Condition of hydraulic circuits (hoses and covers) and check for leaks.CHECK- Condition of rubber boots and gaiters.- Brake pad wear. - Play in hubs, link rods, ball joints, flexible mountings.- Shock absorbers for leaks.- Rear drum brake lining wear.- Condition and pressure of tyres (including spare wheel).- Emission control check according to current legislation (petrol).- Smoke opacity (diesel).- Pollen filter (according to specification). - Visual check of the whole vehicle by a Peugeot technician.
SERVICE- Courtesy vehicle
ROAD TEST
