start stop button Peugeot 607 Dag 2002.5 Owner's Manual

YOUR AT A GLANCE5
STARTING
STOP position:
The ignition is switched off.
1st notch, Accessories position:The ignition is switched off butthe accessories still function. 2nd notch, Running position: The ignition is on. Starting position:
Operates the starter. Starting a diesel engine If the temperature is highenough, the pre-heat indi- cator light does not comeon and you can start
immediately.
If the indicator light comes on,wait for it to go out before operat-
ing the starter. If the engine stalls, it is neces- sary to return the key to the'Stop' position before re-starting. CHECK
(vehicle autotest)
Automatic check
With the ignition on (2nd notch)
If no malfunction has been detected: In the absence of
vehicle function status indi-cator lights, the OK light is
displayed after two seconds
on the instrument panel screen.Otherwise, it will be displayed afterthese indicator lights come on.
If a 'minor' malfunction has beendetected: the warning light for the
faulty function is displayed on theinstrument panel screen. Certainindicator lights showing the status ofvehicle functions may also come on,followed by the OKindicator light.
If a 'major' malfunction has beendetected: the corresponding warn-
ing light is displayed on the instru-ment panel screen. Certain indicatorlights showing the status of vehicle
functions may also come on. TheOK indicator light does not come
on. Do not start your vehicle.
Contact a PEUGEOT dealer. Afterwards, if the passenger airbag is disarmed, the correspondingwarning light will come on.
With the engine running or if the vehicle is moving, the instrument
panel screen temporarily displays:
Ð lights indicating warnings, when
these occur,
Ð vehicle function sta- tus indicator lights, when a changeoccurs.
The display of certain indicatorlights is accompanied by an audi-ble signal and a message on the
multi-function display. Manual check  Press the "CHECK" button on the
instrument panel.
With the ignition key in the accessories position, with the ignition switched on,with the engine running or the vehiclemoving, this function informs you at alltimes of the following:
Ð any current warnings,
Ð the status of functions which it is possible to switch on or switch off (windscreen wipers, automaticswitching on of lights, cruise con-trol, disarming of passenger airbag, etc.).
The corresponding warning lights aredisplayed in succession on the instru-ment panel screen. If a warning or a change of status occurs during the CHECKmode, the
corresponding indicator light(s) will bedisplayed at the end of this mode.
31
Never run the engine in a confined space.
Do not make any modi-fications to the steeringlock.
15-07-2002

15-07-2002
CD CHANGER: Audio RM2 and RT2 Selecting CD changer mode. Press buttonD.
Selecting a discPress one of the buttons '1' to '6' to select the corresponding disc.
RT2
RM2
Selecting a track Press button Mto select the next track.
Press button Lto return to the start of the current track or to select the previous track.
Accelerated playPress and hold button Mor Lfor forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released. Shuffle (RDM) When the CD changer is selected, press and hold button D for 2 seconds. The tracks will be played in ran-
dom sequence (pressing button Dfor longer allows other discs to be played in random sequence). Pressing
button D again returns you to normal play.
YOUR 607 IN DETAIL
60

15-07-2002
5 - Visibility programme
In certain cases, the comfort programmemay prove inadequateto demist or de-ice the
windows (humidity,
many passengers, ice).
 In this situation, select the visibili-ty programme for rapid clearing ofthe windows.
It manages the air conditioning and
the air flow and intake and distrib-utes the ventilation towards the wind-screen and the side windows. The symbols 'A/C', 'AUTO' and air
flow (fan) are displayed. Note: for your comfort, between two
starting operations the settings are retained if the temperature of thepassenger compartment has not var-ied a great deal. If it has, automaticmode is used. Manual adjustment
You may, if you wish, make a differ-
ent selection from the one offered bythe system, by manually modifying asetting.
 Pressing the 'AUTO'driver or
passenger button enables you to return to the corresponding auto-matic operation.
6 - Adjustment ofthe driver's airdistribution
7 - Adjustment of the passenger'sair distribution
 Pressing the dri-ver's or passen-ger's button severaltimes in succession
allows you to position the air flow onthe driver's or passenger's side,towards:
Ð the windscreen and the feet,
Ð the feet,
Ð the centre vent, the side ventand the feet,
Ð the centre vent and the side vent,
Ð the windscreen. Note:
when programme 5(following
page) is being used, button 7does
not operate; it causes temporary flashing of the button 5indicator
light.
8 - Air conditioning (A/C) on/off
 Press this button once to stop the airconditioning.
The symbol 'A/C'goes out.
 Press this button again to return toautomatic air conditioning.
The symbol 'A/C' comes on.
YOUR 607 IN DETAIL 91

15-07-2002
YOUR 607 IN DETAIL95
Memorising using the buttons
To memorise:
 Place the ignition key in the 'run- ning' position (2nd notch),
 Adjust your seat and mirrors,
 Press button M,then button 1
(first driving position) or button 2
(second driving position) withinfour seconds.
An audible signal confirms that aposition has been memorised. Memorising a new position cancels the previous one. Recalling a memorised position Engine off  Briefly press button 1 or 2to recall
the corresponding memorised
position. The end of the setting isindicated by a bleep.
Note: after recalling a memorised
position five times in succession, thefunction will be cancelled until theengine is started. Engine running
 Keep button 1 or 2pressed down
until the bleep indicates the end of setting of the corresponding mem-orised position.
Memorising seat and mirror positions Four driving positions can be memo- rised:
Ð two, using two remote control
keys (two users) ,
Ð two, using buttons M/1 and M/2.
Driving positions memorised bythe remote control key When locking the doors, the remote control key memorises the positionof the driver's seat and the exteriormirrors. When unlocking the doors, the dri- ver's seat and the exterior mirrorsresume the position memorised bythe remote control key if this haschanged in the meantime. Each remote control key can memorise a specific setting. Front and rear heated seats controls
 Press the switch. The tempera-
ture is regulated automatically.
 Press it again to stop operation.
Note: the command to activate heat-
ing of the seat(s) remains in thememory for two minutes after the
ignition is switched off.

15-07-2002
YOUR 607 IN DETAIL95
Memorising using the buttons
To memorise:
 Place the ignition key in the 'run- ning' position (2nd notch),
 Adjust your seat and mirrors,
 Press button M,then button 1
(first driving position) or button 2
(second driving position) withinfour seconds.
An audible signal confirms that aposition has been memorised. Memorising a new position cancels the previous one. Recalling a memorised position Engine off  Briefly press button 1 or 2to recall
the corresponding memorised
position. The end of the setting isindicated by a bleep.
Note: after recalling a memorised
position five times in succession, thefunction will be cancelled until theengine is started. Engine running
 Keep button 1 or 2pressed down
until the bleep indicates the end of setting of the corresponding mem-orised position.
Memorising seat and mirror positions Four driving positions can be memo- rised:
Ð two, using two remote control
keys (two users) ,
Ð two, using buttons M/1 and M/2.
Driving positions memorised bythe remote control key When locking the doors, the remote control key memorises the positionof the driver's seat and the exteriormirrors. When unlocking the doors, the dri- ver's seat and the exterior mirrorsresume the position memorised bythe remote control key if this haschanged in the meantime. Each remote control key can memorise a specific setting. Front and rear heated seats controls
 Press the switch. The tempera-
ture is regulated automatically.
 Press it again to stop operation.
Note: the command to activate heat-
ing of the seat(s) remains in thememory for two minutes after the
ignition is switched off.

15-07-2002

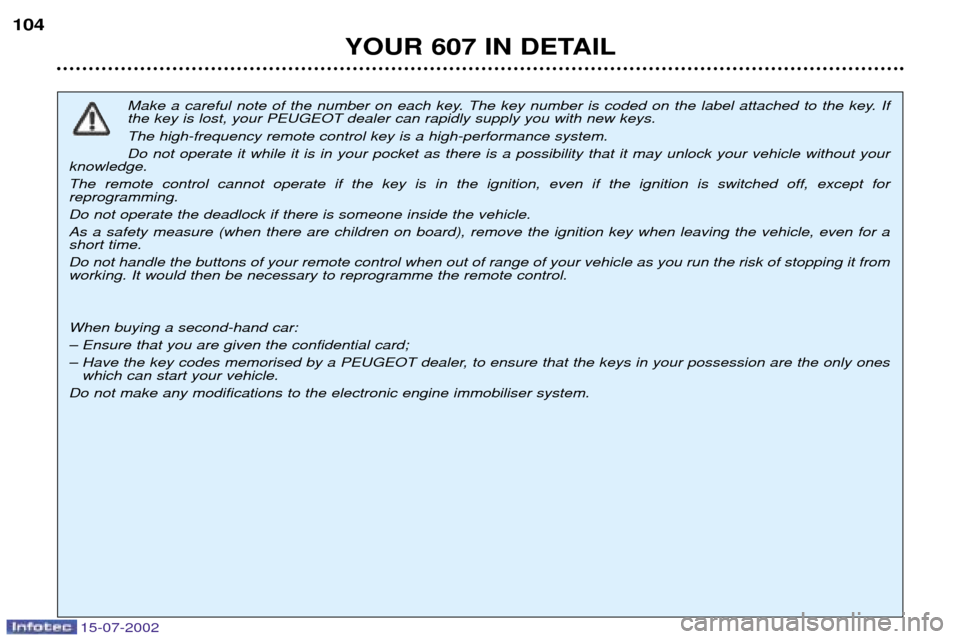

Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the key is lost, your PEUGEOT dealer can rapidly supply you with new keys. The high-frequency remote control key is a high-performance system.Do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle without your
knowledge.The remote control cannot operate if the key is in the ignition, even if the ignition is switched off, except for reprogramming. Do not operate the deadlock if there is someone inside the vehicle.As a safety measure (when there are children on board), remove the ignition key when leaving the vehicle, even for a short time. Do not handle the buttons of your remote control when out of range of your vehicle as you run the risk of stopping it from working. It would then be necessary to reprogramme the remote control. When buying a second-hand car: Ð Ensure that you are given the confidential card;
Ð Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start your vehicle.
Do not make any modifications to the electronic engine immobiliser system.
YOUR 607 IN DETAIL
104

15-07-2002
Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the key is lost, your PEUGEOT dealer can rapidly supply you with new keys. The high-frequency remote control key is a high-performance system.Do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle without your
knowledge.The remote control cannot operate if the key is in the ignition, even if the ignition is switched off, except for reprogramming. Do not operate the deadlock if there is someone inside the vehicle.As a safety measure (when there are children on board), remove the ignition key when leaving the vehicle, even for a short time. Do not handle the buttons of your remote control when out of range of your vehicle as you run the risk of stopping it from working. It would then be necessary to reprogramme the remote control. When buying a second-hand car: Ð Ensure that you are given the confidential card;
Ð Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start your vehicle.
Do not make any modifications to the electronic engine immobiliser system.
YOUR 607 IN DETAIL
104
