3YOUR AT A GLANCE
1Lights and direction indica
tors stalk.
2 Steering wheel adjustment.
3 Driver's front air bag.
Horn.
4 Instrument dials.
5 Windscreen wash/wipe
stalk.
Trip computer stalk.
6 Audio remote control stalk.
7 Hazard warning lights
switch.
8 Central adjustable
heating/ventilation vents and
air flow regulation.
9 Sunshine / brightness
sensor.
10 Windscreen demisting
vents.
11 Passenger air bag.
12 Glove compartment.
13 Side adjustable heating/ven
tilation vents and air flow
regulation. 14
Door window demisting
vent.
15 Passenger air bag disarming
switch.
16 Front seats heating switch.
17 Rear ashtray.
Rear lighter.
Rear seats heating switch.
18 Rear footwell heating vent.
19 Twoposition armrest with
compartments.
20 Handbrake.
21 Electronically controlled sus
pension switch.
Doors and boot locking
switch.
Sunroof switch.
Rear blind switch.
22 Front ashtray.
Front lighter.
23 Gear lever.
24 RM2 audio system or RT2
audio/telephone system with
PEUGEOT call button. 25
Heating/ventilation controls.
26 Multifunction display.
27 Steering lock and ignition.
28 Fuse box.
29 Speakers location.
30 Electric mirror controls.
Window controls.
Rear window locking control.
31 Headlamp height adjust
ment.
32 ESP disarming switch.
33 Alarm button.
34 Cruise control.
35 Memory buttons for:
Front seat settings
Electric mirror settings

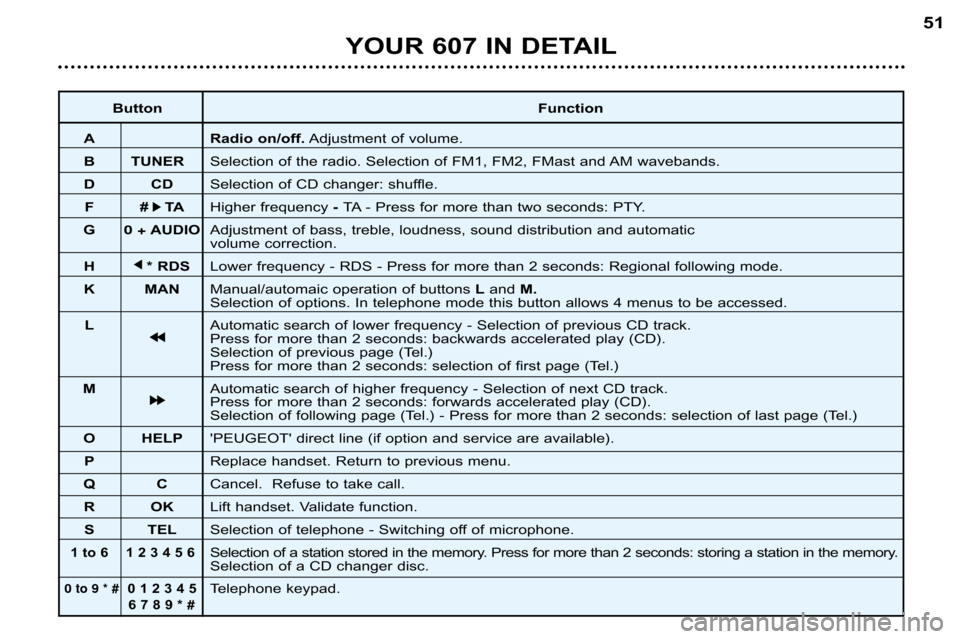

Button Function
A Radio on/off. Adjustment of volume.
B TUNER Selection of the radio. Selection of FM1, FM2, FMast and AM wa vebands.
D CD Selection of CD changer: shuffle.
F #
kkTA Higher frequency TA Press for more than two seconds: PTY.
G
0 +AUDIO Adjustment of bass, treble, loudness, sound distribution and a utomatic
volume correction.
H
jj* RDS Lower frequency RDS Press for more than 2 seconds: Regional foll owing mode.
K MAN Manual/automaic operation of buttons Land M.
Selection of options. In telephone mode this button allo ws 4 menus to be accessed.
L Automatic search of lower frequency Selection of previous CD track.
jjjjPress for more than 2 seconds: backwards accelerated play (CD).
Selection of previous page (Tel.)
Press for more than 2 seconds: selection of first page (Tel.)
M Automatic search of higher frequency Selection of next CD track.
kkkkPress for more than 2 seconds: forwards accelerated play (CD).
Selection of following page (Tel.) Press for more than 2 second s: selection of last page (Tel.)
O HELP 'PEUGEOT' direct line (if option and service are available).
P Replace handset. Return to previous menu.
Q C Cancel. Refuse to take call.
R OK Lift handset. Validate function.
S TEL Selection of telephone Switching off of microphone.
1 to 6 1 2 3 4 5 6Selection of a station stored in the memory. Press for more than 2 seconds: storing a station in the memory.
Selection of a CD changer disc.
0 to 9 * #0 1 2 3 4 5Telephone keypad.6 7 8 9 * #
51
YOUR 607 IN DETAIL

Selecting telephone mode / Entering a number / Switching off the microphone

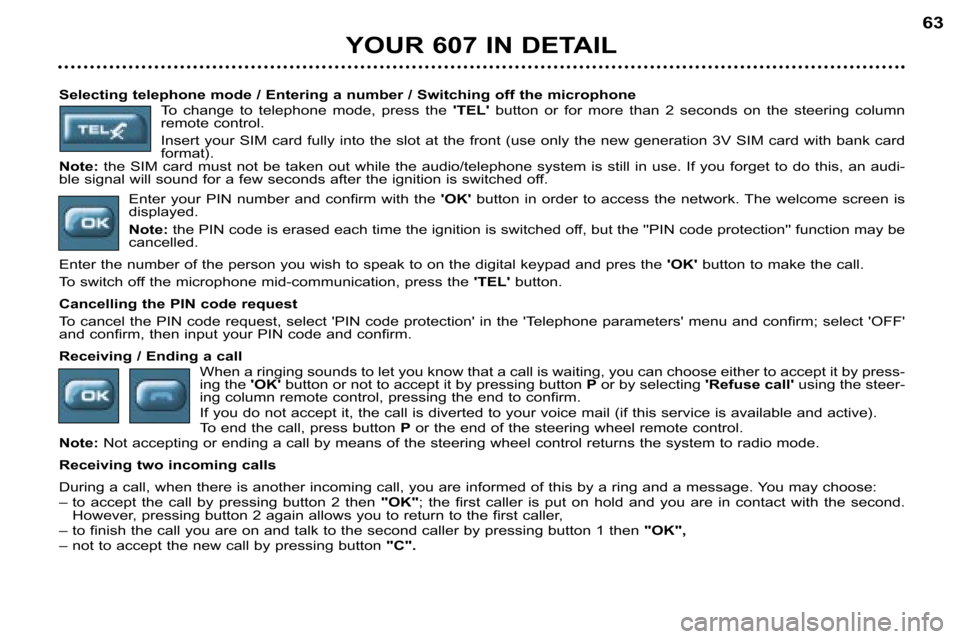

To change to telephone mode, press the 'TEL' button or for more than 2 seconds on the steering column
remote control.
Insert your SIM card fully into the slot at the front (use only t he new generation 3V SIM card with bank card
format).
Note: the SIM card must not be taken out while the audio/telepho ne system is still in use. If you forget to do this, an audi
ble signal will sound for a few seconds after the ignition is switched off.
Enter your PIN number and confirm with the 'OK' button in order to access the network. The welcome screen is
displayed.
Note: the PIN code is erased each time the ignition is switched off , but the ''PIN code protection'' function may be
cancelled.
Enter the number of the person you wish to speak to on the di gital keypad and pres the 'OK'button to make the call.
To switch off the microphone midcommunication, press the 'TEL'button.
Cancelling the PIN code request
To cancel the PIN code request, select 'PIN code protection' in the 'Telephone parameters' menu and confirm; select 'OFF'
and confirm, then input your PIN code and confirm.
Receiving / Ending a call
When a ringing sounds to let you know that a call is waiti ng, you can choose either to accept it by press
ing the 'OK'button or not to accept it by pressing button Por by selecting 'Refuse call' using the steer
ing column remote control, pressing the end to confirm.
If you do not accept it, the call is diverted to your voice mai l (if this service is available and active).
To end the call, press button Por the end of the steering wheel remote control.
Note: Not accepting or ending a call by means of the steering whee l control returns the system to radio mode.
Receiving two incoming calls
During a call, when there is another incoming call, you are i nformed of this by a ring and a message. You may choose:
– to accept the call by pressing button 2 then "OK"; the first caller is put on hold and you are in contact wit h the second.
However, pressing button 2 again allows you to return to th e first caller,
– to finish the call you are on and talk to the second call er by pressing button 1 then "OK",
– not to accept the new call by pressing button "C".
YOUR 607 IN DETAIL 63

132
PRACTICAL INFORMATION
2 litre 16 V petrol engine
1 -Windscreen / headlamp wash
reservoir.
2 - Power steering reservoir.
3 - Coolant reservoir. 4 -
Dipstick.
5 - Engine oil filler cap.
6 - Air filter.
7 - Battery. 8 -
Fuse box.
9 - Brake and clutch fluid reservoir.

133
PRACTICAL INFORMATION
2.2 litre 16 V petrol engine
1 -Windscreen / headlamp wash
reservoir.
2 - Power steering.
3 - Coolant reservoir. 4 -
Dipstick.
5 - Engine oil filler cap.
6 - Air filter.
7 - Battery. 8 -
Fuse box.
9 - Brake and clutch fluid reservoir.

134
PRACTICAL INFORMATION
24V V6 petrol injection engine
1 -Windscreen / headlamp wash
reservoir.
2 - Power steering.
3 - Coolant reservoir. 4 -
Dipstick.
5 - Engine oil filler cap.
6 - Air filter. 7 -
Battery.
8 - Fuse box.
9 - Brake and clutch fluid reservoir.

135
PRACTICAL INFORMATION
2 litre 16V turbo
diesel HDI
1 -Windscreen / headlamp wash
reservoir.
2 - Power steering.
3 - Coolant reservoir. 4 -
Dipstick.
5 - Engine oil filler cap.
6 - Air filter. 7 -
Battery.
8 - Fuse box.
9 - Brake and clutch fluid reservoir.

136PRACTICAL INFORMATION
2.2 litre 16V turbo
diesel HDI
1 -Windscreen / headlamp wash
reservoir.
2 - Power steering.
3 - Coolant reservoir. 4 -
Dipstick.
5 - Engine oil filler cap.
6 - Air filter. 7 -
Battery.
8 - Fuse box.
9 - Brake and clutch fluid reservoir.

Fuse no. Rating FunctionsR Replacement fuses.
1 30A Locking / deadlocking.
2 20A Radio amplifier.
3 30A Windscreen wash.
4 30A Rear window switches on rear doors.
5 15A Electronic immobiliser, monochrome screen or colour screen
control unit,
instrument panel, air conditioning control unit,
audio system / telephone.
6 10A Rear right brake light.
PRACTICAL INFORMATION
146
Fascia panel fuse box
Loosen the screw a quarter turn
with a coin and tilt the cover to
access the fuses.
CHANGING A FUSE
The fuse boxes are located under
the fascia panel and in the engine
compartment.
The replacement fuses and pliers
A
are fixed to the inside of the fas
cia panel fuse box cover.
Removing and fitting a fuse
Before changing a fuse, you must
establish the cause of the fault and
have it put right.
Use pliers A.
Always change a faulty fuse for
one of the same rating.
Correct Incorrect
Pliers A

PRACTICAL INFORMATION
148
Engine compartment fuses
Fuse box
To access the fuses located in the
engine compartment (next to the bat
tery) :
remove the style cover and unclip
the cover.
After carrying out the work, close
the cover very carefully and
replace the style cover.
The electrical system of
your vehicle is designed
to operate with standard
or optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT
dealer.
PEUGEOT will not accept respon
sibility for the cost incurred in
repairing your vehicle or for rectify
ing the malfunctions resulting from
the installation of accessories not
supplied and not recommended by
PEUGEOT and not installed in
accordance with its instructions, in
particular where the equipment
in question consumes more than
10 milliamperes.
*Maxi fuses provide additional
protection for electrical systems.
All work must be carried out by
your PEUGEOT dealer.
Fuse N° Rating Functions
1* 70 A Builtin systems interface ( heated rear screen
heated exterior mirrors windscreen wiper
screenwash headlamp wash).
2* 50 A Fan.
3* 50/60 A ESP pump motor / ABS hydraulic unit.
4* 40 A Air conditioning blower.
5 20 A Horn Horn control relay.
6 20 A Left front and rear heated seats.
7 20 A Right front and rear heated seats.
8* 70 A Builtin systems interface.
9* 30 A Passenger electric seat.
