9
96

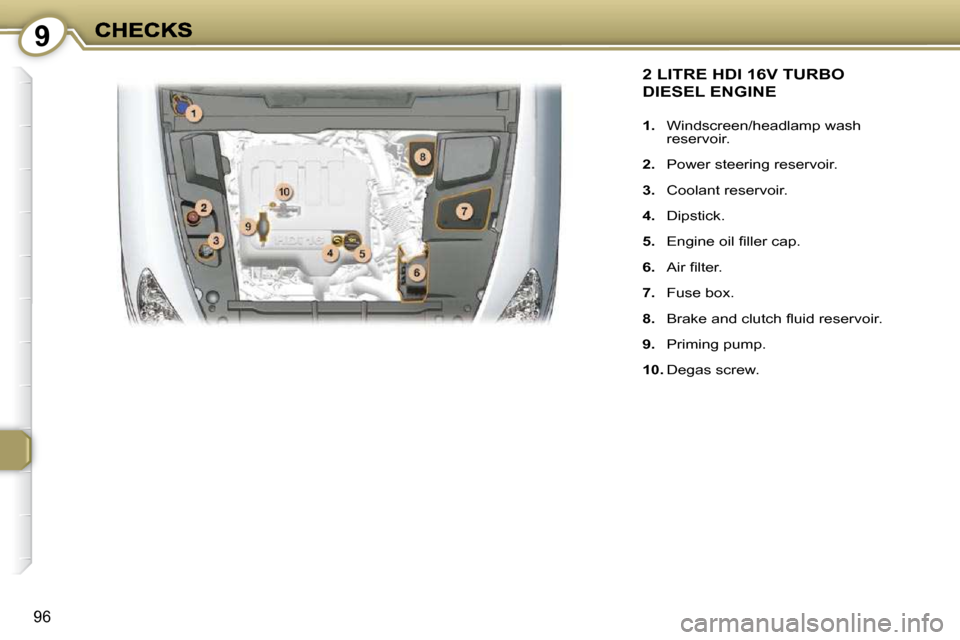

2 LITRE HDI 16V TURBO
DIESEL ENGINE
1. Windscreen/headlamp wash
reservoir.
2. Power steering reservoir.
3. Coolant reservoir.
4. Dipstick.
5. E n g i n e o i l fi l l e r c a p .
6. A i r fi l t e r .
7. Fuse box.
8. B r a k e a n d c l u t c h fl u i d r e s e r v o i r .
9. Priming pump.
10. Degas screw.

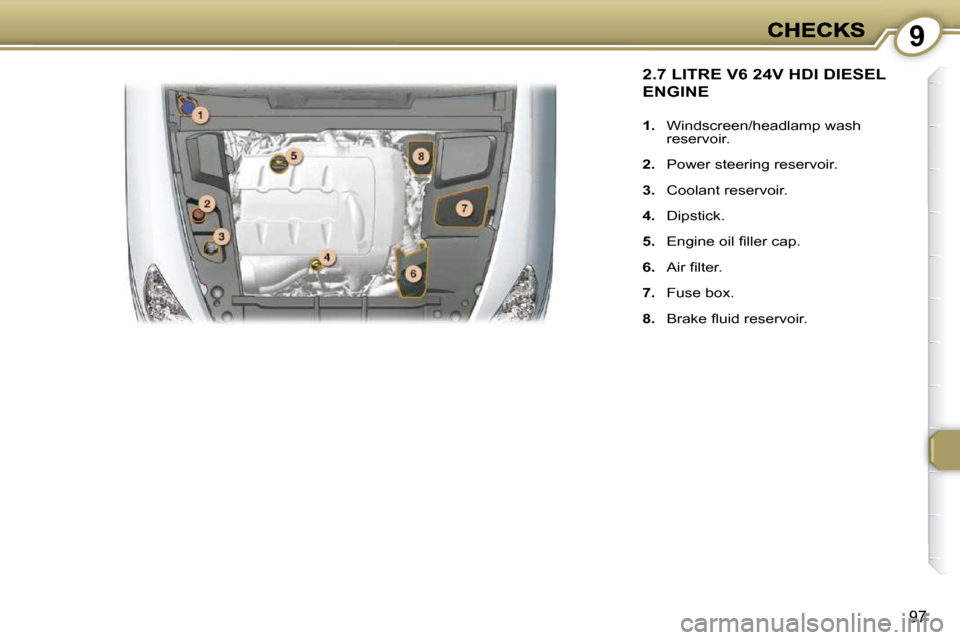

1010
108

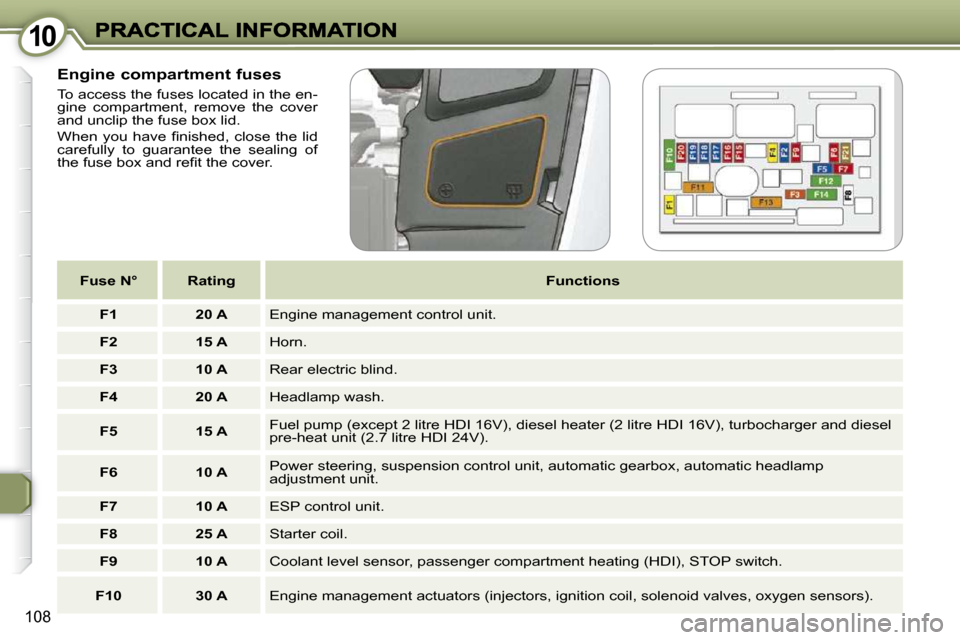

E n g i n e c o m p a r t m e n t f u s e s
F u s e N ° Rating
F u n c t i o n s
F1 20 A Engine management control unit.
F2 15 A Horn.
F3 10 A Rear electric blind.
F4 20 A Headlamp wash.
F5 15 A Fuel pump (except 2 litre HDI 16V), diesel heater (2 litre HD
I 16V), turbocharger and diesel
pre-heat unit (2.7 litre HDI 24V).
F6 10 A Power steering, suspension control unit, automatic gearbox, aut
omatic headlamp
adjustment unit.
F7 10 A ESP control unit.
F8 25 A Starter coil.
F9 10 A Coolant level sensor, passenger compartment heating (HDI), S TOP switch.
F10 30 A Engine management actuators (injectors, ignition coil, solen oid valves, oxygen sensors).
To access the fuses located in the en-
gine compartment, remove the cover
and unclip the fuse box lid.
W h e n y o u h a v e fi n i s h e d , c l o s e t h e l i d
carefully to guarantee the sealing of
t h e f u s e b o x a n d r e fi t t h e c o v e r .
