Peugeot 607 Dag 2009 Owner's Manual

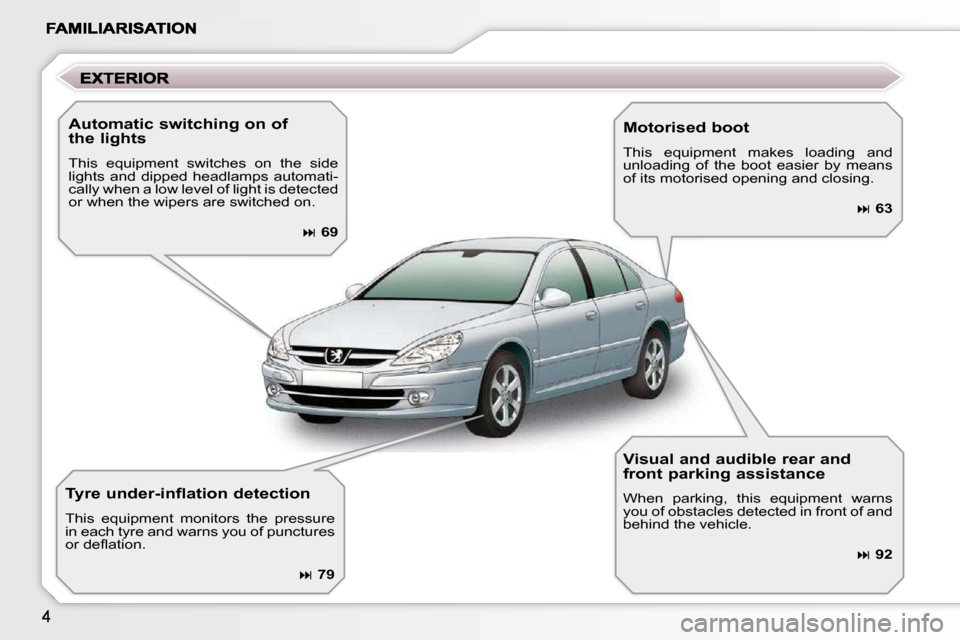

Automatic switching on ofthe lights
This equipment switches on the side
lights and dipped headlamps automati-
cally when a low level of light is detected
or when the wipers are switched on.
 69
Motorised boot
This equipment makes loading and
unloading of the boot easier by means
of its motorised opening and closing.
 63
Tyre under-inflation detection
This equipment monitors the pressure
in each tyre and warns you of punctures
or defl ation.
 79
Visual and audible rear and front parking assistance
When parking, this equipment warns
you of obstacles detected in front of and
behind the vehicle.
 92

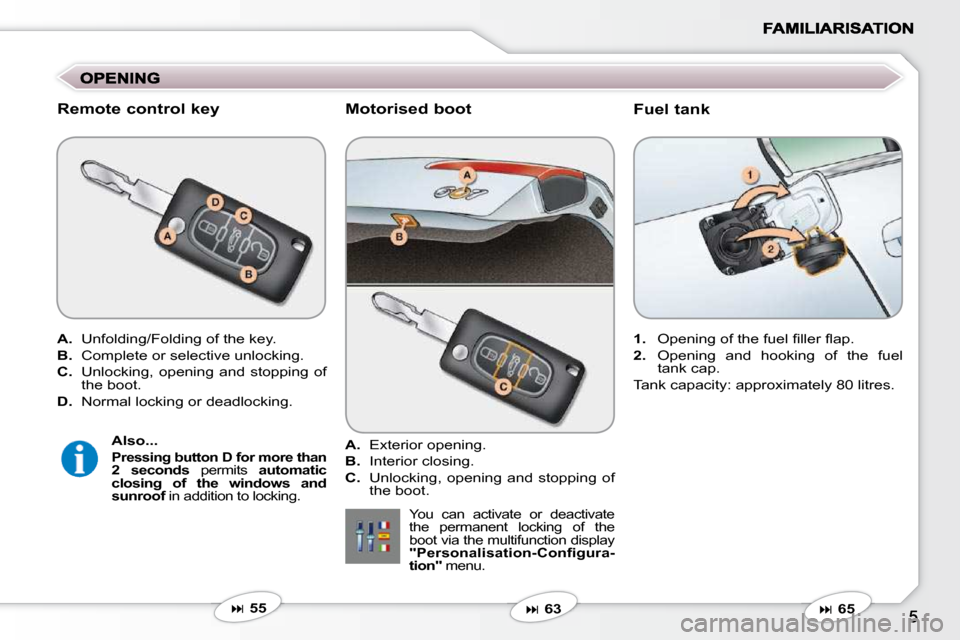

Fuel tank Remote control key

A. Unfolding/Folding of the key.

B. Complete or selective unlocking.

C. Unlocking, opening and stopping of
the boot.

D. Normal locking or deadlocking.

Also...

Pressing button D for more than 2 seconds permits automatic
closing of the windows and
sunroof in addition to locking.
Motorised boot

A. Exterior opening.

B. Interior closing.

C. Unlocking, opening and stopping of
the boot.
 55  63  65

1. Opening of the fuel fi ller fl ap.

2. Opening and hooking of the fuel
tank cap.
Tank capacity: approximately 80 litres.
You can activate or deactivate
the permanent locking of the
boot via the multifunction display

"Personalisation -
Configura-
tion" menu.

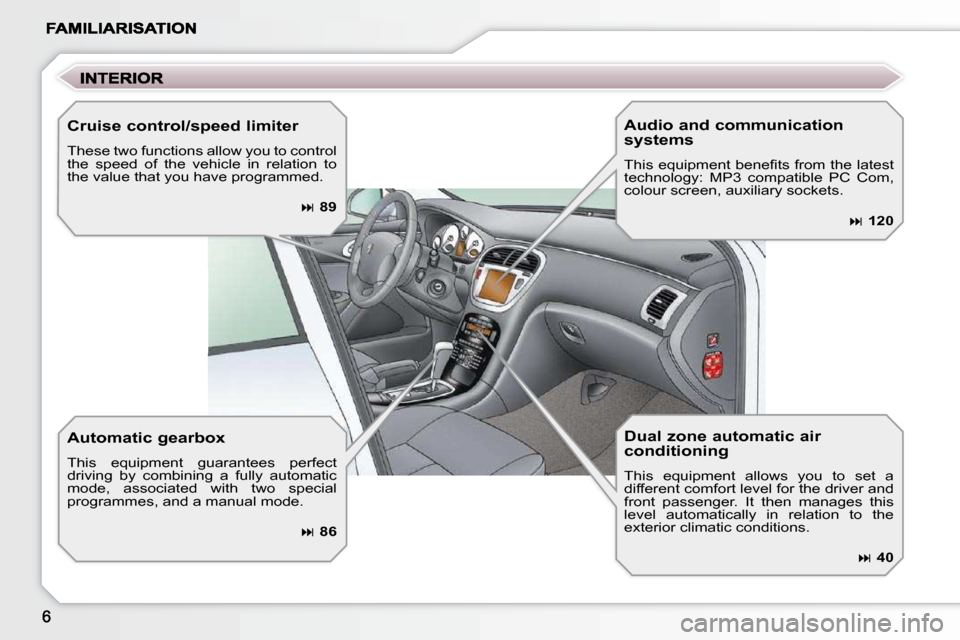

Cruise control/speed limiter
These two functions allow you to control
the speed of the vehicle in relation to
the value that you have programmed.
 89
Automatic gearbox
This equipment guarantees perfect
driving by combining a fully automatic
mode, associated with two special
programmes, and a manual mode.
 86
Audio and communication systems
This equipment benefi ts from the latest
technology: MP3 compatible PC Com,
colour screen, auxiliary sockets.
 120
Dual zone automatic air conditioning
This equipment allows you to set a
different comfort level for the driver and
front passenger. It then manages this
level automatically in relation to the
exterior climatic conditions.
 40

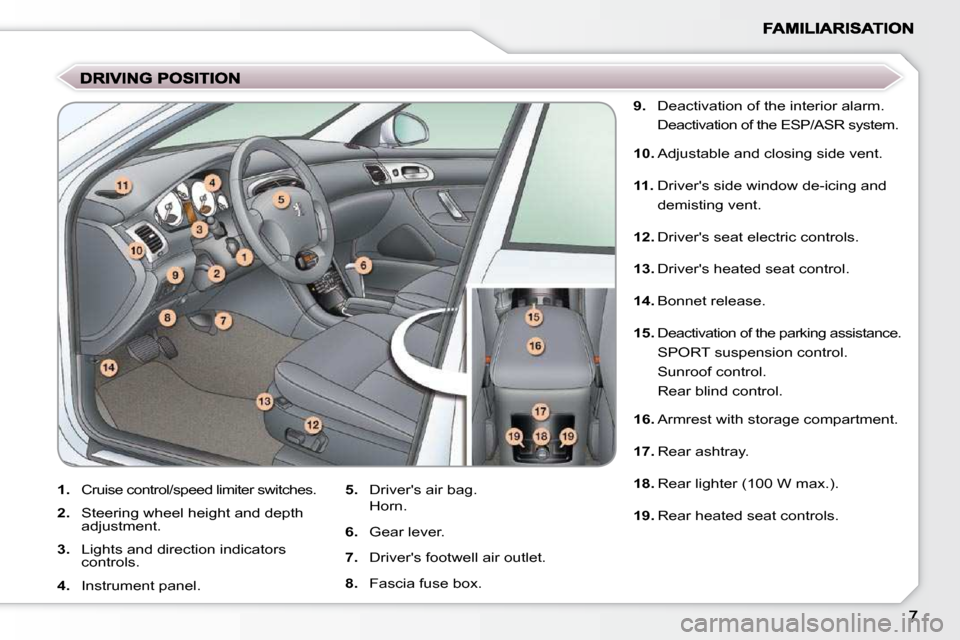

9. Deactivation of the interior alarm.
Deactivation of the ESP/ASR system.

10. Adjustable and closing side vent.

11. Driver's side window de-icing and
demisting vent.

12. Driver's seat electric controls.

13. Driver's heated seat control.

14. Bonnet release.

15. Deactivation of the parking assistance.
SPORT suspension control.
Sunroof control.
Rear blind control.

16. Armrest with storage compartment.

17. Rear ashtray.

18. Rear lighter (100 W max.).

19. Rear heated seat controls.

1. Cruise control/speed limiter switches.

2. Steering wheel height and depth
adjustment.

3. Lights and direction indicators
controls.

4. Instrument panel.
5. Driver's air bag.
Horn.

6. Gear lever.

7. Driver's footwell air outlet.

8. Fascia fuse box.

9. Disarming of the passenger air bag * .

10. Passenger air bag.

11. Glove box/Video sockets.

12. Passenger footwell air outlet.

13. Passenger heated seat control.

14. Passenger seat electric controls.

15. Front ashtray/lighter (100 W max.).

16. Handbrake.

17. Gear lever.

18. Storage compartment.

19. Audio and telematics system.

20. Automatic air conditioning controls.

21. Central locking from the inside.

22. Multifunction display.

23. Hazard warning lights.

1. Steering lock and ignition.

2. Audio equipment steering wheel
control.

3. Wipers/wash-wipe and trip
computer controls.

4. Adjustable and closing central
vents.
5. Sunshine sensor.

6.
Windscreen de-icing and demisting vent.

7. Passenger side window de-icing
and demisting vent.

8. Adjustable and closing side vent.
* According to country.

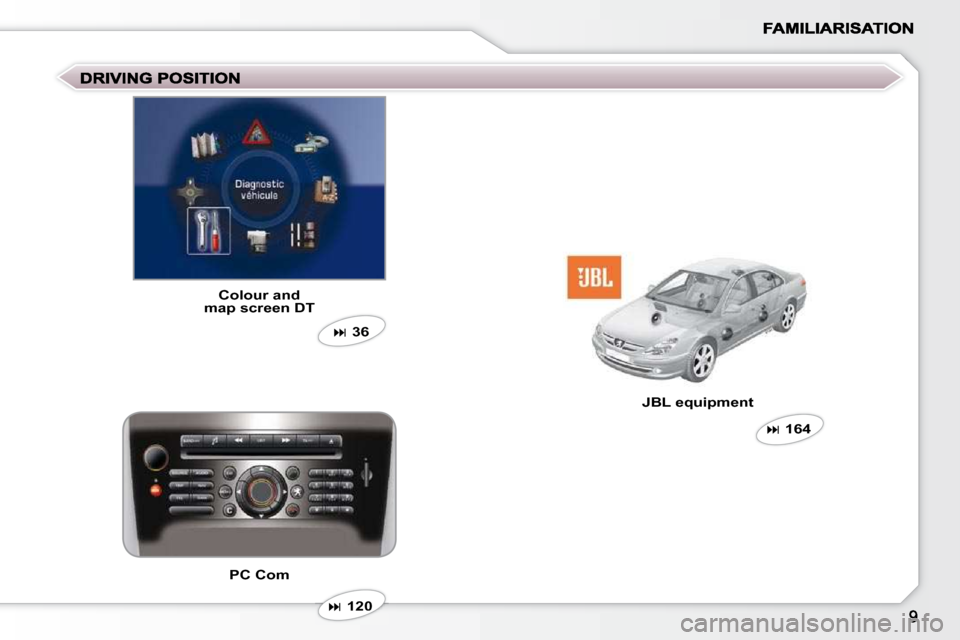

Colour and
map screen DT
 120
PC Com JBL equipment
 164
 36

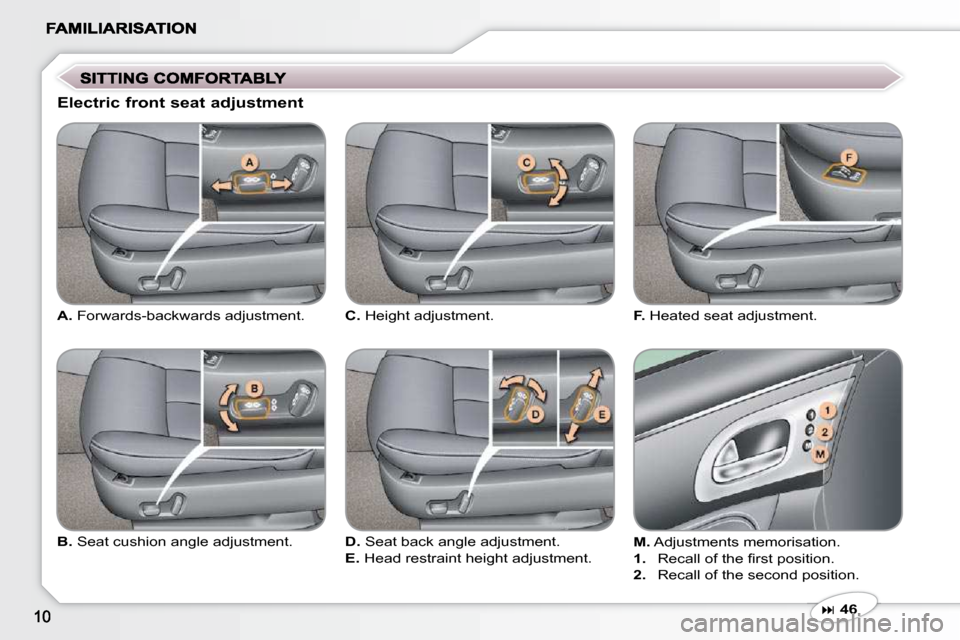

A. Forwards-backwards adjustment.
Electric front seat adjustment

D. Seat back angle adjustment.

E. Head restraint height adjustment.

B. Seat cushion angle adjustment.
F. Heated seat adjustment.

C. Height adjustment.

M. Adjustments memorisation.

1. Recall of the fi rst position.

2. Recall of the second position.
 46

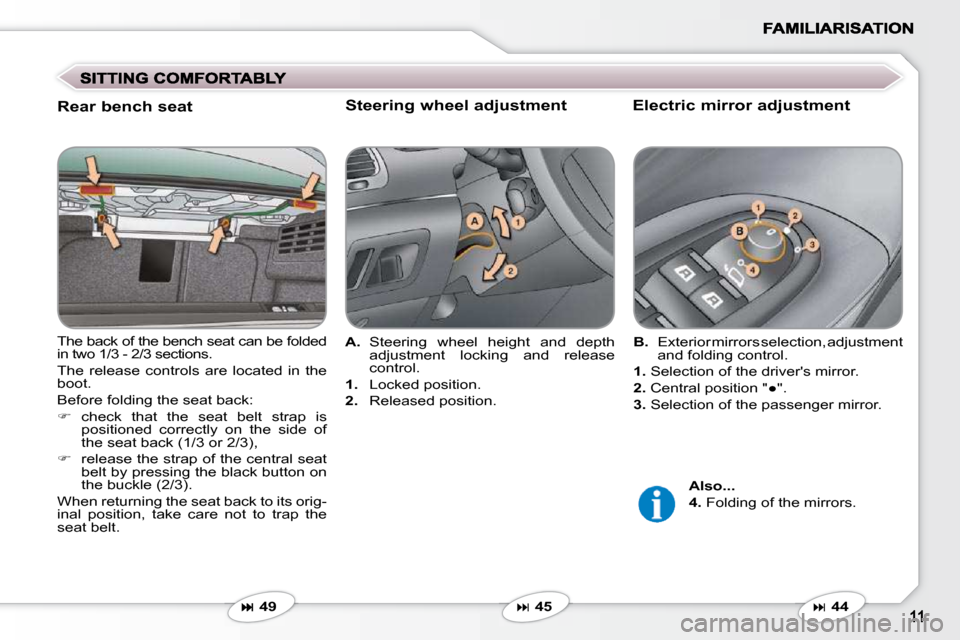

Electric mirror adjustment Steering wheel adjustment
 44  45

A. Steering wheel height and depth
adjustment locking and release
control.

1. Locked position.

2. Released position.
B. Exterior mirrors selection, adjustment
and folding control.

1. Selection of the driver's mirror.

2. Central position "

Front seat belts
 61
Electric window controls

1. Driver's electric window control.

2. Passenger electric window control.

3. Rear right electric window control.

4. Rear left electric window control.

Also...

5. Deactivation of the electric
window controls located in
the rear (child safety).
 80

1. Fastening.

2. Height adjustment.

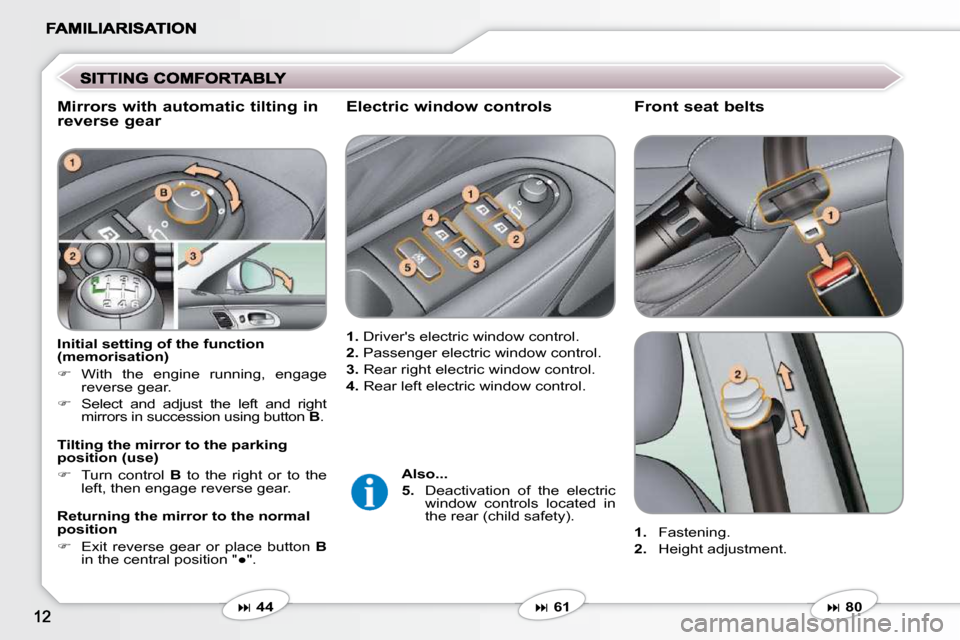

Mirrors with automatic tilting in reverse gear
Initial setting of the function
(memorisation)

 With the engine running, engage
reverse gear.

 Select and adjust the left and right
mirrors in succession using button B .
 44
Tilting the mirror to the parking
position (use)

 Turn control B to the right or to the
left, then engage reverse gear.
Returning the mirror to the normal
position

 Exit reverse gear or place button B
in the central position "

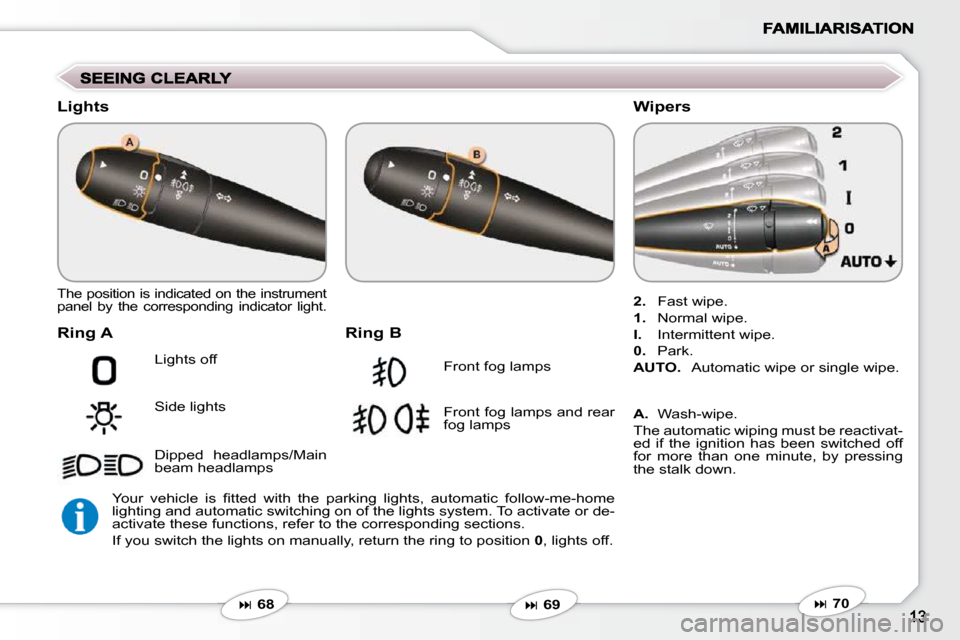

The position is indicated on the instrument
panel by the corresponding indicator light.
Ring A
Lights off
Side lights
Dipped headlamps/Main
beam headlamps
Ring B
Front fog lamps
Front fog lamps and rear
fog lamps
2. Fast wipe.

1. Normal wipe.

I. Intermittent wipe.

0. Park.

AUTO. Automatic wipe or single wipe.



A. Wash-wipe.
The automatic wiping must be reactivat-
ed if the ignition has been switched off
for more than one minute, by pressing
the stalk down.
Lights Wipers
 69  70
Your vehicle is fi tted with the parking lights, automatic f ollow-me-home
lighting and automatic switching on of the lights system. To activate or de-
activate these functions, refer to the corresponding sections.
If you switch the lights on manually, return the ring to p osition 0 , lights off.
 68
