YOUR 807 IN DETAIL47
Manual station search
Press the "MAN"button.
Briefly press button Ior Jto increase or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency.
The scrolling stops at the first station found as soon as the button is released.
Pressing the "MAN"button again returns you to automatic station search.
Manual storing of stations in the memory
Select the station required.
Press one of the buttons "1"to "6" for more than two seconds.
The sound stops then becomes audible again, confirming that the station has been stored in the memory.
Automatic storing of FM stations in the memory (autostore)
Audio RB3:press and hold the "BND/AST" button for more than two seconds.
Audio RD3: press and hold button "P" for more than two seconds.
Your radio automatically stores the 6 stations with the stronge st signal in FM. These stations are stored in the FMast wave
band.
If it is not possible to find 6 stations, the remaining memo ries are empty.
Recalling stations stored in the memory
For each waveband, briefly press buttons "1"to "6" to recall the corresponding station.
18-11-2002

YOUR 807 IN DETAIL
48
RDS
Using the RDS (Radio Data System) function on FM
Radio Data System allows you to continue listening to the sa me station, whatever frequency it is using for the region you a re
going through.
Briefly press the "RDS"button to switch the function on or off.
The multi–function display wil show: "RDS" if the function is selected.
"(RDS)" if the function is selected but not available.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best
reception and which is transmitting the same programme.
Traffic information programme
Press the "TA"button to switch the function on or off.
The multi–function display will show:
"TA" if the function is selected,
"(TA)" if the function is selected but not available.
Any traffic information flash will be given priority, whatever source you are listening to (radio, cassette or CD
changer).
If you wish to interrupt a message, press the "TA"button; this switches the function off.
Note: the volume of traffic information announcements is inde pendent of the volume of normal radio listening. You
can adjust it using the volume button. The setting will be stored and will be used when the next messages are
broadcast.
Regional following mode (REG)
When they are part of a network, certain stations broadcast regi onal programmes in the various areas they serve. With
regional following mode you can keep listening to the same programme.
Press the "RDS"button for more than two seconds to switch the function on o r off.
18-11-2002

YOUR 807 IN DETAIL
50
CASSETTE: AUDIO RD3
Selecting cassette mode When a cassette is inserted, the cassette player will start auto matically.
If a cassette is already inserted, press button "SRC"several times to select cassette mode.
Note: before inserting the cassette, ensure that the tape is taut.
Ejecting the cassette Fully press buttons C and Dto eject the cassette from the player.
Direction of play
The player will play sides 1 and 2 of the cassette alternate ly, by automatically reversing the direction of play at the en d of a
side. To manually reverse the direction of play, press the 2 bu ttons Cand D half way.
Fast forward/rewind
Fully press button Cor D to fast forward or rewind the cassette. At the end of the fa st forward/rewind, the set plays the cur
rent side.
Recommendations for using casssettes
Use good quality cassettes.
Avoid the use of cassettes which play for longer than 90 minu tes.
Never expose the cassettes to heat or the direct rays of the sun.
Retighten the tape if necessary before inserting the cassette in the player.
Clean the playing head regularly with a damp type cleanin g cassette.
18-11-2002

YOUR 807 IN DETAIL
52
CD CHANGER
Selecting CD changer mode Audio RB3:press button "SRC" several times in succession.
Audio RD3: press button R.
Selecting a disc
Press buttons "1"to "6" of the radio to select the corresponding disc.
Selecting a track Press button Ito select the next track.
Press button Jto return to the start of the current track or to select the previ ous track.
Accelerated play
Keep button Ior Jpressed for forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released.
Shuffle
When the CD changer is selected:
– audio RB3: keep button "SRC" pressed for two seconds;
– audio RD3: keep button R pressed for two seconds.
The tracks will be played in random sequence. Pressing the butto n again for two seconds returns you to normal play.
18-11-2002

YOUR 807 IN DETAIL
42

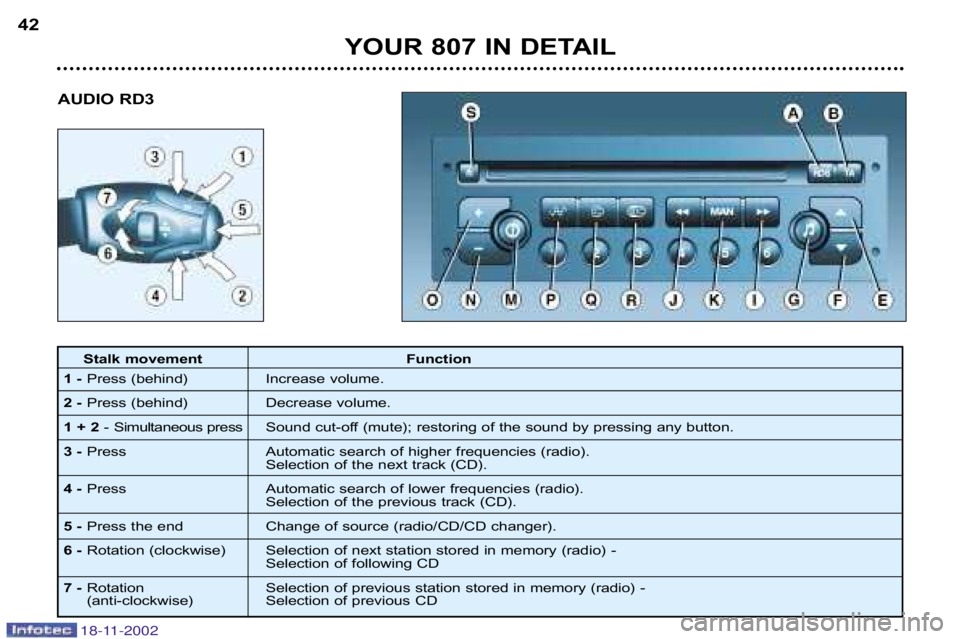

AUDIO RD3
Stalk movement Function
1 Press (behind) Increase volume.
2 Press (behind) Decrease volume.
1 + 2 Simultaneous press Sound cutoff (mute); restoring of the sound by pressing any butto n.
3 Press Automatic search of higher frequencies (radio).
Selection of the next track (CD).
4 Press Automatic search of lower frequencies (radio).
Selection of the previous track (CD).
5 Press the end Change of source (radio/CD/CD changer).
6 Rotation (clockwise) Selection of next station stored in memory (radi o)
Selection of following CD
7 Rotation Selection of previous station stored in memory (radio)
(anticlockwise) Selection of previous CD
18-11-2002

YOUR 807 IN DETAIL43

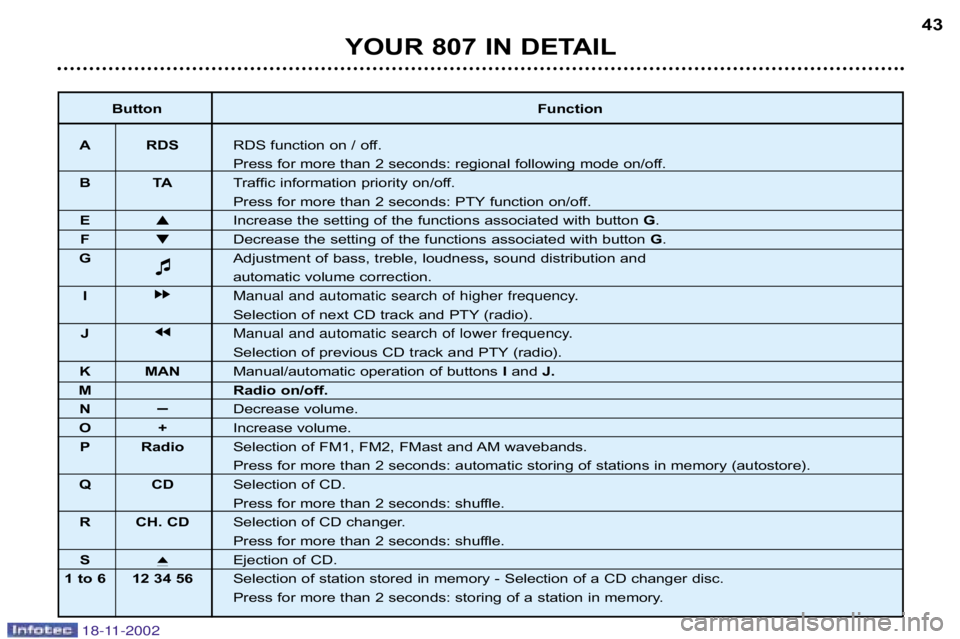

Button
Function
A RDS RDS function on / off.
Press for more than 2 seconds: regional following mode on/off.
BT ATraffic information priority on/off.
Press for more than 2 seconds: PTY function on/off.
E Increase the setting of the functions associated with button G .
F Decrease the setting of the functions associated with button G .
G Adjustment of bass, treble, loudness ,sound distribution and
automatic volume correction.
I kk Manual and automatic search of higher frequency.
Selection of next CD track and PTY (radio).
J jj Manual and automatic search of lower frequency.
Selection of previous CD track and PTY (radio).
K MAN Manual/automatic operation of buttons Iand J.
M Radio on/off. N –Decrease volume.
O+ Increase volume.
P Radio Selection of FM1, FM2, FMast and AM wavebands.
Press for more than 2 seconds: automatic storing of stations in memory (autostore).
QC DSelection of CD.
Press for more than 2 seconds: shuffle.
R CH. CD Selection of CD changer.
Press for more than 2 seconds: shuffle.
S i
Ejection of CD.
1 to 6 12 34 56 Selection of station stored in memory Selection of a CD changer disc.
Press for more than 2 seconds: storing of a station in memory.

18-11-2002

YOUR 807 IN DETAIL
46
RADIO
Notes on radio reception
Your car radio is subject to phenomena which do not affect do mestic radio sets. Both AM (MW/LW) and FM reception are
subject to various forms of interference. This is no reflection on the quality of the equipment, but is due to the nature of the
signals and the way in which they are transmitted.
On MW/LW, interference may be noticed when passing under high voltage power lines or bridges, or in tunnels.
On FM, interference may be the result of increasing distance from the transmitter, deflection of the signals by obstacles
(mountains, hills, buildings, etc.), or of being in an area which is not covered by a transmitter.
Selecting radio mode
Audio RB3:press button "SRC" several times in succession.
Audio RD3: press button P.
Selecting a waveband Audio RB3:briefly press the "BND/AST"button to select the FM1, FM2, FMast and AM wavebands.
Audio RD3: briefly press button Pto select the FM1, FM2, FMast and AM wavebands.
Automatic station search Briefly press button Ior Jto search for the station immediately above or below. By continu ing
to press the button in the direction selected, you will obt ain continuous scrolling of the frequen
cy.
The scrolling stops at the first station found as soon as the button is released.
If the TAtraffic information programme is selected, only stations broadcastin g this type of programme are selected.
Searching for a station occurs first in "LO"sensitivity (selection of the most powerful transmitters) during scann ing of the
waveband, then in "DX"sensitivity (selection of the weakest and most distant transmitters).
To make a direct search in "DX"sensitivity, press button I or Jtwice.
18-11-2002

YOUR 807 IN DETAIL47
Manual station search
Press the "MAN"button.
Briefly press button Ior Jto increase or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency.
The scrolling stops at the first station found as soon as the button is released.
Pressing the "MAN"button again returns you to automatic station search.
Manual storing of stations in the memory
Select the station required.
Press one of the buttons "1"to "6" for more than two seconds.
The sound stops then becomes audible again, confirming that the station has been stored in the memory.
Automatic storing of FM stations in the memory (autostore)
Audio RB3:press and hold the "BND/AST" button for more than two seconds.
Audio RD3: press and hold button "P" for more than two seconds.
Your radio automatically stores the 6 stations with the stronge st signal in FM. These stations are stored in the FMast wave
band.
If it is not possible to find 6 stations, the remaining memo ries are empty.
Recalling stations stored in the memory
For each waveband, briefly press buttons "1"to "6" to recall the corresponding station.
18-11-2002

YOUR 807 IN DETAIL
48
RDS
Using the RDS (Radio Data System) function on FM
Radio Data System allows you to continue listening to the sa me station, whatever frequency it is using for the region you a re
going through.
Briefly press the "RDS"button to switch the function on or off.
The multi–function display wil show: "RDS" if the function is selected.
"(RDS)" if the function is selected but not available.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best
reception and which is transmitting the same programme.
Traffic information programme
Press the "TA"button to switch the function on or off.
The multi–function display will show:
"TA" if the function is selected,
"(TA)" if the function is selected but not available.
Any traffic information flash will be given priority, whatever source you are listening to (radio, cassette or CD
changer).
If you wish to interrupt a message, press the "TA"button; this switches the function off.
Note: the volume of traffic information announcements is inde pendent of the volume of normal radio listening. You
can adjust it using the volume button. The setting will be stored and will be used when the next messages are
broadcast.
Regional following mode (REG)
When they are part of a network, certain stations broadcast regi onal programmes in the various areas they serve. With
regional following mode you can keep listening to the same programme.
Press the "RDS"button for more than two seconds to switch the function on o r off.
18-11-2002

YOUR 807 IN DETAIL49
PTY function: Audio RD3
This allows you to listen to stations broadcasting a specific t ype of programme (news, culture, sport, rock etc.).
With FMselected, press the "TA"button for two seconds to switch this function on or off.
To search for a PTYprogramme:
select the PTYfunction,
briefly press button Ior Jto scroll down the list of the various types of programmes offered .
when the programme of your choice is displayed, keep button Ior Jpressed for two seconds
to carry out an automatic search (after an automatic search the PTYfunction is switched off).
In PTY mode the different types of programmes can be stored in the memory . To do this, press
the preselection buttons "1"to "6" for two seconds.
Briefly press the corresponding button to recall the type of prog ramme stored in the memory.
EON system: Audio RD3
This connects stations which are part of the same network. It en ables the broadcast of traffic information, by a station that
is part of the same network as the station to which you are li stening.
This service is available when you have selected the TAtraffic information programme or the PTYfunction.
