Seats

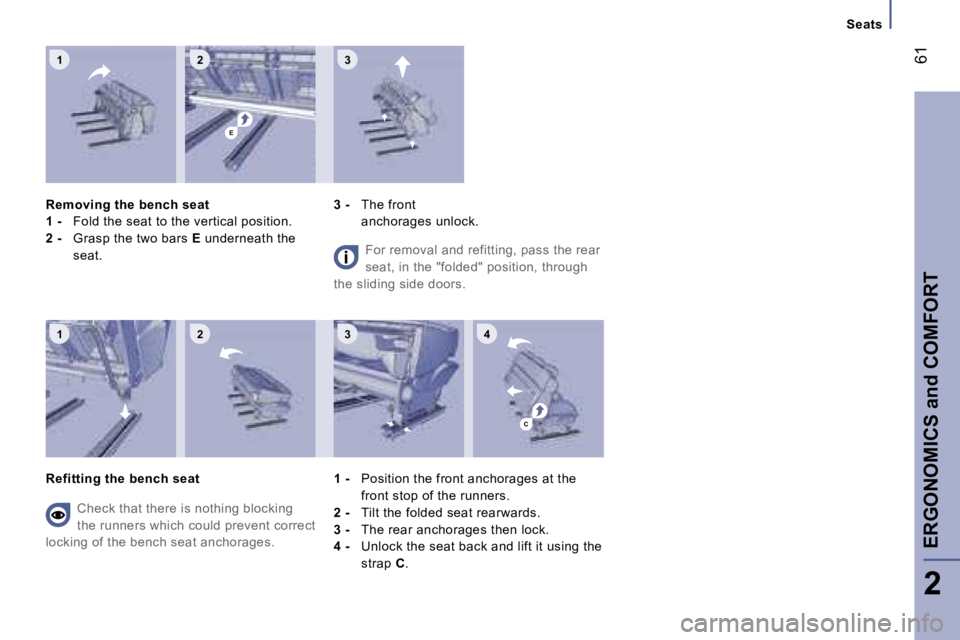

Removing the bench seat
1 - Fold the seat to the vertical position.
2 - Grasp the two bars E underneath the
seat. 3 -
The front
anchorages unlock.
Refitting the bench seat
For removal and refitting, pass the rear
seat, in the "folded" position, through
the sliding side doors.
Check that there is nothing blocking
the runners which could prevent correct
locking of the bench seat anchorages.
1 - Position the front anchorages at the
front stop of the runners.
2 - Tilt the folded seat rearwards.
3 - The rear anchorages then lock.
4 - Unlock the seat back and lift it using the
strap C.
ERGONOMICS and COMFORT
2
61

Seats
The centre seat may be installed in the
central position in the 2nd row and in
the left side position in the 3rd row.

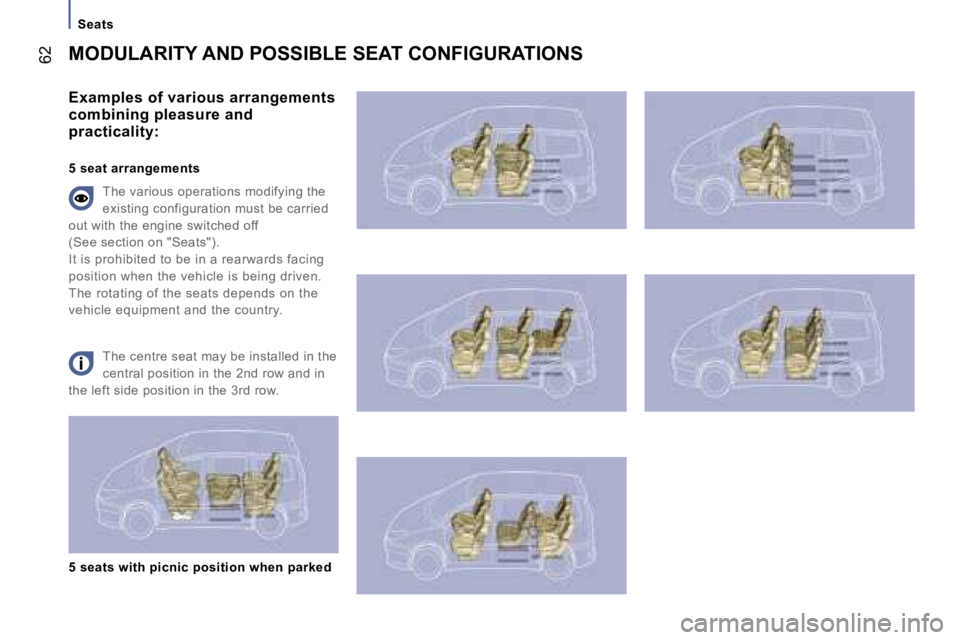

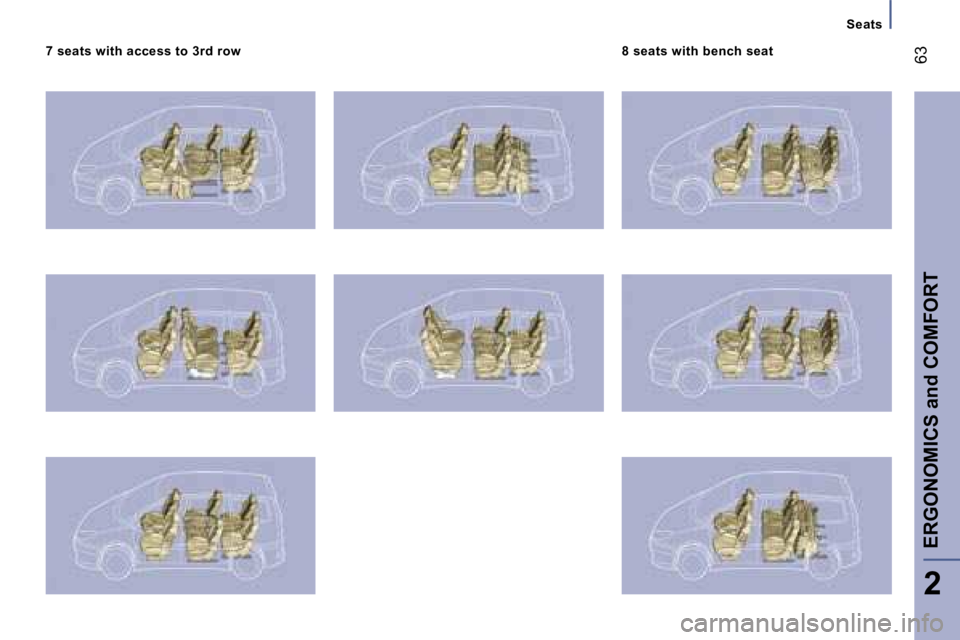

MODULARITY AND POSSIBLE SEAT CONFIGURATIONS
Examples of various arrangements
combining pleasure and
practicality:
5 seat arrangements
The various operations modifying the
existing configuration must be carried
out with the engine switched off
(See section on "Seats").
It is prohibited to be in a rearwards facing
position when the vehicle is being driven.
The rotating of the seats depends on the
vehicle equipment and the country.
5 seats with picnic position when parked
62

Seats
7 seats with access to 3rd row 8 seats with bench seat
2
63
ERGONOMICS and COMFORT

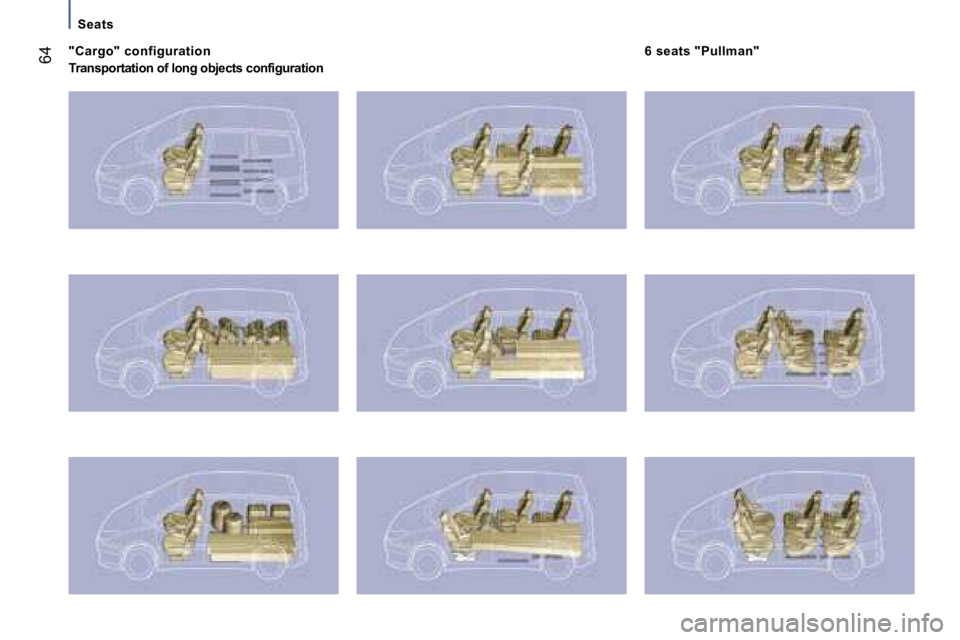

"Cargo" configuration
Transportation of long objects configurationSeats646 seats "Pullman"

A
Practical information
FRONT SEAT LAYOUT

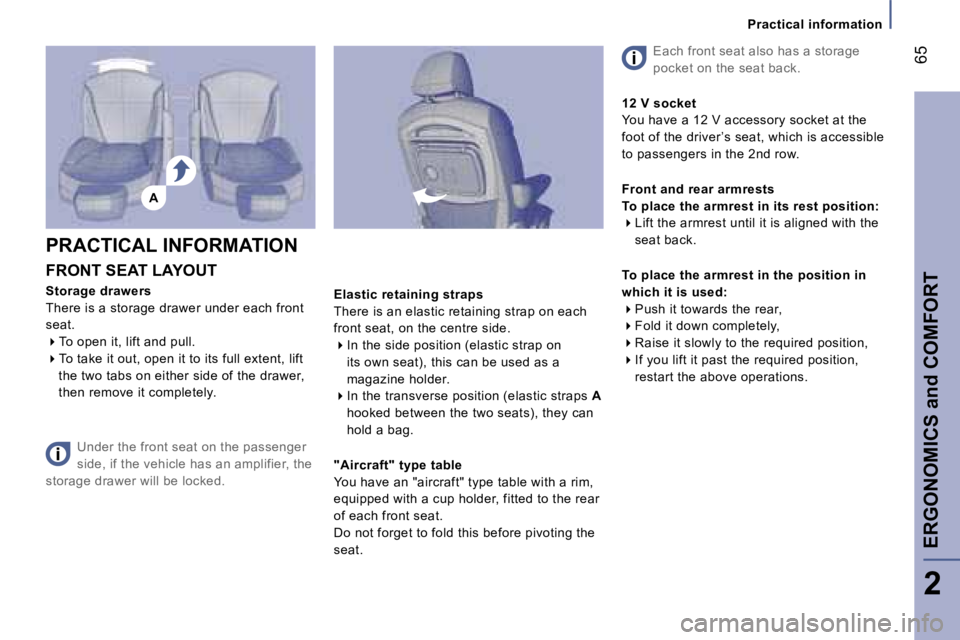

Storage drawers
There is a storage drawer under each front
seat.To open it, lift and pull.
 To take it out, open it to its full extent, lift
the two tabs on either side of the drawer,
then remove it completely.
Each front seat also has a storage
pocket on the seat back.
12 V socket
You have a 12 V accessory socket at the
foot of the driver ’s seat, which is accessible
to passengers in the 2nd row.
Front and rear armrests
To place the armrest in its rest position: Lift the armrest until it is aligned with the
seat back.
To place the armrest in the position in
which it is used: Push it towards the rear,
 Fold it down completely,
 Raise it slowly to the required position,
 If you lift it past the required position,
restart the above operations.
Elastic retaining straps
There is an elastic retaining strap on each
front seat, on the centre side.
In the side position (elastic strap on
its own seat), this can be used as a
magazine holder.
 In the transverse position (elastic straps A
hooked between the two seats), they can
hold a bag.
"Aircraft" type table
You have an "aircraft" type table with a rim,
equipped with a cup holder, fitted to the rear
of each front seat.
Do not forget to fold this before pivoting the
seat.
PRACTICAL INFORMATION
Under the front seat on the passenger
side, if the vehicle has an amplifier, the
storage drawer will be locked.
65
ERGONOMICS and COMFORT
2

6
5
1
2
3
4
9
8
7
1011
12
12
Practical information
66

Practical information
The light comes on when the cover is
opened.
It contains three sockets for the connection
of video equipment*.
It includes special compartments for
storing maps, a packet of cigarettes, an A4
document etc.
6. Lighter or 12 V socket for accessories
This permits the connection of a mobile
telephone charger, a baby’s bottle warmer,
etc.
7. Cooled compartment
It can hold up to three cans.
Slide the closer, located on the right, to
open (upwards) or close (downwards) the
air inlet.
8. Can holder and ashtray
This retractable and lit support contains up
to two can holders, a removable ashtray and
a location for the lighter when it is used as a
12 V socket.
1. Driver ’s upper glove box
To open, press the button.
To close, press the cover.
It includes special compartments for storing
a pen, a mobile telephone, coins or tokens
and credit cards.
2. Audio equipment concealing flap
Lower the flap fully to lock it in place.
Press the flap to raise it.
3. Central storage compartment
4. Passenger ’s upper glove box
To open, press the button.
To close, press the cover.
It includes special compartments for storing
a pair of spectacles, keys, five CDs and four
audio cassettes or nine audio CDs.
5. Passenger ’s lower glove box
This is fitted with a lock.
To open the glove box, lift the handle.
FRONT INTERIOR LAYOUT
9. Storage compartment or additional telematics control*
The storage compartment must not be used
as an ashtray.
10. Storage compartment
11. Door tray with space for a bottle of water
67
ERGONOMICS and COMFORT
2
* According to equipment.
12. Mat fitting/removal
When removing the front mat, push the
seats as far back as possible and remove
the fixings.
When refitting, position the mat correctly on
the pins and clip the fixings.
Check that the mat is secured correctly.
To prevent the mat from becoming caught
under the pedals:
- only use mats suited to the fixings already
present in the vehicle.
It is imperative that these fixings are used.
- never fit one mat on top of another.

242
1
3
4
5
67
8
9
11
12
10
13
Practical information
68

Practical information

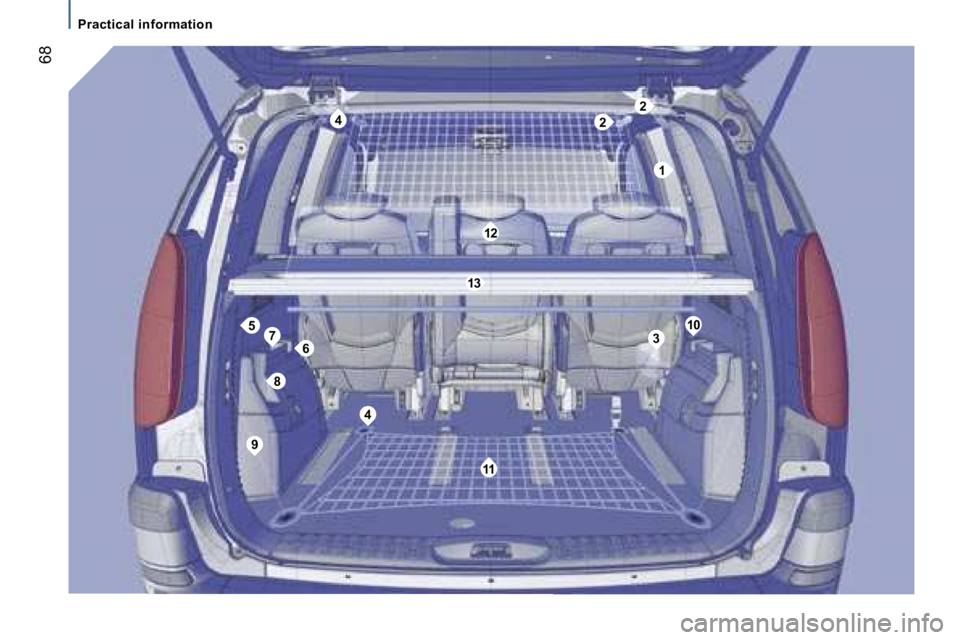

REAR INTERIOR LAYOUT 6. Can holder
7. Storage compartment
8. Bottle holder or portable bin with ashtray
9. Luggage retaining net "hammock" position* fastenings
Fold the net in two.
Secure the two centre hooks in the stowing
rings on the floor.
Secure the net’s remaining four hooks on
the tailgate pillars.
10. 12 V socket for accessories
This permits the connection of a mobile
telephone charger, a baby’s bottle
warmer, ...
11. Luggage retaining net "octopus" position*
Secure the net’s four hooks in their stowing
rings on the floor.
1. Access handle
2. Grab handle and coat hook
3. Door tray with storage for a can and
a bottle of water or for the portable
bin with ashtray
4. High load retaining net fastenings
Open the covers of the upper fastenings at
the 3rd row.
Install the ends of the metal bar in these
fastenings.
Secure the two tray strap hooks in the
stowing rings on the floor.
Pull the two straps taut.
Secure the two hooks on the elastic parts of
the tray in these rings.
The rings are located directly below the
corresponding upper fastenings.
5. Storage compartment 12. Load space cover (5 seat version)
To install it:
- position one end of the roller in the
2nd row,
- compress the opposite end of the roller and position it,
- release it to allow it to engage,
- unroll the cover as far as the pillars,
- secure the two hooks on the pillars,
To remove it:
- pull the cover towards you to detach it from its fastenings,
- return the cover into its roller,
- compress it and remove it from its support at the 2nd row.
13. Rear shelf with umbrella holder (6-7-8 seat version)
To remove the shelf:
- pull it rearward
- lift it slightly, then remove it
To install it:
- tilt it forwards slightly,
- push to engage it in its fastenings.
69
ERGONOMICS and COMFORT
2
* Modification during the year.

Practical information

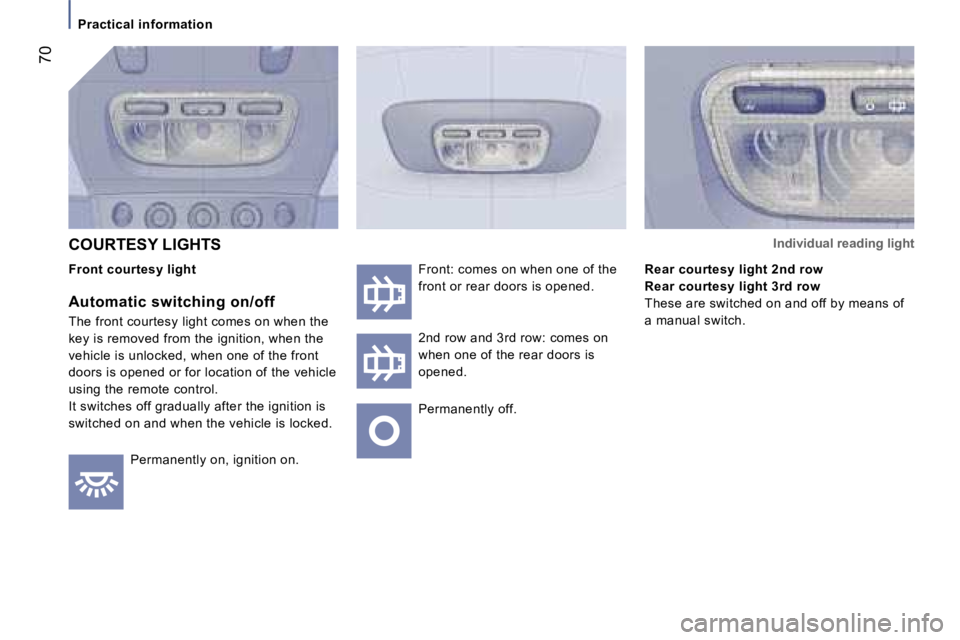

COURTESY LIGHTS
Front courtesy light
Automatic switching on/off
The front courtesy light comes on when the
key is removed from the ignition, when the
vehicle is unlocked, when one of the front
doors is opened or for location of the vehicle
using the remote control.
It switches off gradually after the ignition is
switched on and when the vehicle is locked.
Permanently on, ignition on.
70
Individual reading light
Rear courtesy light 2nd row
Rear courtesy light 3rd row
These are switched on and off by means of
a manual switch.
Front: comes on when one of the
front or rear doors is opened.
2nd row and 3rd row: comes on
when one of the rear doors is
opened.
Permanently off.
