PEUGEOT 807 2006 Manual PDF

Practical information
AREAS FOR TOLL CARDS/CAR
PARK TICKETS
The athermic windscreen has two
non-reflective zones located either side
of the base of the interior mirror.
They are intended for affixing toll cards
and/or car park tickets.
SUN VISOR WITH ILLUMINATED
COURTESY MIRROR
With the ignition on, the mirror is illuminated
automatically when the concealing flap is
raised.
SIDE BLINDS
Side blinds are available in the rear
2nd and/or 3rd rows.
Pull the side blind by the tab(s).
Position the blind’s attachment(s) on the
corresponding hook(s).
MANUAL ADJUSTMENT OF THE
HEADLAMPS
Depending on the load in your vehicle,
adjusting the beam of your headlamps is
recommended.
0 - 1 or 2 people in the front seats.
1 - 5 people.
2 - 6 to 8 people.
3 - Driver + maximum authorised loads.
Initial setting is position 0.
AUTOMATIC ADJUSTMENT OF
THE XENON HEADLAMPS
On vehicles which are fitted with xenon
headlamps, this system automatically
corrects the height of the light beam,
regardless of the load in the vehicle. The
driver is then guaranteed optimum lighting
without dazzling other road users.
Ensure that the tabs are hooked
correctly to prevent any damage to the
blind when the corresponding sliding side
door is opened.
71
ERGONOMICS and COMFORT
2

A
B12
Mirrors and windows
Manual interior mirror
The interior mirror has two positions: day (normal),
 night (anti-dazzle).
To change from one to the other, push or
pull the lever on the lower edge of the mirror.
Automatic day/night interior mirror
This automatically and gradually changes
between the day and night positions. To
prevent dazzling, the glass of the mirror
darkens automatically depending on the
intensity of the light from behind. It clears as
the light (headlamps of following vehicles,
sunlight) decreases, ensuring maximum
visibility.
Operation
Switch on the ignition and press switch 1:
 Indicator light 2 lit (switch pressed):
automatic operation.
MIRRORS
Electric exterior mirrors
 Move switch A to the right or to the left
to select the corresponding mirror.
 Move knob B in all four directions to
adjust.
 Return switch A to the centre position.
When parked, the mirrors can be folded
back manually, or electrically by pulling
switch A rearwards.
Electric unfolding of the mirrors is possible
with the key on unlocking the vehicle. 
Indicator light 2 off: automatic system off.
The mirror remains at its most clear.
72
MIRRORS AND WINDOWS
Special feature
To ensure maximum visibility during
manoeuvres, the mirror clears automatically
when reverse gear is engaged.

5
1
3
4
2Mirrors and windows

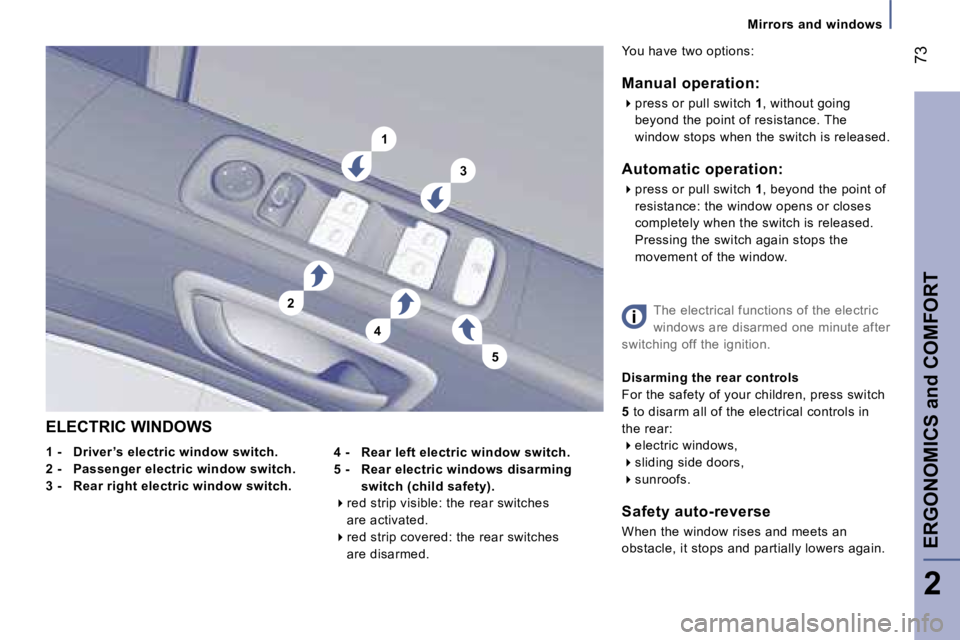

ELECTRIC WINDOWS
1 - Driver ’s electric window switch.
2 - Passenger electric window switch.
3 - Rear right electric window switch. 4 - Rear left electric window switch.
5 - Rear electric windows disarming
switch (child safety).
 red strip visible: the rear switches
are activated.
 red strip covered: the rear switches
are disarmed. You have two options:
Manual operation: 
press or pull switch 1, without going
beyond the point of resistance. The
window stops when the switch is released.
Automatic operation:  press or pull switch 1, beyond the point of
resistance: the window opens or closes
completely when the switch is released.
Pressing the switch again stops the
movement of the window.The electrical functions of the electric
windows are disarmed one minute after
switching off the ignition.
Disarming the rear controls
For the safety of your children, press switch
5 to disarm all of the electrical controls in
the rear: electric windows,
 sliding side doors,
 sunroofs.
Safety auto-reverse
When the window rises and meets an
obstacle, it stops and partially lowers again.
73
ERGONOMICS and COMFORT
2

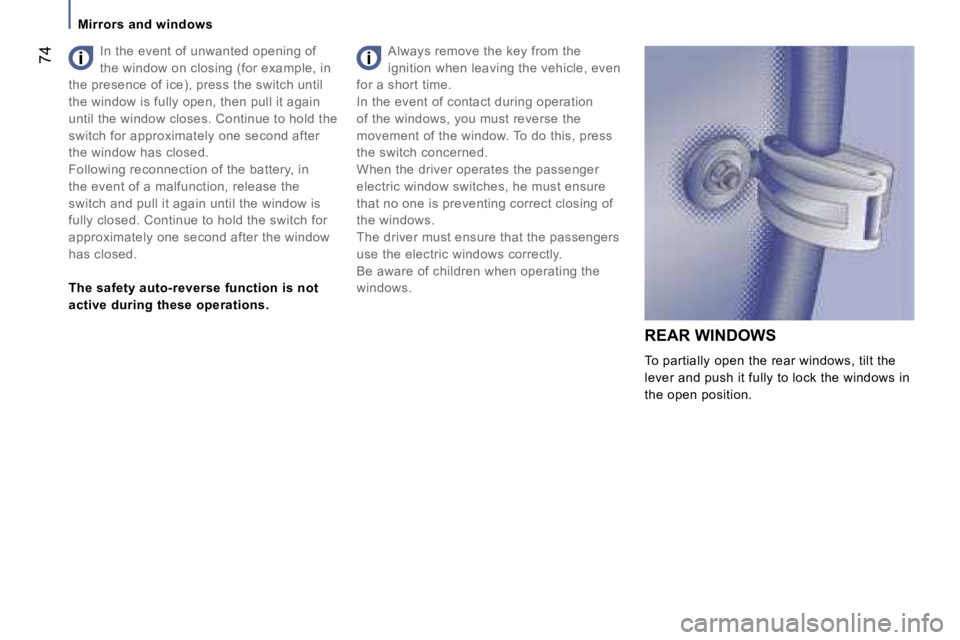

Mirrors and windowsREAR WINDOWS
To partially open the rear windows, tilt the
lever and push it fully to lock the windows in
the open position.
Always remove the key from the
ignition when leaving the vehicle, even
for a short time.
In the event of contact during operation
of the windows, you must reverse the
movement of the window. To do this, press
the switch concerned.
When the driver operates the passenger
electric window switches, he must ensure
that no one is preventing correct closing of
the windows.
The driver must ensure that the passengers
use the electric windows correctly.
Be aware of children when operating the
windows.
In the event of unwanted opening of
the window on closing (for example, in
the presence of ice), press the switch until
the window is fully open, then pull it again
until the window closes. Continue to hold the
switch for approximately one second after
the window has closed.
Following reconnection of the battery, in
the event of a malfunction, release the
switch and pull it again until the window is
fully closed. Continue to hold the switch for
approximately one second after the window
has closed.
The safety auto-reverse function is not
active during these operations.
74

Mirrors and windowsREAR WINDOWS
To partially open the rear windows, tilt the
lever and push it fully to lock the windows in
the open position.
Always remove the key from the
ignition when leaving the vehicle, even
for a short time.
In the event of contact during operation
of the windows, you must reverse the
movement of the window. To do this, press
the switch concerned.
When the driver operates the passenger
electric window switches, he must ensure
that no one is preventing correct closing of
the windows.
The driver must ensure that the passengers
use the electric windows correctly.
Be aware of children when operating the
windows.
In the event of unwanted opening of
the window on closing (for example, in
the presence of ice), press the switch until
the window is fully open, then pull it again
until the window closes. Continue to hold the
switch for approximately one second after
the window has closed.
Following reconnection of the battery, in
the event of a malfunction, release the
switch and pull it again until the window is
fully closed. Continue to hold the switch for
approximately one second after the window
has closed.
The safety auto-reverse function is not
active during these operations.
74

76

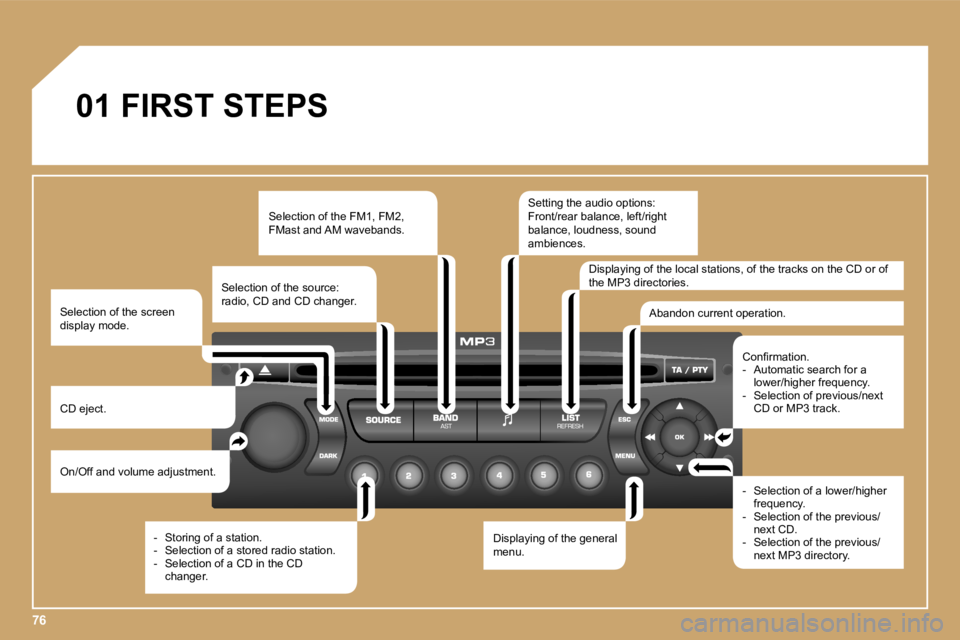

01 FIRST STEPS
On/Off and volume adjustment.
CD eject. Selection of the FM1, FM2,
FMast and AM wavebands.
Displaying of the general
menu. - Selection of a lower/higher
frequency.
- Selection of the previous/ next CD.
- Selection of the previous/ next MP3 directory.
Confirmation.
- Automatic search for a
lower/higher frequency.
- Selection of previous/next CD or MP3 track.
Selection of the source:
radio, CD and CD changer.
- Storing of a station.
- Selection of a stored radio station.
- Selection of a CD in the CD changer. Setting the audio options:
Front/rear balance, left/right
balance, loudness, sound
ambiences.
Displaying of the local stations, of the tracks on the CD or of
the MP3 directories.
Abandon current operation.
Selection of the screen
display mode.

77

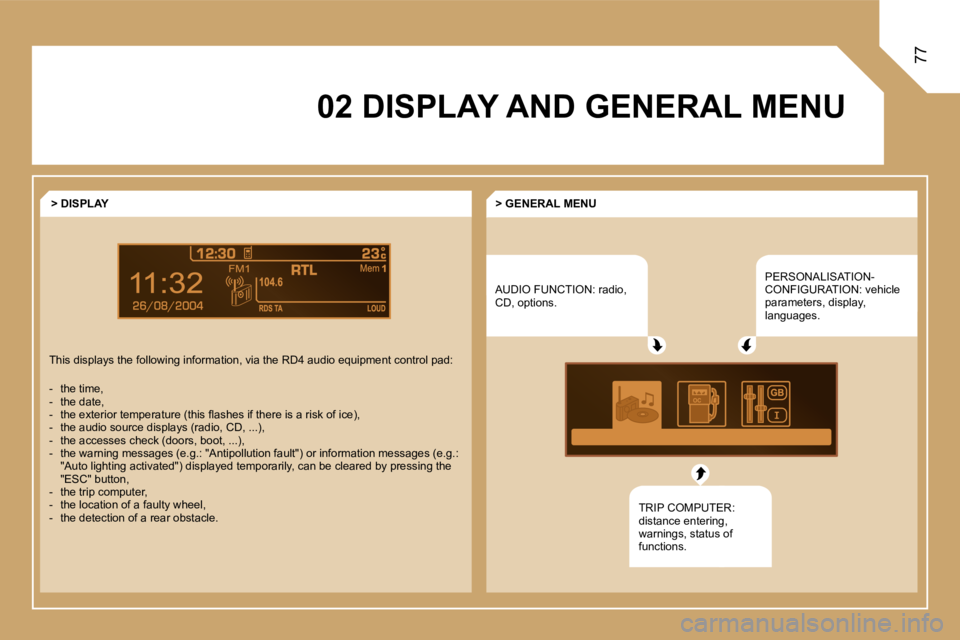

02 DISPLAY AND GENERAL MENUAUDIO FUNCTION: radio,
CD, options. PERSONALISATION-
CONFIGURATION: vehicle
parameters, display,
languages.
TRIP COMPUTER:
distance entering,
warnings, status of
functions.
> GENERAL MENU
> DISPLAY
This displays the following information, via the RD4 audio equipment control pad:
- the time,
- the date,
- the exterior temperature (this flashes if there is a risk of ice),
- the audio source displays (radio, CD, ...),
- the accesses check (doors, boot, ...),
- the warning messages (e.g.: "Antipollution fault") or informati on messages (e.g.:
"Auto lighting activated") displayed temporarily, can be cleared by pressing the
"ESC" button,
- the trip computer,
- the location of a faulty wheel,
- the detection of a rear obstacle.

1
24
1
3
78

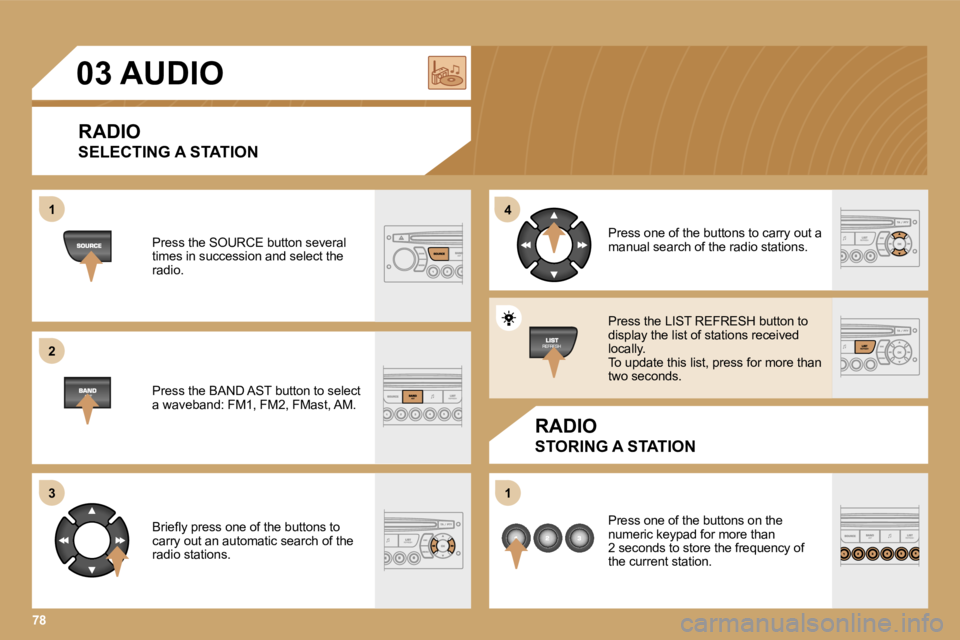

03 AUDIO
RADIO
SELECTING A STATION
RADIO
STORING A STATION
Press the SOURCE button several
times in succession and select the
radio.
Press the BAND AST button to select
a waveband: FM1, FM2, FMast, AM.
Briefly press one of the buttons to
carry out an automatic search of the
radio stations. Press one of the buttons to carry out a
manual search of the radio stations.
Press one of the buttons on the
numeric keypad for more than
2 seconds to store the frequency of
the current station.
Press the LIST REFRESH button to
display the list of stations received
locally.
To update this list, press for more than
two seconds.

1
2
3
1
2
79

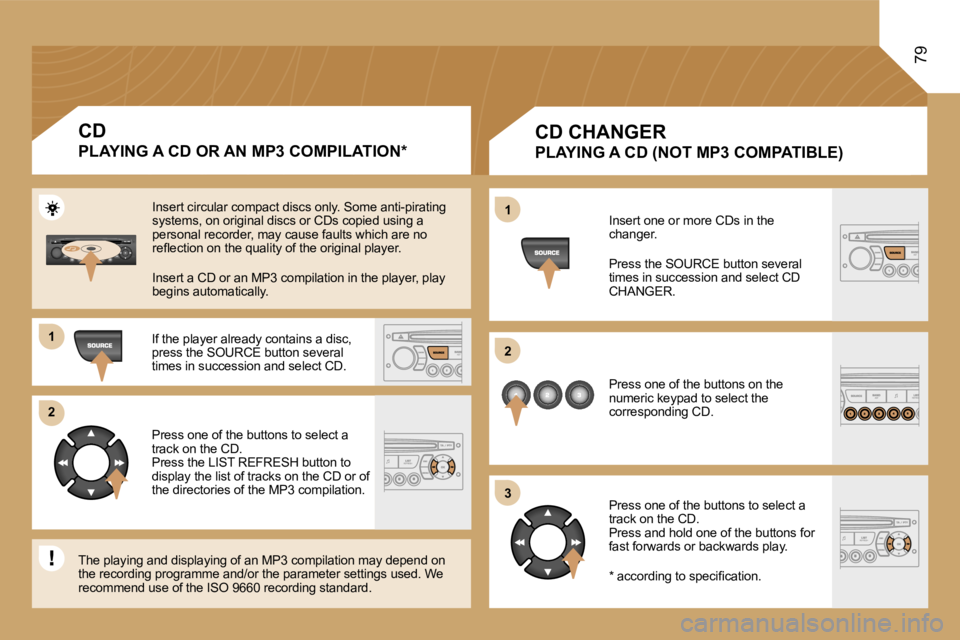

CD CHANGER
PLAYING A CD (NOT MP3 COMPATIBLE)
Insert one or more CDs in the
changer.
Press the SOURCE button several
times in succession and select CD
CHANGER.
Press one of the buttons on the
numeric keypad to select the
corresponding CD.
Press one of the buttons to select a
track on the CD.
Press and hold one of the buttons for
fast forwards or backwards play.
* according to specification.
CD
PLAYING A CD OR AN MP3 COMPILATION*
Insert circular compact discs only. Some anti-pirating
systems, on original discs or CDs copied using a
personal recorder, may cause faults which are no
reflection on the quality of the original player.
Insert a CD or an MP3 compilation in the player, pl ay
begins automatically.
If the player already contains a disc,
press the SOURCE button several
times in succession and select CD.
Press one of the buttons to select a
track on the CD.
Press the LIST REFRESH button to
display the list of tracks on the CD or of
the directories of the MP3 compilation.
The playing and displaying of an MP3 compilation ma y depend on
the recording programme and/or the parameter settin gs used. We
recommend use of the ISO 9660 recording standard.

80

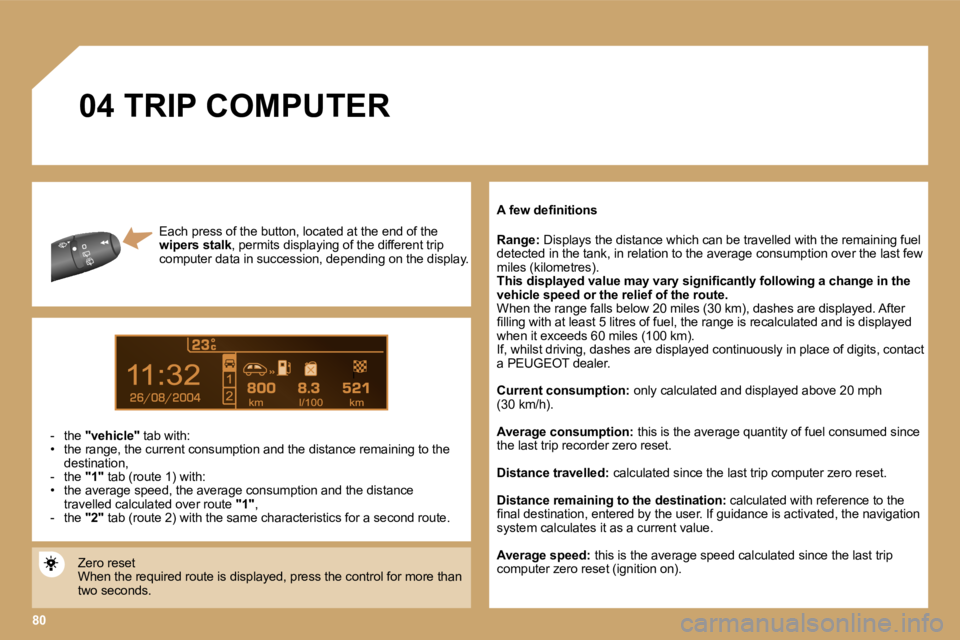

04 TRIP COMPUTER
Each press of the button, located at the end of the
wipers stalk , permits displaying of the different trip
computer data in succession, depending on the displ ay.
- the "vehicle" tab with:
• the range, the current consumption and the distan ce remaining to the
destination,
- the "1" tab (route 1) with:
• the average speed, the average consumption and the distance
travelled calculated over route "1",
- the "2" tab (route 2) with the same characteristics for a second route.A few definitions
Range:
Displays the distance which can be travelled with t he remaining fuel
detected in the tank, in relation to the average co nsumption over the last few
miles (kilometres).
This displayed value may vary significantly following a change in the
vehicle speed or the relief of the route.
When the range falls below 20 miles (30 km), dashes are displayed. After
filling with at least 5 litres of fuel, the range is recalculat ed and is displayed
when it exceeds 60 miles (100 km).
If, whilst driving, dashes are displayed continuous ly in place of digits, contact
a PEUGEOT dealer.
Current consumption: only calculated and displayed above 20 mph
(30 km/h).
Average consumption: this is the average quantity of fuel consumed since
the last trip recorder zero reset.
Distance travelled: calculated since the last trip computer zero reset.
Distance remaining to the destination: calculated with reference to the
final destination, entered by the user. If guidance is activa ted, the navigation
system calculates it as a current value.
Average speed: this is the average speed calculated since the last trip
computer zero reset (ignition on).
Zero reset
When the required route is displayed, press the con
trol for more than
two seconds.
