PEUGEOT 807 2008.5 Owners Manual

182
Child safety

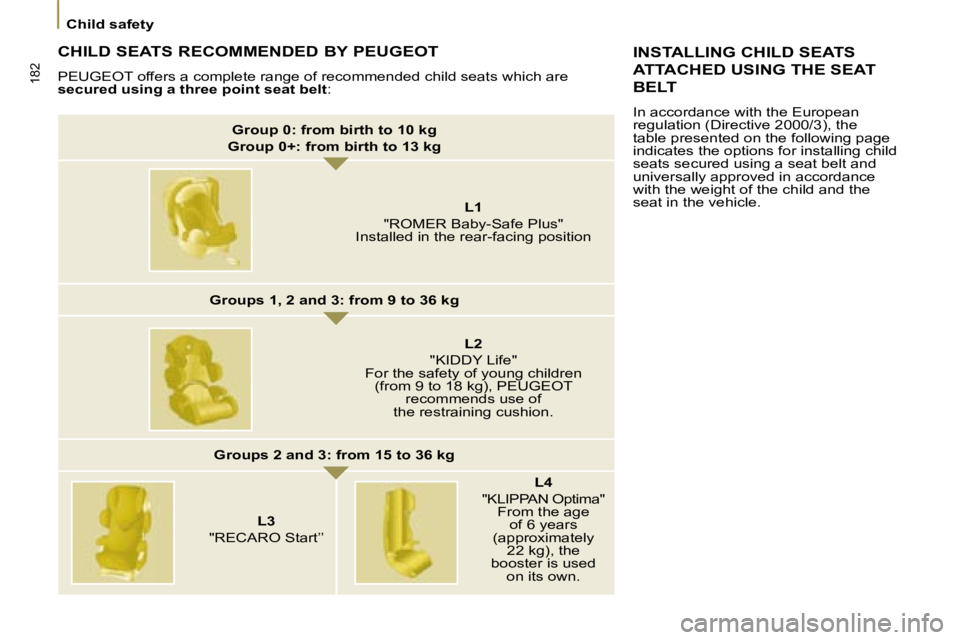

CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are

secured using a three point seat belt :
INSTALLING CHILD SEATS
ATTACHED USING THE SEAT
BELT
In accordance with the European
regulation (Directive 2000/3), the
table presented on the following page
indicates the options for installing child
seats secured using a seat belt and
universally approved in accordance
with the weight of the child and the
seat in the vehicle.

Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg

L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position

Groups 1, 2 and 3: from 9 to 36 kg

L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT recommends use of
the restraining cushion.

Groups 2 and 3: from 15 to 36 kg

L3
"RECARO Start’’
L4
"KLIPPAN Optima" From the age of 6 years
(approximately 22 kg), the
booster is used on its own.

SAFETY
183
Child safety
5

a: Group 0: from birth to 10 kg.

b: consult the legislation in force in your country before insta lling your child on this seat.

U: seat suitable for the installation of a child se at secured using a seat belt and universally approv ed, "rear facing"
and/or "forward facing".

L-: only the child seats indicated can be installed on the se at concerned (according to country).

X: seat not suitable for the installation of a child seat of the weight group indicated.

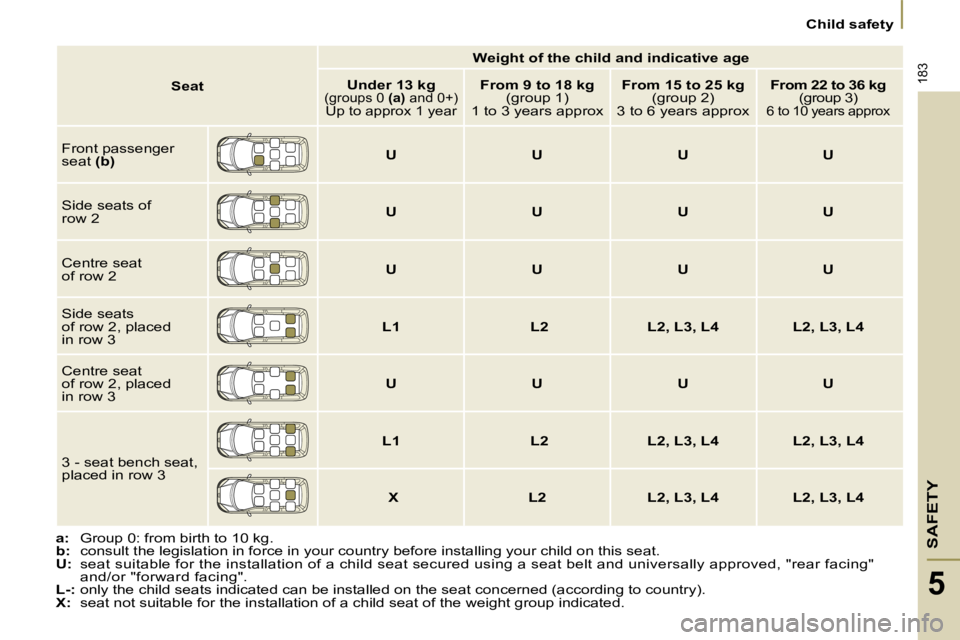

Seat
Weight of the child and indicative age

Under 13 kg (groups 0 (a) and 0+) Up to approx 1 year

From 9 to 18 kg
(group 1)
1 to 3 years approx
From 15 to 25 kg
(group 2)
3 to 6 years approx
From 22 to 36 kg
(group 3)
6 to 10 years approx
Front passenger
seat ( b )
U U U U
Side seats of
row 2
U U U U
Centre seat
of row 2
U U U U
Side seats
of row 2, placed
in row 3
L1 L2 L2, L3, L4 L2, L3, L4
Centre seat
of row 2, placed
in row 3
U U U U
3 - seat bench seat,
placed in row 3
L1 L2 L2, L3, L4 L2, L3, L4

X L2 L2, L3, L4 L2, L3, L4

184
Child safety
ADVICE ON CHILD SEATS
Otherwise, the child would risk being
seriously injured or killed if the air bag
were to infl ate.
The incorrect installation of a child seat
in a vehicle compromises the child’s
protection in the event of an accident.
Remember to fasten the seat belts or
the child seat harnesses
keeping the
slack in relation to the child’s body to
a minimum , even for short journeys.
To protect young children from the
rays of the sun, fi t side blinds to
the rear windows.
CHILD MONITORING MIRROR
This mirror enables the driver or front
passenger to observe all the rear
seats.
Fitted on its own ball joint and able to
retract into its housing in the roof, it
provides a panoramic view of the rear
interior of the vehicle.
For optimum installation of the "forward
facing" child seat, ensure that the back
of the child seat is in contact with the
back of the vehicle’s seat and that the
head restraint does not cause any
discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached
securely to prevent it from being
thrown around the vehicle in the event
of sharp braking.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Disarm the passenger air bag when a
"rear facing" child seat is installed on
the front seat. Installing a booster seat
The chest part of the seat belt must
be positioned on the child’s shoulder
without touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child’s thighs.
PEUGEOT recommends the use of a
booster seat which has a back, fi tted
with a seat belt guide at shoulder level.
As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors, use the "Child Lock".
Take care not to open the rear windows
by more than one third.

184
Child safety
ADVICE ON CHILD SEATS
Otherwise, the child would risk being
seriously injured or killed if the air bag
were to infl ate.
The incorrect installation of a child seat
in a vehicle compromises the child’s
protection in the event of an accident.
Remember to fasten the seat belts or
the child seat harnesses
keeping the
slack in relation to the child’s body to
a minimum , even for short journeys.
To protect young children from the
rays of the sun, fi t side blinds to
the rear windows.
CHILD MONITORING MIRROR
This mirror enables the driver or front
passenger to observe all the rear
seats.
Fitted on its own ball joint and able to
retract into its housing in the roof, it
provides a panoramic view of the rear
interior of the vehicle.
For optimum installation of the "forward
facing" child seat, ensure that the back
of the child seat is in contact with the
back of the vehicle’s seat and that the
head restraint does not cause any
discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached
securely to prevent it from being
thrown around the vehicle in the event
of sharp braking.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Disarm the passenger air bag when a
"rear facing" child seat is installed on
the front seat. Installing a booster seat
The chest part of the seat belt must
be positioned on the child’s shoulder
without touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child’s thighs.
PEUGEOT recommends the use of a
booster seat which has a back, fi tted
with a seat belt guide at shoulder level.
As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors, use the "Child Lock".
Take care not to open the rear windows
by more than one third.

185
Towing a trailer
ACCESSORIES
6
TOWING A TRAILER, CARAVAN, BOAT, ETC...
Refer to the administrative documents
(V5, ...) or to the Petrol or Diesel
"Dimensions, weights and towed
loads" section of chapter 9.
Distribution of loads: distribute the
load in the trailer so that the heaviest
loads are as close as possible to the
axle and the nose weight is close
to the maximum authorised without,
however, exceeding it.
Cooling: towing a trailer on a slope
increases the coolant temperature.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.

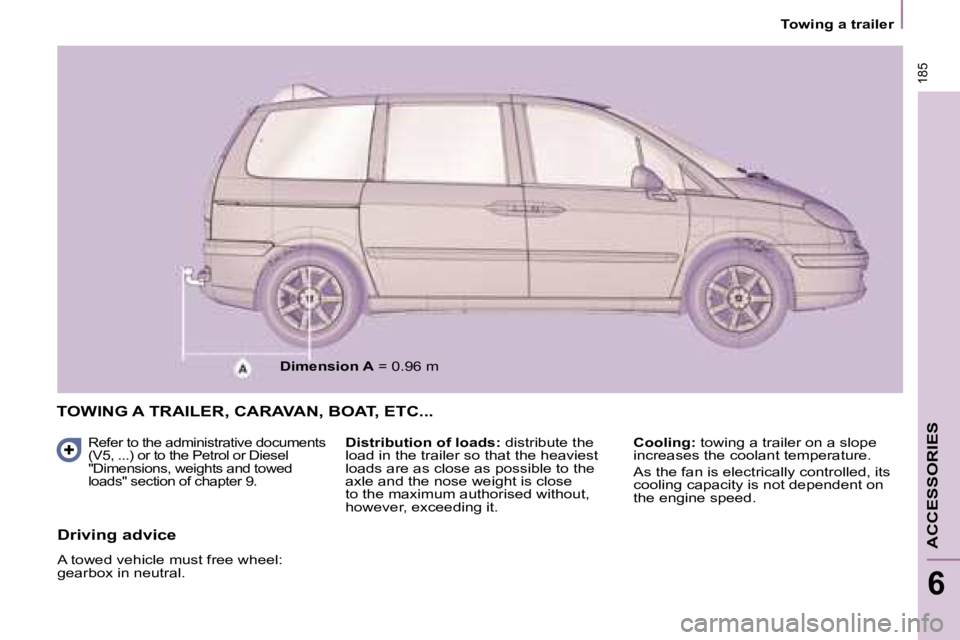

Dimension A = 0.96 m
Driving advice
A towed vehicle must free wheel:
gearbox in neutral.

186
Towing a trailer
On the contrary, use a high gear to
lower the engine speed and reduce
your speed.
In all cases, pay attention to the
coolant temperature.
Brakes: towing increases the braking
distance. Drive at a moderate speed,
change down early and brake
gradually. Please contact a PEUGEOT dealer
fi rst for further information.
Automatic adjustment
For vehicles with Xenon bulbs, and if
the change in load makes it necessary,
this system automatically corrects the
height of the beam after approximately
2 minutes. The driver is then assured
of having optimum lighting and not
causing a nuisance to other road
users.

In certain cases of particularly
arduous use (towing the
maximum load up a steep slope
in high temperatures), the engine
automatically limits its power.
In this case, cutting off the air
conditioning allows the engine power
to be recovered, and therefore the
towing speed to be signifi cantly
increased (approximately 12 mph
[20 km/h] more). Sequential control
of the gearbox may also become
unavailable. Lighting
Bicycle carrier If you fi t a bicycle carrier on
the tailgate, deactivate the
rear wiper from the display’s
confi guration menu.
Refer to the "Identifi cation
features" section of chapter 9. Refer to the "Steering wheel
controls" section of chapter 3.
When using a trailer connection,
you must add a fuse. Refer to
the "Changing a fuse" section of
chapter 8.

If the coolant temperature warning light
comes on, stop the vehicle and switch
off the engine as soon as possible.

Tyres: check the tyre pressures of
the towing vehicle and of the trailer,
observing the recommended pressure.
Side wind: sensitivity to side wind is
increased. Drive smoothly and at a
moderate speed.

Towbar
We recommend the use of original
PEUGEOT towbars, which have been
tested for endurance from the design
stage of your vehicle.
Towing equipment must be fi tted in
accordance with the manufacturer’s
instructions, with particular attention to
the towing capacities of your vehicle,
the load towed, the nose weight and
the electrical connection. As this fi tting
should be carried out by a professional,
we recommend that you entrust the
fi tting of this equipment to a PEUGEOT
dealer .
In accordance with the general
instructions referred to above, we draw
your attention to the risk connected
with fi tting a towbar or other electrical
accessory which is not recommended
by the PEUGEOT network . Fitting such
equipment could result in a failure of
your vehicle’s electronic system. Manual adjustment
Adjust your headlamps so as not to
dazzle other road users. Check the
electrical signalling of the trailer.

187
Roof bars
ACCESSORIES
6
USING ROOF BARS
To use the transverse roof bars,
release the four locking levers provided
for this purpose.
From the left-hand side, slide them in
their rails to the required notch.
Lock the four locking levers located at
the base of the feet of each bar. When the roof bars are not in use,
position them at the rear stop to
avoid excess consumption.
Use accessories recommended by
Automobiles PEUGEOT and follow
the fi tting instructions in the manual
provided by the manufacturer of the
load-carrying roof bars. - Remove the bolt, the stop and the
two washers at each location A .
- Move the bars to the locations A .
- Lift the two bars to remove them.
- Imperative: refi t the bolt, the
stop and the two washers at each
location A .
To refi t, proceed in the reverse order.
Removal and refitting of the
roof bars
Maximum authorised weight on the
roof rack: 220 lbs. (100 kg)

188
Snow screen
VERY COLD CLIMATE SCREEN
If fi tted on your vehicle, this is a removable part which permits complete or partial covering of the front air intake (grille, ...) to favour the increase in the engine temperature when driving in very low temperatures and to prevent the entry of snow into the engine compartment.
FITTING
-
Offer up the screen facing its centring pin A on the front bumper.
- Put it in place by pressing at each clip B located in the four corners.
REMOVAL
-
Pass a screwdriver into the hole located near each of the clips.
- Use the screwdriver as a lever to unclip the four clips B in turn.
When the snow has cleared, do not forget to remove the very cold climate screen.

189
Other accessories
ACCESSORIES
6
OTHER ACCESSORIES
These accessories and parts, after
being tested and approved for reliability
and safety, are all adapted to your
vehicle. A wide choice of recommended
accessories and original parts is offered
by the PEUGEOT Marque. To avoid any jamming under the
pedals:
- ensure that the mat and its fi xings are positioned correctly,
- never place one mat on top of another.
Compatible portable equipment
For the hands-free kit audio
equipment, the fi tting of an RCA
auxiliary socket is offered specifi cally
by the Network.
The audio cable for connection to
the auxiliary socket (RCA yellow-red
located in the glove box) is also
offered by the network.
Following connection of the cable
and selection of the AUX mode, via
the source button, your portable
equipment is ready to operate.
Set the portable equipment to half
volume to avoid saturating the audio
system sound. Then use the audio
system volume button. Audio systems, telephone,
hands-free kit, speakers, CD
changer, navigation system,
DVD player, ....
Alloy wheels, trims,
aluminium interior trim kit,
mud fl aps, ...
Seat covers compatible with
side air bags, mats, boot tray,
sunroof, luggage net, door
defl ectors, cool box secured
on the slides, clip armrest,
load carrying roof bars, roof
box, snow chains, ski carrier,
tailgate bicycle carrier, interior bicycle
carrier, booster seats and child seats,
Isofi x seats, side sun blinds and rear
blind, ...
Trailer towbar which must be fi tted by a
PEUGEOT dealer . The fi tting of electrical equipment
or accessories which are not
recommended by PEUGEOT
may result in a failure of your vehicle’s
electronic system.
Please note this specifi c warning. You
are advised to contact a representative
of the Marque to be shown the range
of recommended equipment or
accessories.
Depending on the country in which
the vehicle is sold, it is compulsory to
have a safety jacket, warning triangle
and replacement bulbs available in the
vehicle. Screenwash, interior and
exterior maintenance
and cleaning products,
replacement bulbs, ...
When using a tailgate bicycle
carrier, deactivate the rear
wiper from the display
confi guration menu.
Before installing a
radiocommunication transmitter with
aerial, contact a PEUGEOT dealer who
will inform you of the specifi cations of
the transmitters which can be fi tted,
in accordance with the Motor Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).
A further range is also available,
structured around comfort, leisure and
maintenance:
Anti-theft alarm, window
engraving, fi rst aid kit, safety
jacket, rear parking assistance,
warning triangle, ...

191
Fuel
CHECKS
7
LOW FUEL LEVEL The tank must be fi lled with fuel with

the engine off .

- Open the fuel fi ller fl ap.

- Insert the key then turn it to the left.

- Remove the cap and attach it to the clip located on the inside of the fl ap.
FILLING THE FUEL TANK
When the fuel fi ller fl ap is open, a
system limits the opening of the
rear left sliding side door.
The key cannot be removed from the
cap’s lock until the cap is refi tted on
the tank.

FUEL CIRCUIT DISARMED
In a serious collision, a mechanism
automatically prevents fuel from
reaching the engine.
The fl ashing of this warning
light is accompanied by a
message on the display.
When the tank’s minimum
level is reached, this warning
light comes on, accompanied
by the message "Fuel
level low" on the display.
You have enough fuel left to cover
approximately 30 miles (50 km) ,
depending on driving conditions and
the engine.
If the warning light fl ashes, this
indicates a fuel gauge malfunction.
Consult a PEUGEOT dealer.
DIESEL REPRIMING PUMP
If you should run out of fuel, it is
necessary to re-prime the circuit:
- fi ll the fuel tank with at least fi ve litres of diesel,
- squeeze and release the manual re-priming pump, under the bonnet
under the protective cover, until fuel
appears in the transparent pipe,
- operate the starter until the engine starts.
A label on the inside of the fl ap
indicates which type of fuel to use.
If you fi ll your tank, do not continue
after the third cut-off of the pump
nozzle. This could result in vehicle
malfunctions.
The capacity of the tank is
approximately 18 gallons (
80 litres).

- After fi lling the tank, lock the cap and close the fl ap. Check that there is no odour or
leakage of fuel outside the vehicle and
re-establish the fuel supply:

switch off the ignition
(STOP position).

 remove the key.
 put the key back in the ignition.

 switch on the ignition and start.
