PEUGEOT 807 2008.5 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2008.5, Model line: 807, Model: PEUGEOT 807 2008.5Pages: 252, PDF Size: 10.67 MB
Page 201 of 252
203
TROUBLESHOOTING
8

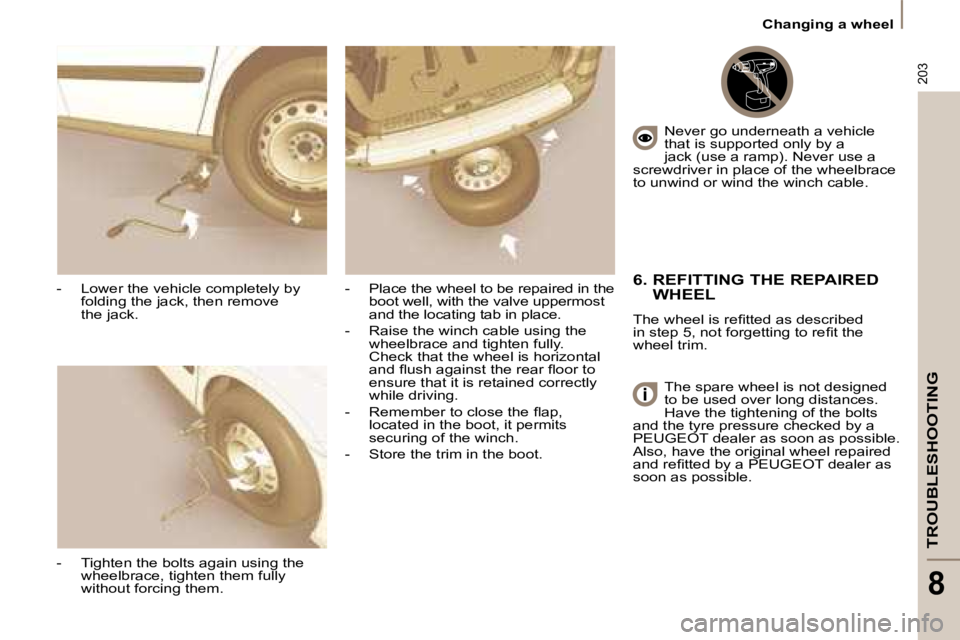

Changing a wheel
- Lower the vehicle completely by folding the jack, then remove
the jack.
- Tighten the bolts again using the wheelbrace, tighten them fully
without forcing them. - Place the wheel to be repaired in the
boot well, with the valve uppermost
and the locating tab in place.
- Raise the winch cable using the wheelbrace and tighten fully.
Check that the wheel is horizontal
a n d fl u s h a g a i n s t t h e r e a r fl o o r t o
ensure that it is retained correctly
while driving.
- R e m e m b e r t o c l o s e t h e fl a p , located in the boot, it permits
securing of the winch.
- Store the trim in the boot. Never go underneath a vehicle
that is supported only by a
jack (use a ramp). Never use a
screwdriver in place of the wheelbrace
to unwind or wind the winch cable.
6. REFITTING THE REPAIRED
WHEEL
T h e w h e e l i s r e fi t t e d a s d e s c r i b e d
i n s t e p 5 , n o t f o r g e t t i n g t o r e fi t t h e
wheel trim.
The spare wheel is not designed
to be used over long distances.
Have the tightening of the bolts
and the tyre pressure checked by a
PEUGEOT dealer as soon as possible.
Also, have the original wheel repaired
a n d r e fi t t e d b y a P E U G E O T d e a l e r a s
soon as possible.
Page 202 of 252
204

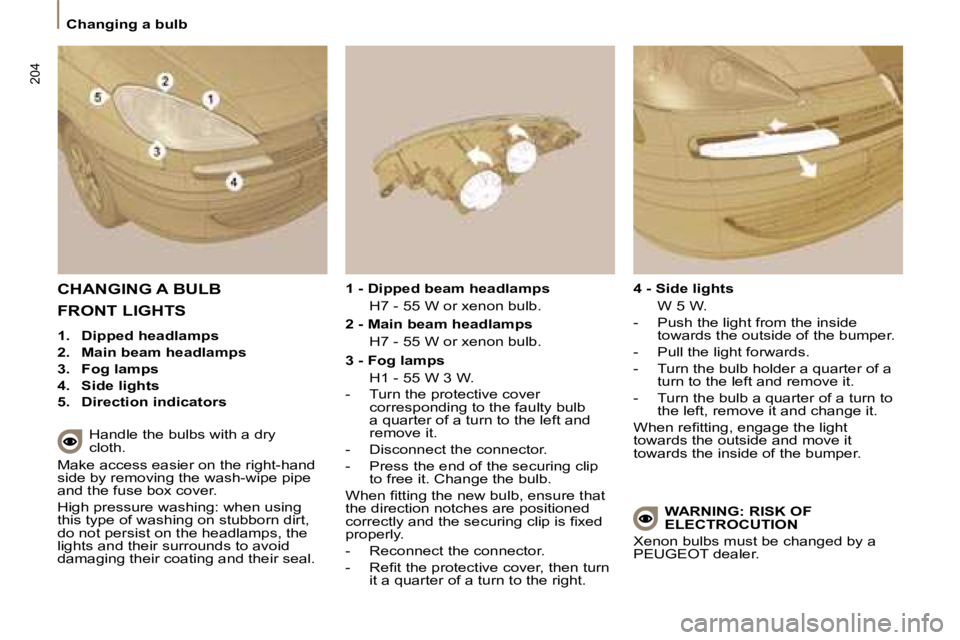

Changing a bulb
CHANGING A BULB
Handle the bulbs with a dry
cloth.
Make access easier on the right-hand
side by removing the wash-wipe pipe
a n d t h e f u s e b o x c o v e r .
High pressure washing: when using
this type of washing on stubborn dirt,
do not persist on the headlamps, the
lights and their surrounds to avoid
damaging their coating and their seal. 2 - Main beam headlamps
H 7 - 5 5 W o r x e n o n b u l b .
- Turn the protective cover
corresponding to the faulty bulb
a quarter of a turn to the left and
remove it.
- Disconnect the connector.
- Press the end of the securing clip to free it. Change the bulb.
W h e n fi t t i n g t h e n e w b u l b , e n s u r e t h a t
the direction notches are positioned
c o r r e c t l y a n d t h e s e c u r i n g c l i p i s fi x e d
properly.
- Reconnect the connector.
- R e fi t t h e p r o t e c t i v e c o v e r , t h e n t u r n it a quarter of a turn to the right.
3 - Fog lamps
H1 - 55 W 3 W.
FRONT LIGHTS
1. Dipped headlamps
2. Main beam headlamps
3. Fog lamps
4. Side lights
5. Direction indicators 1 - Dipped beam headlamps
H 7 - 5 5 W o r x e n o n b u l b .
4 - Side lights
W 5 W.
- Push the light from the inside
towards the outside of the bumper.
- Pull the light forwards.
- Turn the bulb holder a quarter of a turn to the left and remove it.
- Turn the bulb a quarter of a turn to the left, remove it and change it.
W h e n r e fi t t i n g , e n g a g e t h e l i g h t
towards the outside and move it
towards the inside of the bumper.
WARNING: RISK OF
ELECTROCUTION
Xenon bulbs must be changed by a
PEUGEOT dealer .
Page 203 of 252
205
TROUBLESHOOTING
8
Changing a bulb
Rear lights
1. Direction indicators
PY 21 W (amber).
2. Brake/side lights
P21/5 W.
3. Reversing lights
P21 W.
4. Fog lamps
P21 W.
5 -Direction indicators
PY 21 W (amber).
- Turn the bulb holder a quarter of a
turn to the left and remove it.
- Change the bulb.
T h e h e a d l a m p s a r e fi t t e d w i t h
polycarbonate glass with a
protective coating. Do not clean
them with a dry or abrasive cloth,
nor with a detergent or solvent product.
Use a sponge and soapy water.
In certain climatic conditions
(low temperature, humidity),
condensation inside the headlamp
glass is normal; it disappears a
few minutes after the lights are
switched on. Direction indicator side repeaters
WY 5 W (amber).
- Push the repeater rearwards and
release it from the mirror.
- Hold the connector and turn the bulb holder a quarter of a turn
to the left.
- Turn the bulb a quarter of a turn to the left, remove it and change it.
W h e n r e fi t t i n g , e n g a g e t h e r e p e a t e r
towards the rear and move it towards
the front of the mirror.
Amber coloured bulbs
(direction indicators and side
repeaters) must be changed for
b u l b s o f i d e n t i c a l s p e c i fi c a t i o n a n d
colour. These 4 bulbs are changed from inside
the vehicle:
- open the tailgate,
- r e m o v e t h e a i r e x t r a c t i o n g r i l l e o n
the side concerned,
- unclip the light harness,
Page 204 of 252
205
TROUBLESHOOTING
8
Changing a bulb
Rear lights
1. Direction indicators
PY 21 W (amber).
2. Brake/side lights
P21/5 W.
3. Reversing lights
P21 W.
4. Fog lamps
P21 W.
5 -Direction indicators
PY 21 W (amber).
- Turn the bulb holder a quarter of a
turn to the left and remove it.
- Change the bulb.
T h e h e a d l a m p s a r e fi t t e d w i t h
polycarbonate glass with a
protective coating. Do not clean
them with a dry or abrasive cloth,
nor with a detergent or solvent product.
Use a sponge and soapy water.
In certain climatic conditions
(low temperature, humidity),
condensation inside the headlamp
glass is normal; it disappears a
few minutes after the lights are
switched on. Direction indicator side repeaters
WY 5 W (amber).
- Push the repeater rearwards and
release it from the mirror.
- Hold the connector and turn the bulb holder a quarter of a turn
to the left.
- Turn the bulb a quarter of a turn to the left, remove it and change it.
W h e n r e fi t t i n g , e n g a g e t h e r e p e a t e r
towards the rear and move it towards
the front of the mirror.
Amber coloured bulbs
(direction indicators and side
repeaters) must be changed for
b u l b s o f i d e n t i c a l s p e c i fi c a t i o n a n d
colour. These 4 bulbs are changed from inside
the vehicle:
- open the tailgate,
- r e m o v e t h e a i r e x t r a c t i o n g r i l l e o n
the side concerned,
- unclip the light harness,
Page 205 of 252
206
Changing a bulb
THIRD BRAKE LIGHT
5 W 5 W bulbs.
- Remove the tailgate upper trim by unclipping it on each side.
- Squeeze the two tabs 1 to release
the bulb holder.
- Change the faulty bulb.
- W h e n r e fi t t i n g , e n s u r e t h a t t h e tailgate upper trim has been put
back in place correctly.
- unscrew the two interior nuts and
remove the light,
- unscrew the bulb holder concerned an eighth of a turn to the left and
remove it,
- unscrew the faulty bulb an eighth of a turn to the left and change it.
When two or more bulbs are
faulty, you must replace them
immediately.
W h e n r e fi t t i n g :
- take care to position the bulb
correctly and press on it to
engage it,
- take care to position the bulb holder correctly and screw it in an eighth
of a turn to the right,
- take care to position and secure the light correctly. NUMBER PLATE LIGHTS
W 5 W.
- Remove the lens.
- Change the faulty bulb.
Page 206 of 252
207
TROUBLESHOOTING
8

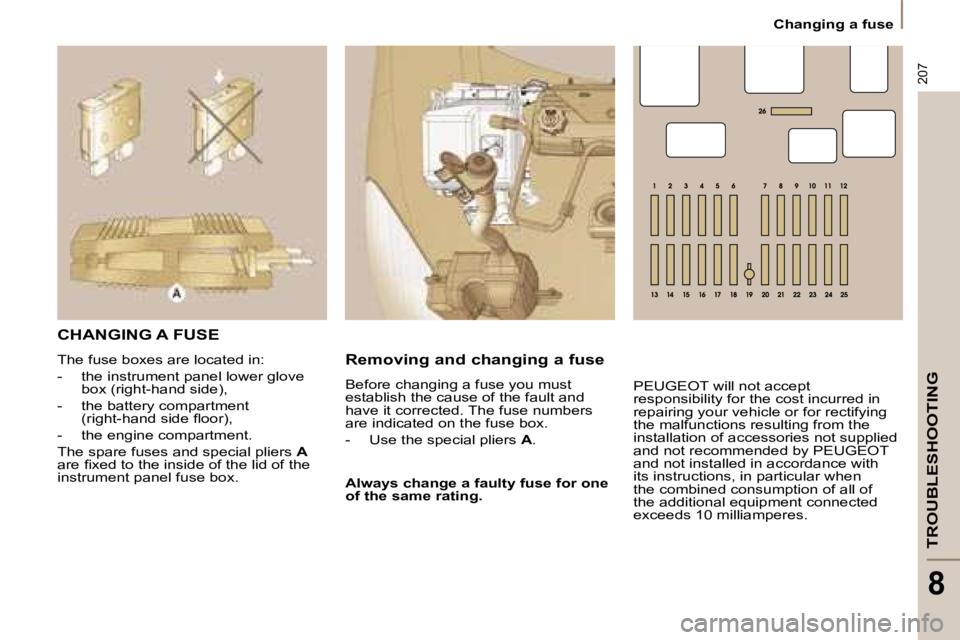

Changing a fuse
CHANGING A FUSE
T h e f u s e b o x e s a r e l o c a t e d i n :
- the instrument panel lower glove b o x ( r i g h t - h a n d s i d e ) ,
- the battery compartment ( r i g h t - h a n d s i d e fl o o r ) ,
- the engine compartment.
The spare fuses and special pliers A
a r e fi x e d t o t h e i n s i d e o f t h e l i d o f t h e
i n s t r u m e n t p a n e l f u s e b o x . Before changing a fuse you must
establish the cause of the fault and
have it corrected. The fuse numbers
a r e i n d i c a t e d o n t h e f u s e b o x .
- Use the special pliers
A .
Always change a faulty fuse for one
of the same rating.
Removing and changing a fuse
PEUGEOT will not accept
responsibility for the cost incurred in
repairing your vehicle or for rectifying
the malfunctions resulting from the
installation of accessories not supplied
and not recommended by PEUGEOT
and not installed in accordance with
its instructions, in particular when
the combined consumption of all of
the additional equipment connected
e x c e e d s 1 0 m i l l i a m p e r e s .
Page 207 of 252
207
TROUBLESHOOTING
8
Changing a fuse
CHANGING A FUSE
T h e f u s e b o x e s a r e l o c a t e d i n :
- the instrument panel lower glove b o x ( r i g h t - h a n d s i d e ) ,
- the battery compartment ( r i g h t - h a n d s i d e fl o o r ) ,
- the engine compartment.
The spare fuses and special pliers A
a r e fi x e d t o t h e i n s i d e o f t h e l i d o f t h e
i n s t r u m e n t p a n e l f u s e b o x . Before changing a fuse you must
establish the cause of the fault and
have it corrected. The fuse numbers
a r e i n d i c a t e d o n t h e f u s e b o x .
- Use the special pliers
A .
Always change a faulty fuse for one
of the same rating.
Removing and changing a fuse
PEUGEOT will not accept
responsibility for the cost incurred in
repairing your vehicle or for rectifying
the malfunctions resulting from the
installation of accessories not supplied
and not recommended by PEUGEOT
and not installed in accordance with
its instructions, in particular when
the combined consumption of all of
the additional equipment connected
e x c e e d s 1 0 m i l l i a m p e r e s .
Page 208 of 252
208
Changing a fuse

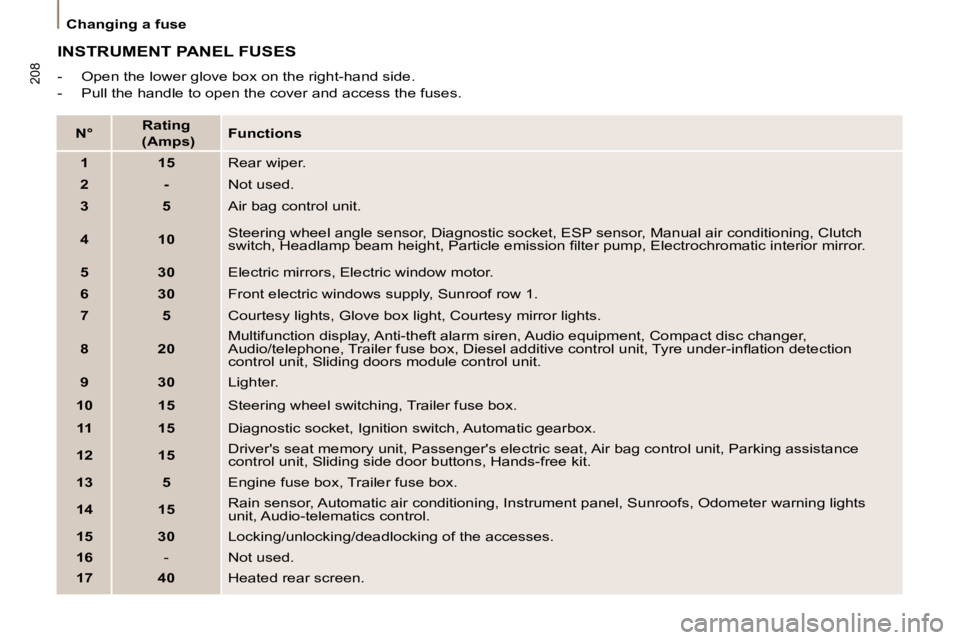

INSTRUMENT PANEL FUSES
- O p e n t h e l o w e r g l o v e b o x o n t h e r i g h t - h a n d s i d e .
- Pull the handle to open the cover and access the fuses.
N°
Rating
(Amps)
Functions
1 15 Rear wiper.
2 - Not used.
3 5 Air bag control unit.
4 10 Steering wheel angle sensor, Diagnostic socket, ESP sensor, Manu
al air conditioning, Clutch
s w i t c h , H e a d l a m p b e a m h e i g h t , P a r t i c l e e m i s s i o n fi l t e r p u m p , E l e c t r o c h r o m a t i c i n t e r i o r m i r r o r .
5 30 Electric mirrors, Electric window motor.
6 30 Front electric windows supply, Sunroof row 1.
7 5 C o u r t e s y l i g h t s , G l o v e b o x l i g h t , C o u r t e s y m i r r o r l i g h t s .
8 20 Multifunction display, Anti-theft alarm siren, Audio equipmen
t, Compact disc changer,
A u d i o / t e l e p h o n e , T r a i l e r f u s e b o x , D i e s e l a d d i t i v e c o n t r o l u n i t , T y r e u n d e r - i n fl a t i o n d e t e c t i o n
control unit, Sliding doors module control unit.
9 30 Lighter.
10 15 S t e e r i n g w h e e l s w i t c h i n g , T r a i l e r f u s e b o x .
11 15 D i a g n o s t i c s o c k e t , I g n i t i o n s w i t c h , A u t o m a t i c g e a r b o x .
12 15 Driver's seat memory unit, Passenger's electric seat, Air bag control un
it, Parking assistance
control unit, Sliding side door buttons, Hands-free kit.
13 5 E n g i n e f u s e b o x , T r a i l e r f u s e b o x .
14 15 Rain sensor, Automatic air conditioning, Instrument panel, Su
nroofs, Odometer warning lights
unit, Audio-telematics control.
15 30 Locking/unlocking/deadlocking of the accesses.
16 - Not used.
17 40 Heated rear screen.
Page 209 of 252
209
TROUBLESHOOTING
8
Changing a fuse

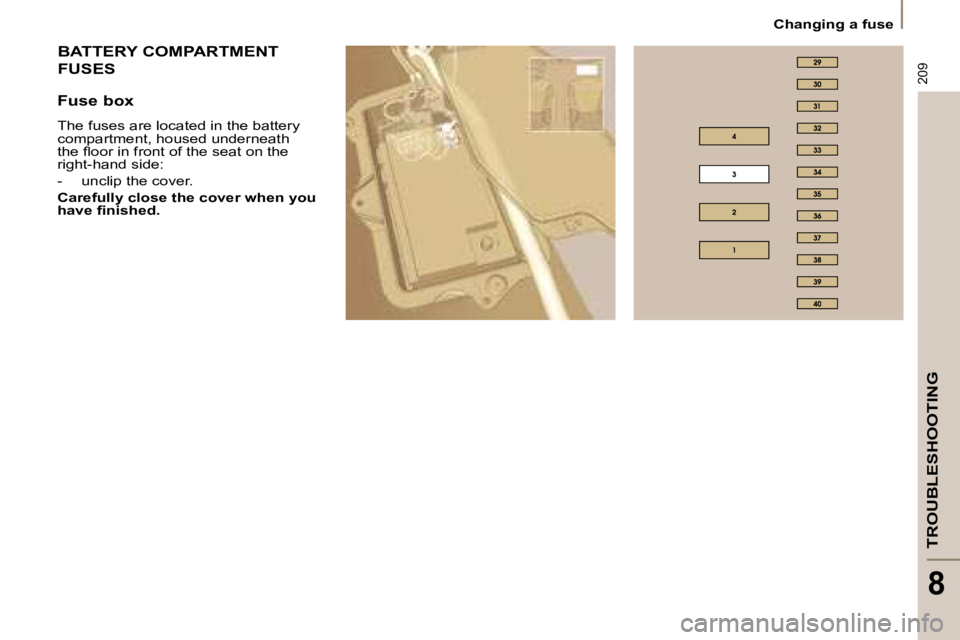

BATTERY COMPARTMENT
FUSES
Fuse box
The fuses are located in the battery
compartment, housed underneath
t h e fl o o r i n f r o n t o f t h e s e a t o n t h e
right-hand side:
- unclip the cover.
Carefully close the cover when you
h a v e fi n i s h e d .
Page 210 of 252
210
Changing a fuse

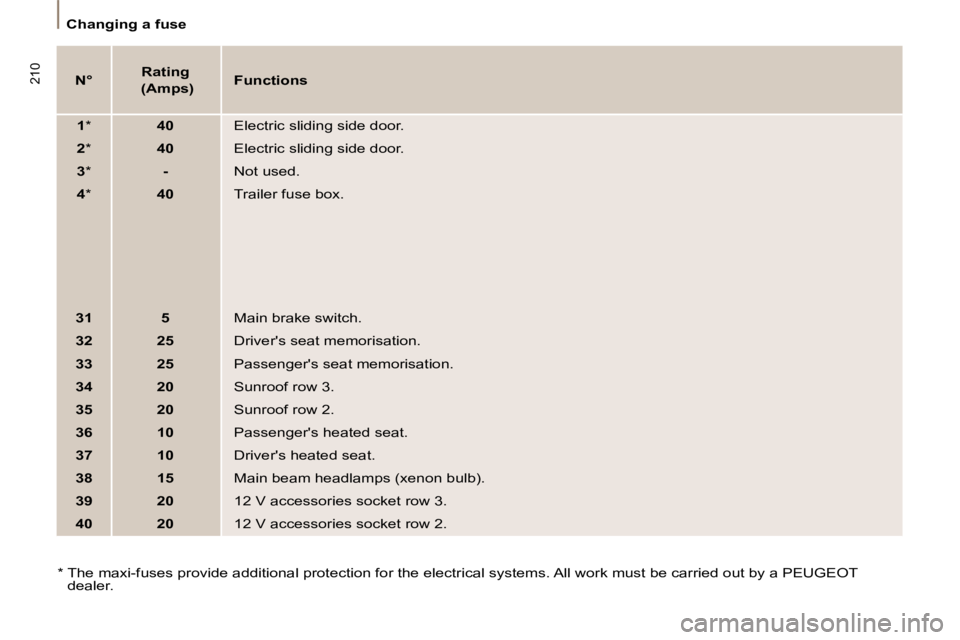

N°
Rating
(Amps)
Functions
1 * 40 Electric sliding side door.
2 * 40 Electric sliding side door.
3 * - Not used.
4 * 40 T r a i l e r f u s e b o x .
31 5 Main brake switch.
32 25 Driver's seat memorisation.
33 25 Passenger's seat memorisation.
34 20 Sunroof row 3.
35 20 Sunroof row 2.
36 10 Passenger's heated seat.
37 10 Driver's heated seat.
38 15 M a i n b e a m h e a d l a m p s ( x e n o n b u l b ) .
39 20 12 V accessories socket row 3.
40 20 12 V accessories socket row 2.
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l p r o t e c t i o n f o r t h e e l e c t r i c a l s y s t e m s . A l l w o r k m u s t b e c a r r i e d o u t b y a P E U G E O T
dealer .
