PEUGEOT 807 2008 Owners Manual

153
Towing a trailer
ACCESSORIES
6
TOWING A TRAILER, CARAVAN, BOAT, ETC...
Refer to the administrative
documents (V5, ...) or to the Petrol
or Diesel "Dimensions, weights
and towed loads" section of chapter 9. Distribution of loads:
distribute the
load in the trailer so that the heaviest
loads are as close as possible to the
axle and the nose weight is close
to the maximum authorised without,
however, exceeding it. Cooling:
towing a trailer on a slope
increases the coolant temperature.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.

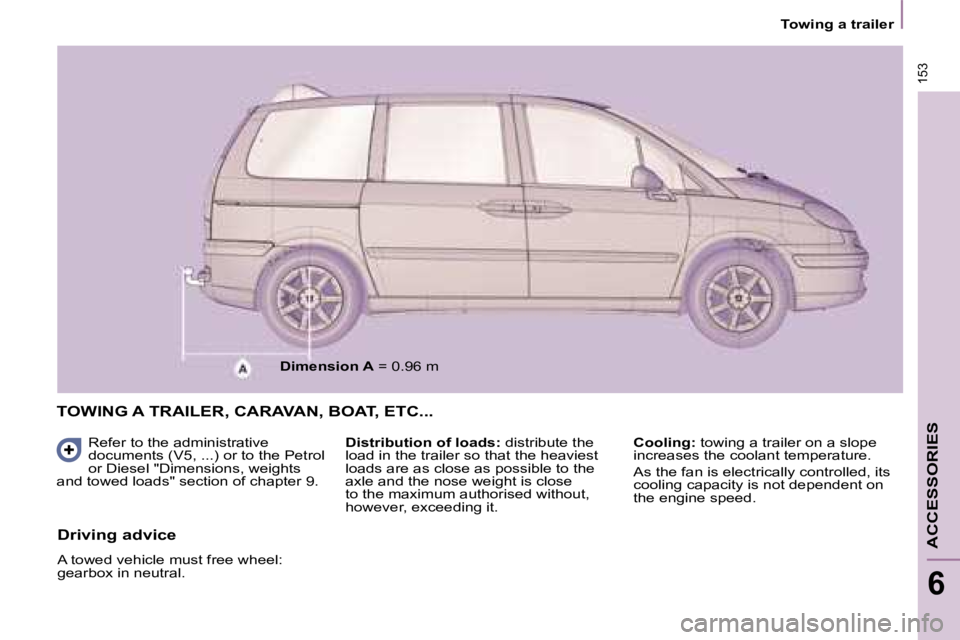

Dimension A
= 0.96 m
Driving advice
A towed vehicle must free wheel:
gearbox in neutral.

154
Towing a trailer
On the contrary, use a high gear to
lower the engine speed and reduce
your speed.
In all cases, pay attention to the
coolant temperature. Brakes:
towing increases the braking
distance. Drive at a moderate speed,
change down early and brake
gradually. Please contact a PEUGEOT dealer
irst for further information.
Automatic adjustment
For vehicles with Xenon bulbs, this
system automatically corrects the
height of the beam, whatever the
load of the vehicle. The driver is then
assured of having optimum lighting and
not causing a nuisance to other road
users.
In certain cases of particularly
arduous use (towing the
maximum load up a steep slope
in high temperatures), the engine
automatically limits its power.
In this case, cutting off the air
conditioning allows the engine power
to be recovered, and therefore the
towing speed to be signiicantly
increased (approximately 12 mph
[20 km/h] more). Sequential control
of the gearbox may also become
unavailable. Lighting
Bicycle carrier If you it a bicycle carrier on
the tailgate, deactivate the
rear wiper from the display’s
coniguration menu.
Refer to the "Identiication
features" section of chapter 9. Refer to the "Steering wheel
controls" section of chapter 3.
When using a trailer connection,
you must add a fuse. Refer to
the "Changing a fuse" section of
chapter 8.
If the coolant temperature warning light
comes on, stop the vehicle and switch
off the engine as soon as possible.
Tyres: check the tyre pressures of
the towing vehicle and of the trailer,
observing the recommended pressure. Side wind:
sensitivity to side wind is
increased. Drive smoothly and at a
moderate speed.
Towbar
We recommend the use of original
PEUGEOT towbars, which have been
tested for endurance from the design
stage of your vehicle.
Towing equipment must be itted in
accordance with the manufacturer’s
instructions, with particular attention to
the towing capacities of your vehicle,
the load towed, the nose weight and
the electrical connection. As this itting
should be carried out by a professional,
we recommend that you entrust the
itting of this equipment to a PEUGEOT
dealer.
In accordance with the general
instructions referred to above, we draw
your attention to the risk connected
with itting a towbar or other electrical
accessory which is not recommended
by the PEUGEOT network. Fitting such
equipment could result in a failure of
your vehicle’s electronic system. Manual adjustment
Adjust your headlamps so as not to
dazzle other road users. Check the
electrical signalling of the trailer.

155
Roof bars
ACCESSORIES
6
USING ROOF BARS
To use the transverse roof bars,
release the four locking levers provided
for this purpose.
From the left-hand side, slide them in
their rails to the required notch.
Lock the four locking levers located at
the base of the feet of each bar.When the roof bars are not in use,
position them at the rear stop to
avoid excess consumption.
Use accessories recommended by
Automobiles PEUGEOT and follow
the itting instructions in the manual
provided by the manufacturer of the

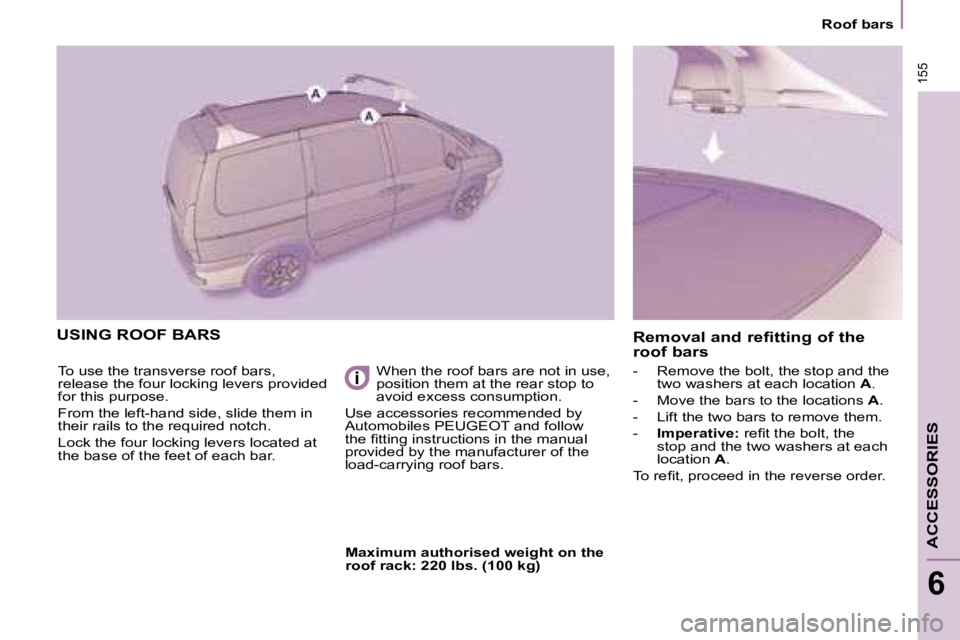

load-carrying roof bars. - Remove the bolt, the stop and the
two washers at each location A.
- Move the bars to the locations A.
- Lift the two bars to remove them.
- Imperative: reit the bolt, the
stop and the two washers at each
location A.
To reit, proceed in the reverse order.
Removal and refitting of the
roof bars
Maximum authorised weight on the
roof rack: 220 lbs. (100 kg)

156

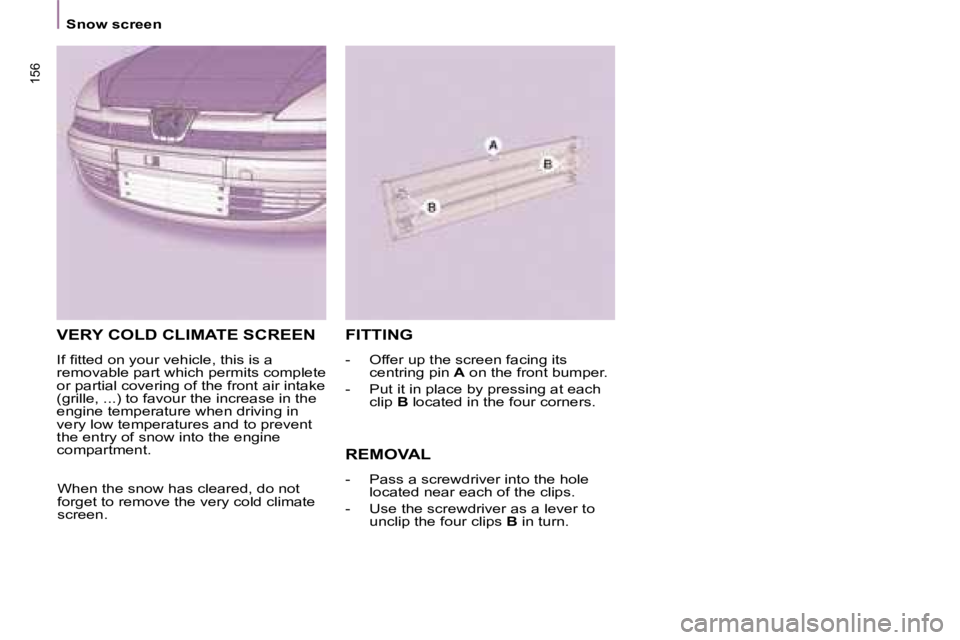

Snow screen
VERY COLD CLIMATE SCREEN
If itted on your vehicle, this is a
removable part which permits complete
or partial covering of the front air intake
(grille, ...) to favour the increase in the
engine temperature when driving in
very low temperatures and to prevent
the entry of snow into the engine
compartment.FITTING
- Offer up the screen facing its
centring pin A on the front bumper.
- Put it in place by pressing at each clip B located in the four corners.
REMOVAL
- Pass a screwdriver into the hole located near each of the clips.
- Use the screwdriver as a lever to unclip the four clips B in turn.
When the snow has cleared, do not
forget to remove the very cold climate
screen.

157
Other accessories
ACCESSORIES
6
OTHER ACCESSORIES
These accessories and parts, after
being tested and approved for
reliability and safety, are all adapted to
your 807. A wide choice of accessories
recommended by PEUGEOT and
original parts is available from
"PEUGEOT Accessories", the
catalogue and on line at PEUGEOT
dealers.To avoid any jamming under the
pedals:
- ensure that the mat is positioned correctly,
- never place one mat on top of another.
Compatible portable
equipment
For the RD4, the itting of an RCA
auxiliary socket is offered speciically
by the Network.
The audio cable for connection to
the auxiliary socket (RCA yellow-red
located in the glove box) is also offered
by the Network.
Following connection of the cable
and selection of the AUX mode, via
the source button, your portable
equipment is ready to operate.
Set the portable equipment to half
volume to avoid saturating the audio
system sound. Then use the audio
system volume button.
"Protection":
anti-theft
alarm, window engraving,
irst aid kit, safety jacket, rear
parking assistance, warning
triangle, ... "In-Car Technology":

audio systems, telephone,
hands-free kit, speakers, CD
changer, navigation system,
DVD player, ...
"Styling": alloy wheels,
trims, aluminium interior trim
kit, mud laps, ...
"Touring":
seat covers
compatible with side air bags,
mats, boot tray, sunroof,
luggage net, door delectors,
cool box secured on the
slides, clip armrest, load
carrying roof bars, roof box,
snow chains, ski carrier, tailgate bicycle
carrier, interior bicycle carrier, booster
seats and child seats, Isoix seats, side
sun blinds and rear blind, ...
Trailer towbar which must be itted by a
PEUGEOT dealer. The itting of electrical equipment
or accessories which are not
recommended by PEUGEOT
may result in a failure of your vehicle’s
electronic system.
Please note this speciic warning. You
are advised to contact a representative
of the Marque to be shown the range
of recommended equipment or
accessories.
Depending on the country in which
the vehicle is sold, it is compulsory to
have a safety jacket, warning triangle
and replacement bulbs available in the
vehicle. "Universal":
screenwash,
interior and exterior
maintenance and cleaning
products, replacement bulbs, ...
When using a tailgate bicycle
carrier, deactivate the rear
wiper from the display
coniguration menu.
Before installing a
radiocommunication transmitter with
aerial, contact a PEUGEOT dealer who
will inform you of the speciications of
the transmitters which can be itted,
in accordance with the Motor Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).
PEUGEOT Accessories
A further range is also available from
PEUGEOT Accessories, structured
around 5 categories:

159
Fuel
CHECKS
7

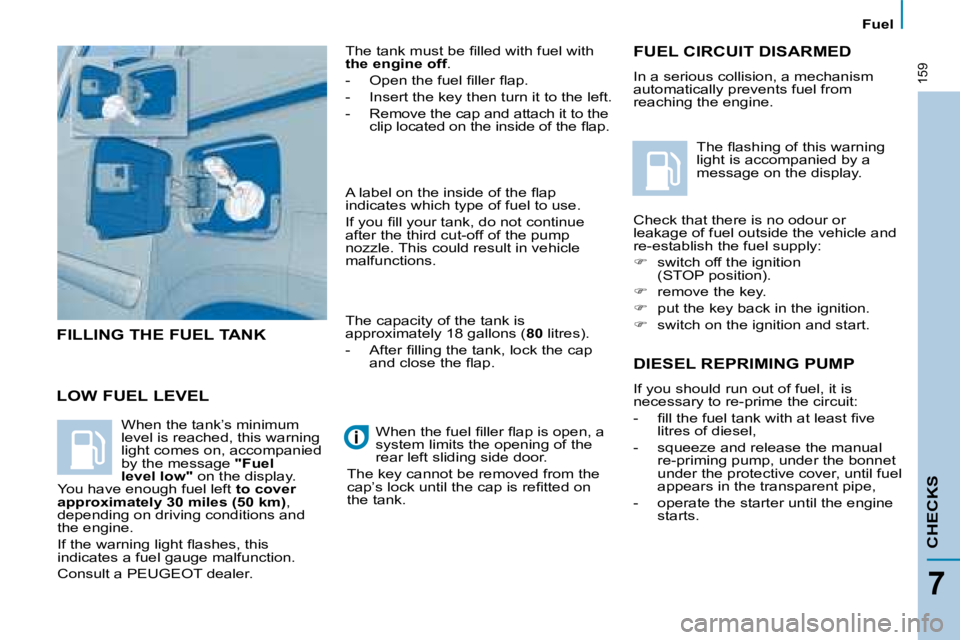

LOW FUEL LEVELThe tank must be illed with fuel with
the engine off
.
- Open the fuel iller lap.
- Insert the key then turn it to the left.
- Remove the cap and attach it to the
clip located on the inside of the lap.
FILLING THE FUEL TANK
When the fuel iller lap is open, a
system limits the opening of the
rear left sliding side door.
The key cannot be removed from the
cap’s lock until the cap is reitted on
the tank.
FUEL CIRCUIT DISARMED
In a serious collision, a mechanism
automatically prevents fuel from
reaching the engine.
The lashing of this warning
light is accompanied by a
message on the display.
When the tank’s minimum
level is reached, this warning
light comes on, accompanied
by the message "Fuel
level low" on the display.
You have enough fuel left to cover
approximately 30 miles (50 km) ,
depending on driving conditions and
the engine.
If the warning light lashes, this
indicates a fuel gauge malfunction.
Consult a PEUGEOT dealer.
DIESEL REPRIMING PUMP
If you should run out of fuel, it is
necessary to re-prime the circuit:
- ill the fuel tank with at least ive litres of diesel,
- squeeze and release the manual re-priming pump, under the bonnet
under the protective cover, until fuel
appears in the transparent pipe,
- operate the starter until the engine starts.
A label on the inside of the lap
indicates which type of fuel to use.
If you ill your tank, do not continue
after the third cut-off of the pump
nozzle. This could result in vehicle
malfunctions.
The capacity of the tank is
approximately 18 gallons (
80 litres).
- After illing the tank, lock the cap
and close the lap. Check that there is no odour or
leakage of fuel outside the vehicle and
re-establish the fuel supply:
F
switch off the ignition
(STOP position).
F remove the key.
F put the key back in the ignition.
F switch on the ignition and start.

160
Environment
ENVIRONMENT
With you, PEUGEOT acts to protect
the environment.
On the www.peugeot.com site, you
are invited to consult,
the "Tradition & Innovation"
tab, the "Environnement" item and
then speciically to visit the nursery of
"Opération Carbone". PEUGEOT's clean HDi Diesel engines
(Common Rail diesel direct injection)
have the characteristic of offering low
consumption and minimising emissions
of CO
2. In addition to this contribution,
these engines provide a highly
acclaimed level of driving pleasure. - observe the service intervals;
we recommend that services are
carried out by a PEUGEOT dealer
authorised to collect used batteries
and luids,
- in order to preserve the reliability of the engine and emission control
system, do not use engine oil
additives.
Refer to the starting and stop-
ping "good practice" advice in this
handbook at the end of chapter 2.
the "Tradition & Innovation"
tab, the "Environment" item and then
speciically to visit the nursery of the
Fazenda via "Opération Carbone"
(the carbon sink project). As the driver, you also can contribute
to protecting the environment by
following certain rules:
- adopt a preventive style of driving,
without frequent and sharp
acceleration.

161

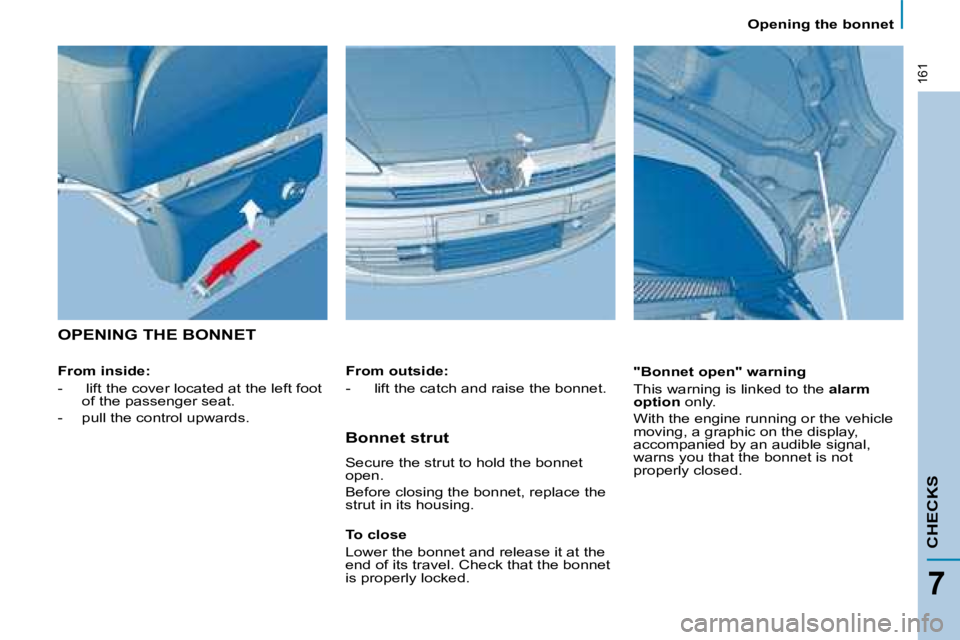

Opening the bonnet
CHECKS
7
OPENING THE BONNET
From inside:
- lift the cover located at the left foot of the passenger seat.
- pull the control upwards. "Bonnet open" warning
This warning is linked to the
alarm
option only.
With the engine running or the vehicle
moving, a graphic on the display,
accompanied by an audible signal,
warns you that the bonnet is not
properly closed.
From outside:
- lift the catch and raise the bonnet.
Bonnet strut
Secure the strut to hold the bonnet
open.
Before closing the bonnet, replace the
strut in its housing.
To close
Lower the bonnet and release it at the
end of its travel. Check that the bonnet
is properly locked.

162
Under the bonnet

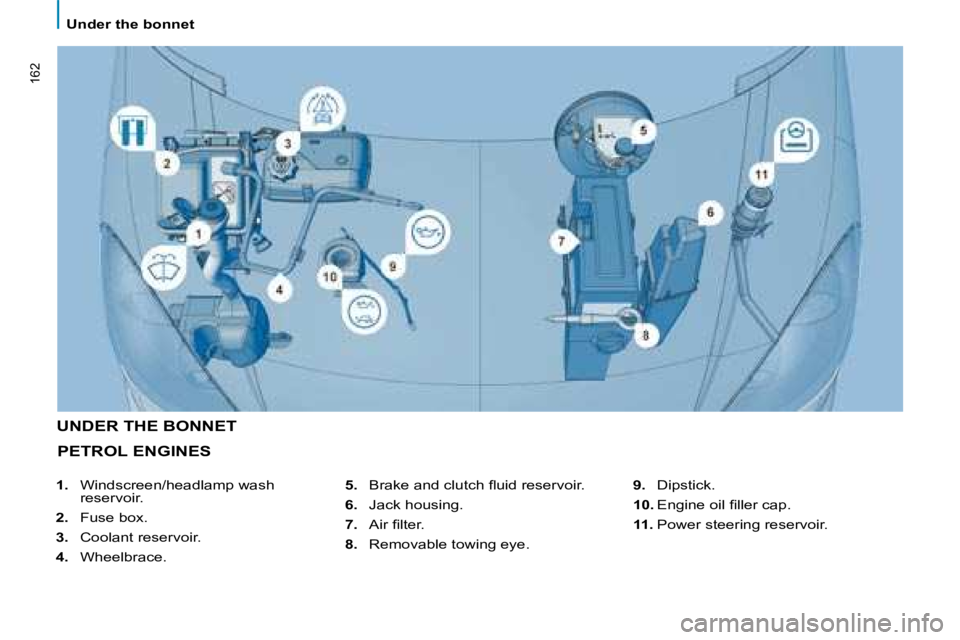

PETROL ENGINES5. Brake and clutch luid reservoir.
6. Jack housing.
7. Air ilter.
8. Removable towing eye. 9.
Dipstick.
10. Engine oil iller cap.
11. Power steering reservoir.
UNDER THE BONNET
1. Windscreen/headlamp wash
reservoir.
2. Fuse box.
3. Coolant reservoir.
4. Wheelbrace.

163
Under the bonnet
CHECKS
7

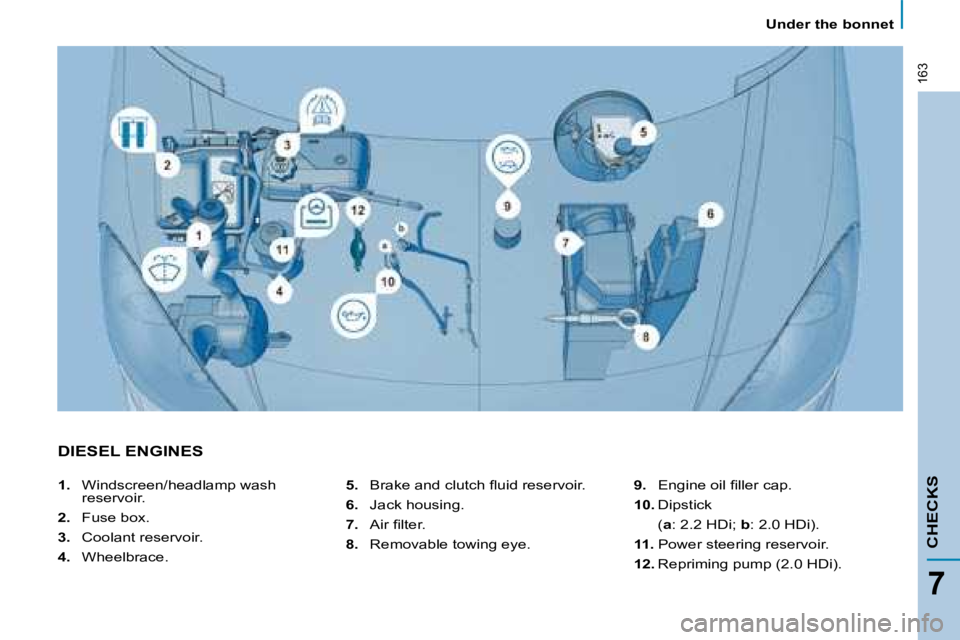

DIESEL ENGINES
5. Brake and clutch luid reservoir.
6. Jack housing.
7. Air ilter.
8. Removable towing eye. 9.
Engine oil iller cap.
10. Dipstick
( a: 2.2 HDi; b: 2.0 HDi).
11. Power steering reservoir.
12. Repriming pump (2.0 HDi).
1.
Windscreen/headlamp wash
reservoir.
2. Fuse box.
3. Coolant reservoir.
4. Wheelbrace.
