136
Improved safety and security
IMPROVED SAFETY AND SECURITY
In the event of a front impact, the
retractable steering column limits the
backwards movement of the steering
wheel and the risks of intrusion of the
engine and gearbox into the passenger
compartment are reduced.
In the event of a side impact, you are
inside a cell armed with solid side
strengtheners.
With 5 stars in
the Euro NCAP
ADULT OCCUPANT
PROTECTION tests,
the 807 protects you
in several ways. Its
structure absorbs
a large proportion of the energy
connected with impacts.
T e s t s c a r r i e d o u t o n a n 8 0 7 i t t e d w i t h
the 2.0 HDi engine.
Details of the other components are
given in the content of this chapter.
Page 132 of 194
SAFETY
137
Driving safety
5
HANDBRAKEHAZARD WARNING LIGHTSPress the button, the direction
i n d i c a t o r s l a s h .
They can operate with the ignition off.
Automatic lighting of hazard
warning lights
Equipment conditioned according
to country: when braking in an
emergency, depending on the
deceleration, the hazard warning lights
come on automatically. They switch
o f f a u t o m a t i c a l l y t h e i r s t t i m e y o u
accelerate.
It is also possible to switch them off by
pressing the button.
DRIVING SAFETY
Applying
When parking, pull the handbrake to
immobilize your vehicle. When parking
on a slope, direct your wheels towards
the pavement and pull the handbrake.
Releasing

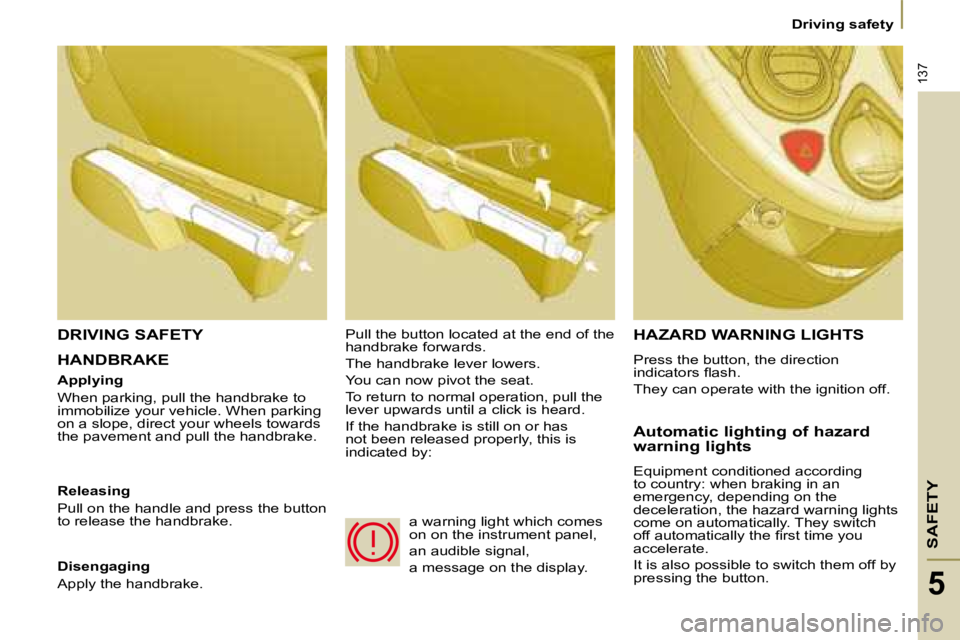

Pull on the handle and press the button
to release the handbrake. Pull the button located at the end of the
handbrake forwards.
The handbrake lever lowers.
You can now pivot the seat.
To return to normal operation, pull the
lever upwards until a click is heard.
If the handbrake is still on or has
not been released properly, this is
indicated by:
Disengaging
Apply the handbrake. a warning light which comes
on on the instrument panel,
an audible signal,
a message on the display.
Page 133 of 194
138
Driving safety
ANTI-LOCK BRAKING
SYSTEM (ABS) AND
ELECTRONIC BRAKE FORCE
DISTRIBUTION (EBFD)
The ABS, in conjunction with the
electronic brake force distribution,
increases the stability and
manoeuvrability of your vehicle on
braking, in particular on poor or
slippery road surfaces.
HORN

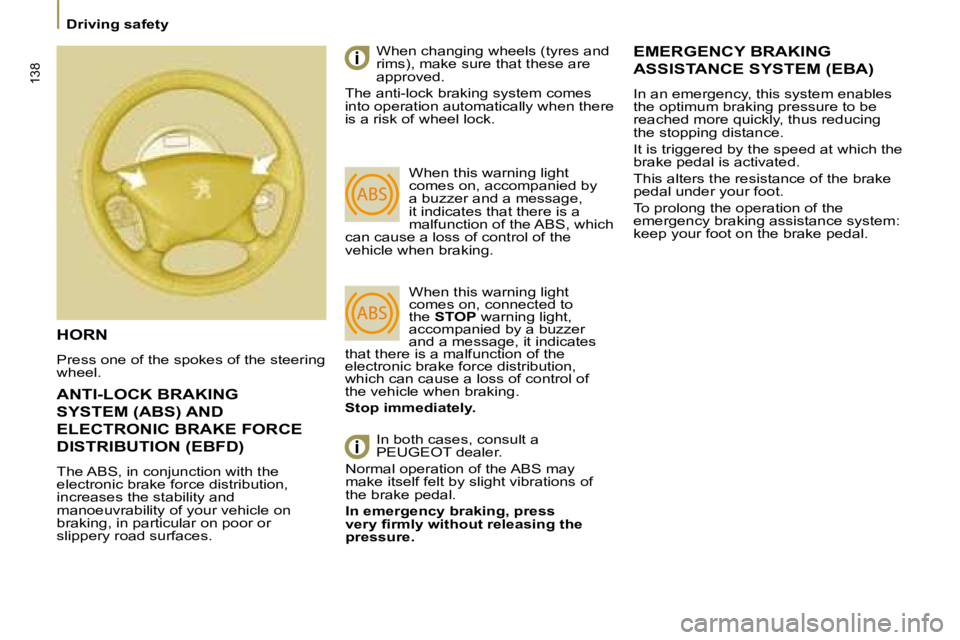

Press one of the spokes of the steering
wheel.When changing wheels (tyres and
rims), make sure that these are
approved.
The anti-lock braking system comes
into operation automatically when there
is a risk of wheel lock.
When this warning light
comes on, accompanied by
a buzzer and a message,
it indicates that there is a
malfunction of the ABS, which
can cause a loss of control of the
vehicle when braking.
When this warning light
comes on, connected to
the STOP warning light,
accompanied by a buzzer
and a message, it indicates
that there is a malfunction of the
electronic brake force distribution,
which can cause a loss of control of
the vehicle when braking.
Stop immediately.
In both cases, consult a
PEUGEOT dealer.
Normal operation of the ABS may
make itself felt by slight vibrations of
the brake pedal.
In emergency braking, press
v e r y i r m l y w i t h o u t r e l e a s i n g t h e
pressure.
EMERGENCY BRAKING
ASSISTANCE SYSTEM (EBA)
In an emergency, this system enables
the optimum braking pressure to be
reached more quickly, thus reducing
the stopping distance.
It is triggered by the speed at which the
brake pedal is activated.
This alters the resistance of the brake
pedal under your foot.
To prolong the operation of the
emergency braking assistance system:
keep your foot on the brake pedal.
Page 134 of 194
SAFETY
139
Driving safety
5
TRACTION CONTROL (ASR)
AND DYNAMIC STABILITY
CONTROL (ESP)
Activation of the ASR and ESP
systems
When the ignition is on, the ASR and
ESP systems are always active.Disarming the ASR/ESP systems
In certain conditions (vehicle stuck in
mud or snow, or on loose ground...), it
could prove useful to disarm the ASR
and ESP systems to make the wheels
spin and regain grip.

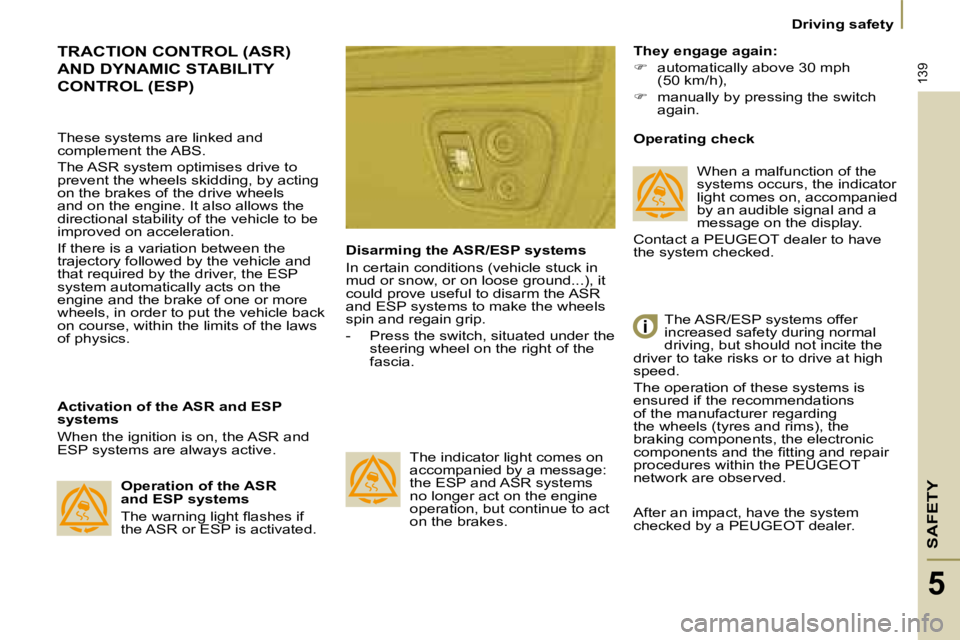

- Press the switch, situated under the
steering wheel on the right of the
fascia.
The indicator light comes on
accompanied by a message:
the ESP and ASR systems
no longer act on the engine
operation, but continue to act
on the brakes. Operating check
The ASR/ESP systems offer
increased safety during normal
driving, but should not incite the
driver to take risks or to drive at high
speed.
The operation of these systems is
ensured if the recommendations
of the manufacturer regarding
the wheels (tyres and rims), the
braking components, the electronic
c o m p o n e n t s a n d t h e i t t i n g a n d r e p a i r
procedures within the PEUGEOT
network are observed.
After an impact, have the system
checked by a PEUGEOT dealer.
They engage again:
F
automatically above 30 mph
(50 km/h),
F manually by pressing the switch
again.
Operation of the ASR
and ESP systems
T h e w a r n i n g l i g h t l a s h e s i f
the ASR or ESP is activated.
These systems are linked and
complement the ABS.
The ASR system optimises drive to
prevent the wheels skidding, by acting
on the brakes of the drive wheels
and on the engine. It also allows the
directional stability of the vehicle to be
improved on acceleration.
If there is a variation between the
trajectory followed by the vehicle and
that required by the driver, the ESP
system automatically acts on the
engine and the brake of one or more
wheels, in order to put the vehicle back
on course, within the limits of the laws
of physics.
When a malfunction of the
systems occurs, the indicator
light comes on, accompanied
by an audible signal and a
message on the display.
Contact a PEUGEOT dealer to have
the system checked.
Page 135 of 194
![PEUGEOT 807 2008 Owners Manual 140
Driving safety
TYRE UNDER-INFLATION
DETECTION
Sensors check the tyre pressure during
driving, and trigger a warning in the
event of a malfunction (speed greater
than approx.15 mph [25 km/h]](/img/29/58358/w960_58358-134.png "PEUGEOT 807 2008 Owners Manual 140
Driving safety
TYRE UNDER-INFLATION
DETECTION
Sensors check the tyre pressure during
driving, and trigger a warning in the
event of a malfunction (speed greater
than approx.15 mph [25 km/h]")
140
Driving safety
TYRE UNDER-INFLATION
DETECTION
Sensors check the tyre pressure during
driving, and trigger a warning in the
event of a malfunction (speed greater
than approx.15 mph [25 km/h]) or
puncture.
An outline representing one or more
w h e e l s l a s h i n g i n d i c a t e s t h e l o c a t i o n

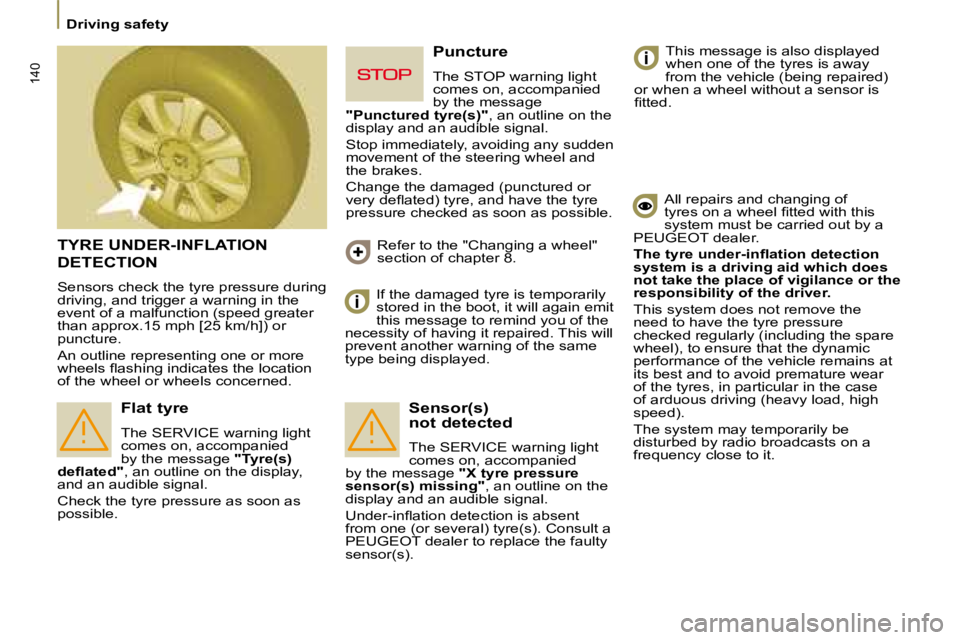

of the wheel or wheels concerned.Flat tyre
The SERVICE warning light
comes on, accompanied
by the message "Tyre(s)
d e l a t e d " , an outline on the display,
and an audible signal.
Check the tyre pressure as soon as
possible. If the damaged tyre is temporarily
stored in the boot, it will again emit
this message to remind you of the
necessity of having it repaired. This will
prevent another warning of the same
type being displayed.
Sensor(s)
not detected
The SERVICE warning light
comes on, accompanied
by the message "X tyre pressure
sensor(s) missing" , an outline on the
display and an audible signal.
U n d e r - i n l a t i o n d e t e c t i o n i s a b s e n t
from one (or several) tyre(s). Consult a
PEUGEOT dealer to replace the faulty
sensor(s). This message is also displayed
when one of the tyres is away
from the vehicle (being repaired)
or when a wheel without a sensor is
i t t e d .
All repairs and changing of
t y r e s o n a w h e e l i t t e d w i t h t h i s
system must be carried out by a
PEUGEOT dealer.
T h e t y r e u n d e r - i n l a t i o n d e t e c t i o n
system is a driving aid which does
not take the place of vigilance or the
responsibility of the driver.
This system does not remove the
need to have the tyre pressure
checked regularly (including the spare
wheel), to ensure that the dynamic
performance of the vehicle remains at
its best and to avoid premature wear
of the tyres, in particular in the case
of arduous driving (heavy load, high
speed).
The system may temporarily be
disturbed by radio broadcasts on a
frequency close to it.
Puncture
The STOP warning light
comes on, accompanied
by the message
"Punctured tyre(s)" , an outline on the
display and an audible signal.
Stop immediately, avoiding any sudden
movement of the steering wheel and
the brakes.
Change the damaged (punctured or
v e r y d e l a t e d ) t y r e , a n d h a v e t h e t y r e
pressure checked as soon as possible.
Refer to the "Changing a wheel"
section of chapter 8.
Page 136 of 194
SAFETY
141
Seat belts
5
FRONT AND REAR SIDE SEAT
BELTS
The front seats and the rear side seats
o f r o w 2 a r e i t t e d w i t h p r e - t e n s i o n e r s
and force limiters.The lap strap must be positioned as
low as possible on the pelvis. The
chest strap must pass over the hollow
of the shoulder.
Check that the seat belt is fastened
correctly by pulling the strap.The force-limiting device reduces the
pressure of the seat belt against the
chest of the occupant, so increasing
his protection.
A bag placed on the front
passenger seat or a pet sitting on
this seat may trigger the lighting of
this warning light.
SEAT BELTS
Front seat belt warning
light
If the driver and/or front
passenger has/have not
fastened his/their seat belt, this
warning light comes on.
Then, at a speed in excess of
a p p r o x i m a t e l y 1 5 m p h ( 2 5 k m / h ) , i t l a s h e s
accompanied by an audible signal of
increasing volume (for approximately
90 seconds) and a message on the display.
Row 2 rear side
seat belts
For your comfort, if you are not using
the seat belt, slide the seat belt loop to
the upper stop to prevent the tongue
from vibrating.

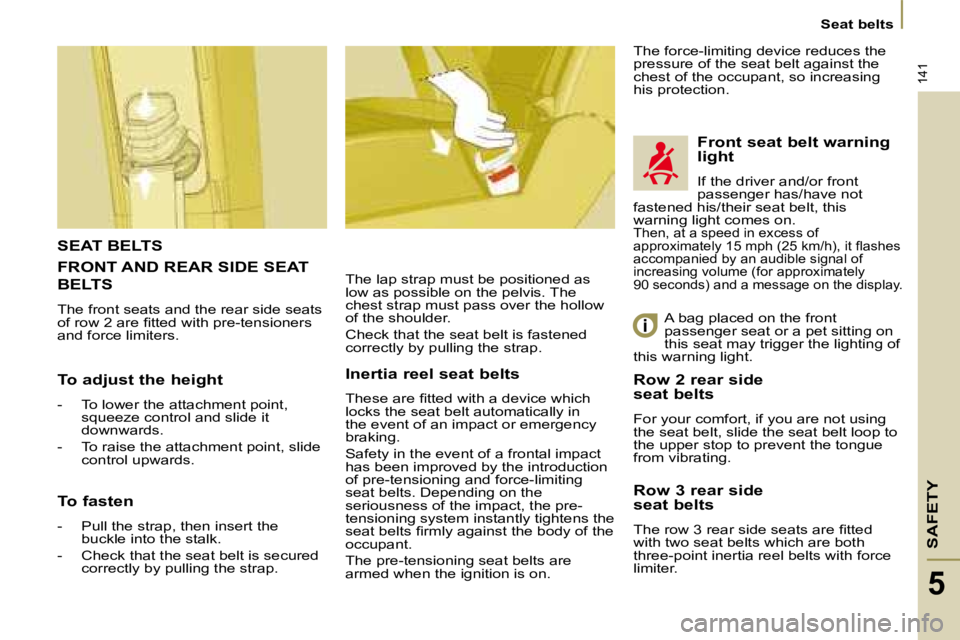

To adjust the height
- To lower the attachment point,
squeeze control and slide it
downwards.
- To raise the attachment point, slide control upwards.
To fasten
- Pull the strap, then insert the buckle into the stalk.
- Check that the seat belt is secured correctly by pulling the strap. Inertia reel seat belts
T h e s e a r e i t t e d w i t h a d e v i c e w h i c h
locks the seat belt automatically in
the event of an impact or emergency
braking.
Safety in the event of a frontal impact
has been improved by the introduction
of pre-tensioning and force-limiting
seat belts. Depending on the
seriousness of the impact, the pre-
tensioning system instantly tightens the
s e a t b e l t s i r m l y a g a i n s t t h e b o d y o f t h e
occupant.
The pre-tensioning seat belts are
armed when the ignition is on.
Row 3 rear side
seat belts
T h e r o w 3 r e a r s i d e s e a t s a r e i t t e d
with two seat belts which are both
three-point inertia reel belts with force
limiter.
Page 137 of 194
142
Seat beltsThe force limiter reduces the pressure
of the seat belt against the body of the
o c c u p a n t s . T h e e q u i p m e n t i t t e d t o
these seat belts is operational when
the ignition is switched on.
T h e i n e r t i a r e e l s a r e i t t e d w i t h a d e v i c e
which automatically locks the strap in
the event of a collision or emergency
braking.
You can release the seat belt and allow
the strap to roll up. Do not invert the seat belt buckles as
t h e y w i l l n o t f u l i l t h e i r r o l e c o m p l e t e l y .
I f t h e s e a t s a r e i t t e d w i t h a r m r e s t s , t h e
lap part of the seat belt should always
pass under the armrest.
Check that the seat belt is fastened
c o r r e c t l y b y p u l l i n g t h e s t r a p i r m l y .
Good practice
Wherever you are seated in the
vehicle, always fasten your seat belt,
even for short journeys.
T h e s e a t b e l t s a r e i t t e d w i t h a n i n e r t i a
reel which automatically adjusts the
length of the strap to your size. The
seat belt is rolled up automatically
when not in use.
Ensure that the seat belt is rolled up
correctly after use.
After folding or moving a rear seat or
bench seat, ensure that the seat belt is
rolled up correctly in its compartment
and that the buckle is ready to
accommodate the tongue.
Depending on the nature and
seriousness of any impact, the
pretensioning device may be triggered
b e f o r e a n d i n d e p e n d e n t l y o f i n l a t i o n
of the air bags. It instantly tightens
the seat belts against the body of
the occupants. Triggering of the
pretensioners is accompanied by a
slight discharge of harmless smoke
and a noise, due to the activation of
the pyrotechnic cartridge incorporated
in the system.
To install the seat belt, move the
tongue into position to insert it into the
buckle.
Row 2 and 3 rear centre
seat belts
The row 2 rear centre seat and the
rear bench seat centre seat have an
integrated three-point inertia reel seat
belt.
The air bag warning light comes on
if the pretensioners are triggered.
Consult a PEUGEOT dealer.
In order to be effective, a seat belt
must:
- restrain one person only,
- must not be twisted, check by pulling in front of you with an even
movement,
- be tightened as close to the body as possible.
The upper part of the seat belt should
be positioned in the hollow of the
shoulder.
The lap part should be placed as low
as possible on the pelvis. Recommendations for children:
- use a suitable child seat if the
passenger is less than 12 years old
o r s h o r t e r t h a n o n e m e t r e i f t y ,
- never allow a child to travel on your lap, even with the seat belt
fastened.
For further information regarding child
seats, refer to the "Children on board"
section of chapter 5.
In accordance with current safety
regulations, your PEUGEOT dealer
guarantees all work or any checks,
from testing to maintenance, on your
seat belt equipment.
Have the seat belts checked regularly
(even after a minor impact) by a
PEUGEOT dealer: they must not show
any signs of wear, cutting or fraying
and they must not be transformed or
m o d i i e d .
Clean the seat belt straps with soapy
water or a textile cleaning product, sold
by PEUGEOT dealers.
Page 138 of 194
SAFETY
143
Airbags
5
The air bags have been designed to
maximise the safety of the occupants
(with the exception of the centre seats of
rows 2 and 3) in the event of a serious
collision; they work in conjunction with
the force limiting seat belts.
In the event of a serious collision, the
electronic detectors record and analyse
the front and side impacts suffered in
the impact detection zones:
- in the event of a serious impact, the a i r b a g s i n l a t e i n s t a n t l y a n d p r o t e c t
the occupants of the vehicle.
Immediately after the impact, the air
b a g s d e l a t e r a p i d l y , s o t h a t t h e y d o n o t
hinder the visibility of the occupants
nor their possible exit from the vehicle. - in the event of a minor or rear
impact and in certain roll-over
conditions, the air bags will not
be deployed; the seat belt alone
i s s u f i c i e n t t o p r o v i d e m a x i m u m
protection in these situations.
The seriousness of the collision
depends on the nature of the obstacle
and the speed of the vehicle at the
moment of impact. Air bags only operate when the
ignition is switched on.
This equipment only operates once.
If a second impact occurs (during the
same or a subsequent accident), the
air bag will not operate.
The triggering of an air bag or air bags
is accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
This smoke is not harmful, but
sensitive individuals may experience
some irritation.
The noise of the detonation may result
in a slight loss of hearing for a short
time.
AIR BAGS
It is imperative that the passenger
air bag is disarmed if a child seat
is installed facing rearwards. Refer
to the "Children on board" section of
chapter 5.
Page 139 of 194
144
Airbags
Good practice
I f y o u r v e h i c l e i s i t t e d w i t h a f r o n t
passenger air bag, side air bags or
curtain air bags, observe this good
practice.
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the air bags (a child,
pet, object...). This could hamper the
operation of the air bags or injure the
occupants.
After an accident or if the vehicle has
been stolen or broken into, have the air
bag systems checked.
All work on the air bag system is strictly
forbidden unless it is carried out by
q u a l i i e d p e r s o n n e l o f t h e P E U G E O T
network.Front air bags
Do not drive holding the steering wheel
by its spokes or resting your hands on
the centre part of the wheel.
Passengers must not place their feet
on the fascia.
Smoke as little as possible as
deployment of the air bags can cause
burns or the risk of injury from a
cigarette or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Side air bags
Only put approved covers on the seats.
T h e s e w i l l n o t h i n d e r i n l a t i o n o f t h e
side air bags. Consult a PEUGEOT
dealer.
D o n o t i x o r g l u e a n y t h i n g t o t h e s e a t
backs. This could cause injury to the
chest or arms when the side air bag
i n l a t e s .
Do not sit with the upper part of the
body any nearer to the door than
necessary.
Curtain air bags
D o n o t i x o r g l u e a n y t h i n g t o t h e r o o f .
This could cause injury to the head
w h e n t h e c u r t a i n a i r b a g i n l a t e s .
Do not remove the grab handles
installed on the roof, they play a part in
securing the curtain air bags.
Even if all of the precautions
mentioned are observed, a risk of
injury or of minor burns to the head,
chest or arms when an air bag is
triggered cannot be ruled out. In fact,
t h e b a g i n l a t e s a l m o s t i n s t a n t l y ( w i t h i n
a f e w m i l l i s e c o n d s ) t h e n d e l a t e s w i t h i n
the same time discharging the hot gas
via openings provided for this purpose.
Page 140 of 194
146
AirbagsDisarming
The passenger’s front air bag alone
can be disarmed: 4 With the ignition switched off ,
insert the key into the passenger
air bag disarming switch,
4 turn it to the "OFF" position,
4 then remove the key keeping the
slot in this position.
Front air bags
The front air bags are incorporated in the
centre of the steering wheel for the driver
and in the fascia for the front passenger.
Front air bag fault
If this warning light comes on,
accompanied by an audible
signal and a message on the
display, consult a PEUGEOT
dealer to have the system
checked.
Reactivation
In the
"OFF" position, the passenger
air bag will not be triggered in the
event of an impact.
As soon as the child seat is removed,
turn the air bag slot to the "ON"
position to re-activate the air bag
and thus ensure the safety of your
passenger in the event of an impact. To ensure the safety of your
child, it is essential to disarm the
passenger air bag when you install
a rear-facing child seat on the front
passenger seat. Otherwise, the child
would risk being killed or seriously
i n j u r e d i f t h e a i r b a g w e r e t o i n l a t e .
The air bag warning light
on the instrument panel is
lit throughout the period of
disarming. If the two air bag warning lights
are lit continuously, do not install
a rear-facing child seat. Consult a
PEUGEOT dealer.
Activation
They are deployed simultaneously,
unless the passenger’s front air bag
has been disarmed, in the event of a
serious front impact applied to all or
part of the front impact zone
A in the
longitudinal centreline of the vehicle
on a horizontal plane directed from the
front towards the rear of the vehicle.
T h e f r o n t a i r b a g i n l a t e s b e t w e e n
the front occupant of the vehicle and
the fascia to cushion his forward
movement.
