PEUGEOT 807 2009.5. Owners Manual
Manufacturer: PEUGEOT, Model Year: 2009.5., Model line: 807, Model: PEUGEOT 807 2009.5.Pages: 266, PDF Size: 12.92 MB
Page 111 of 266
109
Roof bars
5

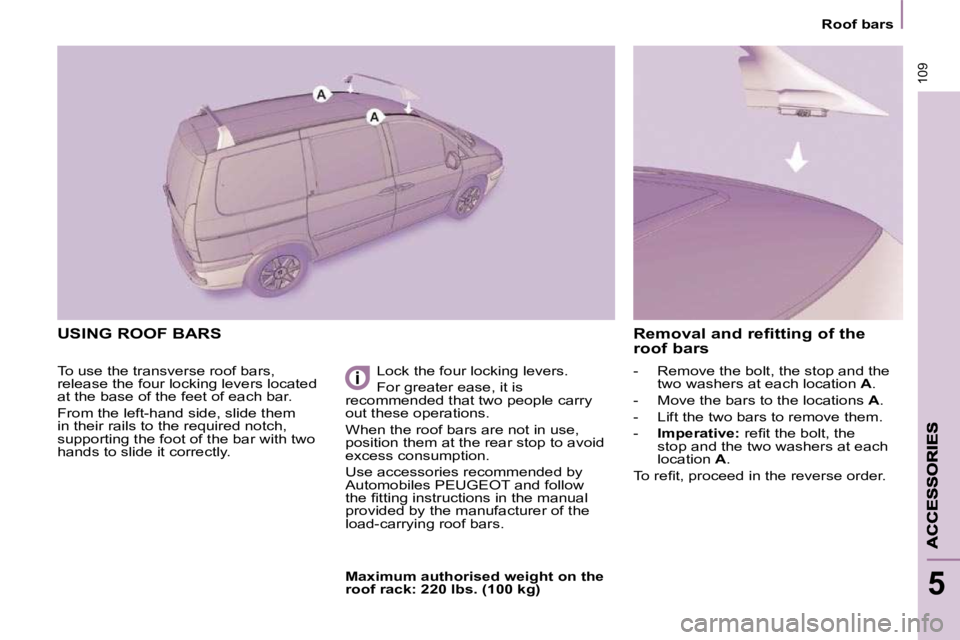

USING ROOF BARS
To use the transverse roof bars,
release the four locking levers located
at the base of the feet of each bar.
From the left-hand side, slide them
in their rails to the required notch,
supporting the foot of the bar with two
hands to slide it correctly. Lock the four locking levers.
For greater ease, it is
recommended that two people carry
out these operations.
When the roof bars are not in use,
position them at the rear stop to avoid
excess consumption.
Use accessories recommended by
Automobiles PEUGEOT and follow
t h e fi t t i n g i n s t r u c t i o n s i n t h e m a n u a l
provided by the manufacturer of the
load-carrying roof bars. - Remove the bolt, the stop and the
two washers at each location A .
- Move the bars to the locations A .
- Lift the two bars to remove them.
- Imperative: r e fi t t h e b o l t , t h e
stop and the two washers at each
location A .
T o r e fi t , p r o c e e d i n t h e r e v e r s e o r d e r .
Removal and refitting of the
roof bars
Maximum authorised weight on the
roof rack: 220 lbs. (100 kg)
Page 112 of 266
110
Snow screen
VERY COLD CLIMATE SCREEN
I f fi t t e d o n y o u r v e h i c l e , t h i s i s a
removable part which permits complete
or partial covering of the front air intake
(grille, ...) to favour the increase in the
engine temperature when driving in
very low temperatures and to prevent
the entry of snow into the engine
compartment.

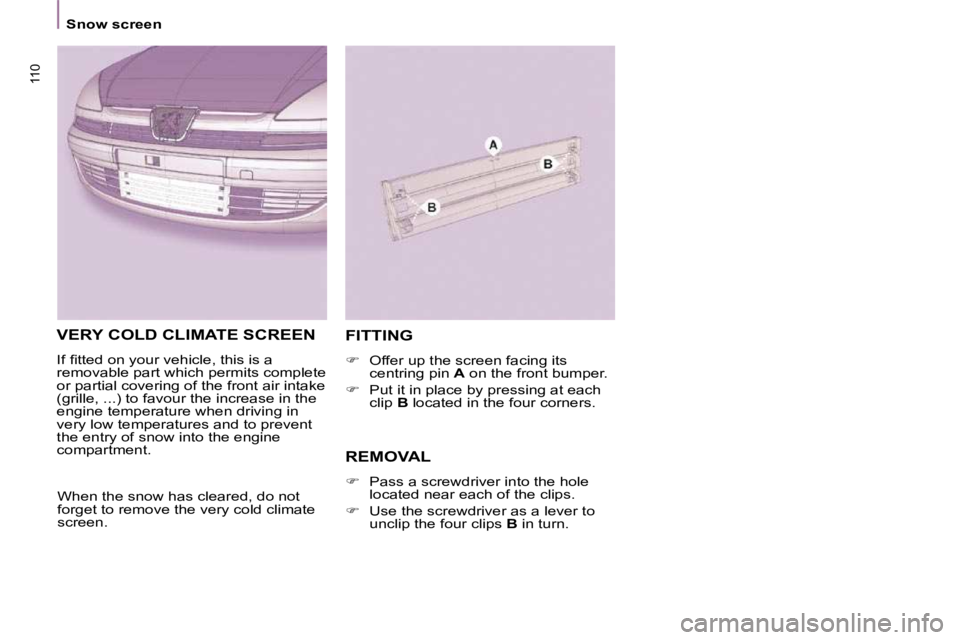

FITTING
Offer up the screen facing its
centring pin A on the front bumper.
Put it in place by pressing at each
clip B located in the four corners.
REMOVAL
Pass a screwdriver into the hole
located near each of the clips.
Use the screwdriver as a lever to
unclip the four clips B in turn.
When the snow has cleared, do not
forget to remove the very cold climate
screen.
Page 113 of 266
111
ACCESSORIES
5

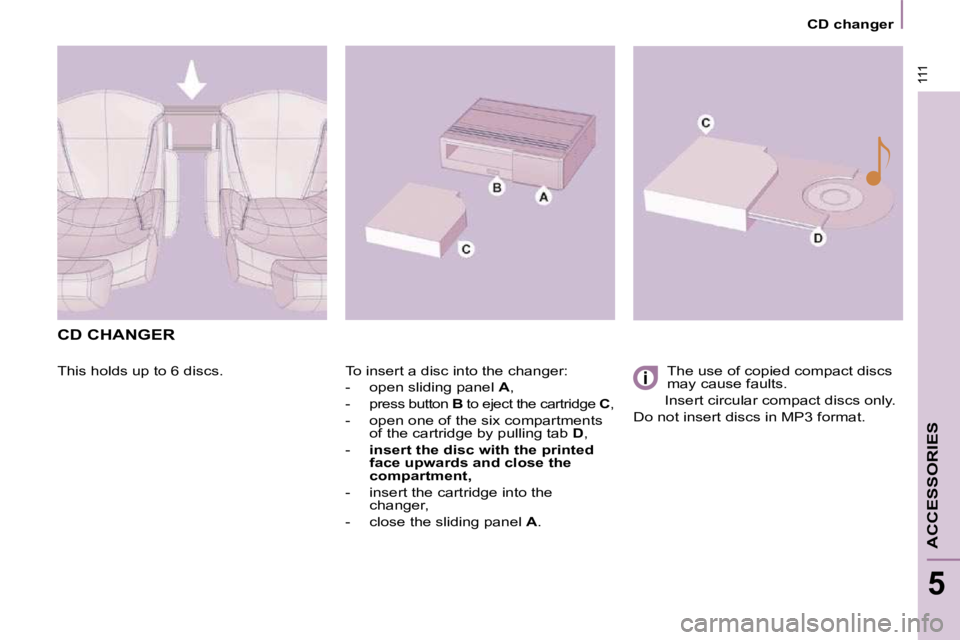

CD changer
This holds up to 6 discs. To insert a disc into the changer:
- open sliding panel A ,
-
press button B to eject the cartridge C ,
- open one of the six compartments of the cartridge by pulling tab D ,
- insert the disc with the printed
face upwards and close the
compartment,
- insert the cartridge into the changer,
- close the sliding panel A . The use of copied compact discs
may cause faults.
Insert circular compact discs only.
Do not insert discs in MP3 format.
CD CHANGER
Page 114 of 266
112
Other accessories
These accessories and parts, after
being tested and approved for reliability
and safety, are all adapted to your
vehicle. A wide choice of recommended
accessories and original parts is offered
by the PEUGEOT Marque. To avoid any jamming under the
pedals:
- e n s u r e t h a t t h e m a t a n d i t s fi x i n g s are positioned correctly,
- never place one mat on top of another.
Compatible portable equipment
For the hands-free kit audio
e q u i p m e n t , t h e fi t t i n g o f a n R C A
a u x i l i a r y s o c k e t i s o f f e r e d s p e c i fi c a l l y
by the Network.
The audio cable for connection to
the auxiliary socket (RCA yellow-red
located in the glove box) is also offered
by the network.
Following connection of the cable and
selection of the AUX mode, via the
source button, your portable equipment
is ready to operate.
Set the portable equipment to half
volume to avoid saturating the audio
system sound. Then use the audio
system volume button. Audio systems, telephone,
hands-free kit, speakers, CD
changer, navigation system,
DVD player, ...
Alloy wheels, trims,
aluminium interior trim kit,
m u d fl a p s , . . .
Seat covers compatible with
side air bags, mats, boot tray,
sunroof, luggage net, door
d e fl e c t o r s , c o o l b o x s e c u r e d
on the slides, clip armrest, load
carrying roof bars, roof box,
snow chains, ski carrier, tailgate
bicycle carrier, interior bicycle carrier,
b o o s t e r s e a t s a n d c h i l d s e a t s , I s o fi x
seats, side sun blinds and rear blind, ...
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y a
PEUGEOT dealer. T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t
or accessories which are not
recommended by PEUGEOT
may result in a failure of your vehicle’s
electronic system.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g . Y o u
are advised to contact a representative
of the Marque to be shown the range
of recommended equipment or
accessories.
Depending on the country in which
the vehicle is sold, it is compulsory to
have a safety jacket, warning triangle
and replacement bulbs available in the
vehicle. Screenwash, interior and
exterior maintenance
and cleaning products,
replacement bulbs, ...
When using a tailgate bicycle
carrier, deactivate the rear
wiper from the display
c o n fi g u r a t i o n m e n u .
Before installing a
radiocommunication transmitter with
aerial, contact a PEUGEOT dealer who
w i l l i n f o r m y o u o f t h e s p e c i fi c a t i o n s o f
t h e t r a n s m i t t e r s w h i c h c a n b e fi t t e d ,
in accordance with the Motor Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).
A further range is also available,
structured around comfort, leisure and
maintenance:
Anti-theft alarm, window
e n g r a v i n g , fi r s t a i d k i t , s a f e t y
jacket, rear parking assistance,
warning triangle, ...
Page 115 of 266
114
Fuel
LOW FUEL LEVEL

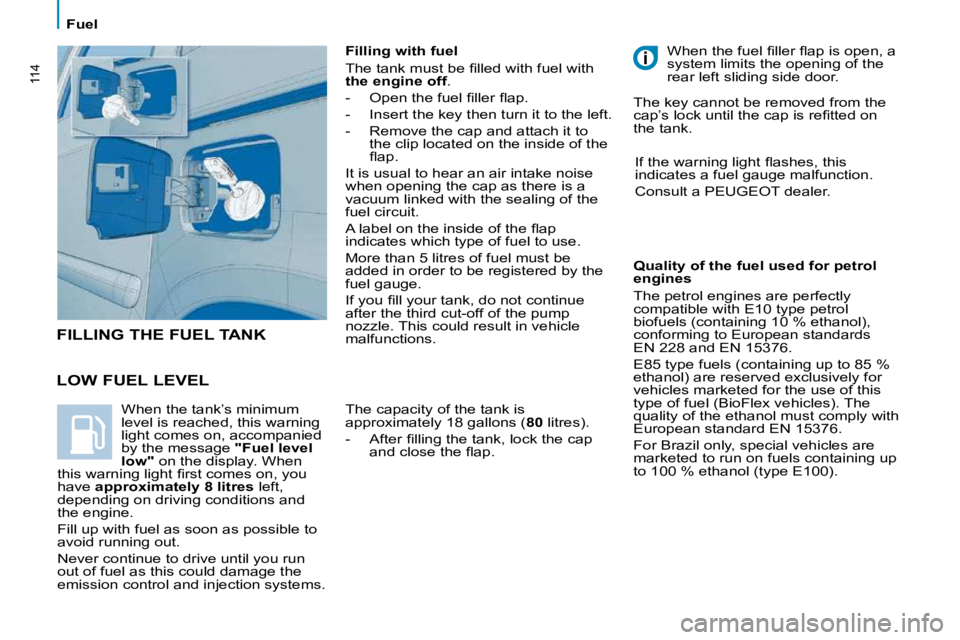

Filling with fuel
T h e t a n k m u s t b e fi l l e d w i t h f u e l w i t h
the engine off .
- O p e n t h e f u e l fi l l e r fl a p .
- Insert the key then turn it to the left.
- Remove the cap and attach it to the clip located on the inside of the
fl a p .
It is usual to hear an air intake noise
when opening the cap as there is a
vacuum linked with the sealing of the
fuel circuit.
A l a b e l o n t h e i n s i d e o f t h e fl a p
indicates which type of fuel to use.
More than 5 litres of fuel must be
added in order to be registered by the
fuel gauge.
I f y o u fi l l y o u r t a n k , d o n o t c o n t i n u e
after the third cut-off of the pump
nozzle. This could result in vehicle
malfunctions.
FILLING THE FUEL TANK
I f t h e w a r n i n g l i g h t fl a s h e s , t h i s
indicates a fuel gauge malfunction.
Consult a PEUGEOT dealer.
When the tank’s minimum
level is reached, this warning
light comes on, accompanied
by the message "Fuel level
low" on the display. When
t h i s w a r n i n g l i g h t fi r s t c o m e s o n , y o u
have approximately 8 litres left,
depending on driving conditions and
the engine.
Fill up with fuel as soon as possible to
avoid running out.
Never continue to drive until you run
out of fuel as this could damage the
emission control and injection systems. The capacity of the tank is
approximately 18 gallons (
80 litres).
- A f t e r fi l l i n g t h e t a n k , l o c k t h e c a p a n d c l o s e t h e fl a p . Quality of the fuel used for petrol
engines
The petrol engines are perfectly
compatible with E10 type petrol
biofuels (containing 10 % ethanol),
conforming to European standards
EN 228 and EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for
vehicles marketed for the use of this
type of fuel (BioFlex vehicles). The
quality of the ethanol must comply with
European standard EN 15376.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (type E100). W h e n t h e f u e l fi l l e r fl a p i s o p e n , a
system limits the opening of the
rear left sliding side door.
The key cannot be removed from the
c a p ’ s l o c k u n t i l t h e c a p i s r e fi t t e d o n
the tank.
Page 116 of 266
115
Fuel
CHECKS
6
FUEL CIRCUIT DISARMED
In a serious collision, a mechanism
automatically prevents fuel from
reaching the engine. T h e fl a s h i n g o f t h i s w a r n i n g
light is accompanied by a
message on the display.
DIESEL REPRIMING PUMP
If you should run out of fuel, it is
necessary to re-prime the circuit:
- fi l l t h e f u e l t a n k w i t h a t l e a s t fi v e litres of diesel,
- squeeze and release the manual re-priming pump, under the bonnet
under the protective cover, until fuel
appears in the transparent pipe,
- operate the starter until the engine starts.
Check that there is no odour or
leakage of fuel outside the vehicle and
re-establish the fuel supply:
- switch off the ignition (STOP position).
- remove the key.
- put the key back in the ignition.
- switch on the ignition and start.
Quality of the fuel used for Diesel
engines
The Diesel engines are perfectly
compatible with biofuels which conform
to current and future European
standards (diesel fuel which complies
with standard EN 590 mixed with a
biofuel which complies with standard
EN 14214) available at the pumps
(containing up to 7 % Fatty Acid Methyl
Ester).
The B30 biofuel can be used in certain
Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Consult a
PEUGEOT dealer.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or
diluted, domestic fuel...) is strictly
prohibited (risk of damage to the
engine and fuel circuit).
Page 117 of 266
115
Fuel
CHECKS
6
FUEL CIRCUIT DISARMED
In a serious collision, a mechanism
automatically prevents fuel from
reaching the engine. T h e fl a s h i n g o f t h i s w a r n i n g
light is accompanied by a
message on the display.
DIESEL REPRIMING PUMP
If you should run out of fuel, it is
necessary to re-prime the circuit:
- fi l l t h e f u e l t a n k w i t h a t l e a s t fi v e litres of diesel,
- squeeze and release the manual re-priming pump, under the bonnet
under the protective cover, until fuel
appears in the transparent pipe,
- operate the starter until the engine starts.
Check that there is no odour or
leakage of fuel outside the vehicle and
re-establish the fuel supply:
- switch off the ignition (STOP position).
- remove the key.
- put the key back in the ignition.
- switch on the ignition and start.
Quality of the fuel used for Diesel
engines
The Diesel engines are perfectly
compatible with biofuels which conform
to current and future European
standards (diesel fuel which complies
with standard EN 590 mixed with a
biofuel which complies with standard
EN 14214) available at the pumps
(containing up to 7 % Fatty Acid Methyl
Ester).
The B30 biofuel can be used in certain
Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Consult a
PEUGEOT dealer.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or
diluted, domestic fuel...) is strictly
prohibited (risk of damage to the
engine and fuel circuit).
Page 118 of 266
116

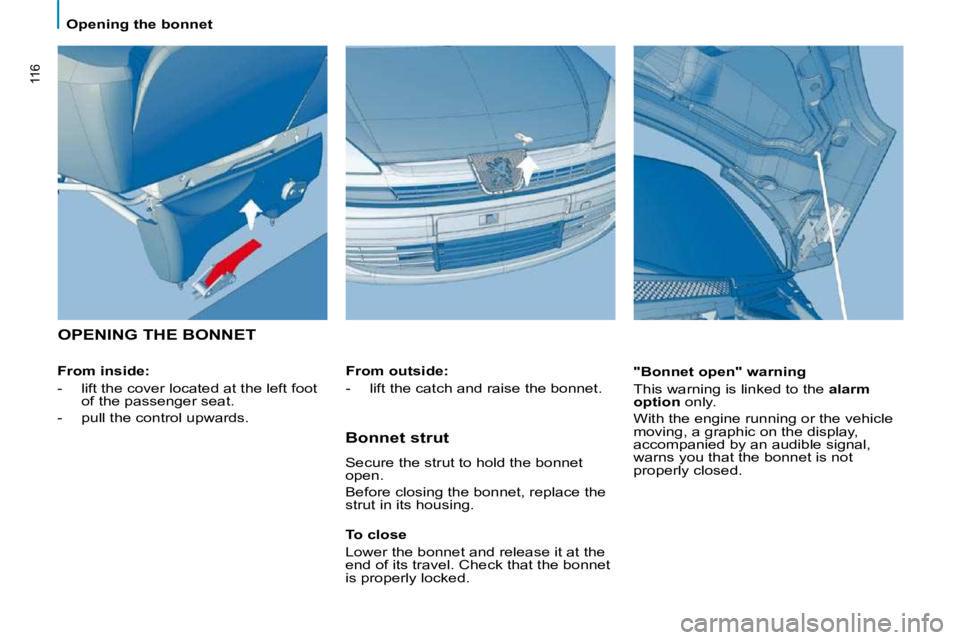

Opening the bonnet
OPENING THE BONNET
From inside:
- lift the cover located at the left foot of the passenger seat.
- pull the control upwards. "Bonnet open" warning
This warning is linked to the
alarm
option only.
With the engine running or the vehicle
moving, a graphic on the display,
accompanied by an audible signal,
warns you that the bonnet is not
properly closed.
From outside:
- lift the catch and raise the bonnet.
Bonnet strut
Secure the strut to hold the bonnet
open.
Before closing the bonnet, replace the
strut in its housing.
To close
Lower the bonnet and release it at the
end of its travel. Check that the bonnet
is properly locked.
Page 119 of 266
117
Under the bonnet
CHECKS
6

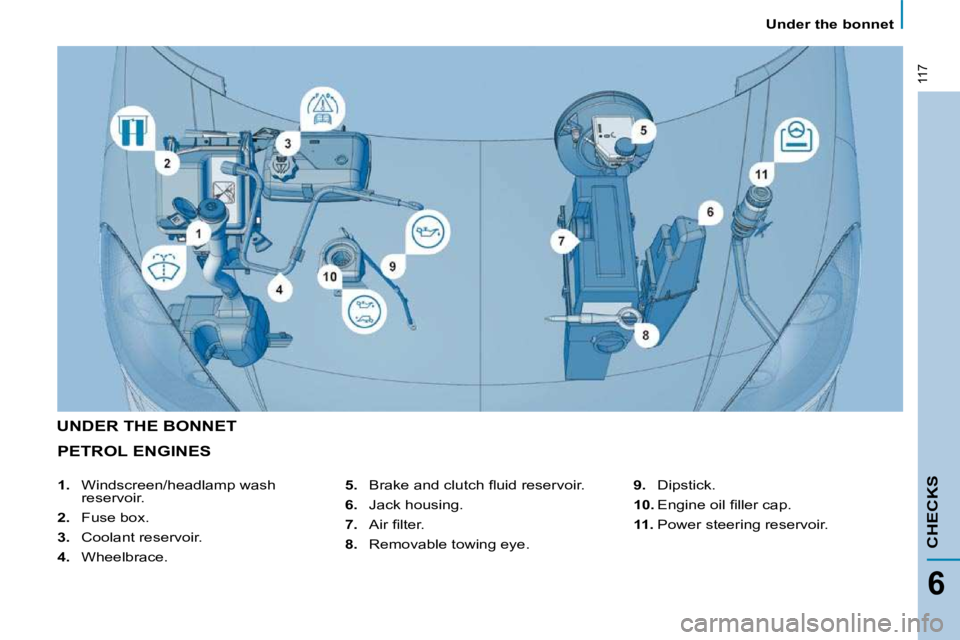

PETROL ENGINES
5. B r a k e a n d c l u t c h fl u i d r e s e r v o i r .
6. Jack housing.
7. A i r fi l t e r .
8. Removable towing eye.
9. Dipstick.
10. E n g i n e o i l fi l l e r c a p .
11. Power steering reservoir.
UNDER THE BONNET
1. Windscreen/headlamp wash
reservoir.
2. Fuse box.
3. Coolant reservoir.
4. Wheelbrace.
Page 120 of 266
118
Under the bonnet

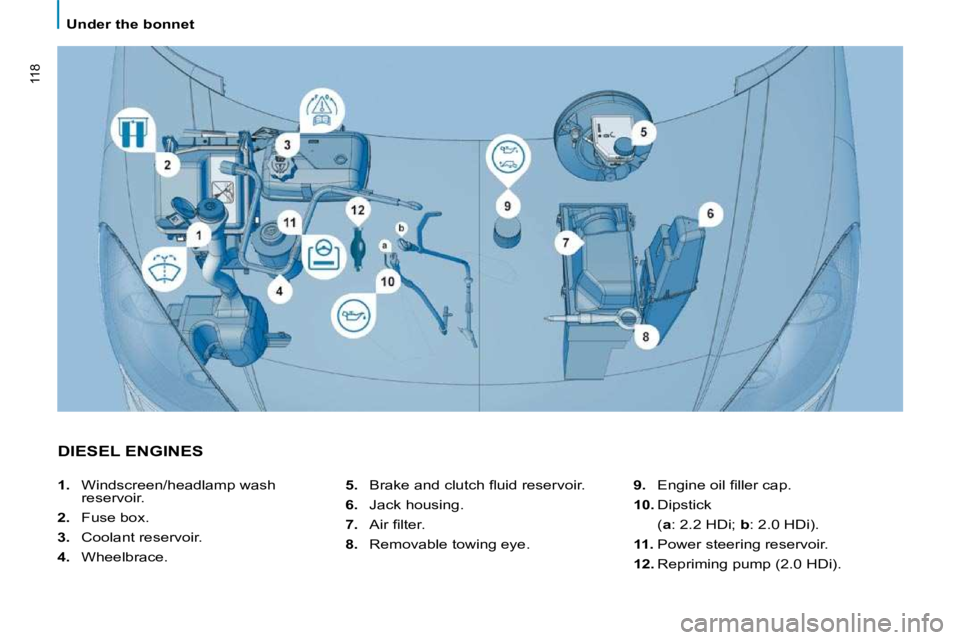

DIESEL ENGINES
5. B r a k e a n d c l u t c h fl u i d r e s e r v o i r .
6. Jack housing.
7. A i r fi l t e r .
8. Removable towing eye.
9. E n g i n e o i l fi l l e r c a p .
10. Dipstick
( a : 2.2 HDi; b : 2.0 HDi).
11. Power steering reservoir.
12. Repriming pump (2.0 HDi).
1. Windscreen/headlamp wash
reservoir.
2. Fuse box.
3. Coolant reservoir.
4. Wheelbrace.
