PEUGEOT 807 2009.5. Owners Manual
Manufacturer: PEUGEOT, Model Year: 2009.5., Model line: 807, Model: PEUGEOT 807 2009.5.Pages: 266, PDF Size: 12.92 MB
Page 131 of 266
128
Changing a bulb
Rear lights
1. Direction indicators
PY 21 W (amber).
2. Brake/side lights
P 21 W/5 W.
3. Reversing lights
P 21 W.
4. Fog lamps
P 21 W.
5 - Direction indicators
PY 21 W (amber).
- Turn the bulb holder a quarter of a
turn to the left and remove it.
- Change the bulb.
T h e h e a d l a m p s a r e fi t t e d w i t h
polycarbonate glass with a
protective coating. Do not clean
them with a dry or abrasive cloth, nor
with a detergent or solvent product.
Use a sponge and soapy water.
In certain climatic conditions (low
temperature, humidity), condensation
inside the headlamp glass is normal;
it disappears a few minutes after the
lights are switched on. Direction indicator side repeaters
WY 5 W (amber).
- Push the repeater rearwards and
release it from the mirror.
- Hold the connector and turn the bulb holder a quarter of a turn to
the left.
- Turn the bulb a quarter of a turn to the left, remove it and change it.
W h e n r e fi t t i n g , e n g a g e t h e r e p e a t e r
towards the rear and move it towards
the front of the mirror.
Amber coloured bulbs (direction
indicators and side repeaters)
must be changed for bulbs of
i d e n t i c a l s p e c i fi c a t i o n a n d c o l o u r . These 4 bulbs are changed from inside
the vehicle:
- open the tailgate,
- r e m o v e t h e a i r e x t r a c t i o n g r i l l e o n
the side concerned,
- unclip the light harness,
Page 132 of 266
129
TROUBLESHOOTING
7
Changing a bulb

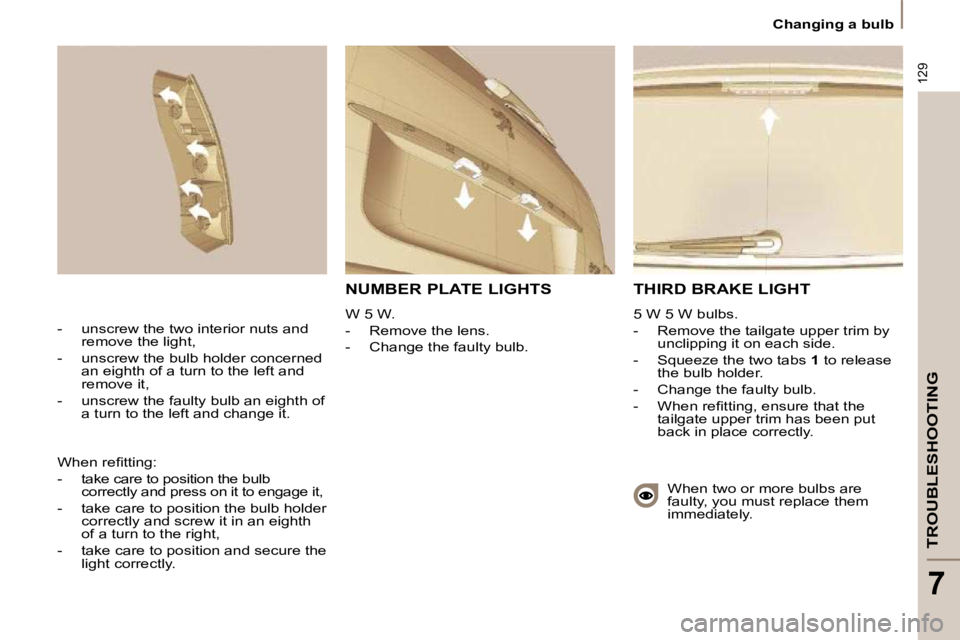

THIRD BRAKE LIGHT
5 W 5 W bulbs.
- Remove the tailgate upper trim by unclipping it on each side.
- Squeeze the two tabs 1 to release
the bulb holder.
- Change the faulty bulb.
- W h e n r e fi t t i n g , e n s u r e t h a t t h e tailgate upper trim has been put
back in place correctly.
- unscrew the two interior nuts and
remove the light,
- unscrew the bulb holder concerned an eighth of a turn to the left and
remove it,
- unscrew the faulty bulb an eighth of a turn to the left and change it.
When two or more bulbs are
faulty, you must replace them
immediately.
W h e n r e fi t t i n g :
- take care to position the bulb
correctly and press on it to engage it,
- take care to position the bulb holder correctly and screw it in an eighth
of a turn to the right,
- take care to position and secure the light correctly.
NUMBER PLATE LIGHTS
W 5 W.
- Remove the lens.
- Change the faulty bulb.
Page 133 of 266
130

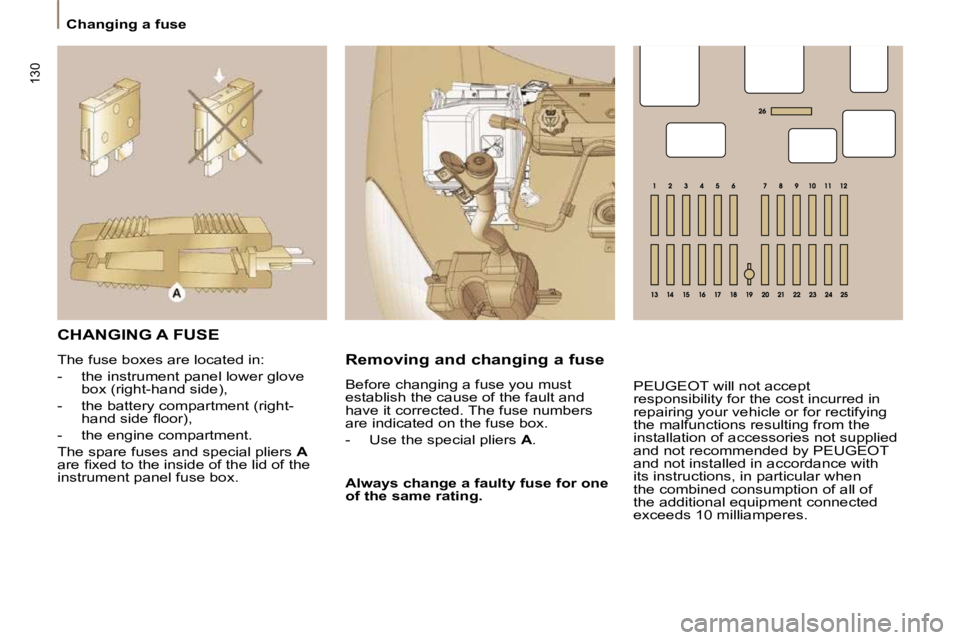

Changing a fuse
CHANGING A FUSE
T h e f u s e b o x e s a r e l o c a t e d i n :
- the instrument panel lower glove b o x ( r i g h t - h a n d s i d e ) ,
- the battery compartment (right- h a n d s i d e fl o o r ) ,
- the engine compartment.
The spare fuses and special pliers A
a r e fi x e d t o t h e i n s i d e o f t h e l i d o f t h e
i n s t r u m e n t p a n e l f u s e b o x . Before changing a fuse you must
establish the cause of the fault and
have it corrected. The fuse numbers
a r e i n d i c a t e d o n t h e f u s e b o x .
- Use the special pliers
A .
Always change a faulty fuse for one
of the same rating. Removing and changing a fuse
PEUGEOT will not accept
responsibility for the cost incurred in
repairing your vehicle or for rectifying
the malfunctions resulting from the
installation of accessories not supplied
and not recommended by PEUGEOT
and not installed in accordance with
its instructions, in particular when
the combined consumption of all of
the additional equipment connected
e x c e e d s 1 0 m i l l i a m p e r e s .
Page 134 of 266
131
TROUBLESHOOTING
7
Changing a fuse

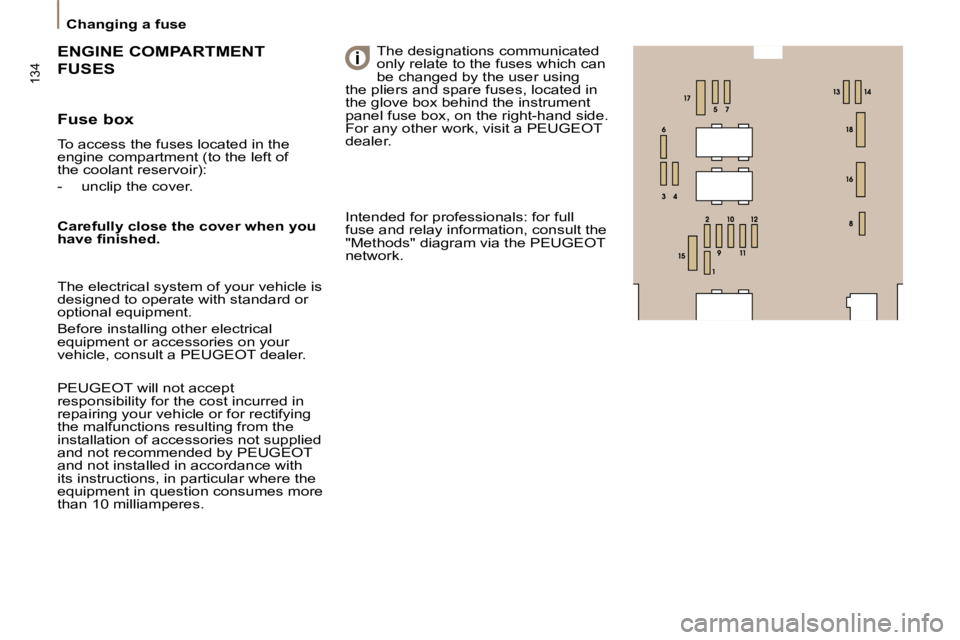

INSTRUMENT PANEL FUSES
- O p e n t h e l o w e r g l o v e b o x o n t h e r i g h t - h a n d s i d e .
- Pull the handle to open the cover and access the fuses.

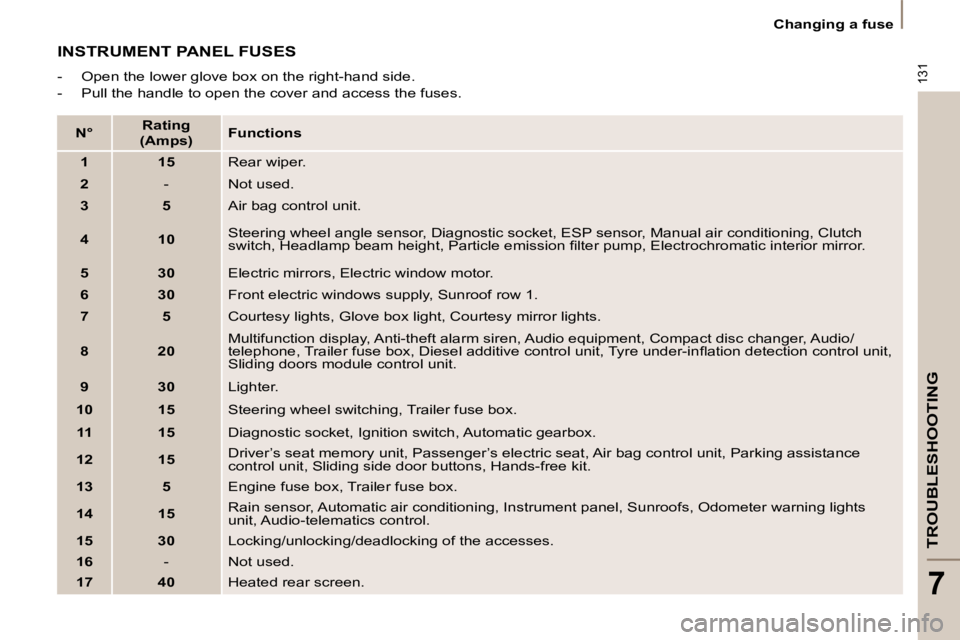

N°
Rating
(Amps)
Functions
1 15 Rear wiper.
2 - Not used.
3 5 Air bag control unit.
4 10 Steering wheel angle sensor, Diagnostic socket, ESP sensor, Manu
al air conditioning, Clutch
s w i t c h , H e a d l a m p b e a m h e i g h t , P a r t i c l e e m i s s i o n fi l t e r p u m p , E l e c t r o c h r o m a t i c i n t e r i o r m i r r o r .
5 30 Electric mirrors, Electric window motor.
6 30 Front electric windows supply, Sunroof row 1.
7 5 C o u r t e s y l i g h t s , G l o v e b o x l i g h t , C o u r t e s y m i r r o r l i g h t s .
8 20 Multifunction display, Anti-theft alarm siren, Audio equipmen
t, Compact disc changer, Audio/
t e l e p h o n e , T r a i l e r f u s e b o x , D i e s e l a d d i t i v e c o n t r o l u n i t , T y r e u n d e r - i n fl a t i o n d e t e c t i o n c o n t r o l u n i t ,
Sliding doors module control unit.
9 30 Lighter.
10 15 S t e e r i n g w h e e l s w i t c h i n g , T r a i l e r f u s e b o x .
11 15 D i a g n o s t i c s o c k e t , I g n i t i o n s w i t c h , A u t o m a t i c g e a r b o x .
12 15 Driver’s seat memory unit, Passenger’s electric seat, Air bag control
unit, Parking assistance
control unit, Sliding side door buttons, Hands-free kit.
13 5 E n g i n e f u s e b o x , T r a i l e r f u s e b o x .
14 15 Rain sensor, Automatic air conditioning, Instrument panel, Su
nroofs, Odometer warning lights
unit, Audio-telematics control.
15 30 Locking/unlocking/deadlocking of the accesses.
16 - Not used.
17 40 Heated rear screen.
Page 135 of 266
132
Changing a fuse

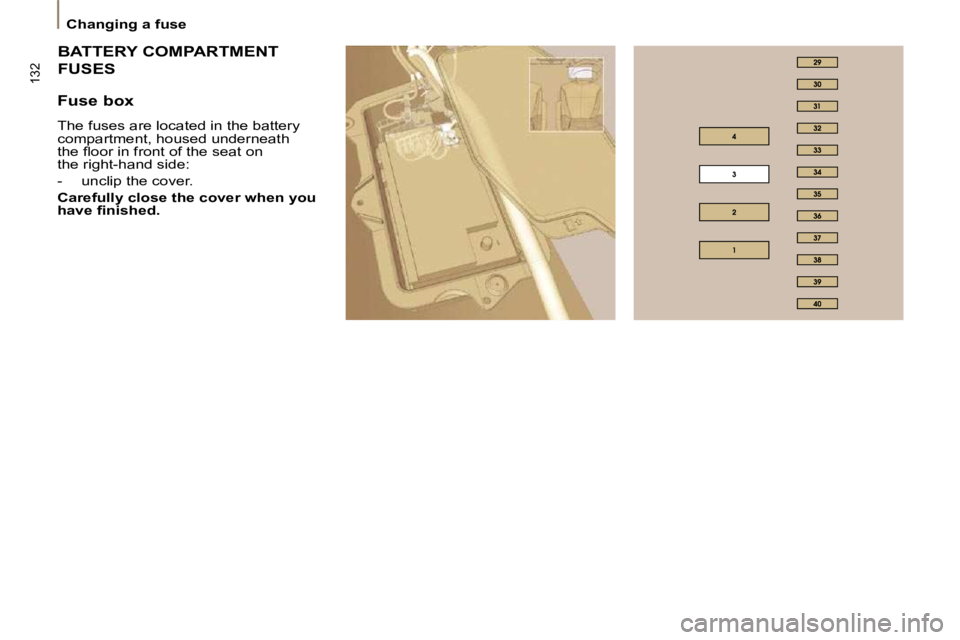

BATTERY COMPARTMENT
FUSES
Fuse box
The fuses are located in the battery
compartment, housed underneath
t h e fl o o r i n f r o n t o f t h e s e a t o n
the right-hand side:
- unclip the cover.
Carefully close the cover when you
h a v e fi n i s h e d .
Page 136 of 266
133
TROUBLESHOOTING
Changing a fuse

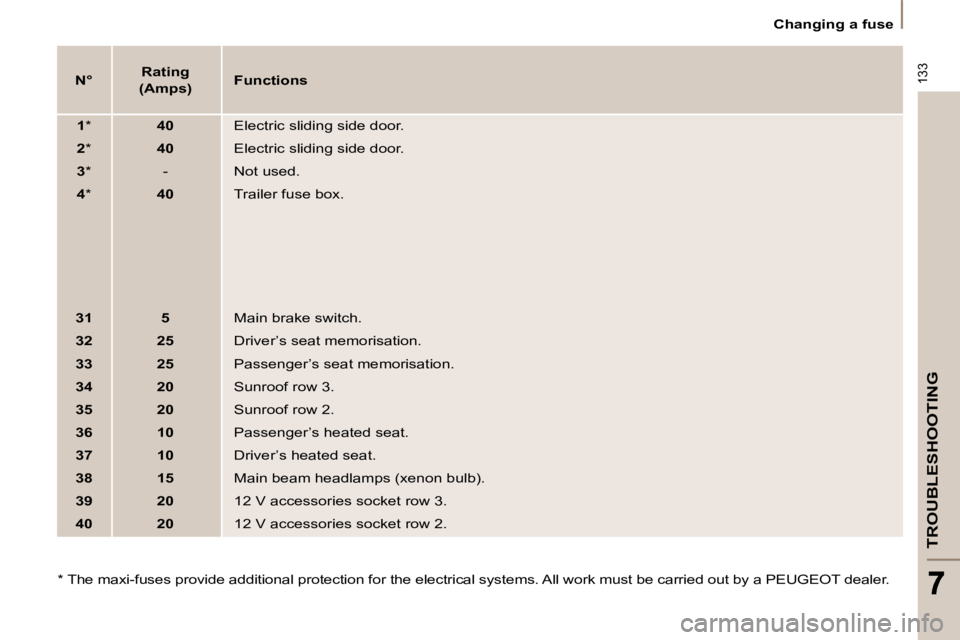

N°
Rating
(Amps)
Functions
1 * 40 Electric sliding side door.
2 * 40 Electric sliding side door.
3 * - Not used.
4 * 40 T r a i l e r f u s e b o x .
31 5 Main brake switch.
32 25 Driver’s seat memorisation.
33 25 Passenger’s seat memorisation.
34 20 Sunroof row 3.
35 20 Sunroof row 2.
36 10 Passenger’s heated seat.
37 10 Driver’s heated seat.
38 15 M a i n b e a m h e a d l a m p s ( x e n o n b u l b ) .
39 20 12 V accessories socket row 3.
40 20 12 V accessories socket row 2.
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l p r o t e c t i o n f o r t h e e l e c t r i c a l s y s t e m s . A l l w o r k m u s t b e c a r r i e d o u t b y a P E U G E O T d e a l e r .
Page 137 of 266
134
Changing a fuse
Fuse box
To access the fuses located in the
engine compartment (to the left of
the coolant reservoir):
- unclip the cover.
ENGINE COMPARTMENT
FUSES
The designations communicated
only relate to the fuses which can
be changed by the user using
the pliers and spare fuses, located in
t h e g l o v e b o x b e h i n d t h e i n s t r u m e n t
p a n e l f u s e b o x , o n t h e r i g h t - h a n d s i d e .
For any other work, visit a PEUGEOT
dealer.
Carefully close the cover when you
h a v e fi n i s h e d .
The electrical system of your vehicle is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, consult a PEUGEOT dealer.
PEUGEOT will not accept
responsibility for the cost incurred in
repairing your vehicle or for rectifying
the malfunctions resulting from the
installation of accessories not supplied
and not recommended by PEUGEOT
and not installed in accordance with
its instructions, in particular where the
equipment in question consumes more
than 10 milliamperes. Intended for professionals: for full
fuse and relay information, consult the
"Methods" diagram via the PEUGEOT
network.
Page 138 of 266
135
TROUBLESHOOTING
7
Changing a fuse

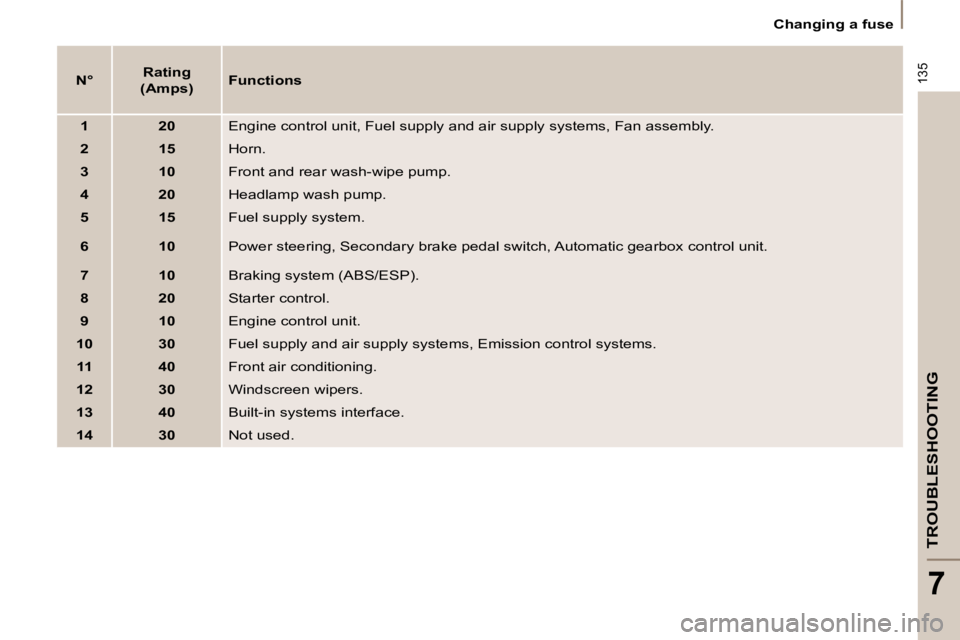

N°
Rating
(Amps)
Functions
1 20 Engine control unit, Fuel supply and air supply systems, Fan assembly.
2 15 Horn.
3 10 Front and rear wash-wipe pump.
4 20 Headlamp wash pump.
5 15 Fuel supply system.
6 10 P o w e r s t e e r i n g , S e c o n d a r y b r a k e p e d a l s w i t c h , A u t o m a t i c g e a r b o x c o n t r o l u n i t .
7 10 Braking system (ABS/ESP).
8 20 Starter control.
9 10 Engine control unit.
10 30 Fuel supply and air supply systems, Emission control systems.
11 40 Front air conditioning.
12 30 Windscreen wipers.
13 40 Built-in systems interface.
14 30 Not used.
Page 139 of 266
136

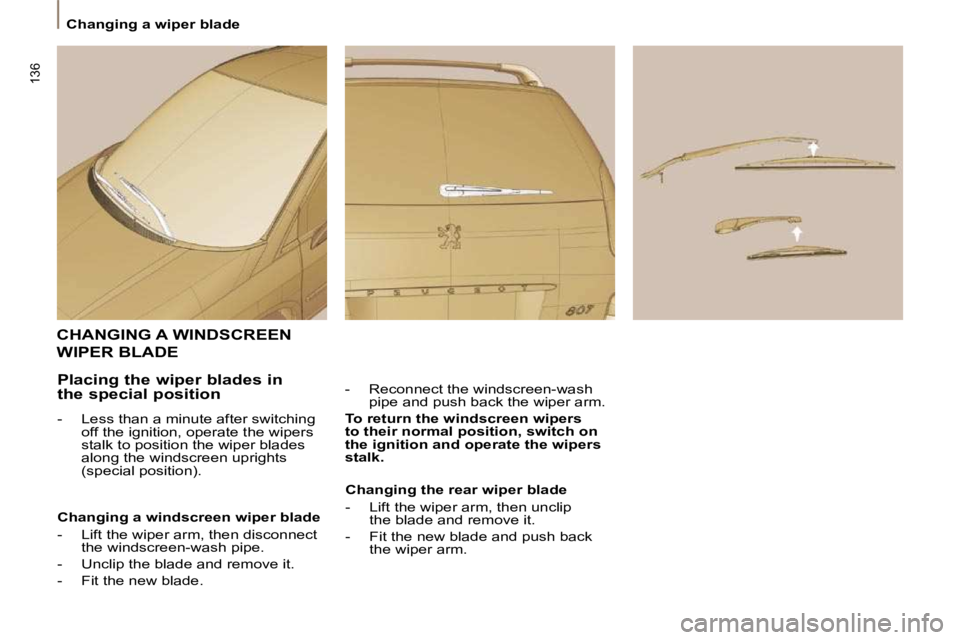

Changing a wiper blade
CHANGING A WINDSCREEN
WIPER BLADE
- Reconnect the windscreen-wash pipe and push back the wiper arm.
To return the windscreen wipers
to their normal position, switch on
the ignition and operate the wipers
stalk. Placing the wiper blades in
the special position
- Less than a minute after switching
off the ignition, operate the wipers
stalk to position the wiper blades
along the windscreen uprights
(special position).
Changing a windscreen wiper blade
- Lift the wiper arm, then disconnect the windscreen-wash pipe.
- Unclip the blade and remove it.
- Fit the new blade. Changing the rear wiper blade
- Lift the wiper arm, then unclip
the blade and remove it.
- Fit the new blade and push back the wiper arm.
Page 140 of 266
137
TROUBLESHOOTING
7

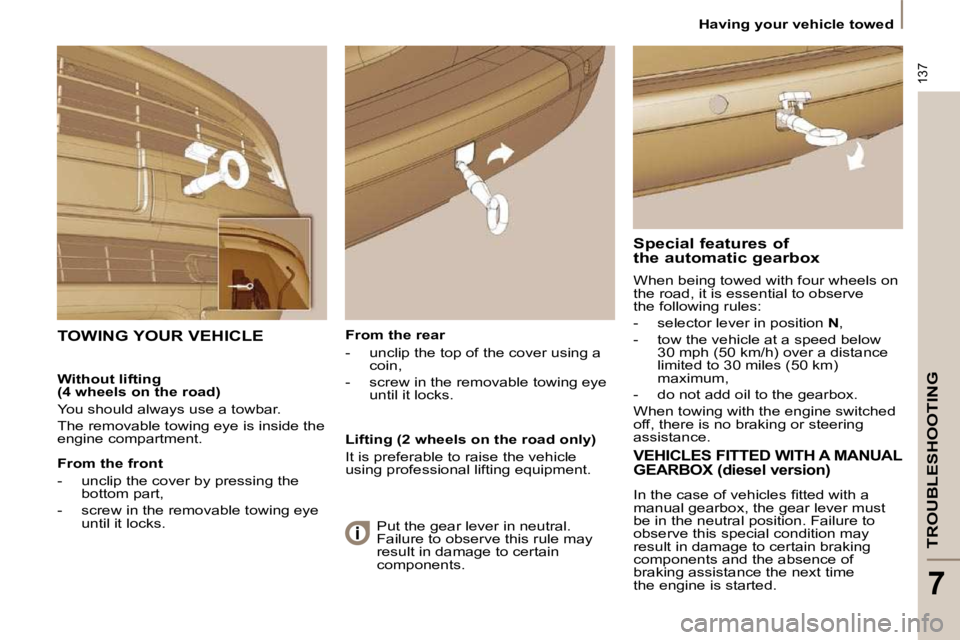

Having your vehicle towed
From the rear
- unclip the top of the cover using a coin,
- screw in the removable towing eye until it locks.
TOWING YOUR VEHICLE
Special features of
the automatic gearbox
When being towed with four wheels on
the road, it is essential to observe
the following rules:
- selector lever in position N ,
- tow the vehicle at a speed below 30 mph (50 km/h) over a distance
limited to 30 miles (50 km)
m a x i m u m ,
- d o n o t a d d o i l t o t h e g e a r b o x .
When towing with the engine switched
off, there is no braking or steering
assistance.
Without lifting
(4 wheels on the road)
You should always use a towbar.
The removable towing eye is inside the
engine compartment.
From the front
- unclip the cover by pressing the
bottom part,
- screw in the removable towing eye until it locks. Lifting (2 wheels on the road only)
It is preferable to raise the vehicle
using professional lifting equipment.
VEHICLES FITTED WITH A MANUAL
GEARBOX (diesel version)
I n t h e c a s e o f v e h i c l e s fi t t e d w i t h a
m a n u a l g e a r b o x , t h e g e a r l e v e r m u s t
be in the neutral position. Failure to
observe this special condition may
result in damage to certain braking
components and the absence of
b r a k i n g a s s i s t a n c e t h e n e x t t i m e
the engine is started.
Put the gear lever in neutral.
Failure to observe this rule may
result in damage to certain
components.
