PEUGEOT 807 2009.5. Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2009.5., Model line: 807, Model: PEUGEOT 807 2009.5.Pages: 266, PDF Size: 12.92 MB
Page 21 of 266
>Visuel à venir
Accesses
READY TO SET OFF
25
Opening/Closing using
the remote control
P r e s s o n e o f t h e b u t t o n s
to open or close the
corresponding rear door
(right or left).
Opening/Closing from
the front
Press the corresponding
control.
A n a u d i b l e s i g n a l a c c o m p a n i e s t h e
opening and closing of the door.
ELECTRIC SLIDING SIDE DOORS
R e m e m b e r t o c l o s e t h e s l i d i n g
doors when your vehicle is parked
for long periods, the electric open
door monitoring system consumes
power.
Opening/Closing from
row 2
Press the corresponding
control.
General recommendations
It is imperative that the doors are
only operated when the vehicle is
stationary.
Always ensure that the door is
operated safely. Check that no person,
a n i m a l o r o b j e c t i s p r e v e n t i n g t h e
required operation, either inside or
outside the vehicle.
Do not lean through an open window,
d o n o t l e a v e a n y o b j e c t p r o t r u d i n g
through the door during opening or
closing.
Do not leave children or pets near the
opening and closing controls without
supervision.
Obstacle detection
The detection system is triggered when
a n o b s t a c l e w h i c h h a s a c e r t a i n p h y s i c a l
resistance hinders the movement of
the door.
I f a n o b s t a c l e i s d e t e c t e d d u r i n g :
- closing of the door, the door opens fully,
- opening of the door, the door stops.
W h e n t h e o b s t a c l e h a s b e e n r e m o v e d ,
complete or restart the action using the
remote control or the interior controls.
F a i l u r e t o o b s e r v e t h e s e
r e c o m m e n d a t i o n s m a y r e s u l t i n i n j u r y
o r d a m a g e i f p a r t o f t h e b o d y o r a n
o b j e c t b e c o m e s j a m m e d o r c a u g h t .
Page 22 of 266
>Visuel à venir
Accesses
26
ELECTRIC CHILD SAFETY
This disarms all the electrical controls
in the rear:
- electric windows,
- sliding side doors,
- sunroofs in rows 2 and 3.
W i t h t h e i g n i t i o n o n , p r e s s b u t t o n B .
A message appears on the display,
a c c o m p a n i e d b y a n a u d i b l e s i g n a l .
It indicates the status of the function:
activated or not activated.
A l w a y s c h e c k t h e s t a t u s b e f o r e s e t t i n g
off.
This safety system is independent of
the central locking.
In the event of a serious impact, the
doors are unlocked automatically
t o p e r m i t a c c e s s b y t h e e m e r g e n c y
services. Simultaneous locking or
unlocking of the tailgate and
the doors
T h e t a i l g a t e i s l o c k e d o r u n l o c k e d b y
the remote control or the driver’s door
or passenger door lock.
To open, operate the handle C and lift
the tailgate.
Tailgate release
The tailgate locks automatically
w h e n t h e v e h i c l e i s b e i n g d r i v e n
at more than 6 mph (10 km/h) and
unlocks when one of the front doors is
opened.
TAILGATE
"Tailgate open" warning
When the engine is running or the
v e h i c l e i s b e i n g d r i v e n , y o u a r e w a r n e d
i f t h e t a i l g a t e i s n o t c l o s e d c o r r e c t l y b y
a diagram on the display, accompanied
b y a n a u d i b l e s i g n a l . T h i s e n a b l e s t h e t a i l g a t e t o b e
unlocked in the event of a central
locking fault.
F o l d b a c k a r o w 2 r e a r s e a t ,
F o l d b a c k a r o w 3 r e a r s e a t o r t h e
b e n c h s e a t t o g a i n a c c e s s t o t h e
l o c k f r o m i n s i d e t h e b o o t ,
Insert a small screwdriver into
hole D in the lock and push it
towards the left to unlock the
tailgate.
Always remove the ignition key
when leaving the vehicle, even for
a short time.
Page 23 of 266
Accesses
READY TO SET OFF
2
27
SUNROOFS
You have three sunroofs each with an
independent control.
However, the front passenger’s control
can also operate the two rear sunroofs
simultaneously.
To partially open the roof: press and
hold part A of the control.
To open the roof completely: press
part A o f t h e c o n t r o l b r i e fl y .
To close it completely: press part B
o f t h e c o n t r o l b r i e fl y t o s l i d e i t , t h e n
press the control again continuously to
close it completely.
Malfunction
In the event of a malfunction,
unwanted opening of the roof on
closing (for example, in the presence
of ice), following reconnection of the
b a t t e r y o r i f t h e s u n r o o f d o e s n o t c l o s e :
- press A until the roof is fully open,
- press B within one second to close
the roof,
- if the roof does not close, press B
several times until the roof is fully
closed.
- release then continue to press the control B f o r a p p r o x i m a t e l y fi v e
seconds after closing of the roof.
The safety auto-reverse function is
not active during these operations.
Disarming of the row 2 and
3 controls
Press the rear electrical functions
disarming switch.
The sunroof shutter is manual.
To open it, lift the handle and slide
it rearwards.
To close it, slide it forwards until the
handle locks.
Good practice
Do not open the sunroofs
immediately after a shower or
immediately after washing the car.
Always ensure that the sunroofs are
c l o s e d c o r r e c t l y b e f o r e l e a v i n g t h e
vehicle.
In the event of contact during operation
of the roof, you must reverse the
movement of the roof. To do this, press
the switch concerned.
When the driver operates the roof
switch, he must ensure that no one is
preventing correct closing of the roof.
Be aware of children when operating
the roof.
The driver must ensure that the
passengers use the sunroof correctly.
Safety auto-reverse
When the sunroof is sliding closed
a n d m e e t s a n o b s t a c l e , i t s t o p s t h e n
partially opens again.
Page 24 of 266
Instruments and controls
28

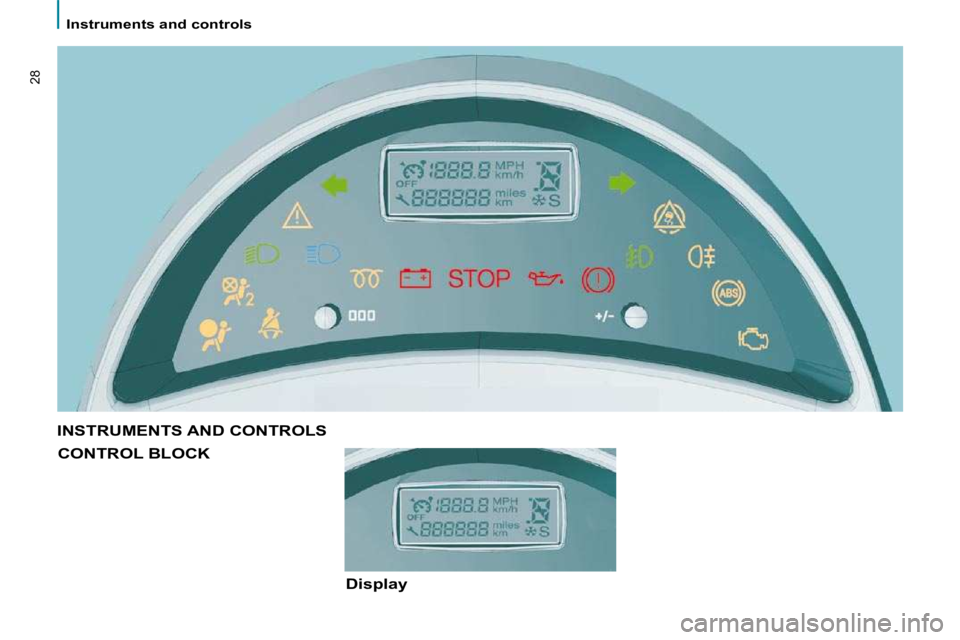

INSTRUMENTS AND CONTROLS
CONTROL BLOCK
Display
Page 25 of 266
Instruments and controls
READY TO SET OFF
2
29

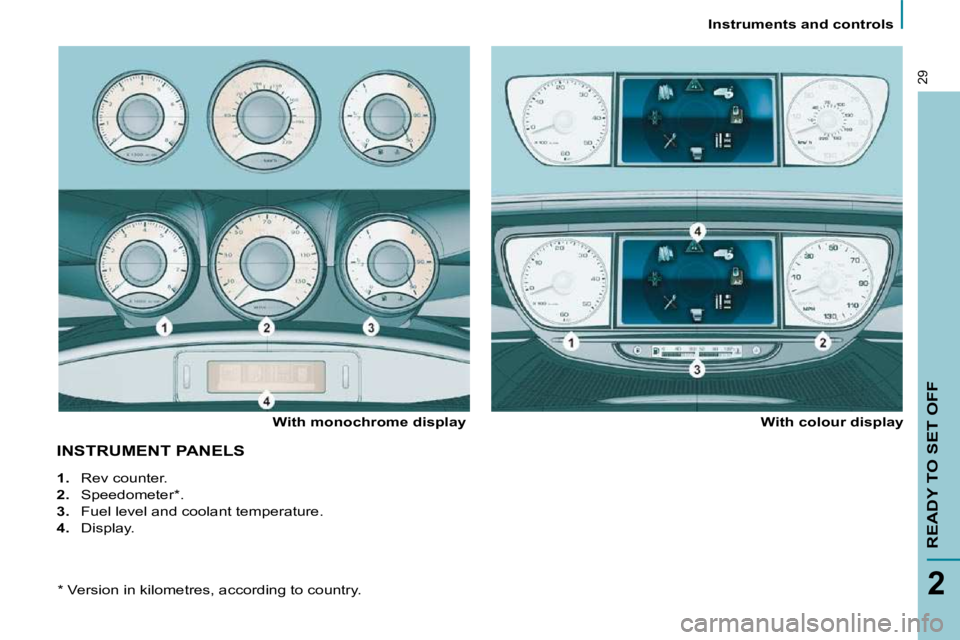

INSTRUMENT PANELS
With monochrome display With colour display
1. Rev counter .
2. Speedometer * .
3. Fuel level and coolant temperature.
4. Display.
* Version in kilometres, according to country.
Page 26 of 266
Instruments and controls
30

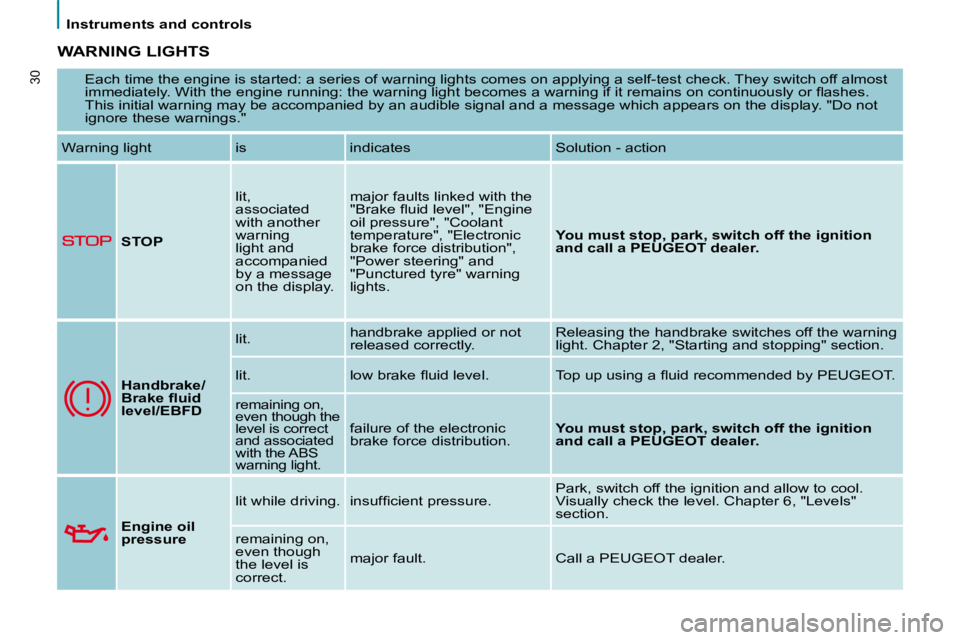

WARNING LIGHTS
Each time the engine is started: a series of warning lights comes on applying a self-test check. They switch off almost
i m m e d i a t e l y . W i t h t h e e n g i n e r u n n i n g : t h e w a r n i n g l i g h t b e c o m e s a w a r n i n g i f i t r e m a i n s o n c o n t i n u o u s l y o r fl a s h e s .
T h i s i n i t i a l w a r n i n g m a y b e a c c o m p a n i e d b y a n a u d i b l e s i g n a l a n d a m e s s a g e w h i c h a p p e a r s o n t h e d i s p l a y . " D o n o t
ignore these warnings."
Warning light is indicates Solution - action
STOP lit,
associated
with another
warning
light and
accompanied
b y a m e s s a g e
on the display. m a j o r f a u l t s l i n k e d w i t h t h e
" B r a k e fl u i d l e v e l " , " E n g i n e
oil pressure", "Coolant
temperature", "Electronic
b r a k e f o r c e d i s t r i b u t i o n " ,
"Power steering" and
"Punctured tyre" warning
lights.
You must stop, park, switch off the ignition
and call a PEUGEOT dealer.
Handbrake/
B r a k e fl u i d
level/EBFD lit.
h a n d b r a k e a p p l i e d o r n o t
released correctly. R e l e a s i n g t h e h a n d b r a k e s w i t c h e s o f f t h e w a r n i n g
light. Chapter 2, "Starting and stopping" section.
lit. l o w b r a k e fl u i d l e v e l . T o p u p u s i n g a fl u i d r e c o m m e n d e d b y P E U G E O T .
remaining on,
even though the
level is correct
and associated
with the ABS
warning light.
failure of the electronic
b r a k e f o r c e d i s t r i b u t i o n .
You must stop, park, switch off the ignition
and call a PEUGEOT dealer.
Engine oil
pressure lit while driving.
i n s u f fi c i e n t p r e s s u r e . Park, switch off the ignition and allow to cool.
Visually check the level. Chapter 6, "Levels"
section.
remaining on,
even though
the level is
correct. m a j o r f a u l t .
Call a PEUGEOT dealer.
Page 27 of 266
Instruments and controls
READY TO SET OFF
2
31

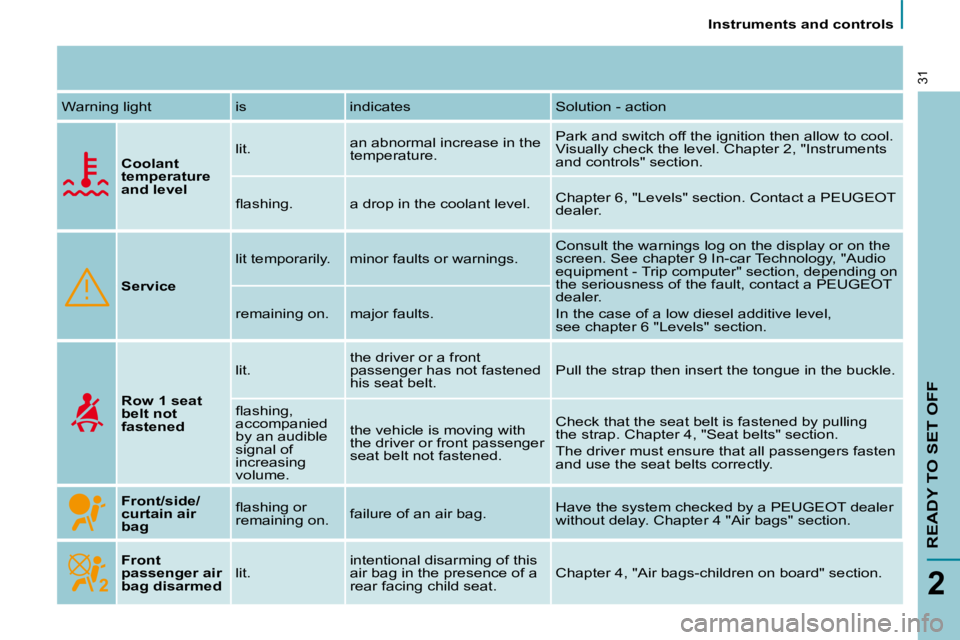

Warning light is indicates Solution - action
Coolant
temperature
and level lit.
a n a b n o r m a l i n c r e a s e i n t h e
temperature. Park and switch off the ignition then allow to cool.
Visually check the level. Chapter 2, "Instruments
and controls" section.
fl a s h i n g . a drop in the coolant level. Chapter 6, "Levels" section. Contact a PEUGEOT
dealer.
Service lit temporarily. minor faults or warnings.
Consult the warnings log on the display or on the
screen. See chapter 9 In-car Technology, "Audio
equipment - Trip computer" section, depending on
the seriousness of the fault, contact a PEUGEOT
dealer.
In the case of a low diesel additive level,
see chapter 6 "Levels" section.
remaining on.
m a j o r f a u l t s .
Row 1 seat
belt not
fastened lit.
the driver or a front
passenger has not fastened
h i s s e a t b e l t . P u l l t h e s t r a p t h e n i n s e r t t h e t o n g u e i n t h e b u c k l e .
fl a s h i n g ,
accompanied
b y a n a u d i b l e
signal of
increasing
volume. the vehicle is moving with
the driver or front passenger
s e a t b e l t n o t f a s t e n e d .
C h e c k t h a t t h e s e a t b e l t i s f a s t e n e d b y p u l l i n g
t h e s t r a p . C h a p t e r 4 , " S e a t b e l t s " s e c t i o n .
The driver must ensure that all passengers fasten
a n d u s e t h e s e a t b e l t s c o r r e c t l y .
Front/side/
curtain air
bag fl a s h i n g o r
remaining on.
f a i l u r e o f a n a i r b a g . H a v e t h e s y s t e m c h e c k e d b y a P E U G E O T d e a l e r
w i t h o u t d e l a y . C h a p t e r 4 " A i r b a g s " s e c t i o n .
Front
passenger air
bag disarmed lit. intentional disarming of this
a i r b a g i n t h e p r e s e n c e o f a
rear facing child seat. C h a p t e r 4 , " A i r b a g s - c h i l d r e n o n b o a r d " s e c t i o n .
Page 28 of 266
Instruments and controls
32

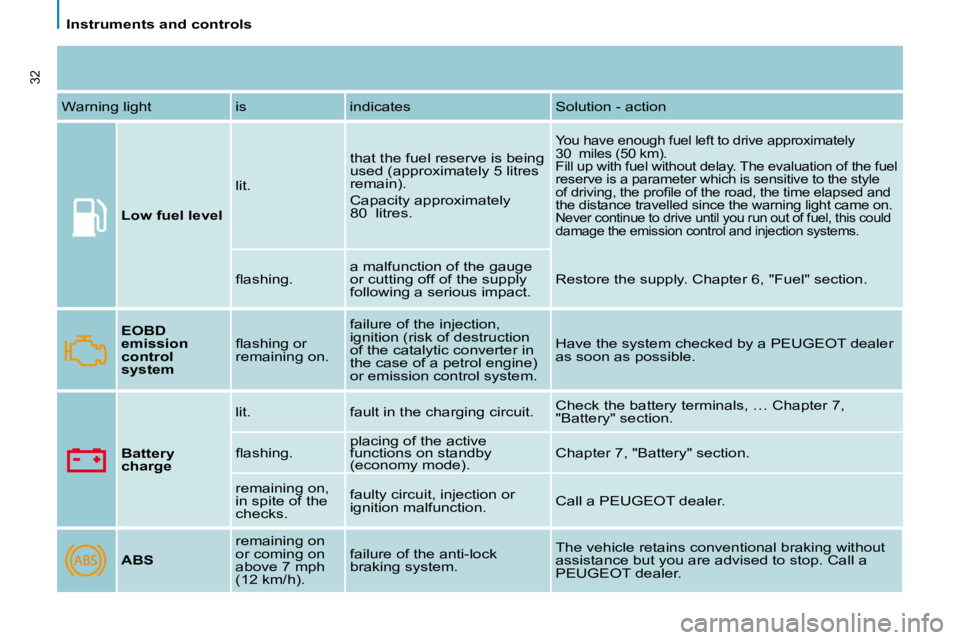

Warning light is indicates Solution - action
Low fuel level lit.
t h a t t h e f u e l r e s e r v e i s b e i n g
used (approximately 5 litres
remain).
Capacity approximately
80 litres.
You have enough fuel left to drive approximately
30 miles (50 km).
Fill up with fuel without delay. The evaluation of
the fuel
reserve is a parameter which is sensitive to the st yle
o f d r i v i n g , t h e p r o fi l e o f t h e r o a d , t h e t i m e e l a p s e d a n d
the distance travelled since the warning light came on.
Never continue to drive until you run out of fuel, this could
d a m a g e t h e e m i s s i o n c o n t r o l a n d i n j e c t i o n s y s t e m s .
fl a s h i n g . a malfunction of the gauge
or cutting off of the supply
following a serious impact. Restore the supply. Chapter 6, "Fuel" section.
EOBD
emission
control
system fl a s h i n g o r
remaining on. f a i l u r e o f t h e i n j e c t i o n ,
ignition (risk of destruction
of the catalytic converter in
the case of a petrol engine)
or emission control system. H a v e t h e s y s t e m c h e c k e d b y a P E U G E O T d e a l e r
a s s o o n a s p o s s i b l e .
Battery
charge lit. fault in the charging circuit.
C h e c k t h e b a t t e r y t e r m i n a l s , … C h a p t e r 7 ,
"Battery" section.
fl a s h i n g . placing of the active
f u n c t i o n s o n s t a n d b y
(economy mode). Chapter 7, "Battery" section.
remaining on,
in spite of the
checks. f a u l t y c i r c u i t , i n j e c t i o n o r
ignition malfunction.
Call a PEUGEOT dealer.
ABS remaining on
or coming on
a b o v e 7 m p h
(12 km/h). failure of the anti-lock
b r a k i n g s y s t e m .
T h e v e h i c l e r e t a i n s c o n v e n t i o n a l b r a k i n g w i t h o u t
a s s i s t a n c e b u t y o u a r e a d v i s e d t o s t o p . C a l l a
PEUGEOT dealer.
Page 29 of 266
Instruments and controls
READY TO SET OFF
2
33
Warning light is indicates Solution - action
ESP/ASR fl a s h i n g .
wheel skid avoided. The system optimises the traction and improves
t h e d i r e c t i o n a l s t a b i l i t y o f t h e v e h i c l e . C h a p t e r 4 ,
"Driving safety" section.
remaining on.
a malfunction of the system.
E . g . : u n d e r - i n fl a t i o n o f t h e t y r e s . Check the pressure of the tyres. Call a PEUGEOT
dealer.
remaining on with
t h e b u t t o n ( b e l o w
the steering
wheel on the left)
pressed.
deactivation of the system. T h e o p e r a t i o n o f t h e s y s t e m h a s b e e n
deactivated. Chapter 4, "Driving safety" section.
Diesel
pre-heating lit. climatic conditions requiring
pre-heating. W a i t u n t i l t h e w a r n i n g l i g h t i s s w i t c h e d o f f b e f o r e
operating the starter.
Dipped
headlamps/
Daytime
lights lit. manual selection or
automatic lighting.
Rotate the ring on the lights stalk to the second
position.
lighting of the dipped headlamps
from the time the ignition is
switched on - daytime lights.
Depending on the country in
which the vehicle is sold.
Chapter 3, "Steering wheel controls" section.
Main beam
headlamps
pulling of the stalk towards
you. Pull the stalk to return to dipped headlamps.
and with an
a u d i b l e s i g n a l ,
ignition off. opening of the driver’s door
with the lights still on.
Rotate the ring on the lights stalk to position 0.
Direction
indicators fl a s h i n g w i t h
b u z z e r . change of direction via the
lights stalk, to the left of the
steering wheel. T o t h e R i g h t : c o n t r o l t o b e p u s h e d u p w a r d s .
T o t h e L e f t : c o n t r o l t o b e p u s h e d d o w n w a r d s .

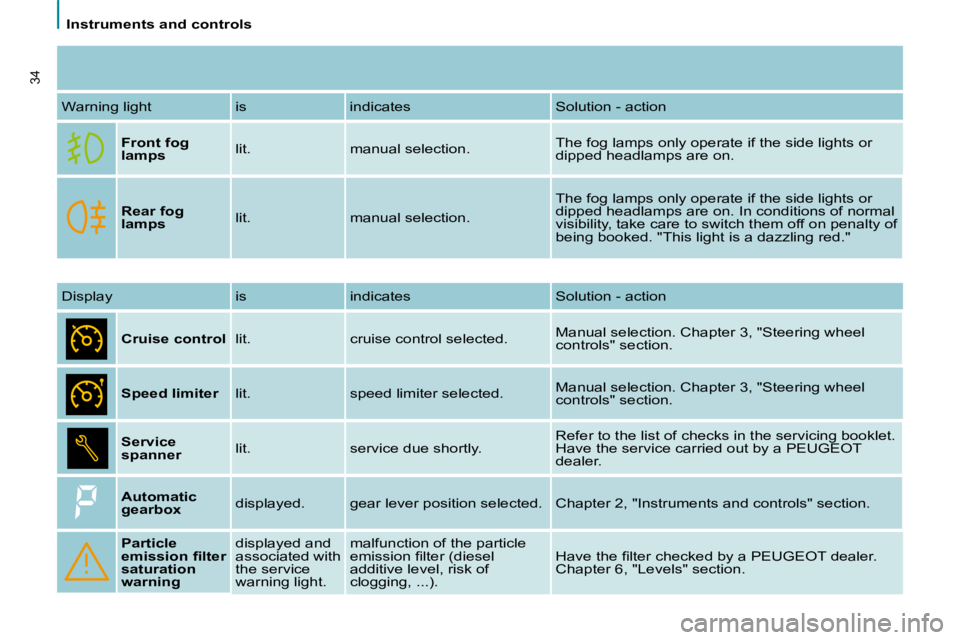

Page 30 of 266
Instruments and controls
34
Warning light is indicates Solution - action
Front fog
lamps lit. manual selection. The fog lamps only operate if the side lights or
dipped headlamps are on.
Rear fog
lamps lit. manual selection. The fog lamps only operate if the side lights or
dipped headlamps are on. In conditions of normal
v i s i b i l i t y , t a k e c a r e t o s w i t c h t h e m o f f o n p e n a l t y o f
b e i n g b o o k e d . " T h i s l i g h t i s a d a z z l i n g r e d . "
Display is indicates Solution - action
Cruise control lit. cruise control selected. Manual selection. Chapter 3, "Steering wheel
controls" section.
Speed limiter lit. speed limiter selected. Manual selection. Chapter 3, "Steering wheel
controls" section.
Service
spanner lit. service due shortly. R e f e r t o t h e l i s t o f c h e c k s i n t h e s e r v i c i n g b o o k l e t .
H a v e t h e s e r v i c e c a r r i e d o u t b y a P E U G E O T
dealer.
Automatic
gearbox displayed. gear lever position selected. Chapter 2, "Instrume
nts and controls" section.
Particle
e m i s s i o n fi l t e r
saturation
warning displayed and
associated with
the service
warning light. malfunction of the particle
e m i s s i o n fi l t e r ( d i e s e l
additive level, risk of
clogging, ...).
H a v e t h e fi l t e r c h e c k e d b y a P E U G E O T d e a l e r .
Chapter 6, "Levels" section.
