2
7
6
42
Exterior
6
W h e n t h e f u e l fi l l e r
fl a p i s o p e n , a s a f e t y
system limits the
opening of the sliding
side door while the
fuel tank is being
fi l l e d .
Flap open
4 buttons
A press selected by
one or the other.
The movement of
the door must be
guided on opening.
2 buttons
Left-hand
door
Right-
hand
door
Key
Parking assistance
Audible and/or visual front
parking assistance.
91
i t e m i d e n t i fi c a t i o n m a r k
p a g e i d e n t i fi c a t i o n m a r k
114
Page 2 of 257
47a 7b7b
2
4
7a
5
5
2
7
1
FAMILIARISATION
Exterior
Audible and/or visual rear
parking assistance. Spare wheel
Raise the wheel to be
repaired by means of the
c a b l e u n t i l i t i s fl u s h a g a i n s t
t h e fl o o r . C l o s e t h e c o v e r o n
the access opening securely. 91
Transverse roof bars
Release the four levers,
move your bars then secure
the levers.
123

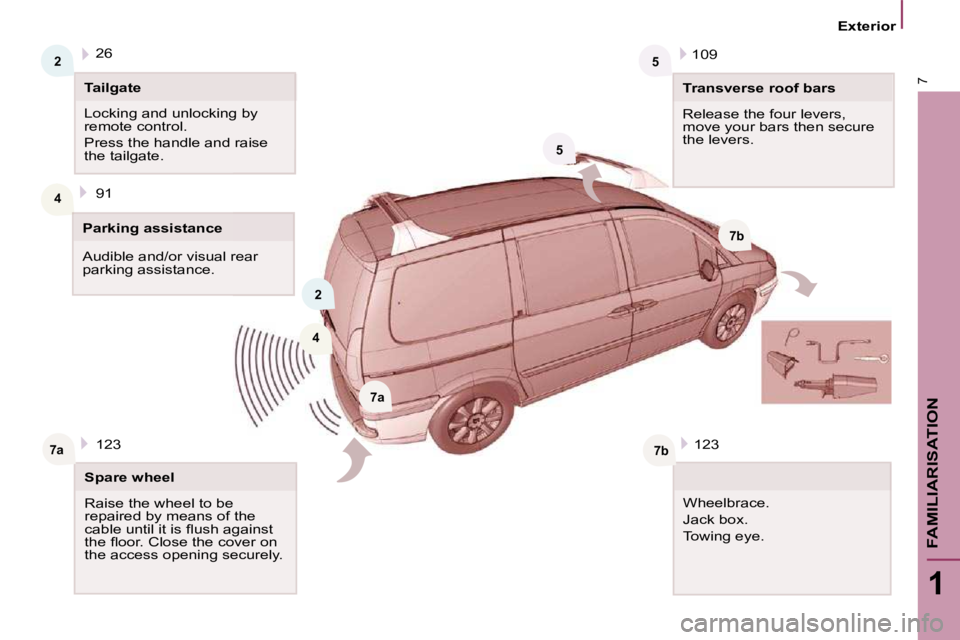

Tailgate
Locking and unlocking by
remote control.
Press the handle and raise
the tailgate.
123
Wheelbrace.
Jack box.
Towing eye.
Parking assistance
26
109
Page 3 of 257
Interior
8
Page 4 of 257
9
1
FAMILIARISATION
Interior

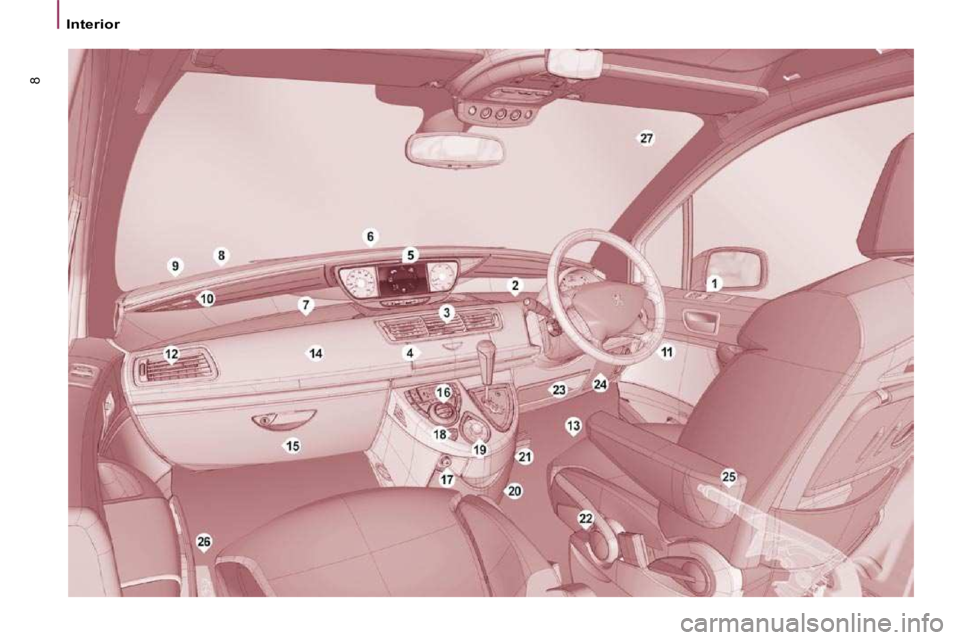

12. Side adjustable vent.
13. B a t t e r y / F u s e b o x .
14. Passenger air bag.
15. Passenger’s lower glove box.
16. Air conditioning controls.
17. L i g h t e r / 1 2 V a c c e s s o r i e s s o c k e t .
18. Hazard warning lights switch.
19. Storage compartment or additional
telematics control.
20. Cooled compartment.
21. Ashtray/Can holder.
22. Seat adjustment control.
23. Storage compartment.
24. F u s e b o x .
1. E l e c t r i c m i r r o r c o n t r o l s .
- E l e c t r i c w i n d o w c o n t r o l s .
- Deactivation of the rear electric controls.
2. Driver’s upper glove box.
3. Central adjustable vents.
4. Audio equipment or GPS
multimedia audio equipment with
fl a p .
5. I n s t r u m e n t p a n e l / L a r g e c o l o u r
display.
6. Sunshine and passenger
compartment temperature sensor.
7. Passenger’s upper glove box.
8. Windscreen demisting vents.
9. Speaker (tweeter).
10. F r o n t w i n d o w d e m i s t i n g v e n t s .
11. Passenger air bag disarming
s w i t c h , i f fi t t e d o n y o u r v e h i c l e .
25. Handbrake - on the right.
26. B o n n e t r e l e a s e u n d e r c o v e r - o n
the left.
27. Acoustic windscreen.
INTERIOR OVERVIEW
SETTING THE DATE
AND TIME
F o r m o r e i n f o r m a t i o n a b o u t
this adjustment, refer to the "Setting
t h e d a t e a n d t i m e " s e c t i o n o f t h e " I n -
car technology" chapter.
ADDITIONAL HEATER
With the engine at idle
or when the vehicle is
stationary, it is normal
to notice a high-pitched
whistling and a slight emission of
smoke and odour.
Page 5 of 257
Interior
10
5. Control block.
6. Steering wheel audio equipment
controls.
7. Wipers/wash-wipe/trip computer
controls.
8. Gear lever.
9. I g n i t i o n .
1. I n t e r i o r p r o t e c t i o n a l a r m
deactivation button.
2. Speed limiter/cruise control
switches.
3. Lights and direction indicators
controls.
4. Driver's air bag.
Horn.
10. Headlamp height adjustment.
11. a - Dynamic stability control button
( E S P / A S R ) .
b - Parking assistance button.
12. Steering wheel adjustment control.
INSTRUMENTS AND CONTROLS
Page 6 of 257
9
9
9 9
11
1
FAMILIARISATION
Interior
INSTRUMENTS AND CONTROLS
Truly ergonomic control for
access to the functions of
t h e W I P C o m .
WIP Nav
This ergonomic audio equipment offers
a m a p o f E u r o p e o n a n S D c a r d , a
B l u e t o o t h t e l e p h o n e c o n n e c t i o n a n d
t h e p l a y i n g o f M P 3 / W M A fi l e s . HANDS-FREE KIT
Receive a call
Make a call
c o n fi r m a t i o n
selection WIP Com WIP Sound
This audio equipment incorporates a hard
disc with a capacity of 10 Gb, reserved
for your music.
I t p e r m i t s t h e p l a y i n g o f M P 3 C D s a n d D V D s .
The Jukebox function permits the
selective playing of up to 10 hours of
m u s i c . T h e d e t a i l e d m a p o f E u r o p e i s
stored on this hard disc, without the
addition of a CD. This map is displayed
on the 16/9ths 7-inch colour screen and
offers a 3D view.
The hands-free GSM telephone, via your
S I M c a r d , a l s o a l l o w s y o u a c c e s s t o t h e
P E U G E O T e m e r g e n c y t e a m ( s u b j e c t t o
conditions).
Page 7 of 257
4
Interior
12
90
Seat with manual
adjustment
Seat with electric
adjustment Pull the button
placed at the end
of the handbrake
forwards.
The handbrake
lever lowers.
You can now
rotate the seat. To
return to normal
operation, pull the
lever up until it
clicks.
1.
F o r w a r d s - b a c k w a r d s
adjustment.
2. Angle.
3. Height.
4. Lumbar.
5. Head restraint
height and angle. Rotating the seat
SIT COMFORTABLY
Driver's seat
Page 8 of 257
3
13
1
FAMILIARISATION
Interior
Linked side seats Central rear seat
Rear bench seat Pullman seat
Other types of seat
68
Page 9 of 257
43
3
3
Interior
14
95
Repositioning
SIT COMFORTABLY
SEE CLEARLY
Adjust the height
and depth of the
steering wheel.
E l e c t r i c e x t e r i o r m i r r o r s .
Selection Seat belts
Height adjustment.
F a s t e n i n g . Lights off
Side lights
Main beam headlamps (blue)
Dipped headlamps (green)
Wipers stalk
2 fast.
1 normal.
I i n t e r m i t t e n t .
0 off.
single wipe.
A U T O , p r e s s t h e s t a l k d o w n . A U T O , a u t o m a t i c s w i t c h i n g
on of the lights Adjustment
86 45
48
Page 10 of 257
4
2 4
4
7
6
4
3
3
415
1
FAMILIARISATION
Interior

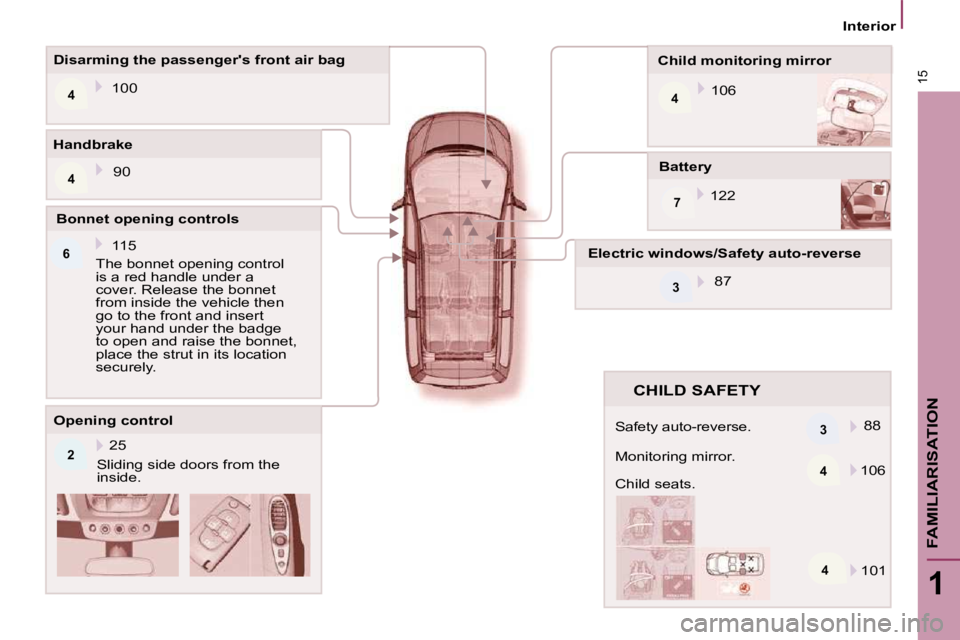

Battery 122
Child monitoring mirror
106
Disarming the passenger's front air bag
100
Opening control Sliding side doors from the
inside. 25
Handbrake
90
Bonnet opening controls The bonnet opening control
is a red handle under a
cover. Release the bonnet
from inside the vehicle then
go to the front and insert
your hand under the badge
to open and raise the bonnet,
place the strut in its location
securely. 115
Safety auto-reverse. 101
106
88
87
Electric windows/Safety auto-reverse
CHILD SAFETY
Monitoring mirror.
Child seats.
