Instruments and controls
30
WARNING LIGHTS
Each time the engine is started: a series of warning lights comes on applying a self-test check. They switch off almost
i m m e d i a t e l y . W i t h t h e e n g i n e r u n n i n g : t h e w a r n i n g l i g h t b e c o m e s a w a r n i n g i f i t r e m a i n s o n c o n t i n u o u s l y o r fl a s h e s .
T h i s i n i t i a l w a r n i n g m a y b e a c c o m p a n i e d b y a n a u d i b l e s i g n a l a n d a m e s s a g e w h i c h a p p e a r s o n t h e d i s p l a y . " D o n o t
ignore these warnings."
Warning light is indicates Solution - action
STOP lit, associated
with another
warning
light and
accompanied
b y a m e s s a g e
on the display. m a j o r f a u l t s l i n k e d w i t h t h e
" B r a k e fl u i d l e v e l " , " E n g i n e
oil pressure", "Coolant
temperature", "Electronic
b r a k e f o r c e d i s t r i b u t i o n " ,
"Power steering" and
"Punctured tyre" warning
lights.
You must stop, park, switch off the ignition
and call a PEUGEOT dealer.
Handbrake/
B r a k e fl u i d
level/EBFD lit.
h a n d b r a k e a p p l i e d o r n o t
released correctly. R e l e a s i n g t h e h a n d b r a k e s w i t c h e s o f f t h e w a r n i n g
light. Chapter 2, "Starting and stopping" section.
lit. l o w b r a k e fl u i d l e v e l . T o p u p u s i n g a fl u i d r e c o m m e n d e d b y P E U G E O T .
remaining on,
even though the
level is correct
and associated
with the ABS
warning light.
failure of the electronic
b r a k e f o r c e d i s t r i b u t i o n .
You must stop, park, switch off the ignition
and call a PEUGEOT dealer.
Engine oil
pressure lit while driving.
i n s u f fi c i e n t p r e s s u r e . Park, switch off the ignition and allow to cool.
Visually check the level. Chapter 6, "Levels"
section.
remaining on,
even though
the level is
correct. m a j o r f a u l t .
Call a PEUGEOT dealer.
Page 28 of 257
Instruments and controls
32

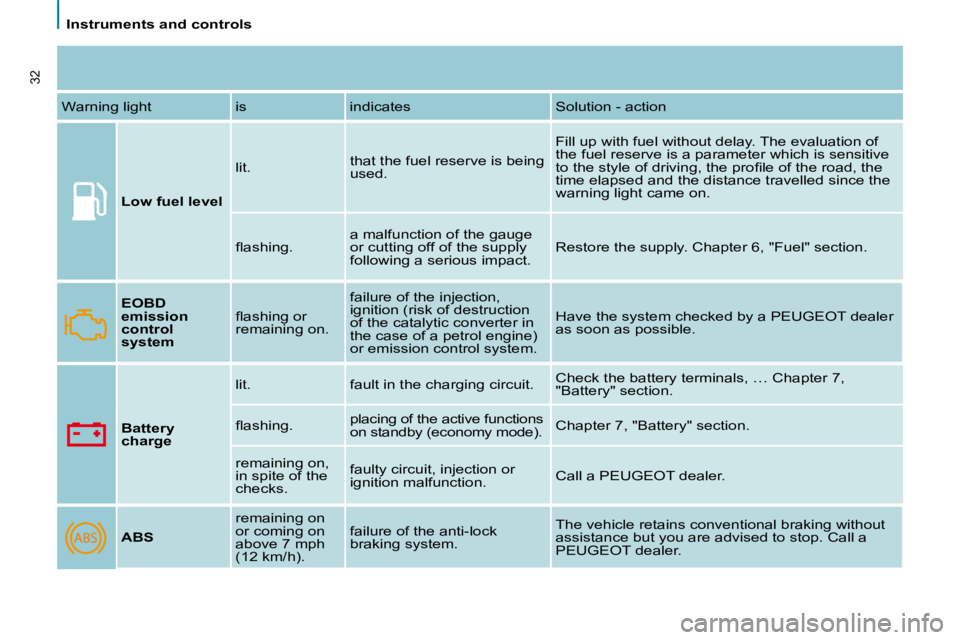

Warning light is indicates Solution - action
Low fuel level lit.
t h a t t h e f u e l r e s e r v e i s b e i n g
used. Fill up with fuel without delay. The evaluation of
the fuel reserve is a parameter which is sensitive
t o t h e s t y l e o f d r i v i n g , t h e p r o fi l e o f t h e r o a d , t h e
time elapsed and the distance travelled since the
warning light came on.
fl a s h i n g . a malfunction of the gauge
or cutting off of the supply
following a serious impact. Restore the supply. Chapter 6, "Fuel" section.
EOBD
emission
control
system fl a s h i n g o r
remaining on. f a i l u r e o f t h e i n j e c t i o n ,
ignition (risk of destruction
of the catalytic converter in
the case of a petrol engine)
or emission control system. H a v e t h e s y s t e m c h e c k e d b y a P E U G E O T d e a l e r
a s s o o n a s p o s s i b l e .
Battery
charge lit. fault in the charging circuit.
C h e c k t h e b a t t e r y t e r m i n a l s , … C h a p t e r 7 ,
"Battery" section.
fl a s h i n g . placing of the active functions
o n s t a n d b y ( e c o n o m y m o d e ) . Chapter 7, "Battery" section.
remaining on,
in spite of the
checks. f a u l t y c i r c u i t , i n j e c t i o n o r
ignition malfunction.
Call a PEUGEOT dealer.
ABS remaining on
or coming on
a b o v e 7 m p h
(12 km/h). failure of the anti-lock
b r a k i n g s y s t e m .
T h e v e h i c l e r e t a i n s c o n v e n t i o n a l b r a k i n g w i t h o u t
a s s i s t a n c e b u t y o u a r e a d v i s e d t o s t o p . C a l l a
PEUGEOT dealer.
Page 32 of 257
Instruments and controls
36
Service indicator
The display, located in the control
b l o c k , i n f o r m s y o u w h e n t h e n e x t
s e r v i c e w i l l b e d u e i n a c c o r d a n c e
with the "Manufacturer's" servicing
schedule indicated in the servicing
b o o k l e t . T h i s i n f o r m a t i o n i s d e t e r m i n e d
in relation to the distance travelled
since the previous service. A few seconds after the ignition is
switched on, the oil level is displayed,
then the total distance recorder
resumes normal operation showing the
total and trip distances.
The distance remaining before the next
service is less than 500 miles/1 000 km
Each time the ignition is switched on
and for a few seconds, the spanner
fl a s h e s a n d t h e n u m b e r o f m i l e s /
kilometres remaining is displayed: A few seconds after the ignition is
switched on, the oil level is displayed,
then the total distance recorder
resumes normal operation and the
spanner remains lit. This indicates that
a s e r v i c e s h o u l d b e c a r r i e d o u t s h o r t l y .
The service is overdue.
Each time the ignition is switched on
and for a few seconds, the spanner
fl a s h e s a n d t h e e x c e s s d i s t a n c e i s
displayed.
With the engine running the
spanner remains lit until the
s e r v i c e h a s b e e n c a r r i e d o u t .
Example: 4 800 miles/km remain
b e f o r e t h e n e x t s e r v i c e i s d u e . W h e n
the ignition is switched on and for a
few seconds, the display shows:
Refer to the list of checks in the
s e r v i c i n g b o o k l e t w h i c h w a s g i v e n
to you on delivery of the vehicle.
Operation
A few moments after the ignition
h a s b e e n s w i t c h e d o n , t h e s p a n n e r
indicating a service operation lights
up; the display for the total distance
r e c o r d e r t e l l s y o u ( i n r o u n d fi g u r e s )
t h e d i s t a n c e r e m a i n i n g b e f o r e t h e n e x t
service.
The points at which a service is due
are calculated from the last indicator
z e r o r e s e t .
The point at which a service is due is
d e t e r m i n e d b y t h e d i s t a n c e t r a v e l l e d .
For further information, consult the
SERVICEBOX site at the address:
http://public.servicebox.peugeot.com
Page 90 of 257
SAFETY
93
Driving safety
4
TRACTION CONTROL (ASR)
AND DYNAMIC STABILITY
CONTROL (ESP)
Activation of the ASR and ESP
systems
When the ignition is on, the ASR and
ESP systems are always active. Disarming the ASR/ESP systems
In certain conditions (vehicle stuck in
mud or snow, or on loose ground...), it
could prove useful to disarm the ASR
and ESP systems to make the wheels
spin and regain grip.
- Press the switch, situated under the
steering wheel on the right of the
fascia.
The indicator light comes on
accompanied by a message:
the ESP and ASR systems
no longer act on the engine
operation, but continue to act
on the brakes.
Operation of the ASR and
ESP systems
T h e w a r n i n g l i g h t fl a s h e s i f
the ASR or ESP is activated.
These systems are linked and
complement the ABS.
The ASR system optimises drive to
prevent the wheels skidding, by acting
on the brakes of the drive wheels
and on the engine. It also allows the
directional stability of the vehicle to be
improved on acceleration.
If there is a variation between the
trajectory followed by the vehicle and
that required by the driver, the
ESP system automatically acts on the
engine and the brake of one or more
wheels, in order to put the vehicle back
on course, within the limits of the laws
of physics.
They engage again:
- automatically above 30 mph
(50 km/h),
- manually by pressing the switch
again.
Operating check When a malfunction of the
systems occurs, the indicator
light comes on, accompanied
by an audible signal and a
message on the display.
Contact a PEUGEOT dealer to have
the system checked.
The ASR/ESP systems offer
increased safety during normal
driving, but should not incite the
driver to take risks or to drive at high
speed.
The operation of these systems is
ensured if the recommendations
of the manufacturer regarding
the wheels (tyres and rims), the
braking components, the electronic
c o m p o n e n t s a n d t h e fi t t i n g a n d r e p a i r
procedures within the PEUGEOT
network are observed.
After an impact, have the system
checked by a PEUGEOT dealer.
Page 109 of 257
108
Towing a trailer
On the contrary, use a high gear to
lower the engine speed and reduce
your speed.
In all cases, pay attention to the
coolant temperature.
Brakes: towing increases the braking
distance. Drive at a moderate speed,
change down early and brake
gradually. Please contact a PEUGEOT dealer
fi r s t f o r f u r t h e r i n f o r m a t i o n .
Automatic adjustment
For vehicles with Xenon bulbs, and if
the change in load makes it necessary,
this system automatically corrects the
height of the beam after approximately
2 minutes. The driver is then assured
of having optimum lighting and not
causing a nuisance to other road
users.
In certain cases of particularly
arduous use (towing the
maximum load up a steep slope
in high temperatures), the engine
automatically limits its power. In this
case, cutting off the air conditioning
allows the engine power to be
recovered, and therefore the towing
s p e e d t o b e s i g n i fi c a n t l y i n c r e a s e d
(approximately 12 mph [20 km/h]
more). Sequential control of the
gearbox may also become unavailable. Lighting
Bicycle carrier I f y o u fi t a b i c y c l e c a r r i e r o n
the tailgate, deactivate the
rear wiper from the display's
c o n fi g u r a t i o n m e n u .
R e f e r t o t h e " I d e n t i fi c a t i o n
features" section of chapter 8. Refer to the "Steering wheel
controls" section of chapter 3.
When using a trailer connection,
you must add a fuse. Refer to
the "Changing a fuse" section of
chapter 7.
If the coolant temperature warning light
comes on, stop the vehicle and switch
off the engine as soon as possible.
Tyres: check the tyre pressures of
the towing vehicle and of the trailer,
observing the recommended pressure.
Side wind: sensitivity to side wind is
increased. Drive smoothly and at a
moderate speed.
Towbar
We recommend the use of original
PEUGEOT towbars, which have been
tested for endurance from the design
stage of your vehicle.
T o w i n g e q u i p m e n t m u s t b e fi t t e d i n
accordance with the manufacturer's
instructions, with particular attention to
the towing capacities of your vehicle,
the load towed, the nose weight and
t h e e l e c t r i c a l c o n n e c t i o n . A s t h i s fi t t i n g
should be carried out by a professional,
we recommend that you entrust the
fi t t i n g o f t h i s e q u i p m e n t t o a P E U G E O T
dealer.
In accordance with the general
instructions referred to above, we draw
your attention to the risk connected
w i t h fi t t i n g a t o w b a r o r o t h e r e l e c t r i c a l
accessory which is not recommended
by the PEUGEOT network. Fitting such
equipment could result in a failure of
your vehicle's electronic system. Manual adjustment
Adjust your headlamps so as not to
dazzle other road users. Check the
electrical signalling of the trailer.
Page 114 of 257
114
Fuel
LOW FUEL LEVEL T h e t a n k m u s t b e fi l l e d w i t h f u e l w i t h
the engine off .
- O p e n t h e f u e l fi l l e r fl a p .
- Insert the key then turn it to the left.
- Remove the cap and attach it to the clip located on the inside of the
fl a p .
FILLING THE FUEL TANK
W h e n t h e f u e l fi l l e r fl a p i s o p e n , a
system limits the opening of the
rear left sliding side door.
The key cannot be removed from
t h e c a p ' s l o c k u n t i l t h e c a p i s r e fi t t e d
on the tank.
FUEL CIRCUIT DISARMED
In a serious collision, a mechanism
automatically prevents fuel from
reaching the engine.
T h e fl a s h i n g o f t h i s w a r n i n g
light is accompanied by a
message on the display.
When the tank's minimum
level is reached, this warning
light comes on, accompanied
by the message "Fuel
level low" on the display.
You have enough fuel left to cover
approximately 30 miles (50 km) ,
depending on driving conditions and
the engine.
I f t h e w a r n i n g l i g h t fl a s h e s , t h i s
indicates a fuel gauge malfunction.
Consult a PEUGEOT dealer.
DIESEL REPRIMING
PUMP
If you should run out of fuel, it is neces-
sary to re-prime the circuit:
- fi l l t h e f u e l t a n k w i t h a t l e a s t fi v e l i t r e s o f d i e s e l ,
- squeeze and release the manual re-priming pump, under the bonnet
under the protective cover, until fuel
appears in the transparent pipe,
- operate the starter until the engine starts.
A l a b e l o n t h e i n s i d e o f t h e fl a p
indicates which type of fuel to use.
I f y o u fi l l y o u r t a n k , d o n o t c o n t i n u e
after the third cut-off of the pump
nozzle. This could result in vehicle
malfunctions.
The capacity of the tank is
approximately 18 gallons (
80 litres).
- A f t e r fi l l i n g t h e t a n k , l o c k t h e c a p
a n d c l o s e t h e fl a p . Check that there is no odour or
leakage of fuel outside the vehicle and
re-establish the fuel supply:
switch off the ignition
(STOP position).
remove the key.
put the key back in the ignition.
switch on the ignition and start.
Page 118 of 257
118
Levels These regular maintenance
operations will keep your vehicle
in good running order. Consult the
instructions at PEUGEOT dealerships
or in the servicing booklet enclosed in
the handbook pack. To maintain the reliability of engines
and emission control systems, the use
of additives in engine oil is prohibited.
Oil change
It is imperative that this is carried out at
t h e i n t e r v a l s s p e c i fi e d a n d t h e v i s c o s i t y
g r a d e o f t h e o i l s e l e c t e d m u s t f u l fi l t h e
requirements in accordance with the
manufacturer's servicing schedule.
Consult the instructions at PEUGEOT
dealerships.
R e m o v e t h e d i p s t i c k b e f o r e fi l l i n g .
C h e c k t h e l e v e l a f t e r fi l l i n g ( n e v e r
exceed the max mark).
Screw the cap back onto the sump
before closing the bonnet.
LEVELS
I f y o u h a v e t o r e m o v e / r e fi t t h e
engine style cover, handle it with
c a r e t o a v o i d d a m a g i n g t h e fi x i n g
clips.
Dipstick Warning lights
Oil level
Check the level regularly and top up
between changes. The maximum
consumption is 0.5 litre per 600 miles
(1 000 km).
Check the level with the vehicle level,
engine cold, using the dipstick.
Viscosity selection
In all cases, the oil selected must meet
the manufacturer's requirements. Checking by means of the
warning lights on the instrument
panel is described in chapter 2,
"Instruments and controls" section.
Changing the brake fluid
T h e b r a k e fl u i d m u s t b e c h a n g e d a t
the intervals stated, according to the
manufacturer's servicing schedule.
U s e fl u i d s r e c o m m e n d e d b y t h e
m a n u f a c t u r e r , w h i c h f u l fi l D O T 4
standards.
The level must be between the MIN
and MAX marks on the reservoir.
I f fl u i d h a s t o b e a d d e d f r e q u e n t l y ,
this indicates a failure which must be
checked by a PEUGEOT dealer as
soon as possible.
There are two marks
on the dipstick:
A = maximum
I f y o u fi l l p a s t t h i s
mark, contact a
PEUGEOT dealer.
B = minimum
Never allow the level
to fall below this
mark.
Page 119 of 257
119
Levels
CHECKS
Cooling system
O n l y u s e t h e fl u i d r e c o m m e n d e d b y t h e
manufacturer.
Otherwise, you risk seriously damaging
your engine.
When the engine is warm, the
temperature of the coolant is controlled
by the engine fan. As this fan can
operate with the ignition key removed
and because the cooling system is
pressurised, wait for at least one hour
after the engine has stopped before
carrying out any work.
Slacken the cap by 1/4 of a turn to
release the pressure to prevent any
risk of scalding. When the pressure
has dropped, remove the cap and top
up the level with coolant.
I f fl u i d h a s t o b e a d d e d f r e q u e n t l y ,
this indicates a failure which must be
checked by a PEUGEOT dealer as
soon as possible. Power steering fluid level
The vehicle must be parked on level
ground with the engine cold. Unscrew
the cap integrated with the gauge and
check the level which must be between
the MIN and MAX marks.
During regeneration of the particle
e m i s s i o n fi l t e r , r e l a y n o i s e m a y b e
heard under the fascia.
If the message is still displayed and
the service warning light remains on,
contact a PEUGEOT dealer.
Diesel additive level (Diesel with
particle emission filter)
When this occurs with the engine
running, this is due to the start of
saturation of the particle emission
fi l t e r ( e x c e p t i o n a l l y p r o l o n g e d u r b a n
driving conditions: low speed, long
t r a f fi c j a m s , . . . ) .
I n o r d e r t o r e g e n e r a t e t h e fi l t e r , y o u
are advised to drive at a speed of
more than 40 mph (60 km/h) as soon
a s p o s s i b l e , w h e n t r a f fi c c o n d i t i o n s
p e r m i t , f o r a t l e a s t fi v e m i n u t e s ( u n t i l
the message disappears and the
service warning light is switched off).
Topping up
The level must be between the MIN
and MAX marks on the expansion
b o t t l e . I f m o r e t h a n 1 l i t r e o f fl u i d i s
required to top up the level, have
the system checked by a PEUGEOT
dealer. Windscreen wash and headlamp
wash level
For best quality cleaning and for your
safety, we would advise that you use
products of the PEUGEOT range.
To avoid ice forming, do not use water.
Topping up
It is imperative that this additive is
topped up by a PEUGEOT dealer
without delay.
Used oil
Avoid prolonged contact of used oil
with the skin.
B r a k e fl u i d i s h a r m f u l t o h e a l t h a n d
very corrosive.
Do not dispose of used oil, brake
fl u i d o r c o o l a n t i n t o d r a i n s o r o n t o
the ground but into the containers
dedicated to this use at PEUGEOT
dealerships.
The minimum level of this
additive is indicated by
lighting of the service warning
light, accompanied by an
audible signal and a message
on the display.
Page 121 of 257
122
Battery
ECONOMY MODE FUNCTION
After the engine has stopped, with
the key in the ignition position, certain
functions (windscreen wiper, electric
windows, courtesy lights, audio
equipment, etc.) can only be used for a
cumulative duration of thirty minutes, to
prevent discharging the battery.
Once the thirty minutes are over, the
message "Economy mode active"
appears on the display and the active
functions are put on standby.
To resume the use of these functions
immediately, start the engine and let it
run for a few seconds.
A fl a t b a t t e r y w i l l p r e v e n t t h e e n g i n e
from starting.
To charge the battery using a
battery charger
- Disconnect the battery,
- Follow the instructions for use
given by the battery charger
manufacturer,
- Reconnect starting with the negative (-) terminal,
- Check that the terminals and connectors are clean. If they are
covered with sulphate (white or
greenish deposit), disconnect them
and clean them.
BATTERY
This is housed in a compartment
l o c a t e d u n d e r n e a t h t h e fl o o r , i n f r o n t o f
the driver's seat.
Before disconnecting the battery, you
must wait for 2 minutes after switching
off the ignition.
Never disconnect a terminal when the
engine is running.
N e v e r c h a r g e a b a t t e r y w i t h o u t fi r s t
disconnecting the terminals.
Close the sunroof and the windows
before disconnecting the battery.
If they do not operate normally
following reconnection of the battery,
they must be reinitialised.
It is advisable to disconnect the
battery if the vehicle is not to be used
for a period of more than one month.
After every reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to allow the electronic
systems to be initialised. If slight
d i f fi c u l t i e s a r e e x p e r i e n c e d a f t e r t h i s ,
please contact a PEUGEOT dealer.
The door open monitoring electrical
system consumes power, remember
to close the sliding doors when your
vehicle is parked for long periods.
To start the vehicle from
another battery
- Connect the red cable to the positive (+) terminals of the two
batteries,
- Connect one end of the green or black cable to the negative (-)
terminal of the slave battery,
- Connect the other end of the green or black cable to an earth point on
the broken down vehicle as far as
possible from the battery,
- Operate the starter, let the engine run,
- Wait for the engine to return to idle, then disconnect the cables. For the sunroofs safety auto-
reverse, refer to the "Accesses"
section of chapter 2. For the electric windows safety
auto-reverse, refer to the "Mirrors
and windows" section of chapter 3.
