Exterior
6
W h e n t h e f u e l fi l l e r
fl a p i s o p e n , a s a f e t y
system limits the
opening of the sliding
side door while the
fuel tank is being
fi l l e d .
Flap open
4 buttons
A press selected by
one or the other.
The movement of
the door must be
guided on opening. 2 buttons
Left-hand
door
Right-hand
door
Key
Parking assistance
Audible and/or visual front
parking assistance.
87
i t e m i d e n t i fi c a t i o n
mark
p a g e i d e n t i fi c a t i o n
mark
19
109
Page 2 of 237
47a 7b7b
2
4
7a
5
5
2
7
1
FAMILIARISATION
Exterior
Audible and/or visual rear
parking assistance. 87
Tailgate
Locking and unlocking by
remote control. Press the
handle and raise the tailgate.
Parking assistance 25
Transverse roof bars
Release the four levers,
move your bars then secure
the levers. 105
Spare wheel
Raise the wheel to be
repaired by means of the
c a b l e u n t i l i t i s fl u s h a g a i n s t
t h e fl o o r . C l o s e t h e c o v e r o n
the access opening securely. 117
Wheelbrace.
Jack box.
Towing eye. 117
Page 3 of 237
8
Interior
Page 4 of 237
9
1
FAMILIARISATION
Interior

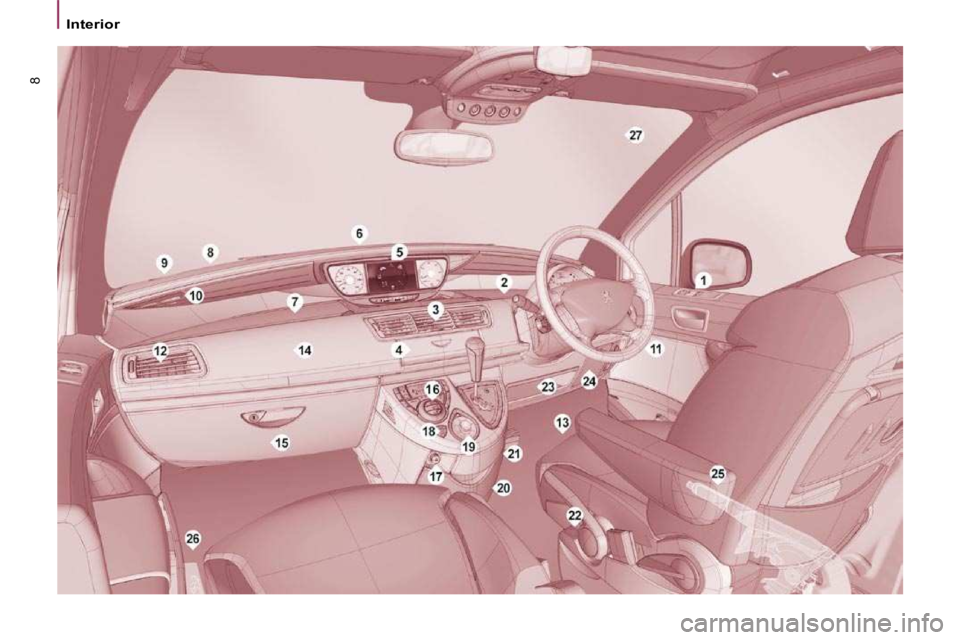

13. B a t t e r y / F u s e b o x .
14. Passenger air bag.
15. Passenger’s lower glove box/RCA
sockets.
16. Air conditioning controls.
17. L i g h t e r / 1 2 V a c c e s s o r i e s s o c k e t .
18. Hazard warning lights switch.
19. Storage compartment or additional
telematics control.
20. Cooled compartment.
21. Ashtray/Can holder.
22. Seat adjustment control.
23. Storage compartment.
24. F u s e b o x .
25. Handbrake - on the right.
1. E l e c t r i c m i r r o r c o n t r o l s .
- E l e c t r i c w i n d o w c o n t r o l s .
- Deactivation of the rear electric controls.
2. Driver’s upper glove box.
3. Central adjustable vents.
4. Audio equipment or GPS
multimedia audio equipment with
fl a p .
5. I n s t r u m e n t p a n e l / L a r g e c o l o u r
display.
6. Sunshine and passenger
compartment temperature sensor.
7. Passenger’s upper glove box.
26. B o n n e t r e l e a s e u n d e r c o v e r -
on the left.
27. Acoustic windscreen.
INTERIOR OVERVIEW
SETTING THE DATE AND
TIME
F o r m o r e i n f o r m a t i o n a b o u t
this adjustment, refer to the
"Setting the date and time" section of
t h e " I n - c a r t e c h n o l o g y " c h a p t e r .
ADDITIONAL HEATER
With the engine at idle
or when the vehicle is
stationary, it is normal
to notice a high-pitched
whistling and a slight emission of
smoke and odour.
B l u e t o o t h .
8. Windscreen demisting vents.
9. Speaker (tweeter).
10. F r o n t w i n d o w d e m i s t i n g v e n t s .
11. Passenger air bag disarming
s w i t c h , i f fi t t e d o n y o u r v e h i c l e .
12. Side adjustable vent.
Page 5 of 237
10
Interior
5. Control block.
6. Steering wheel audio equipment
controls.
7. Wipers/wash-wipe/trip computer
controls.
8. Gear lever.
9. I g n i t i o n .
1. I n t e r i o r p r o t e c t i o n a l a r m
deactivation button.
2. Speed limiter/cruise control
switches.
3. Lights and direction indicators
controls.
4. Driver's air bag.
Horn.
10. Headlamp height adjustment.
11. a- Dynamic stability control button
( E S P / A S R ) .
b- Parking assistance button.
12. Steering wheel adjustment control.
INSTRUMENTS AND CONTROLS
Page 6 of 237
9
999
11
1
FAMILIARISATION
Interior
INSTRUMENTS AND CONTROLS
Truly ergonomic control for
access to the functions of
the PC Com.
PC Nav

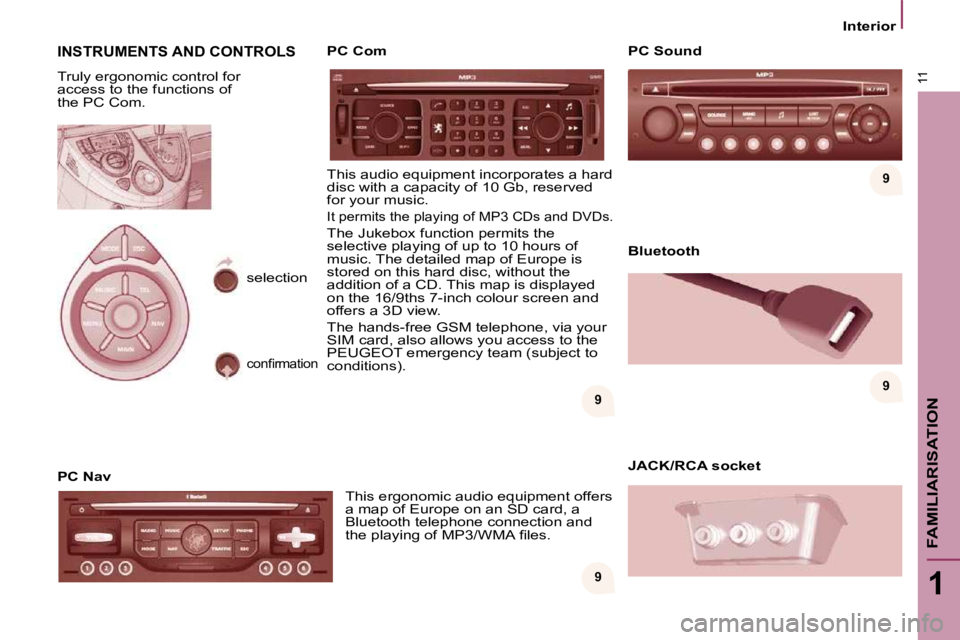

This ergonomic audio equipment offers
a m a p o f E u r o p e o n a n S D c a r d , a
B l u e t o o t h t e l e p h o n e c o n n e c t i o n a n d
t h e p l a y i n g o f M P 3 / W M A fi l e s .
c o n fi r m a t i o n
selection PC Com PC Sound
This audio equipment incorporates a hard
disc with a capacity of 10 Gb, reserved
for your music.
I t p e r m i t s t h e p l a y i n g o f M P 3 C D s a n d D V D s .
The Jukebox function permits the
selective playing of up to 10 hours of
m u s i c . T h e d e t a i l e d m a p o f E u r o p e i s
stored on this hard disc, without the
addition of a CD. This map is displayed
on the 16/9ths 7-inch colour screen and
offers a 3D view.
The hands-free GSM telephone, via your
S I M c a r d , a l s o a l l o w s y o u a c c e s s t o t h e
P E U G E O T e m e r g e n c y t e a m ( s u b j e c t t o
conditions).
Bluetooth
JACK/RCA socket
Page 7 of 237
4
12
Interior
86
Seat with manual
adjustment
Seat with electric
adjustment I f y o u r v e h i c l e
i s fi t t e d w i t h a
version with a
rotating front
seat, pull the
button placed
at the end of
the handbrake
forwards.
The handbrake
lever lowers.
You can now rotate the seat. To return
to normal operation, pull the lever up
until it clicks.

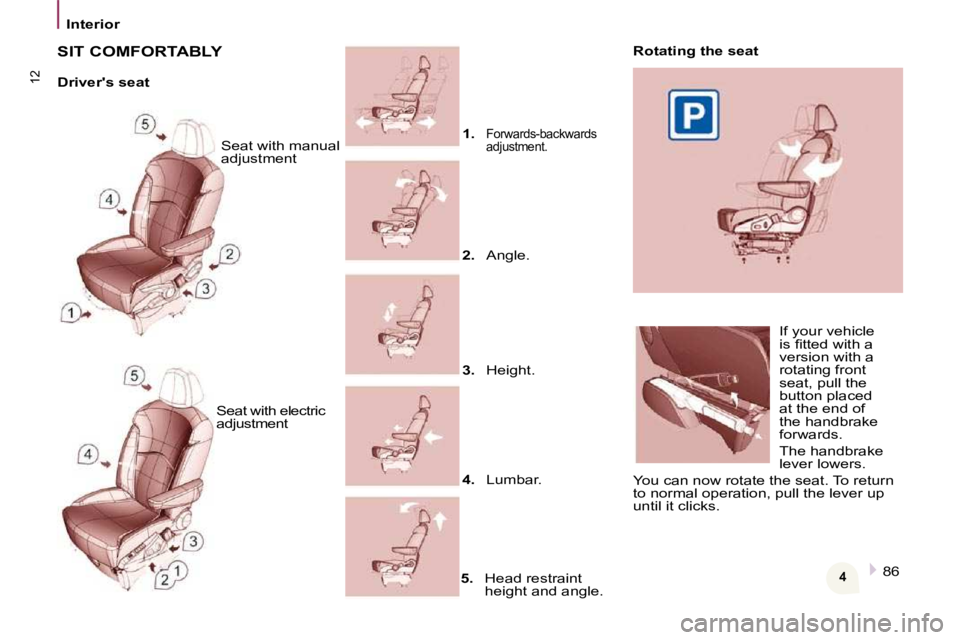

1.
F o r w a r d s - b a c k w a r d s
adjustment.
2. Angle.
3. Height.
4. Lumbar.
5. Head restraint
height and angle. Rotating the seat
SIT COMFORTABLY
Driver's seat
Page 8 of 237
3
13
1
FAMILIARISATION
Interior

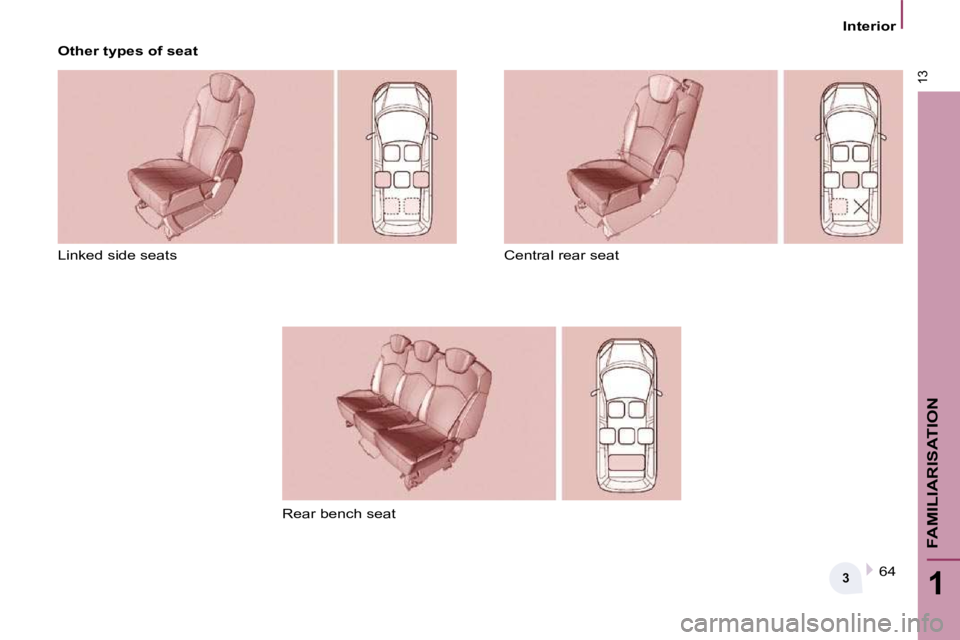

Linked side seats Central rear seat
Rear bench seat
Other types of seat
64
Page 9 of 237
43
3
3
14
Interior
91
Repositioning
SIT COMFORTABLY SEE CLEARLY
Adjust the height
and depth of the
steering wheel.
E l e c t r i c e x t e r i o r m i r r o r s .
Selection Seat belts
Height adjustment.
F a s t e n i n g . Lights off
Side lights
Main beam headlamps (blue)
Dipped headlamps (green)
Wipers stalk
2 fast.
1 normal.
I i n t e r m i t t e n t .
0 off.
single wipe.
A U T O , p r e s s t h e s t a l k d o w n . A U T O , a u t o m a t i c s w i t c h i n g
on of the lights
A
djustment
82
43
46
Page 10 of 237
4
2 4
4
7
6
4
3
3
415
1
FAMILIARISATION
Interior
Battery 116
Child monitoring mirror
102

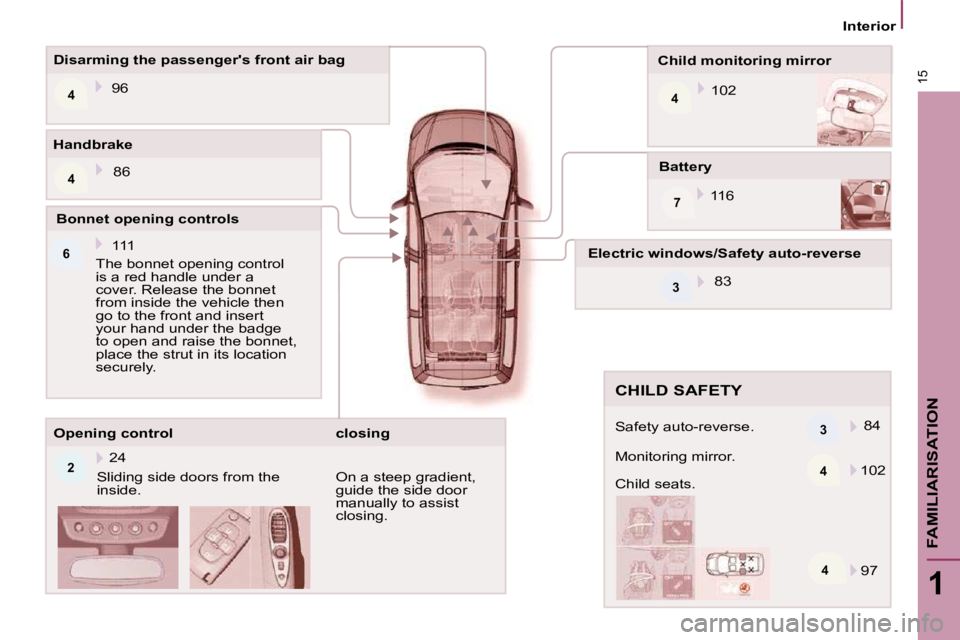

Disarming the passenger's front air bag
96
Opening control Sliding side doors from the
inside. 24
Handbrake
86
Bonnet opening controls The bonnet opening control
is a red handle under a
cover. Release the bonnet
from inside the vehicle then
go to the front and insert
your hand under the badge
to open and raise the bonnet,
place the strut in its location
securely. 111
Safety auto-reverse. 97
102
84
83
Electric windows/Safety auto-reverse
CHILD SAFETY
Monitoring mirror.
Child seats.
O n a s t e e p g r a d i e n t ,
guide the side door
manually to assist
closing.
closing
