Page 1 of 237
2
6
6
42

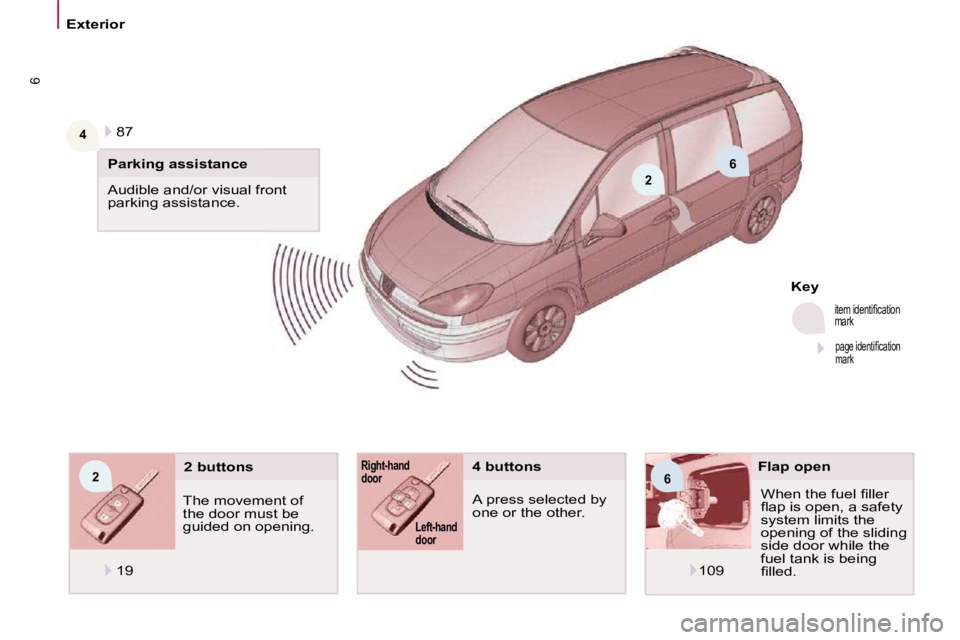

Exterior
6
W h e n t h e f u e l fi l l e r
fl a p i s o p e n , a s a f e t y
system limits the
opening of the sliding
side door while the
fuel tank is being
fi l l e d .
Flap open
4 buttons
A press selected by
one or the other.
The movement of
the door must be
guided on opening. 2 buttons
Left-hand
door
Right-hand
door
Key
Parking assistance
Audible and/or visual front
parking assistance.
87
i t e m i d e n t i fi c a t i o n
mark
p a g e i d e n t i fi c a t i o n
mark
19
109
Page 2 of 237
47a 7b7b
2
4
7a
5
5
2
7
1
FAMILIARISATION

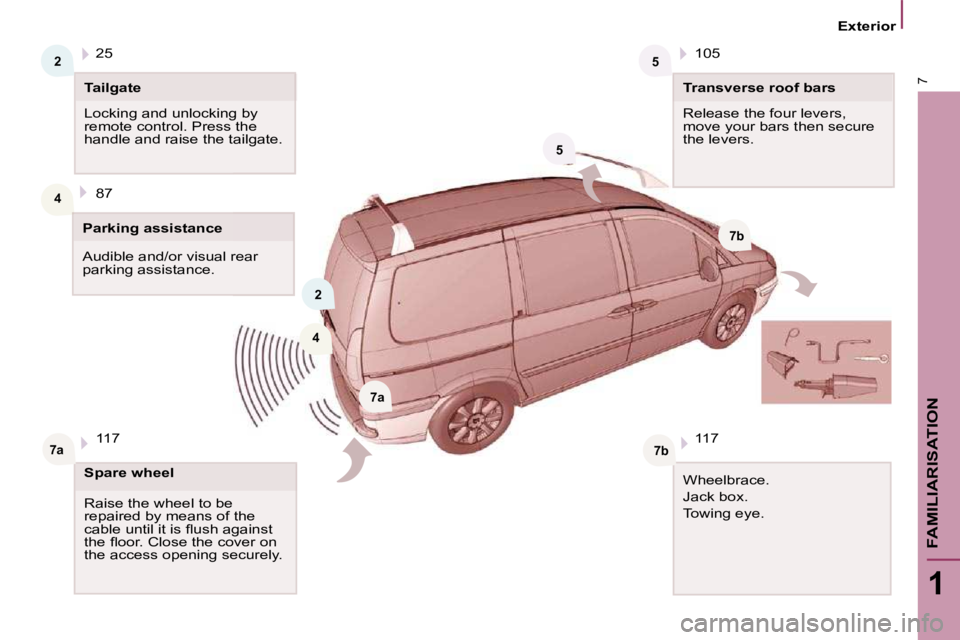

Exterior
Audible and/or visual rear
parking assistance. 87
Tailgate
Locking and unlocking by
remote control. Press the
handle and raise the tailgate.
Parking assistance 25
Transverse roof bars
Release the four levers,
move your bars then secure
the levers. 105
Spare wheel
Raise the wheel to be
repaired by means of the
c a b l e u n t i l i t i s fl u s h a g a i n s t
t h e fl o o r . C l o s e t h e c o v e r o n
the access opening securely. 117
Wheelbrace.
Jack box.
Towing eye. 117
Page 5 of 237
10

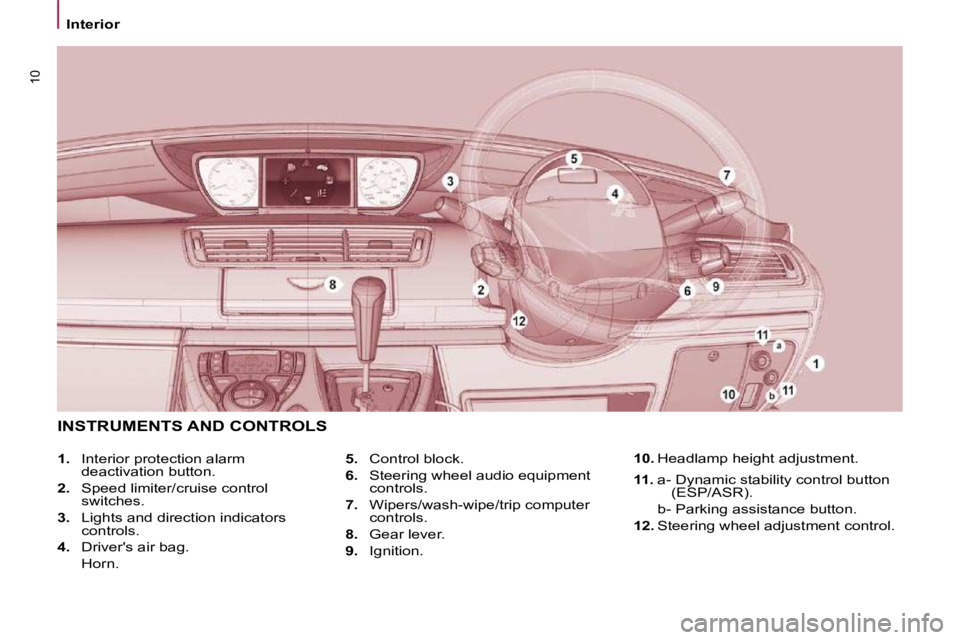

Interior
5. Control block.
6. Steering wheel audio equipment
controls.
7. Wipers/wash-wipe/trip computer
controls.
8. Gear lever.
9. I g n i t i o n .
1. I n t e r i o r p r o t e c t i o n a l a r m
deactivation button.
2. Speed limiter/cruise control
switches.
3. Lights and direction indicators
controls.
4. Driver's air bag.
Horn.
10. Headlamp height adjustment.
11. a- Dynamic stability control button
( E S P / A S R ) .
b- Parking assistance button.
12. Steering wheel adjustment control.
INSTRUMENTS AND CONTROLS
Page 21 of 237
Accesses
24

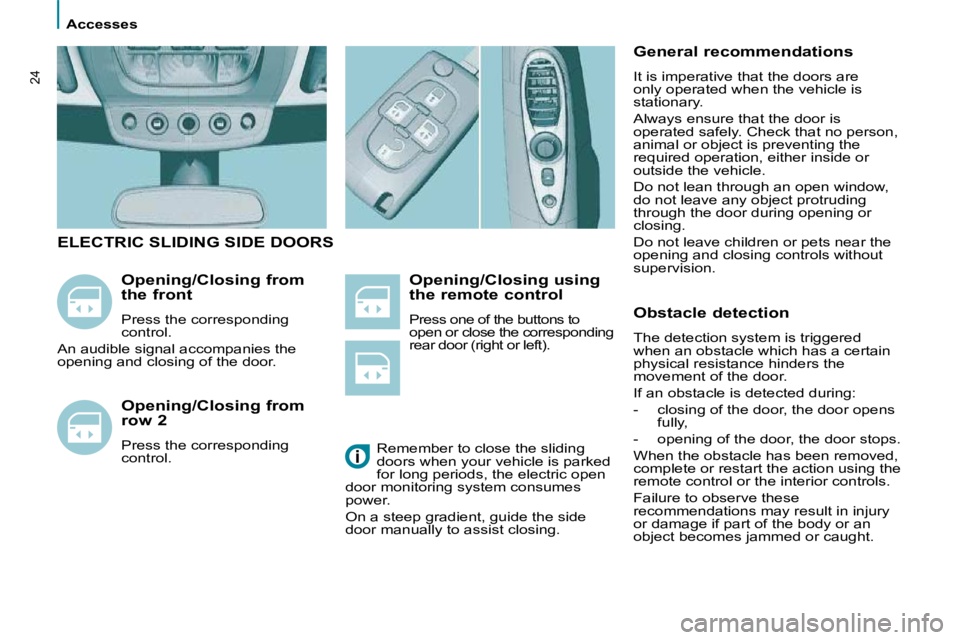

Opening/Closing using
the remote control
P r e s s o n e o f t h e b u t t o n s t o
open or close the corresponding
rear door (right or left).
Opening/Closing from
the front
Press the corresponding
control.
A n a u d i b l e s i g n a l a c c o m p a n i e s t h e
opening and closing of the door.
ELECTRIC SLIDING SIDE DOORS
R e m e m b e r t o c l o s e t h e s l i d i n g
doors when your vehicle is parked
for long periods, the electric open
door monitoring system consumes
power.
On a steep gradient, guide the side
door manually to assist closing.
Opening/Closing from
row 2
Press the corresponding
control. General recommendations
It is imperative that the doors are
only operated when the vehicle is
stationary.
Always ensure that the door is
operated safely. Check that no person,
a n i m a l o r o b j e c t i s p r e v e n t i n g t h e
required operation, either inside or
outside the vehicle.
Do not lean through an open window,
d o n o t l e a v e a n y o b j e c t p r o t r u d i n g
through the door during opening or
closing.
Do not leave children or pets near the
opening and closing controls without
supervision.
Obstacle detection
The detection system is triggered
w h e n a n o b s t a c l e w h i c h h a s a c e r t a i n
physical resistance hinders the
movement of the door.
I f a n o b s t a c l e i s d e t e c t e d d u r i n g :
- closing of the door, the door opens
fully,
- opening of the door, the door stops.
W h e n t h e o b s t a c l e h a s b e e n r e m o v e d ,
complete or restart the action using the
remote control or the interior controls.
F a i l u r e t o o b s e r v e t h e s e
r e c o m m e n d a t i o n s m a y r e s u l t i n i n j u r y
o r d a m a g e i f p a r t o f t h e b o d y o r a n
o b j e c t b e c o m e s j a m m e d o r c a u g h t .
Page 87 of 237
SAFETY
87

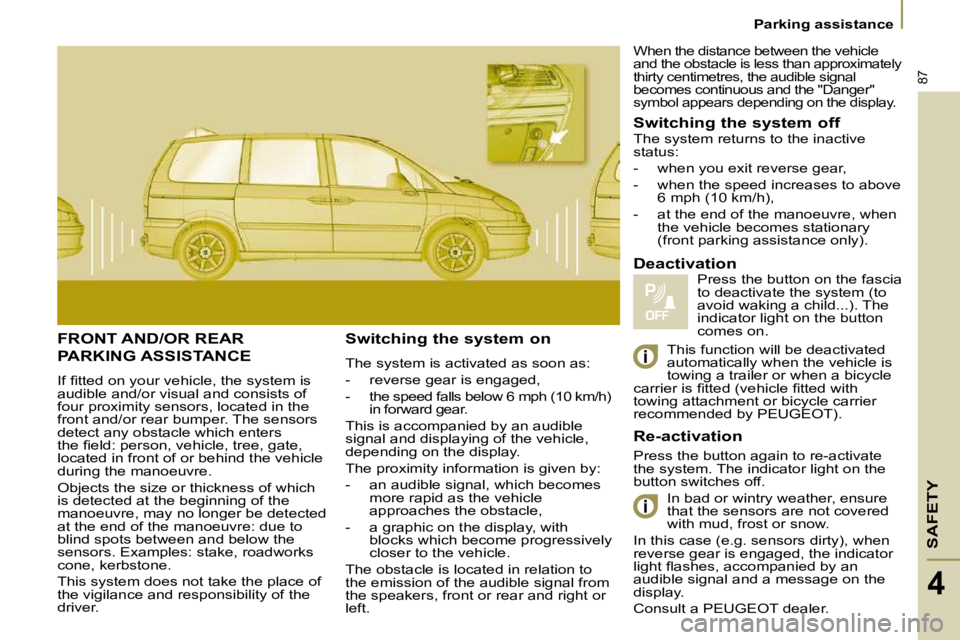

Parking assistance
4
FRONT AND/OR REAR
PARKING ASSISTANCE
I f fi t t e d o n y o u r v e h i c l e , t h e s y s t e m i s
audible and/or visual and consists of
four proximity sensors, located in the
front and/or rear bumper. The sensors
detect any obstacle which enters
t h e fi e l d : p e r s o n , v e h i c l e , t r e e , g a t e ,
located in front of or behind the vehicle
during the manoeuvre.
Objects the size or thickness of which
is detected at the beginning of the
manoeuvre, may no longer be detected
at the end of the manoeuvre: due to
blind spots between and below the
sensors. Examples: stake, roadworks
cone, kerbstone.
This system does not take the place of
the vigilance and responsibility of the
driver. Switching the system on
The system is activated as soon as:
- reverse gear is engaged,
- the speed falls below 6 mph (10 km/h)
in forward gear.
This is accompanied by an audible
signal and displaying of the vehicle,
depending on the display.
The proximity information is given by:
- an audible signal, which becomes more rapid as the vehicle
approaches the obstacle,
- a graphic on the display, with blocks which become progressively
closer to the vehicle.
The obstacle is located in relation to
the emission of the audible signal from
the speakers, front or rear and right or
left. Switching the system off
Press the button again to re-activate
the system. The indicator light on the
button switches off.
In bad or wintry weather, ensure
that the sensors are not covered
with mud, frost or snow.
In this case (e.g. sensors dirty), when
reverse gear is engaged, the indicator
l i g h t fl a s h e s , a c c o m p a n i e d b y a n
audible signal and a message on the
display.
Consult a PEUGEOT dealer.
Deactivation
Press the button on the fascia
to deactivate the system (to
avoid waking a child...). The
indicator light on the button
comes on.
The system returns to the inactive
status:
- when you exit reverse gear,
- when the speed increases to above
6 mph (10 km/h),
- at the end of the manoeuvre, when the vehicle becomes stationary
(front parking assistance only).
Re-activation
When the distance between the vehicle
and the obstacle is less than approximately
thirty centimetres, the audible signal
becomes continuous and the "Danger"
symbol appears depending on the display.
This function will be deactivated
automatically when the vehicle is
towing a trailer or when a bicycle
c a r r i e r i s fi t t e d ( v e h i c l e fi t t e d w i t h
towing attachment or bicycle carrier
recommended by PEUGEOT).
Page 109 of 237
107
Other accessories
ACCESSORIES
5
OTHER ACCESSORIES
These accessories and parts, after
being tested and approved for reliability
and safety, are all adapted to your
vehicle. A wide choice of recommended
accessories and original parts is offered
by the PEUGEOT Marque. To avoid any jamming under the
pedals:
- e n s u r e t h a t t h e m a t a n d i t s fi x i n g s are positioned correctly,
- never place one mat on top of another.
Compatible portable equipment
For the hands-free kit audio
e q u i p m e n t , t h e fi t t i n g o f a n R C A
a u x i l i a r y s o c k e t i s o f f e r e d s p e c i fi c a l l y
by the Network.
The audio cable for connection to
the auxiliary socket (RCA yellow-red
located in the glove box) is also offered
by the network.
Following connection of the cable and
selection of the AUX mode, via the
source button, your portable equipment
is ready to operate.
Set the portable equipment to half
volume to avoid saturating the audio
system sound. Then use the audio
system volume button. Audio systems, telephone,
hands-free kit, speakers, CD
changer, navigation system,
DVD player, ...
Alloy wheels, trims,
aluminium interior trim kit,
m u d fl a p s , . . .
Seat covers compatible with
side air bags, mats, boot tray,
sunroof, luggage net, door
d e fl e c t o r s , c o o l b o x s e c u r e d
on the slides, clip armrest, load
carrying roof bars, roof box,
snow chains, ski carrier, tailgate
bicycle carrier, interior bicycle carrier,
b o o s t e r s e a t s a n d c h i l d s e a t s , I s o fi x
seats, side sun blinds and rear blind, ...
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y a
PEUGEOT dealer. T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t
or accessories which are not
recommended by PEUGEOT
may result in a failure of your vehicle’s
electronic system.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g . Y o u
are advised to contact a representative
of the Marque to be shown the range
of recommended equipment or
accessories.
Depending on the country in which
the vehicle is sold, it is compulsory to
have a safety jacket, warning triangle
and replacement bulbs available in the
vehicle. Screenwash, interior and
exterior maintenance
and cleaning products,
replacement bulbs, ...
When using a tailgate bicycle
carrier, deactivate the rear
wiper from the display
c o n fi g u r a t i o n m e n u .
Before installing a
radiocommunication transmitter with
aerial, contact a PEUGEOT dealer who
w i l l i n f o r m y o u o f t h e s p e c i fi c a t i o n s o f
t h e t r a n s m i t t e r s w h i c h c a n b e fi t t e d ,
in accordance with the Motor Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).
A further range is also available,
structured around comfort, leisure and
maintenance:
Anti-theft alarm, window
e n g r a v i n g , fi r s t a i d k i t , s a f e t y
jacket, rear parking assistance,
warning triangle, ...
Page 128 of 237
125
TROUBLESHOOTING
7
Changing a fuse

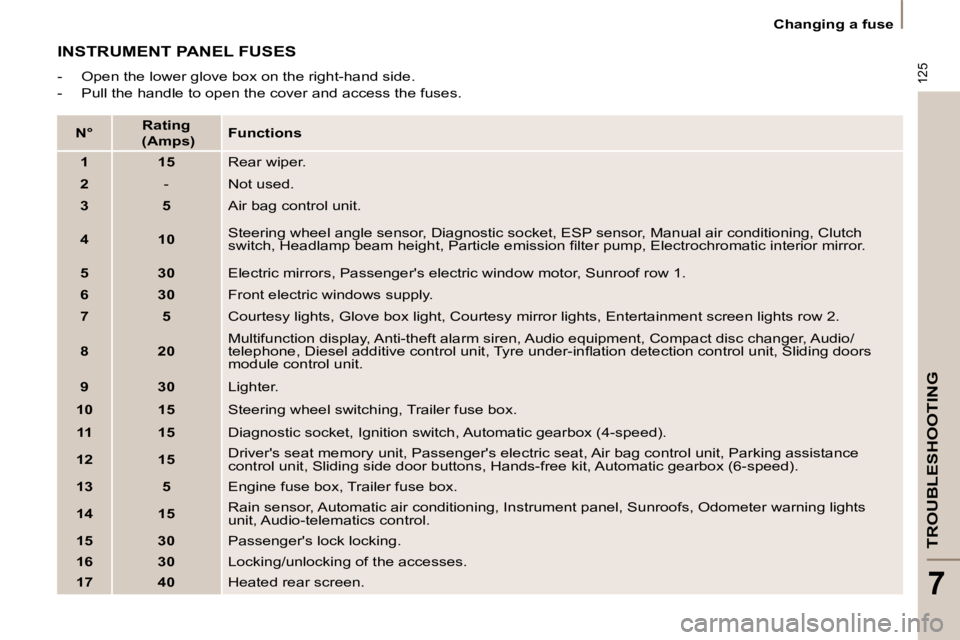

INSTRUMENT PANEL FUSES
- O p e n t h e l o w e r g l o v e b o x o n t h e r i g h t - h a n d s i d e .
- Pull the handle to open the cover and access the fuses.
N°
Rating
(Amps)
Functions
1 15 Rear wiper.
2 - Not used.
3 5 Air bag control unit.
4 10 Steering wheel angle sensor, Diagnostic socket, ESP sensor, Manu
al air conditioning, Clutch
s w i t c h , H e a d l a m p b e a m h e i g h t , P a r t i c l e e m i s s i o n fi l t e r p u m p , E l e c t r o c h r o m a t i c i n t e r i o r m i r r o r .
5 30 Electric mirrors, Passenger's electric window motor, Sunroof row 1.
6 30 Front electric windows supply.
7 5 C o u r t e s y l i g h t s , G l o v e b o x l i g h t , C o u r t e s y m i r r o r l i g h t s , E n t e r t a i n m e n t s c r e e n l i g h t s r o w 2 .
8 20 Multifunction display, Anti-theft alarm siren, Audio equipmen
t, Compact disc changer, Audio/
t e l e p h o n e , D i e s e l a d d i t i v e c o n t r o l u n i t , T y r e u n d e r - i n fl a t i o n d e t e c t i o n c o n t r o l u n i t , S l i d i n g d o o r s
module control unit.
9 30 Lighter.
10 15 S t e e r i n g w h e e l s w i t c h i n g , T r a i l e r f u s e b o x .
11 15 D i a g n o s t i c s o c k e t , I g n i t i o n s w i t c h , A u t o m a t i c g e a r b o x ( 4 - s p e e d ) .
12 15 Driver's seat memory unit, Passenger's electric seat, Air bag control un
it, Parking assistance
c o n t r o l u n i t , S l i d i n g s i d e d o o r b u t t o n s , H a n d s - f r e e k i t , A u t o m a t i c g e a r b o x ( 6 - s p e e d ) .
13 5 E n g i n e f u s e b o x , T r a i l e r f u s e b o x .
14 15 Rain sensor, Automatic air conditioning, Instrument panel, Su
nroofs, Odometer warning lights
unit, Audio-telematics control.
15 30 Passenger's lock locking.
16 30 Locking/unlocking of the accesses.
17 40 Heated rear screen.
