technical data PEUGEOT 807 2010 Owners Manual

Diesel technical data
132

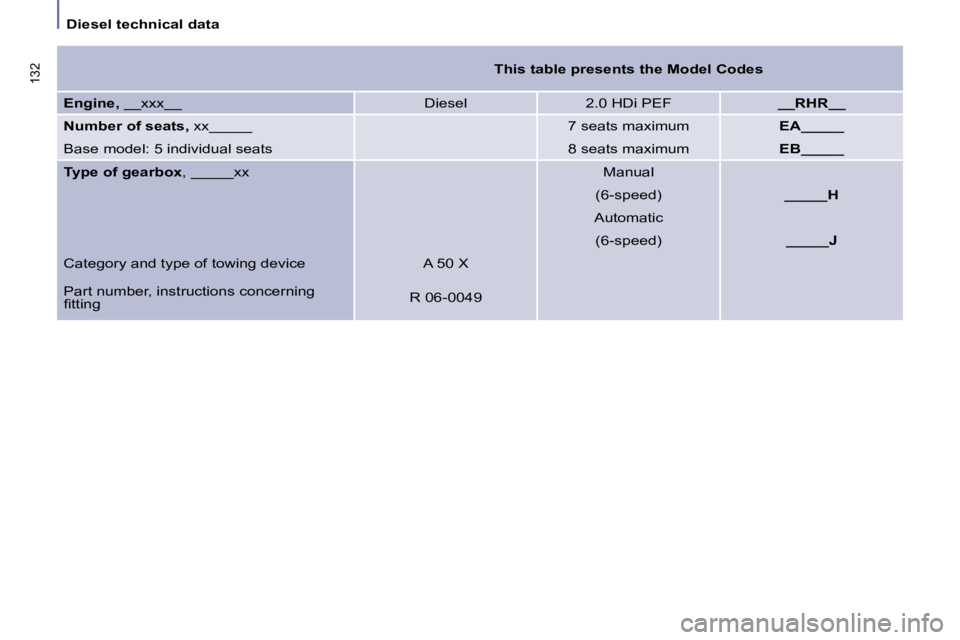

This table presents the Model Codes

Engine, __xxx__ Diesel 2.0 HDi PEF __RHR__

Number of seats, xx_____
7 seats maximum EA_____
Base model: 5 individual seats
8 seats maximum EB_____

Type of gearbox , _____xx
Manual

(6-speed) _____H
Automatic

(6-speed) _____J
Category and type of towing device A 50 X

Part number, instructions concerning
fi tting R 06-0049

133
Diesel technical data
TECHNICAL DATA
8

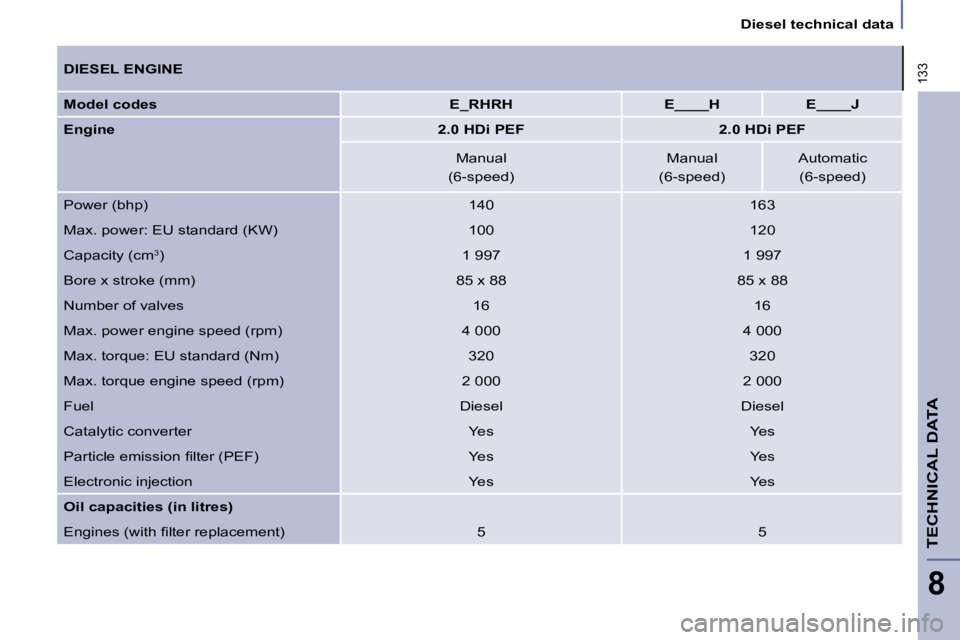

DIESEL ENGINE

Model codes
E_RHRH E____H E____J

Engine
2.0 HDi PEF 2.0 HDi PEF
Manual Manual Automatic
(6-speed) (6-speed) (6-speed)
Power (bhp) 140 163
Max. power: EU standard (KW) 100 120
Capacity (cm 3
) 1 997 1 997
Bore x stroke (mm) 85 x 88 85 x 88
Number of valves 16 16
Max. power engine speed (rpm) 4 000 4 000
Max. torque: EU standard (Nm) 320 320
Max. torque engine speed (rpm) 2 000 2 000
Fuel Diesel Diesel
Catalytic converter Yes Yes
Particle emission fi lter (PEF) Yes Yes
Electronic injection Yes Yes

Oil capacities (in litres)
Engines (with fi lter replacement) 5 5

Diesel technical data

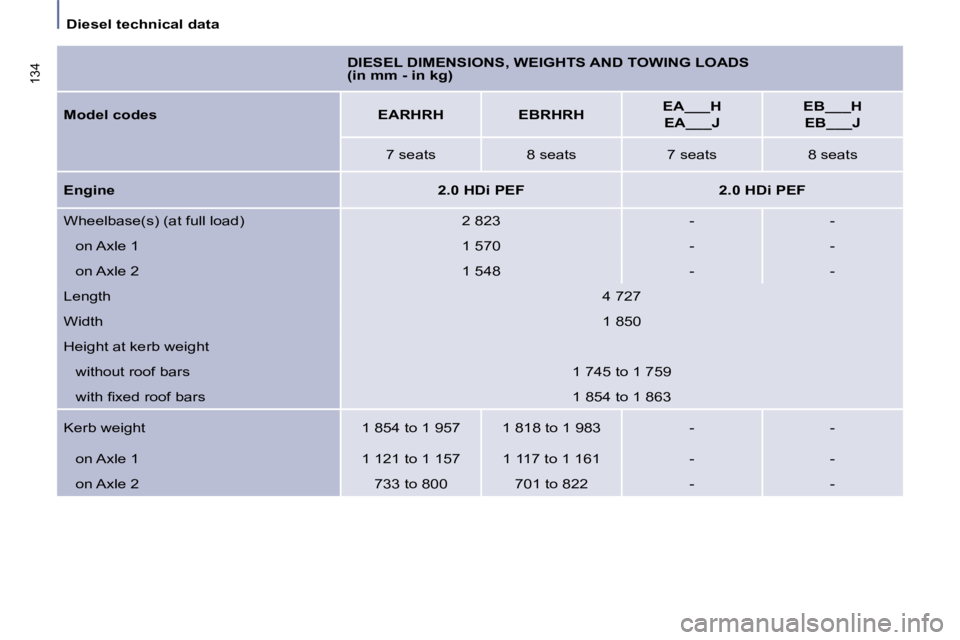

134 DIESEL DIMENSIONS, WEIGHTS AND TOWING LOADS
(in mm - in kg)

Model codes EARHRH EBRHRH
EA___H

EA___J
EB___H

EB___J
7 seats 8 seats 7 seats 8 seats

Engine
2.0 HDi PEF 2.0 HDi PEF
Wheelbase(s) (at full load) 2 823 - - on Axle 1 1 570 - -
on Axle 2 1 548 - -
Length 4 727
Width 1 850
Height at kerb weight without roof bars 1 745 to 1 759
with fi xed roof bars 1 854 to 1 863
Kerb weight 1 854 to 1 957 1 818 to 1 983 - -
on Axle 1 1 121 to 1 157 1 117 to 1 161 - -
on Axle 2 733 to 800 701 to 822 - -

135
Diesel technical data
TECHNICAL DATA

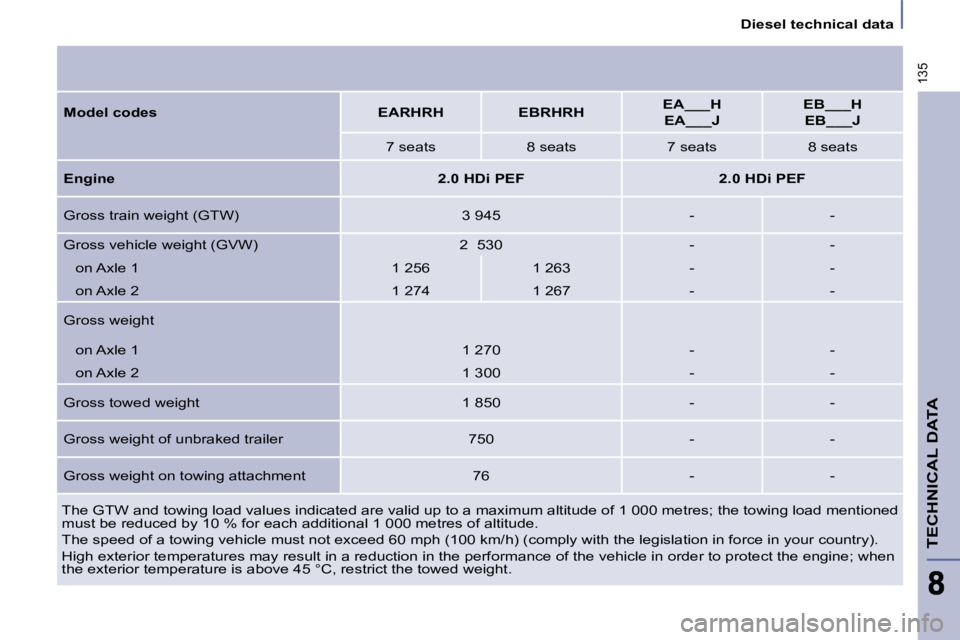

The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load ment ioned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is above 45 °C, restrict the towed wei ght.

Model codes EARHRH EBRHRH
EA___H

EA___J
EB___H

EB___J
7 seats 8 seats 7 seats 8 seats

Engine
2.0 HDi PEF 2.0 HDi PEF
Gross train weight (GTW) 3 945 - -
Gross vehicle weight (GVW) 2 530 - - on Axle 1 1 256 1 263 - -
on Axle 2 1 274 1 267 - -
Gross weight
on Axle 1 1 270 - -
on Axle 2 1 300 - -
Gross towed weight 1 850 - -
Gross weight of unbraked trailer 750 - -
Gross weight on towing attachment 76 - -

137
8

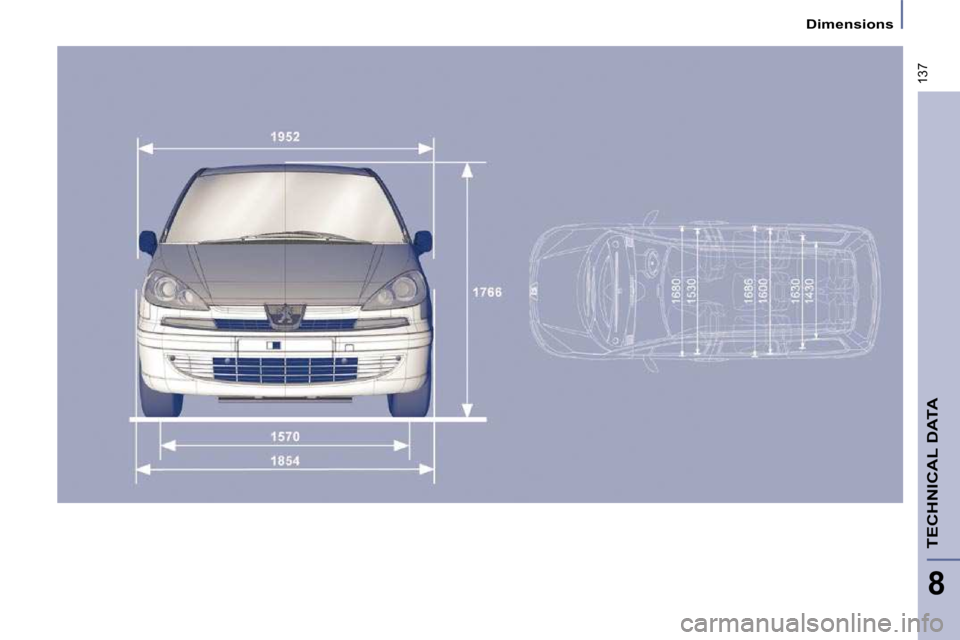

Dimensions
TECHNICAL DATA
