Peugeot Bipper 2008.5 User Guide

–
Familiarisation
 76
VENTILATION

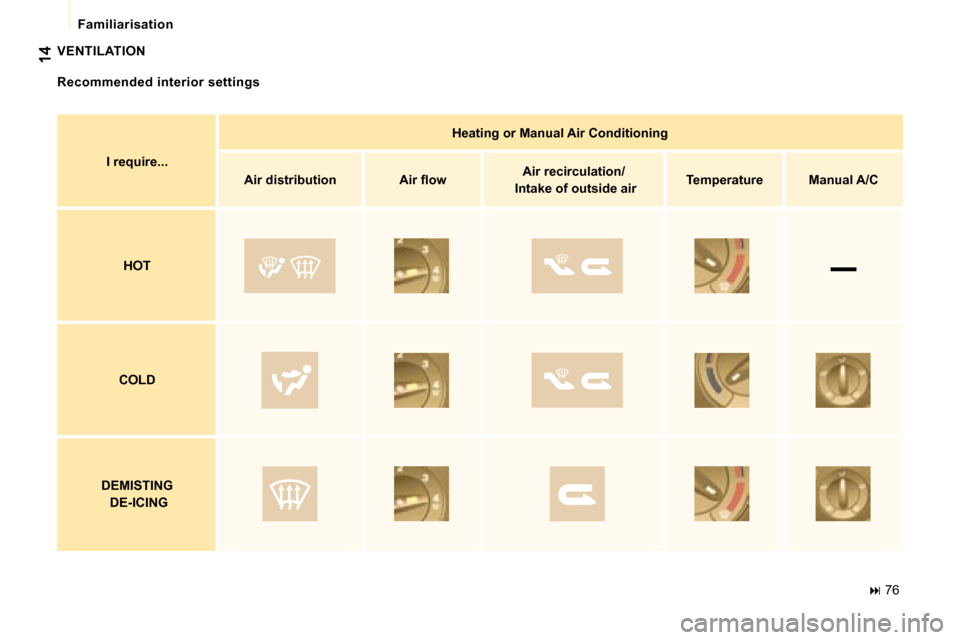

Recommended interior settings
I require... Heating or Manual Air Conditioning
Air distribution Air fl ow Air recirculation/
Intake of outside air Temperature Manual A/C
HOT

COLD
DEMISTING DE-ICING

15
Familiarisation
FAMILIARISATION
MONITOR THOROUGHLY

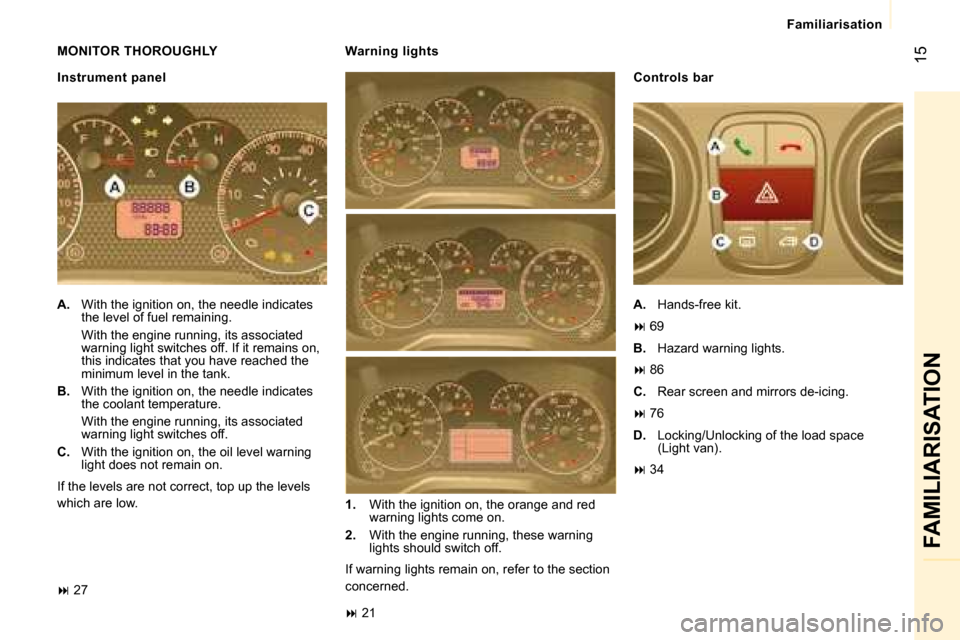

Instrument panel Controls bar

A. With the ignition on, the needle indicates
the level of fuel remaining.
With the engine running, its associated warning light switches off. If it remains on,
this indicates that you have reached the
minimum level in the tank.

B. With the ignition on, the needle indicates
the coolant temperature.
With the engine running, its associated warning light switches off.

C. With the ignition on, the oil level warning
light does not remain on.
If the levels are not correct, top up the levels
which are low.
A. Hands-free kit.
 69

B. Hazard warning lights.

 86

C. Rear screen and mirrors de-icing.

 76

D. Locking/Unlocking of the load space
(Light van).

 34

1. With the ignition on, the orange and red
warning lights come on.

2. With the engine running, these warning
lights should switch off.
If warning lights remain on, refer to the section
concerned.
Warning lights

 21

 27

16
Familiarisation
KEEP YOUR PASSENGERS SAFE
Passenger's front air bag
The passenger's front air bag is disarmed by
means of the MENU button, located to the right
of the steering wheel.

1. Press the MENU button.

2. Select "Bag" and confi rm by pressing the
MENU button.

3. Select "OFF" and confi rm by pressing the
MENU button.

4. Select "YES" and confi rm by pressing the
MENU button.
Seat belt not fastened

A. Driver's seat belt not fastened warning
light.

 88
 92 Ladder type vertical partition
(Light van)
A ladder type vertical partition protects the
driver against the risk of load movement.

 82

17
Familiarisation
FAMILIARISATION
DRIVE SAFELY
Piloted manual gearbox
This fi ve-speed gearbox offers a choice
between the comfort of fully automatic
operation or the pleasure of manual gear
changing.

R. Reverse.

N. Neutral.

A. Automated mode.

M +/-. Sequential mode. Display on the instrument panel
The gear or the driving mode selected appears
on the instrument panel display.

R: reverse gear.

N: neutral.

AUTO: automatic mode.

1 2 3 4 5: gears engaged. Moving off
Select position
N and press the brake pedal
fi rmly while starting the engine.
Engage fi rst gear (position A or M ) or reverse
(position R ) using the gear lever.

 43

18
Familiarisation
DRIVE SAFELY
Cruise control "CRUISE"

1. Cruise control mode Selection/Off.

2. Programming of a speed/Decreasing of
the programmed value.

3. Programming of a speed/Increasing of the
programmed value.

4. Cruise control On/Off.
In order to be programmed or activated, the
vehicle speed must be higher than 25 mph
(40 km/h), with at least fourth gear engaged
on the manual gearbox (second on the piloted
manual gearbox).

 45
 48

1. Speed limiter mode Selection/Off.

2. Decreasing of the programmed value.

3. Increasing of the programmed value.

4. Speed limiter On/Off.
The values must be set with the engine running.
Speed limiter "LIMIT"
The cruise control or speed limiter mode
appears on the instrument panel when it is
selected.
Display on the instrument panel

Cruise control

Speed limiter

19
1
READY TO SET OFF
Instruments and controls
INSTRUMENT PANELS

1. Distance recorder in kilometres/miles.

2. Display.

3. Fuel gauge.

4. Coolant temperature.

5. Rev counter.
Instrument panel with level 1 display Instrument panel with level 2 display
Instrument panel display level 1
- Time,
- Kilometres/Miles travelled,
- Trip computer/range, consumption,
average speed,
- Headlamp height,
- Programmable overspeed warning,
- Arming or disarming of the passenger air bag.
Instrument panel display level 2
- Time,
- Date,
- Radio,
- Kilometres/Miles travelled,
- Exterior temperature,
- Modes and gears engaged on the piloted manual gearbox,
- Trip computer/range, consumption, average speed
- Headlamp height,
- Programmable overspeed warning,
- Selection of the display language,
- Arming or disarming of the passenger air bag,
- Activation or deactivation of the automatic locking of the doors while driving.

20
Instruments and controls
Instrument panel with level 3 display
Instrument panel display level 3
- Cruise control/Speed limiter,
- Time,
- Date,
- Radio,
- Kilometres/Miles travelled,
- Exterior temperature,
- Modes and gears engaged on the piloted manual gearbox, - Trip computer/range, consumption,
average speed,
- Headlamp height,
- Programmable overspeed warning,
- Selection of the display language,
- Arming or disarming of the passenger air bag,
- Activation or deactivation of the automatic locking of the doors while
driving.

21
1
READY TO SET OFF
Instruments and controls
WARNING LIGHTS
Each time the engine is started: a series of warning lights comes on applying a self-checking test. T hey switch off almost immediately.
When the engine is running: the warning light becom es a warning sign if it remains on continuously or flashes. This initial warning may be
accompanied by an audible signal and a message on t he display. "Do not ignore these warnings."

Warning light
is indicates Solution - action

Service on temporarily. minor faults. Consult a PEUGEOT
dealer.
continuously on,
accompanied by a
message on the display. major faults.
Make a note of the warning message and contact
a PEUGEOT dealer.
Handbrake
Brake fluid level on.
that the handbrake is applied or
has not been released correctly. Releasing the handbrake switches off the
warning light.
on. that the fluid level is too
low. Top up with a fluid recommended by a
PEUGEOT dealer.
continuously on, even
though the level is correct.
Stop immediately, park, switch off the ignition
and contact a
PEUGEOT dealer
.
Low engine oil level on.
that the level of oil in the
engine is too low. Check the engine oil level and contact a
PEUGEOT dealer.
continuously on, even
though the level is correct.
Stop immediately, park, switch off the ignition
and contact a
PEUGEOT dealer
.
Coolant temperature on with the needle in
the red zone.
an abnormal increase. Park and switch off the ignition, allow the circui
t
to cool. Visually check the level.
on H in the red zone. an abnormal increase in
the coolant temperature. Refer to the "Levels" section of chapter 7.
Consult a PEUGEOT dealer.

22
Instruments and controls

Warning light
is indicates Solution - action
Engine oil pressure on while driving.
that the pressure is too
low. Park and switch off the ignition, allow the
lubrication circuit to cool in order to check its
level. Refer to the "Levels" section of chapter 7.
continuously on, even
though the level is correct. a major fault. Contact a PEUGEOT dealer.
fl ashing, for a few
seconds, with a
message on the display. that a service will soon
be due.
Refer to the list of checks in the servicing bookl
et
then carry out the PEUGEOT service.
Battery charge on.
a fault in the charging
circuit. Check the battery terminals… Refer to the
"Battery" section of chapter 7.
continuously on, in
spite of the checks. a circuit fault, an ignition
or injection malfunction.
Contact a PEUGEOT dealer.
Door open detection on.
that a door is not closed
correctly. Check that the front, rear and side doors are
closed.
accompanied by a
message on the display.
Seat belt not fastened on then flashes.
that the driver has not
fastened his seat belt. Pull the strap then insert the tongue in the
buckle.
accompanied by an
audible signal then
remains on. that the vehicle is moving
with the driver's seat belt
unfastened. Check that the seat belt is fastened correctly
by pulling the strap. Refer to the "Seat belts"
section of chapter 5.

23
1
READY TO SET OFF
Instruments and controls

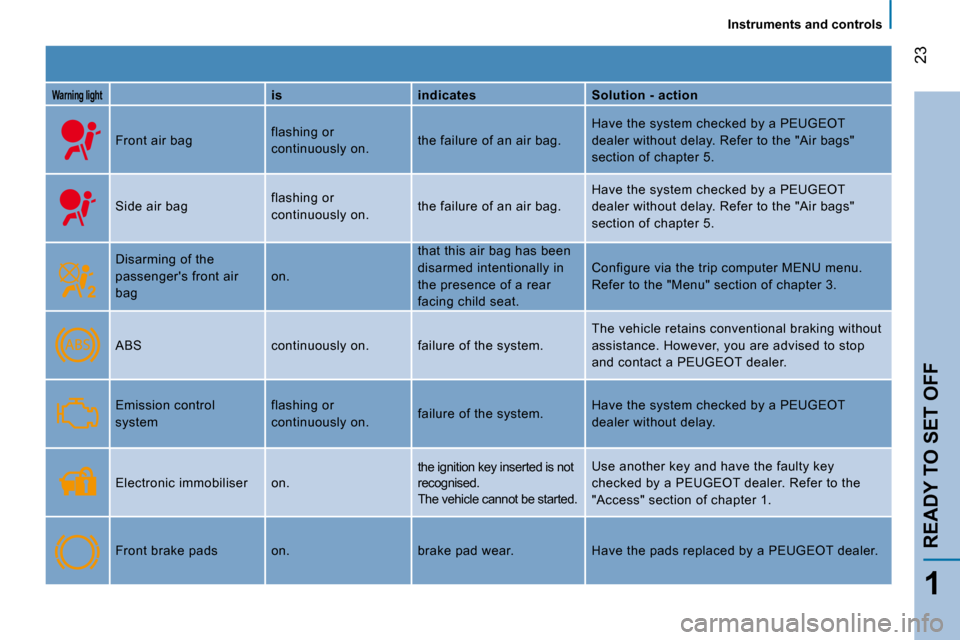

Warning light
is indicates Solution - action
Front air bag flashing or
continuously on. the failure of an air bag. Have the system checked by a PEUGEOT
dealer without delay. Refer to the "Air bags"
section of chapter 5.
Side air bag flashing or
continuously on. the failure of an air bag. Have the system checked by a PEUGEOT
dealer without delay. Refer to the "Air bags"
section of chapter 5.
Disarming of the
passenger's front air
bag on. that this air bag has been
disarmed intentionally in
the presence of a rear
facing child seat. Configure via the trip computer MENU menu.
Refer to the "Menu" section of chapter 3.
ABS continuously on. failure of the system. The vehicle retains conventional braking without
assistance. However, you are advised to stop
and contact a PEUGEOT dealer.
Emission control
system flashing or
continuously on.
failure of the system. Have the system checked by a PEUGEOT
dealer without delay.
Electronic immobiliser on.
the ignition key inserted is not
recognised.
The vehicle cannot be started. Use another key and have the faulty key
checked by a PEUGEOT dealer. Refer to the
"Access" section of chapter 1.
Front brake pads on. brake pad wear. Have the pa ds replaced by a PEUGEOT dealer.
