55
2

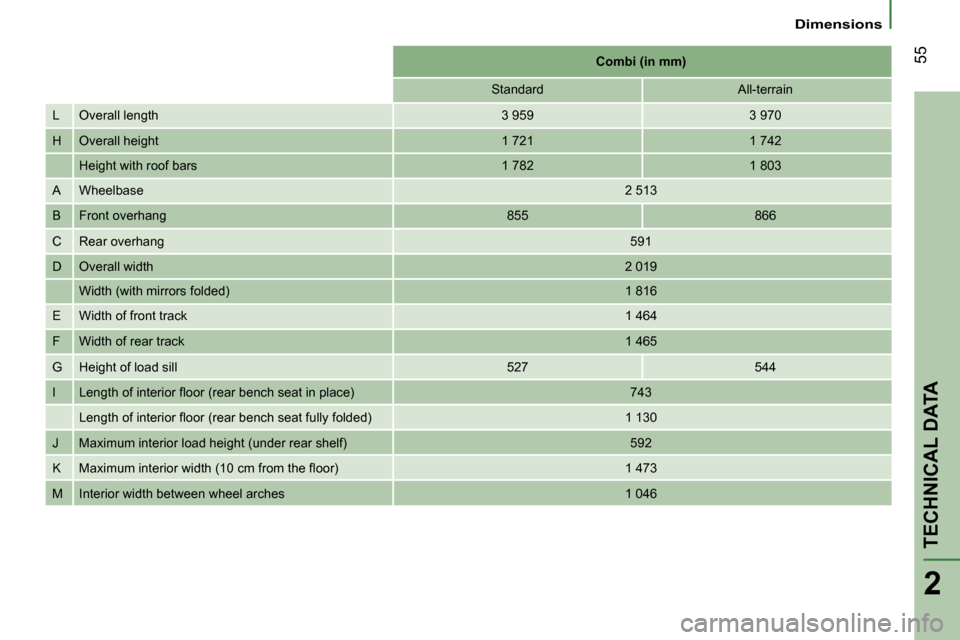

Dimensions
TECHNICAL DATA
Combi (in mm)
Standard All-terrain
L Overall length 3 959 3 970
H Overall height 1 721 1 742
Height with roof bars 1 782 1 803
A Wheelbase 2 513
B Front overhang 855 866
C Rear overhang 591
D Overall width 2 019
Width (with mirrors folded) 1 816
E Width of front track 1 464
F Width of rear track 1 465
G Height of load sill 527 544
I L e n g t h o f i n t e r i o r fl o o r ( r e a r b e n c h s e a t i n p l a c e ) 743
L e n g t h o f i n t e r i o r fl o o r ( r e a r b e n c h s e a t f u l l y f o l d e d ) 1 130
J Maximum interior load height (under rear shelf) 592
K M a x i m u m i n t e r i o r w i d t h ( 1 0 c m f r o m t h e fl o o r ) 1 473
M Interior width between wheel arches 1 046
Page 62 of 140
56

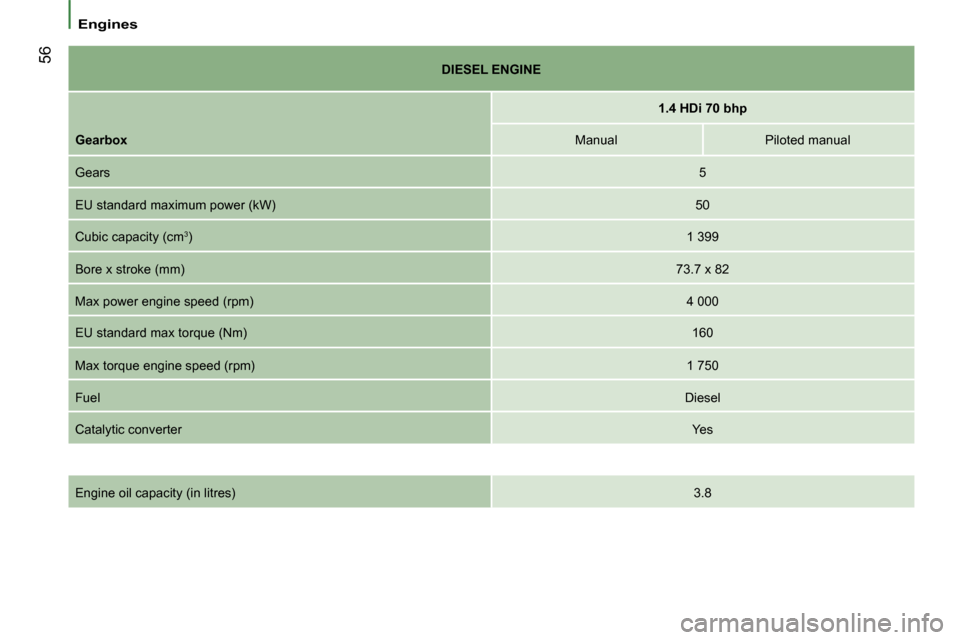

Engines
DIESEL
ENGINE
1.4 HDi 70 bhp
Gearbox Manual Piloted manual
Gears 5
E U s t a n d a r d m a x i m u m p o w e r ( k W ) 50
C u b i c c a p a c i t y ( c m 3
) 1 399
Bore x stroke (mm) 73.7 x 82
M a x p o w e r e n g i n e s p e e d ( r p m ) 4 000
EU standard max torque (Nm) 160
M a x t o r q u e e n g i n e s p e e d ( r p m ) 1 750
Fuel Diesel
Catalytic converter Yes
E n g i n e o i l c a p a c i t y ( i n l i t r e s ) 3.8
Page 63 of 140
57
2

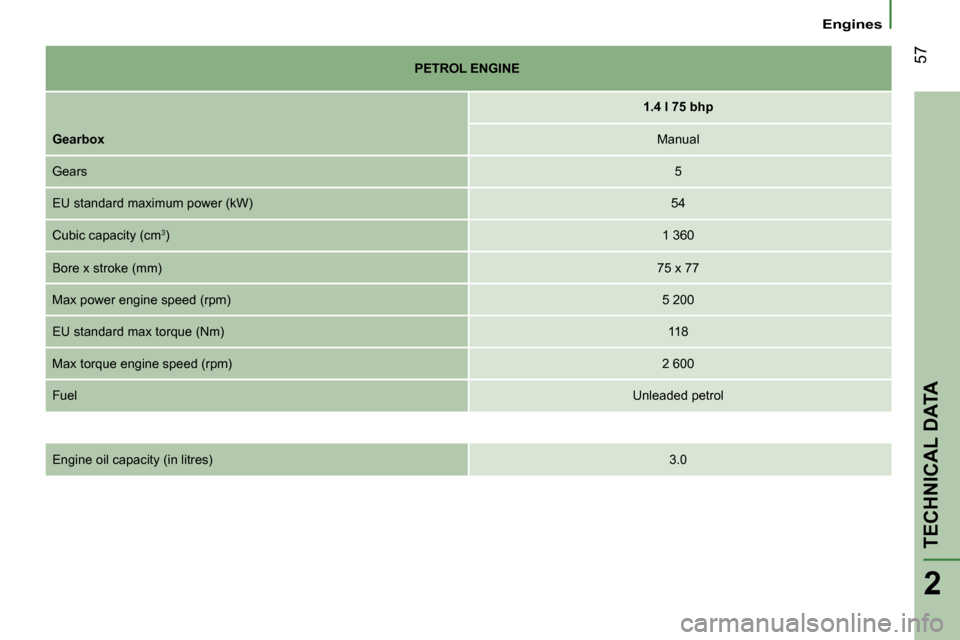

Engines
TECHNICAL DATA
PETROL ENGINE
1.4 l 75 bhp
Gearbox Manual
Gears 5
E U s t a n d a r d m a x i m u m p o w e r ( k W ) 54
C u b i c c a p a c i t y ( c m 3
) 1 360
Bore x stroke (mm) 75 x 77
M a x p o w e r e n g i n e s p e e d ( r p m ) 5 200
EU standard max torque (Nm) 118
M a x t o r q u e e n g i n e s p e e d ( r p m ) 2 600
Fuel U n l e a d e d p e t r o l
E n g i n e o i l c a p a c i t y ( i n l i t r e s ) 3.0
Page 64 of 140
58
Engines

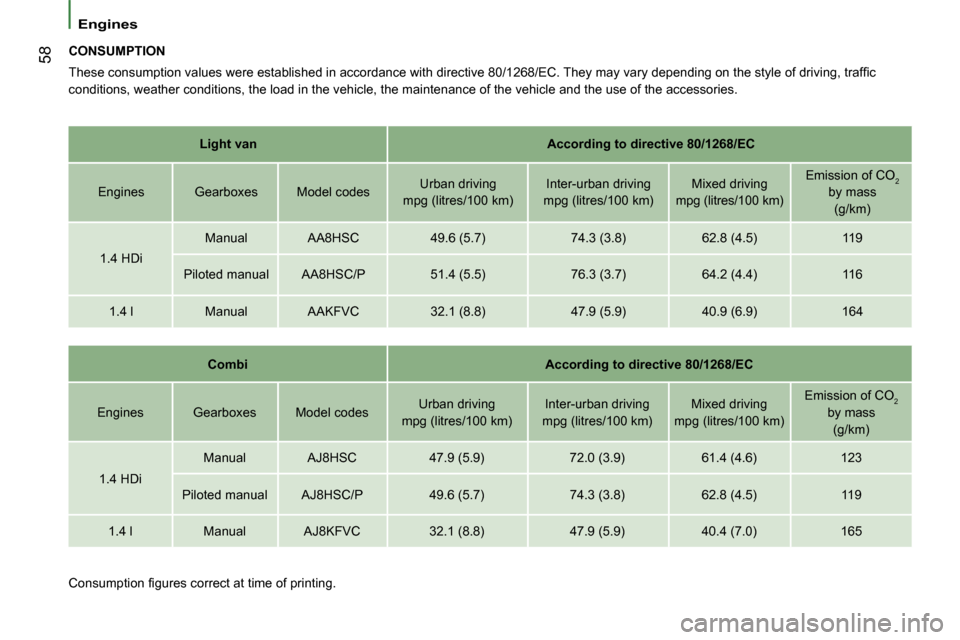

CONSUMPTION
T h e s e c o n s u m p t i o n v a l u e s w e r e e s t a b l i s h e d i n a c c o r d a n c e w i t h d i r e c t i v e 8 0 / 1 2 6 8 / E C . T h e y m a y v a r y d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c
conditions, weather conditions, the load in the vehicle, t he maintenance of the vehicle and the use of the accessories.
Light van
According to directive 80/1268/EC
Engines Gearboxes Model codes Urban driving
m p g ( l i t r e s / 1 0 0 k m ) Inter-urban driving
m p g ( l i t r e s / 1 0 0 k m ) Mixed driving
m p g ( l i t r e s / 1 0 0 k m ) Emission of CO
2
by mass
( g / k m )
1.4 HDi Manual AA8HSC 49.6 (5.7) 74.3 (3.8) 62.8 (4.5)
119
Piloted manual A A 8 H S C / P 51.4 (5.5) 76.3 (3.7) 64.2 (4.4) 116
1.4 l Manual AAKFVC 32.1 (8.8) 47.9 (5.9) 40. 9 (6.9) 164
Combi
According to directive 80/1268/EC
Engines Gearboxes Model codes Urban driving
m p g ( l i t r e s / 1 0 0 k m ) Inter-urban driving
m p g ( l i t r e s / 1 0 0 k m ) Mixed driving
m p g ( l i t r e s / 1 0 0 k m ) Emission of CO
2
by mass ( g / k m )
1.4 HDi Manual AJ8HSC 47.9 (5.9) 72.0 (3.9) 61.4 (4.6)
123
Piloted manual A J 8 H S C / P 49.6 (5.7) 74.3 (3.8) 62.8 (4.5) 119
1.4 l Manual AJ8KFVC 32.1 (8.8) 47.9 (5.9) 40 .4 (7.0) 165
C o n s u m p t i o n fi g u r e s c o r r e c t a t t i m e o f p r i n t i n g .
Page 65 of 140
59
2

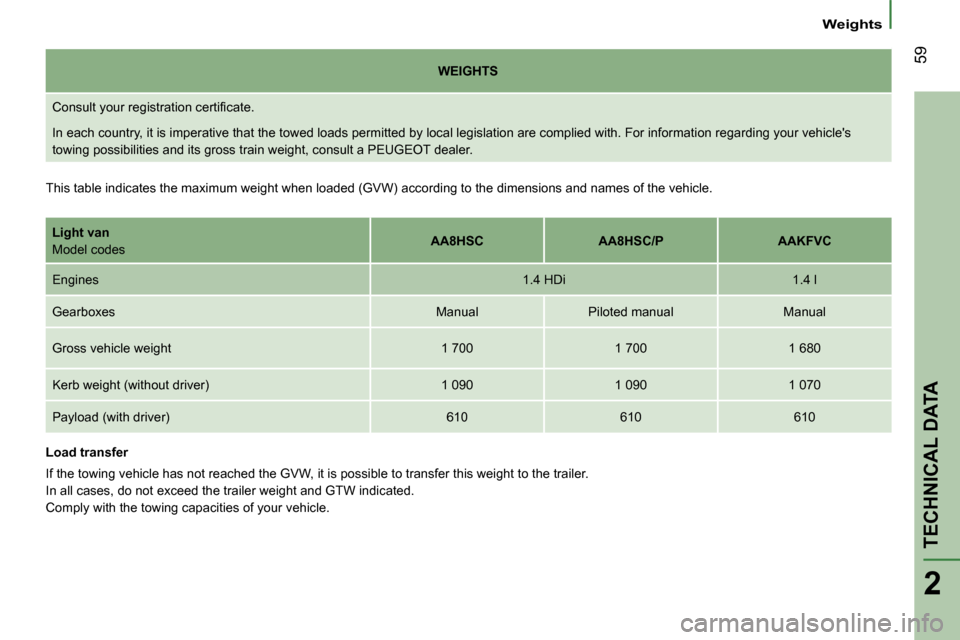

Weights
TECHNICAL DATA
WEIGHTS
C o n s u l t y o u r r e g i s t r a t i o n c e r t i fi c a t e .
I n e a c h c o u n t r y , i t i s i m p e r a t i v e t h a t t h e t o w e d l o a d s p e r m i t t e d b y l o c a l l e g i s l a t i o n a r e c o m p l i e d w i t h . F o r i n f o r m a t i o n r e g a r d i n g y o u r v e h i c l e ' s
t o w i n g p o s s i b i l i t i e s a n d i t s g r o s s t r a i n w e i g h t , c o n s u l t a P E U G E O T d e a l e r .
This table indicates the maximum weight when loaded (GVW) acco rding to the dimensions and names of the vehicle.
Light van
Model codes AA8HSC AA8HSC/P AAKFVC
Engines 1.4 HDi 1.4 l
Gearboxes Manual Piloted manual Manual
Gross vehicle weight 1 700 1 700 1 680
Kerb weight (without driver) 1 090 1 090 1 070
Payload (with driver) 610 610 610
Load transfer
I f t h e t o w i n g v e h i c l e h a s n o t r e a c h e d t h e G V W , i t i s p o s s i b l e t o t r a n s f e r t h i s w e i g h t t o t h e t r a i l e r .
In all cases, do not exceed the trailer weight and GTW in dicated.
C o m p l y w i t h t h e t o w i n g c a p a c i t i e s o f y o u r v e h i c l e .
Page 66 of 140
60

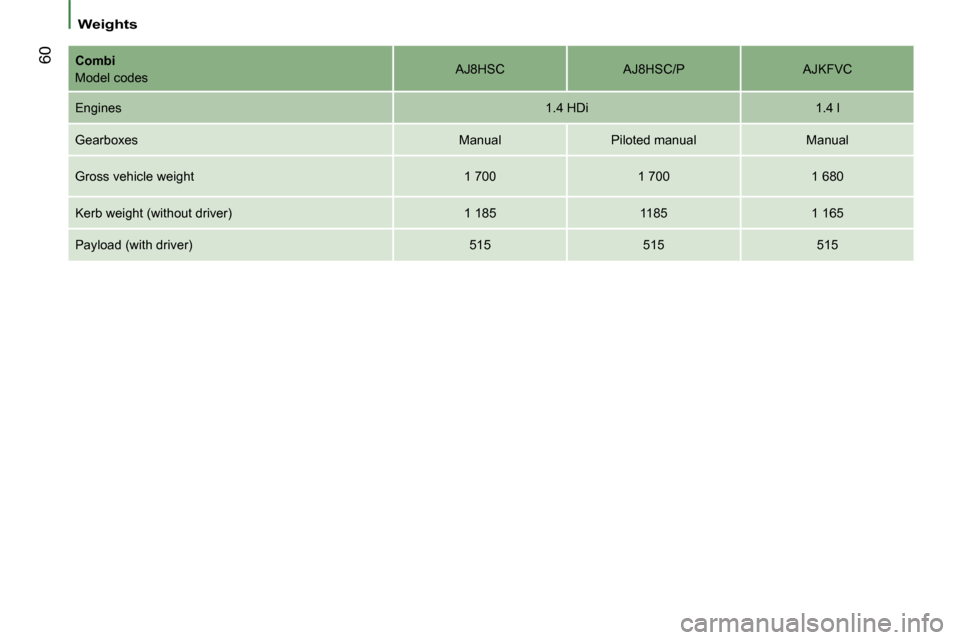

Weights
Combi
Model codes AJ8HSC
A J 8 H S C / P AJKFVC
Engines 1.4 HDi 1.4 l
Gearboxes Manual Piloted manual Manual
Gross vehicle weight 1 700 1 700 1 680
Kerb weight (without driver) 1 185 1185 1 165
Payload (with driver) 515 515 515
Page 67 of 140
61
3
IN-CAR TECHNOLOGY
Trip computer
TRIP COMPUTER
If TRIP B is activated on MENU :
- Route B,
- Average consumption B,
- Average speed B,
- Trip duration B.
Press the MENU ESC button for more
than two seconds to return to the welcome
screen.
The
TRIP button, located at the end of
the wipers stalk, displays the following
information in succession: - Range,
- Route A,
- Average consumption A,
- Current consumption A,
- Average speed A,
- Trip duration A.
Zero reset
Press the TRIP button for more than two
seconds to reset the displayed data to zero.
Level 1 display:
- Speed (Speed bleep).
- Hour (Setting of the time).
- Buzz (Volume of the announcements).
- Unit (Unit of measurement).
- Bag p (Passenger air bag).
Refer to the corresponding line of the
configuration - personalisation table on the
following pages.
Page 68 of 140
TRIP A
H 250 mi
10:06
7.5° c
0
62
Menu
MENU
This button enables you to:
- access the menus and sub-menus,
- confirm your selections within a menu,
- exit from the menus.
A long press enables you to return to the welcome screen.
This button enables you to:
- scroll up through a menu,
- increase a value.
This button enables you to:
- scroll down through a menu,
- decrease a value.
Menu... Press...
Sub-
menu...
Press... Select...
Confirm
and exit
Enables you to...
1 Speed Bleep ON Increase
Activate/deactivate the audible
signal indicating exceeding of the
programmed speed and select the
speed value.
Decrease
OFF
2 Activate
Trip B ON Activate
Display a second route "Trip B".
OFF Deactivate
Level 2 and 3 displays:
The control pad located to the left of the
steering wheel provides access to display
menus which permit the personalisation of
some of your equipment.
Eight languages are offered: Italian, English,
German, French, Spanish, Portuguese,
Dutch and Turkish. As a safety precaution, the menus can only be acce
ssed when the ignition is off (engine off).
Refer to the corresponding line of the configurati on-personalisation table on the following
pages.
Page 69 of 140
63
3
IN-CAR TECHNOLOGY
Menu
Menu...
Press... Sub-menu... Press... Select...
Confirm
and exit
Enables you to...
3 Set the time Hours
Increase
Set the clock.
Decrease
Format 24 hour
Select the clock display mode.
12 hour
4 Set the date Year/Month/Day Increase
Set the date.
Decrease
5 See radio ON
Display the name of the station.
Display the CD track number.
OFF
6 Autoclose While moving ON
Activate/deactivate the
automatic locking of the doors
above 12 mph (20 km/h)
OFF
7 Measurement unit Distances
Km
Select the distance display unit.
Mi(les)
Temperature °C
Select the temperature display
unit.
°F
Consumption km/l
Select the consumption display
unit.
l/100 km
8 Language List of
languages
available Select the display language.
9
Volume of
announcements Increase Increase/decrease the volume of the
signals and warnings (the volume changes
immediately when the button is pressed).
Decrease
Page 70 of 140
64
Menu
Menu...
Press... Sub-menu... Press... Select...
Confirm
and exit
Enables you to...
10 Volume of
the buttons Increase
Increase/decrease the volume
of the buttons.
Decrease
11 Service (Km/Miles
before oil
change) Display the kilometres/miles
remaining before the next oil
change.
Display the oil level.
12
Bag (passenger
air bag)
ON Yes
Activate the passenger air bag.
No
OFF Yes
Disarm the passenger air bag.
No
13 Exit from
menu Exit from the menu. Press the
arrow at the bottom to go to
the first menu.
