TROUBLESHOOTING
Changing a wheel
Refitting the wheel

5. Tighten the wheel bolts using the
wheelbrace.

6. Put the trim back in place, starting by
placing its notch facing the valve, and
press with the palm of your hand.

7. Stow the tools and the wheel.
8. Check the wheel inflation pressure (see
"Identification") and have the balance
checked.
Refer to the "Identification features"
section of chapter 8 to locate the tyre
label.

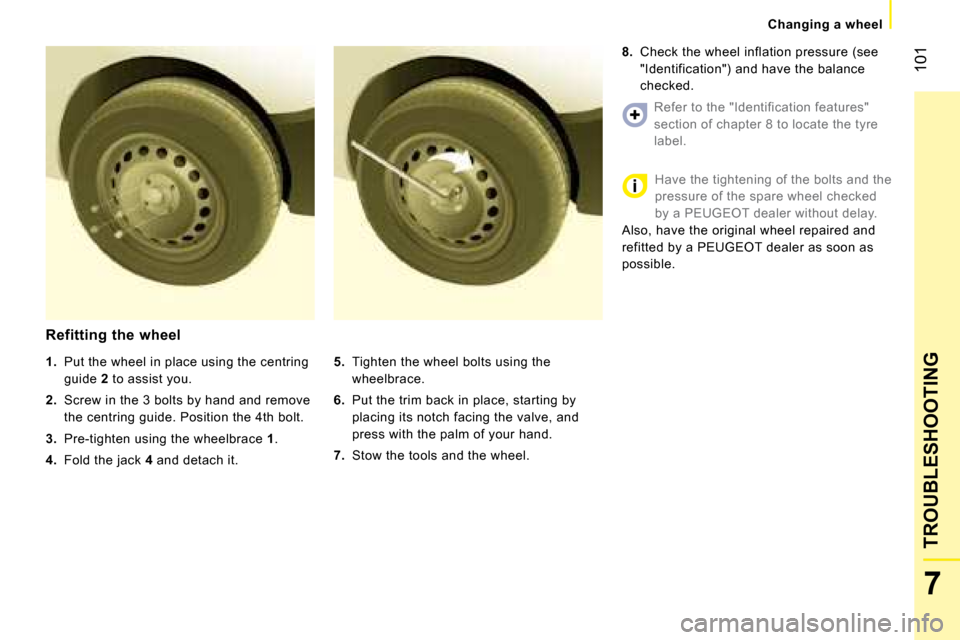

1. Put the wheel in place using the centring
guide 2 to assist you.

2. Screw in the 3 bolts by hand and remove
the centring guide. Position the 4th bolt.

3. Pre-tighten using the wheelbrace 1 .

4. Fold the jack 4 and detach it.
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a PEUGEOT dealer without delay.
Also, have the original wheel repaired and
refitted by a PEUGEOT dealer as soon as
possible.

102
Changing a wheel
PUNCTURE REPAIR KIT
This kit is located at the front of the
passenger compartment. It consists of:

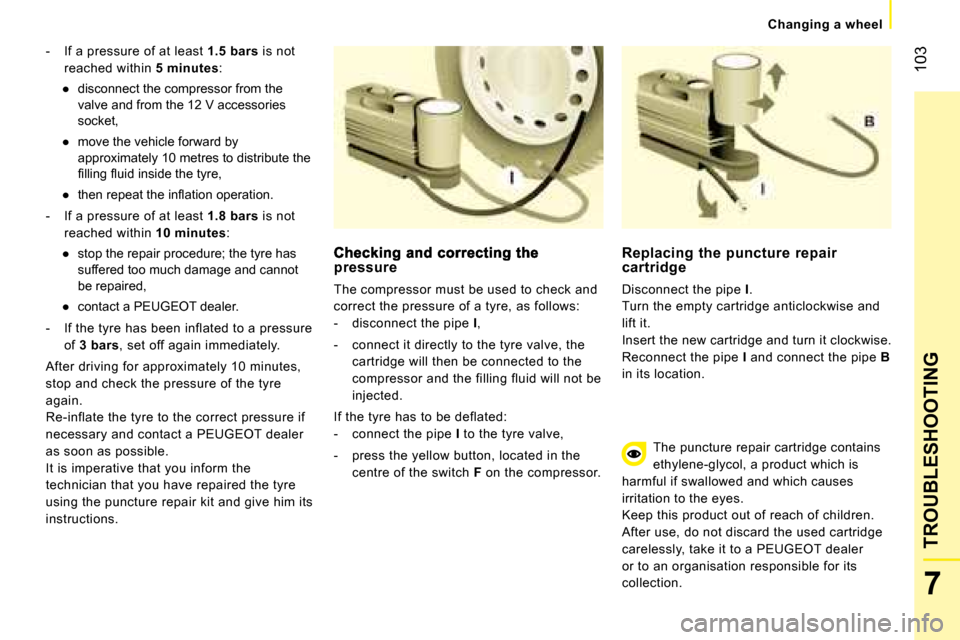

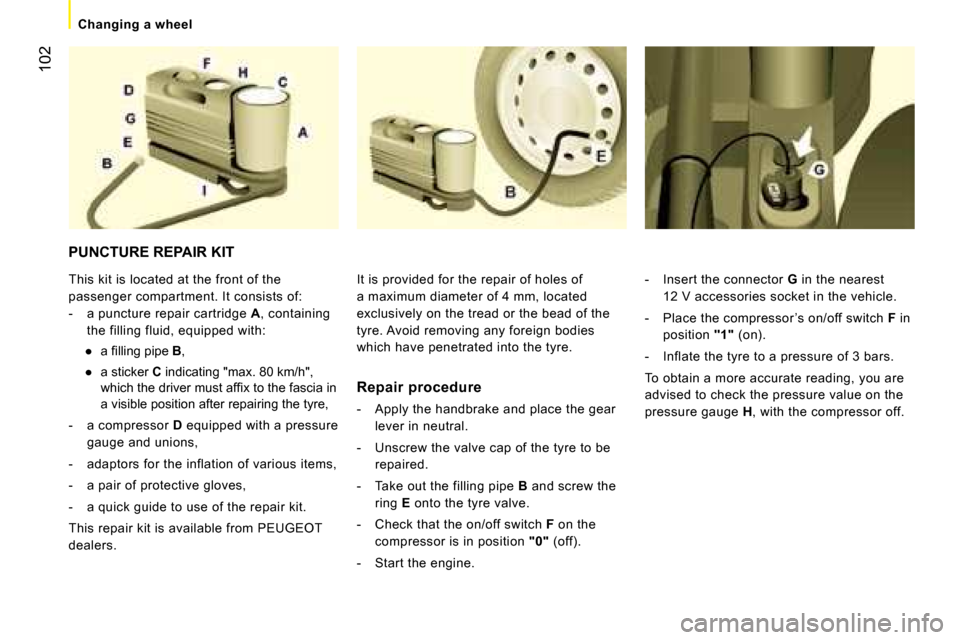

- a puncture repair cartridge A , containing
the filling fluid, equipped with:

103
7
TROUBLESHOOTING
Changing a wheel
- If a pressure of at least 1.5 bars is not
reached within 5 minutes :

104
Changing a bulb
Front lights
Open the bonnet. To access the bulbs, reach
behind the headlamp unit.
Remove the protective covers to gain
access to the bulbs.
Carry out the operations in reverse order to
refit each bulb.
CHANGING A BULB
T ypes of bulb
Various types of bulb are installed on your
vehicle. To remove them:

1. Type A
Entirely glass bulb: pull gently as it is fitted by pressure.

2. Type B
Bayonet bulb: press on the bulb then turn it anticlockwise.

3. Type C
Cylindrical bulb: move aside the contacts.

4. Type D - E
Halogen bulb: release the retaining spring from its housing.

105
7
TROUBLESHOOTING
Changing a bulb
1 - Dipped headlamp

Type D
, H4 - 55 W

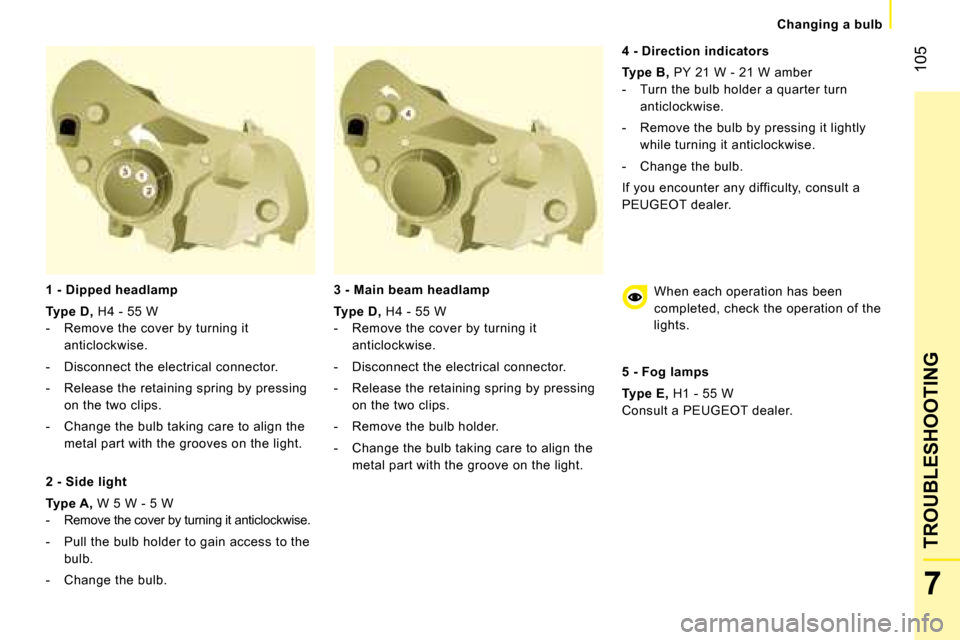

- Remove the cover by turning it anticlockwise.
- Disconnect the electrical connector.
- Release the retaining spring by pressing on the two clips.
- Change the bulb taking care to align the metal part with the grooves on the light.
2 - Side light

Type A , W 5 W - 5 W
- Remove the cover by turning it anticlockwise.
- Pull the bulb holder to gain access to the bulb.
- Change the bulb.
3 - Main beam headlamp

Type D
, H4 - 55 W
- Remove the cover by turning it anticlockwise.
- Disconnect the electrical connector.
- Release the retaining spring by pressing on the two clips.
- Remove the bulb holder.
- Change the bulb taking care to align the metal part with the groove on the light.
4 - Direction indicators

Type B
, PY 21 W - 21 W amber
- Turn the bulb holder a quarter turn anticlockwise.
- Remove the bulb by pressing it lightly while turning it anticlockwise.
- Change the bulb.
If you encounter any difficulty, consult a
PEUGEOT dealer.
When each operation has been
completed, check the operation of the
lights.
5 - Fog lamps

Type E , H1 - 55 W
Consult a PEUGEOT dealer.

106
Changing a bulb
Front/rear courtesy lights

Type C
, 12 V 10 W - 10 W
- Release the courtesy light using a screwdriver.
- Remove the cover to gain access to the bulb.
- Change the bulb moving aside the two contacts.
- Ensure that the new bulbs are secured correctly between the two contacts.
- Close the protective flap.
- Fix the courtesy light in its housing and ensure that it is secured correctly.

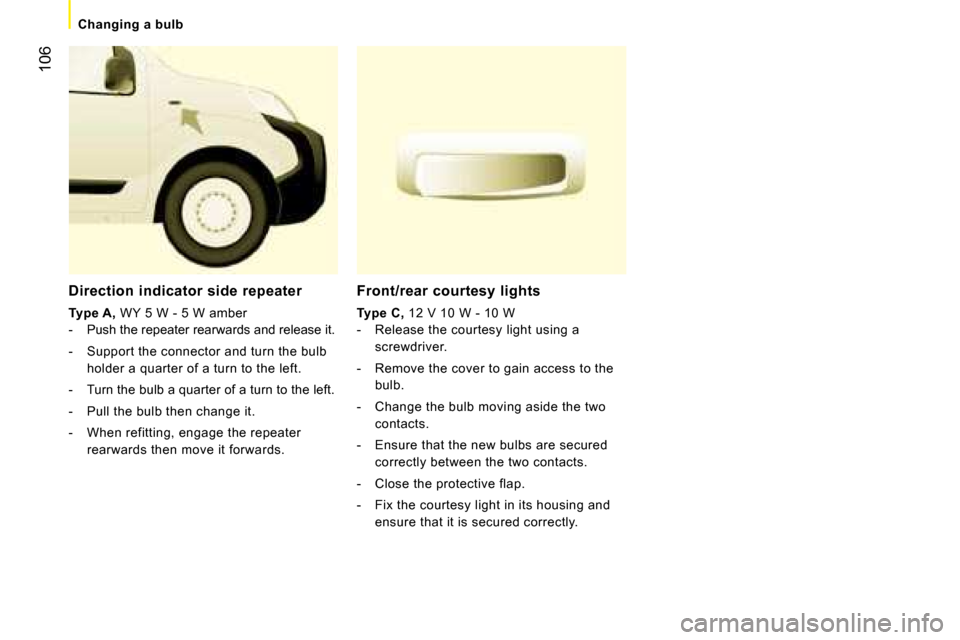

Direction indicator side repeater

Type A
, WY 5 W - 5 W amber
- Push the repeater rearwards and release it.
- Support the connector and turn the bulb holder a quarter of a turn to the left.
- Turn the bulb a quarter of a turn to the left.
- Pull the bulb then change it.
- When refitting, engage the repeater rearwards then move it forwards.

106
Changing a bulb
Front/rear courtesy lights

Type C
, 12 V 10 W - 10 W
- Release the courtesy light using a screwdriver.
- Remove the cover to gain access to the bulb.
- Change the bulb moving aside the two contacts.
- Ensure that the new bulbs are secured correctly between the two contacts.
- Close the protective flap.
- Fix the courtesy light in its housing and ensure that it is secured correctly.
Direction indicator side repeater

Type A
, WY 5 W - 5 W amber
- Push the repeater rearwards and release it.
- Support the connector and turn the bulb holder a quarter of a turn to the left.
- Turn the bulb a quarter of a turn to the left.
- Pull the bulb then change it.
- When refitting, engage the repeater rearwards then move it forwards.

107
7
TROUBLESHOOTING
Changing a bulb
REAR LIGHTS
For further information concerning the bulbs,
refer to the table "Types of bulb".

1. Brake lights
Type B, P21 W - 21 W

2. Direction indicators
Type B, PY 21 W - 21 W amber

3. Reversing lights
Type B, P21 W - 21 W

4. Side lights/Fog lamps
Type B, P4/21 W - 4 W/21 W - Identify the faulty bulb then open the rear
doors.

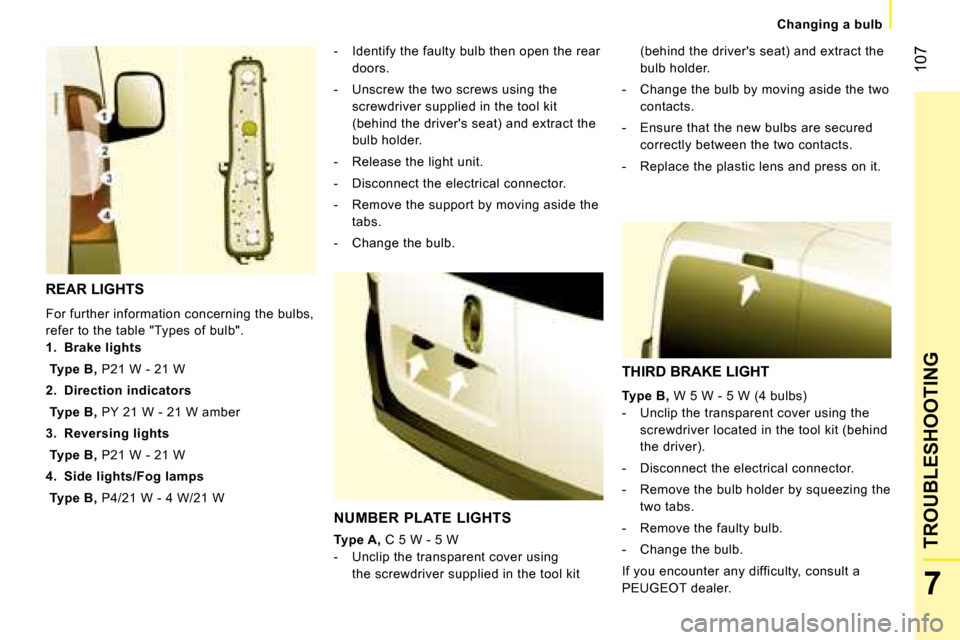

- Unscrew the two screws using the screwdriver supplied in the tool kit
(behind the driver's seat) and extract the
bulb holder.
- Release the light unit.
- Disconnect the electrical connector.
- Remove the support by moving aside the tabs.
- Change the bulb.
NUMBER PLATE LIGHTS

Type A, C 5 W - 5 W
- Unclip the transparent cover using the screwdriver supplied in the tool kit (behind the driver's seat) and extract the
bulb holder.
- Change the bulb by moving aside the two contacts.
- Ensure that the new bulbs are secured correctly between the two contacts.
- Replace the plastic lens and press on it.
THIRD BRAKE LIGHT

Type B, W 5 W - 5 W (4 bulbs)
- Unclip the transparent cover using the screwdriver located in the tool kit (behind
the driver).
- Disconnect the electrical connector.
- Remove the bulb holder by squeezing the two tabs.
- Remove the faulty bulb.
- Change the bulb.
If you encounter any difficulty, consult a
PEUGEOT dealer.

108
Changing a wiper blade
CHANGING A WIPER BLADE
Changing a front or rear wiper blade
Instructions for removing the blade:

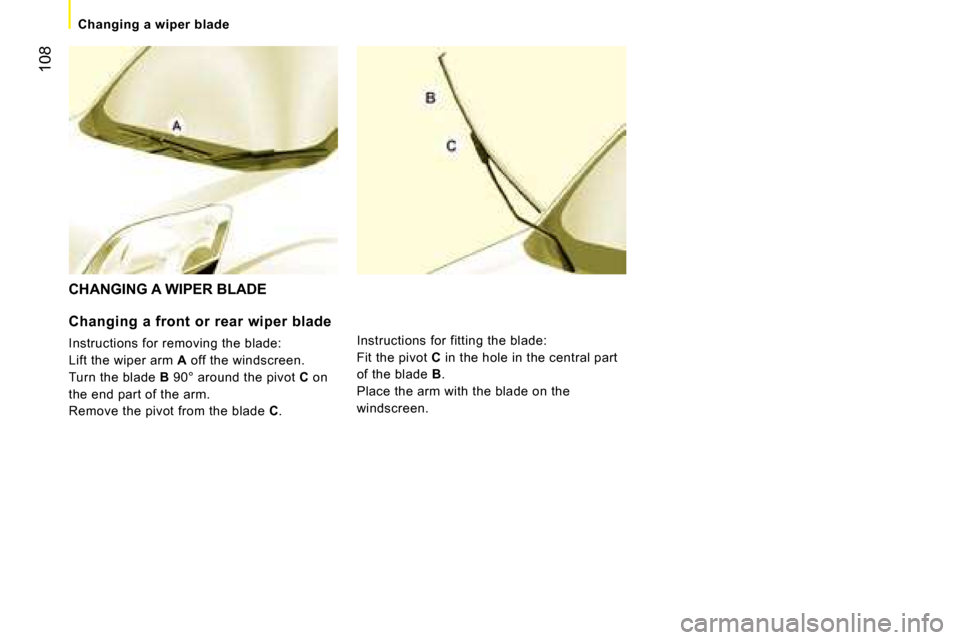

Lift the wiper arm A off the windscreen.
Turn the blade B 90° around the pivot C on
the end part of the arm.
Remove the pivot from the blade C . Instructions for fitting the blade:
Fit the pivot
C in the hole in the central part
of the blade B .
Place the arm with the blade on the
windscreen.

109
7
TROUBLESHOOTING
Changing a fuse
CHANGING A FUSE
The two fuse boxes are placed on the fascia
panel on the driver ’s side and under the
bonnet. PEUGEOT will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by the
PEUGEOT network and not installed in
accordance with its instructions, in particular
when the combined consumption of all of
the additional equipment connected exceeds
10 milliamperes.
Removing and fitting a fuse
Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fuse box.

Always replace a faulty fuse with a fuse

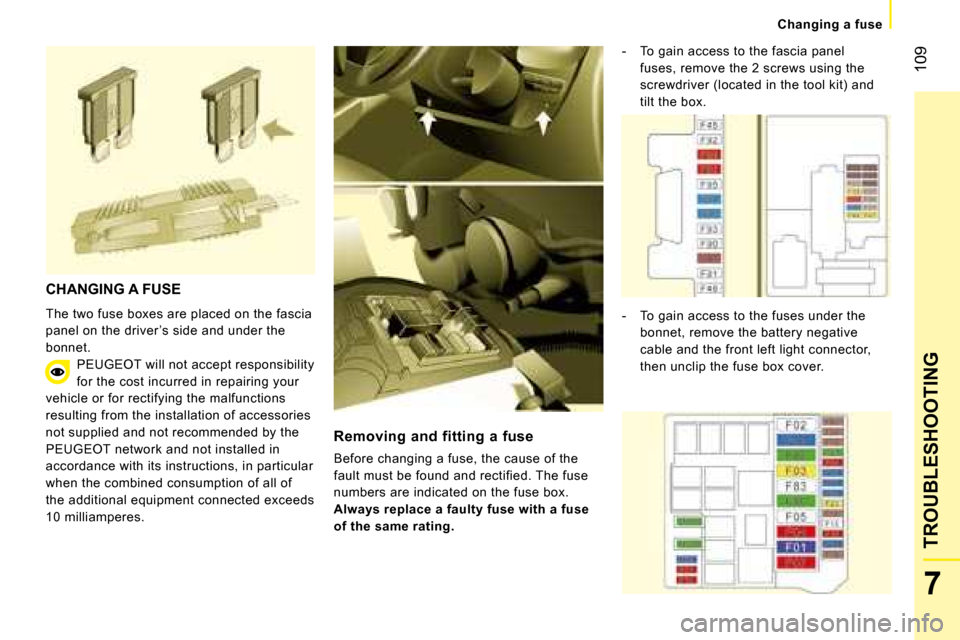

of the same rating. - To gain access to the fascia panel
fuses, remove the 2 screws using the
screwdriver (located in the tool kit) and
tilt the box.
- To gain access to the fuses under the bonnet, remove the battery negative
cable and the front left light connector,
then unclip the fuse box cover.
