Peugeot Bipper 2008 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2008, Model line: Bipper, Model: Peugeot Bipper 2008Pages: 131, PDF Size: 1.44 MB
Page 1 of 131
4 PRESENTATION
The handbook is designed to familiarise you with your new
vehicle from the moment you get behind the wheel an d to
describe the operating features.
Reading the handbook is made easy by a Familiarisa tion
chapter, followed by 8 identified chapters which ca n be located
by means of a colour code specific to each one. Its sections
cover, by theme, all of the functions of the vehicl e in its most
complete specification.
Chapter 2 indicates all of the technical data rela ting to your
vehicle. At the end of the handbook, diagrams of th e outside
and inside of the vehicle will assist you in locati ng equipment
or functions and page numbers refer you to the rele vant
section of the handbook. Within the chapters symbols draw your attention to
specific
information:
COMMUNICATION
The technical data, equipment and accessories may change
during the year. To obtain this new data, refer to the "Latest
Information" section on the SERVICEBOX Internet sit e.
Simple registration permits access to the site and free
consultation of the vehicle documentation.
http://public.servicebox.peugeot.com , select:
- the vehicle documentation/handbooks item,
- your model,
- the body type: saloon, CC, SW, estate, van, …,
- the period corresponding to the date of first registration,
- the "Latest Information" section. directs you to the chapter and section which conta
ins
detailed information concerning a function,
indicates important information relating to use of the
equipment,
alerts you to the safety of individuals and equipm ent on
board.
PEUGEOT PUTS AN INTERNET SITE AT YOUR DISPOSAL
Page 2 of 131
5
FAMILIARISATION
Familiarisation

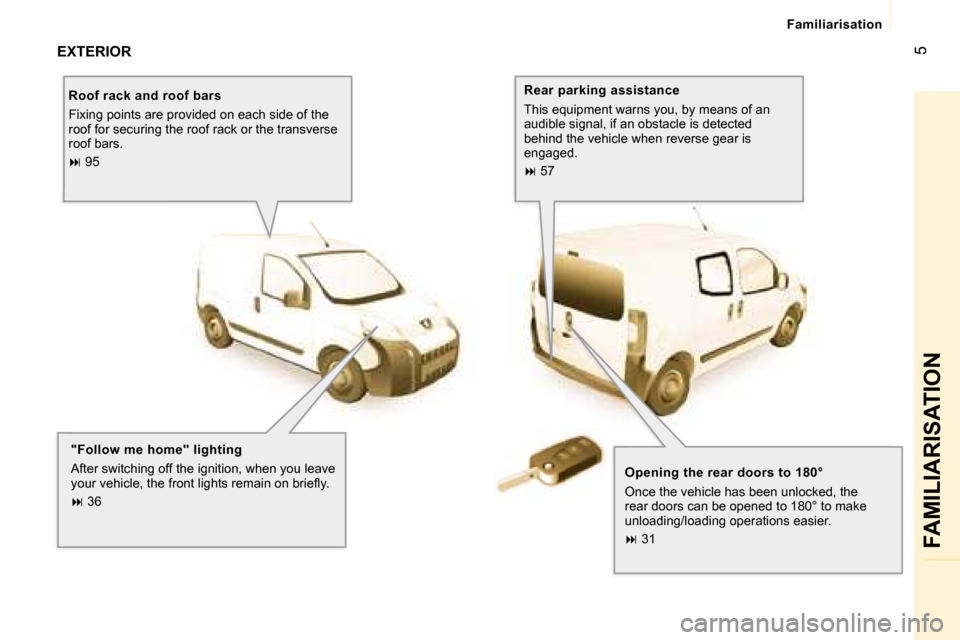

EXTERIOR
Roof rack and roof bars
Fixing points are provided on each side of the
roof for securing the roof rack or the transverse
roof bars.
95
Opening the rear doors to 180°
Once the vehicle has been unlocked, the
rear doors can be opened to 180° to make
unloading/loading operations easier.
31
"Follow me home" lighting
After switching off the ignition, when you leave
y o u r v e h i c l e , t h e f r o n t l i g h t s r e m a i n o n b r i e fl y .
36 Rear parking assistance
This equipment warns you, by means of an
audible signal, if an obstacle is detected
behind the vehicle when reverse gear is
engaged.
57
Page 3 of 131
6
Familiarisation Fuel tank
OPEN
A. Unfolding/Folding of the key.
B. Unlocking of the front doors (Light van) or
of the front and side doors (Combi)
( t w o fl a s h e s o f t h e d i r e c t i o n i n d i c a t o r s ) .
C. Central locking of the vehicle
( o n e p r e s s ; o n e fl a s h o f t h e d i r e c t i o n
indicators).
or
Deadlocking of the vehicle
( t w o c o n s e c u t i v e p r e s s e s ; o n e fl a s h o f t h e
direction indicators).
D. Unlocking of the load space (Light van) or
of the hinged rear doors (Combi).
If a door is open or has not been closed
properly, the failed locking is indicated by three
fl a s h e s o f t h e d i r e c t i o n i n d i c a t o r s . Opening to 180°
Press the catch while opening the door.
27
31
Remote control key
1. O p e n i n g o f t h e f u e l fi l l e r fl a p .
2. Opening and hooking of the fuel tank cap.
Capacity of the tank: approximately 45 litres.
114
Page 4 of 131
7
FAMILIARISATION
Familiarisation

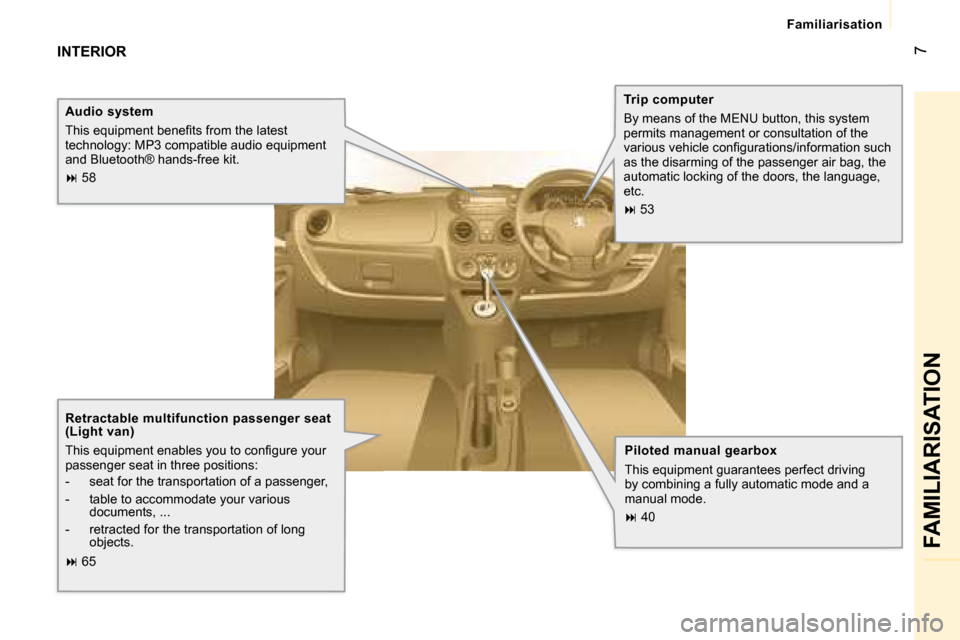

INTERIOR
Trip computer
By means of the MENU button, this system
permits management or consultation of the
v a r i o u s v e h i c l e c o n fi g u r a t i o n s / i n f o r m a t i o n s u c h
as the disarming of the passenger air bag, the
automatic locking of the doors, the language,
etc.
53
Retractable multifunction passenger seat
(Light van)
T h i s e q u i p m e n t e n a b l e s y o u t o c o n fi g u r e y o u r
passenger seat in three positions:
- seat for the transportation of a passenger,
- table to accommodate your various documents, ...
- retracted for the transportation of long objects.
65
Audio system
T h i s e q u i p m e n t b e n e fi t s f r o m t h e l a t e s t
technology: MP3 compatible audio equipment
and Bluetooth® hands-free kit.
58
Piloted manual gearbox
This equipment guarantees perfect driving
by combining a fully automatic mode and a
manual mode.
40
Page 5 of 131
8
Familiarisation
INSTRUMENTS AND CONTROLS
1. Steering wheel adjustment control.
2. Lights and direction indicators controls.
3. Instrument panel.
4. Driver's air bag.
Horn.
5. Gear lever.
6. Handbrake.
7. Bonnet release.
8. Exterior mirror controls.
9. Fuse box.
10. Manual headlamp height adjustment.
11. Side adjustable and closing vent.
12. Front side window demisting vent.
13. Windscreen demisting vent.
14. Steering lock and ignition.
15. Wipers/wash-wipe/trip computer controls.
16. Central adjustable and closing vents.
17. Passenger air bag.
18. MENU button.
19. Glove box.
20. Lighter.
21. Ashtray.
22. Heating/air conditioning controls.
23. Audio equipment.
24. Electric window controls.
25. 12 V socket.
Page 6 of 131
FAMILIARISATION
Familiarisation

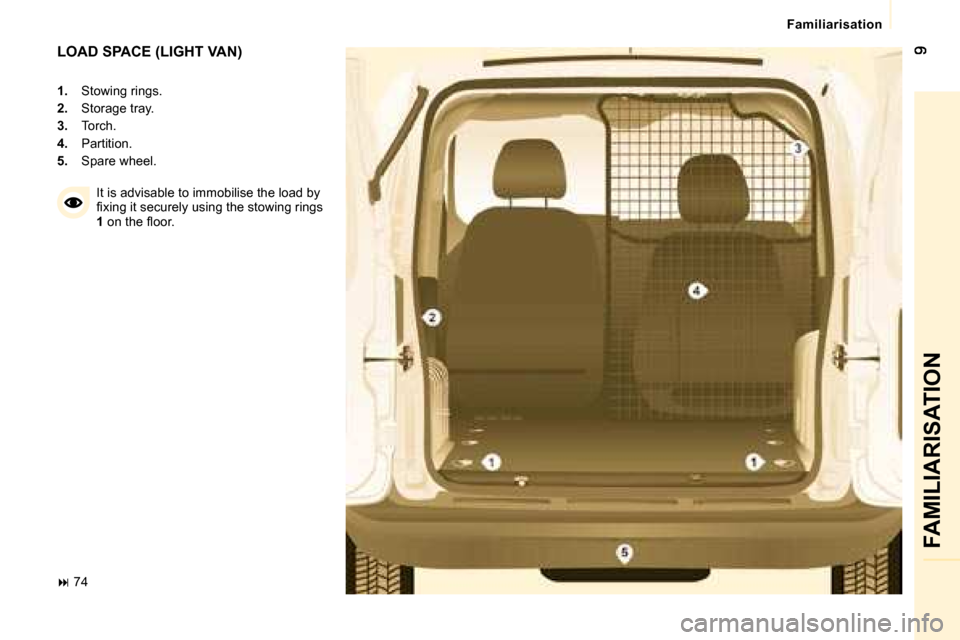

LOAD SPACE (LIGHT VAN)
1. Stowing rings.
2. Storage tray.
3. Torch.
4. Partition.
5. Spare wheel.
74 It is advisable to immobilise the load by
fi x i n g i t s e c u r e l y u s i n g t h e s t o w i n g r i n g s
1 o n t h e fl o o r .
Page 7 of 131
10
Familiarisation

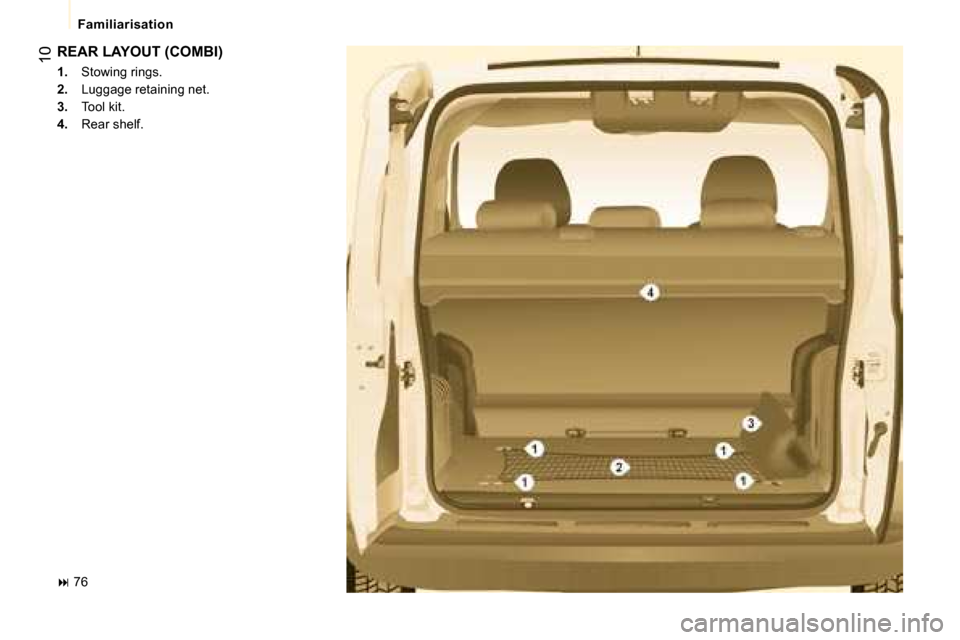

REAR LAYOUT (COMBI)
1. Stowing rings.
2. Luggage retaining net.
3. Tool kit.
4. Rear shelf.
76
Page 8 of 131
11
FAMILIARISATION
Familiarisation
SIT COMFORTABLY

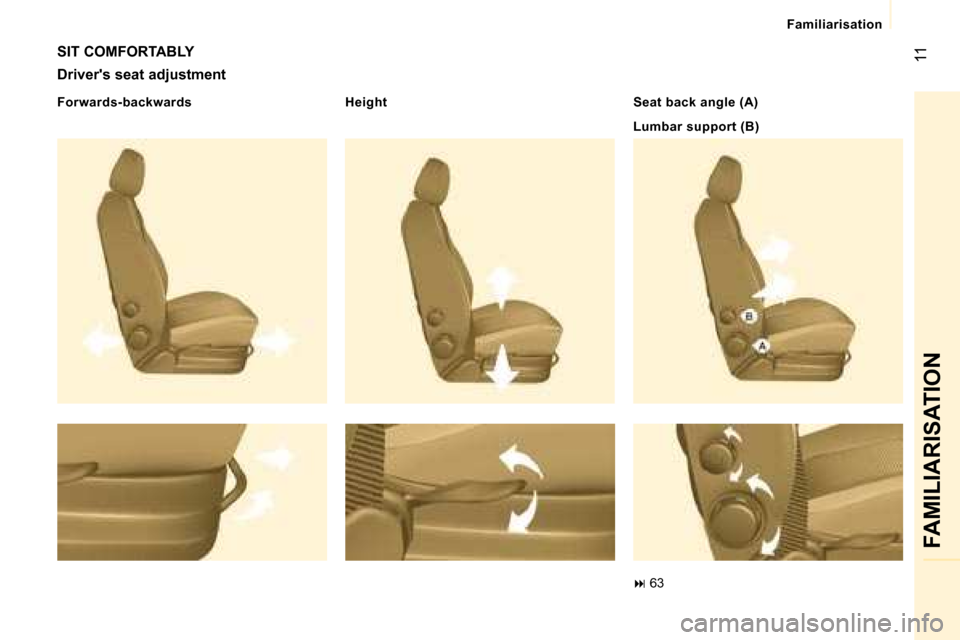

Driver's seat adjustment
Forwards-backwards Height Seat back angle (A)
Lumbar support (B)
63
Page 9 of 131
12
Familiarisation Front seat belt
1. Fastening.
80
SIT COMFORTABLY
Steering wheel adjustment
1. Unlocking of the control.
2. Adjustment of the height and depth.
3. Locking of the control.
42 Electric exterior mirror adjustment
A. Selection of the driver's mirror.
B. Selection of the passenger's mirror.
C. Adjustment of the position of the mirror.
38
Interior mirror adjustment
1. Selection of the "day/night" position of the
mirror.
2. Directing of the mirror.
38
Page 10 of 131
13
FAMILIARISATION
Familiarisation
Ring B: rear wiper
37 Intermittent wipe.
Wash-wipe. Park.
SEE CLEARLY
Lighting
Ring
Fog lamps
35 Direction indicators
"Motorway" function
Press up or down once, without passing the
point of resistance; the corresponding direction
i n d i c a t o r s w i l l fl a s h t h r e e t i m e s .
35 Wipers
Ring A: windscreen wipers
Park.
Intermittent.
Slow continuous.
Rapid continuous.
Single wipe.
Wash-wipe.
37
Lights off.
Side lights.
Dipped/main beam headlamps.
Rear fog lamp.
or
Front and rear fog lamps.
