Peugeot Bipper 2014.5 Owner's Manual - RHD (UK, Australia)

139
Bipper_en_Chap07_accessoire_ed02-2014
ROOF RACK AND ROOF BARS
to install the transverse roof bars or a
roof rack, use the fixings provided for this
purpose.
Maximum load: 75 kg.
OTHER ACCESSORIES
A wide range of accessories and genuine
parts is offered by the P euge O t
network.
t

hese accessories and parts have been
tested and approved both for reliability and
for safety.
t

hey all benefit from P euge O t 's
recommendation and warranty.
Never exceed the gross vehicle
weight (
g
VW).
Range of professional equipment
the replacement parts department publishes
an accessory catalogue of fering various
equipment and fittings, such as:
-

wooden protective floor
, non-slip wooden
floors, wooden side protectors, glass
protection grilles,
-

roof rack, set of transverse roof bars,

loading roller,
-

towbars, towbar harnesses with

7/13
sockets, 7/7 sockets, 13 socket...
t
he fitting of electrical equipment or
accessories not listed by P euge O t

may result in the failure of your vehicle's

electronic system or high consumption.
Please note this specific warning. You
are advised to contact a representative
of P euge O t
to be shown the range of

recommended equipment and accessories.
Depending on the country in which the
vehicle is sold or operated, it may be
compulsory to have a high visibility vest,
warning triangle, replacement bulbs and
fuses available in the vehicle.
Before installing accessory radio
communication transmitters with
external aerial on your vehicle, you can
contact a P
euge O t
dealer
, who will provide
the specification (frequency band, maximum
output power, aerial position, specific
installation conditions) of the transmitters
which can be fitted, in accordance with the
Motor Vehicle
e lectromagnetic Compatibility
Directive (2004/104/
e C).
When fitting a towbar and harness
outside the P
euge O t
dealer

network, the installation must be done
using the electrical pre-equipment on the
vehicle and following the manufacture's
recommendations.
7
ACCESSORIES
Equipment

140
Bipper_en_Chap07_accessoire_ed02-2014

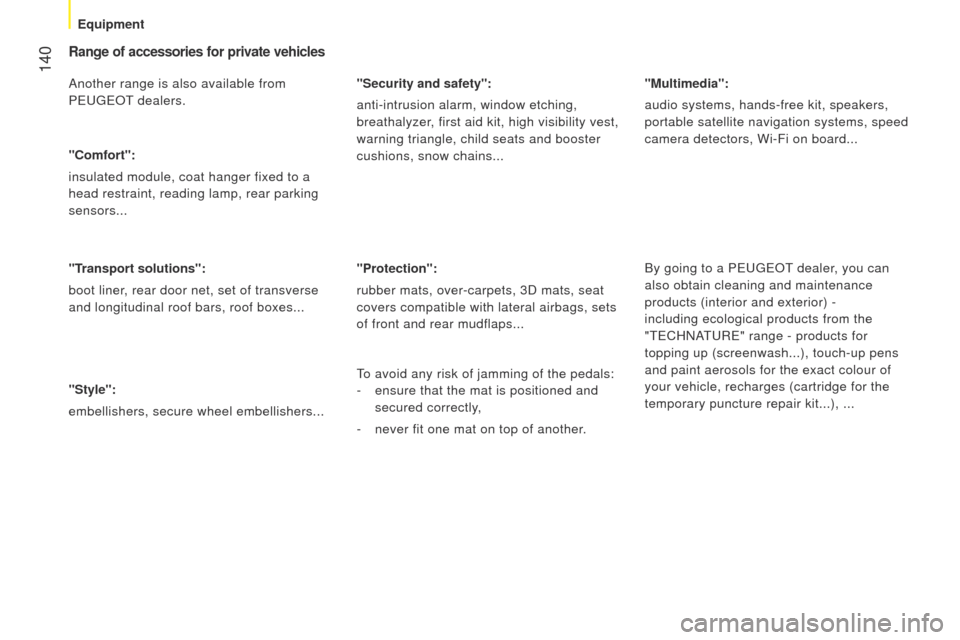

Range of accessories for private vehicles
Another range is also available from
Peuge O t
dealers.
"Comfort":
insulated module, coat hanger fixed to a


head restraint, reading lamp, rear parking
sensors...
"Transport solutions":
boot liner, rear door net, set of transverse
and longitudinal roof bars, roof boxes...
"Style":
embellishers, secure wheel embellishers... "Security and safety":
anti-intrusion alarm, window etching,
breathalyzer, first aid kit, high visibility vest,
warning triangle, child seats and booster
cushions, snow chains...
"Protection":
rubber mats, over-carpets, 3D mats, seat
covers compatible with lateral airbags, sets
of front and rear mudflaps...
"Multimedia":
audio systems, hands-free kit, speakers,
portable satellite navigation systems, speed
camera detectors, Wi-Fi on board...
By going to a P
euge O t dealer, you can
also obtain cleaning and maintenance
products (interior and exterior) -
including ecological products from the
"
te CHNA
tu
R e " range - products for
topping up (screenwash...), touch-up pens
and paint aerosols for the exact colour of
your vehicle, recharges (cartridge for the
temporary puncture repair kit...), ...
to avoid any risk of jamming of the pedals:
-


ensure that the mat is positioned and

secured correctly,
-

never fit one mat on top of another
.
Equipment

141
Bipper_en_Chap08_verifications_ed02-2014

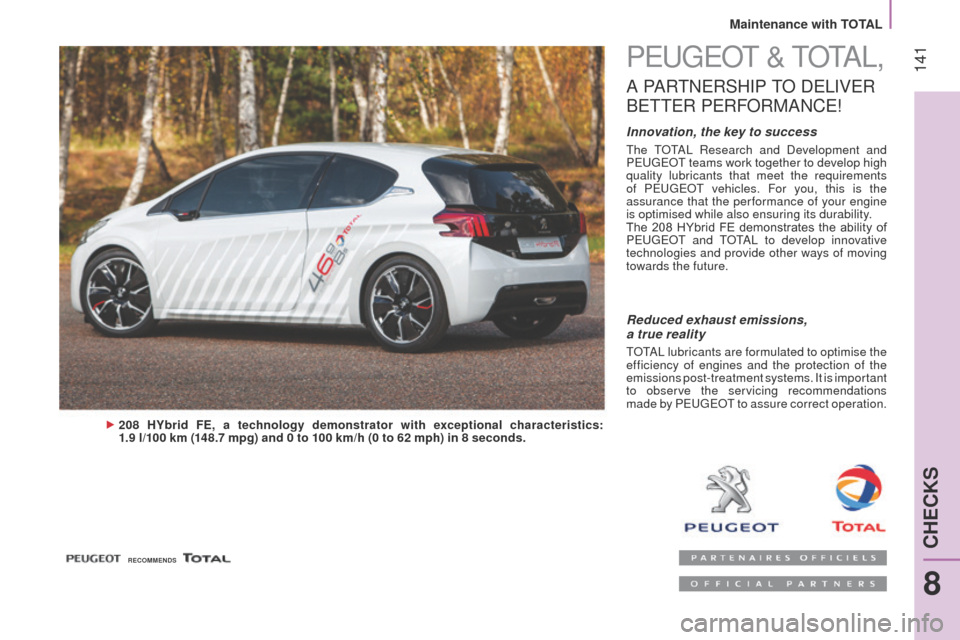

PeugeOt & t O tAl,
A PARtNeRSHIP tO De lI Ve R
Be

tte R

P
e
RFORMANC
e
!
Innovation, the key to success
the tOtAl Research and Development and
Pe ugeOt teams work together to develop high
quality lubricants that meet the requirements
of P
e

uge
Ot
vehicles. For you, this is the
assurance that the performance of your engine
is optimised while also ensuring its durability.
The 208 HYbrid FE demonstrates the ability of
P
e

uge
Ot
and
tOtAl
to develop innovative
technologies and provide other ways of moving
towards the future.
208 HYbrid FE, a technology demonstrator with exceptional characteristics:
1.9 l/100 km (148.7 mpg) and 0 to 100 km/h (0 to 62 mph) in 8 seconds.
Reduced exhaust emissions,
a true reality
tOtAl lubricants are formulated to optimise the
efficiency of engines and the protection of the
emissions post-treatment systems. It is important
to observe the servicing recommendations
made by P
e

uge
Ot
to assure correct operation.
RECOMMENDS
8
CHECKS
Maintenance with TOTAL

142
Bipper_en_Chap08_verifications_ed02-2014

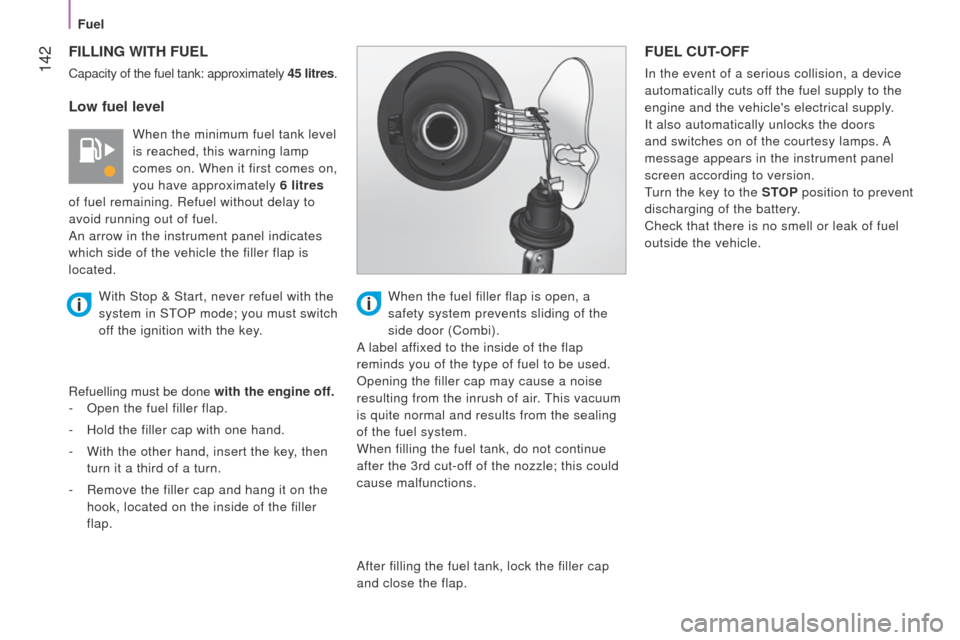

FILLING WITH FUEL
Capacity of the fuel tank: approximately 45 litres.
Low fuel level
When the minimum fuel tank level
is reached, this warning lamp
comes on. When it first comes on,
you have approximately 6 litres
of fuel remaining. Refuel without delay to
avoid running out of fuel.
An arrow in the instrument panel indicates
which side of the vehicle the filler flap is
located.
Refuelling must be done with the engine off.
-

Open the fuel filler flap.
-


Hold the filler cap with one hand.
-


With the other hand, insert the key
, then
turn it a third of a turn.
-

Remove the filler cap and hang it on the

hook, located on the inside of the filler
flap.
FUEL CUT-OFF
In the event of a serious collision, a device
automatically cuts off the fuel supply to the
engine and the vehicle's electrical supply.
It also automatically unlocks the doors
and switches on of the courtesy lamps. A
message appears in the instrument panel
screen according to version.
turn the key to the

STOP position to prevent
discharging of the battery.
Check that there is no smell or leak of fuel
outside the vehicle.
With Stop & Start, never refuel with the
system in S
t
OP

mode; you must switch
off the ignition with the key. When the fuel filler flap is open, a
safety system prevents sliding of the
side door (Combi).
A label affixed to the inside of the flap
reminds you of the type of fuel to be used.
Opening the filler cap may cause a noise
resulting from the inrush of air.
t

his vacuum
is quite normal and results from the sealing
of the fuel system.
When filling the fuel tank, do not continue
after the 3rd cut-off of the nozzle; this could
cause malfunctions.
After filling the fuel tank, lock the filler cap
and close the flap.
Fuel

143
Bipper_en_Chap08_verifications_ed02-2014

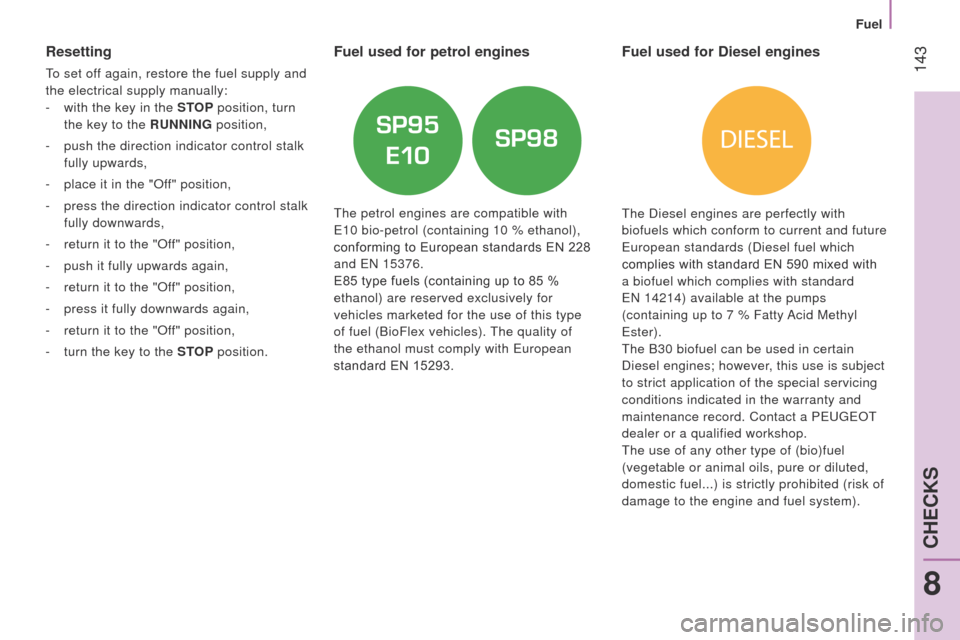

Resetting
to set off again, restore the fuel supply and
the electrical supply manually:
-
with the key in the
STOP position, turn
the key to the RUNNING position,
-

push the direction indicator control stalk

fully upwards,
-

place it in the "Of
f" position,
-

press the direction indicator control stalk

fully downwards,
-

return it to the "Of
f" position,
-

push it fully upwards again,
-


return it to the "Of
f" position,
-

press it fully downwards again,
-


return it to the "Of
f" position,
-

turn the key to the
STOP position.
Fuel used for petrol engines
the petrol engines are compatible with
e
10 bio-petrol (containing 10 % ethanol),
conforming to European standards EN 228
and
e N 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for
vehicles marketed for the use of this type
of fuel (BioFlex vehicles).
t

he quality of
the ethanol must comply with
e uropean
standard EN 15293.
Fuel used for Diesel engines
the Diesel engines are perfectly with
biofuels which conform to current and future
e

uropean standards (Diesel fuel which
complies with standard EN 590 mixed with
a biofuel which complies with standard
e

N 14214) available at the pumps
(containing up to 7 % Fatty Acid Methyl
e

ster).
t

he B30 biofuel can be used in certain
Diesel engines; however, this use is subject
to strict application of the special servicing
conditions indicated in the warranty and
maintenance record. Contact a P
euge O t

dealer or a qualified workshop.
t

he use of any other type of (bio)fuel
(vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited (risk of
damage to the engine and fuel system).
8
CHECKS
Fuel

144
Bipper_en_Chap08_verifications_ed02-2014

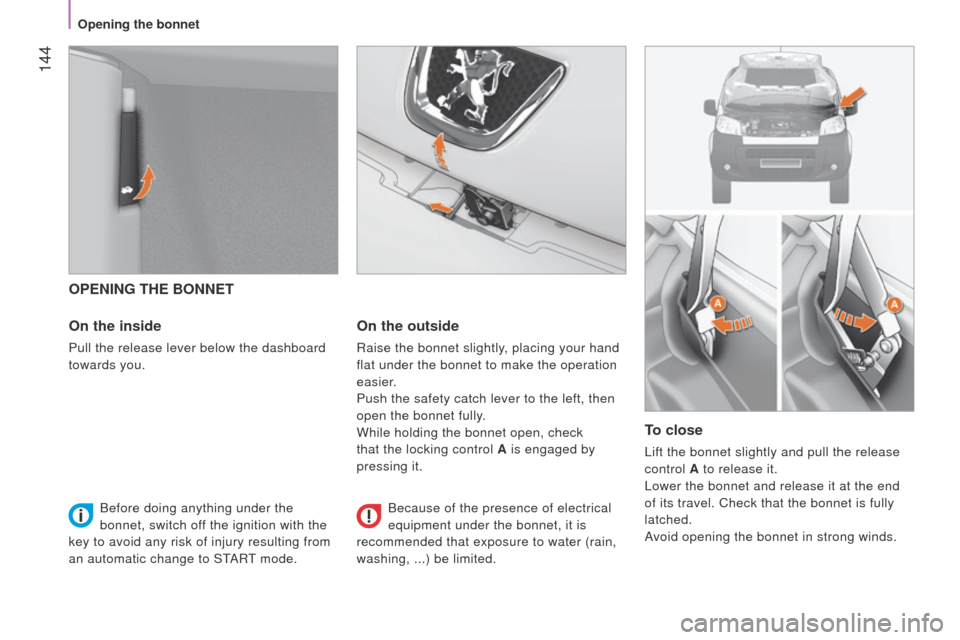

OPENING THE BONNET
On the inside
Pull the release lever below the dashboard
towards you.
On the outside
Raise the bonnet slightly, placing your hand
flat under the bonnet to make the operation
easier.
Push the safety catch lever to the left, then
open the bonnet fully.
While holding the bonnet open, check
that the locking control A is engaged by
pressing it.
To close
lift the bonnet slightly and pull the release
control A to release it.
l

ower the bonnet and release it at the end
of its travel. Check that the bonnet is fully
latched.
Avoid opening the bonnet in strong winds.
Before doing anything under the
bonnet, switch off the ignition with the
key to avoid any risk of injury resulting from
an automatic change to S
t
ARt mode. Because of the presence of electrical


equipment under the bonnet, it is
recommended that exposure to water (rain,
washing, ...) be limited.
Opening the bonnet

145
Bipper_en_Chap08_verifications_ed02-2014

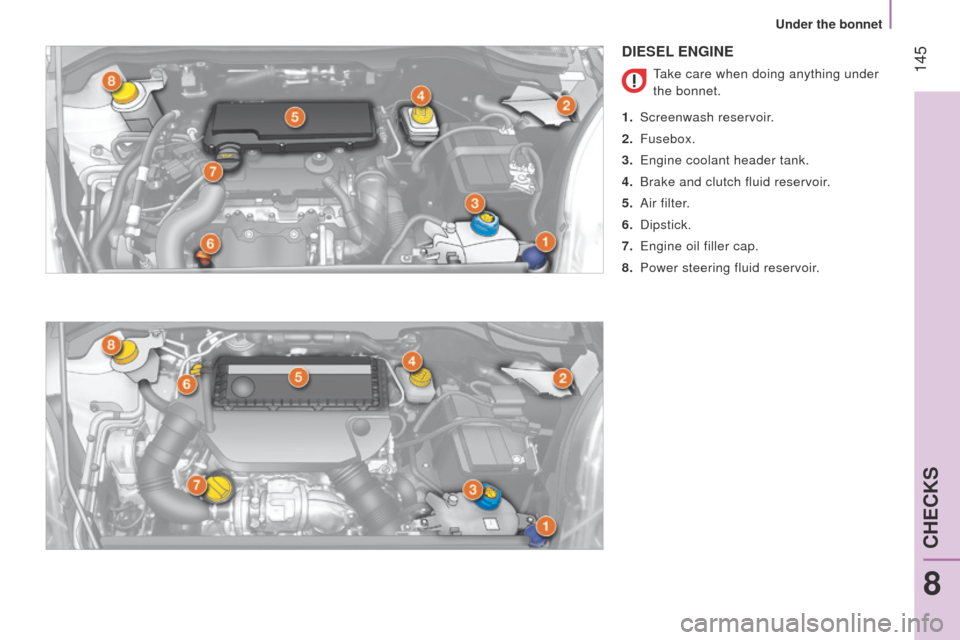

DIESEL ENGINE
take care when doing anything under
the bonnet.
1.

Screenwash reservoir
.
2.

Fusebox.
3.
e
ngine coolant header tank.
4.

Brake and clutch fluid reservoir
.
5.

Air filter
.
6.

Dipstick.
7.
e
ngine oil filler cap.
8.

Power steering fluid reservoir
.
8
CHECKS
Under the bonnet

146
Bipper_en_Chap08_verifications_ed02-2014

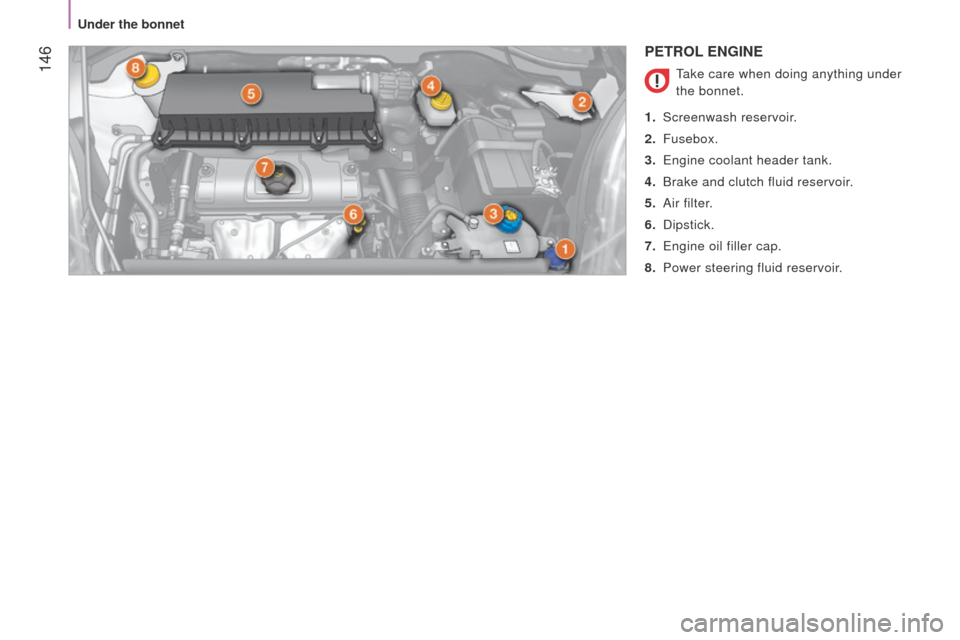

PETROL ENGINE
take care when doing anything under
the bonnet.
1.

Screenwash reservoir
.
2.

Fusebox.
3.
e
ngine coolant header tank.
4.

Brake and clutch fluid reservoir
.
5.

Air filter
.
6.

Dipstick.
7.
e
ngine oil filler cap.
8.

Power steering fluid reservoir
.
Under the bonnet

147
Bipper_en_Chap08_verifications_ed02-2014
these regular maintenance operations will
keep your vehicle in good working order .
Ask for advice from a P
euge O t
dealer or a

qualified workshop or refer to the warranty
and maintenance record provided in the
handbook pack.

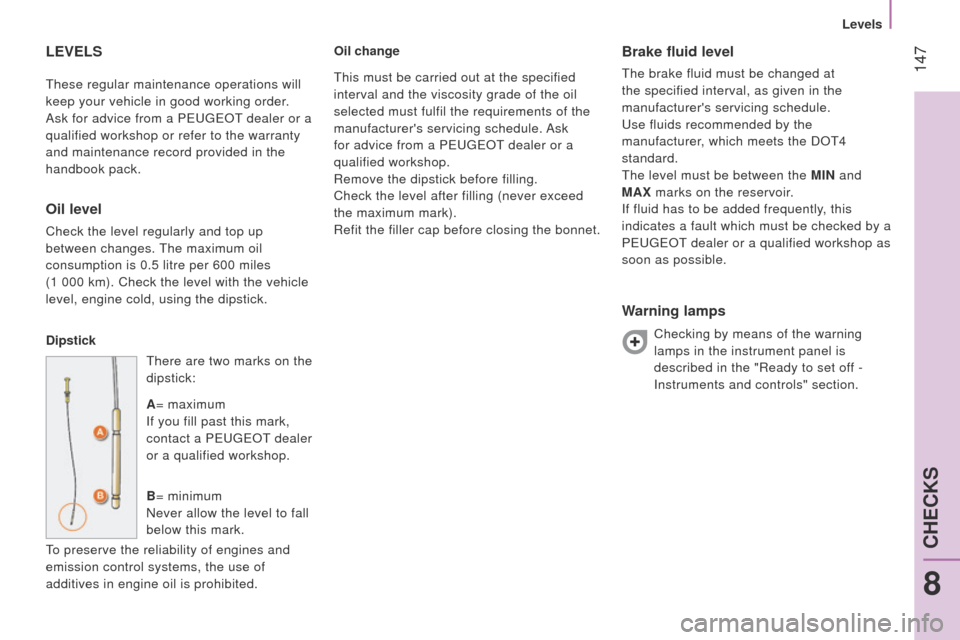

LEVELS
Oil level
Check the level regularly and top up
between changes.
t
he maximum oil
consumption is 0.5 litre per 600 miles
(1 000
km). Check the level with the vehicle
level, engine cold, using the dipstick.
Dipstick
t

here are two marks on the
dipstick:
A = maximum
If you fill past this mark,
contact a P
euge O t
dealer

or a qualified workshop.
B = minimum
Never allow the level to fall
below this mark.
to preserve the reliability of engines and


emission control systems, the use of
additives in engine oil is prohibited. Oil change
Brake fluid level
the brake fluid must be changed at
the specified interval, as given in the
manufacturer's servicing schedule.
u

se fluids recommended by the
manufacturer, which meets the DO
t 4
standard.
t

he level must be between the MIN and
MAX marks on the reservoir.
If fluid has to be added frequently, this
indicates a fault which must be checked by a
P
euge O t
dealer or a qualified workshop as

soon as possible.
Warning lamps
Checking by means of the warning
lamps in the instrument panel is
described in the "Ready to set off -
Instruments and controls" section.
t

his must be carried out at the specified
interval and the viscosity grade of the oil
selected must fulfil the requirements of the
manufacturer's servicing schedule. Ask
for advice from a P
euge
O
t
dealer or a


qualified workshop.
Remove the dipstick before filling.
Check the level after filling (never exceed
the maximum mark).
Refit the filler cap before closing the bonnet.
8
CHECKS
Levels

148
Bipper_en_Chap08_verifications_ed02-2014

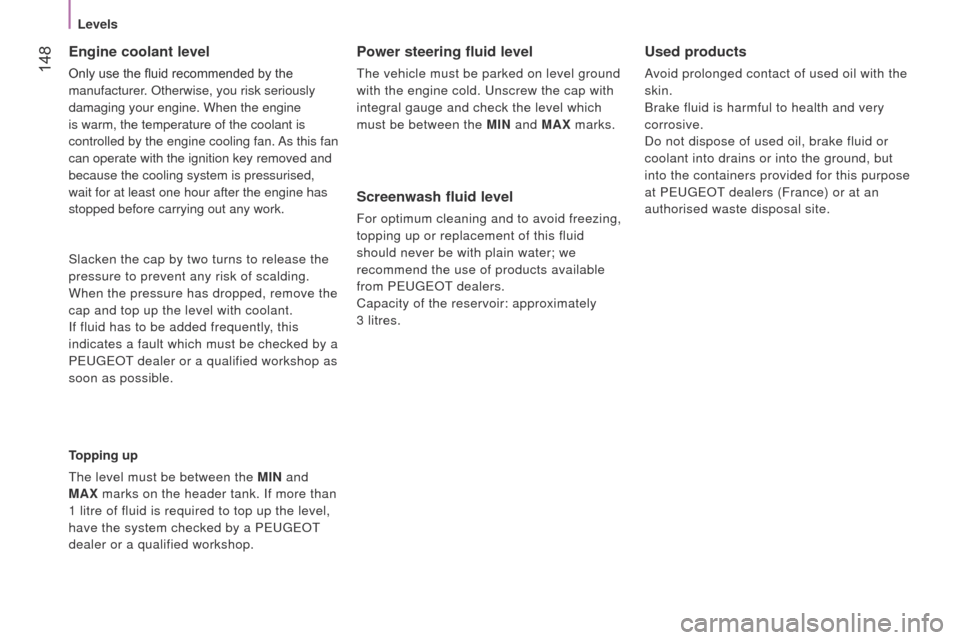

Engine coolant level
Only use the fluid recommended by the
manufacturer. Otherwise, you risk seriously
damaging your engine. When the engine
is warm, the temperature of the coolant is
controlled by the engine cooling fan. As this fan
can operate with the ignition key removed and
because the cooling system is pressurised,
wait for at least one hour after the engine has
stopped before carrying out any work.
Topping up
t
he level must be between the MIN and
MAX marks on the header tank. If more than
1 litre of fluid is required to top up the level,
have the system checked by a P
euge O t

dealer or a qualified workshop.
Power steering fluid level
the vehicle must be parked on level ground
with the engine cold. u nscrew the cap with
integral gauge and check the level which
must be between the MIN and MAX marks.
Screenwash fluid level
For optimum cleaning and to avoid freezing,
topping up or replacement of this fluid
should never be with plain water; we
recommend the use of products available
from P
euge O t
dealers.
Capacity of the reservoir: approximately


3
litres.
Slacken the cap by two turns to release the
pressure to prevent any risk of scalding.
When the pressure has dropped, remove the
cap and top up the level with coolant.
If fluid has to be added frequently, this
indicates a fault which must be checked by a
P
euge
O
t
dealer or a qualified workshop as


soon as possible.
Used products
Avoid prolonged contact of used oil with the
skin.
Brake fluid is harmful to health and very
corrosive.
Do not dispose of used oil, brake fluid or
coolant into drains or into the ground, but
into the containers provided for this purpose
at P
euge O t
dealers (France) or at an

authorised waste disposal site.
Levels
