Peugeot Bipper 2014.5 Owner's Manual - RHD (UK, Australia)

169
Bipper_en_Chap09_aide-rapide_ed02-2014

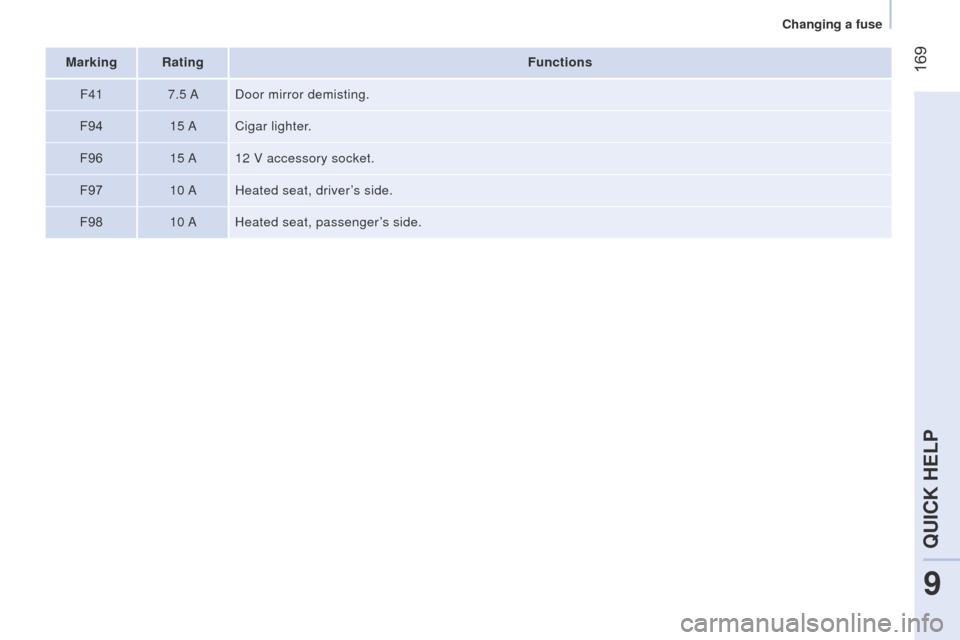

Marking RatingFunctions
F41 7.5 ADoor mirror demisting.
F94 15 ACigar lighter.
F96 15 A12 V accessory socket.
F97 10 AHeated seat, driver’s side.
F98 10 AHeated seat, passenger’s side.
9
QUICK HELP
Changing a fuse

170
Bipper_en_Chap09_aide-rapide_ed02-2014
Marking RatingFunctions
F01 60 AControl unit.
F02 40 APassenger compartment fan.
F03 20 AStarter motor supply.
F04 40 AABS hydraulic block pump supply.
F06 30 ASingle speed cooling fan control.
F07 40 AHigh speed cooling fan control.
F08 30 AAir conditioning compressor.
F09 15 A
towbar harness.
F10 10 AHorn.
F

11 10 A
e

ngine management secondary load supply.
F14 15 AMain beam headlamps.
F15 15 A12 V accessory socket.Table of fuses in the engine
compartment
Changing a fuse

171
Bipper_en_Chap09_aide-rapide_ed02-2014

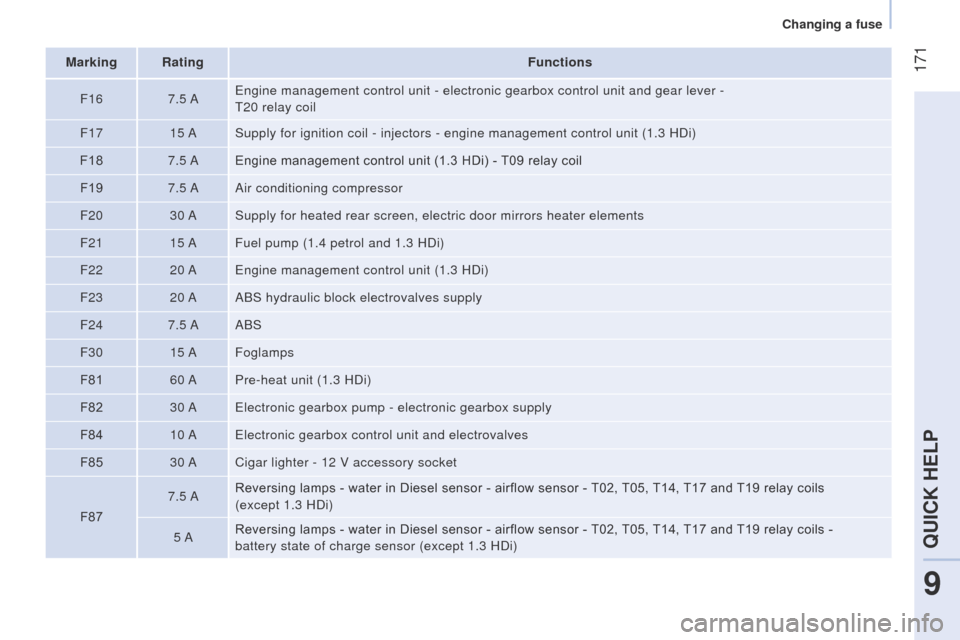

Marking RatingFunctions
F16 7.5 A
e

ngine management control unit - electronic gearbox control unit and gear\
lever -
t

20 relay coil
F17 15 ASupply for ignition coil - injectors - engine management control unit (\
1.3 HDi)
F18 7.5 AEngine management control unit (1.3 HDi) - T09 relay coil
F19 7.5 AAir conditioning compressor
F20 30 ASupply for heated rear screen, electric door mirrors heater elements
F21 15 AFuel pump (1.4 petrol and 1.3 HDi)
F22 20 A
e

ngine management control unit (1.3 HDi)
F23 20 AABS hydraulic block electrovalves supply
F24 7.5 AABS
F30 15 AFoglamps
F81 60 APre-heat unit (1.3 HDi)
F82 30 A
e

lectronic gearbox pump - electronic gearbox supply
F84 10 A
e

lectronic gearbox control unit and electrovalves
F85 30 ACigar lighter - 12 V accessory socket
F87 7.5 A
Reversing lamps - water in Diesel sensor - airflow sensor - T02, T05, T14, T17 and T19 relay coils

(except 1.3 HDi)
5 A Reversing lamps - water in Diesel sensor - airflow sensor - T02, T05, T14, T17 and T19 relay coils -

battery state of charge sensor (except 1.3 HDi)
9
QUICK HELP
Changing a fuse

172
Bipper_en_Chap09_aide-rapide_ed02-2014
TOWING
the removable towing eye is located in the
tool kit behind the driver's seat ( l ight van) or
behind the rear bench seat (Combi).
Towing the vehicle
In the front bumper, unclip the cover on the
right using a flat tool.
Screw the removable towing eye in fully.
t

hen hook the towing arm on the towing
eye.
u

nlock the steering by turning the the
ignition key one notch and release the
parking brake.
Switch on the hazard warning lamps on both
vehicles.
Move off gently and drive slowly, towing for
a short distance only. On the towed vehicle, the gear
lever must be put in neutral; failure
to observe this special condition
may result in damage to certain braking
components (brakes, transmission...) and
the absence of braking assistance when the
engine is started.
Towing another vehicle
In the rear bumper, unclip the cover at the
bottom using a flat tool.
Screw the removable towing eye in fully.
t

hen hook the towing arm on the towing
eye.
Switch on the hazard warning lamps on both
vehicles.
Move off gently and drive slowly, towing for
a short distance only.
General recommendations
Observe the legislation in force in your
country.
e

nsure that the weight of the towing vehicle
is higher than that of the towed vehicle.
t

he driver must remain at the wheel of the
towed vehicle and must have a valid driving
licence.
When towing a vehicle with all four wheels
on the ground, always use an approved
towing arm; rope and straps are prohibited.
t

he towing vehicle must move off gently.
When towing a vehicle with the engine off,
there is no longer any power assistance for
braking or steering.
In the following cases, you must always call
on a professional recovery service:
-

vehicle broken down on a motorway or

fast road,
-

four-wheel drive vehicle,
-


when it is not possible to put the gearbox

into neutral, unlock the steering, or
release the parking brake,
-

towing with only two wheels on the

ground,
-

where there is no approved towing arm

available...
Being towed or towing

173
Bipper_en_Chap09_aide-rapide_ed02-2014
9
QUICK HELP

174
Bipper_en_Chap10_caracteristique_ed02-2014

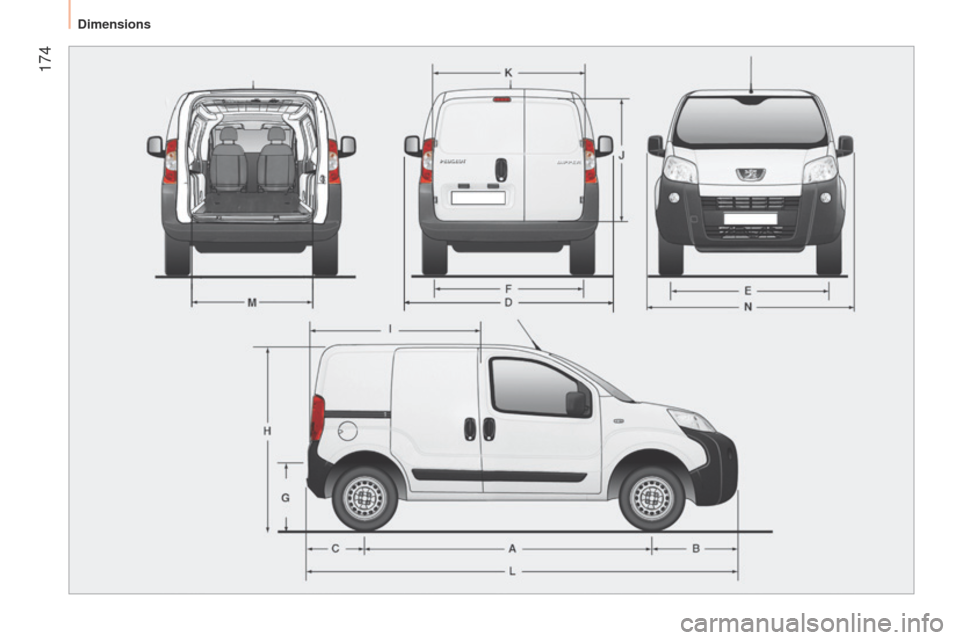

Dimensions

175
Bipper_en_Chap10_caracteristique_ed02-2014

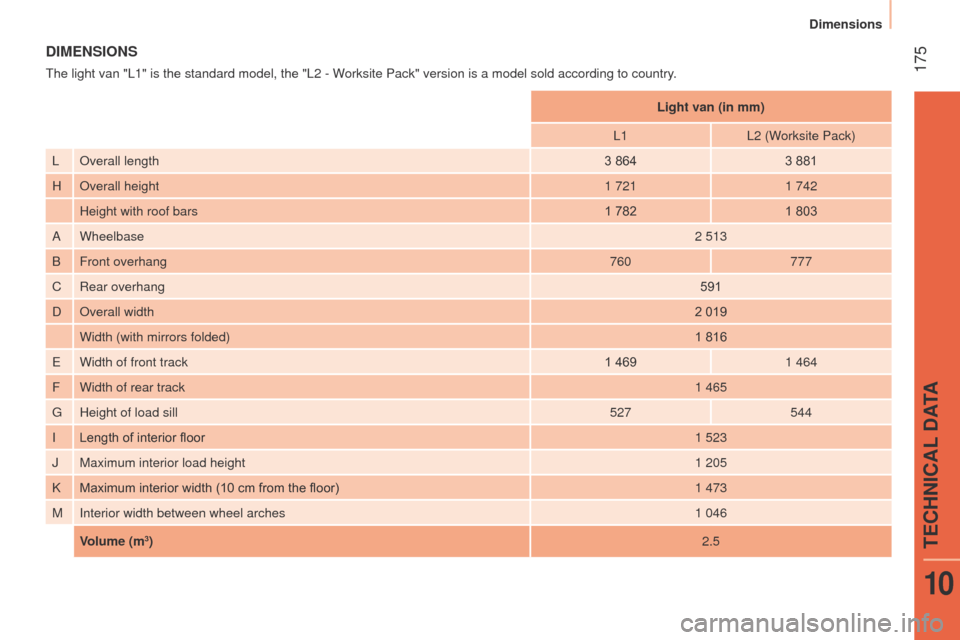

DIMENSIONS
the light van "l1" is the standard model, the "l2 - Worksite Pack" version is a model sold according to country.Light van
(in mm)
l

1
l
2 (Worksite Pack)
lOverall length3 8643 881
H Overall height 1 7211 742
Height with roof bars 1 7821 803
A Wheelbase 2 513
B Front overhang 760777
C Rear overhang 591
D Overall width 2 019
Width (with mirrors folded) 1 816
eWidth of front track1 4691 464
F Width of rear track 1 465
gHeight of load sill527544
I Length of interior floor 1 523
J Maximum interior load height 1 205
K Maximum interior width (10 cm from the floor) 1 473
M Interior width between wheel arches 1 046
V

olume (m
3) 2.5
10
Dimensions
TECHNICAL DATA

176
Bipper_en_Chap10_caracteristique_ed02-2014

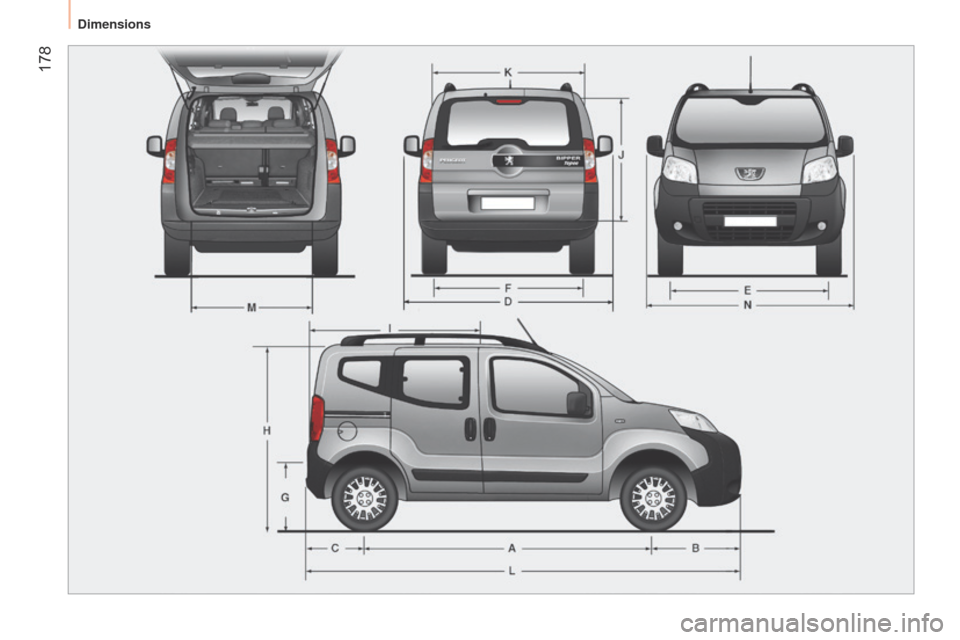

Dimensions

177
Bipper_en_Chap10_caracteristique_ed02-2014

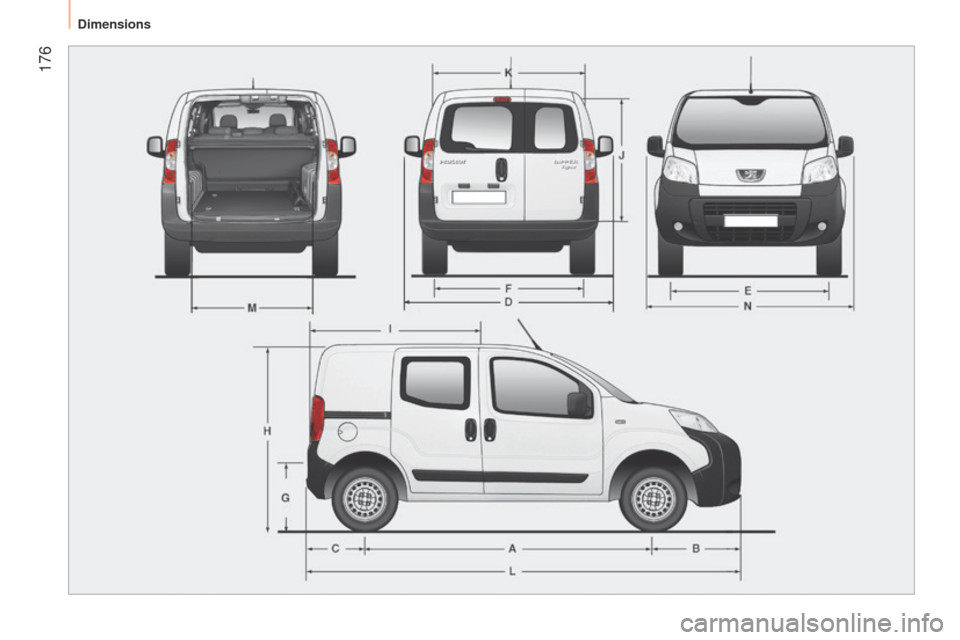

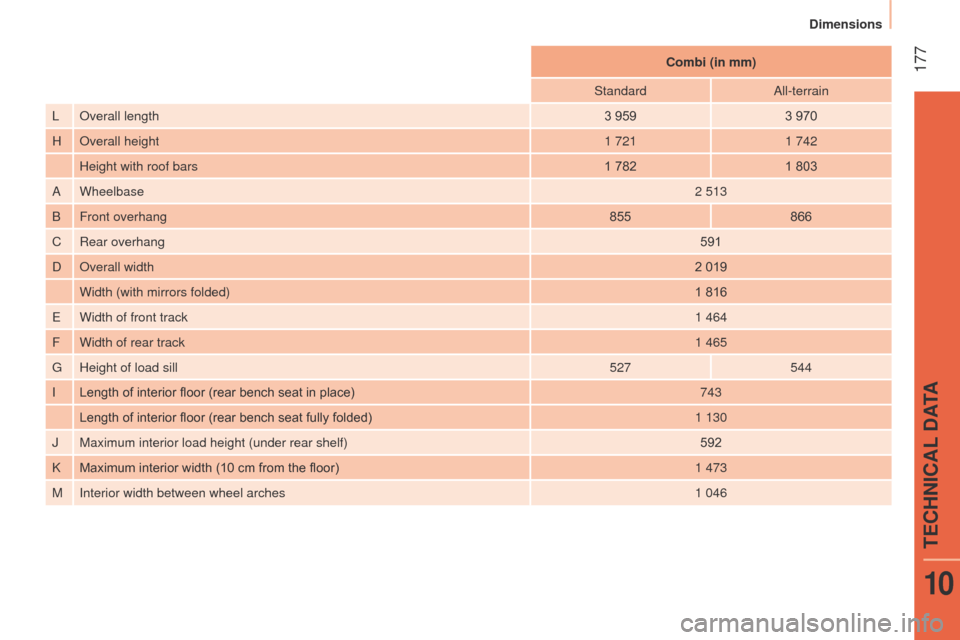

Combi (in mm)
Standard All-terrain
lOverall length 3 9593 970
H Overall height 1 7211 742
Height with roof bars 1 7821 803
A Wheelbase 2 513
B Front overhang 855866
C Rear overhang 591
D Overall width 2 019
Width (with mirrors folded) 1 816
eWidth of front track1 464
F Width of rear track 1 465
gHeight of load sill527544
I Length of interior floor (rear bench seat in place) 743
Length of interior floor (rear bench seat fully folded) 1 130
J Maximum interior load height (under rear shelf) 592
K Maximum interior width (10 cm from the floor) 1 473
M Interior width between wheel arches 1 046
10
Dimensions
TECHNICAL DATA

178
Bipper_en_Chap10_caracteristique_ed02-2014
Dimensions
