Peugeot Bipper 2014 Owner's Guide
Manufacturer: PEUGEOT, Model Year: 2014, Model line: Bipper, Model: Peugeot Bipper 2014Pages: 192, PDF Size: 11.02 MB
Page 21 of 192

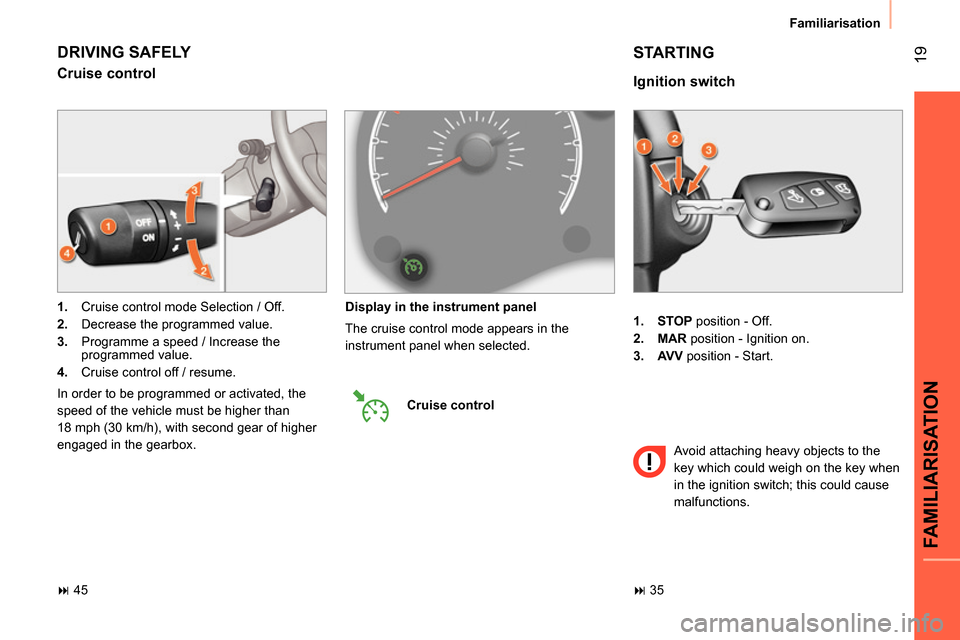

19
FAMILIARISATION
Familiarisation
1.
STOP
position - Off.
2.
MAR
position - Ignition on.
3.
AV V
position - Start.
Ignition switch
STARTING
Avoid attaching heavy objects to the
key which could weigh on the key when
in the ignition switch; this could cause
malfunctions.
DRIVING SAFELY
Cruise control
1.
Cruise control mode Selection / Off.
2.
Decrease the programmed value.
3.
Programme a speed / Increase the
programmed value.
4.
Cruise control off / resume.
In order to be programmed or activated, the
speed of the vehicle must be higher than
18 mph (30 km/h), with second gear of higher
engaged in the gearbox.
Display in the instrument panel
The cruise control mode appears in the
instrument panel when selected.
Cruise control
45 35
Page 22 of 192
20

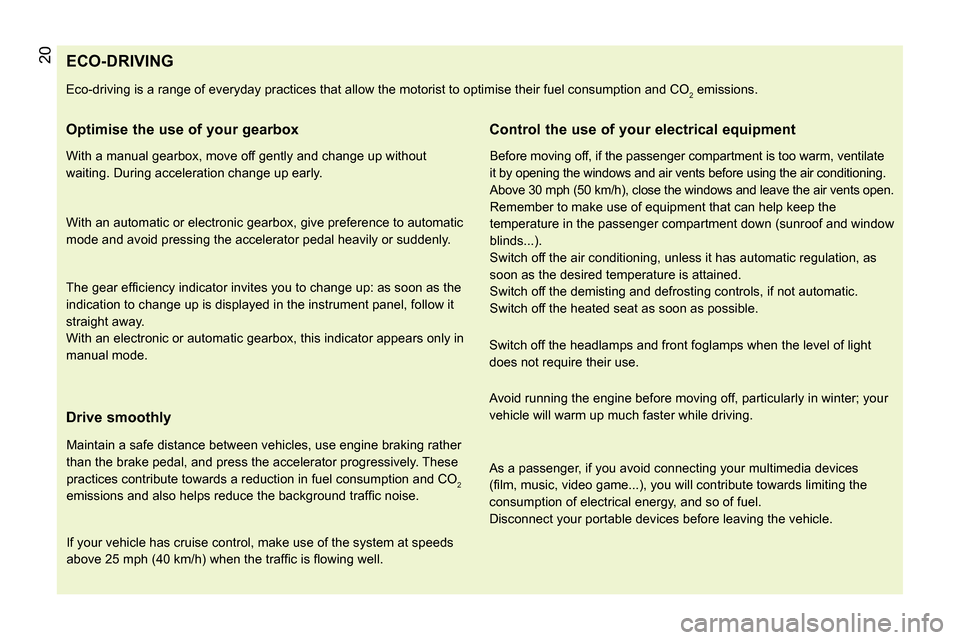

ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
Optimise the use of your gearbox
With a manual gearbox, move off gently and change up without
waiting. During acceleration change up early.
With an automatic or electronic gearbox, give preference to automatic
mode and avoid pressing the accelerator pedal heavily or suddenly.
The gear effi ciency indicator invites you to change up: as soon as the
indication to change up is displayed in the instrument panel, follow it
straight away.
With an electronic or automatic gearbox, this indicator appears only in
manual mode.
Drive smoothly
Maintain a safe distance between vehicles, use engine braking rather
than the brake pedal, and press the accelerator progressively. These
practices contribute towards a reduction in fuel consumption and CO
2
emissions and also helps reduce the background traffi c noise.
If your vehicle has cruise control, make use of the system at speeds
above 25 mph (40 km/h) when the traffi c is fl owing well.
Control the use of your electrical equipment
Before moving off, if the passenger compartment is too warm, ventilate
it by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (sunroof and window
blinds...).
Switch off the air conditioning, unless it has automatic regulation, as
soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglamps when the level of light
does not require their use.
Avoid running the engine before moving off, particularly in winter; your
vehicle will warm up much faster while driving.
As a passenger, if you avoid connecting your multimedia devices
(fi lm, music, video game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.
Page 23 of 192
21

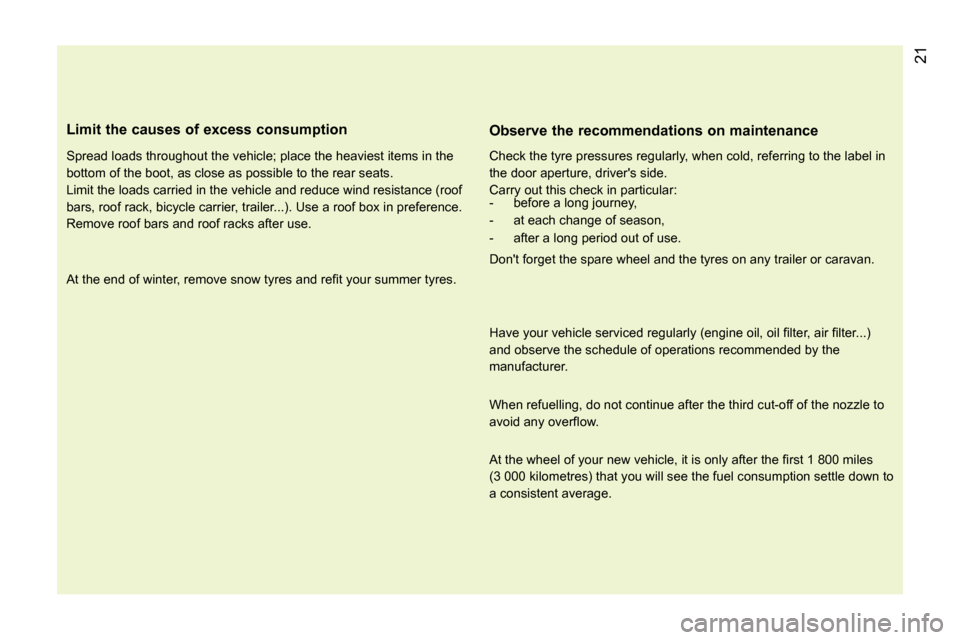

Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance (roof
bars, roof rack, bicycle carrier, trailer...). Use a roof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refi t your summer tyres.
Observe the recommendations on maintenance
Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
- before a long journey,
- at each change of season,
- after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil fi lter, air fi lter...)
and observe the schedule of operations recommended by the
manufacturer.
When refuelling, do not continue after the third cut-off of the nozzle to
avoid any overfl ow.
At the wheel of your new vehicle, it is only after the fi rst 1 800 miles
(3 000 kilometres) that you will see the fuel consumption settle down to
a consistent average.
Page 24 of 192
22

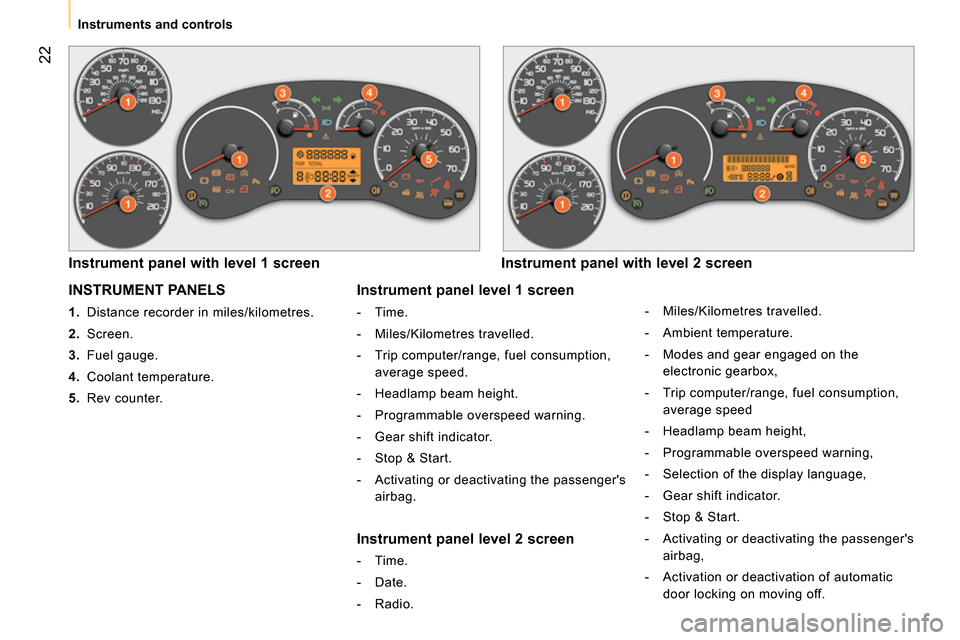

Instruments and controls
INSTRUMENT PANELS
1.
Distance recorder in miles/kilometres.
2.
Screen.
3.
Fuel gauge.
4.
Coolant temperature.
5.
Rev counter.
Instrument panel with level 1 screen
Instrument panel with level 2 screen
Instrument panel level 1 screen
- Time.
- Miles/Kilometres travelled.
- Trip computer/range, fuel consumption,
average speed.
- Headlamp beam height.
- Programmable overspeed warning.
- Gear shift indicator.
- Stop & Start.
- Activating or deactivating the passenger's
airbag.
Instrument panel level 2 screen
- Time.
- Date.
- Radio.
- Miles/Kilometres travelled.
- Ambient temperature.
- Modes and gear engaged on the
electronic gearbox,
- Trip computer/range, fuel consumption,
average speed
- Headlamp beam height,
- Programmable overspeed warning,
- Selection of the display language,
- Gear shift indicator.
- Stop & Start.
- Activating or deactivating the passenger's
airbag,
- Activation or deactivation of automatic
door locking on moving off.
Page 25 of 192
23
1
READY TO SET OFF
Instruments and controls

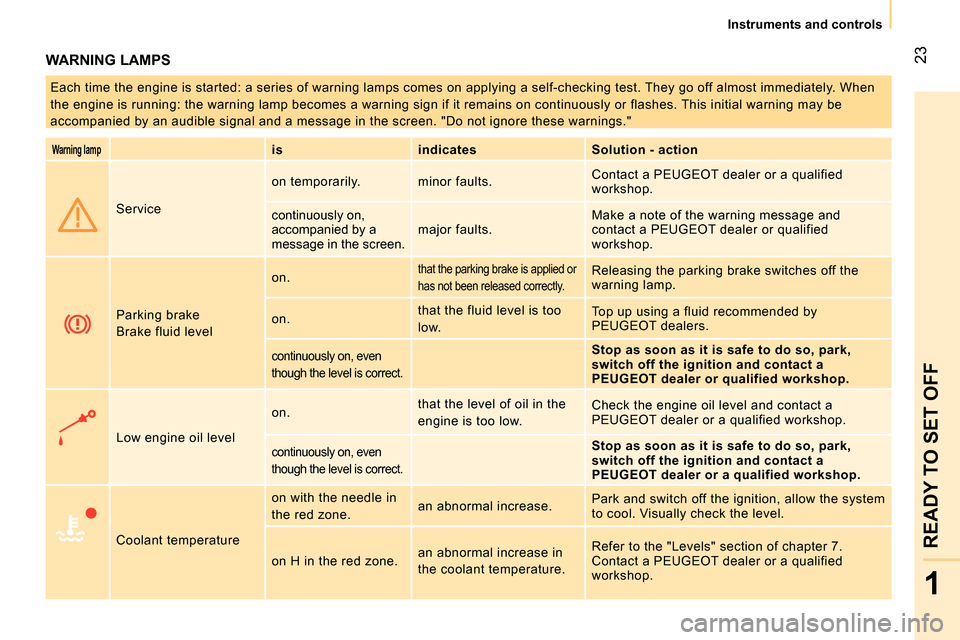

WARNING LAMPS
Each time the engine is started: a series of warning lamps comes on applying a self-checking test. They go off almost immediately. When
the engine is running: the warning lamp becomes a warning sign if it remains on continuously or flashes. This initial warning may be
accompanied by an audible signal and a message in the screen. "Do not ignore these warnings."
Warning lamp
is
indicates
Solution - action
Service on temporarily. minor faults. Contact a PEUGEOT dealer or a qualified
workshop.
continuously on,
accompanied by a
message in the screen. major faults. Make a note of the warning message and
contact a PEUGEOT dealer or qualified
workshop.
Parking brake
Brake fluid level on.
that the parking brake is applied or
has not been released correctly. Releasing the parking brake switches off the
warning lamp.
on. that the fluid level is too
low. Top up using a fluid recommended by
PEUGEOT dealers.
continuously on, even
though the level is correct.
Stop as soon as it is safe to do so, park,
switch off the ignition and contact a
PEUGEOT dealer or qualified workshop.
Low engine oil level on. that the level of oil in the
engine is too low. Check the engine oil level and contact a
PEUGEOT dealer or a qualified workshop.
continuously on, even
though the level is correct.
Stop as soon as it is safe to do so, park,
switch off the ignition and contact a
PEUGEOT dealer or a qualified workshop.
Coolant temperature on with the needle in
the red zone. an abnormal increase. Park and switch off the ignition, allow the system
to cool. Visually check the level.
on H in the red zone. an abnormal increase in
the coolant temperature. Refer to the "Levels" section of chapter 7.
Contact a PEUGEOT dealer or a qualified
workshop.
Page 26 of 192
24
Instruments and controls
Warning lamp
is
indicates
Solution - action

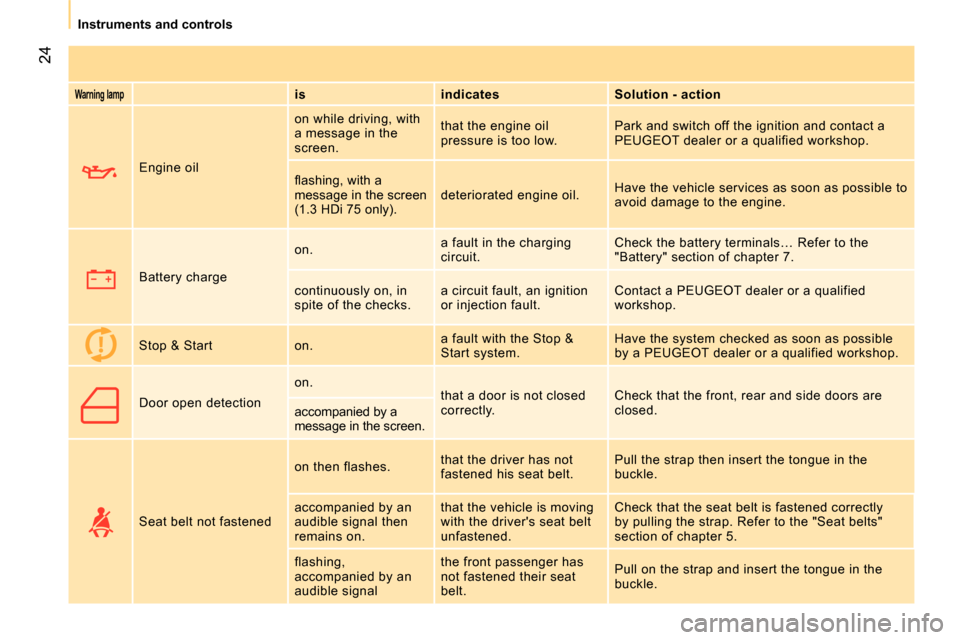

Engine oil on while driving, with
a message in the
screen. that the engine oil
pressure is too low. Park and switch off the ignition and contact a
PEUGEOT dealer or a qualified workshop.
fl ashing, with a
message in the screen
(1.3 HDi 75 only). deteriorated engine oil. Have the vehicle services as soon as possible to
avoid damage to the engine.
Battery charge on. a fault in the charging
circuit. Check the battery terminals… Refer to the
"Battery" section of chapter 7.
continuously on, in
spite of the checks. a circuit fault, an ignition
or injection fault. Contact a PEUGEOT dealer or a qualified
workshop.
Stop & Start on. a fault with the Stop &
Start system. Have the system checked as soon as possible
by a PEUGEOT dealer or a qualified workshop.
Door open detection on.
that a door is not closed
correctly. Check that the front, rear and side doors are
closed.
accompanied by a
message in the screen.
Seat belt not fastened on then flashes. that the driver has not
fastened his seat belt. Pull the strap then insert the tongue in the
buckle.
accompanied by an
audible signal then
remains on. that the vehicle is moving
with the driver's seat belt
unfastened. Check that the seat belt is fastened correctly
by pulling the strap. Refer to the "Seat belts"
section of chapter 5.
flashing,
accompanied by an
audible signal the front passenger has
not fastened their seat
belt. Pull on the strap and insert the tongue in the
buckle.
Page 27 of 192
25
1
READY TO SET OFF
Instruments and controls
Warning lamp
is
indicates
Solution - action

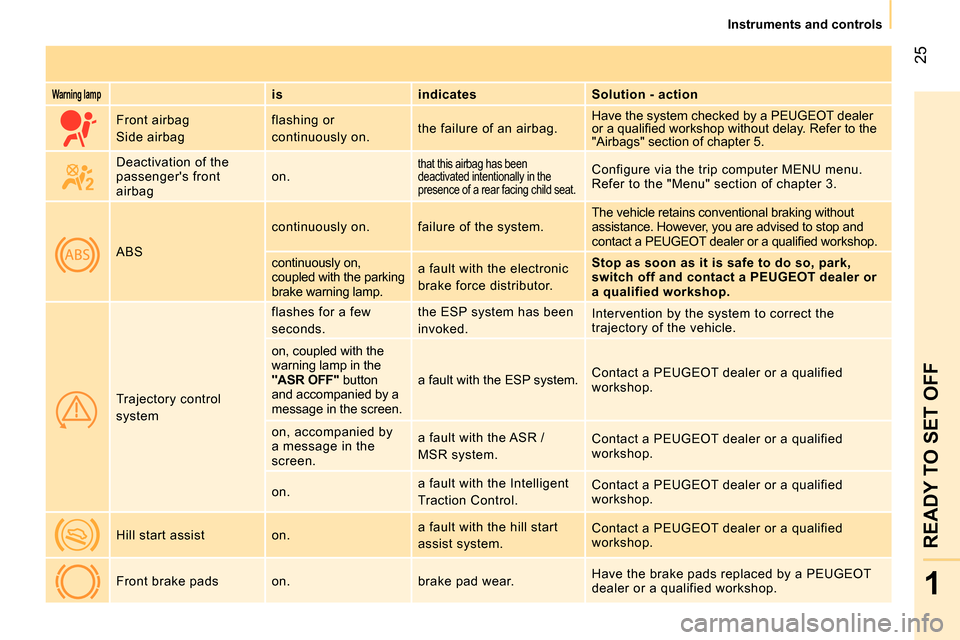

Front airbag
Side airbag flashing or
continuously on. the failure of an airbag. Have the system checked by a PEUGEOT dealer
or a qualifi ed workshop without delay. Refer to the
"Airbags" section of chapter 5.
Deactivation of the
passenger's front
airbag on.
that this airbag has been
deactivated intentionally in the
presence of a rear facing child seat. Configure via the trip computer MENU menu.
Refer to the "Menu" section of chapter 3.
ABS continuously on. failure of the system. The vehicle retains conventional braking without
assistance. However, you are advised to stop and
contact a PEUGEOT dealer or a qualifi ed workshop.
continuously on,
coupled with the parking
brake warning lamp. a fault with the electronic
brake force distributor.
Stop as soon as it is safe to do so, park,
switch off and contact a PEUGEOT dealer or
a qualified workshop.
Trajectory control
system flashes for a few
seconds. the ESP system has been
invoked. Intervention by the system to correct the
trajectory of the vehicle.
on, coupled with the
warning lamp in the
"ASR OFF"
button
and accompanied by a
message in the screen. a fault with the ESP system. Contact a PEUGEOT dealer or a qualified
workshop.
on, accompanied by
a message in the
screen. a fault with the ASR /
MSR system. Contact a PEUGEOT dealer or a qualified
workshop.
on. a fault with the Intelligent
Traction Control. Contact a PEUGEOT dealer or a qualified
workshop.
Hill start assist on. a fault with the hill start
assist system. Contact a PEUGEOT dealer or a qualified
workshop.
Front brake pads on. brake pad wear. Have the brake pads replaced by a PEUGEOT
dealer or a qualified workshop.
Page 28 of 192
26
Instruments and controls
Warning lamp
is
indicates
Solution - action

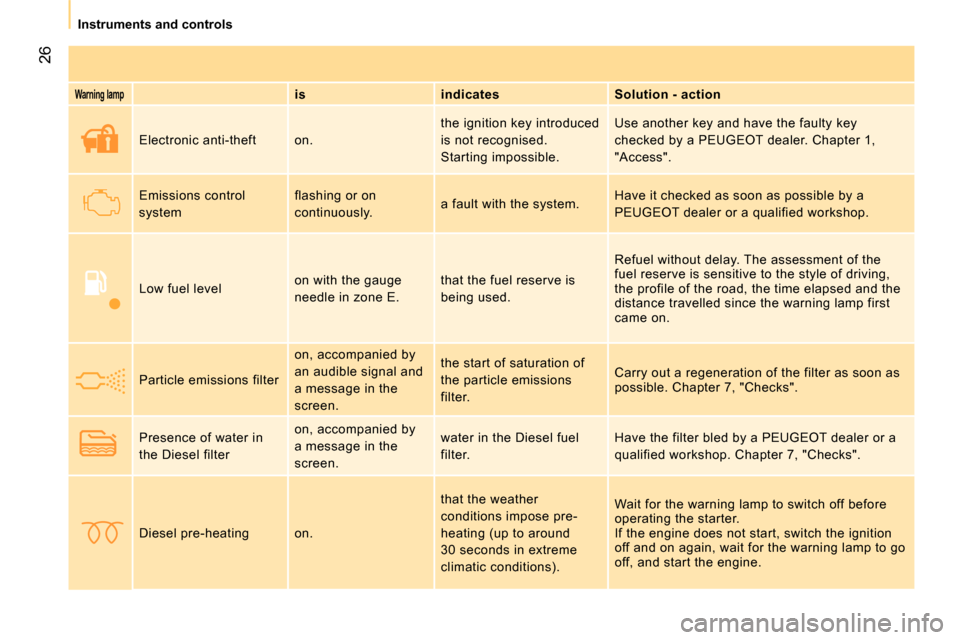

Electronic anti-theft on. the ignition key introduced
is not recognised.
Starting impossible. Use another key and have the faulty key
checked by a PEUGEOT dealer. Chapter 1,
"Access".
Emissions control
system flashing or on
continuously. a fault with the system. Have it checked as soon as possible by a
PEUGEOT dealer or a qualified workshop.
Low fuel level on with the gauge
needle in zone E. that the fuel reserve is
being used. Refuel without delay. The assessment of the
fuel reserve is sensitive to the style of driving,
the profile of the road, the time elapsed and the
distance travelled since the warning lamp first
came on.
Particle emissions filter on, accompanied by
an audible signal and
a message in the
screen. the start of saturation of
the particle emissions
filter. Carry out a regeneration of the filter as soon as
possible. Chapter 7, "Checks".
Presence of water in
the Diesel filter on, accompanied by
a message in the
screen. water in the Diesel fuel
filter. Have the filter bled by a PEUGEOT dealer or a
qualified workshop. Chapter 7, "Checks".
Diesel pre-heating on. that the weather
conditions impose pre-
heating (up to around
30 seconds in extreme
climatic conditions). Wait for the warning lamp to switch off before
operating the starter.
If the engine does not start, switch the ignition
off and on again, wait for the warning lamp to go
off, and start the engine.
Page 29 of 192

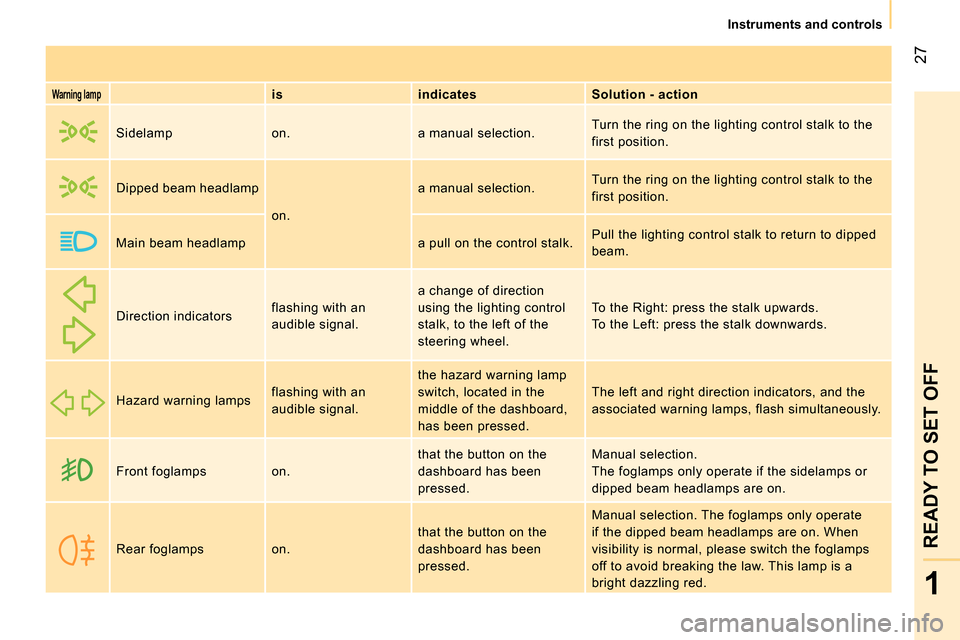

27
1
READY TO SET OFF
Instruments and controls
Warning lamp
is
indicates
Solution - action
Sidelamp on. a manual selection. Turn the ring on the lighting control stalk to the
first position.
Dipped beam headlamp
on. a manual selection. Turn the ring on the lighting control stalk to the
first position.
Main beam headlamp a pull on the control stalk. Pull the lighting control stalk to return to dipped
beam.
Direction indicators flashing with an
audible signal. a change of direction
using the lighting control
stalk, to the left of the
steering wheel. To the Right: press the stalk upwards.
To the Left: press the stalk downwards.
Hazard warning lamps flashing with an
audible signal. the hazard warning lamp
switch, located in the
middle of the dashboard,
has been pressed. The left and right direction indicators, and the
associated warning lamps, flash simultaneously.
Front foglamps on. that the button on the
dashboard has been
pressed. Manual selection.
The foglamps only operate if the sidelamps or
dipped beam headlamps are on.
Rear foglamps on. that the button on the
dashboard has been
pressed. Manual selection. The foglamps only operate
if the dipped beam headlamps are on. When
visibility is normal, please switch the foglamps
off to avoid breaking the law. This lamp is a
bright dazzling red.
Page 30 of 192

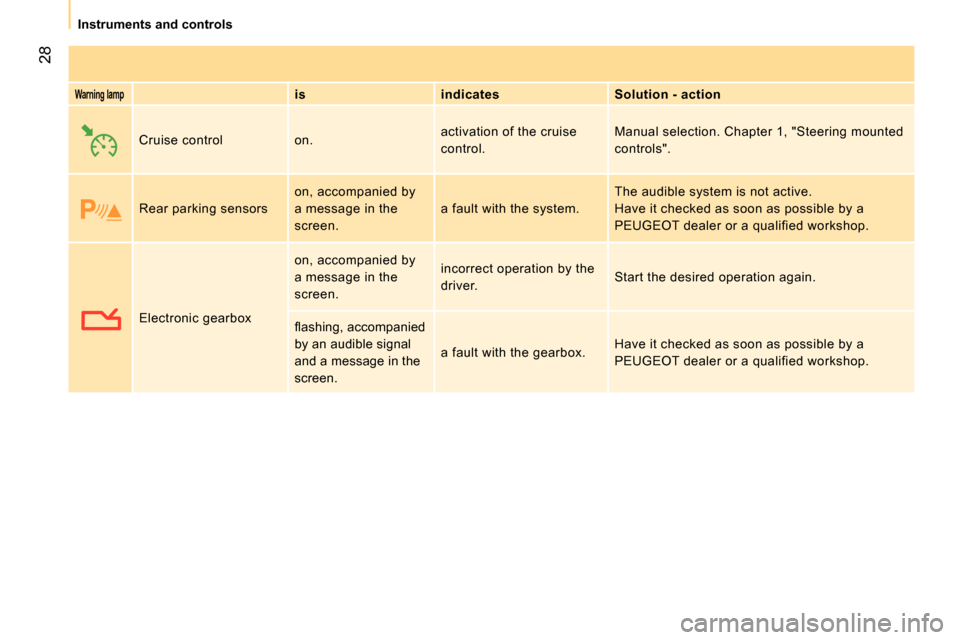

28
Instruments and controls
Warning lamp
is
indicates
Solution - action
Cruise control on. activation of the cruise
control. Manual selection. Chapter 1, "Steering mounted
controls" .
Rear parking sensors on, accompanied by
a message in the
screen. a fault with the system. The audible system is not active.
Have it checked as soon as possible by a
PEUGEOT dealer or a qualified workshop.
Electronic gearbox on, accompanied by
a message in the
screen. incorrect operation by the
driver. Start the desired operation again.
fl ashing, accompanied
by an audible signal
and a message in the
screen. a fault with the gearbox. Have it checked as soon as possible by a
PEUGEOT dealer or a qualified workshop.
