HANDBOOK
Page 2 of 192

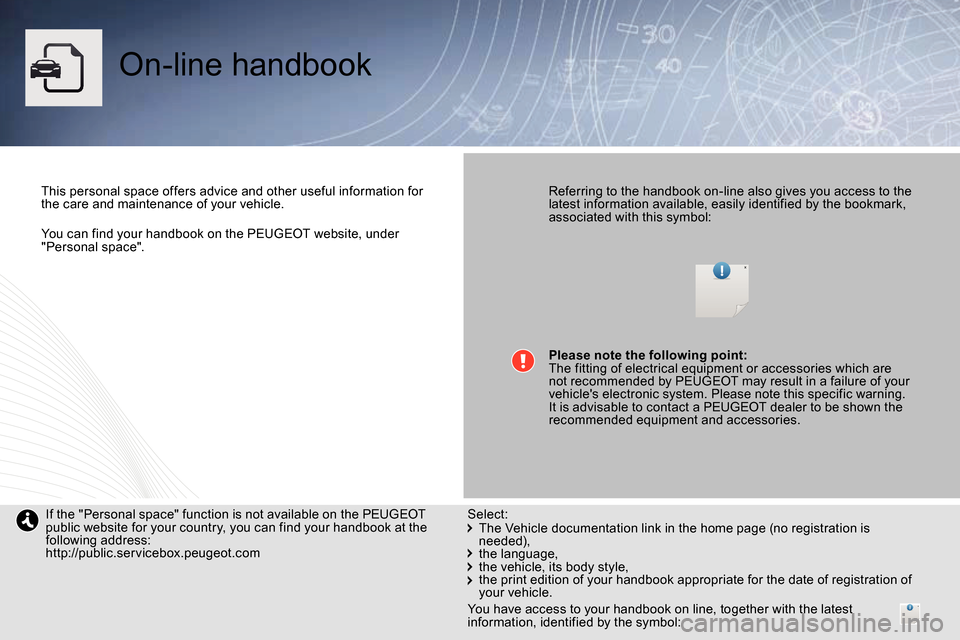

You can find your handbook on the PEUGEOT website, under
"Personal space".
On-line handbook
This personal space offers advice and other useful information for
the care and maintenance of your vehicle.
Referring to the handbook on-line also gives you access to the
latest information available, easily identified by the bookmark,
associated with this symbol:
If the "Personal space" function is not available on the PEUGEOT
public website for your country, you can find your handbook at the
following address:
http://public.servicebox.peugeot.com The Vehicle documentation link in the home page (no registration is
needed),
the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of registration of
your vehicle.
Please note the following point:
The fitting of electrical equipment or accessories which are
not recommended by PEUGEOT may result in a failure of your
vehicle's electronic system. Please note this specific warning.
It is advisable to contact a PEUGEOT dealer to be shown the
recommended equipment and accessories.
Select:
You have access to your handbook on line, together with the latest
information, identified by the symbol:
Page 3 of 192

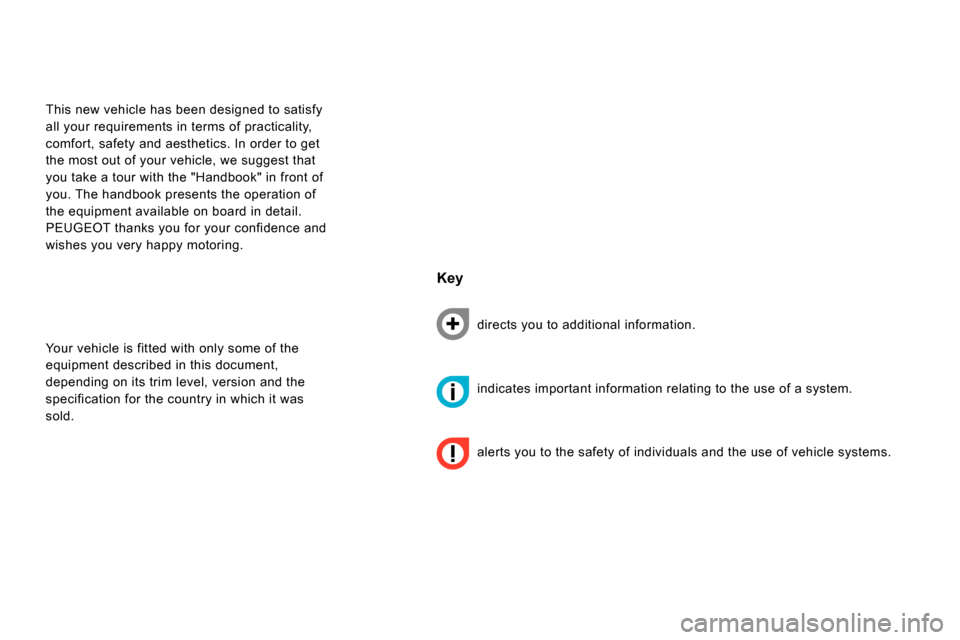

This new vehicle has been designed to satisfy
all your requirements in terms of practicality,
comfort, safety and aesthetics. In order to get
the most out of your vehicle, we suggest that
you take a tour with the "Handbook" in front of
you. The handbook presents the operation of
the equipment available on board in detail.
PEUGEOT thanks you for your confidence and
wishes you very happy motoring.
Your vehicle is fitted with only some of the
equipment described in this document,
depending on its trim level, version and the
specification for the country in which it was
sold.
Key
directs you to additional information.
indicates important information relating to the use of a system.
alerts you to the safety of individuals and the use of vehicle systems.
Page 4 of 192
2

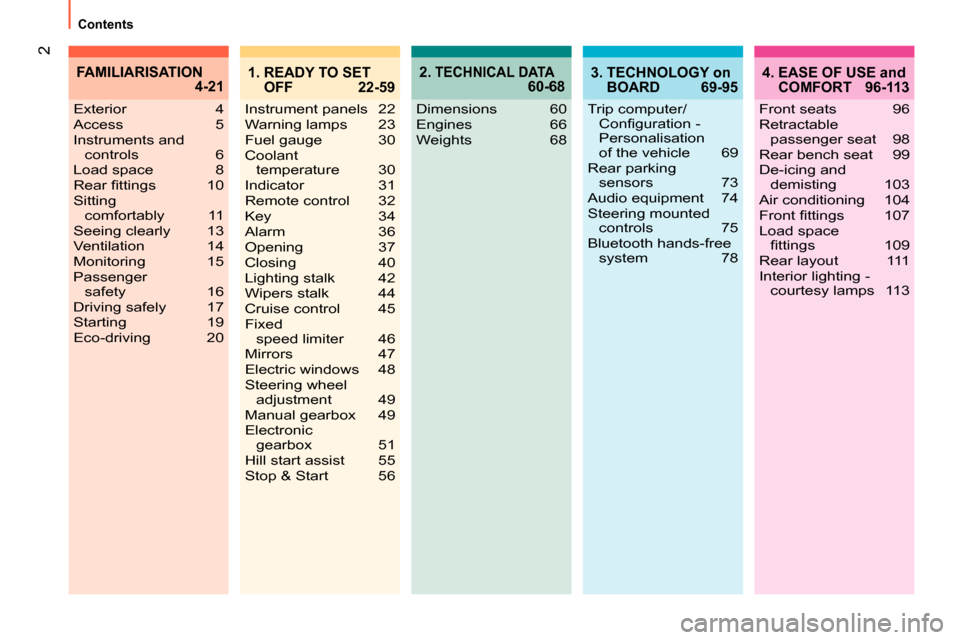

Contents
2. TECHNICAL DATA 60-684. EASE OF USE and
COMFORT 96-113
Dimensions 60
Engines 66
Weights 68 Exterior 4
Access 5
Instruments and
controls 6
Load space 8
Rear fi ttings 10
Sitting
comfortably 11
Seeing clearly 13
Ventilation 14
Monitoring 15
Passenger
safety 16
Driving safely 17
Starting 19
Eco-driving 20
FAMILIARISATION
4-21
Front seats 96
Retractable
passenger seat 98
Rear bench seat 99
De-icing and
demisting 103
Air conditioning 104
Front fi ttings 107
Load space
fi ttings 109
Rear layout 111
Interior lighting -
courtesy lamps 113
3. TECHNOLOGY on
BOARD 69-95
Trip computer/
Confi guration -
Personalisation
of the vehicle 69
Rear parking
sensors 73
Audio equipment 74
Steering mounted
controls 75
Bluetooth hands-free
system 78
1. READY TO SET
OFF 22-59
Instrument panels 22
Warning lamps 23
Fuel gauge 30
Coolant
temperature 30
Indicator 31
Remote control 32
Key 34
Alarm 36
Opening 37
Closing 40
Lighting stalk 42
Wipers stalk 44
Cruise control 45
Fixed
speed limiter 46
Mirrors 47
Electric windows 48
Steering wheel
adjustment 49
Manual gearbox 49
Electronic
gearbox 51
Hill start assist 55
Stop & Start 56
Page 5 of 192
3

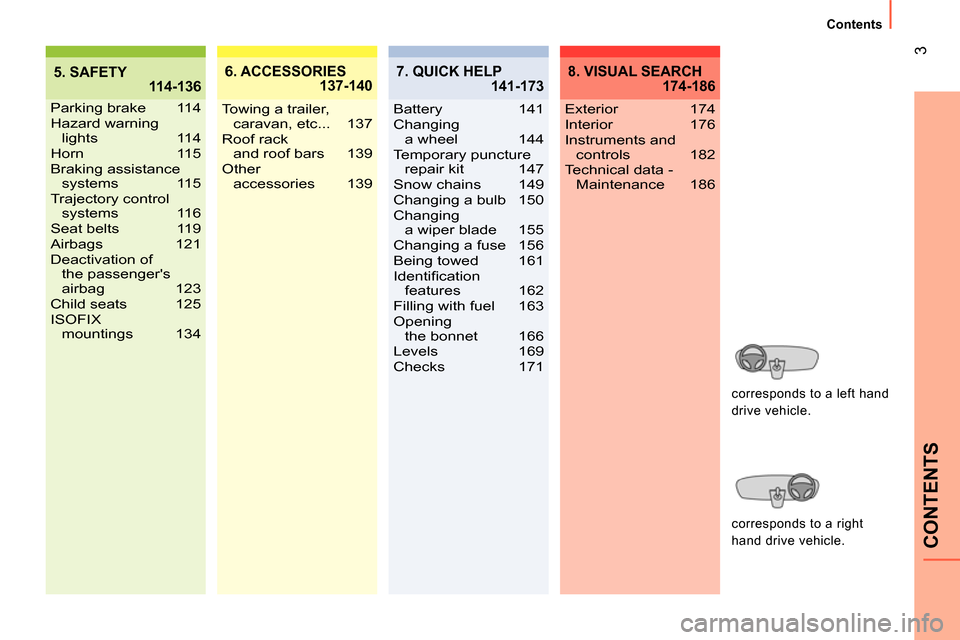

CONTENTS
Contents
5. SAFETY
114-1366. ACCESSORIES
137-140
Parking brake 114
Hazard warning
lights 114
Horn 115
Braking assistance
systems 115
Trajectory control
systems 116
Seat belts 119
Airbags 121
Deactivation of
the passenger's
airbag 123
Child seats 125
ISOFIX
mountings 134Towing a trailer,
caravan, etc... 137
Roof rack
and roof bars 139
Other
accessories 139
7. QUICK HELP
141-173
Battery 141
Changing
a wheel 144
Temporary puncture
repair kit 147
Snow chains 149
Changing a bulb 150
Changing
a wiper blade 155
Changing a fuse 156
Being towed 161
Identifi cation
features 162
Filling with fuel 163
Opening
the bonnet 166
Levels 169
Checks 171
8. VISUAL SEARCH
174-186
Exterior 174
Interior 176
Instruments and
controls 182
Technical data -
Maintenance 186
corresponds to a left hand
drive vehicle.
corresponds to a right
hand drive vehicle.
Page 6 of 192
4
Familiarisation
EXTERIOR
Roof rack and roof bars
Fixing points are provided on each side of the
roof for securing the roof rack or the transverse
roof bars.
Opening the hinged rear doors to 180°
Once the vehicle has been unlocked, the
hinged rear doors can be opened to 180° to
make unloading / loading operations easier.
Rear parking sensors
This system warns you, by means of an
audible signal, if an obstacle is detected
behind the vehicle when reverse gear is
engaged.
Stop & Start
This system puts the engine temporarily into standby during stops
in the traffi c (red lights, traffi c jams, etc...). The engine restarts
automatically as soon as you want to move off. Stop & Start
reduces fuel consumption and exhaust emissions, and gives the
comfort of total silence when stationary. 139
56 73
38
Page 7 of 192
5
FAMILIARISATION
Familiarisation

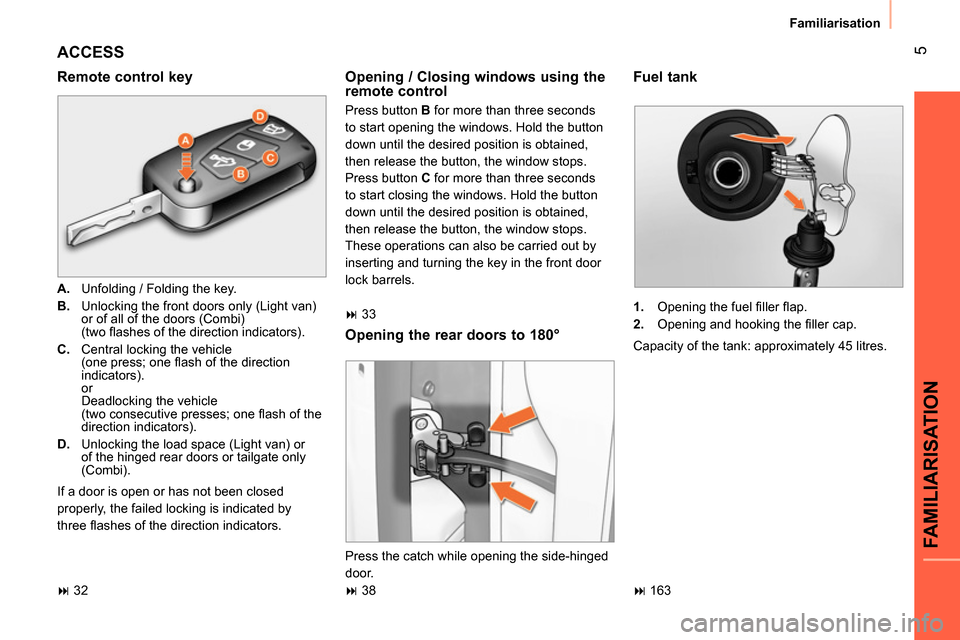

ACCESS
Remote control key
A.
Unfolding / Folding the key.
B.
Unlocking the front doors only (Light van)
or of all of the doors (Combi)
(two fl ashes of the direction indicators).
C.
Central locking the vehicle
(one press; one fl ash of the direction
indicators).
or
Deadlocking the vehicle
(two consecutive presses; one fl ash of the
direction indicators).
D.
Unlocking the load space (Light van) or
of the hinged rear doors or tailgate only
(Combi).
If a door is open or has not been closed
properly, the failed locking is indicated by
three fl ashes of the direction indicators.
Opening the rear doors to 180°
Press the catch while opening the side-hinged
door.
Opening / Closing windows using the
remote control
Press button B
for more than three seconds
to start opening the windows. Hold the button
down until the desired position is obtained,
then release the button, the window stops.
Press button C
for more than three seconds
to start closing the windows. Hold the button
down until the desired position is obtained,
then release the button, the window stops.
These operations can also be carried out by
inserting and turning the key in the front door
lock barrels.
1.
Opening the fuel fi ller fl ap.
2.
Opening and hooking the fi ller cap.
Capacity of the tank: approximately 45 litres.
Fuel tank
33
32 38 163
Page 8 of 192
6
Familiarisation
Instruments and controls
1.
Steering wheel adjustment control.
2.
Lighting and direction indicator control
stalk.
3.
Instrument panel.
4.
Audio system steering mounted controls.
Bluetooth hands-free system.
5.
Driver's airbag.
Horn.
6.
Cruise control switches.
7.
Gear lever.
8.
Parking brake.
9.
Bonnet release.
10.
Door mirror controls.
11 .
Fusebox.
12.
Manual headlamp height adjustment.
13.
Side adjustable air vent.
14.
Front side window demisting vent.
15.
Electric window controls.
16.
Windscreen demisting vent.
17.
Wiper / screenwash / trip computer control
stalk.
18.
Steering lock and ignition switch.
19.
Central adjustable air vents.
20.
Passenger's airbag.
21.
MENU button.
22.
Glove box.
23.
12 V accessory socket.
24.
Cigarette lighter.
25.
Ashtray.
26.
Heating / air conditioning controls.
27.
Audio system.
Page 9 of 192
7
FAMILIARISATION
Familiarisation
Instruments and controls
1.
Steering wheel adjustment control.
2.
Lighting and direction indicator control
stalk.
3.
Instrument panel.
4.
Audio system steering mounted controls.
Bluetooth hands-free system.
5.
Driver's airbag.
Horn.
6.
Cruise control switches.
7.
Gear lever.
8.
Parking brake.
9.
Bonnet release lever.
10.
Door mirror controls.
11 .
Fusebox.
12.
Manual headlamp height adjustment.
13.
Side adjustable air vent.
14.
Front door glass demisting vent.
15.
Electric window controls.
16.
Windscreen demisting vent.
17.
Wiper / screenwash / trip computer control
stalk.
18.
Steering lock and ignition switch.
19.
Central adjustable air vents.
20.
Passenger's airbag.
21.
MENU button.
22.
Glove box.
23.
12V accessory socket.
24.
Cigarette lighter.
25.
Ashtray.
26.
Heating / air conditioning controls.
27.
Audio system.
Page 10 of 192
8
Familiarisation

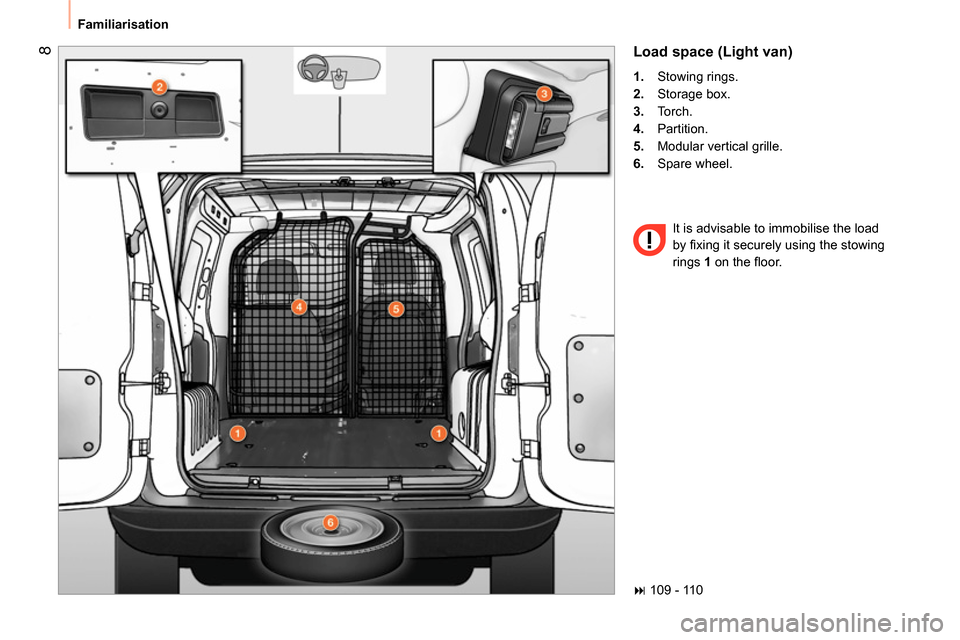

Load space (Light van)
1.
Stowing rings.
2.
Storage box.
3.
Torch.
4.
Partition.
5.
Modular vertical grille.
6.
Spare wheel.
It is advisable to immobilise the load
by fi xing it securely using the stowing
rings 1
on the fl oor.
109 - 110
