PEUGEOT BOXER 2002 Owners Manual

16-09-2002

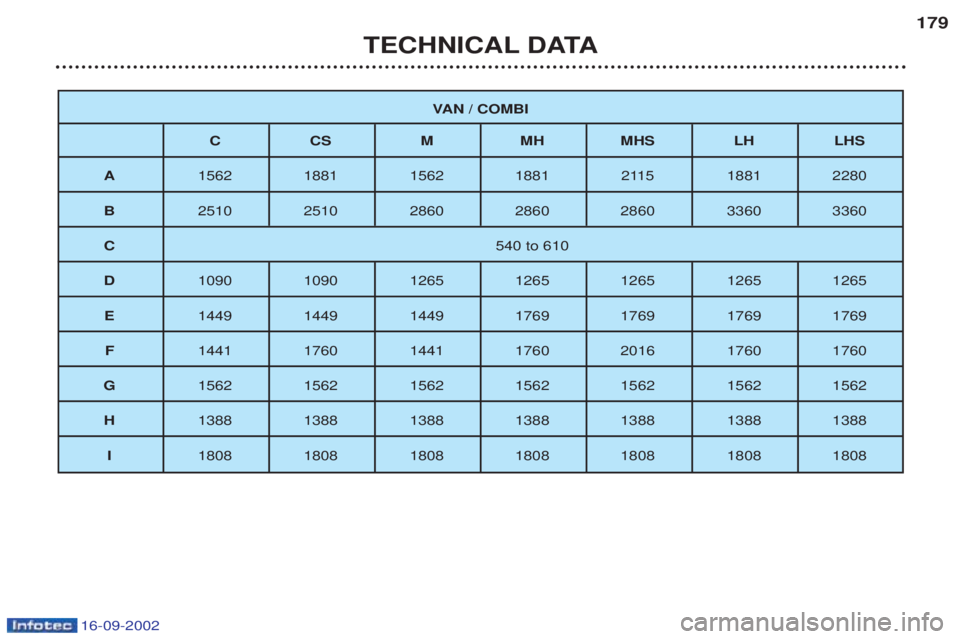

TECHNICAL DATA179
V
AN / COMBI
CC SMM HMHS LH LHS
A 1562 1881 1562 1881 2115 1881 2280
B 2510 2510 2860 2860 2860 3360 3360
C 540 to 610
D 1090 1090 1265 1265 1265 1265 1265
E 1449 1449 1449 1769 1769 1769 1769
F 1441 1760 1441 1760 2016 1760 1760
G 1562 1562 1562 1562 1562 1562 1562
H 1388 1388 1388 1388 1388 1388 1388
I 1808 1808 1808 1808 1808 1808 1808

16-09-2002
TECHNICAL DATA
180

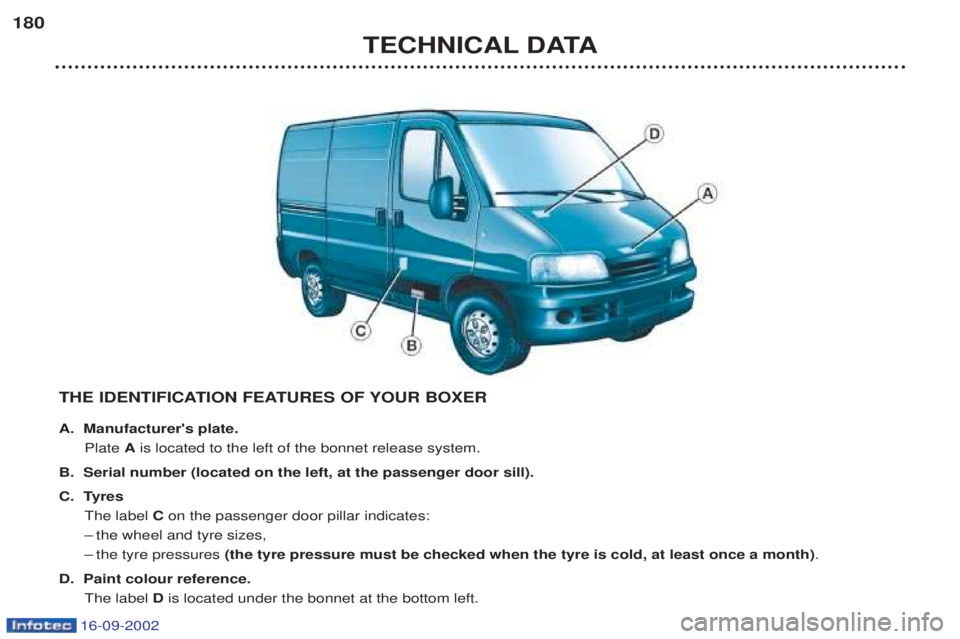

THE IDENTIFICATION FEATURES OF YOUR BOXER
A. Manufacturer's plate.Plate Ais located to the left of the bonnet release system.
B. Serial number (located on the left, at the passenger door sill).
C. Tyres The label Con the passenger door pillar indicates:
Ð the wheel and tyre sizes,
Ð the tyre pressures (the tyre pressure must be checked when the tyre is cold, at least once a month) .
D. Paint colour reference. The label Dis located under the bonnet at the bottom left.
