OPENING THE BONNET Inside the vehicle:Push the
control on the right-hand side, under the instrument panel. Outside the vehicle: Lift
the control, raise the bonnet and secure thestrut to keep the bonnetopen.
FILLING WITH FUEL This operation must be carried out with
the engine switched off.
☞ Open the fuel filler flap by pressing the front of it.
☞ Insert the key then turn it to the left.
☞ Remove the cap and hook it onto the hook on the inside of the flap.
An indication on the cap shows which type of fuel to use.
When you fill your tank, do not continue after the third cut-off of the pump. This could cause a malfunction. The capacity of the tank is approximately 70 litres.☞ After filling the tank, lock the cap and close the flap.
Low fuel level warning light From the time this light comes on, you have approxima-
tely 8 litres of fuel left.
YOUR BOXER AT A GLANCE14
11 211 2
05-05-2003

05-05-2003

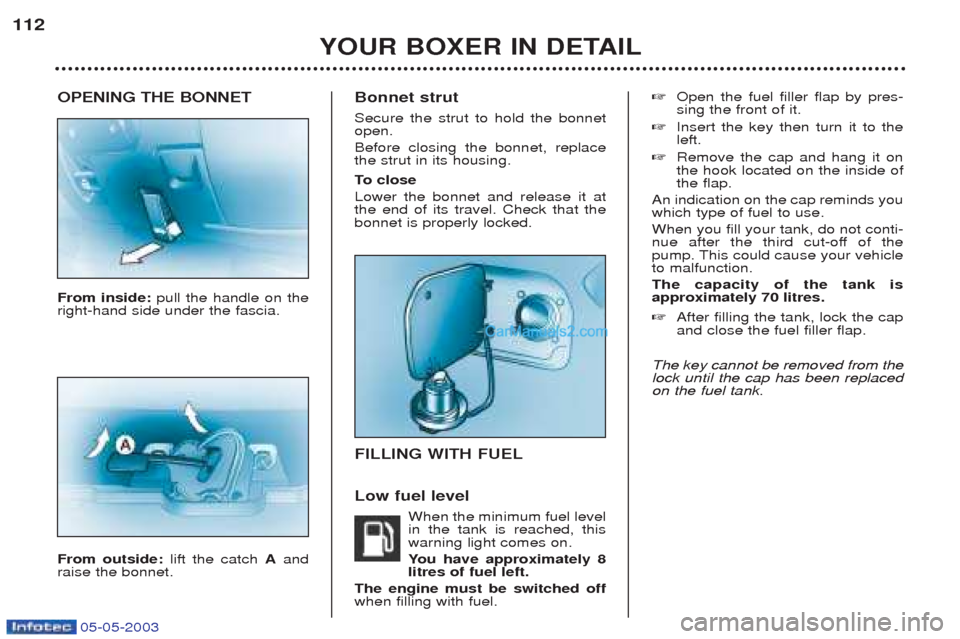

OPENING THE BONNET From inside: pull the handle on the
right-hand side under the fascia. From outside: lift the catch Aand
raise the bonnet. Bonnet strut Secure the strut to hold the bonnet open. Before closing the bonnet, replace the strut in its housing.
To
close
Lower the bonnet and release it at the end of its travel. Check that thebonnet is properly locked. FILLING WITH FUEL Low fuel level
When the minimum fuel level in the tank is reached, thiswarning light comes on. You have approximately 8
litres of fuel left.
The engine must be switched off when filling with fuel. ☞
Open the fuel filler flap by pres-sing the front of it.
☞ Insert the key then turn it to theleft.
☞ Remove the cap and hang it onthe hook located on the inside ofthe flap.
An indication on the cap reminds youwhich type of fuel to use. When you fill your tank, do not conti-
nue after the third cut-off of the
pump. This could cause your vehicleto malfunction. The capacity of the tank is approximately 70 litres. ☞ After filling the tank, lock the cap and close the fuel filler flap.
The key cannot be removed from thelock until the cap has been replacedon the fuel tank.
YOUR BOXER IN DETAIL
112
