Peugeot Boxer 2003 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2003, Model line: Boxer, Model: Peugeot Boxer 2003Pages: 180, PDF Size: 2.71 MB
Page 1 of 180
05-05-2003
Pages
Seats, bench seat 98-104
Access 110-112
Fuel filler flap 112
Changing a bulb 138-140
Changing a wheel 136-137

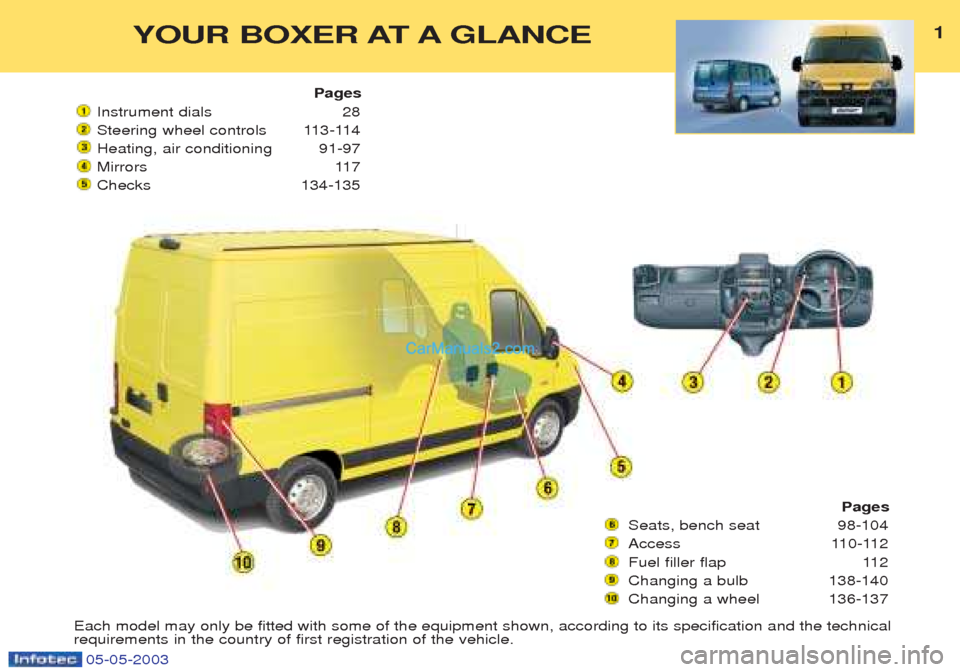

YOUR BOXER AT A GLANCE1
Pages
Instrument dials 28
Steering wheel controls 113-114
Heating, air conditioning 91-97
Mirrors 117
Checks 134-135
Each model may only be fitted with some of the equipment shown, according to its specification and the technical requirements in the country of first registration of the vehicle.
Page 2 of 180

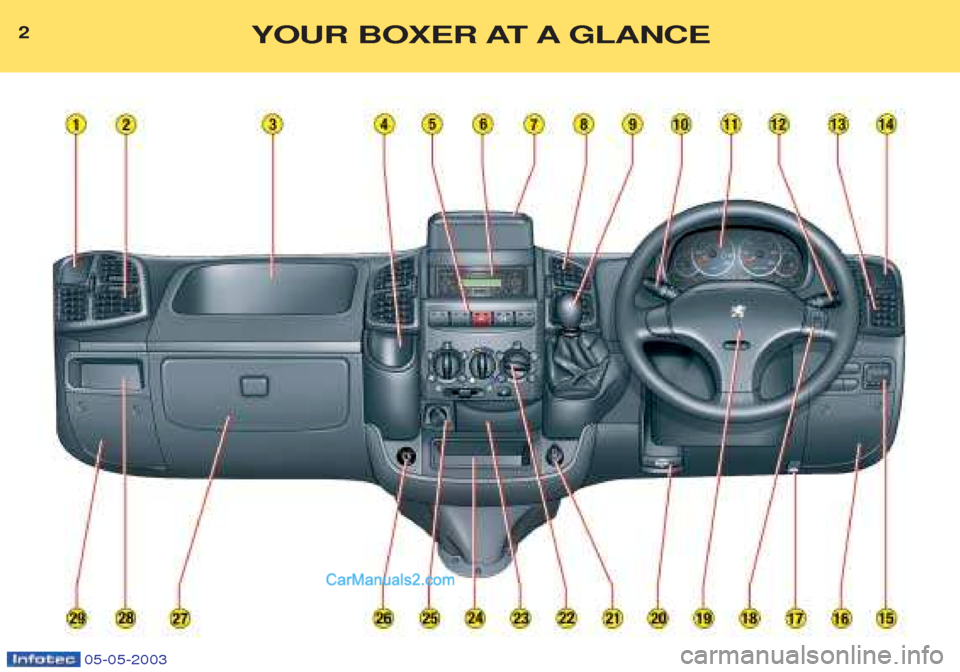

2YOUR BOXER AT A GLANCE
05-05-2003
Page 3 of 180
05-05-2003

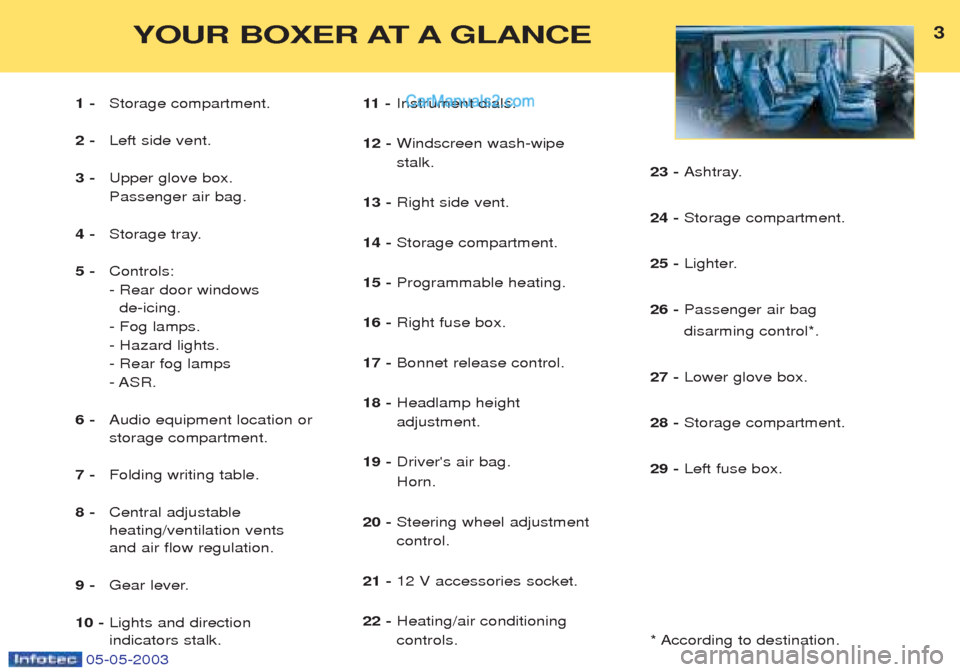

3YOUR BOXER AT A GLANCE
1 -Storage compartment.
2 - Left side vent.
3 - Upper glove box. Passenger air bag.
4 - Storage tray.
5 - Controls:
- Rear door windows
de-icing.
- Fog lamps.- Hazard lights.- Rear fog lamps- ASR.
6 - Audio equipment location or storage compartment.
7 - Folding writing table.
8 - Central adjustableheating/ventilation vents and air flow regulation.
9 - Gear lever.
10 - Lights and direction indicators stalk. 11 -
Instrument dials.
12 - Windscreen wash-wipe stalk.
13 - Right side vent.
14 - Storage compartment.
15 - Programmable heating.
16 - Right fuse box.
17 - Bonnet release control.
18 - Headlamp height adjustment.
19 - Driver's air bag. Horn.
20 - Steering wheel adjustment control.
21 - 12 V accessories socket.
22 - Heating/air conditioningcontrols. 23 -
Ashtray.
24 - Storage compartment.
25 - Lighter.
26 - Passenger air bag disarming control*.
27 - Lower glove box.
28 - Storage compartment.
29 - Left fuse box.
* According to destination.
Page 4 of 180
4YOUR BOXER AT A GLANCE
05-05-2003

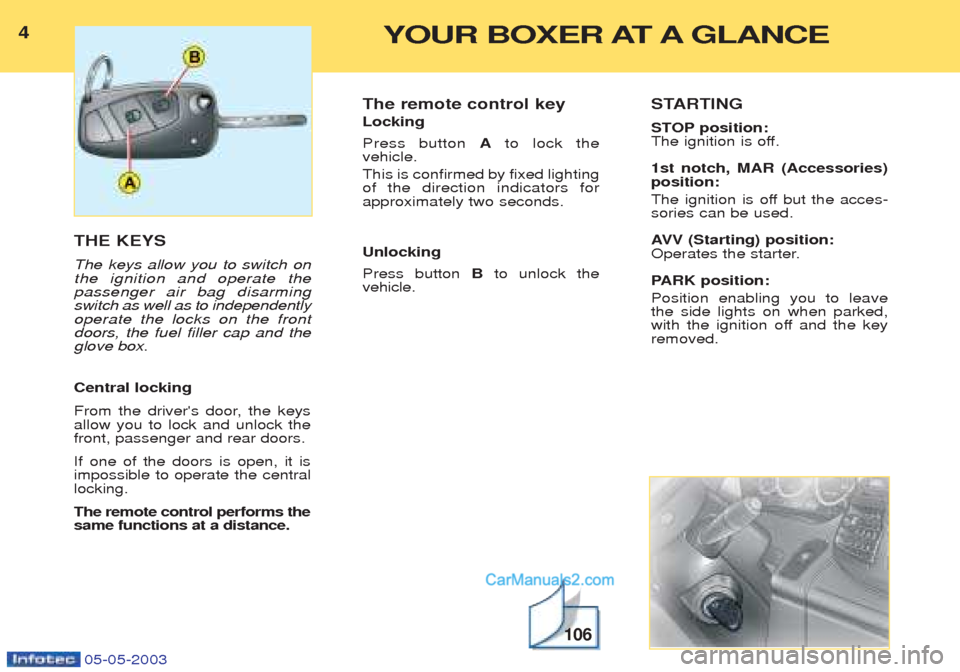

THE KEYS The keys allow you to switch on the ignition and operate thepassenger air bag disarmingswitch as well as to independentlyoperate the locks on the frontdoors, the fuel filler cap and theglove box. Central locking
From the driver's door, the keys allow you to lock and unlock thefront, passenger and rear doors. If one of the doors is open, it is impossible to operate the centrallocking. The remote control performs the same functions at a distance.The remote control key Locking Press button
Ato lock the
vehicle. This is confirmed by fixed lighting of the direction indicators forapproximately two seconds. Unlocking Press button Bto unlock the
vehicle. STARTING
STOP position:
The ignition is off. 1st notch, MAR (Accessories) position:
The ignition is off but the acces- sories can be used. A
VV (Starting) position:
Operates the starter.P ARK position:
Position enabling you to leave the side lights on when parked,
with the ignition off and the keyremoved.
106
Page 5 of 180
05-05-2003

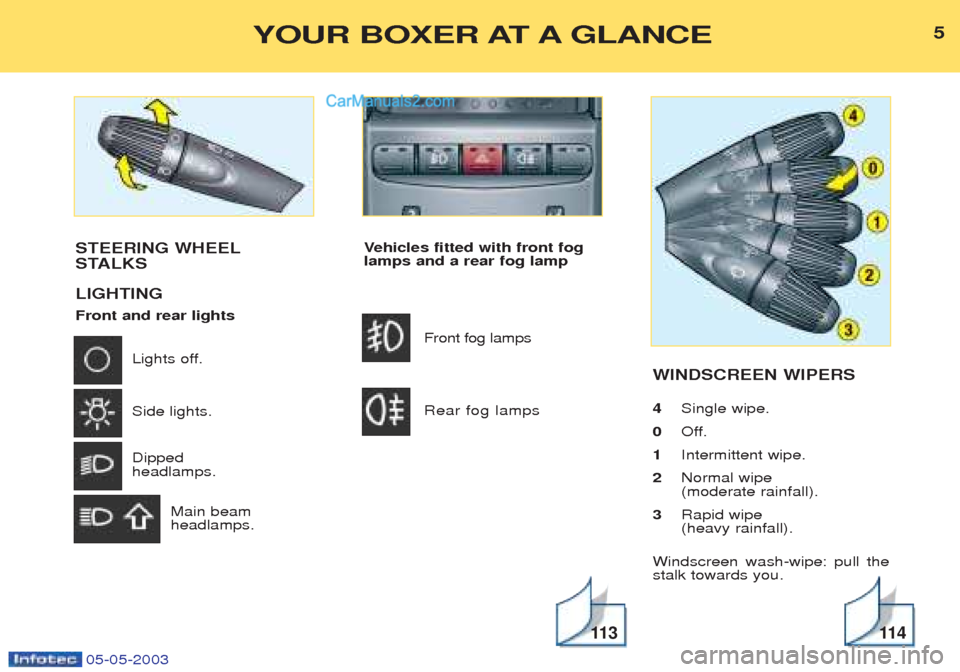

Vehicles fitted with front fog
lamps and a rear fog lamp
Front fog lamps Rear fog lamps WINDSCREEN WIPERS 4
Single wipe.
0 Off.
1 Intermittent wipe.
2 Normal wipe (moderate rainfall).
3 Rapid wipe(heavy rainfall).
Windscreen wash-wipe: pull thestalk towards you.
5YOUR BOXER AT A GLANCE
STEERING WHEEL
STALKS LIGHTING Front and rear lights
Lights off. Side lights. Dipped headlamps. Main beam headlamps.
11 311 4
Page 6 of 180
05-05-2003

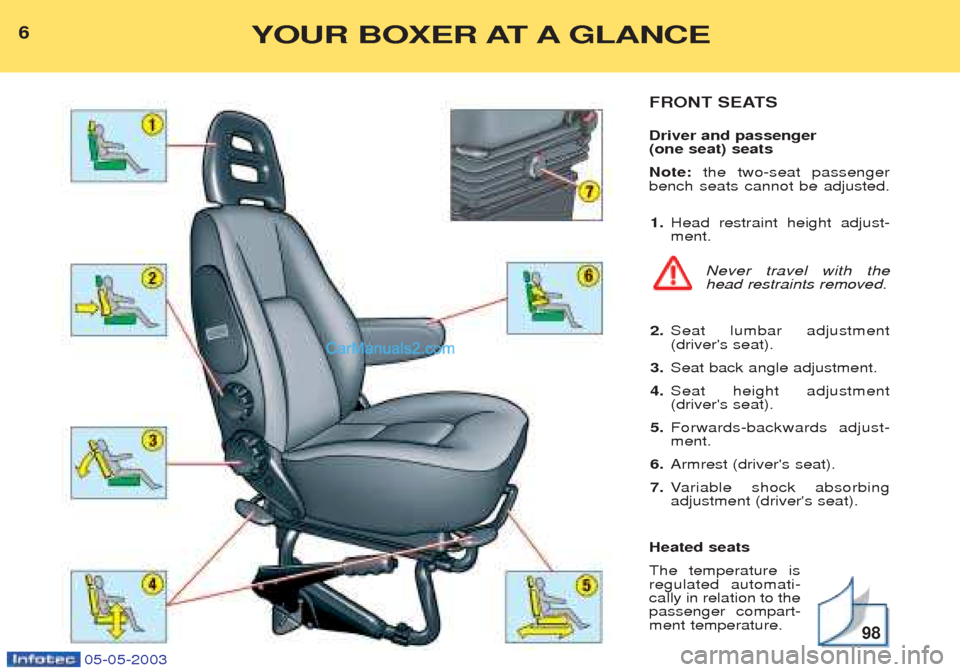

FRONT SEATS Driver and passenger (one seat) seats Note:the two-seat passenger
bench seats cannot be adjusted.
1. Head restraint height adjust- ment.
Never travel with thehead restraints removed.
2. Seat lumbar adjustment (driver's seat).
3. Seat back angle adjustment.
4. Seat height adjustment (driver's seat).
5. Forwards-backwards adjust-ment.
6. Armrest (driver's seat).
7. Variable shock absorbing
adjustment (driver's seat).
Heated seats The temperature is regulated automati-cally in relation to thepassenger compart-ment temperature.
6YOUR BOXER AT A GLANCE
98
Page 7 of 180

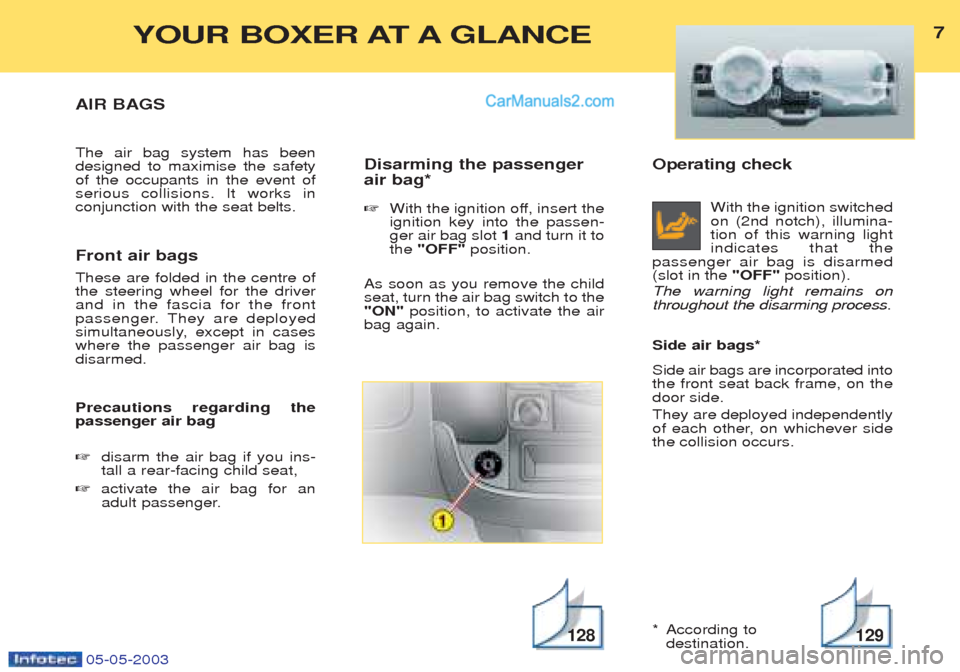

Operating checkWith the ignition switched on (2nd notch), illumina-tion of this warning lightindicates that the
passenger air bag is disarmed(slot in the "OFF"position).
The warning light remains onthroughout the disarming process. Side air bags* Side air bags are incorporated into the front seat back frame, on thedoor side. They are deployed independently
of each other, on whichever sidethe collision occurs. * According to destination.
7YOUR BOXER AT A GLANCE
AIR BAGS The air bag system has been designed to maximise the safetyof the occupants in the event ofserious collisions. It works inconjunction with the seat belts. Front air bags These are folded in the centre of the steering wheel for the driverand in the fascia for the front
passenger. They are deployed
simultaneously, except in caseswhere the passenger air bag isdisarmed. Precautions regarding the passenger air bag ☞ disarm the air bag if you ins- tall a rear-facing child seat,
☞ activate the air bag for an
adult passenger. Disarming the passenger air bag* ☞
With the ignition off, insert the
ignition key into the passen- ger air bag slot 1and turn it to
the "OFF" position.
As soon as you remove the childseat, turn the air bag switch to the"ON" position, to activate the air
bag again.
128129
05-05-2003
Page 8 of 180
05-05-2003

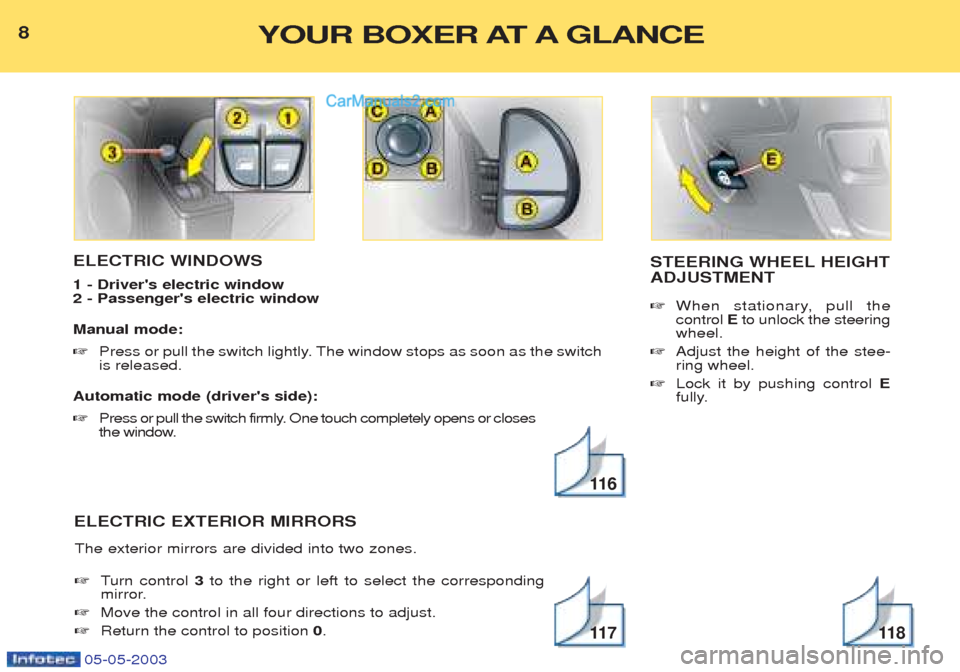

ELECTRIC WINDOWS 1 - Driver's electric window 2 - Passenger's electric window Manual mode: ☞Press or pull the switch lightly. The window stops as soon as the switch is released.
Automatic mode (driver's side): ☞ Press or pull the switch firmly. One touch completely opens or closes
the window.
The exterior mirrors are divided into two zones. ☞ Turn control 3to the right or left to select the corresponding
mirror.
☞ Move the control in all four directions to adjust.
☞ Return the control to position 0.
8
STEERING WHEEL HEIGHT ADJUSTMENT ☞ When stationary, pull the control Eto unlock the steering
wheel.
☞ Adjust the height of the stee-ring wheel.
☞ Lock it by pushing control E
fully.
11 6
11 711 8
8YOUR BOXER AT A GLANCE
ELECTRIC EXTERIOR MIRRORS
Page 9 of 180
05-05-2003
REAR PARKING
ASSISTANCE This system, installed in the rear
bumper, detects any obstacle
(person, vehicle, tree, barrier,kerb etc) behind the vehicle. Activation With the engine running, the system is activated when reversegear is engaged; a bleep indi-cates that it is active. The proximity information is given by an audible signal, consisting ofbleeps which become faster as the vehicle approaches theobstacle. When the distance between the rear of vehicle and the obstacle isless than approximately twenty-five centimetres, theaudible signal becomescontinuous. When you switch to neutral, the systembecomes inactive again.
Activation ☞
Press control A(ON position).
A speed can now be memorised.
☞ Press control D(in the OFF
position) to deactivate the system.
Memorising a speed When you reach the required speed, press control Bor C. The
speed is memorised and will be
maintained automatically. Deactivating the memorised speed If you wish to deactivate the memorised speed: ☞ press button Dor the brake
or clutch pedal.
Recalling the memorised speed After deactivation, press button E.
Y our vehicle reverts to the last
memorised speed. Cancelling the stored speed ☞ Press control D(OFF posi-
tion) or switch off the ignition.
9YOUR BOXER AT A GLANCE
CRUISE CONTROL The cruise control makes it pos- sible to maintain a constantvehicle speed, programmed by
the driver, irrespective of the pro-file of the road and without anyaction on the accelerator or thebrake pedals. In order for the vehicle speed to be memorised, it must be greaterthan approximately 25 mph (40 km/h).
127126
Page 10 of 180
OPENING THE BONNET Inside the vehicle:Push the
control on the right-hand side, under the instrument panel. Outside the vehicle: Lift
the control, raise the bonnet and secure thestrut to keep the bonnetopen.
FILLING WITH FUEL This operation must be carried out with
the engine switched off.
☞ Open the fuel filler flap by pressing the front of it.
☞ Insert the key then turn it to the left.
☞ Remove the cap and hook it onto the hook on the inside of the flap.
An indication on the cap shows which type of fuel to use.
When you fill your tank, do not continue after the third cut-off of the pump. This could cause a malfunction. The capacity of the tank is approximately 70 litres.☞ After filling the tank, lock the cap and close the flap.
Low fuel level warning light From the time this light comes on, you have approxima-
tely 8 litres of fuel left.
YOUR BOXER AT A GLANCE14
11 211 2
