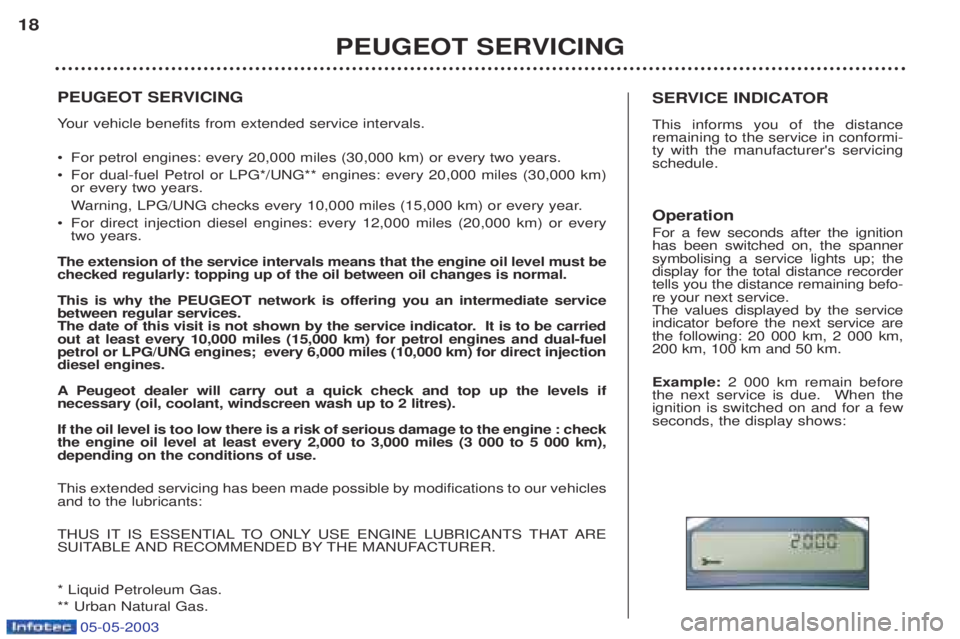

PEUGEOT SERVICING Your vehicle benefits from extended service intervals.
Â¥ For petrol engines: every 20,000 miles (30,000 km) or every two years.
Â¥ For dual-fuel Petrol or LPG*/UNG** engines: every 20,000 miles (30,000 km) or every two years. W arning, LPG/UNG checks every 10,000 miles (15,000 km) or every year.
Â¥ For direct injection diesel engines: every 12,000 miles (20,000 km) or every two years.
The extension of the service intervals means that the engine oil level must bechecked regularly: topping up of the oil between oil changes is normal. This is why the PEUGEOT network is offering you an intermediate service between regular services.
The date of this visit is not shown by the service indicator. It is to be carriedout at least every 10,000 miles (15,000 km) for petrol engines and dual-fuelpetrol or LPG/UNG engines; every 6,000 miles (10,000 km) for direct injectiondiesel engines. A Peugeot dealer will carry out a quick check and top up the levels if
necessary (oil, coolant, windscreen wash up to 2 litres).If the oil level is too low there is a risk of serious damage to the engine : check the engine oil level at least every 2,000 to 3,000 miles (3 000 to 5 000 km),depending on the conditions of use. This extended servicing has been made possible by modifications to our vehicles and to the lubricants:
THUS IT IS ESSENTIAL TO ONLY USE ENGINE LUBRICANTS THAT ARE
SUITABLE AND RECOMMENDED BY THE MANUFACTURER. * Liquid Petroleum Gas. ** Urban Natural Gas.
PEUGEOT SERVICING
18
SERVICE INDICATOR This informs you of the distance remaining to the service in conformi-ty with the manufacturer's servicingschedule. Operation For a few seconds after the ignition has been switched on, the spannersymbolising a service lights up; thedisplay for the total distance recordertells you the distance remaining befo-re your next service.The values displayed by the serviceindicator before the next service arethe following: 20 000 km, 2 000 km,200 km, 100 km and 50 km. Example:2 000 km remain before
the next service is due. When the ignition is switched on and for a fewseconds, the display shows:

05-05-2003
Zero re-set Your PEUGEOT dealer carries out
this operation after each service.
However, if you carry out the service yourself, the re-set procedure is asfollows: ☞ Switch off the ignition,
☞ Press and hold the trip recorder re-set button,
☞ Switch on the ignition.
The distance remaining to the nextservice flashes. ☞ Press and hold the trip distance recorder zero reset button untilthe display indicates " =0" and the
service spanner disappears.
Important: after this operation, if you
wish to disconnect the battery, lockthe vehicle and wait for at least fiveminutes, otherwise the zero re-setwill not be registered. MAINTENANCE OF PARTS SUBJECT TO WEAR
AND A CHECK OF
CONSUMABLES Certain essential components on your vehicle are subject to checks at specific frequencies. ¥ The brake fluid is to be replaced at a maximum of every 36,000/40,000 miles
(60 000km) or every 2 years;
Â¥ The coolant is to be replaced every 72,000/80,000 miles (120 000 km) or
every 5 years;
Â¥ The passenger compartment filter must be checked at each service
by a PEUGEOT dealer (services and intermediate visits) or more often,
depending on the environment (dust, pollution, etc.);
Â¥ Replacement of the timing belt: contact a PEUGEOT dealer.
Â¥ Air bags and pretensioning parts on seat belts must be checked every
10 years .
Â¥ The check on tyre pressuresmust be carried out cold at least once a month.
PEUGEOT SERVICING 19

05-05-2003
1 -Coolant temperature gauge.
2 - Coolant temperature warning light.
3 - Door open warning light.
4 - Speedometer.
5 - Left-hand direction indicator.
6 - Side lights and dipped beamheadlamps indicator light.
7 - Main beam headlamps indicatorlight.
8 - Right-hand direction indicator. 9 -
Rev counter.
10 - Low fuel level warning light.
11 - Fuel gauge.
12 - Brake fluid level warning light.
13 - Traction control (ASR) warning
light.
14 - Passenger air bag disarmed warning light.
15 - Trip distance recorder display
control and zero reset button. 16 -
Front air bags warning light.
17 - Anti-lock braking system (ABS) warning light.
18 - Automatic gearbox temperatureor fault warning light.
19 - Low coolant level warning light.
20 - Service indicator, oil levelgauge, automatic gearbox
display, clock and total distance
recorder.
21 - Diesel engine pre-heatingwarning light.
22 - Engine oil pressure warninglight.
23 - Battery charge warning light.
24 - Clock setting button.
25 - Engine diagnostics warninglight.
26 - Front brake pad wear warninglight.
27 - Handbrake warning light.
28 - Water in diesel filter warning
light.
29 - Electronic immobiliser keywarning light.
INSTRUMENTS AND CONTROLS
28
PETROL-DIESEL MANUAL AND AUTOMATIC GEARBOX
INSTRUMENT PANELS

05-05-2003
Low coolant level warning light Illumination of this warning light indicates that the coolant level is too
low.
Stop immediately.
W arning: allow the engine to cool before topping up.
The cooling circuit is pressurised.
To avoid any risk of scalding, unscrew the cap by two turns to allow the pressu-
re to drop.When the pressure has dropped, remove the cap and top up the level.
Contact a PEUGEOT dealer.
INSTRUMENTS AND CONTROLS 29

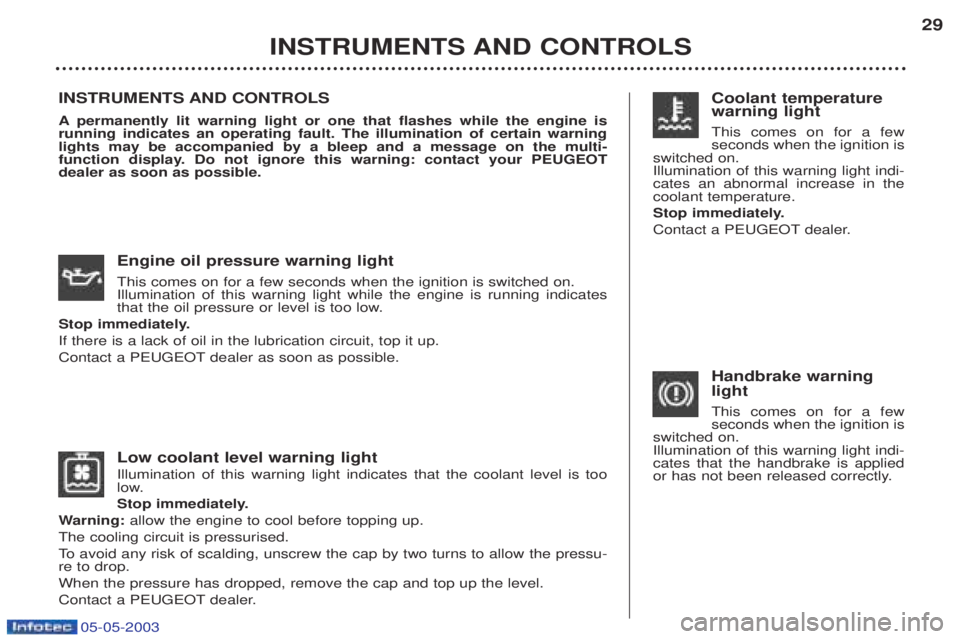

Engine oil pressure warning light This comes on for a few seconds when the ignition is switched on. Illumination of this warning light while the engine is running indicates
that the oil pressure or level is too low.
Stop immediately. If there is a lack of oil in the lubrication circuit, top it up.
Contact a PEUGEOT dealer as soon as possible.
INSTRUMENTS AND CONTROLS A permanently lit warning light or one that flashes while the engine is
running indicates an operating fault. The illumination of certain warning lights may be accompanied by a bleep and a message on the multi-
function display. Do not ignore this warning: contact your PEUGEOT dealer as soon as possible.
Handbrake warning light This comes on for a few seconds when the ignition is
switched on.Illumination of this warning light indi-cates that the handbrake is applied
or has not been released correctly.Coolant temperature warning light This comes on for a few seconds when the ignition is
switched on.Illumination of this warning light indi-cates an abnormal increase in thecoolant temperature.
Stop immediately.
Contact a PEUGEOT dealer.

05-05-2003
Minimum Check the level with the dipstick and
top it up. The figure shown is onlycorrect if the vehicle has been onlevel ground, with the engine stop-ped, for 10 minutes. Minimum oil level gauge fault Flashing of the segments indicates a fault in the oil level gauge or a lackof oil. There is a risk the engine will be damaged.
Contact a PEUGEOT dealer. Maximum oil level gauge fault Flashing of the squares indicates a fault in the oil level gauge or a sur-plus of oil. There is a risk the engine will be damaged.
Contact a PEUGEOT dealer.
INSTRUMENTS AND CONTROLS33

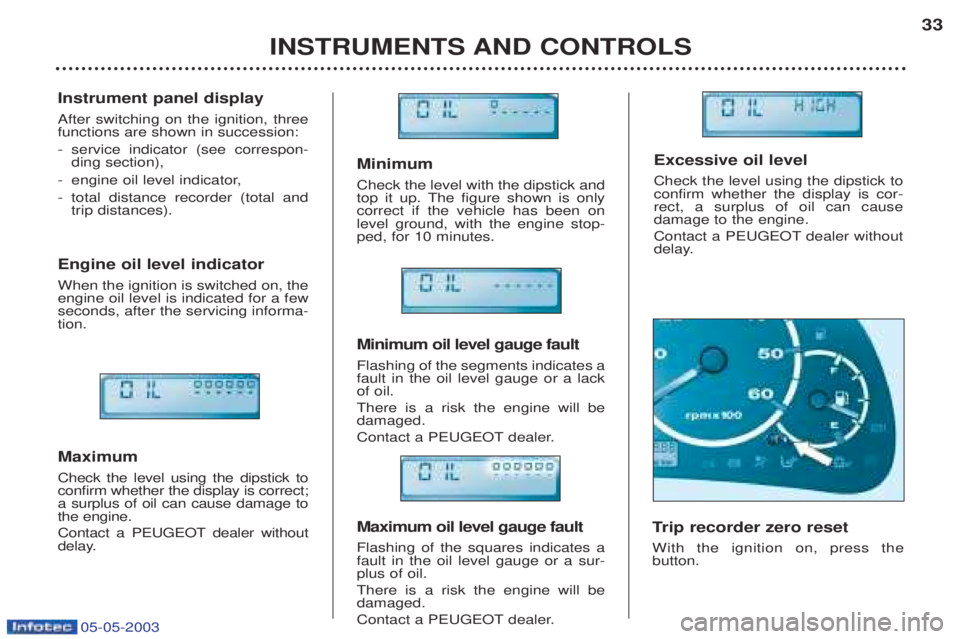

Instrument panel display After switching on the ignition, three functions are shown in succession: -
service indicator (see correspon- ding section),
- engine oil level indicator,
- total distance recorder (total andtrip distances).
Engine oil level indicator When the ignition is switched on, the engine oil level is indicated for a fewseconds, after the servicing informa-tion. Maximum Check the level using the dipstick to confirm whether the display is correct;a surplus of oil can cause damage tothe engine.
Contact a PEUGEOT dealer without
delay. T
rip recorder zero reset
With the ignition on, press the button. Excessive oil level Check the level using the dipstick to confirm whether the display is cor-rect, a surplus of oil can causedamage to the engine.
Contact a PEUGEOT dealer without
delay.

05-05-2003
YOUR BOXER IN DETAIL39

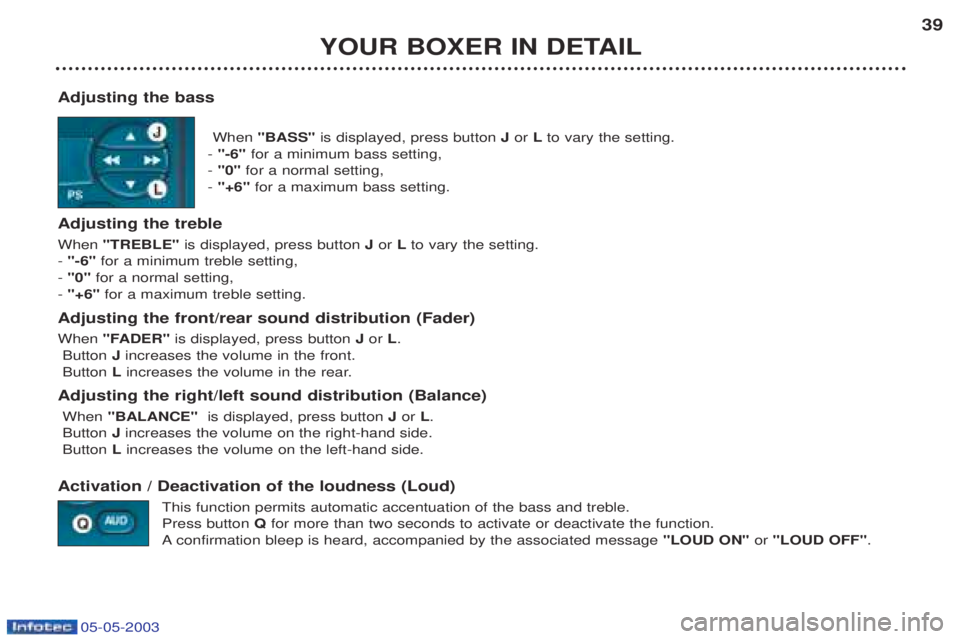

Adjusting the bass When "BASS" is displayed, press button Jor Lto vary the setting.
- "-6" for a minimum bass setting,
- "0" for a normal setting,
- "+6" for a maximum bass setting.
Adjusting the treble When "TREBLE" is displayed, press button Jor Lto vary the setting.
- "-6" for a minimum treble setting,
- "0" for a normal setting,
- "+6" for a maximum treble setting.
Adjusting the front/rear sound distribution (Fader)When "FADER" is displayed, press button Jor L.
Button Jincreases the volume in the front.
Button Lincreases the volume in the rear.
Adjusting the right/left sound distribution (Balance) When "BALANCE" is displayed, press button Jor L.
Button Jincreases the volume on the right-hand side.
Button Lincreases the volume on the left-hand side.
Activation / Deactivation of the loudness (Loud) This function permits automatic accentuation of the bass and treble. Press button Qfor more than two seconds to activate or deactivate the function.
A confirmation bleep is heard, accompanied by the associated message "LOUD ON"or "LOUD OFF" .

05-05-2003
YOUR BOXER IN DETAIL41

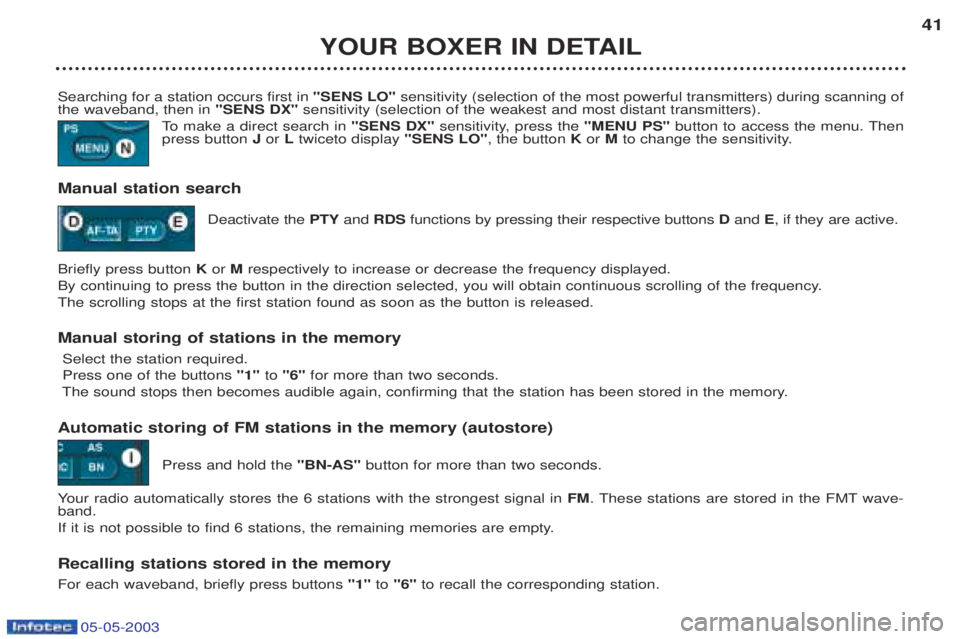

Searching for a station occurs first in "SENS LO"sensitivity (selection of the most powerful transmitters) during scanning of
the waveband, then in "SENS DX"sensitivity (selection of the weakest and most distant transmitters).
To make a direct search in "SENS DX"sensitivity, press the "MENU PS" button to access the menu. Then
press button J or Ltwiceto display "SENS LO", the button Kor Mto change the sensitivity.
Manual station search Deactivate the PTYand RDS functions by pressing their respective buttons Dand E, if they are active.
Briefly press button Kor Mrespectively to increase or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency. The scrolling stops at the first station found as soon as the button is released. Manual storing of stations in the memory
Select the station required. Press one of the buttons "1"to "6" for more than two seconds.
The sound stops then becomes audible again, confirming that the station has been stored in the memory.
Automatic storing of FM stations in the memory (autostore)
Press and hold the "BN-AS" button for more than two seconds.
Y our radio automatically stores the 6 stations with the strongest signal in FM. These stations are stored in the FMT wave-
band.
If it is not possible to find 6 stations, the remaining memories are empty. Recalling stations stored in the memory For each waveband, briefly press buttons "1"to"6" to recall the corresponding station.

05-05-2003
YOUR BOXER IN DETAIL
42

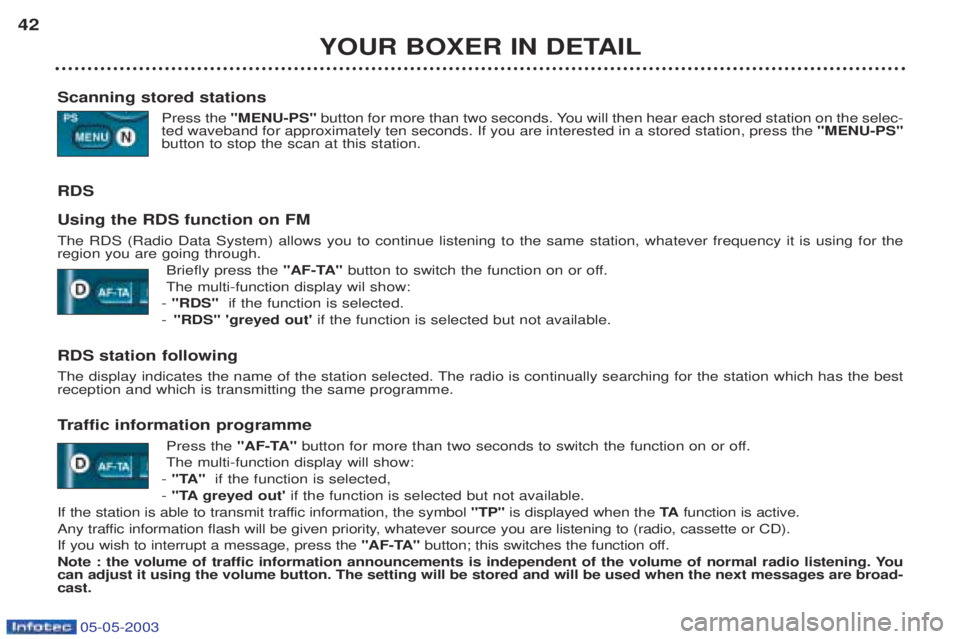

Scanning stored stations Press the "MENU-PS" button for more than two seconds. You will then hear each stored station on the selec-
ted waveband for approximately ten seconds. If you are interested in a stored station, press the "MENU-PS"
button to stop the scan at this station.
RDS Using the RDS function on FM The RDS (Radio Data System) allows you to continue listening to the same station, whatever frequency it is using for the region you are going through. Briefly press the "AF-TA"button to switch the function on or off.
The multi-function display wil show:
- "RDS" if the function is selected.
- "RDS" 'greyed out' if the function is selected but not available.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best reception and which is transmitting the same programme. T raffic information programme
Press the "AF-TA"button for more than two seconds to switch the function on or off.
The multi-function display will show:
- "TA" if the function is selected,
- "TA greyed out' if the function is selected but not available.
If the station is able to transmit traffic information, the symbol "TP"is displayed when the TAfunction is active.
Any traffic information flash will be given priority, whatever source you are listening to (radio, cassette or CD). If you wish to interrupt a message, press the "AF-TA"button; this switches the function off.
Note : the volume of traffic information announcements is independent of the volume of normal radio listening. You can adjust it using the volume button. The setting will be stored and will be used when the next messages are broad-cast.

05-05-2003
YOUR BOXER IN DETAIL43

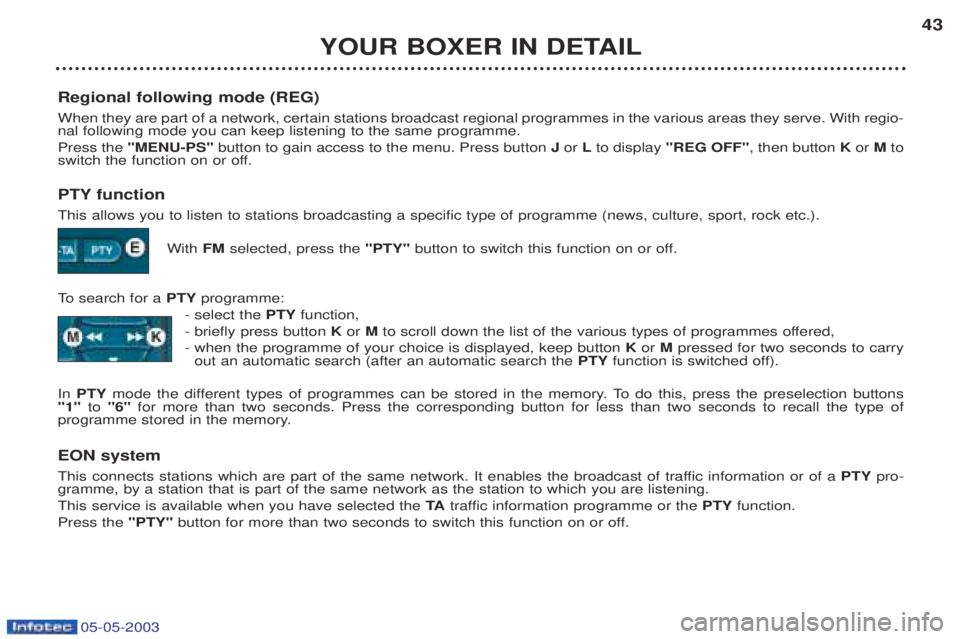

Regional following mode (REG) When they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With regio- nal following mode you can keep listening to the same programme. Press the "MENU-PS" button to gain access to the menu. Press button J or Lto display "REG OFF" , then button Kor Mto
switch the function on or off.
PTY function This allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock etc.). With FMselected, press the "PTY"button to switch this function on or off.
To search for a PTYprogramme:
- select the PTYfunction,
- briefly press button Kor Mto scroll down the list of the various types of programmes offered,
- when the programme of your choice is displayed, keep button Kor Mpressed for two seconds to carry
out an automatic search (after an automatic search the PTYfunction is switched off).
In PTY mode the different types of programmes can be stored in the memory. To do this, press the preselection buttons
"1" to "6" for more than two seconds. Press the corresponding button for less than two seconds to recall the type of
programme stored in the memory. EON system
This connects stations which are part of the same network. It enables the broadcast of traffic information or of a PTYpro-
gramme, by a station that is part of the same network as the station to which you are listening. This service is available when you have selected the TAtraffic information programme or the PTYfunction.
Press the "PTY"button for more than two seconds to switch this function on or off.

05-05-2003
YOUR BOXER IN DETAIL
44

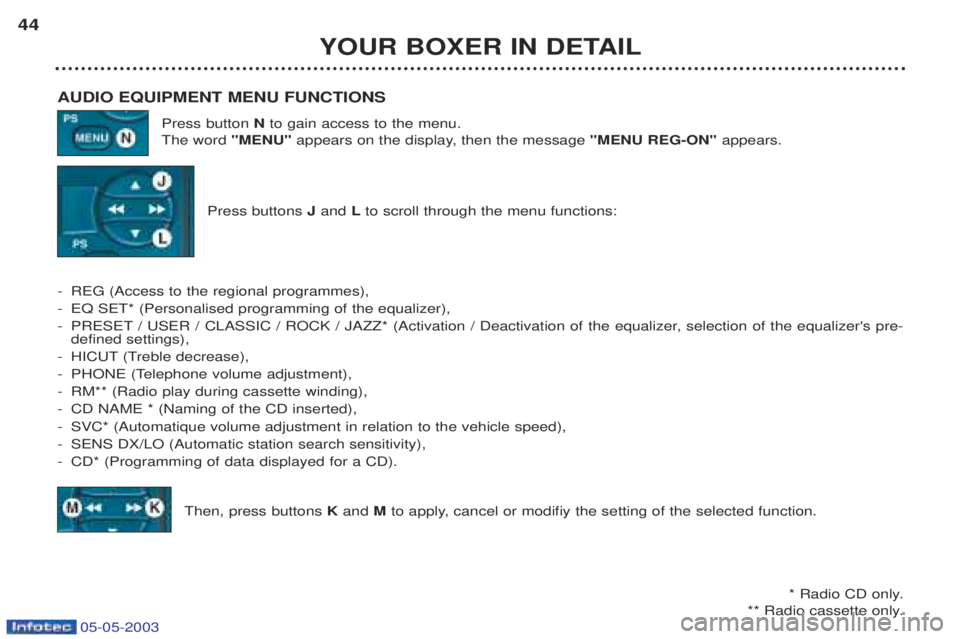

AUDIO EQUIPMENT MENU FUNCTIONS Press button Nto gain access to the menu.
The word "MENU"appears on the display, then the message "MENU REG-ON" appears.
Press buttons Jand Lto scroll through the menu functions:
- REG (Access to the regional programmes),
- EQ SET* (Personalised programming of the equalizer),
- PRESET / USER / CLASSIC / ROCK / JAZZ* (Activation / Deactivation of the equalizer, selection of the equalizer's pre- defined settings),
-H ICUT (Treble decrease),
- PHONE (Telephone volume adjustment),
- RM** (Radio play during cassette winding),
- CD NAME * (Naming of the CD inserted),
- SVC* (Automatique volume adjustment in relation to the vehicle speed),
- SENS DX/LO (Automatic station search sensitivity),
- CD* (Programming of data displayed for a CD).
Then, press buttons Kand Mto apply, cancel or modifiy the setting of the selected function.
* Radio CD only.
** Radio cassette only.
