TECHNICAL DATA
Environment
ENVIRONMENT
With you, PEUGEOT acts to protect the
environment.
On the www.peugeot.com site, you are
invited to consult, PEUGEOT's clean HDi Diesel engines
(Common Rail diesel direct injection)
have the characteristic of offering low
consumption and minimising emissions of
CO
2. In addition to this contribution, these
engines provide a highly acclaimed level of
driving pleasure. - observe the service intervals;
we recommend that services are carried
out by a PEUGEOT dealer, authorised to
collect used batteries and fluids,
- in order to preserve the reliability of the engine and emission control system, do
not use engine oil additives.
select the "ENVIRONNEMENT"
tab and then specifically "OPÉRATION
CARBONE to discover "LA PEPINIERE".
select the "ENVIRONMENT"
tab and then specifically "OPERATION
CARBON" to discover "THE NURSERY". As the driver, you also can contribute to
protecting the environment by following
certain rules:
- adopt a preventive style of driving,
without frequent and sharp acceleration, Refer to the starting and stopping
"good practice" advice in this handbook
at the end of chapter 2.

9
TECHNICAL DATA
Dimensions

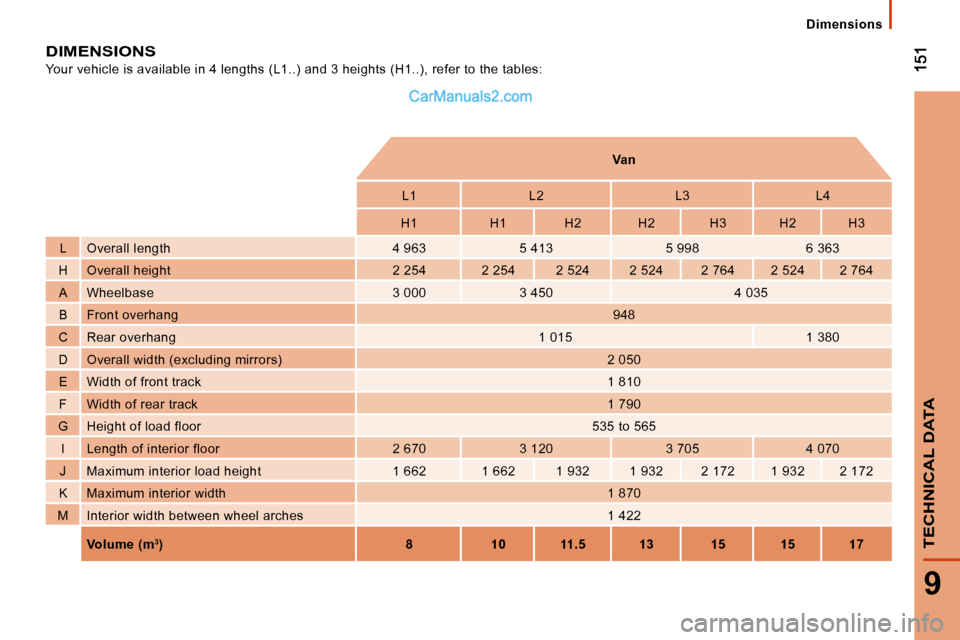

DIMENSIONS
Your vehicle is available in 4 lengths (L1..) and 3 heights (H1..), refer to the tables:

Van
L1 L2 L3 L4
H1 H1 H2 H2 H3 H2 H3
L Overall length 4 963 5 413 5 998 6 363
H Overall height 2 254 2 254 2 524 2 524 2 764 2 52 4 2 764
A Wheelbase 3 000 3 450 4 035
B Front overhang 948
C Rear overhang 1 015 1 380
D Overall width (excluding mirrors) 2 050
E Width of front track 1 810
F Width of rear track 1 790
G Height of load floor 535 to 565
I Length of interior floor 2 670 3 120 3 705 4 070
J Maximum interior load height 1 662 1 662 1 932 1 932 2 172 1 932 2 172
K Maximum interior width 1 870
M Interior width between wheel arches 1 422

Volume (m 3
)
8 10 11.5 13 15 15 17

153
9
TECHNICAL DATA
Dimensions

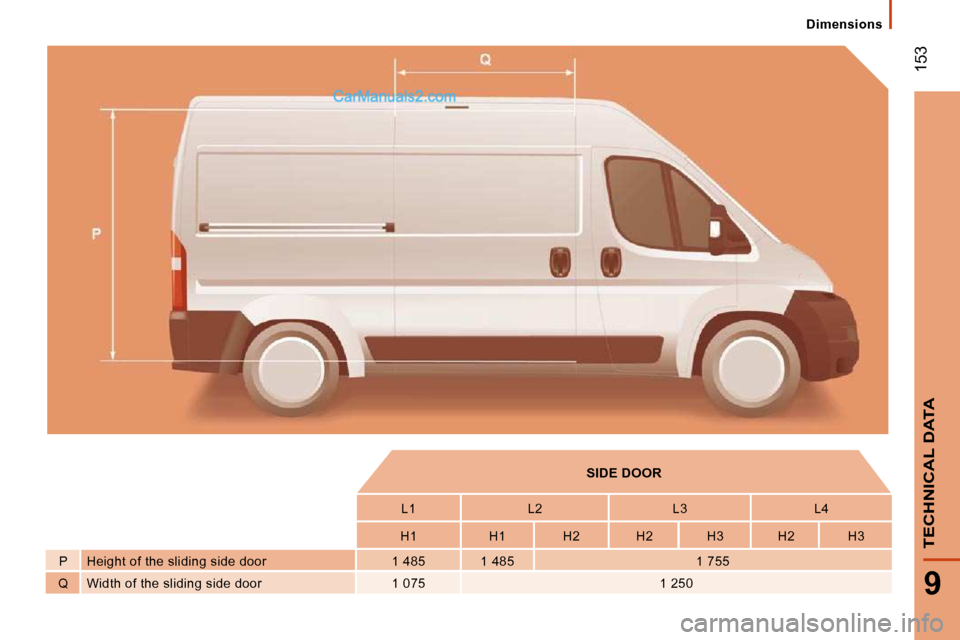

SIDE DOOR
L1 L2 L3 L4
H1 H1 H2 H2 H3 H2 H3
P Height of the sliding side door 1 485 1 4 85 1 755
Q Width of the sliding side door 1 075 1 250

9
TECHNICAL DATA
Dimensions

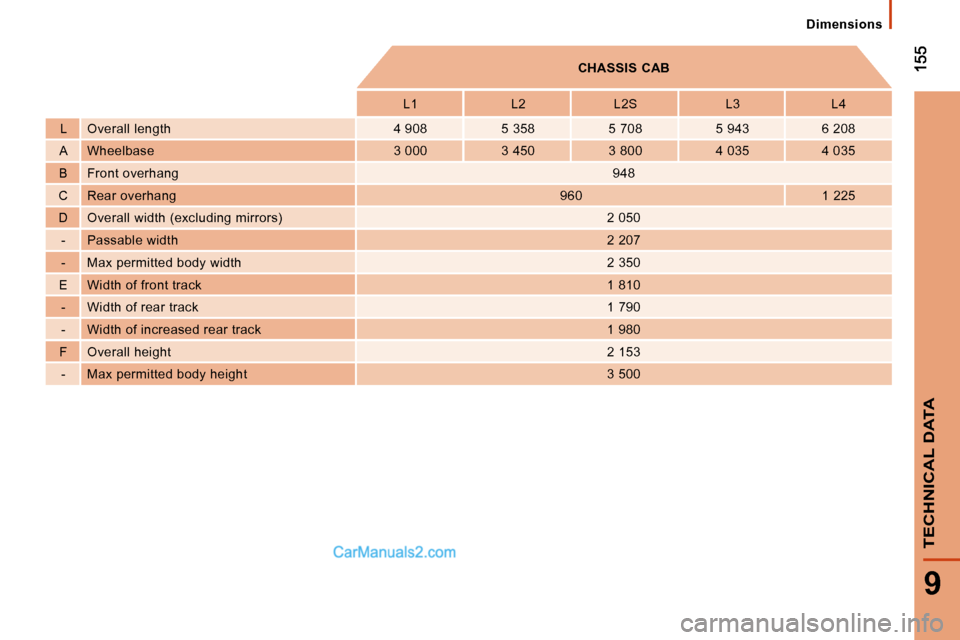

CHASSIS CAB
L1 L2 L2S L3 L4
L Overall length 4 908 5 358 5 708 5 943 6 208
A Wheelbase 3 000 3 450 3 800 4 035 4 035
B Front overhang 948
C Rear overhang 960 1 225
D Overall width (excluding mirrors) 2 050
- Passable width 2 207
- Max permitted body width 2 350
E Width of front track 1 810
- Width of rear track 1 790
- Width of increased rear track 1 980
F Overall height 2 153
- Max permitted body height 3 500

157
9
TECHNICAL DATA
Diesel engines

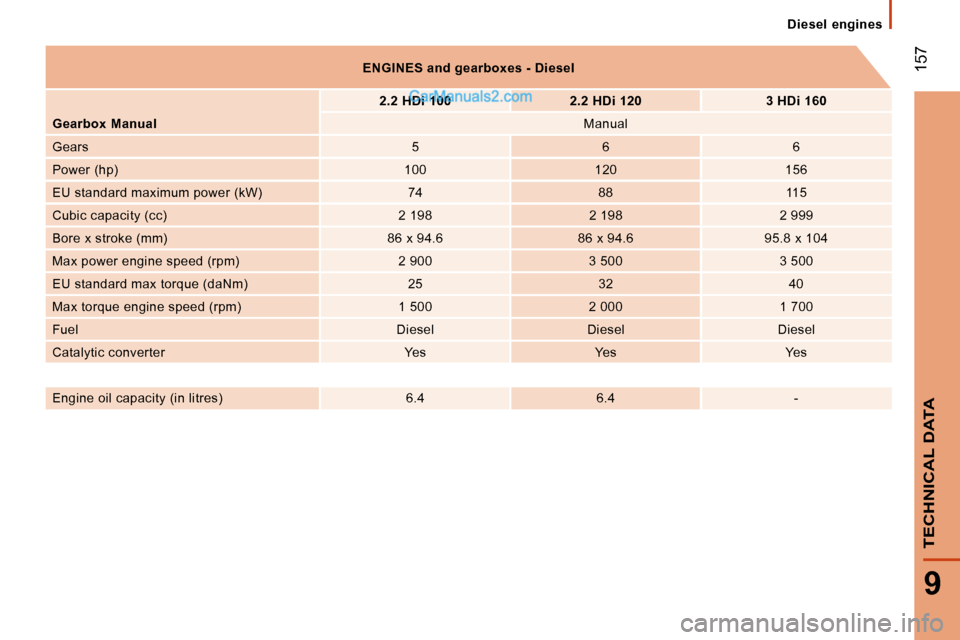

ENGINES
and gearboxes - Diesel

2.2 HDi 100 2.2 HDi 120 3 HDi 160

Gearbox Manual Manual
Gears 5 6 6
Power (hp) 100 120 156
EU standard maximum power (kW) 74 88 115
Cubic capacity (cc) 2 198 2 198 2 999
Bore x stroke (mm) 86 x 94.6 86 x 94.6 95.8 x 104
Max power engine speed (rpm) 2 900 3 500 3 500
EU standard max torque (daNm) 25 32 40
Max torque engine speed (rpm) 1 500 2 000 1 700
Fuel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes
Engine oil capacity (in litres) 6.4 6.4 -

159
9
TECHNICAL DATA
Diesel engines

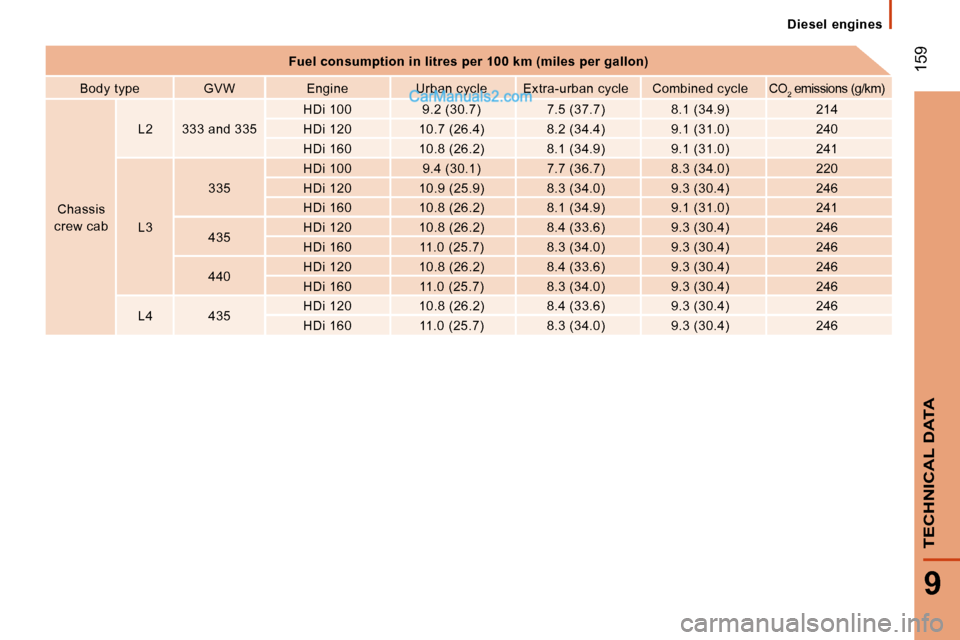

Fuel consumption in litres per 100 km (miles per ga llon)
Body type GVW Engine Urban cycle Extr a-urban cycle Combined cycle CO
2 emissions (g/km)
Chassis
crew cab L2 333 and 335
HDi 100 9.2 (30.7) 7.5 (37.7) 8.1 (34.9)
214
HDi 120 10.7 (26.4) 8.2 (34.4) 9.1 (31.0) 240
HDi 160 10.8 (26.2) 8.1 (34.9) 9.1 (31.0) 241
L3 335
HDi 100 9.4 (30.1) 7.7 (36.7) 8.3 (34.0)
220
HDi 120 10.9 (25.9) 8.3 (34.0) 9.3 (30.4) 246
HDi 160 10.8 (26.2) 8.1 (34.9) 9.1 (31.0) 241
435 HDi 120 10.8 (26.2) 8.4 (33.6) 9.3 (30.4)
246
HDi 160 11.0 (25.7) 8.3 (34.0) 9.3 (30.4) 246
440 HDi 120 10.8 (26.2) 8.4 (33.6) 9.3 (30.4)
246
HDi 160 11.0 (25.7) 8.3 (34.0) 9.3 (30.4) 246
L4 435 HDi 120 10.8 (26.2) 8.4 (33.6) 9.3 (30.4)
246
HDi 160 11.0 (25.7) 8.3 (34.0) 9.3 (30.4) 246

161
9
TECHNICAL DATA
Diesel engines

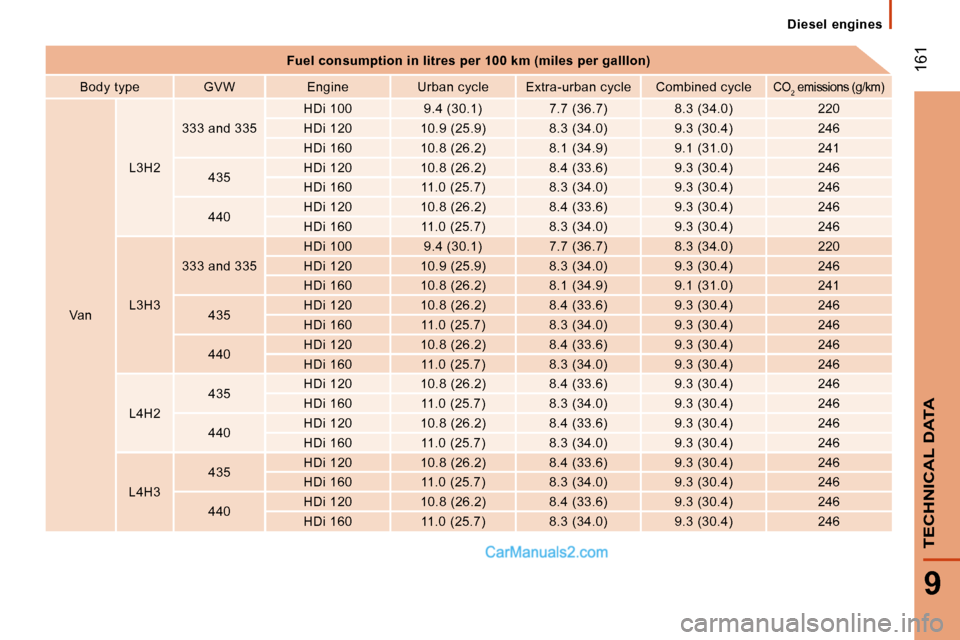

Fuel consumption in litres per 100 km (miles per ga lllon)
Body type GVW Engine Urban cycle Extr a-urban cycle Combined cycle
CO2 emissions (g/km)
Van L3H2
333 and 335
HDi 100 9.4 (30.1) 7.7 (36.7) 8.3 (34.0)
220
HDi 120 10.9 (25.9) 8.3 (34.0) 9.3 (30.4) 246
HDi 160 10.8 (26.2) 8.1 (34.9) 9.1 (31.0) 241
435 HDi 120 10.8 (26.2) 8.4 (33.6) 9.3 (30.4)
246
HDi 160 11.0 (25.7) 8.3 (34.0) 9.3 (30.4) 246
440 HDi 120 10.8 (26.2) 8.4 (33.6) 9.3 (30.4)
246
HDi 160 11.0 (25.7) 8.3 (34.0) 9.3 (30.4) 246
L3H3 333 and 335
HDi 100 9.4 (30.1) 7.7 (36.7) 8.3 (34.0)
220
HDi 120 10.9 (25.9) 8.3 (34.0) 9.3 (30.4) 246
HDi 160 10.8 (26.2) 8.1 (34.9) 9.1 (31.0) 241
435 HDi 120 10.8 (26.2) 8.4 (33.6) 9.3 (30.4)
246
HDi 160 11.0 (25.7) 8.3 (34.0) 9.3 (30.4) 246
440 HDi 120 10.8 (26.2) 8.4 (33.6) 9.3 (30.4)
246
HDi 160 11.0 (25.7) 8.3 (34.0) 9.3 (30.4) 246
L4H2 435
HDi 120 10.8 (26.2) 8.4 (33.6) 9.3 (30.4)
246
HDi 160 11.0 (25.7) 8.3 (34.0) 9.3 (30.4) 246
440 HDi 120 10.8 (26.2) 8.4 (33.6) 9.3 (30.4)
246
HDi 160 11.0 (25.7) 8.3 (34.0) 9.3 (30.4) 246
L4H3 435
HDi 120 10.8 (26.2) 8.4 (33.6) 9.3 (30.4)
246
HDi 160 11.0 (25.7) 8.3 (34.0) 9.3 (30.4) 246
440 HDi 120 10.8 (26.2) 8.4 (33.6) 9.3 (30.4)
246
HDi 160 11.0 (25.7) 8.3 (34.0) 9.3 (30.4) 246

163
9
TECHNICAL DATA
Weights

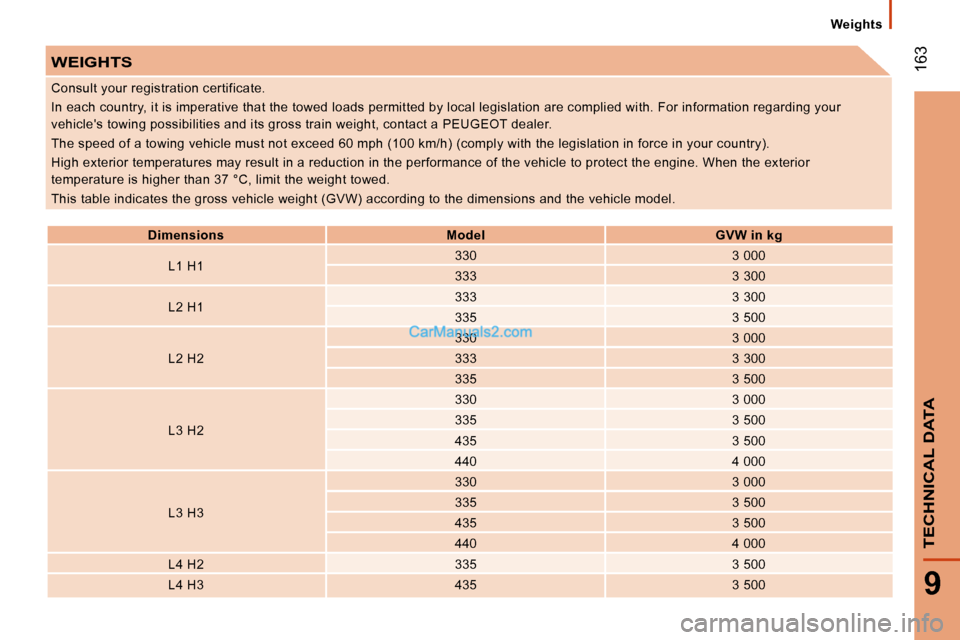

WEIGHTS

Dimensions
Model
GVW in kg
L1 H1 330
3 000
333 3 300
L2 H1 333
3 300
335 3 500
L2 H2 330
3 000
333 3 300
335 3 500
L3 H2 330
3 000
335 3 500
435 3 500
440 4 000
L3 H3 330
3 000
335 3 500
435 3 500
440 4 000
L4 H2 335 3 500
L4 H3 435 3 500
Consult your registration certificate.
In each country, it is imperative that the towed l
oads permitted by local legislation are complied wi th. For information regarding your
vehicle's towing possibilities and its gross train weight, contact a PEUGEOT dealer.
The speed of a towing vehicle must not exceed 60 m ph (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reducti on in the performance of the vehicle to protect the engine. When the exterior
temperature is higher than 37 °C, limit the weight towed.
This table indicates the gross vehicle weight (GVW ) according to the dimensions and the vehicle model .

165
9
TECHNICAL DATA
Weights

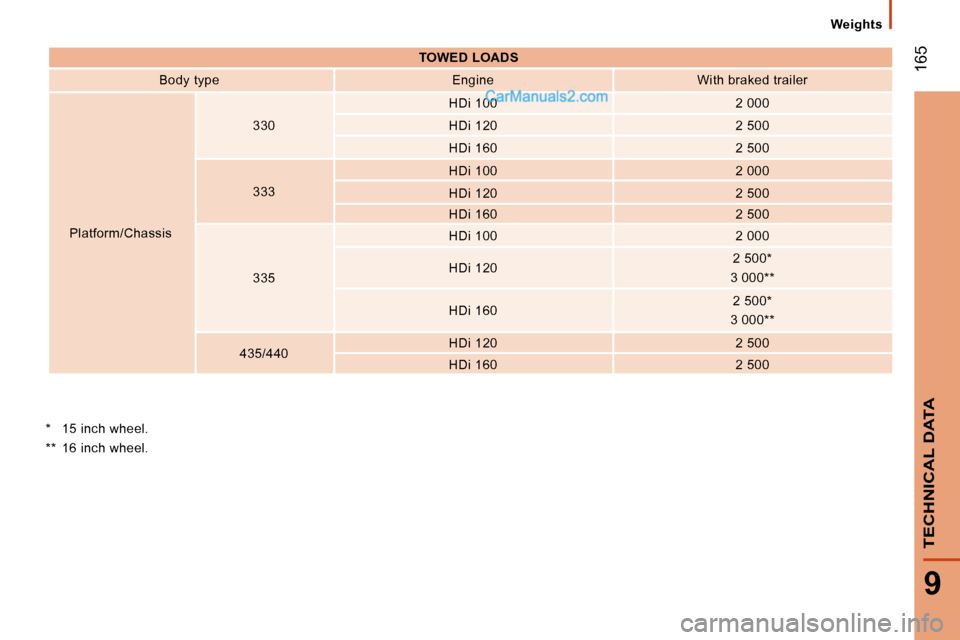

TOWED LOADS
Body type Engine With braked trailer
Platform/Chassis 330
HDi 100
2 000
HDi 120 2 500
HDi 160 2 500
333 HDi 100
2 000
HDi 120 2 500
HDi 160 2 500
335 HDi 100
2 000
HDi 120 2 500 *
3 000 **
HDi 160 2 500 *
3 000 **
435/440 HDi 120
2 500
HDi 160 2 500
* 15 inch wheel.
** 16 inch wheel.

167
9
TECHNICAL DATA
Identification features

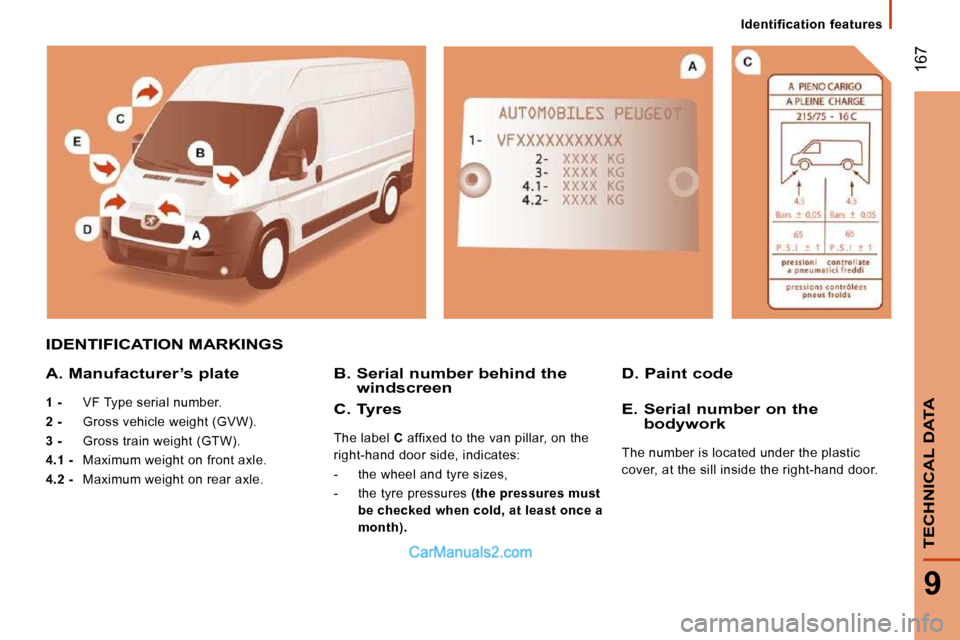

IDENTIFICATION MARKINGS
A. Manufacturer’s plate

1 - VF Type serial number.

2 - Gross vehicle weight (GVW).

3 - Gross train weight (GTW).

4.1 - Maximum weight on front axle.

4.2 - Maximum weight on rear axle.
B. Serial number behind the windscreen D. Paint code
C. Tyres
The label C affixed to the van pillar, on the
right-hand door side, indicates:
- the wheel and tyre sizes,
- the tyre pressures (the
pressures
must
be checked when cold, at least once a
month).
E. Serial number on the bodywork
The number is located under the plastic
cover, at the sill inside the right-hand door.
