59
3
EASE OF USE AND COMFOR
T
Ventilation

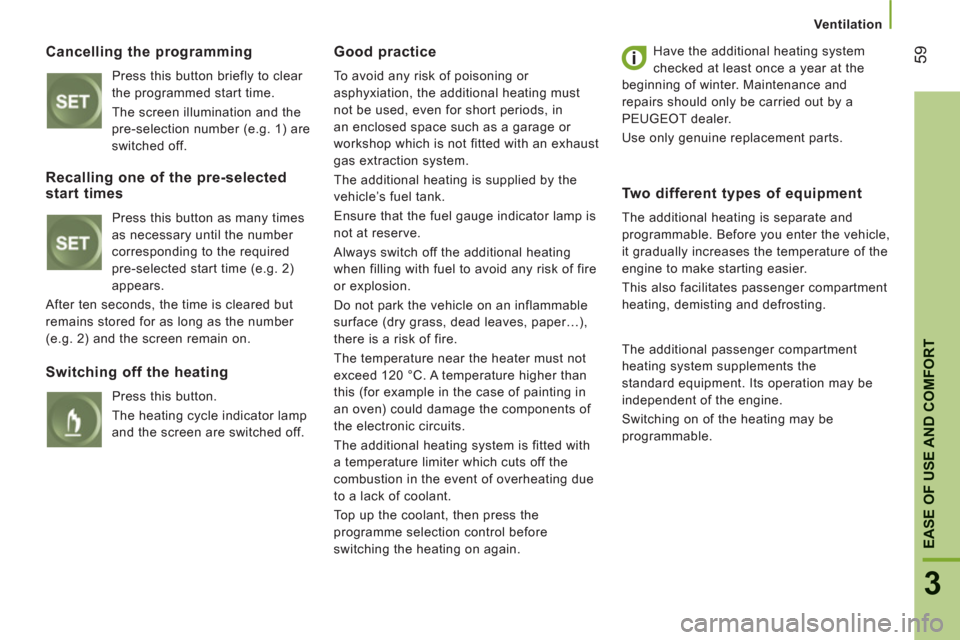

Cancelling the programming
Press this button briefly to clear
the programmed start time.

The screen illumination and the
pre-selection number (e.g. 1) are
switched off.


Good practice

To avoid any risk of poisoning or
asphyxiation, the additional heating must
not be used, even for short periods, in
an enclosed space such as a garage or
workshop which is not fitted with an exhaust
gas extraction system.
The additional heating is supplied by the
vehicle’s fuel tank.
Ensure that the fuel gauge indicator lamp is
not at reserve.
Always switch off the additional heating
when filling with fuel to avoid any risk of fire
or explosion.
Do not park the vehicle on an inflammable
surface (dry grass, dead leaves, paper…),
there is a risk of fire.
The temperature near the heater must not
exceed 120 °C. A temperature higher than
this (for example in the case of painting in
an oven) could damage the components of
the electronic circuits.
The additional heating system is fitted with
a temperature limiter which cuts off the
combustion in the event of overheating due
to a lack of coolant.
Top up the coolant, then press the
programme selection control before
switching the heating on again. Have the additional heating system
checked at least once a year at the
beginning of winter. Maintenance and
repairs should only be carried out by a
PEUGEOT dealer.
Use only genuine replacement parts.
Recalling one of the pre-selected
start times

Press this button as many times
as necessary until the number
corresponding to the required
pre-selected start time (e.g. 2)
appears.
After ten seconds, the time is cleared but
remains stored for as long as the number
(e.g. 2) and the screen remain on.
Switching off the heating

Press this button.
The heating cycle indicator lamp
and the screen are switched off.
Two different types of equipment

The additional heating is separate and
programmable. Before you enter the vehicle,
it gradually increases the temperature of the
engine to make starting easier.
This also facilitates passenger compartment
heating, demisting and defrosting.
The additional passenger compartment
heating system supplements the
standard equipment. Its operation may be
independent of the engine.
Switching on of the heating may be
programmable.

Seats

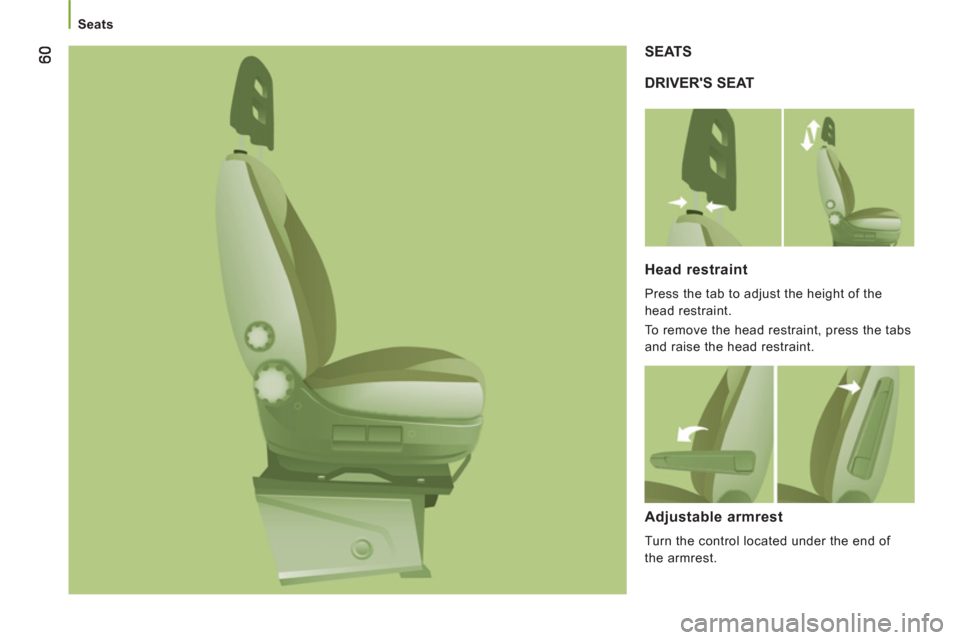

DRIVER'S SEAT SEATS

Head restraint

Press the tab to adjust the height of the
head restraint.
To remove the head restraint, press the tabs
and raise the head restraint.


Adjustable armrest

Turn the control located under the end of
the armrest.

61
3
EASE OF USE AND COMFOR
T
Seats
Lumbar support
Turn the control.


Seat cushion height adjustment

Lift the handle 1
to raise
or lower the front of the seat.
Lift the handle 2
to raise
or lower the rear of the seat.
Heated seat

Use this control to switch the heating of the
seat on or off.
Seat with variable damping

If your seat is fitted with this system, turn the
control to adjust the level of damping to suit
the driver's weight.
Seat back angle

Turn the control to adjust the angle of
the seat back.

Forwards-backwards adjustment

Lift the control bar, located under the seat,
and adjust to the required position.
Rotating seat

If fitted on your seat, press the control to
rotate the seat by 180°.

62


Seats

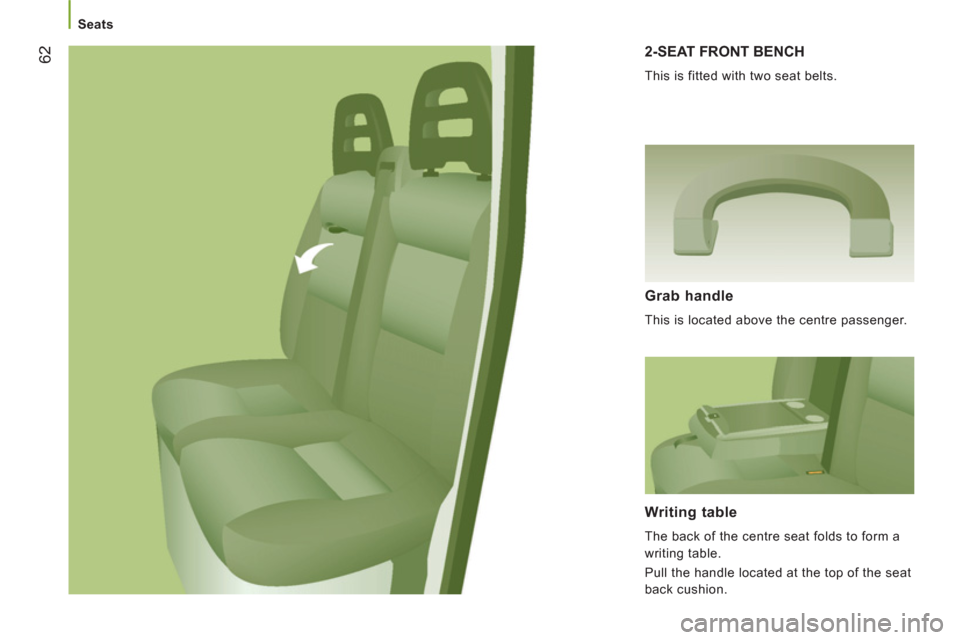

2-SEAT FRONT BENCH

This is fitted with two seat belts.


Grab handle

This is located above the centre passenger.


Writing table

The back of the centre seat folds to form a
writing table.
Pull the handle located at the top of the seat
back cushion.

63
3
EASE OF USE AND COMFOR
T
Seats

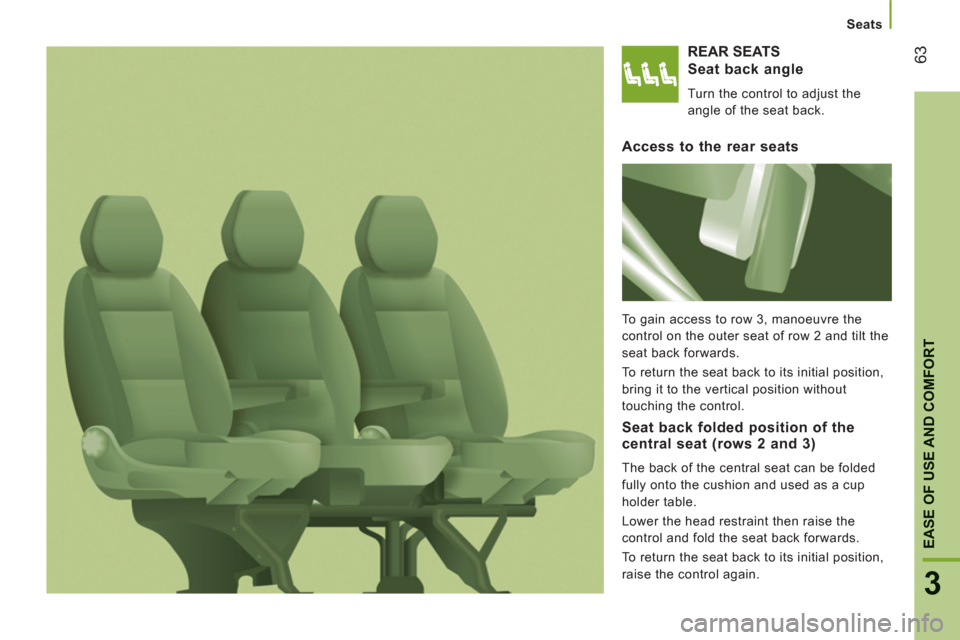

REAR SEATS
Seat back an
gle
Turn the control to adjust the
angle of the seat back.
Access to the rear seats

To gain access to row 3, manoeuvre the
control on the outer seat of row 2 and tilt the
seat back forwards.
To return the seat back to its initial position,
bring it to the vertical position without
touching the control.
Seat back folded position of the central seat (rows 2 and 3)

The back of the central seat can be folded
fully onto the cushion and used as a cup
holder table.
Lower the head restraint then raise the
control and fold the seat back forwards.
To return the seat back to its initial position,
raise the control again.

64


Seats

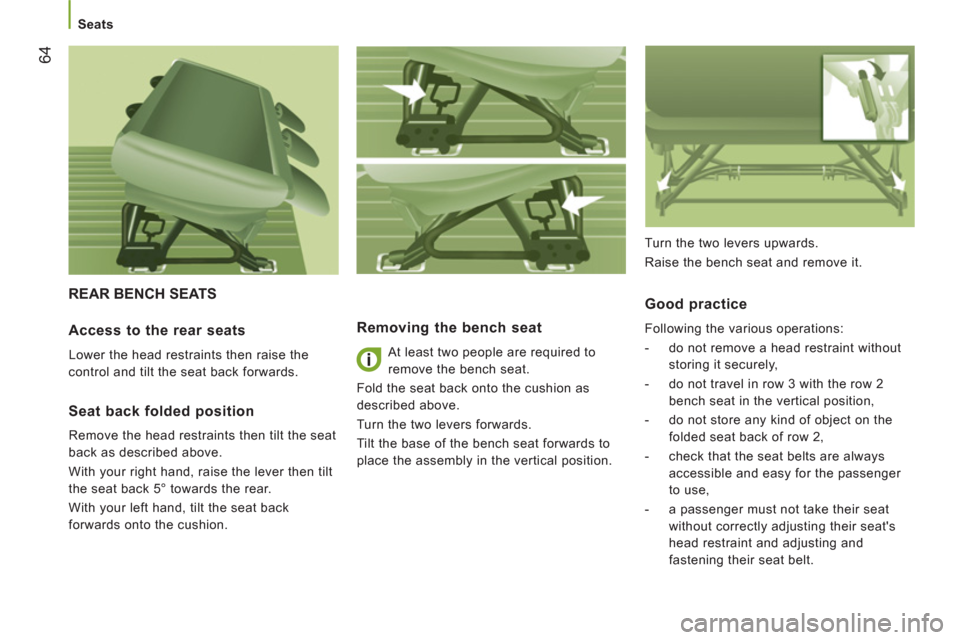

REAR BENCH SEATS
Removing the bench seat

At least two people are required to
remove the bench seat.
Fold the seat back onto the cushion as
described above.
Turn the two levers forwards.
Tilt the base of the bench seat forwards to
place the assembly in the vertical position.

Good practice

Following the various operations:


- do not remove a head restraint without
storing it securely,

- do not travel in row 3 with the row 2
bench seat in the vertical position,

- do not store any kind of object on the
folded seat back of row 2,

- check that the seat belts are always
accessible and easy for the passenger
to use,

- a passenger must not take their seat
without correctly adjusting their seat's
head restraint and adjusting and
fastening their seat belt.


Access to the rear seats

Lower the head restraints then raise the
control and tilt the seat back forwards.


Seat back folded position

Remove the head restraints then tilt the seat
back as described above.
With your right hand, raise the lever then tilt
the seat back 5° towards the rear.
With your left hand, tilt the seat back
forwards onto the cushion. Turn the two levers upwards.
Raise the bench seat and remove it.

65
3
EASE OF USE AND COMFOR
T
Seats

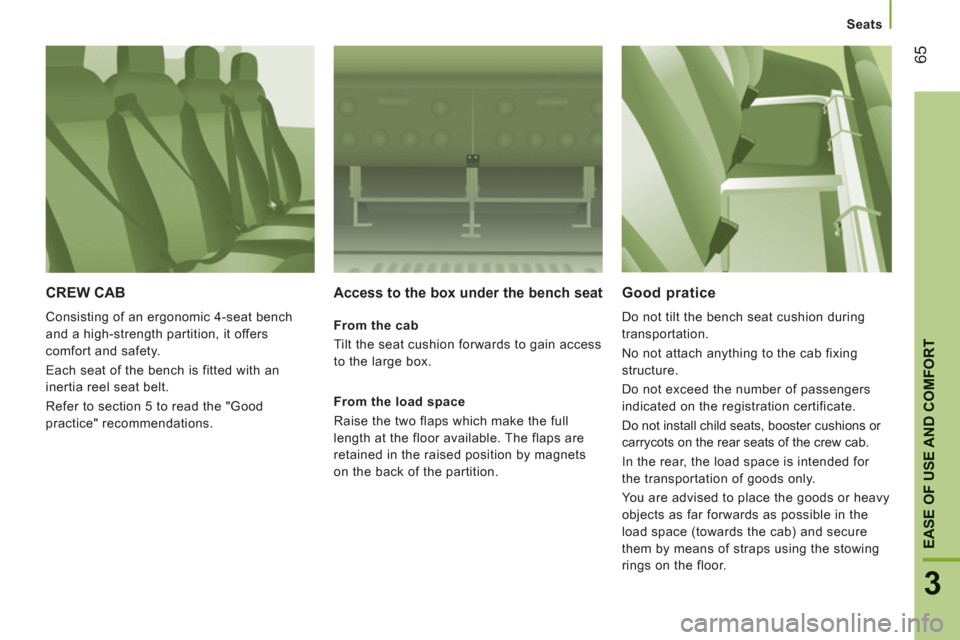

CREW CAB
Consisting of an ergonomic 4-seat bench
and a high-strength partition, it offers
comfort and safety.
Each seat of the bench is fitted with an
inertia reel seat belt.
Refer to section 5 to read the "Good
practice" recommendations.
Access to the box under the bench seat


From the cab
Tilt the seat cushion forwards to gain access
to the large box.

From the load space
Raise the two flaps which make the full
length at the floor available. The flaps are
retained in the raised position by magnets
on the back of the partition.

Good pratice

Do not tilt the bench seat cushion during
transportation.
No not attach anything to the cab fixing
structure.
Do not exceed the number of passengers
indicated on the registration certificate.
Do not install child seats, booster cushions or
carrycots on the rear seats of the crew cab.
In the rear, the load space is intended for
the transportation of goods only.
You are advised to place the goods or heavy
objects as far forwards as possible in the
load space (towards the cab) and secure
them by means of straps using the stowing
rings on the floor.

66


Practical information

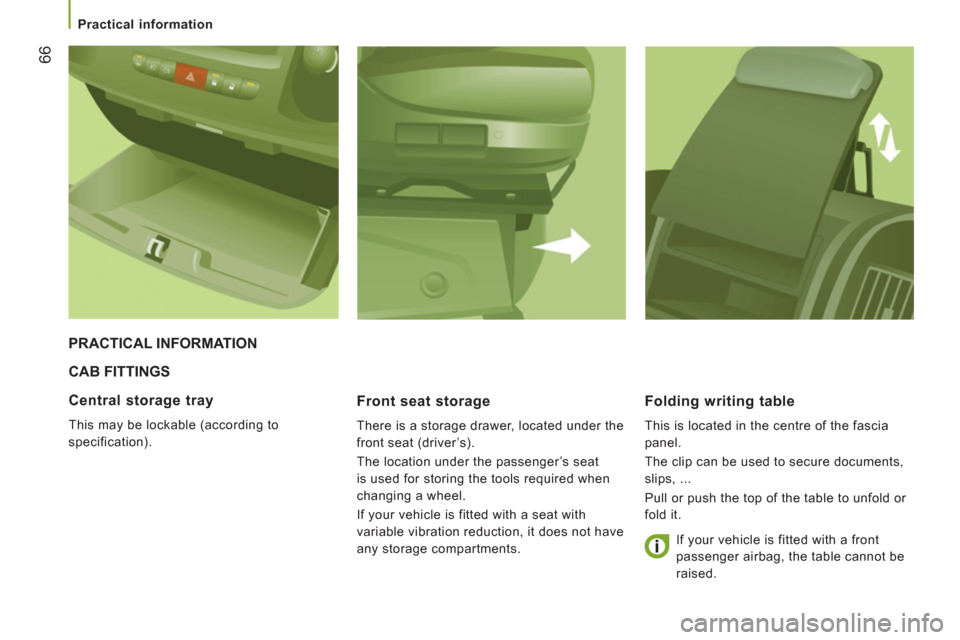

CAB FITTINGS
Front seat stora
ge
There is a storage drawer, located under the
front seat (driver’s).
The location under the passenger’s seat
is used for storing the tools required when
changing a wheel.
If your vehicle is fitted with a seat with
variable vibration reduction, it does not have
any storage compartments.


Folding writing table

This is located in the centre of the fascia
panel.
The clip can be used to secure documents,
slips, ...
Pull or push the top of the table to unfold or
fold it.
PRACTICAL INFORMATION

Central stora
ge tray

This may be lockable (according to
specification).

If your vehicle is fitted with a front
passenger airbag, the table cannot be
raised.

67
3
EASE OF USE AND COMFOR
T
Practical information

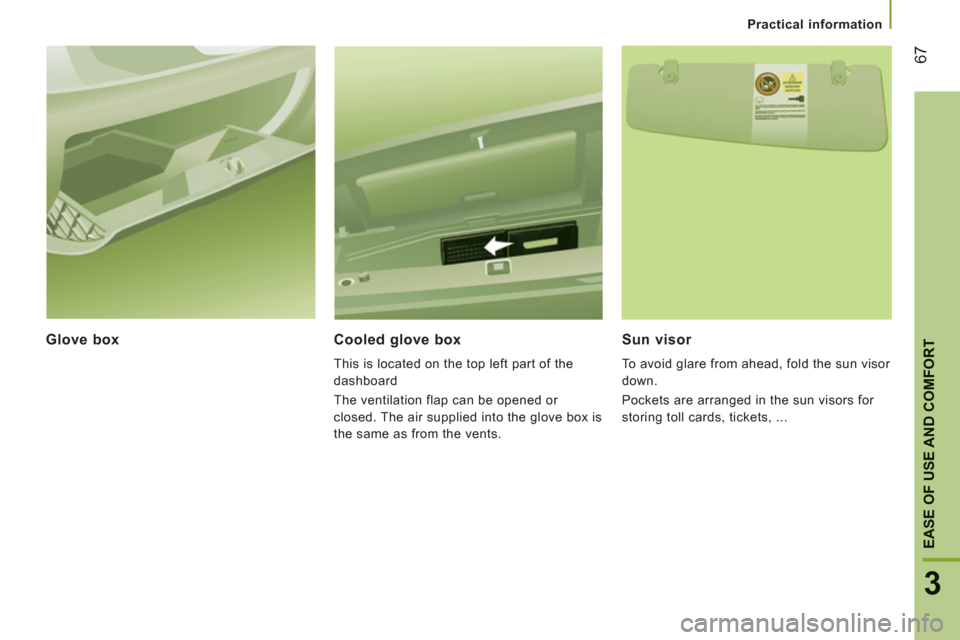

Glove box
Cooled glove box

This is located on the top left part of the
dashboard
The ventilation flap can be opened or
closed. The air supplied into the glove box is
the same as from the vents.
Sun visor

To avoid glare from ahead, fold the sun visor
down.
Pockets are arranged in the sun visors for
storing toll cards, tickets, ...

68


Practical information

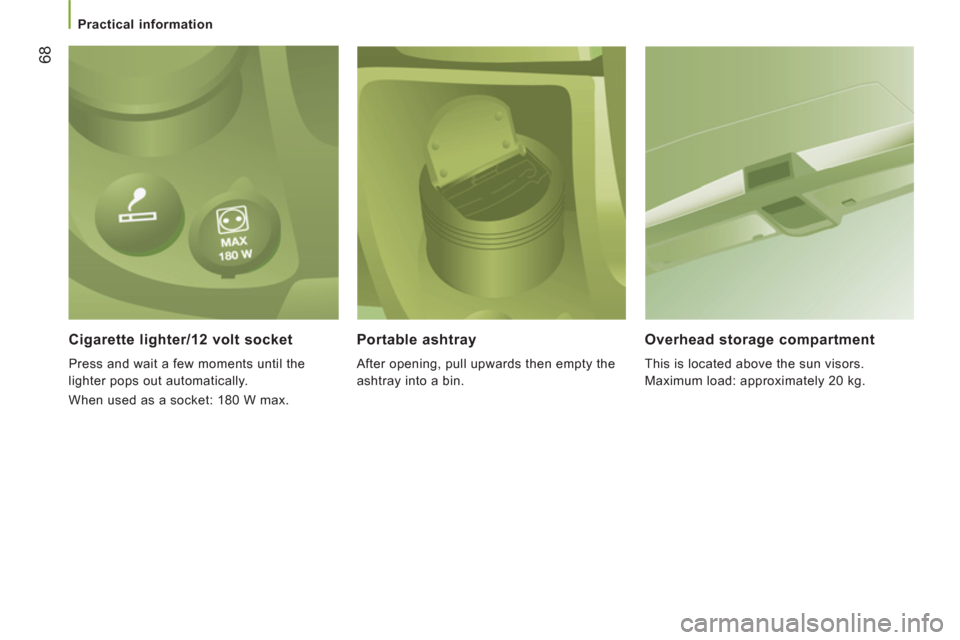

Cigarette lighter/12 volt socket

Press and wait a few moments until the
lighter pops out automatically.
When used as a socket: 180 W max.
Portable ashtray

After opening, pull upwards then empty the
ashtray into a bin.


Overhead storage compartment

This is located above the sun visors.
Maximum load: approximately 20 kg.
