Peugeot Boxer 2013 Owners Manual

Audio equipment
89
4
TECHNOLOGY ON BOAR
D

Volume adjustment. Automatic presetting
of stations (autostore).

Selection of wavebands
FM1, FM2, FMA.

Selection of wavebands:
MW1, MW2.

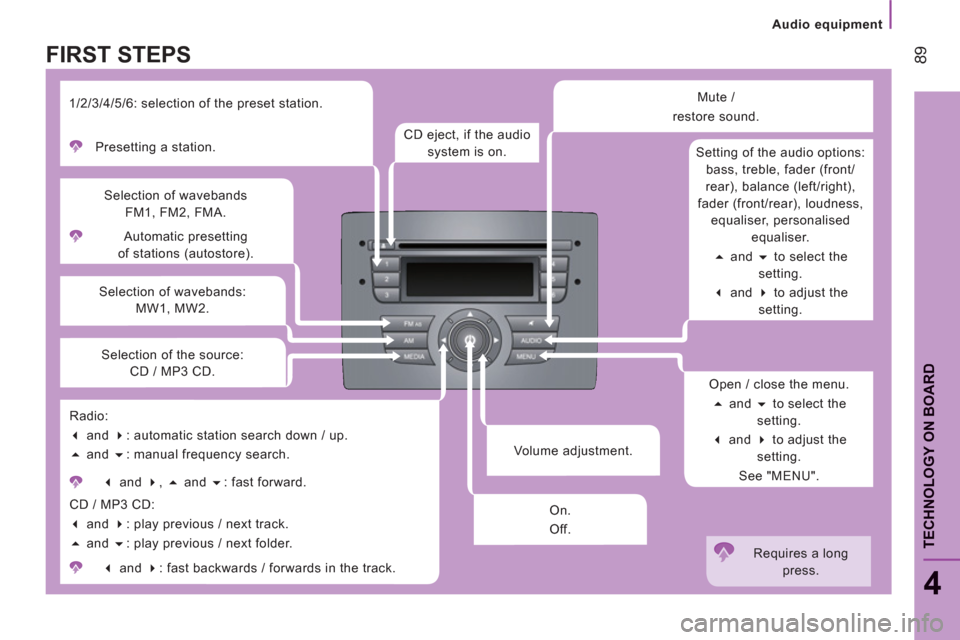

FIRST STEPS


On.
Off.
CD eject, if the audio
system is on.

Open / close the menu.


and
to select the
setting.


and
to adjust the
setting.
See "MENU".
Setting of the audio options:
bass, treble, fader (front/
rear), balance (left/right),
fader (front/rear), loudness,
equaliser, personalised
equaliser.


and
to select the
setting.


and
to adjust the
setting.
Mute /
restore sound.

CD / MP3 CD:


and
: play previous / next track.


and
: play previous / next folder.

Requires a long
press.
Radio:


and
: automatic station search down / up.


and
: manual frequency search.



and
,
and
: fast forward.



and
: fast backwards / forwards in the track. Presetting a station.

1/2/3/4/5/6: selection of the preset station.

Selection of the source:
CD / MP3 CD.

Audio equipment

90

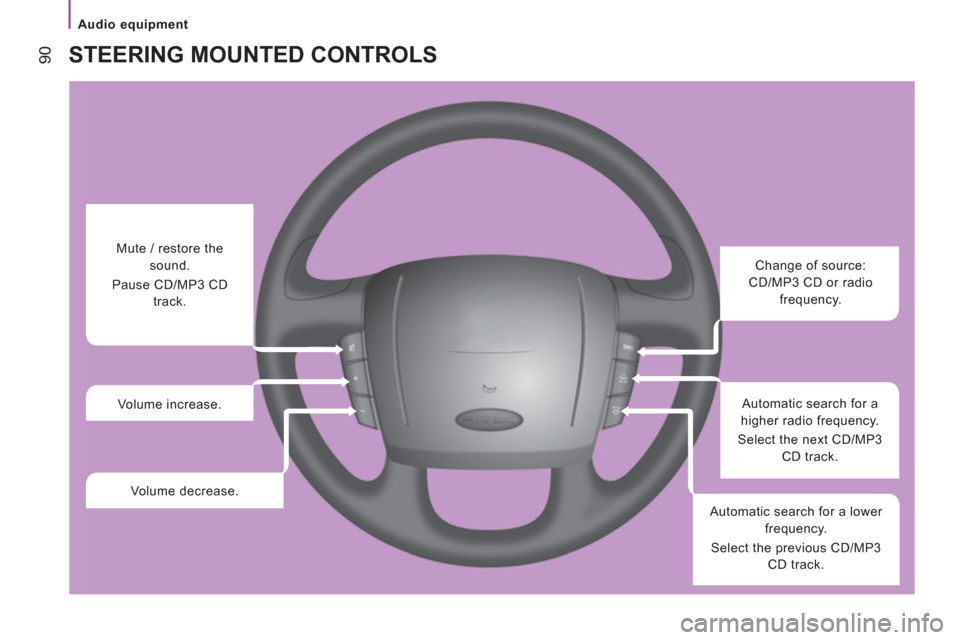

STEERING MOUNTED CONTROLS








Change of source:
CD/MP3 CD or radio
frequency.

Automatic search for a
higher radio frequency.
Select the next CD/MP3
CD track.

Automatic search for a lower
frequency.
Select the previous CD/MP3
CD track.
Mute / restore the
sound.



Pause CD/MP3 CD
track.
Volume increase.

Volume decrease.

Audio equipment
91
4
TECHNOLOGY ON BOAR
D

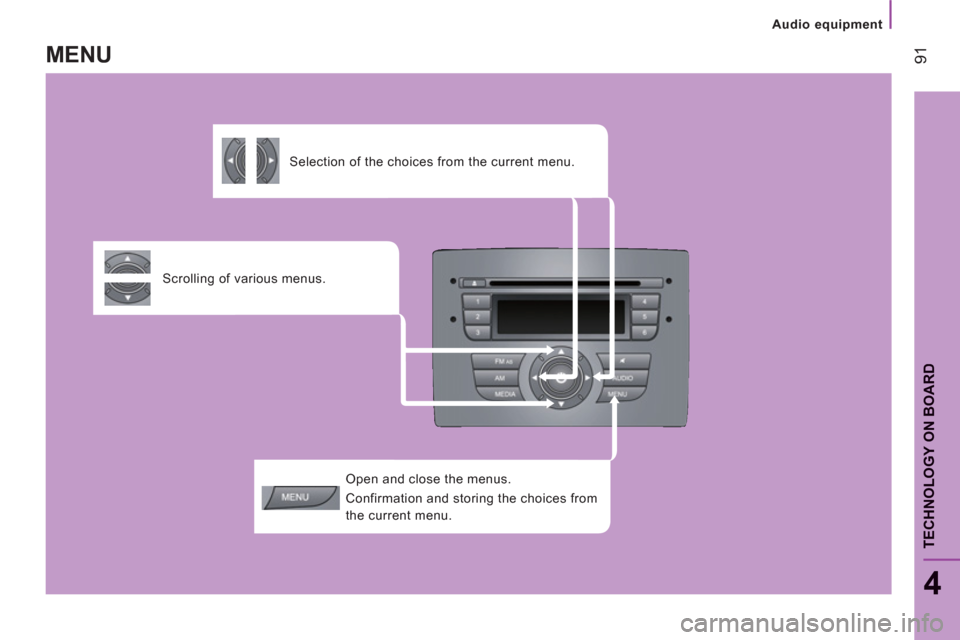

Open and close the menus.
Confirmation and storing the choices from
the current menu.

Scrolling of various menus.

Selection of the choices from the current menu.
MENU

Audio equipment

92

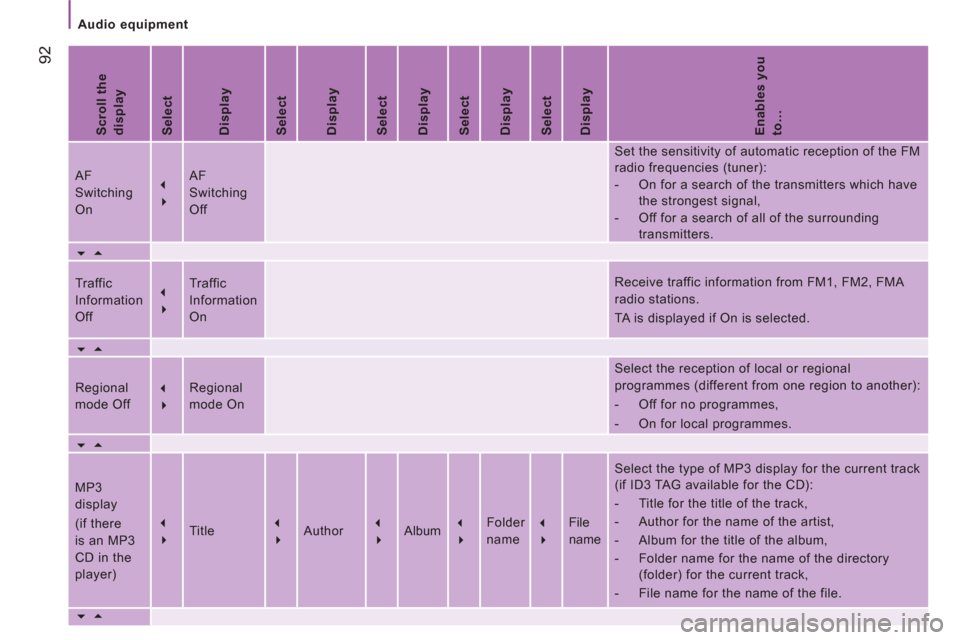

Scroll the
display

Select

Display

Select

Display

Select

Display

Select

Display

Select

Display

Enables you
to…

AF
Switching
On

 AF
Switching
Off Set the sensitivity of automatic reception of the FM
radio frequencies (tuner):


- On for a search of the transmitters which have
the strongest signal,

- Off for a search of all of the surrounding
transmitters.



Traffic
Information
Off

 Traffic
Information
On Receive traffic information from FM1, FM2, FMA
radio stations.
TA is displayed if On is selected.



Regional
mode Off

 Regional
mode On Select the reception of local or regional
programmes (different from one region to another):


- Off for no programmes,

- On for local programmes.



MP3
display
(if there
is an MP3
CD in the
player)


Title

 Author

 Album

 Folder
name

 File
name Select the type of MP3 display for the current track
(if ID3 TAG available for the CD):


- Title for the title of the track,

- Author for the name of the artist,

- Album for the title of the album,

- Folder name for the name of the directory
(folder) for the current track,

- File name for the name of the file.




Audio equipment
93
4
TECHNOLOGY ON BOAR
D

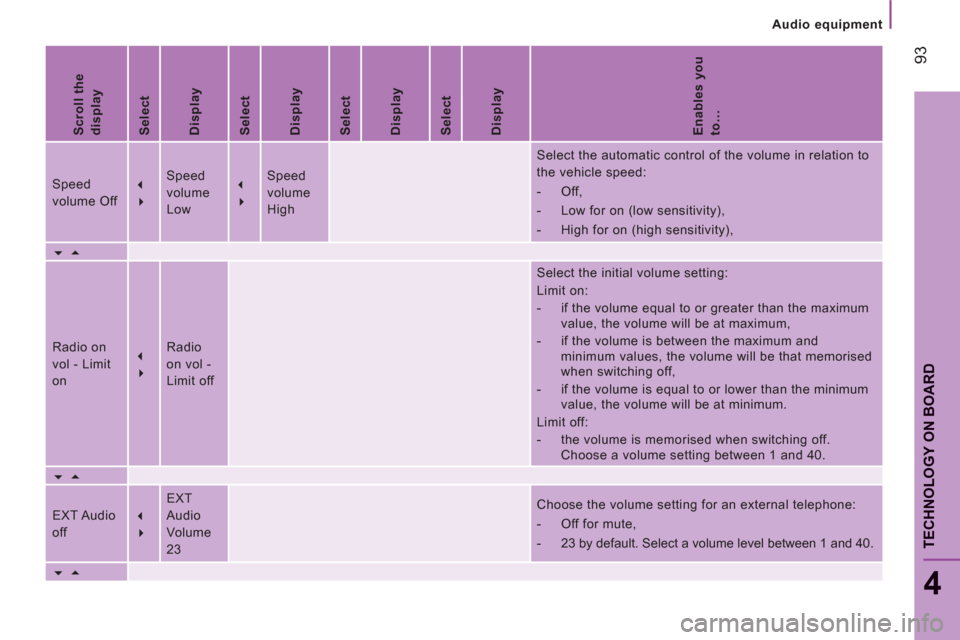

Scroll the
display

Select

Display

Select

Display

Select

Display

Select

Display

Enables you
to…

Speed
volume Off

 Speed
volume
Low

 Speed
volume
High Select the automatic control of the volume in relation to
the vehicle speed:


- Off,

- Low for on (low sensitivity),

- High for on (high sensitivity),



Radio on
vol - Limit
on

 Radio
on vol -
Limit off Select the initial volume setting:
Limit on:


- if the volume equal to or greater than the maximum
value, the volume will be at maximum,

- if the volume is between the maximum and
minimum values, the volume will be that memorised
when switching off,

- if the volume is equal to or lower than the minimum
value, the volume will be at minimum.
Limit off:


- the volume is memorised when switching off.
Choose a volume setting between 1 and 40.



EXT Audio
off

 EXT
Audio
Volume
23 Choose the volume setting for an external telephone:


- Off for mute,

- 23 by default. Select a volume level between 1 and 40.




Audio equipment

94

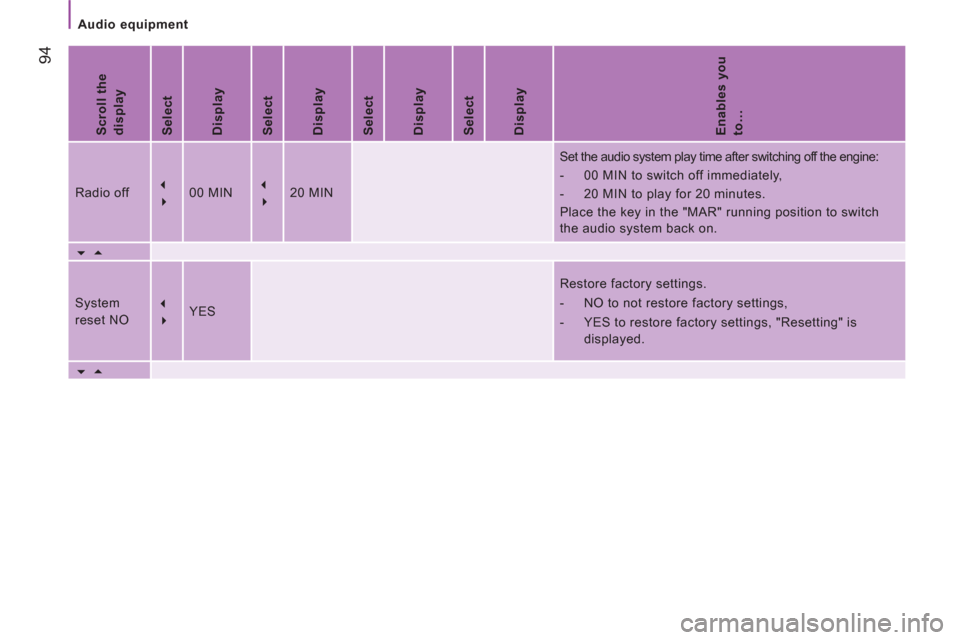

Scroll the
display

Select

Display

Select

Display

Select

Display

Select

Display

Enables you
to…

Radio off

 00 MIN

 20 MIN Set the audio system play time after switching off the engine:


- 00 MIN to switch off immediately,

- 20 MIN to play for 20 minutes.
Place the key in the "MAR" running position to switch
the audio system back on.



System
reset NO

 YES Restore factory settings.


- NO to not restore factory settings,

- YES to restore factory settings, "Resetting" is
displayed.




Audio equipment
95
4
TECHNOLOGY ON BOAR
D

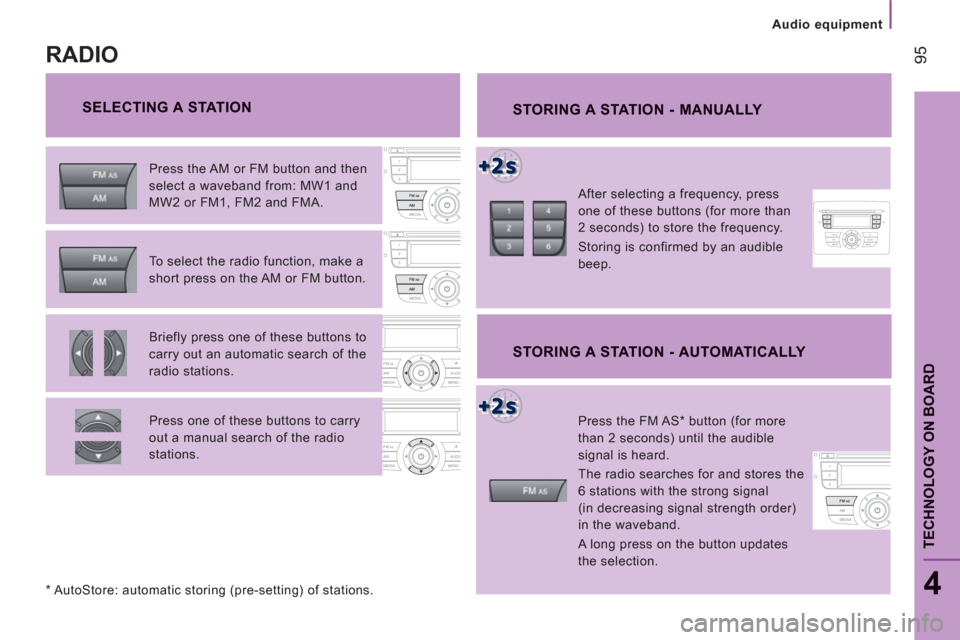

SELECTING A STATION

STORING A STATION - MANUALLY


After selecting a frequency, press
one of these buttons (for more than
2 seconds) to store the frequency.
Storing is confirmed by an audible
beep.

Press the AM or FM button and then
select a waveband from: MW1 and
MW2 or FM1, FM2 and FMA.

To select the radio function, make a
short press on the AM or FM button.

Briefly press one of these buttons to
carry out an automatic search of the
radio stations.

Press one of these buttons to carry
out a manual search of the radio
stations.

RADIO


Press the FM AS * button (for more
than 2 seconds) until the audible
signal is heard.
The radio searches for and stores the
6 stations with the strong signal
(in decreasing signal strength order)
in the waveband.
A long press on the button updates
the selection.





STORING A STATION - AUTOMATICALLY


*
AutoStore: automatic storing (pre-setting) of stations.

22
11
33


Audio equipment

96

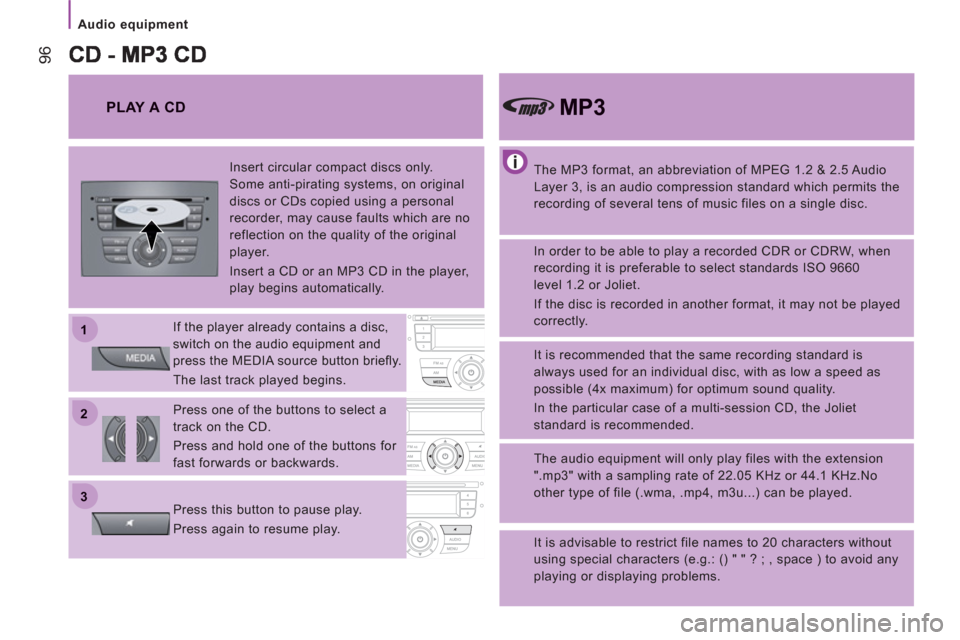

The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio
Layer 3, is an audio compression standard which permits the
recording of several tens of music files on a single disc.

MP3


In order to be able to play a recorded CDR or CDRW, when
recording it is preferable to select standards ISO 9660
level 1.2 or Joliet.
If the disc is recorded in another format, it may not be played
correctly.

It is recommended that the same recording standard is
always used for an individual disc, with as low a speed as
possible (4x maximum) for optimum sound quality.
In the particular case of a multi-session CD, the Joliet
standard is recommended.

The audio equipment will only play files with the extension
".mp3" with a sampling rate of 22.05 KHz or 44.1 KHz.No
other type of file (.wma, .mp4, m3u...) can be played.

It is advisable to restrict file names to 20 characters without
using special characters (e.g.: () " " ? ; , space ) to avoid any
playing or displaying problems.

PLAY A CD


Insert circular compact discs only.
Some anti-pirating systems, on original
discs or CDs copied using a personal
recorder, may cause faults which are no
reflection on the quality of the original
player.
Insert a CD or an MP3 CD in the player,
play begins automatically.

If the player already contains a disc,
switch on the audio equipment and
press the MEDIA source button briefl y.
The last track played begins.

Press one of the buttons to select a
track on the CD.
Press and hold one of the buttons for
fast forwards or backwards.

Press this button to pause play.
Press again to resume play.

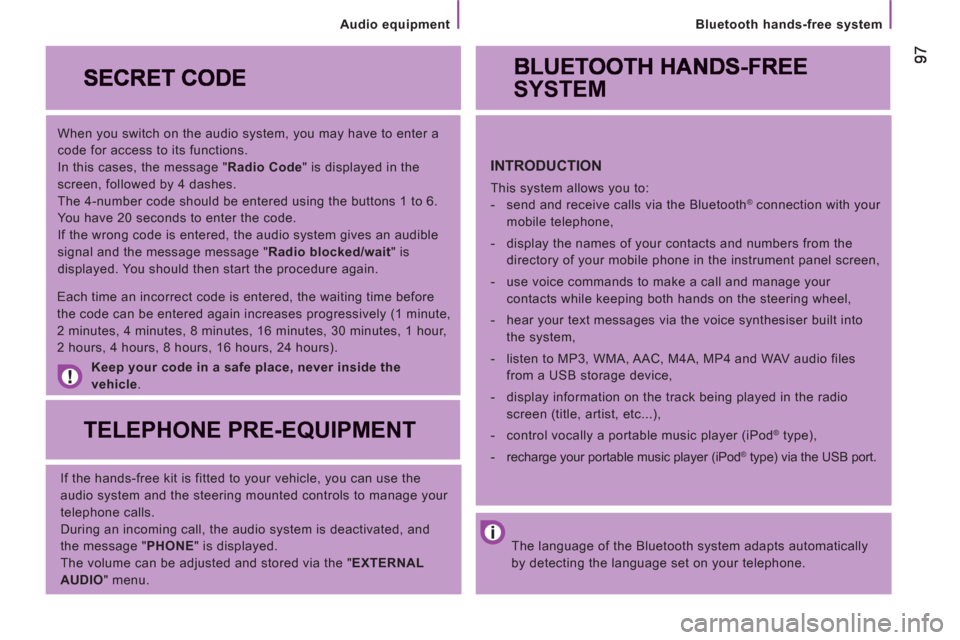

Bluetooth hands-free system

When you switch on the audio system, you may have to enter a
code for access to its functions.
In this cases, the message " Radio Code
" is displayed in the
screen, followed by 4 dashes.
The 4-number code should be entered using the buttons 1 to 6.
You have 20 seconds to enter the code.
If the wrong code is entered, the audio system gives an audible
signal and the message message " Radio blocked/wait
" is
displayed. You should then start the procedure again.


Keep your code in a safe place, never inside the
vehicle
.


TELEPHONE PRE-EQUIPMENT


If the hands-free kit is fitted to your vehicle, you can use the
audio system and the steering mounted controls to manage your
telephone calls.
During an incoming call, the audio system is deactivated, and
the message " PHONE
" is displayed.
The volume can be adjusted and stored via the " EXTERNAL
AUDIO
" menu.
Each time an incorrect code is entered, the waiting time before
the code can be entered again increases progressively (1 minute,
2 minutes, 4 minutes, 8 minutes, 16 minutes, 30 minutes, 1 hour,
2 hours, 4 hours, 8 hours, 16 hours, 24 hours).


The language of the Bluetooth system adapts automatically
by detecting the language set on your telephone.

SYSTEM


INTRODUCTION

This system allows you to:


- send and receive calls via the Bluetooth® connection with your
mobile telephone,

- display the names of your contacts and numbers from the
directory of your mobile phone in the instrument panel screen,

- use voice commands to make a call and manage your
contacts while keeping both hands on the steering wheel,

- hear your text messages via the voice synthesiser built into
the system,

- listen to MP3, WMA, AAC, M4A, MP4 and WAV audio files
from a USB storage device,

- display information on the track being played in the radio
screen (title, artist, etc...),

- control vocally a portable music player (iPod
® type),

- recharge your portable music player (iPod
® type) via the USB port.


Audio equipment

98

Bluetooth hands-free system

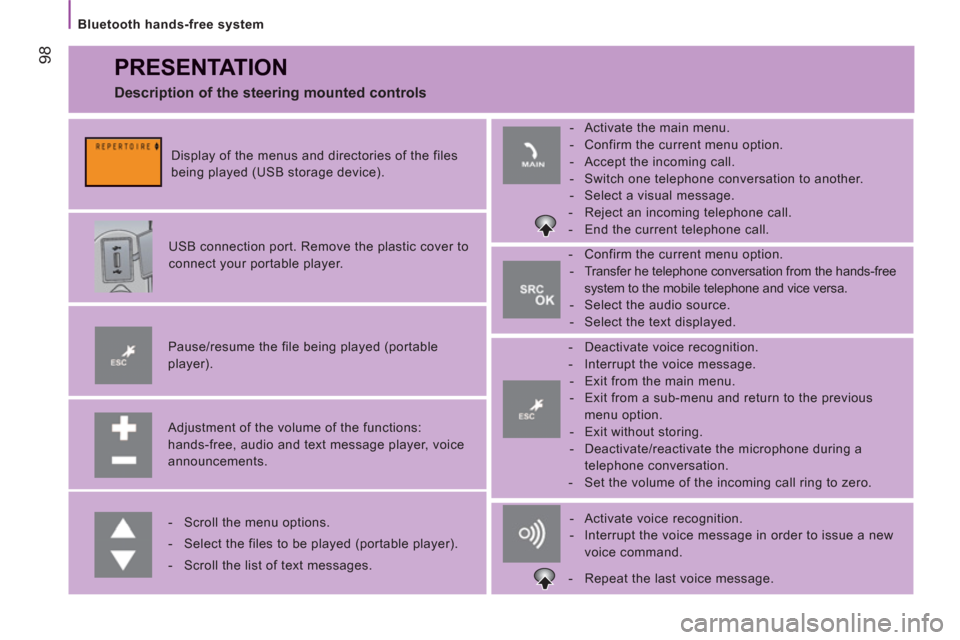

PRESENTATION


Adjustment of the volume of the functions:
hands-free, audio and text message player, voice
announcements.
Pause/resume the file being played (portable
player).
USB connection port. Remove the plastic cover to
connect your portable player.
Display of the menus and directories of the files
being played (USB storage device).



- Scroll the menu options.

- Select the files to be played (portable player).

- Scroll the list of text messages.



- Activate voice recognition.

- Interrupt the voice message in order to issue a new
voice command.


- Deactivate voice recognition.

- Interrupt the voice message.

- Exit from the main menu.

- Exit from a sub-menu and return to the previous
menu option.

- Exit without storing.

- Deactivate/reactivate the microphone during a
telephone conversation.

- Set the volume of the incoming call ring to zero.



- Confirm the current menu option.

- Transfer he telephone conversation from the hands-free
system to the mobile telephone and vice versa.

- Select the audio source.

- Select the text displayed.



- Activate the main menu.

- Confirm the current menu option.

- Accept the incoming call.

- Switch one telephone conversation to another.

- Select a visual message.

- Reject an incoming telephone call.

- End the current telephone call.



Description of the steering mounted controls


- Repeat the last voice message.
