Peugeot Boxer 2016 Owner's Manual - RHD (UK, Australia)

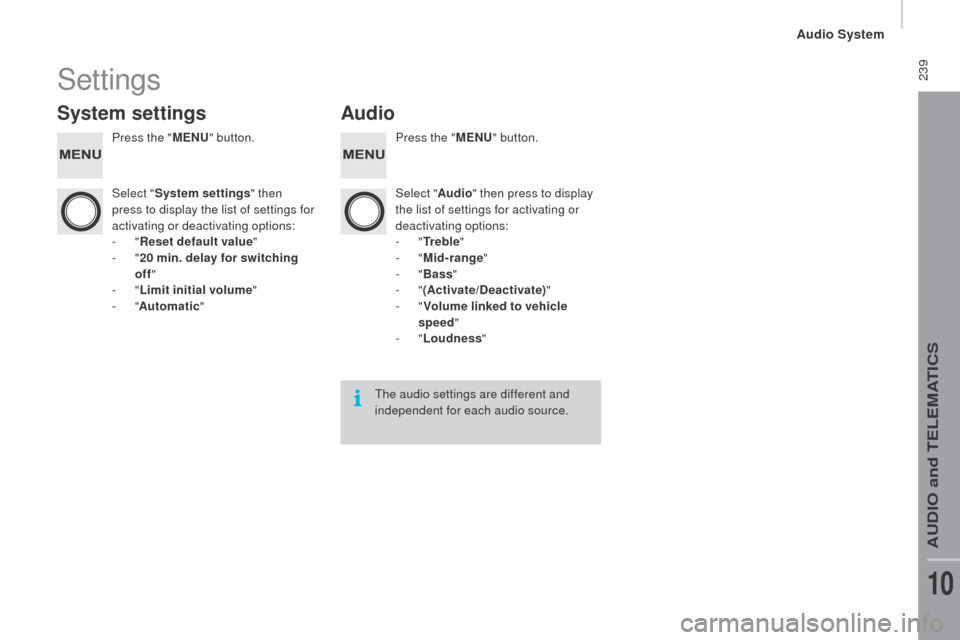

239Settings
System settingsAudio
Press the "MEnu" bu tton. Press the "MEnu" bu tton.
Select " System settings " then
press to display the list of settings for
activating or deactivating options:
-
"rese

t default value "
-
" 2

0 min. delay for switching
off "
-
" L

imit initial volume "
-
" A

utomatic " Select "
Audio" then press to display
the list of settings for activating or
deactivating options:
-
"tr e

b l e"
-
" Mi

d-range"
-
" Ba

ss"
-
" (

Activate/
de
activate)"
-
" V

olume linked to vehicle
speed "
-
" L

oudness"
the a

udio settings are different and
independent for each audio source.
Audio System
AuDIO and teLeMAtICS
10

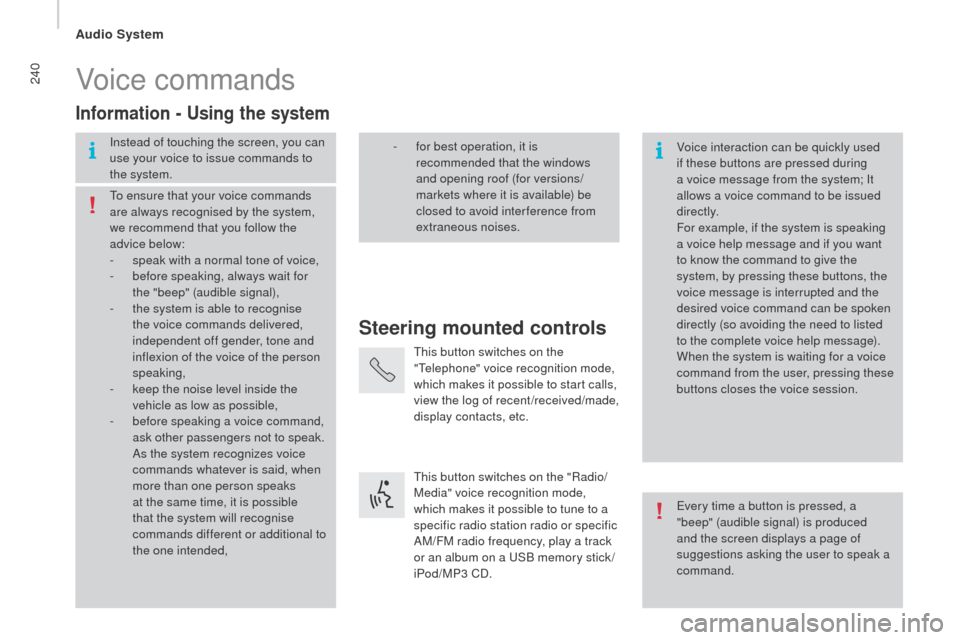

240Voice commands
Steering mounted controls
Information - using the system
Instead of touching the screen, you can
use your voice to issue commands to
the system. Voice interaction can be quickly used
if these buttons are pressed during
a voice message from the system; It
allows a voice command to be issued
di r e c t l y.
For example, if the system is speaking
a voice help message and if you want
to know the command to give the
system, by pressing these buttons, the
voice message is interrupted and the
desired voice command can be spoken
directly (so avoiding the need to listed
to the complete voice help message).
When the system is waiting for a voice
command from the user, pressing these
buttons closes the voice session.
to en

sure that your voice commands
are always recognised by the system,
we recommend that you follow the
advice below:
-
sp

eak with a normal tone of voice,
-
be

fore speaking, always wait for
the "beep" (audible signal),
-
th

e system is able to recognise
the voice commands delivered,
independent off gender, tone and
inflexion of the voice of the person
speaking,
-
ke

ep the noise level inside the
vehicle as low as possible,
-
be

fore speaking a voice command,
ask other passengers not to speak.
As the system recognizes voice
commands whatever is said, when
more than one person speaks
at the same time, it is possible
that the system will recognise
commands different or additional to
the one intended,
eve

ry time a button is pressed, a
"beep" (audible signal) is produced
and the screen displays a page of
suggestions asking the user to speak a
command.
- fo
r best operation, it is
recommended that the windows
and opening roof (for versions/
markets where it is available) be
closed to avoid inter ference from
extraneous noises.
thi

s button switches on the
"
tele

phone" voice recognition mode,
which makes it possible to start calls,
view the log of recent /received/made,
display contacts, etc.
thi

s button switches on the "Radio/
Media" voice recognition mode,
which makes it possible to tune to a
specific radio station radio or specific
AM/FM radio frequency, play a track
or an album on a
uSB m

emory stick /
iPod/MP3 CD.
Audio System

241
Global voice commands
these commands can be made from any screen page after pressing the voice recognition or telephone button located on the steering wheel,
a s long as there is no telephone call in progress.
Level 1 Level 2Level 3
com

ment
Help Provides generic help to the user by suggesting
certain available commands.
canc

el Closes the current voice session.
repe

at Repeats to the user the last voice message spoken.
Voice tutorial Provides the user with detailed description of how
to use the voice system.
Audio System
AuDIO and teLeMAtICS
10

242
Level 1Level 2Level 3com ment
ca

ll * Henri
dup

ont Dials the telephone number associated with contact
Henri Dupont.
ca

ll* Henri
dup

ontMobile phone Dials the telephone number labelled mobile phone
associated with contact Henri Dupont.
cal

l number 0123456789 Calls the telephone number 0123456789.
call

again Calls the number or contact of the last call made.
cal

l back Calls the number or contact of the last call received.
rec

ent calls* Displays the list of recent calls: outgoing, missed
and incoming.
cal

ls made* Displays the list of outgoing calls.
Missed calls* Displays the list of missed calls.
*


t
hi

s function is available only if the telephone connected to the system supports downloading of contacts and recent calls and if the
download has been done.

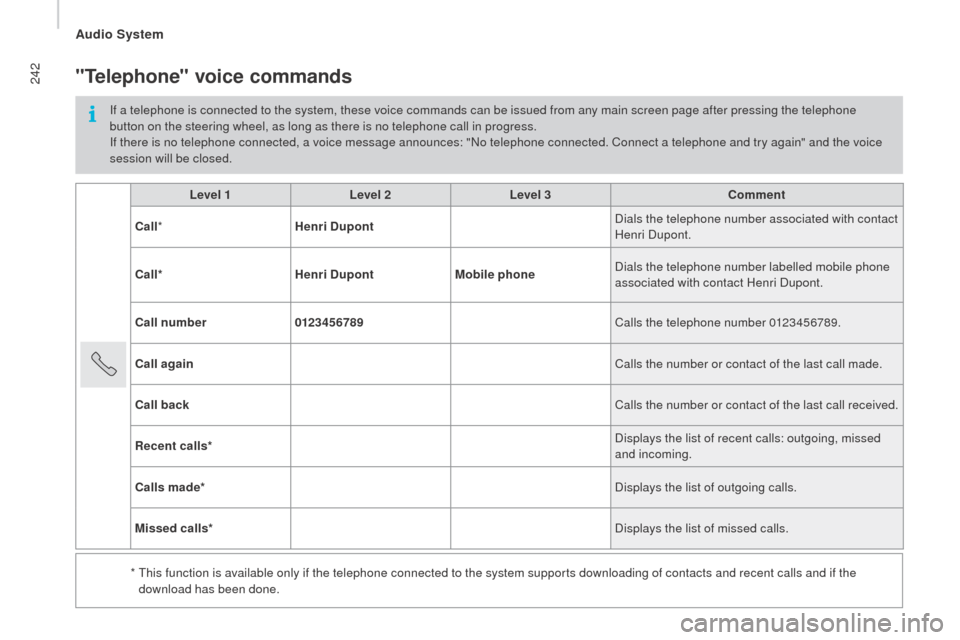

"telephone" voice commands
If a telephone is connected to the system, these voice commands can be issued from any main screen page after pressing the telephone
button on the steering wheel, as long as there is no telephone call in progress.
If there is no telephone connected, a voice message announces: "No telephone connected. Connect a telephone and try again" and the voice
session will be closed.
Audio System

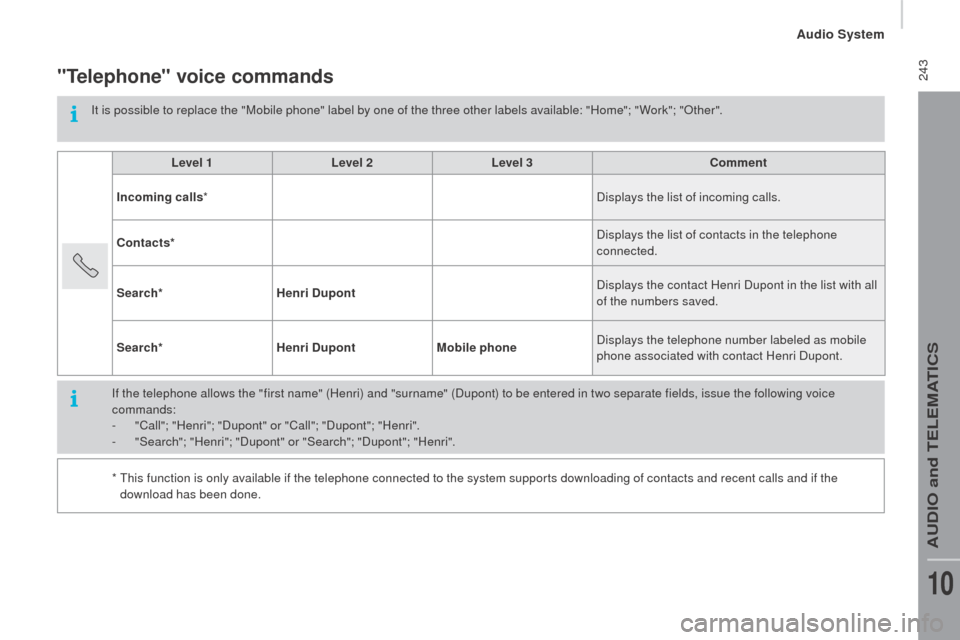

243"telephone" voice commands
It is possible to replace the "Mobile phone" label by one of the three other labels available: "Home"; " Work"; "Other".Level 1 Level 2Level 3
com

ment
Incoming calls * Displays the list of incoming calls.
con

tacts* Displays the list of contacts in the telephone
connected.
Search* Henri
dup

ont Displays the contact Henri Dupont in the list with all
of the numbers saved.
Search* Henri
dup

ontMobile phone Displays the telephone number labeled as mobile
phone associated with contact Henri Dupont.
If the telephone allows the "first name" (Henri) and "surname" (Dupont) to be entered in two separate fields, issue the following voice
commands:
-
"C

all"; "Henri"; "Dupont" or "Call"; "Dupont"; "Henri".
-
"S

earch"; "Henri"; "Dupont" or "Search"; "Dupont"; "Henri".
*


t
hi
s function is only available if the telephone connected to the system supports downloading of contacts and recent calls and if the
download has been done.
Audio System
AuDIO and teLeMAtICS
10

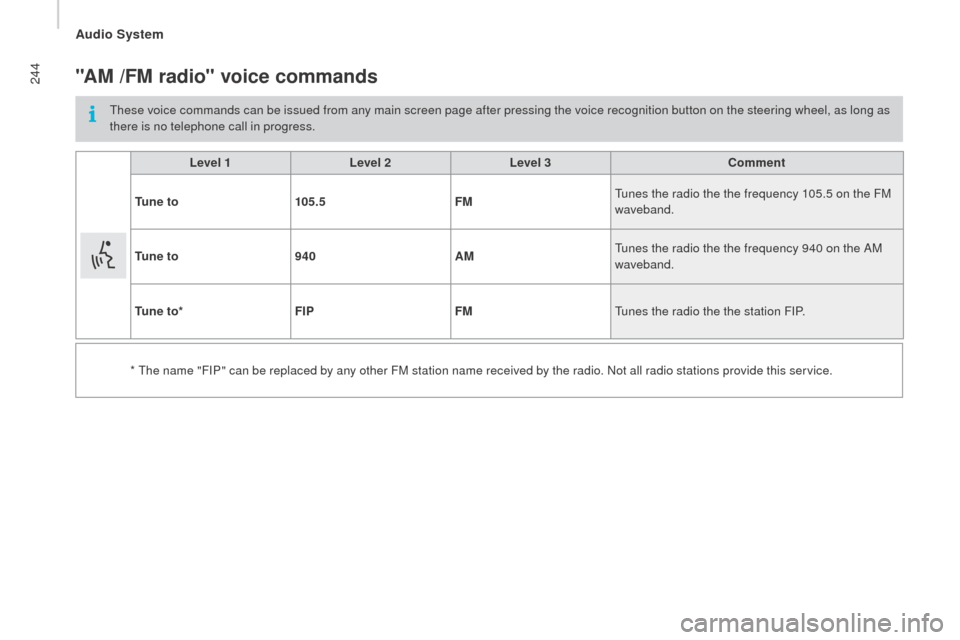

244"AM /FM radio" voice commands
these voice commands can be issued from any main screen page after pressing the voice recognition button on the steering wheel, as long as
t here is no telephone call in progress.
Level 1 Level 2Level 3
com

ment
tu

n e t o 105.5 FM
tun

es the radio the the frequency 105.5 on the FM
waveband.
tu

n e t o 940 AM
tun

es the radio the the frequency 940 on the AM
waveband.
tu

n e t o * FIP FM
tun

es the radio the the station FIP.
*
the n

ame "FIP" can be replaced by any other FM station name received by the radio. Not all radio stations provide this service.
Audio System

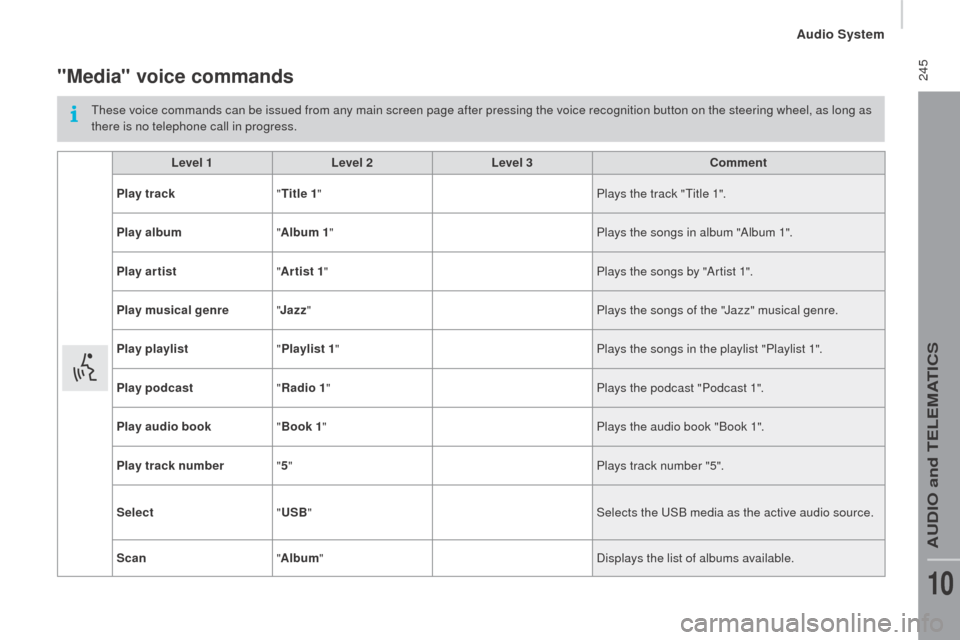

245"Media" voice commands
these voice commands can be issued from any main screen page after pressing the voice recognition button on the steering wheel, as long as
t here is no telephone call in progress.
Level 1 Level 2Level 3
com

ment
Play track "
tit

le 1" Plays the track "
tit

le 1".
Play album "Album 1 " Plays the songs in album "Album 1".
Play ar tist "Ar tist 1 " Plays the songs by "Artist 1".
Play musical genre "
ja

zz" Plays the songs of the "Jazz" musical genre.
Play playlist "Playlist 1 " Plays the songs in the playlist "Playlist 1".
Play podcast "
rad

io 1" Plays the podcast "Podcast 1".
Play audio book "Book 1 " Plays the audio book "Book 1".
Play track number "5 " Plays track number "5".
Select "
uS

B" Selects the
uSB m

edia as the active audio source.
Scan "Album " Displays the list of albums available.
Audio System
AuDIO and teLeMAtICS
10

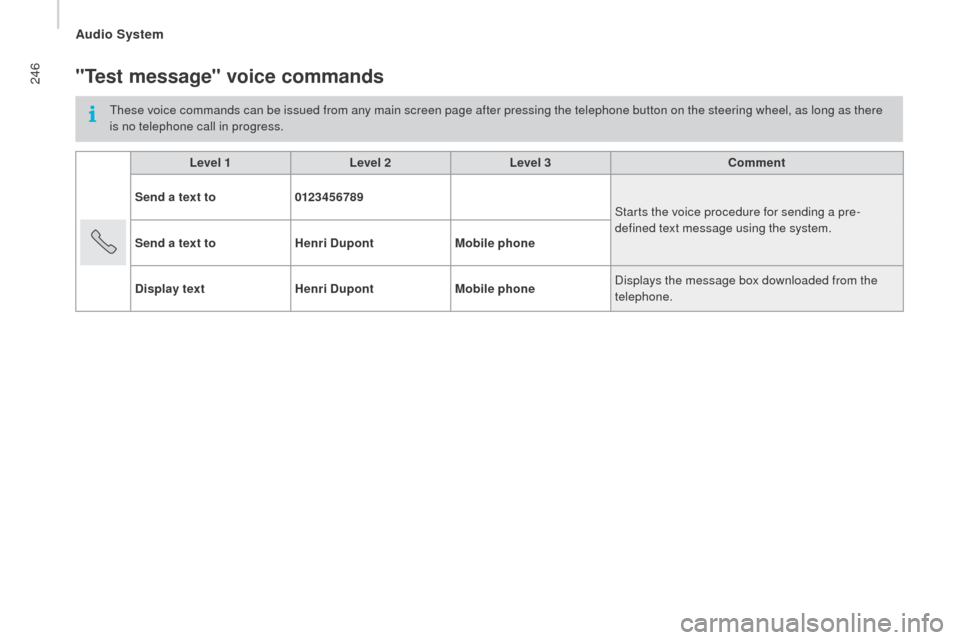

246"test message" voice commands
these voice commands can be issued from any main screen page after pressing the telephone button on the steering wheel, as long as there
is no telephone call in progress.
Level 1 Level 2Level 3
com

ment
Send a text to 0123456789
Starts the voice procedure for sending a pre-
defined text message using the system.
Send a text to Henri
dup

ontMobile phone
di

splay text Henri
dup

ontMobile phone Displays the message box downloaded from the
telephone.
Audio System

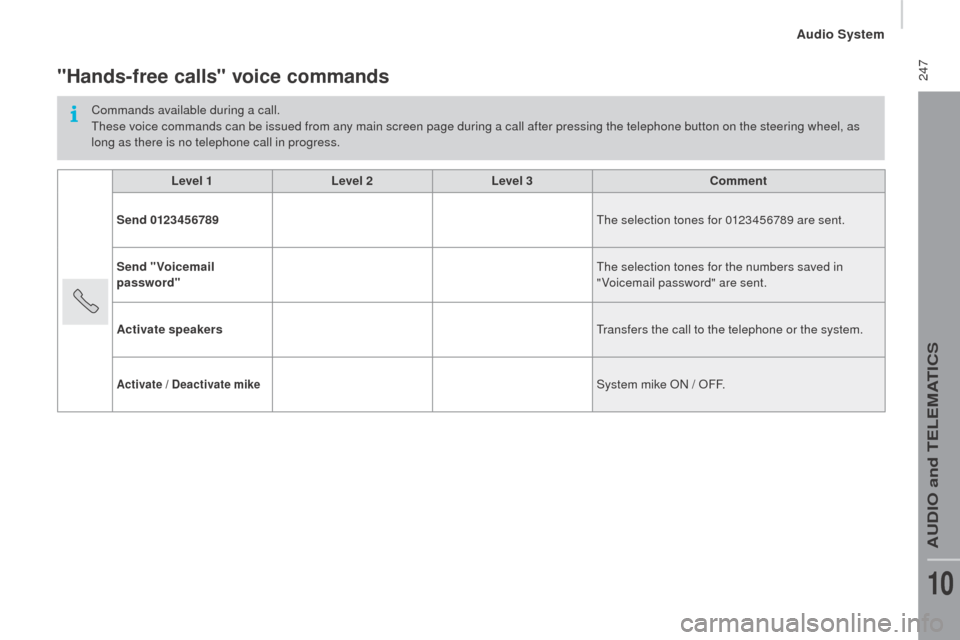

247"Hands-free calls" voice commands
Commands available during a call.these voice commands can be issued from any main screen page during a call after pressing the telephone button on the steering wheel, as
long as there is no telephone call in progress.
Level 1 Level 2Level 3
com

ment
Send 0123456789
the s

election tones for 0123456789 are sent.
Send "Voicemail
password"
the s

election tones for the numbers saved in
"Voicemail password" are sent.
Activate speakers
tra

nsfers the call to the telephone or the system.
Activate / deactivate mikeSystem mike ON / OFF.
Audio System
AuDIO and teLeMAtICS
10
