Peugeot Boxer 2016 Owner's Manual

199
boxer_en_Chap10a_Autoradio_Fiat-tactile-1_ed01-2015

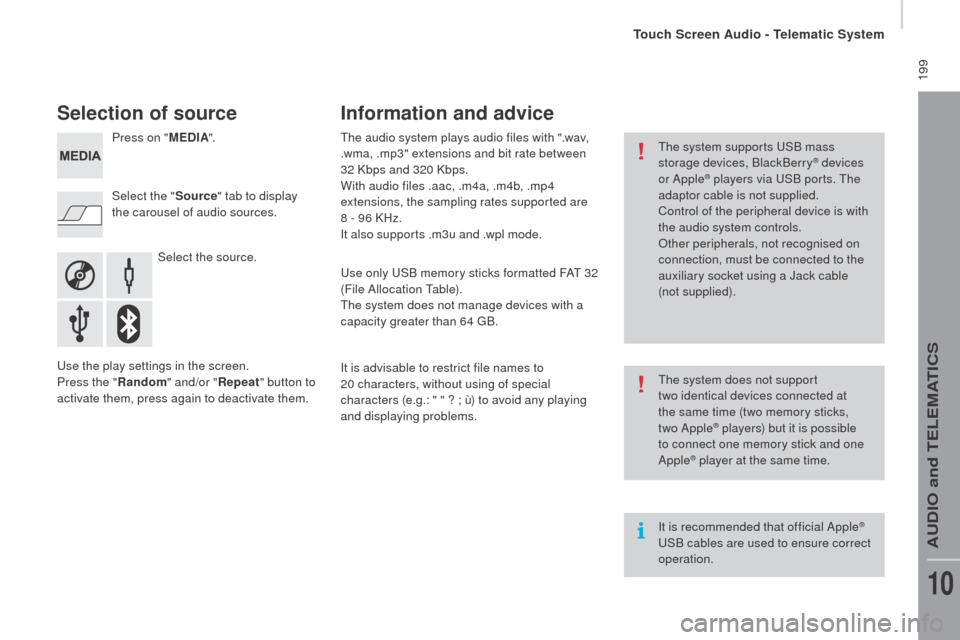

Selection of source
Select the source.
Select the "
Source" tab to display
the carousel of audio sources. Press on " MEd
I
A
".
use

the play settings in the screen.
Press the "
ra

ndom " and/or "
rep

eat" button to
activate them, press again to deactivate them.
th
e audio system plays audio files with ".wav,
.wma, .mp3" extensions and bit rate between
32 Kbps and 320 Kbps.
With audio files .aac, .m4a, .m4b, .mp4
extensions, the sampling rates supported are
8 - 96 KHz.
It also supports .m3u and .wpl mode.us e only uS B memory sticks formatted FAt 32
(File Allocation
t
a
ble).
th

e system does not manage devices with a
capacity greater than 64
g
B.
I

t is advisable to restrict file names to
20


characters, without using of special
characters (e.g.: " " ?
; ù) to avoid any playing
and displaying problems.
Information and advice
the system supports uS B mass
storage devices, BlackBerry® devices
or Apple® players via uS B ports. th e
adaptor cable is not supplied.
Control of the peripheral device is with
the audio system controls.
Other peripherals, not recognised on
connection, must be connected to the
auxiliary socket using a Jack cable
(not supplied).
It is recommended that official Apple
® uS
B cables are used to ensure correct
operation.
th

e system does not support
two

identical devices connected at
the same time (two memory sticks,
two Apple
® players) but it is possible
t
o connect one memory stick and one
Apple
® player at the same time.
touch Screen Audio - telematic System
AuDIO and teLeMAtICS
10

200
boxer_en_Chap10a_Autoradio_Fiat-tactile-1_ed01-2015

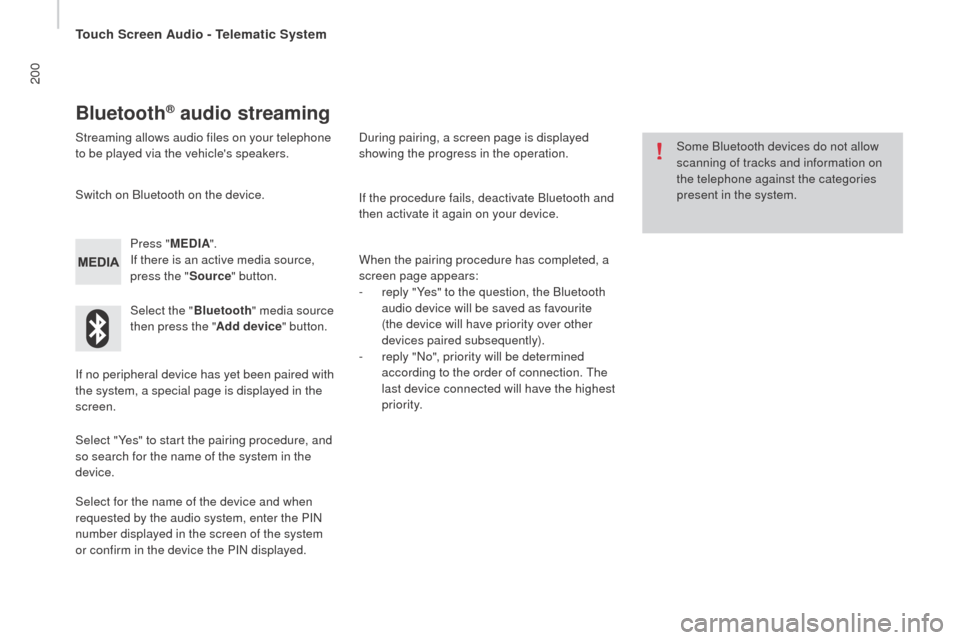

Bluetooth® audio streaming
Streaming allows audio files on your telephone
to be played via the vehicle's speakers.Press "ME
d
I
A".
If there is an active media source,
press the " Source" button.
Select the " Bluetooth" media source
then press the " Add device" button.
Switch on Bluetooth on the device.
Some Bluetooth devices do not allow
scanning of tracks and information on
the telephone against the categories
present in the system.
If the procedure fails, deactivate Bluetooth and
then activate it again on your device.
Select for the name of the device and when
requested by the audio system, enter the PIN
number displayed in the screen of the system
or confirm in the device the PIN displayed. When the pairing procedure has completed, a
screen page appears:
-

r
eply "Yes" to the question, the Bluetooth
audio device will be saved as favourite
(the device will have priority over other
devices paired subsequently).
-

r
eply "No", priority will be determined
according to the order of connection.
t
h
e
last device connected will have the highest
priority.
During pairing, a screen page is displayed
showing the progress in the operation.
If no peripheral device has yet been paired with
the system, a special page is displayed in the
screen.
Select "Yes" to start the pairing procedure, and
so search for the name of the system in the
device.
touch Screen Audio - telematic System

201
boxer_en_Chap10a_Autoradio_Fiat-tactile-1_ed01-2015
the version of software in the audio
system may not be compatible with the
generation of your Apple
® p l aye r.

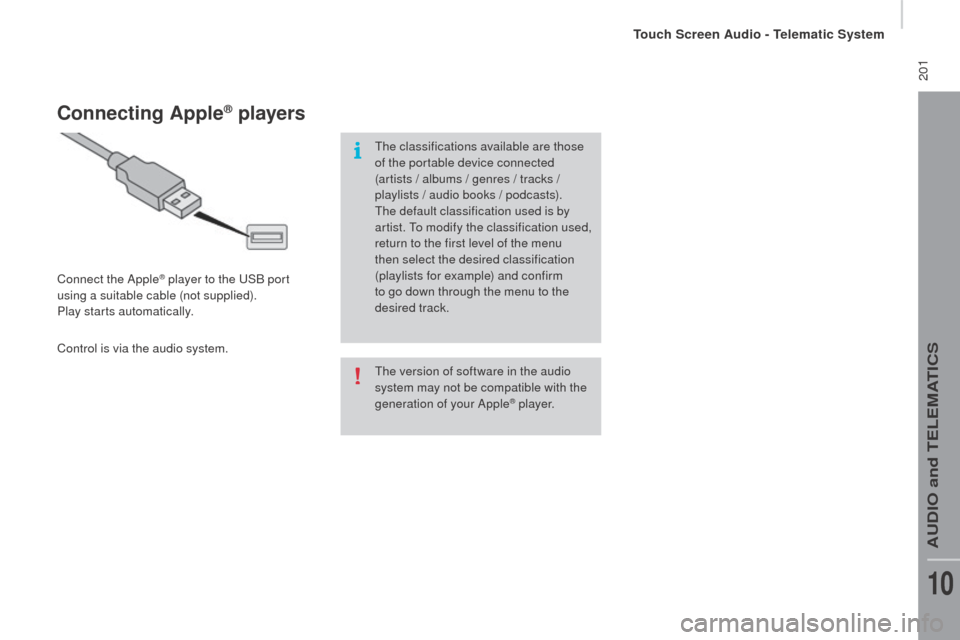

connecting Apple® players
Connect the Apple® player to the uSB port
using a suitable cable (not supplied).
Play starts automatically.
Control is via the audio system.
th
e classifications available are those
of the portable device connected
(artists / albums / genres / tracks /
playlists / audio books / podcasts).
th
e default classification used is by
artist. t
o m
odify the classification used,
return to the first level of the menu
then select the desired classification
(playlists for example) and confirm
to go down through the menu to the
desired track.
touch Screen Audio - telematic System
AuDIO and teLeMAtICS
10

202
boxer_en_Chap10a_Autoradio_Fiat-tactile-1_ed01-2015
Navigation
Level 1Level 2Level 3
touch Screen Audio - telematic System

203
boxer_en_Chap10a_Autoradio_Fiat-tactile-1_ed01-2015
Level 1Level 2 Level 3co mment
nAVG

o to... Home
Select "
go t

o", to define the destination in many ways
and not just by entering an address.
Favourite
Address
Recent destination
Point of interest
My position
Latitude/Longitude
Position of last stop
d

isplay map Display the map for the route for a preview using the
map navigator.
Plan a route
us

e the navigation system to plan a route in advance,
selecting the start point and the destination.
Services
us

e traffic information to minimise the impact of traffic
delays on your journey.
Settings Modify the appearance and operation of the
navigation system.
Most of the system settings are accessible by
pressing "Settings" in the main menu.
Help Call assistance
Access to information on assistance services or other
specialised services.
go t

o assistance
Where am I?
What can I say?
Demonstrations
Safety and other guides
End
touch Screen Audio - telematic System
AuDIO and teLeMAtICS
10

204
boxer_en_Chap10a_Autoradio_Fiat-tactile-1_ed01-2015
Level 1Level 2Level 3
touch Screen Audio - telematic System

205
boxer_en_Chap10a_Autoradio_Fiat-tactile-1_ed01-2015
Level 1Level 2 Level 3co mment
nAVSpeed limit (if known).to s
ee the difference between the desired time of arrival
and estimated time of arrival.
to

uch this par t of the status bar to switch between 3D and
2D map.
nAV G o to...When the navigation system star ts up for the first time,
the "Driving mode" and detailed information on the
current position are displayed.
to

uch the middle of the screen to open the main menu.
display map
P lan a route
Services
Settings
Help
End
nAV
de

tails Display instructions
the route over view gives a preview of the route, the
remaining distance to the destination and an estimate of
the remaining travelling time.
With RDS-
tM

C data, the route over view also shows
traffic information related to delays on the route.Display the map of the route
Display demo of the route
Route overview
Display the destination
Display traffic on the route
Modify route Modify the destination
the navigation system helps in arriving at the destination
as quickly as possible by displaying an faster alternative
route when available.Avoid roadblocks
Calculate alt route...
go

via...
Avoid part of the route
Minimise delays
End
nAV
Navigation instructions for the rest of the route and
distance to the next instruction. If the second instruction
is less than 150 metres from the first, its is displayed
immediately instead of the distance.
to

uch this par t of the status bar to repeat the last voice
instruction.
touch Screen Audio - telematic System
AuDIO and teLeMAtICS
10

206
boxer_en_Chap10a_Autoradio_Fiat-tactile-1_ed01-2015
Level 1
telephone
Level 2Level 3
touch Screen Audio - telematic System

207
boxer_en_Chap10a_Autoradio_Fiat-tactile-1_ed01-2015
Level 1Level 2 Level 3co mment
PH on
E M

obile phone
Display and call contacts present in the mobile
phone.
Press these buttons to scroll through the list of
contact names.
go d

irectly to the desired letter in the list.
PHonE
re
cent calls All callsDisplay and call contacts from the recent calls log.In
o

ut
Missed
PH
on
E
the system memory contains predefined text
messages, which can be sent to reply to a message
received or as a new message.
On receipt of a text message (depending on the
telephone), the system also allows the message in
question to be sent.
PHonE
S ettingste l. connected DisconnectAssociate up to 10 telephones/audio devices to
simplify and speed up access and connection.
Delete device
Save favourites
t

e x t s O n
Download
Add device
Audio connect.
PH
on
Ec

all
Dial the telephone number using the vir tual keypad
in the screen.
PHonE
tr
a n s f .tr a n s f .transfer calls from the system to the mobile phone
and vice versa.
MuteSwitches of the system microphone for private
conversations.
touch Screen Audio - telematic System
AuDIO and teLeMAtICS
10

208
boxer_en_Chap10a_Autoradio_Fiat-tactile-1_ed01-2015
Pairing a Bluetooth®
telephone
For reasons of safety and because they
require prolonged attention on the part
of the driver, the operations for pairing
a Bluetooth mobile telephone to the
hands-free system of the audio system
must be carried out with the vehicle
stationary .
Switch on the Bluetooth function of your
telephone and ensure that it is "visible to all"
(telephone configuration).
Select "Yes" to start the pairing procedure,
and search for the name of the system in the
telephone (otherwise selecting "No", the main
te

lephone screen page is displayed). When the pairing procedure has
finished successfully, a screen page
appears:
-

r
eply "Yes" to the question, the
mobile phone is saved as the
favourite (this telephone will have
priority over other telephones
paired subsequently).
-

i
f no other device has been
paired, the system considers
the first device paired to be the
favourite.
When pairing, a screen page is displayed
showing progress in the operation.th
e services available depend on the network,
the SIM card and the compatibility of the
Bluetooth device used. Check the instructions
for your telephone and with your service
provider for the services to which you have
access.
Select the name of the system and, depending
on the telephone, using the telephone's
keypad, enter the PIN displayed in the screen
of the system or confirm in the telephone the
PIN displayed. Press "
PH
on
E".
I

f no telephone has yet been paired
in the system, a special page is
displayed in the screen. If the operation fails, we recommend
switching the Bluetooth function of
your telephone off and then on again.
For telephones not set as favourite, the
order of priority is determined in the
order of connection.
t
h
e last telephone
connected has the highest priority.
th

e profiles compatible with the system are:
H F P, O P P, P B A P, A 2 D P, A V R C P, M A P. When you return to your vehicle, the last
telephone connected reconnects automatically,
within around 30 seconds of switching on the
ignition (with Bluetooth switched on).
to m

odify the automatic connection profile,
select the telephone in the list then select the
desired setting.
Automatic reconnection
When the ignition is switched on, the telephone
connected when the ignition was last switched
off reconnects automatically, if this connection
mode had been set during the pairing
procedure (see previous pages).
Connection is conformed by the display of a
message and the name of the telephone.
touch Screen Audio - telematic System
