Changing a fuse
159
QUICK HELP
8


Fuses


A (amps)


Allocation



54


-
Not used


55


15
Heated seats


56


15
Rear passenger 12 V socket


57


10
Programmable additional heating


58


10
Lateral sidelamps


59


7.5
Pneumatic suspension


60


-
Not used


61


-
Not used


62


-
Not used


63


10
Programmable additional heating switch


64


-
Not used


65



30
Fan for programmable additional heating

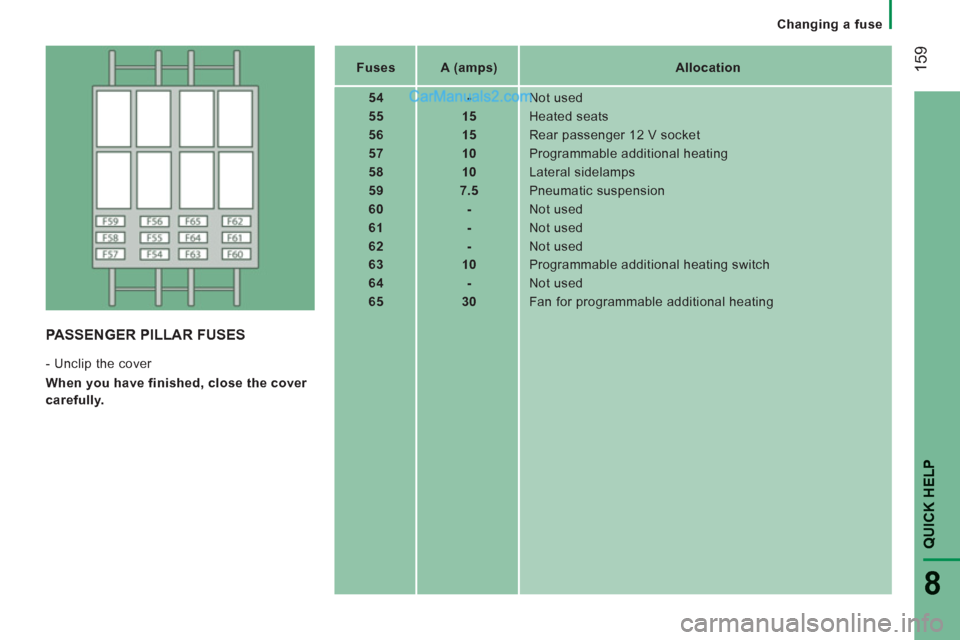

PASSENGER PILLAR FUSES

- Unclip the cover

When you have finished, close the cover
carefully.

Changing a fuse
160

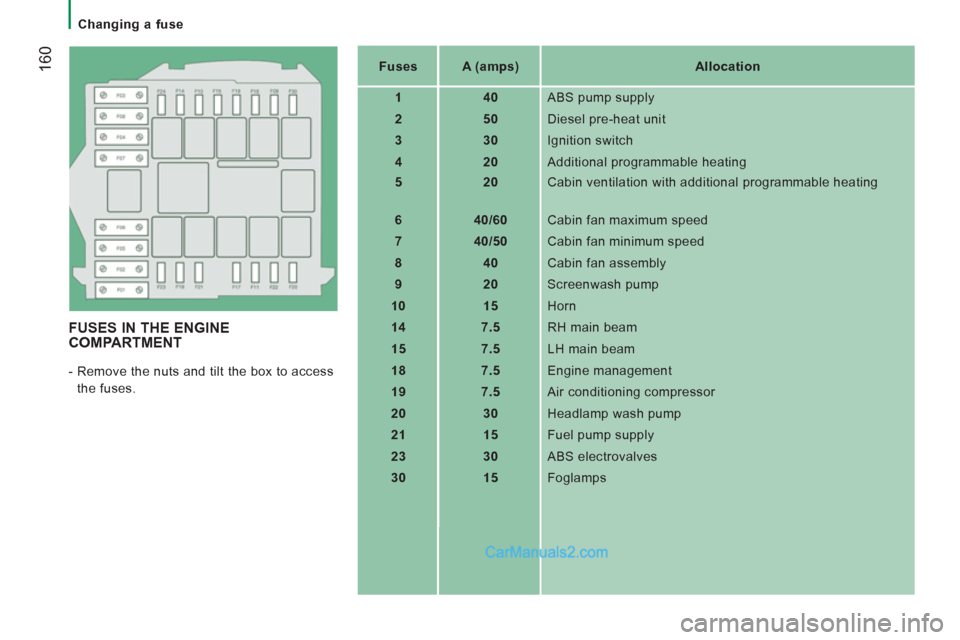

FUSES IN THE ENGINE
COMPARTMENT
- Remove the nuts and tilt the box to access
the fuses.

Fuses


A (amps)


Allocation



1


40
ABS pump supply


2


50
Diesel pre-heat unit


3


30
Ignition switch


4


20
Additional programmable heating


5


20
Cabin ventilation with additional programmable heating


6


40/60
Cabin fan maximum speed


7


40/50
Cabin fan minimum speed


8


40
Cabin fan assembly


9


20
Screenwash pump


10


15
Horn


14


7.5
RH main beam


15


7.5
LH main beam


18


7.5
Engine management


19


7.5
Air conditioning compressor


20


30
Headlamp wash pump


21


15
Fuel pump supply


23


30
ABS electrovalves


30


15
Foglamps

Changing a wiper blade
161
QUICK HELP
8

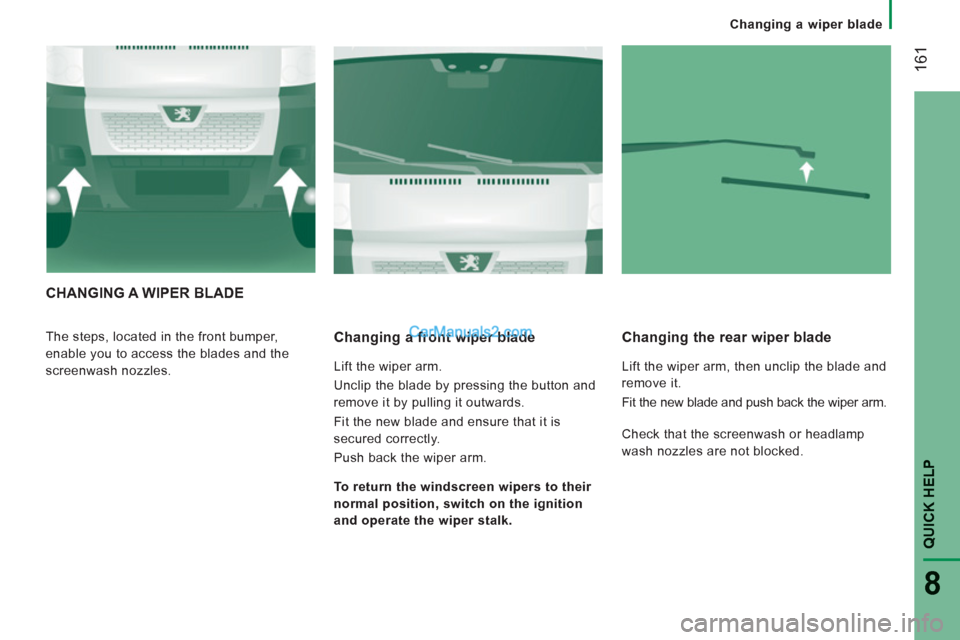

CHANGING A WIPER BLADE

The steps, located in the front bumper,
enable you to access the blades and the
screenwash nozzles.
Changing a front wiper blade

Lift the wiper arm.
Unclip the blade by pressing the button and
remove it by pulling it outwards.
Fit the new blade and ensure that it is
secured correctly.
Push back the wiper arm.
Changing the rear wiper blade

Lift the wiper arm, then unclip the blade and
remove it.
Fit the new blade and push back the wiper arm.

To return the windscreen wipers to their
normal position, switch on the ignition
and operate the wiper stalk.
Check that the screenwash or headlamp
wash nozzles are not blocked.

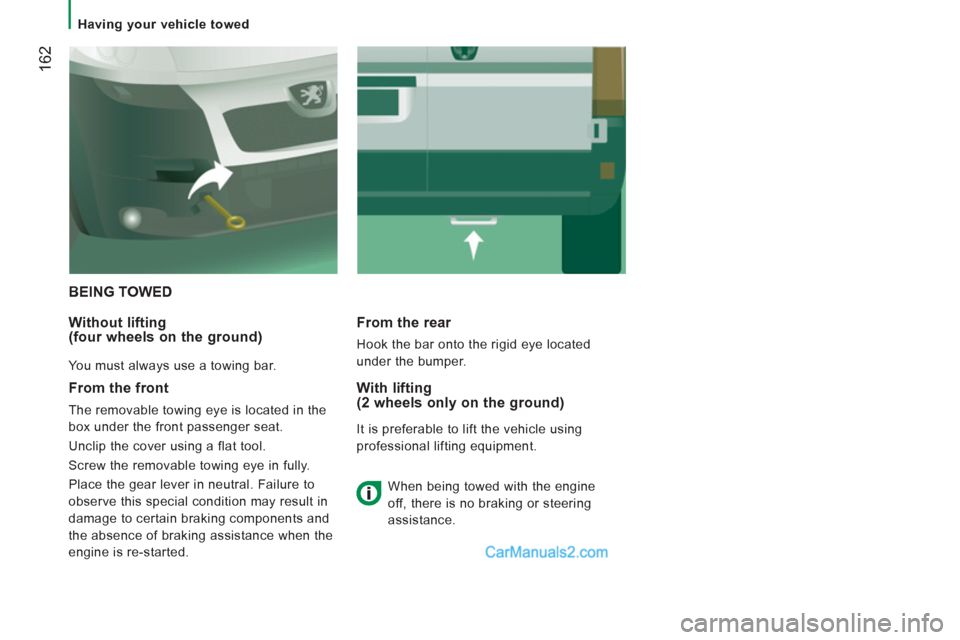

Having your vehicle towed

162

BEING TOWED

Without liftin
g (four wheels on the ground)

You must always use a towing bar.
From the rear

Hook the bar onto the rigid eye located
under the bumper.


From the front

The removable towing eye is located in the
box under the front passenger seat.
Unclip the cover using a flat tool.
Screw the removable towing eye in fully.
Place the gear lever in neutral. Failure to
observe this special condition may result in
damage to certain braking components and
the absence of braking assistance when the
engine is re-started.
With lifting(2 wheels only on the ground)

It is preferable to lift the vehicle using
professional lifting equipment.
When being towed with the engine
off, there is no braking or steering
assistance.

9
TECHNI
CAL DATA



Environment

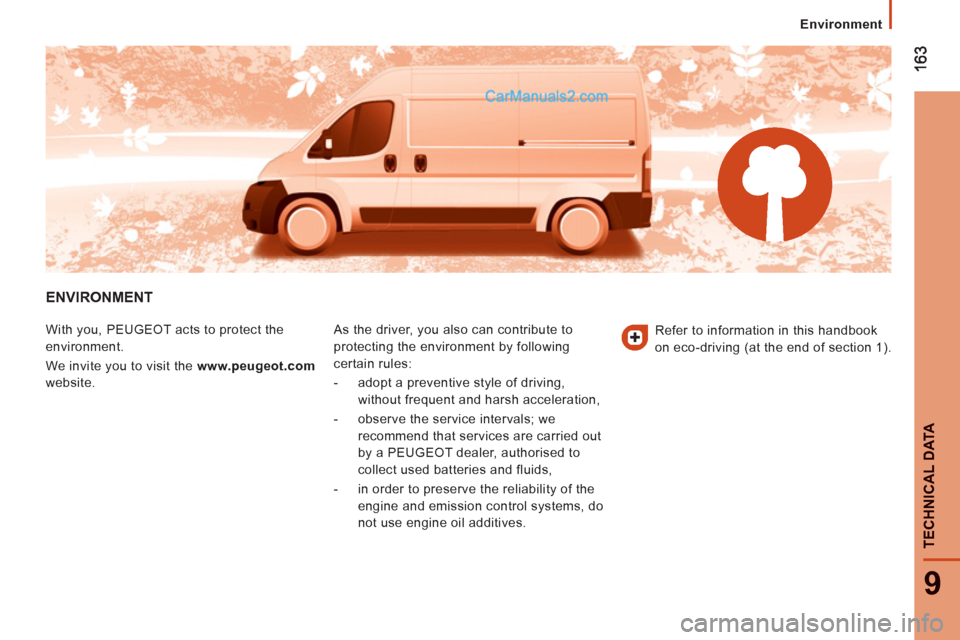

ENVIRONMENT

With you, PEUGEOT acts to protect the
environment.
We invite you to visit the www.peugeot.com

website. As the driver, you also can contribute to
protecting the environment by following
certain rules:


- adopt a preventive style of driving,
without frequent and harsh acceleration,

- observe the service intervals; we
recommend that services are carried out
by a PEUGEOT dealer, authorised to
collect used batteries and fluids,

- in order to preserve the reliability of the
engine and emission control systems, do
not use engine oil additives. Refer to information in this handbook
on eco-driving (at the end of section 1).
163163

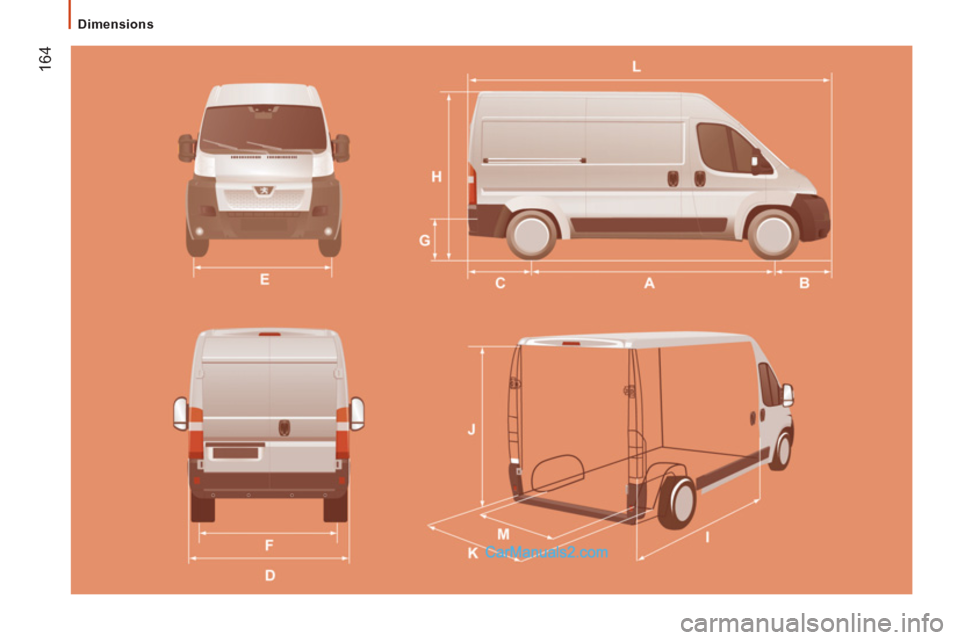

164


Dimensions

165
9
TECHNI
CAL DATA

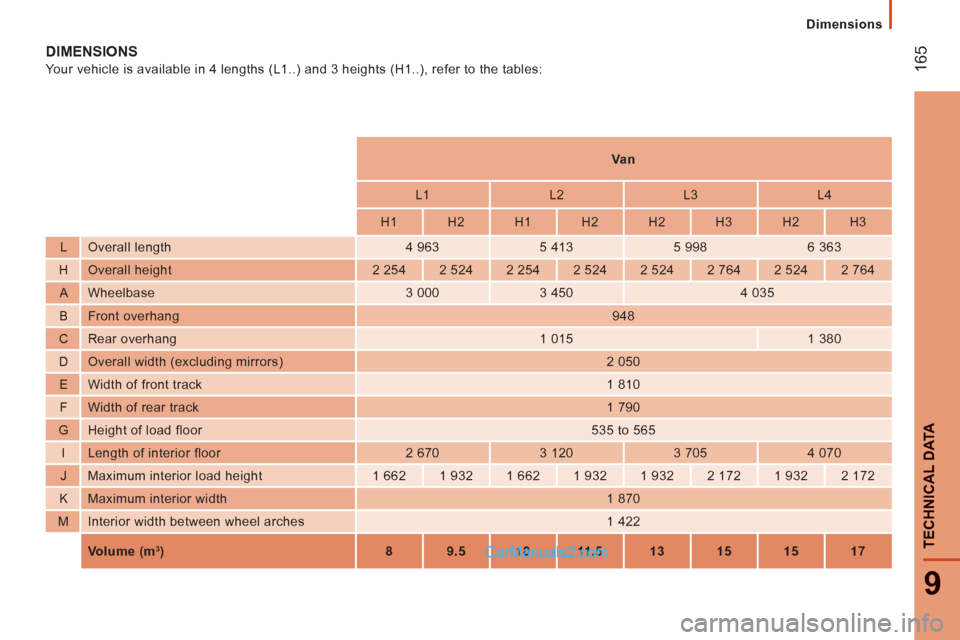

DIMENSIONS
Your vehicle is available in 4 lengths (L1..) and 3 heights (H1..), refer to the tables:






Va n






L1
L2
L3
L4





H1
H2
H1
H2
H2
H3
H2
H3

L Overall length
4 963
5 413
5 998
6 363

H Overall height
2 254
2 524
2 254
2 524
2 524
2 764
2 524
2 764

A Wheelbase
3 000
3 450
4 035

B Front overhang

948

C Rear overhang
1 015
1 380

D Overall width (excluding mirrors)
2 050

E Width of front track
1 810

F Width of rear track
1 790

G Height of load floor
535 to 565

I Length of interior floor
2 670
3 120
3 705
4 070

J Maximum interior load height
1 662
1 932
1 662
1 932
1 932
2 172
1 932
2 172

K Maximum interior width
1 870

M Interior width between wheel arches
1 422





Volume (m3)

8


9.5


10


11.5


13

15


15


17


Dimensions

166





REAR DOORS






L1
L2
L3
L4





H1
H2
H1
H2
H2
H3
H2
H3

N Rear door aperture height
1 520
1 790
1 520
1 790
1 790
2 030
1 790
2 030

O Rear door aperture width
1 562

Dimensions

167
9
TECHNI
CAL DATA

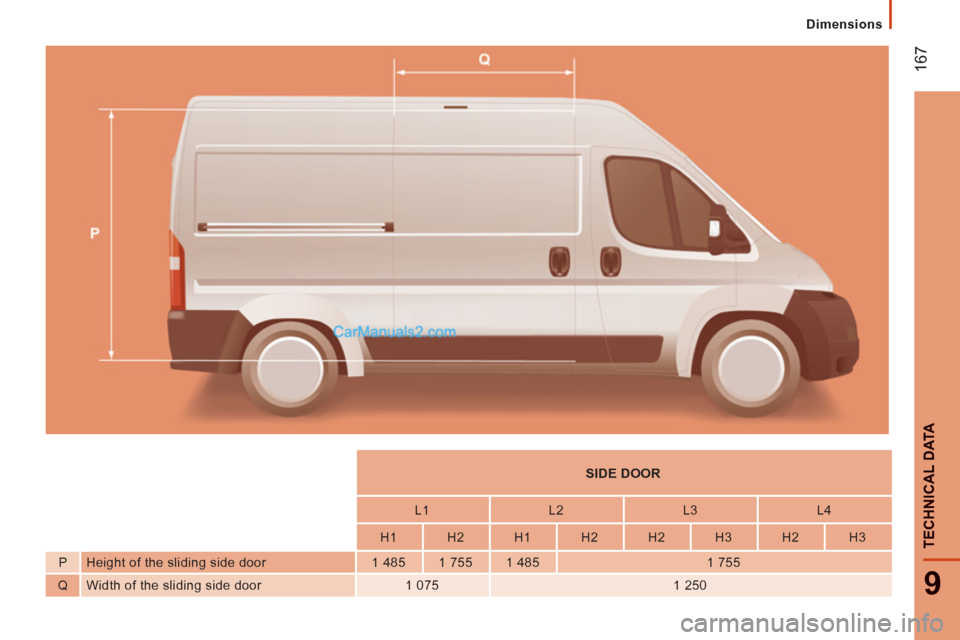

SIDE DOOR






L1
L2
L3
L4





H1
H2
H1
H2
H2
H3
H2
H3

P Height of the sliding side door
1 485
1 755
1 485
1 755

Q Width of the sliding side door
1 075
1 250

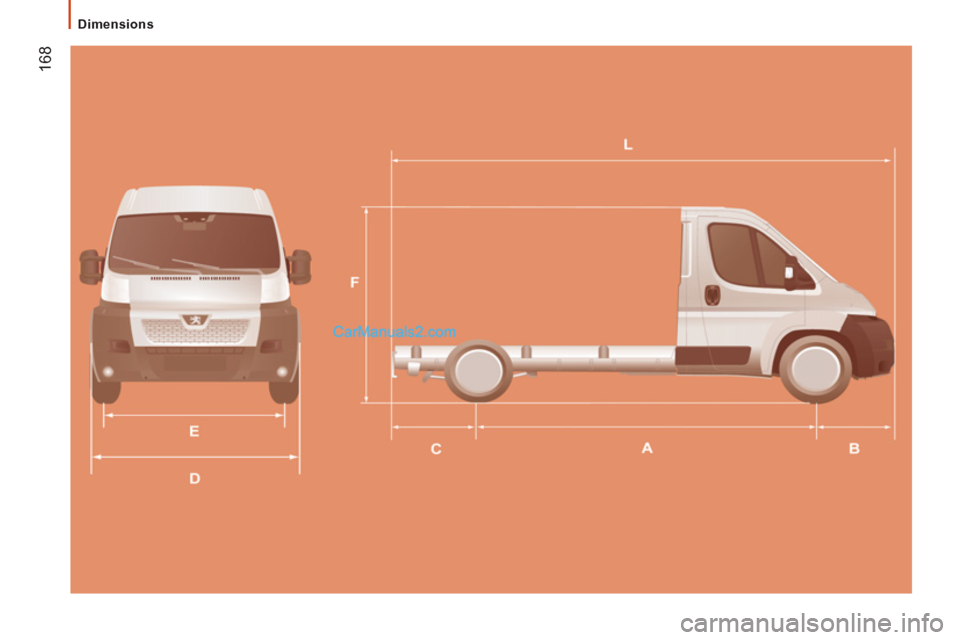

Dimensions

168


Dimensions
