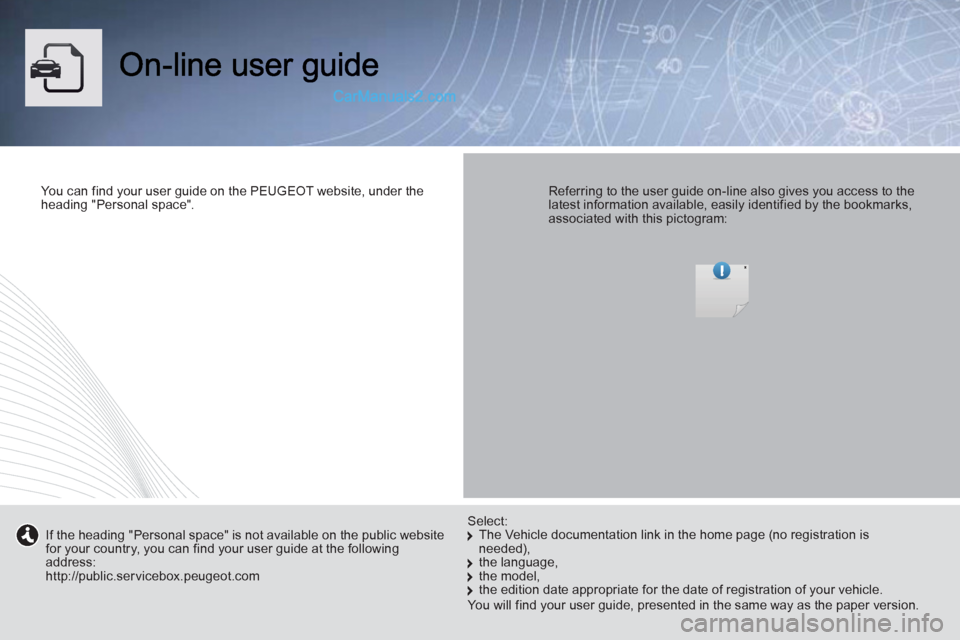

You can find your user guide on the PEUGEOT website, under theheading "Personal space".
Referring to the user guide on-line also gives you access to thelatest information available, easily identified by the bookmarks, associated with this pictogram:
If the heading "Personal space" is not available on the public websitefor your country, you can find your user guide at the following address:http://public.servicebox.peugeot.com
The Vehicle documentation link in the home page (no registration isneeded),
the language,
the model,
the edition date appropriate for the date of registration of your vehicle.
Select:
You will find your user guide, presented in the same way as the paper version.
Page 3 of 184
1
WELCOME

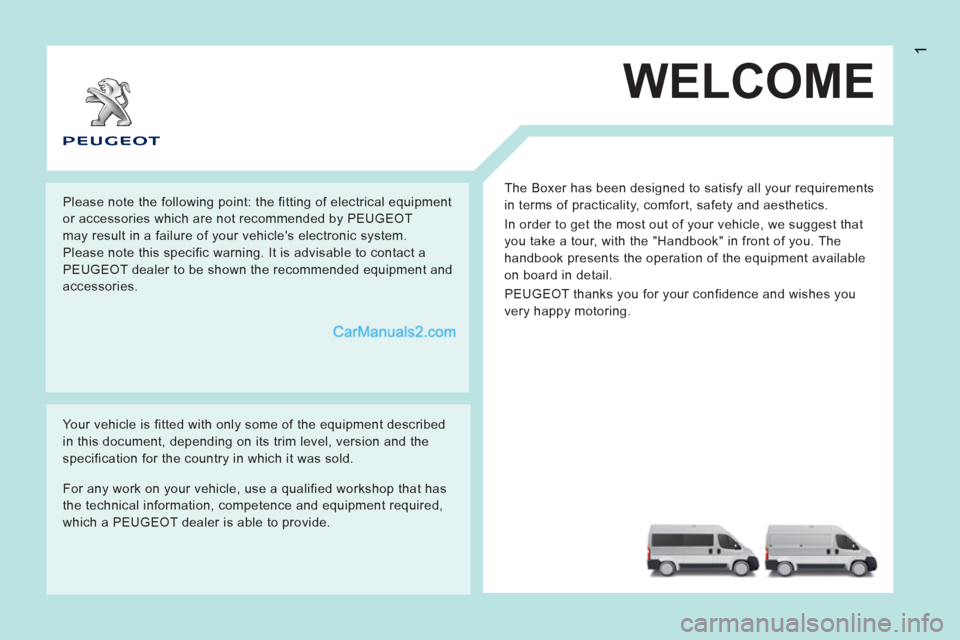

The Boxer has been designed to satisfy all your requirements
in terms of practicality, comfort, safety and aesthetics.
In order to get the most out of your vehicle, we suggest that
you take a tour, with the "Handbook" in front of you. The
handbook presents the operation of the equipment available
on board in detail.
PEUGEOT thanks you for your confidence and wishes you
very happy motoring. Please note the following point: the fitting of electrical equipment
or accessories which are not recommended by PEUGEOT
may result in a failure of your vehicle's electronic system.
Please note this specific warning. It is advisable to contact a
PEUGEOT dealer to be shown the recommended equipment and
accessories.
Your vehicle is fitted with only some of the equipment described
in this document, depending on its trim level, version and the
specification for the country in which it was sold.
For any work on your vehicle, use a qualified workshop that has
the technical information, competence and equipment required,
which a PEUGEOT dealer is able to provide.
Page 4 of 184
2
Contents

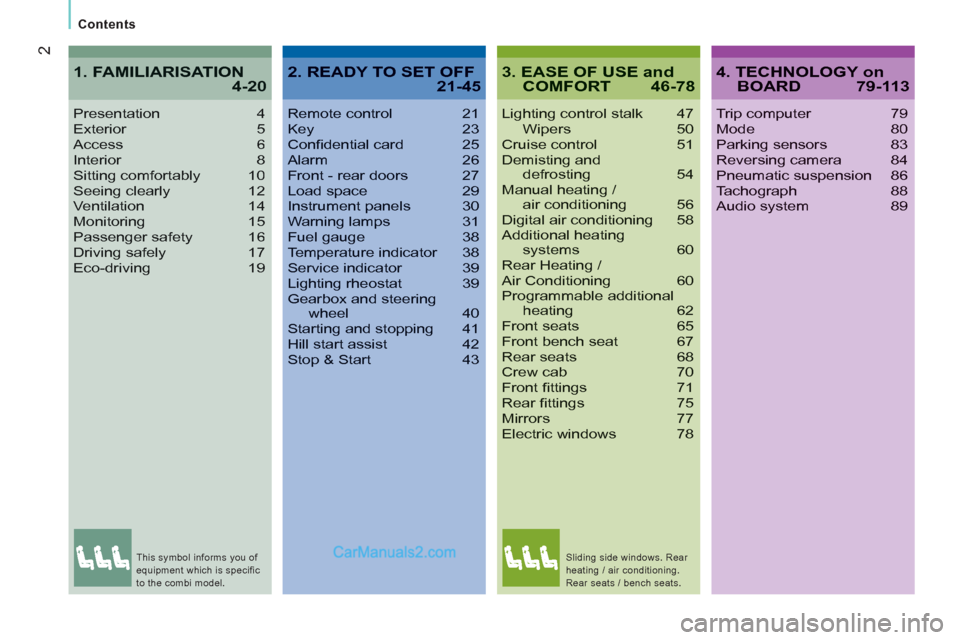

3. EASE OF USE andCOMFORT 46-78
Lighting control stalk 47Wipers 50Cruise control 51Demisting anddefrosting 54Manual heating / air conditioning 56Digital air conditioning 58Additional heating systems 60Rear Heating / Air Conditioning 60Programmable additionalheating 62Front seats 65Front bench seat 67Rear seats 68Crew cab 70Front fi ttings 71Rear fi ttings 75Mirrors 77Electric windows 78
Presentation4Exterior 5Access6Interior 8Sitting comfortably 10Seeing clearly 12Ventilation 14Monitoring 15Passenger safety 16Driving safely 17Eco-driving 19
1. FAMILIARISATION4-204. TECHNOLOGY onBOARD 79-113
Trip computer 79Mode 80Parking sensors 83Reversing camera 84Pneumatic suspension 86Tachograph 88Audio system 89
2. READY TO SET OFF21-45
Remote control 21Key 23Confi dential card 25Alarm 26Front - rear doors 27Load space 29Instrument panels 30Warning lamps 31Fuel gauge 38Temperature indicator 38Service indicator 39Lighting rheostat 39Gearbox and steeringwheel 40Starting and stopping 41Hill start assist 42Stop & Start 43
This symbol informs you of
equipment which is specific
to the combi model. Sliding side windows. Rear
heating / air conditioning.
Rear seats / bench seats.
Page 5 of 184
3
CONTENT
S
Contents

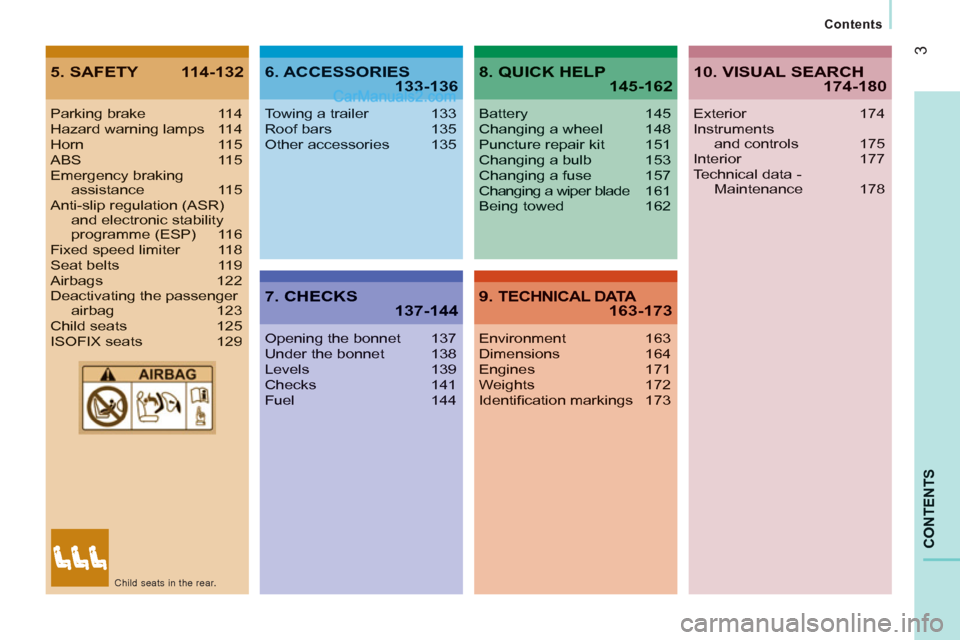

5. SAFETY 114-1326. ACCESSORIES133-136
7. CHECKS 137-144
8. QUICK HELP 145-162
9. TECHNICAL DATA 163-173
Parking brake 114Hazard warning lamps 114Horn 115ABS 115Emergency brakingassistance 115Anti-slip regulation (ASR) and electronic stabilityprogramme (ESP) 116Fixed speed limiter 118Seat belts 119Airbags 122Deactivating the passenger airbag 123Child seats 125ISOFIX seats 129
Towing a trailer 133Roof bars 135Other accessories 135
Opening the bonnet 137Under the bonnet 138Levels 139Checks 141Fuel 144
Battery 145Changing a wheel 148Puncture repair kit 151Changing a bulb 153Changing a fuse 157Changing a wiper blade161Being towed 162
Environment 163Dimensions 164Engines 171Weights 172Identifi cation markings 173
10. VISUAL SEARCH 174-180
Exterior 174Instrumentsand controls 175Interior 177Technical data - Maintenance 178
Child seats in the rear.
Page 6 of 184
PRESENTATION

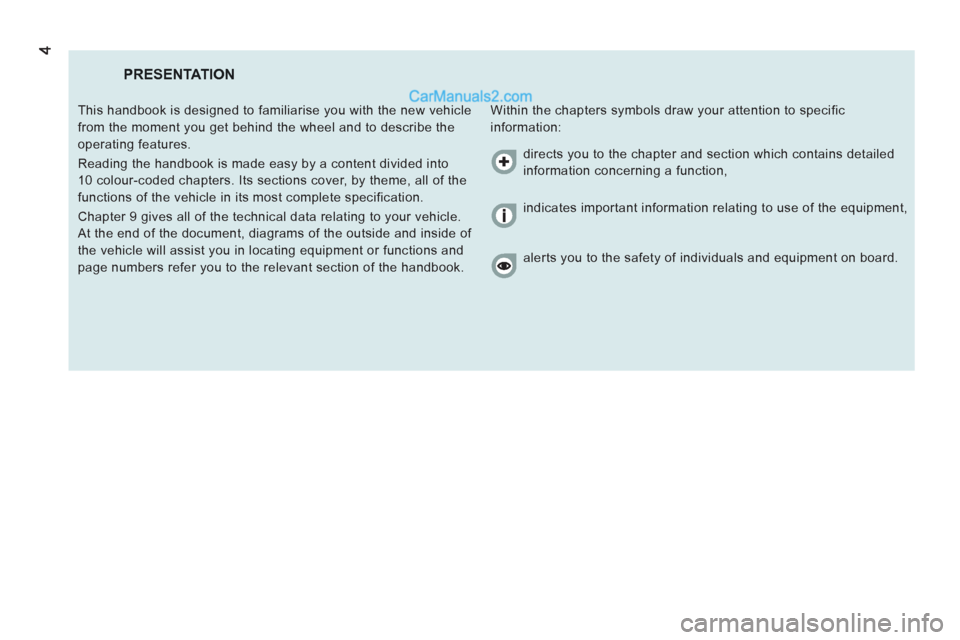

Within the chapters symbols draw your attention to specific
information: This handbook is designed to familiarise you with the new vehicle
from the moment you get behind the wheel and to describe the
operating features.
Reading the handbook is made easy by a content divided into
10 colour-coded chapters. Its sections cover, by theme, all of the
functions of the vehicle in its most complete specification.
Chapter 9 gives all of the technical data relating to your vehicle.
At the end of the document, diagrams of the outside and inside of
the vehicle will assist you in locating equipment or functions and
page numbers refer you to the relevant section of the handbook. directs you to the chapter and section which contains detailed
information concerning a function,
indicates important information relating to use of the equipment,
alerts you to the safety of individuals and equipment on board.
Page 7 of 184
4
34
2
1
FAMILIARISATION
5
Familiarisation
Reversing camera
This system is activated automatically
when reverse gear is engaged, with a
visual return on a screen that takes the
place of the interior rear view mirror.
84
83
48

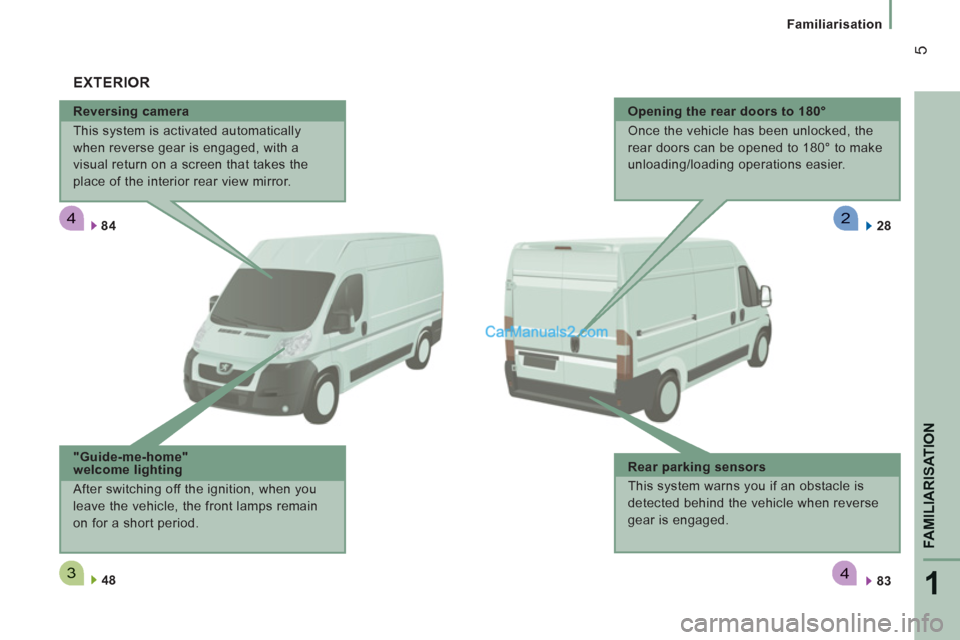

EXTERIOR
"Guide-me-home"
welcome lighting
After switching off the ignition, when you
leave the vehicle, the front lamps remain
on for a short period.
Opening the rear doors to 180°
Once the vehicle has been unlocked, the
rear doors can be opened to 180° to make
unloading/loading operations easier.
Rear parking sensors
This system warns you if an obstacle is
detected behind the vehicle when reverse
gear is engaged.
28
Page 8 of 184
222
6
Familiarisation

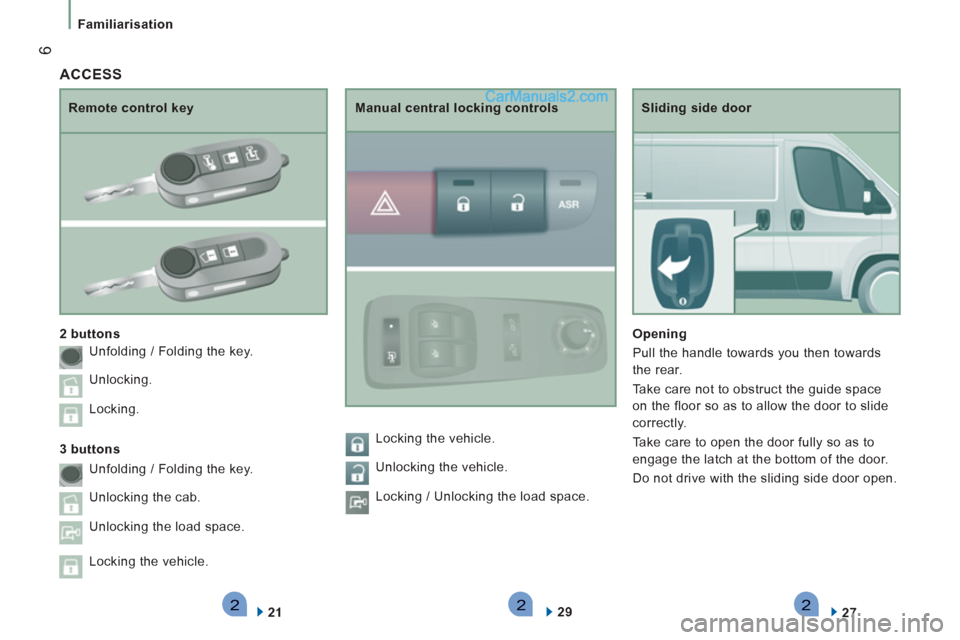

Sliding side door
Opening
Pull the handle towards you then towards
the rear.
Take care not to obstruct the guide space
on the floor so as to allow the door to slide
correctly.
Take care to open the door fully so as to
engage the latch at the bottom of the door.
Do not drive with the sliding side door open.
27
Remote control key
2 buttons
21
Manual central locking controls
29
ACCESS
3 buttons Unfolding / Folding the key.
Unlocking.
Locking.
Unfolding / Folding the key.
Unlocking the cab.
Unlocking the load space.
Locking the vehicle. Locking the vehicle.
Unlocking the vehicle.
Locking / Unlocking the load space.
Page 9 of 184
2271
FAMILIARISATION
7
Familiarisation

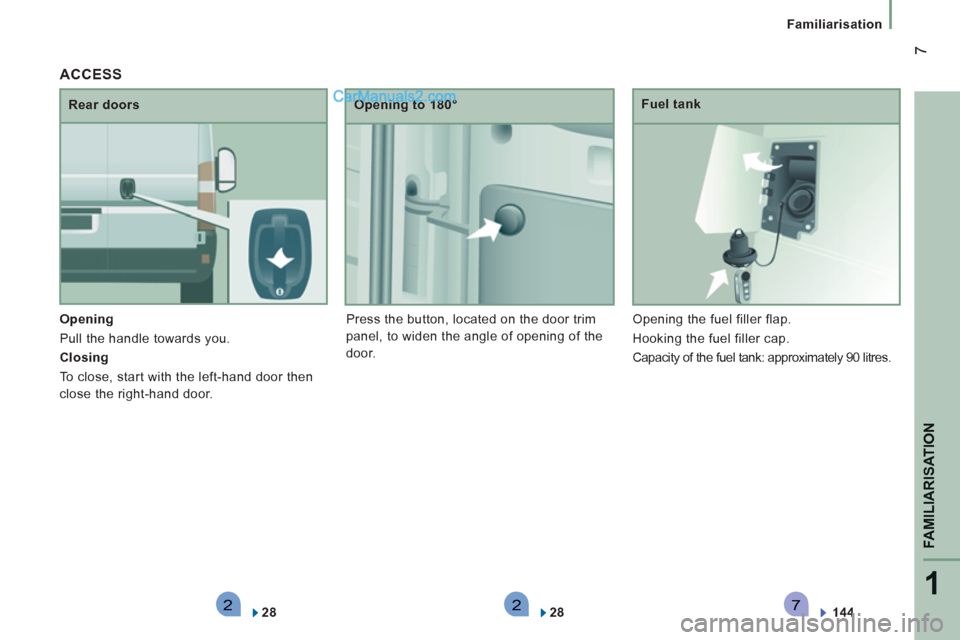

Opening
Pull the handle towards you.
Closing
To close, start with the left-hand door then
close the right-hand door.
Rear doors
Opening to 180°
Press the button, located on the door trim
panel, to widen the angle of opening of the
door.
Fuel tank
Opening the fuel filler flap.
Hooking the fuel filler cap.
Capacity of the fuel tank: approximately 90 litres.
28
ACCESS
28
144
Page 10 of 184
8
Familiarisation
INTERIOR
Instruments and controls
1.
Fusebox.
2.
Programmable heating.
3.
Cruise control switch.
4.
MODE, configuration and
personalisation / lighting dimmer /
headlamp beam height adjustment.
5.
Lighting and direction indicator control
stalk.
6.
Instrument panel with screen.
7.
Wiper / screenwash / trip computer
control stalk.
8.
Ignition switch.
9.
Driver's airbag / horn.
