39
2
READY TO SET OFF
Instruments and controls
SERVICE INDICATOR
For a few seconds after the ignition is
switched on, the spanner symbolising the
service indicator comes on: the screen
informs you when the next service is due,
in accordance with the manufacturer's
servicing schedule indicated in the servicing
booklet. This information is determined in
relation to the distance travelled since the
previous service.
LIGHTING RHEOSTAT
The rheostat is active when the lighting
is on. After a few seconds, the display returns to
its usual functions.
Use these controls to adjust the
brightness of the instrument panel.
There are 8 levels. A long press returns you to the main menu.
Refer to "Mode" section of chapter 4.


Deterioration of the engine oil

Refer to the list of checks in the
servicing booklet which was given to
you on handover of the vehicle.
Reminder of servicing information
At any time, to access the service indicator,
press briefly on the MODE button.
Use the up/down arrows to see the
scheduling and engine oil wear information.
Pressing the MODE button again allows you
to return to the various display menus.
Menu...
Choose...
Allows
you to...

12
Service Service
(miles/km
before oil
change) Display the
distance
remaining
before the
next oil
change.
Oil Display the
oil level.
Resetting to zero
The stopping of the permanent flashing of
the indicator is carried out by an repairer
equipped with a diagnostic tool.

This 2 nd warning lamp, coupled
with the 1 st , comes on in the
instrument panel when the oil
has not been changed and the
deterioration of the oil has reached
another threshold. To avoid the risk
of damage, have the oil changed
without waiting for this level.
The warning lamp flashing and,
if your vehicle has the function,
a message displayed at every
engine start: the system has
detected deterioration of the
engine oil. Have the oil changed
as soon as possible. For 3.0 litre HDi engines, the engine speed
is restricted to 3 000 rpm, then 1 500 rpm
until the oil change is done. Have the engine
oil changed to avoid any risk of damage.

40

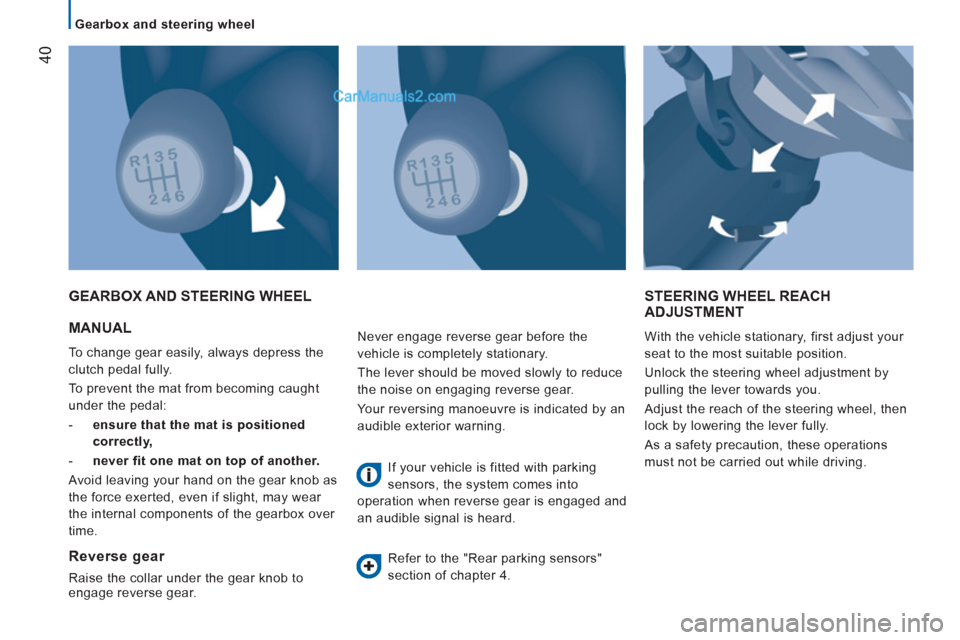

Gearbox and steering wheel

MANUAL

To change gear easily, always depress the
clutch pedal fully.
To prevent the mat from becoming caught
under the pedal:


- ensure that the mat is positioned
correctly,

- never fit one mat on top of another.

Avoid leaving your hand on the gear knob as
the force exerted, even if slight, may wear
the internal components of the gearbox over
time.
GEARBOX AND STEERING WHEEL STEERING WHEEL REACH
ADJUSTMENT
With the vehicle stationary, first adjust your
seat to the most suitable position.
Unlock the steering wheel adjustment by
pulling the lever towards you.
Adjust the reach of the steering wheel, then
lock by lowering the lever fully.
As a safety precaution, these operations
must not be carried out while driving.

Reverse gear

Raise the collar under the gear knob to
engage reverse gear. Never engage reverse gear before the
vehicle is completely stationary.
The lever should be moved slowly to reduce
the noise on engaging reverse gear.
Your reversing manoeuvre is indicated by an
audible exterior warning.
If your vehicle is fitted with parking
sensors, the system comes into
operation when reverse gear is engaged and
an audible signal is heard.
Refer to the "Rear parking sensors"
section of chapter 4.

41
2
READY TO SET OFF

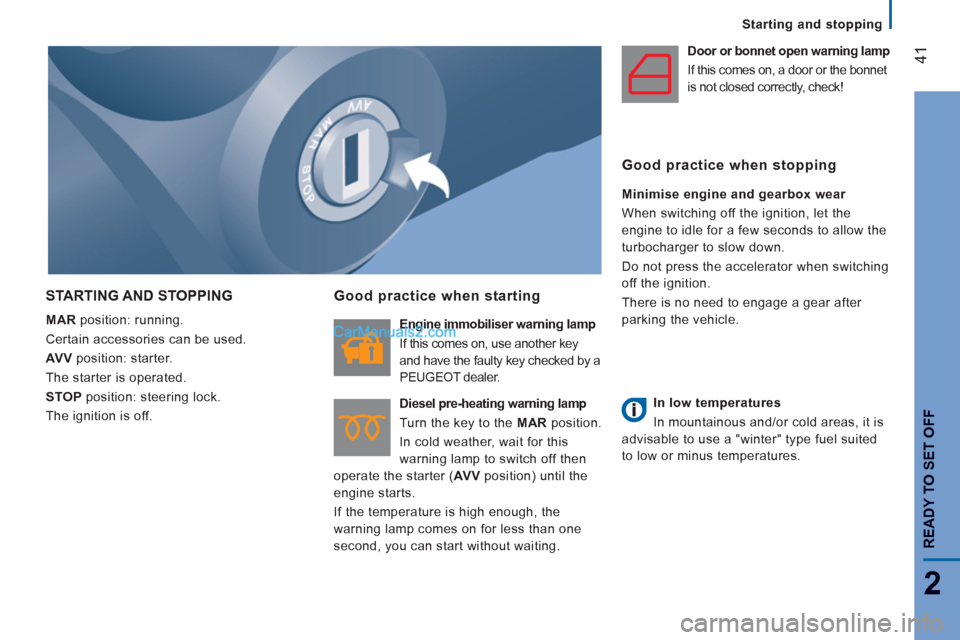

Starting and stopping
STARTING AND STOPPING


MAR
position: running.
Certain accessories can be used.

AV V
position: starter.
The starter is operated.

STOP
position: steering lock.
The ignition is off.


Good practice when starting


Engine immobiliser warning lamp
If this comes on, use another key
and have the faulty key checked by a
PEUGEOT dealer.

Diesel pre-heating warning lamp
Turn the key to the MAR
position.
In cold weather, wait for this
warning lamp to switch off then
operate the starter ( AV V
position) until the
engine starts.
If the temperature is high enough, the
warning lamp comes on for less than one
second, you can start without waiting.
Door or bonnet open warning lamp
If this comes on, a door or the bonnet
is not closed correctly, check!

Good practice when stopping


Minimise engine and gearbox wear
When switching off the ignition, let the
engine to idle for a few seconds to allow the
turbocharger to slow down.
Do not press the accelerator when switching
off the ignition.
There is no need to engage a gear after
parking the vehicle.



In low temperatures
In mountainous and/or cold areas, it is
advisable to use a "winter" type fuel suited
to low or minus temperatures.

42


Starting and stopping

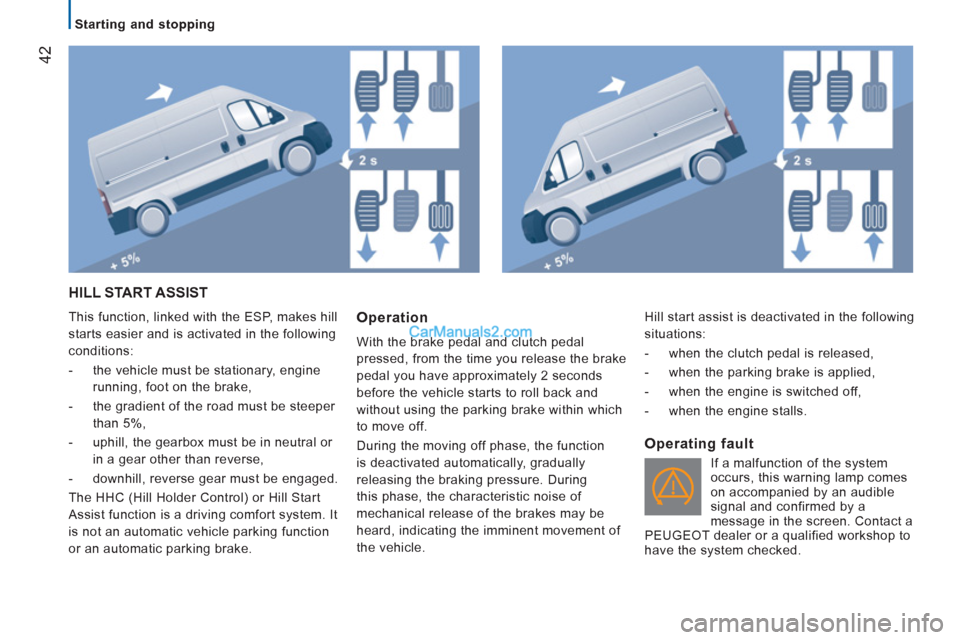

HILL START ASSIST

This function, linked with the ESP, makes hill
starts easier and is activated in the following
conditions:


- the vehicle must be stationary, engine
running, foot on the brake,

- the gradient of the road must be steeper
than 5%,

- uphill, the gearbox must be in neutral or
in a gear other than reverse,

- downhill, reverse gear must be engaged.
The HHC (Hill Holder Control) or Hill Start
Assist function is a driving comfort system. It
is not an automatic vehicle parking function
or an automatic parking brake. Operation
With the brake pedal and clutch pedal
pressed, from the time you release the brake
pedal you have approximately 2 seconds
before the vehicle starts to roll back and
without using the parking brake within which
to move off.
During the moving off phase, the function
is deactivated automatically, gradually
releasing the braking pressure. During
this phase, the characteristic noise of
mechanical release of the brakes may be
heard, indicating the imminent movement of
the vehicle.

Operating fault

If a malfunction of the system
occurs, this warning lamp comes
on accompanied by an audible
signal and confirmed by a
message in the screen. Contact a
PEUGEOT dealer or a qualified workshop to
have the system checked. Hill start assist is deactivated in the following
situations:


- when the clutch pedal is released,

- when the parking brake is applied,

- when the engine is switched off,

- when the engine stalls.

43
2
READY TO SET OFF


Starting and stopping

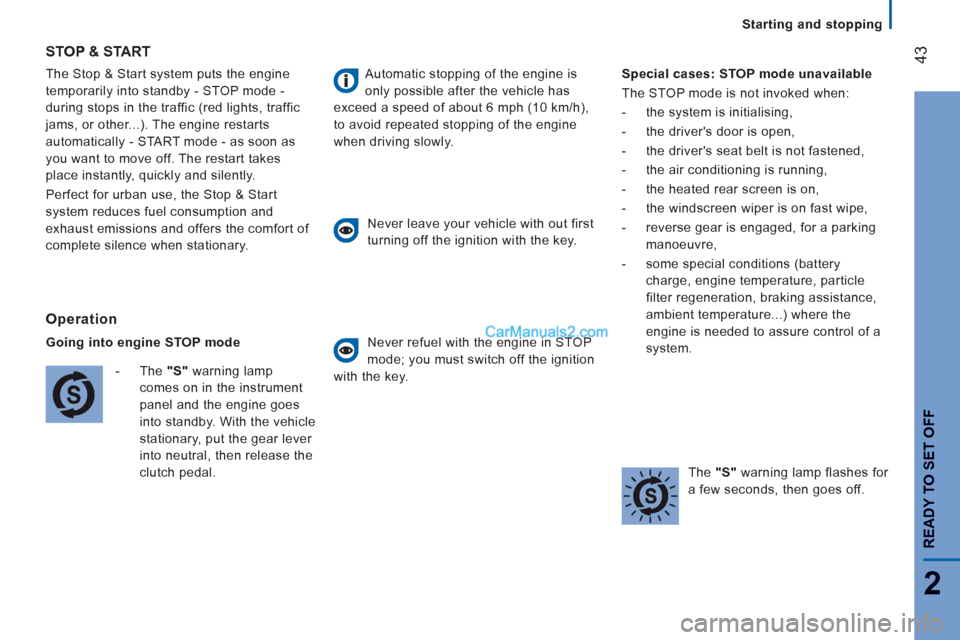

The Stop & Start system puts the engine
temporarily into standby - STOP mode -
during stops in the traffic (red lights, traffic
jams, or other...). The engine restarts
automatically - START mode - as soon as
you want to move off. The restart takes
place instantly, quickly and silently.
Perfect for urban use, the Stop & Start
system reduces fuel consumption and
exhaust emissions and offers the comfort of
complete silence when stationary.
STOP & START
O
peration

Going into engine STOP mode


- The "S"
warning lamp
comes on in the instrument
panel and the engine goes
into standby. With the vehicle
stationary, put the gear lever
into neutral, then release the
clutch pedal.

Automatic stopping of the engine is
only possible after the vehicle has
exceed a speed of about 6 mph (10 km/h),
to avoid repeated stopping of the engine
when driving slowly.

Never leave your vehicle with out first
turning off the ignition with the key.

Never refuel with the engine in STOP
mode; you must switch off the ignition
with the key.
Special cases: STOP mode unavailable
The STOP mode is not invoked when:


- the system is initialising,

- the driver's door is open,

- the driver's seat belt is not fastened,

- the air conditioning is running,

- the heated rear screen is on,

- the windscreen wiper is on fast wipe,

- reverse gear is engaged, for a parking
manoeuvre,

- some special conditions (battery
charge, engine temperature, particle
filter regeneration, braking assistance,
ambient temperature...) where the
engine is needed to assure control of a
system.


The "S"
warning lamp flashes for
a few seconds, then goes off.

44


Starting and stopping

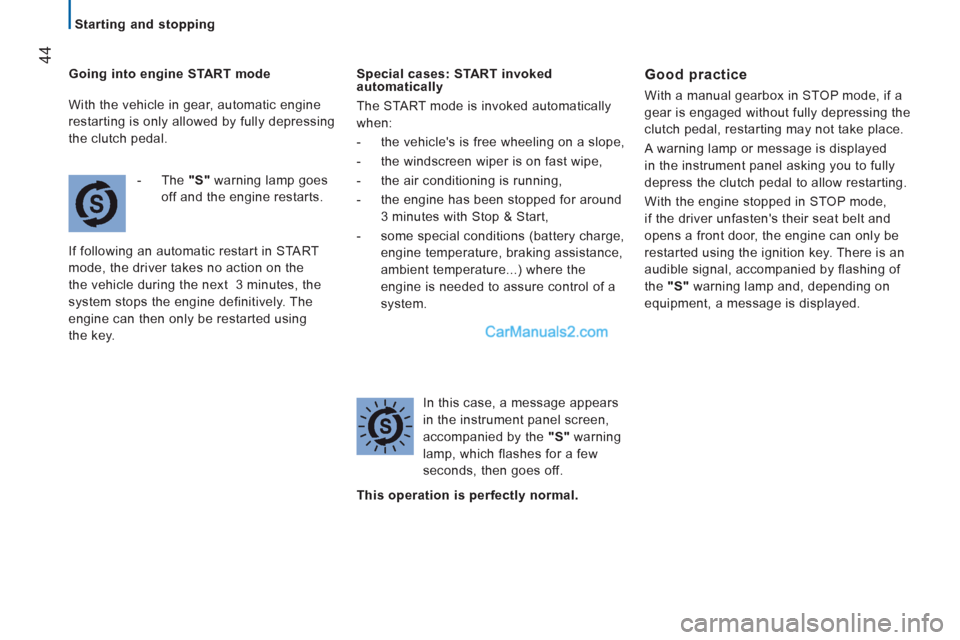

Going into engine START mode


- The "S"
warning lamp goes
off and the engine restarts.
If following an automatic restart in START
mode, the driver takes no action on the
the vehicle during the next 3 minutes, the
system stops the engine definitively. The
engine can then only be restarted using
the key.
Special cases: START invoked
automatically
The START mode is invoked automatically
when:


- the vehicle's is free wheeling on a slope,

- the windscreen wiper is on fast wipe,

- the air conditioning is running,

- the engine has been stopped for around
3 minutes with Stop & Start,

- some special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the
engine is needed to assure control of a
system.


In this case, a message appears
in the instrument panel screen,
accompanied by the "S"
warning
lamp, which flashes for a few
seconds, then goes off.

Good practice


With a manual gearbox in STOP mode, if a
gear is engaged without fully depressing the
clutch pedal, restarting may not take place.
A warning lamp or message is displayed
in the instrument panel asking you to fully
depress the clutch pedal to allow restarting.
With the engine stopped in STOP mode,
if the driver unfasten's their seat belt and
opens a front door, the engine can only be
restarted using the ignition key. There is an
audible signal, accompanied by flashing of
the "S"
warning lamp and, depending on
equipment, a message is displayed.


This operation is perfectly normal.

With the vehicle in gear, automatic engine
restarting is only allowed by fully depressing
the clutch pedal.

45
2
READY TO SET OFF


Starting and stopping

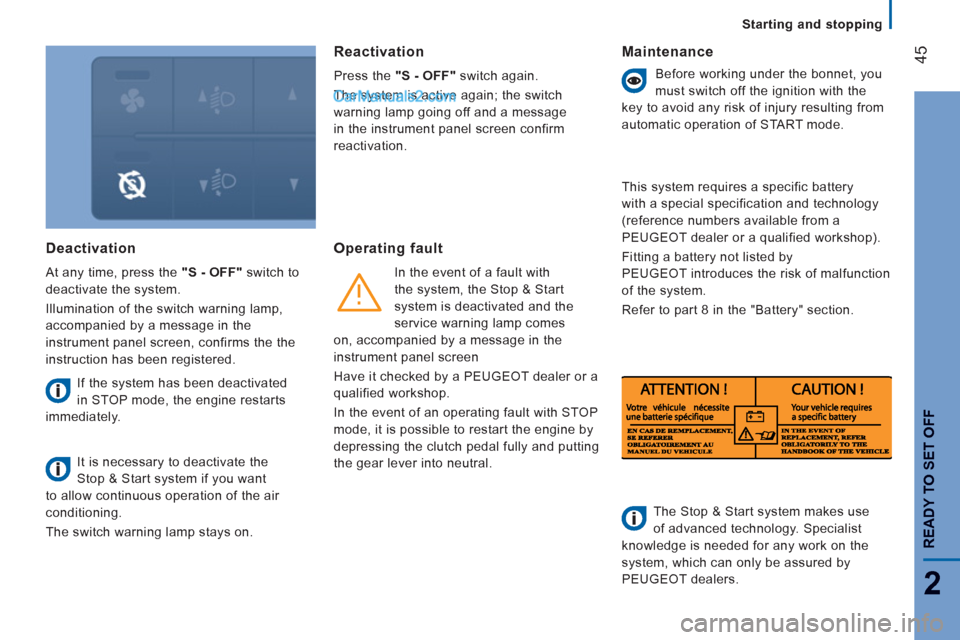

Deactivation

At any time, press the "S - OFF"
switch to
deactivate the system.
Illumination of the switch warning lamp,
accompanied by a message in the
instrument panel screen, confirms the the
instruction has been registered.

If the system has been deactivated
in STOP mode, the engine restarts
immediately.

It is necessary to deactivate the
Stop & Start system if you want
to allow continuous operation of the air
conditioning.
The switch warning lamp stays on.


Reactivation

Press the "S - OFF"
switch again.
The system is active again; the switch
warning lamp going off and a message
in the instrument panel screen confirm
reactivation.


Operating fault

In the event of a fault with
the system, the Stop & Start
system is deactivated and the
service warning lamp comes
on, accompanied by a message in the
instrument panel screen
Have it checked by a PEUGEOT dealer or a
qualified workshop.
In the event of an operating fault with STOP
mode, it is possible to restart the engine by
depressing the clutch pedal fully and putting
the gear lever into neutral.
Maintenance


Before working under the bonnet, you
must switch off the ignition with the
key to avoid any risk of injury resulting from
automatic operation of START mode.

This system requires a specific battery
with a special specification and technology
(reference numbers available from a
PEUGEOT dealer or a qualified workshop).
Fitting a battery not listed by
PEUGEOT introduces the risk of malfunction
of the system.
Refer to part 8 in the "Battery" section.

The Stop & Start system makes use
of advanced technology. Specialist
knowledge is needed for any work on the
system, which can only be assured by
PEUGEOT dealers.

46

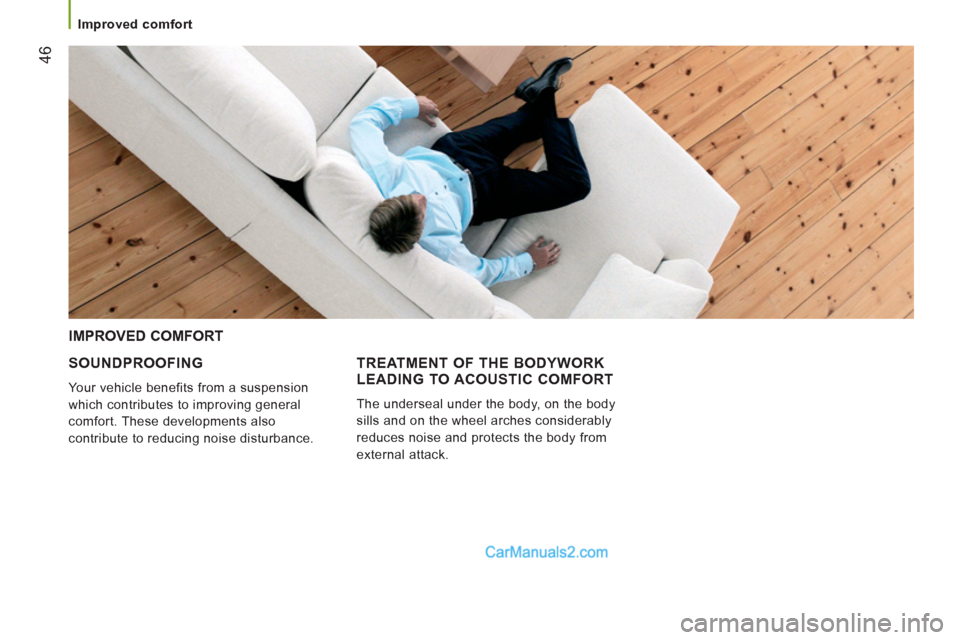

Improved comfort



SOUNDPROOFING

Your vehicle benefits from a suspension
which contributes to improving general
comfort. These developments also
contribute to reducing noise disturbance.



IMPROVED COMFORT
TREATMENT OF THE BODYWORK
LEADING TO ACOUSTIC COMFORT
The underseal under the body, on the body
sills and on the wheel arches considerably
reduces noise and protects the body from
external attack.

47
3
EASE OF USE
and
COMFOR
T

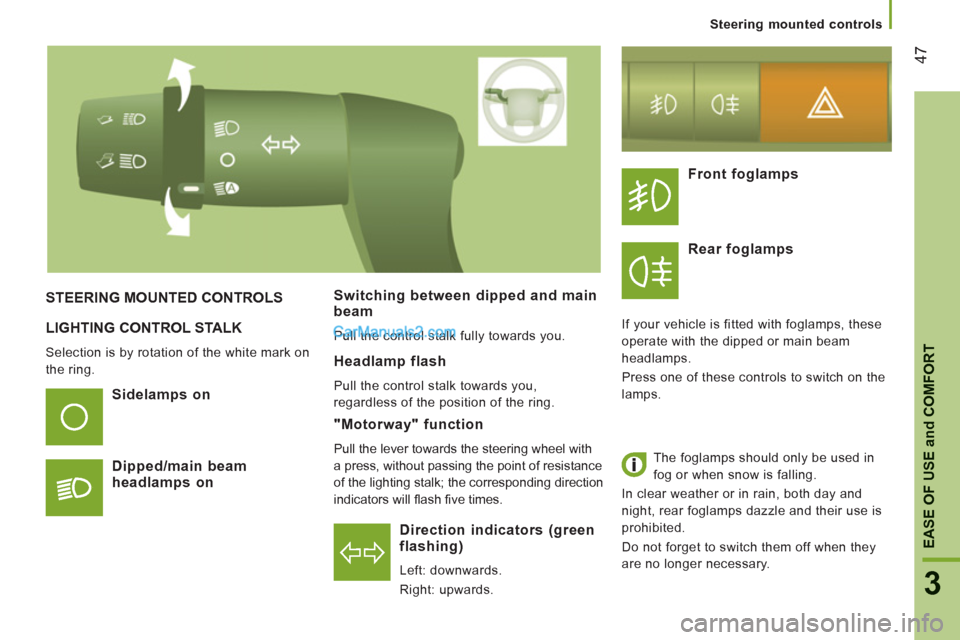

LIGHTING CONTROL STALK
Selection is by rotation of the white mark on
the ring.



Direction indicators (greenflashing)

Left: downwards.
Right: upwards.
STEERING MOUNTED CONTROLS


Sidelamps on

Di
pped/main beam headlamps on
Switchin
g between dipped and main beam

Pull the control stalk fully towards you.


Headlamp flash

Pull the control stalk towards you,
regardless of the position of the ring.


Front foglamps

Rear fo
glamps

If your vehicle is fitted with foglamps, these
operate with the dipped or main beam
headlamps.
Press one of these controls to switch on the
lamps.

The foglamps should only be used in
fog or when snow is falling.
In clear weather or in rain, both day and
night, rear foglamps dazzle and their use is
prohibited.
Do not forget to switch them off when they
are no longer necessary.



"Motorway" function

Pull the lever towards the steering wheel with
a press, without passing the point of resistance
of the lighting stalk; the corresponding direction
indicators will fl ash fi ve times.

Steerin
g mounted controls

48 AUTOMATIC ILLUMINATION OF HEADLAMPS


Activation

Turn the ring to this position.
The lamps are switched off
automatically when the ignition is
switched off.
Do not cover the sunshine sensor at
the top centre of the windscreen.
GUIDE-ME-HOME LIGHTING


Ignition off or key in the STOP position.
Within 2 minutes after switching off the
engine, position the ignition key in the STOP
position or remove it.
Pull the lighting stalk towards the steering
wheel.
The indicator lamp comes on in
the instrument panel.
Each action on the lighting stalk,
pulled towards the steering
wheel, prolongs the guide me home
lighting by 30 seconds up to approximately
3 minutes. When this time has elapsed, the
lamps are switched off automatically.
Deactivate this control by keeping the stalk
pulled towards the steering wheel for more
than 2 seconds.
If your vehicle is fitted with this function:
when you leave your vehicle, the dipped
beam headlamps remain on for the selected
duration (when leaving a car park for
example).

To set the sensitivity of the sensor,
refer to "Mode" in chapter 4

If your vehicle is fitted with this function, the
dipped beam headlamps are switched on
automatically if the light is poor.
In fog or snow, the sunshine sensor may
detect sufficient light. Therefore, the lamps
will not be switched on automatically. If
necessary, you must switch on the dipped
beam headlamps manually.
They are switched off when the light returns
to a sufficient level.

Steerin
g mounted controls
