driver seat adjustment Peugeot Boxer Dag 2003.5 Owner's Manual

17-11-2003
FRONT SEATS Driver and passenger (one seat) seats Note: the two-seat passenger
bench seats cannot be adjusted.
1- Head restraint height adjust- ment.
Never travel with thehead restraints removed.
2- Seat lumbar adjustment (driver's seat).
3- Seat back angle adjustment.
4- Seat height adjustment (driver's seat).
5- Forwards-backwards adjust-ment.
6- Armrest (driver's seat).
7- Adjustment of the variablevibration reduction (driver'sseat).
Heated seats The temperature is regulated automati-cally in relation to thepassenger compart-ment temperature.
6YOUR BOXER AT A GLANCE
98

17-11-2003

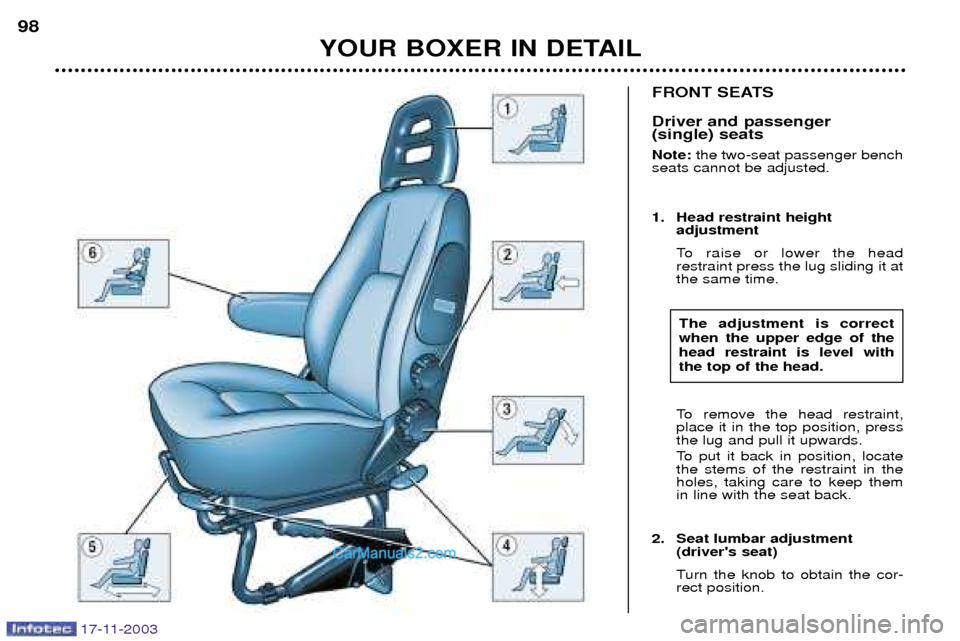

FRONT SEATS Driver and passenger (single) seats Note: the two-seat passenger bench
seats cannot be adjusted.
1. Head restraint height adjustment
To raise or lower the head restraint press the lug sliding it atthe same time.
To remove the head restraint, place it in the top position, pressthe lug and pull it upwards.
To put it back in position, locate the stems of the restraint in theholes, taking care to keep themin line with the seat back.
2. Seat lumbar adjustment (driver's seat)
Turn the knob to obtain the cor- rect position.
YOUR BOXER IN DETAIL
98
The adjustment is correct when the upper edge of thehead restraint is level withthe top of the head.

17-11-2003
3. Seat back angle adjustmentTurn the knob to obtain the cor- rect seat back angle.
4. Seat height adjustment (driver's seat) The height can be adjusted at the front and at the rear: Ð Front height adjustment: lift thelever at the front of the seat,
Ð Rear height adjustment: lift the lever at the rear of the seat.
5. Forwards-backwards adjustmentLift the control and slide the seat forwards or backwards.
6. Armrest (driver's seat) This can be folded down and isadjustable.
To adjust it, turn the knob under the end of the armrest. Heated seats The temperature is regulated auto- matically in relation to the passengercompartment temperature.
YOUR BOXER IN DETAIL
99
SEAT WITH VARIABLE
VIBRATION REDUCTION(driver)
Turn the control Ato adjust the vibra-
tion reduction in accordance with the driver's weight.
