Peugeot Boxer Dag 2003.5 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2003.5, Model line: Boxer Dag, Model: Peugeot Boxer Dag 2003.5Pages: 181, PDF Size: 2.88 MB
Page 1 of 181
Pages
Access 110 - 112
Fuel filler flap 112
Seats, bench seat 98 - 104
Changing a bulb 138 - 140
Changing a wheel 136 - 137
YOUR BOXER AT A GLANCE1
Pages
Heating, air conditioning 91 - 97
Steering wheel controls 113 - 114
Instrument dials 28
Mirrors 116
Checks 134 - 135
Each model may only be fitted with some of the equipment shown, according to its specification and the technical requirements in the country of first registration of the vehicle.
17-11-2003
Page 2 of 181

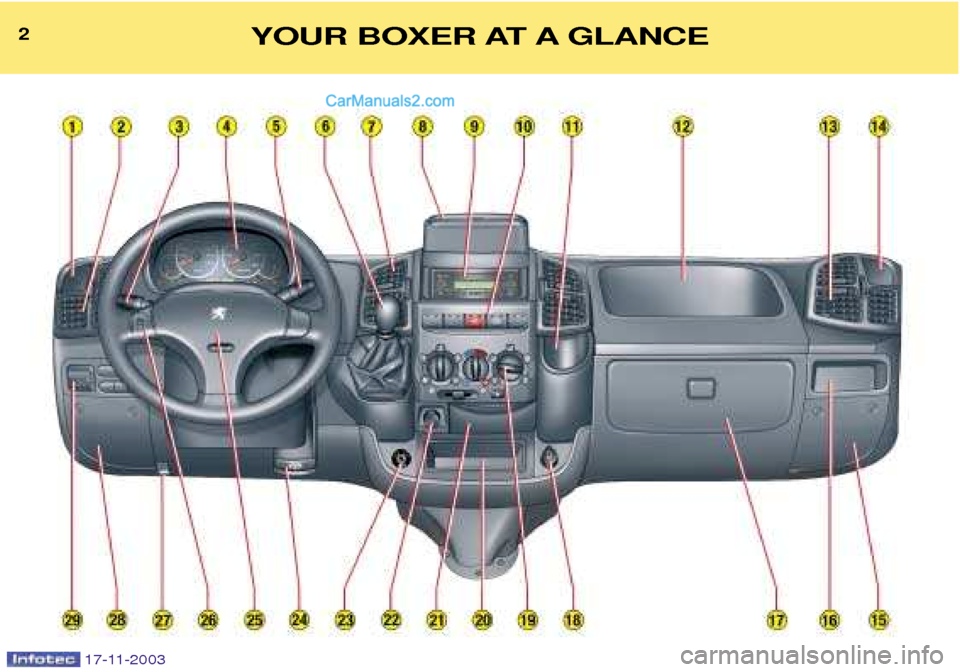

2YOUR BOXER AT A GLANCE
17-11-2003
Page 3 of 181
17-11-2003

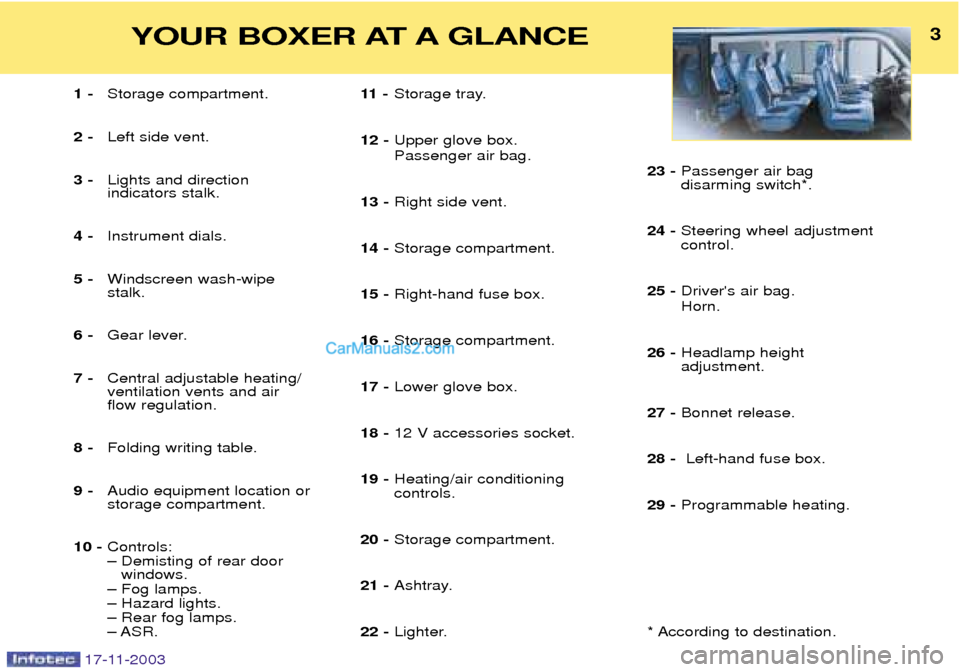

3YOUR BOXER AT A GLANCE
1 -Storage compartment.
2 - Left side vent.
3 - Lights and direction indicators stalk.
4 - Instrument dials.
5 - Windscreen wash-wipestalk.
6 - Gear lever.
7 - Central adjustable heating/ventilation vents and airflow regulation.
8 - Folding writing table.
9 - Audio equipment location orstorage compartment.
10 - Controls:
Ð Demisting of rear door
windows.
Ð Fog lamps.Ð Hazard lights.Ð Rear fog lamps.Ð ASR. 11 -
Storage tray.
12 - Upper glove box. Passenger air bag.
13 - Right side vent.
14 - Storage compartment.
15 - Right-hand fuse box.
16 - Storage compartment.
17 - Lower glove box.
18 - 12 V accessories socket.
19 - Heating/air conditioning controls.
20 - Storage compartment.
21 - Ashtray.
22 - Lighter. 23 -
Passenger air bag disarming switch*.
24 - Steering wheel adjustment control.
25 - Driver's air bag. Horn.
26 - Headlamp height adjustment.
27 - Bonnet release.
28 - Left-hand fuse box.
29 - Programmable heating.
* According to destination.
Page 4 of 181
4YOUR BOXER AT A GLANCE
17-11-2003

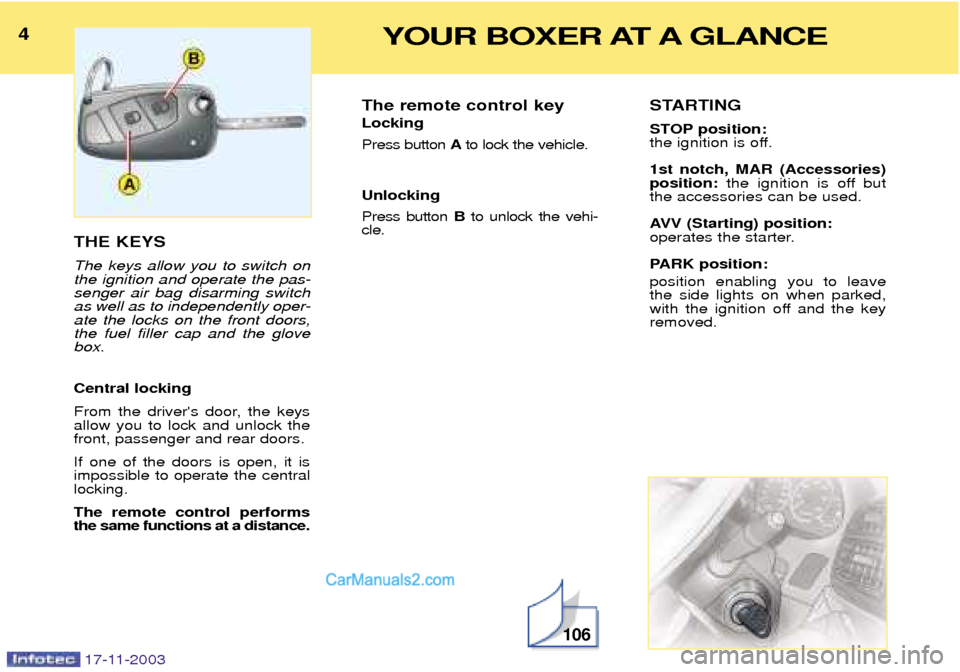

THE KEYS The keys allow you to switch on the ignition and operate the pas-senger air bag disarming switchas well as to independently oper-ate the locks on the front doors,the fuel filler cap and the glovebox. Central locking
From the driver's door, the keys allow you to lock and unlock thefront, passenger and rear doors. If one of the doors is open, it is impossible to operate the centrallocking. The remote control performs the same functions at a distance.The remote control key Locking Press button
Ato lock the vehicle.
UnlockingPress button Bto unlock the vehi-
cle. STARTING
STOP position:
the ignition is off. 1st notch, MAR (Accessories) position:
the ignition is off but
the accessories can be used.
AVV (Starting) position:
operates the starter.
PARK position: position enabling you to leave the side lights on when parked,
with the ignition off and the keyremoved.
106
Page 5 of 181
17-11-2003

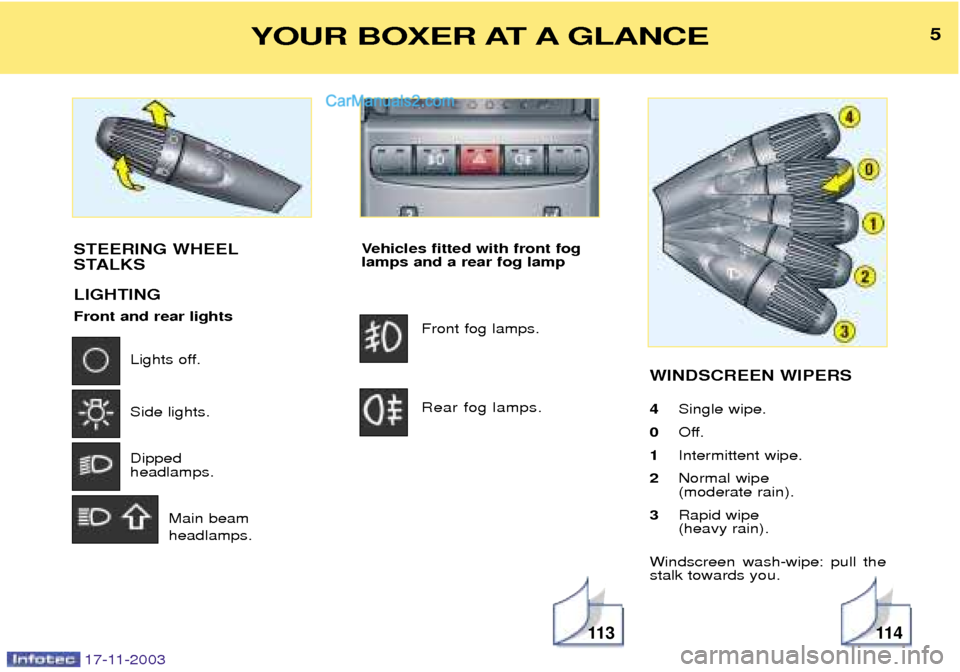

Vehicles fitted with front fog lamps and a rear fog lampFront fog lamps. Rear fog lamps. WINDSCREEN WIPERS 4
Single wipe.
0 Off.
1 Intermittent wipe.
2 Normal wipe (moderate rain).
3 Rapid wipe (heavy rain).
Windscreen wash-wipe: pull thestalk towards you.
5YOUR BOXER AT A GLANCE
STEERING WHEEL
STALKS LIGHTING Front and rear lights
Lights off. Side lights. Dipped headlamps.
Main beam headlamps.
11 311 4
Page 6 of 181
17-11-2003

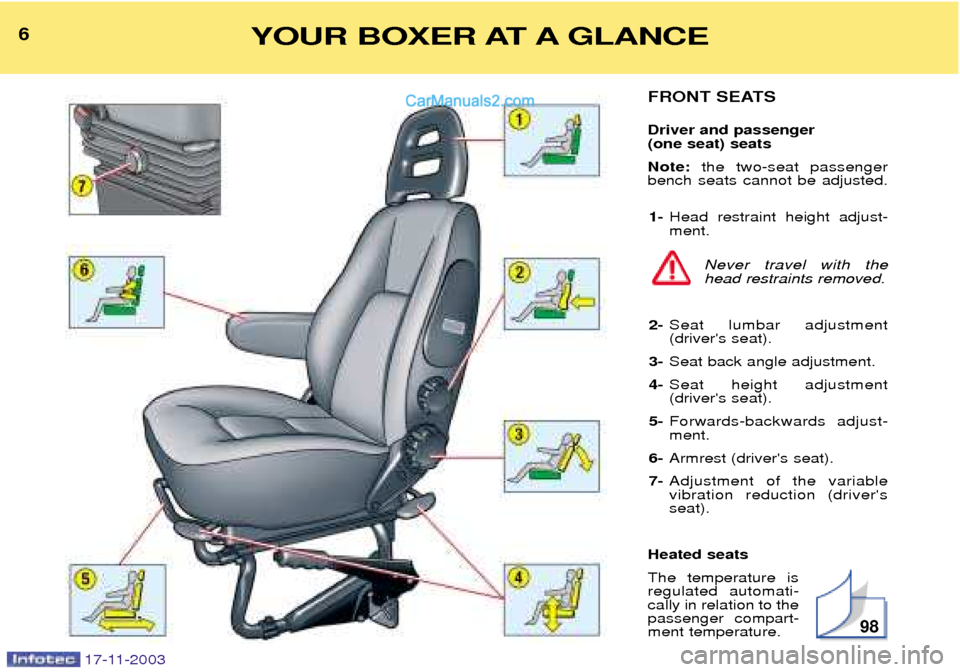

FRONT SEATS Driver and passenger (one seat) seats Note: the two-seat passenger
bench seats cannot be adjusted.
1- Head restraint height adjust- ment.
Never travel with thehead restraints removed.
2- Seat lumbar adjustment (driver's seat).
3- Seat back angle adjustment.
4- Seat height adjustment (driver's seat).
5- Forwards-backwards adjust-ment.
6- Armrest (driver's seat).
7- Adjustment of the variablevibration reduction (driver'sseat).
Heated seats The temperature is regulated automati-cally in relation to thepassenger compart-ment temperature.
6YOUR BOXER AT A GLANCE
98
Page 7 of 181
17-11-2003
Operating checkWith the ignition switched on (2nd notch), illumina-tion of this warning lightindicates that the pas-
senger air bag is disarmed (slotin the "OFF" position).
The warning light remains onthroughout the disarming process. Side air bags* Side air bags are incorporated into the front seat back frame, onthe door side. They are deployed independently
of each other, on whichever sidethe collision occurs.
* According to destination.
7YOUR BOXER AT A GLANCE

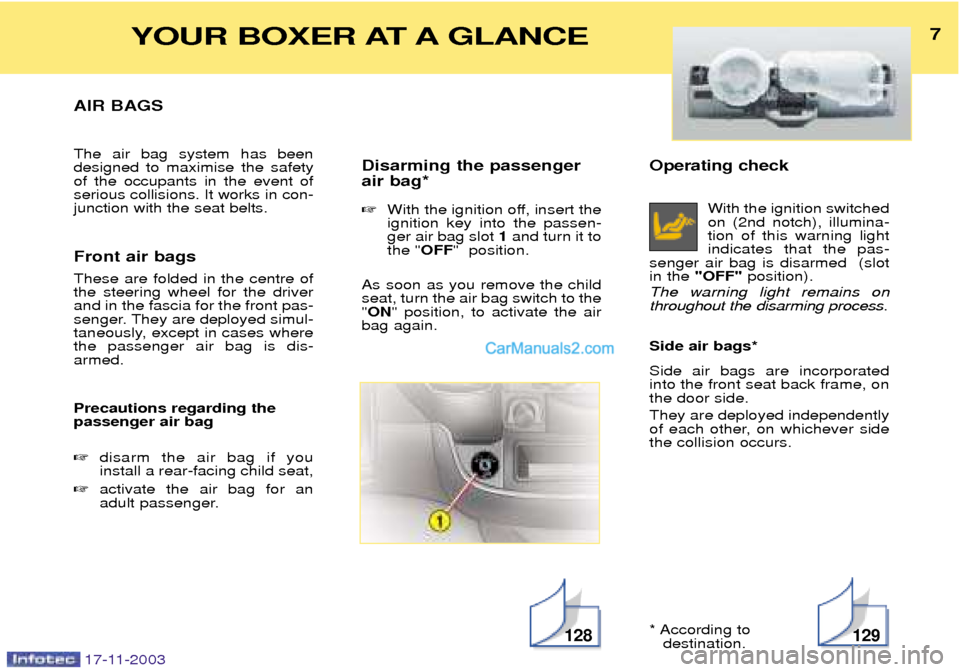

AIR BAGS The air bag system has been designed to maximise the safetyof the occupants in the event ofserious collisions. It works in con-junction with the seat belts. Front air bags These are folded in the centre of the steering wheel for the driverand in the fascia for the front pas-
senger. They are deployed simul-
taneously, except in cases wherethe passenger air bag is dis-armed. Precautions regarding the passenger air bag disarm the air bag if you
install a rear-facing child seat,
activate the air bag for an
adult passenger. Disarming the passenger air bag*
With the ignition off, insert the
ignition key into the passen- ger air bag slot 1and turn it to
the " OFF" position.
As soon as you remove the childseat, turn the air bag switch to the" ON " position, to activate the air
bag again.
128129
Page 8 of 181
17-11-2003

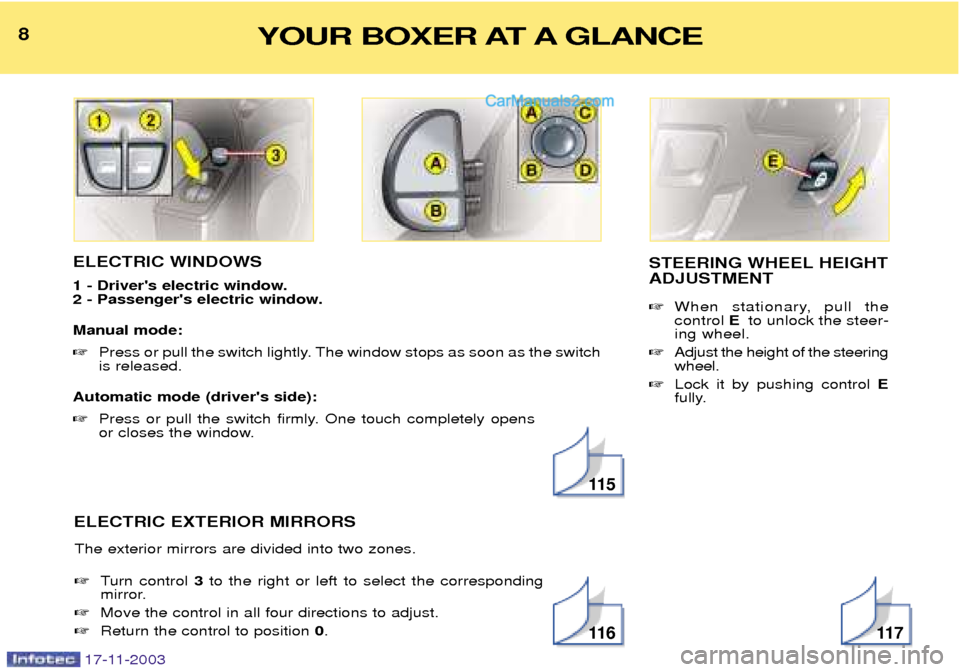

ELECTRIC WINDOWS
1 - Driver's electric window.
2 - Passenger's electric window. Manual mode: Press or pull the switch lightly. The window stops as soon as the switch
is released.
Automatic mode (driver's side): Press or pull the switch firmly. One touch completely opens
or closes the window.
The exterior mirrors are divided into two zones. Turn control 3to the right or left to select the corresponding
mirror.
Move the control in all four directions to adjust.
Return the control to position 0.
8
STEERING WHEEL HEIGHT ADJUSTMENT When stationary, pull the control Eto unlock the steer-
ing wheel.
Adjust the height of the steeringwheel.
Lock it by pushing control E
fully.
11 5
11 611 7
8YOUR BOXER AT A GLANCE
ELECTRIC EXTERIOR MIRRORS
Page 9 of 181
17-11-2003

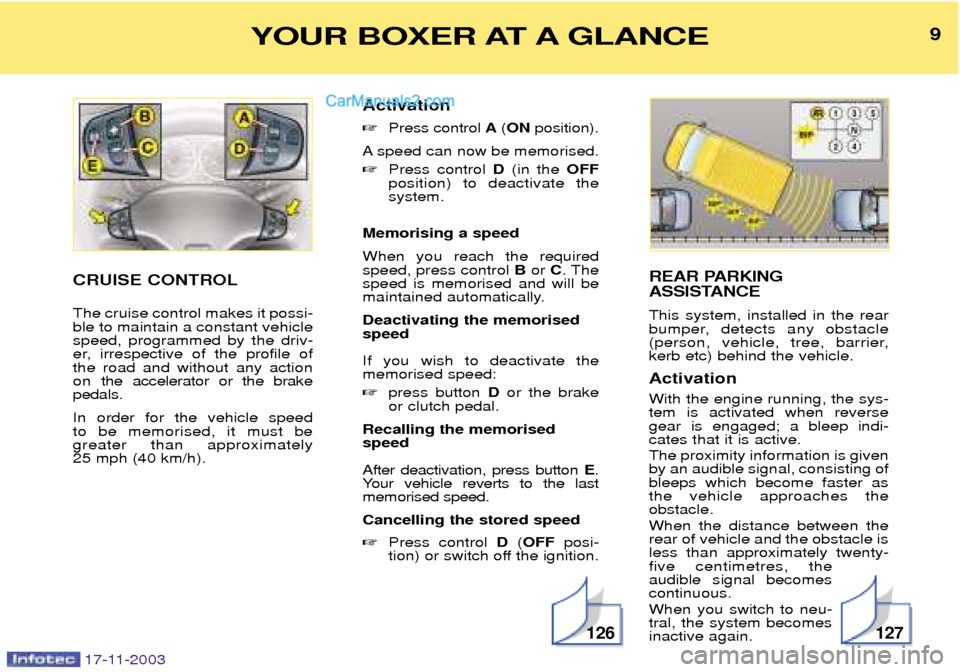

REAR PARKING
ASSISTANCE This system, installed in the rear
bumper, detects any obstacle
(person, vehicle, tree, barrier,kerb etc) behind the vehicle. Activation With the engine running, the sys- tem is activated when reversegear is engaged; a bleep indi-cates that it is active. The proximity information is given by an audible signal, consisting ofbleeps which become faster asthe vehicle approaches theobstacle. When the distance between the rear of vehicle and the obstacle isless than approximately twenty-five centimetres, theaudible signal becomescontinuous. When you switch to neu- tral, the system becomesinactive again.
Activation
Press control A(ON position).
A speed can now be memorised. Press control D(in the OFF
position) to deactivate the system.
Memorising a speed When you reach the required speed, press control Bor C. The
speed is memorised and will be
maintained automatically. Deactivating the memorised speed If you wish to deactivate the memorised speed: press button Dor the brake
or clutch pedal.
Recalling the memorised speed After deactivation, press button E.
Your vehicle reverts to the last memorised speed. Cancelling the stored speed Press control D(OFF posi-
tion) or switch off the ignition.
9YOUR BOXER AT A GLANCE
CRUISE CONTROL The cruise control makes it possi- ble to maintain a constant vehiclespeed, programmed by the driv-
er, irrespective of the profile ofthe road and without any action
on the accelerator or the brakepedals. In order for the vehicle speed to be memorised, it must be greater than approximately 25 mph (40 km/h).
127126
Page 10 of 181

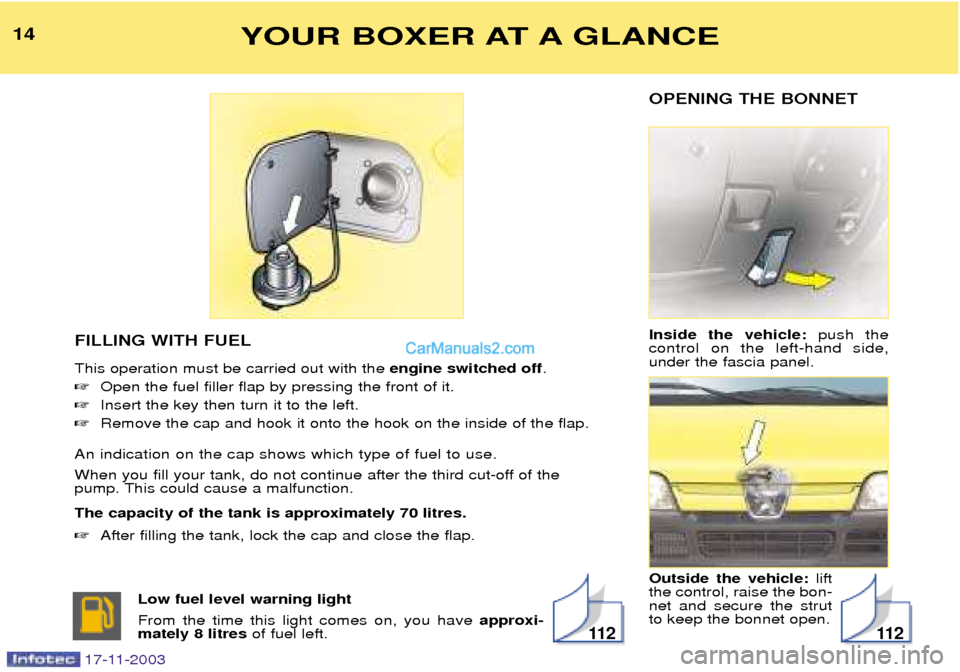

OPENING THE BONNET Inside the vehicle: push the
control on the left-hand side,
under the fascia panel. Outside the vehicle: lift
the control, raise the bon- net and secure the strutto keep the bonnet open.
FILLING WITH FUEL This operation must be carried out with the
engine switched off.
Open the fuel filler flap by pressing the front of it.
Insert the key then turn it to the left.
Remove the cap and hook it onto the hook on the inside of the flap.
An indication on the cap shows which type of fuel to use.
When you fill your tank, do not continue after the third cut-off of the
pump. This could cause a malfunction. The capacity of the tank is approximately 70 litres. After filling the tank, lock the cap and close the flap.
Low fuel level warning light From the time this light comes on, you have approxi-
mately 8 litres of fuel left.
YOUR BOXER AT A GLANCE14
11 211 2
