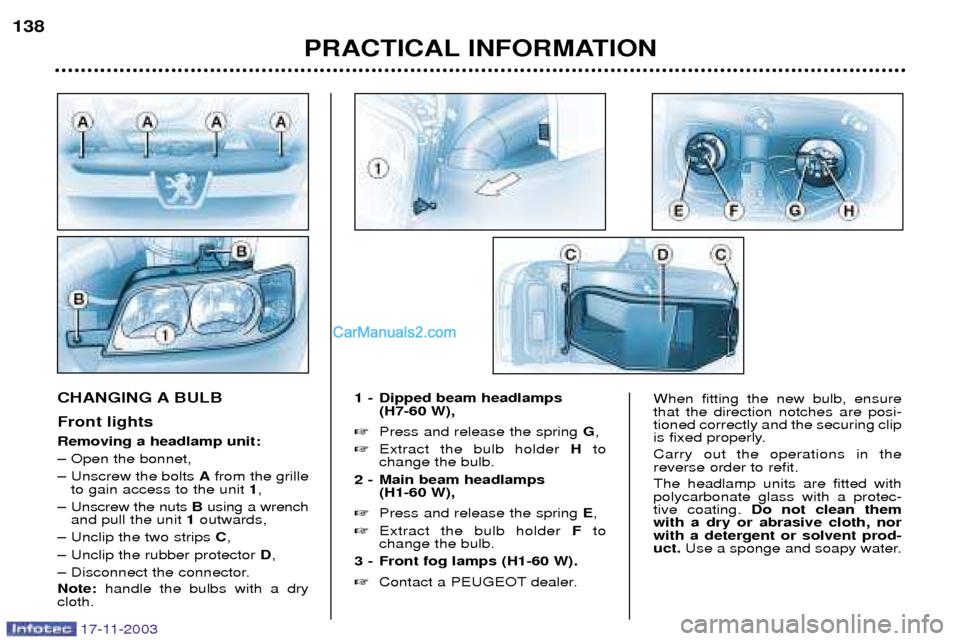

CHANGING A BULB Front lights Removing a headlamp unit:
Ð Open the bonnet,
Ð Unscrew the bolts
Afrom the grille
to gain access to the unit 1,
Ð Unscrew the nuts Busing a wrench
and pull the unit 1outwards,
Ð Unclip the two strips C,
Ð Unclip the rubber protector D,
Ð Disconnect the connector. Note: handle the bulbs with a dry
cloth. 1 - Dipped beam headlamps
(H7-60 W),
Press and release the spring G,
Extract the bulb holder Hto
change the bulb.
2 - Main beam headlamps (H1-60 W),
Press and release the spring E,
Extract the bulb holder Fto
change the bulb.
3 - Front fog lamps (H1-60 W). Contact a PEUGEOT dealer.When fitting the new bulb, ensure that the direction notches are posi-tioned correctly and the securing clip
is fixed properly. Carry out the operations in the reverse order to refit. The headlamp units are fitted with polycarbonate glass with a protec-tive coating. Do not clean them
with a dry or abrasive cloth, norwith a detergent or solvent prod-uct. Use a sponge and soapy water.
17-11-2003

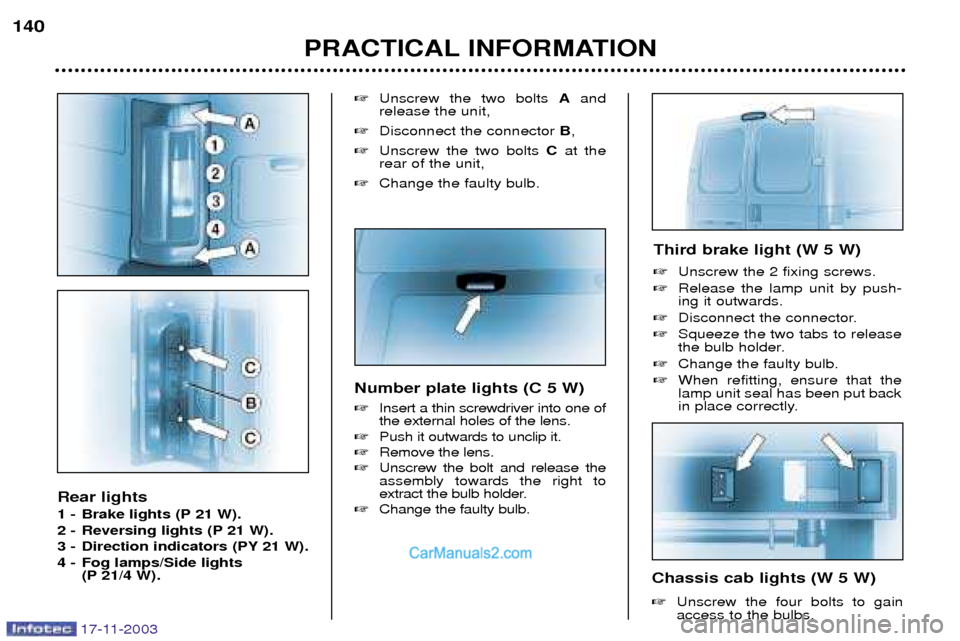

Rear lights
1 - Brake lights (P 21 W).
2 - Reversing lights (P 21 W).
3 - Direction indicators (PY 21 W).
4 - Fog lamps/Side lights (P 21/4 W).
Unscrew the two bolts Aand
release the unit,
Disconnect the connector B,
Unscrew the two bolts Cat the
rear of the unit,
Change the faulty bulb.
PRACTICAL INFORMATION
140
Number plate lights (C 5 W) Insert a thin screwdriver into one of the external holes of the lens.
Push it outwards to unclip it.
Remove the lens.
Unscrew the bolt and release theassembly towards the right to
extract the bulb holder.
Change the faulty bulb.
Chassis cab lights (W 5 W) Unscrew the four bolts to gain access to the bulbs.
Third brake light (W 5 W)
Unscrew the 2 fixing screws.
Release the lamp unit by push- ing it outwards.
Disconnect the connector.
Squeeze the two tabs to release
the bulb holder.
Change the faulty bulb.
When refitting, ensure that thelamp unit seal has been put back
in place correctly.
