fold seats Peugeot Boxer Dag 2003.5 Owner's Manual

17-11-2003
3. Seat back angle adjustmentTurn the knob to obtain the cor- rect seat back angle.
4. Seat height adjustment (driver's seat) The height can be adjusted at the front and at the rear: Ð Front height adjustment: lift thelever at the front of the seat,
Ð Rear height adjustment: lift the lever at the rear of the seat.
5. Forwards-backwards adjustmentLift the control and slide the seat forwards or backwards.
6. Armrest (driver's seat) This can be folded down and isadjustable.
To adjust it, turn the knob under the end of the armrest. Heated seats The temperature is regulated auto- matically in relation to the passengercompartment temperature.
YOUR BOXER IN DETAIL
99
SEAT WITH VARIABLE
VIBRATION REDUCTION(driver)
Turn the control Ato adjust the vibra-
tion reduction in accordance with the driver's weight.

17-11-2003

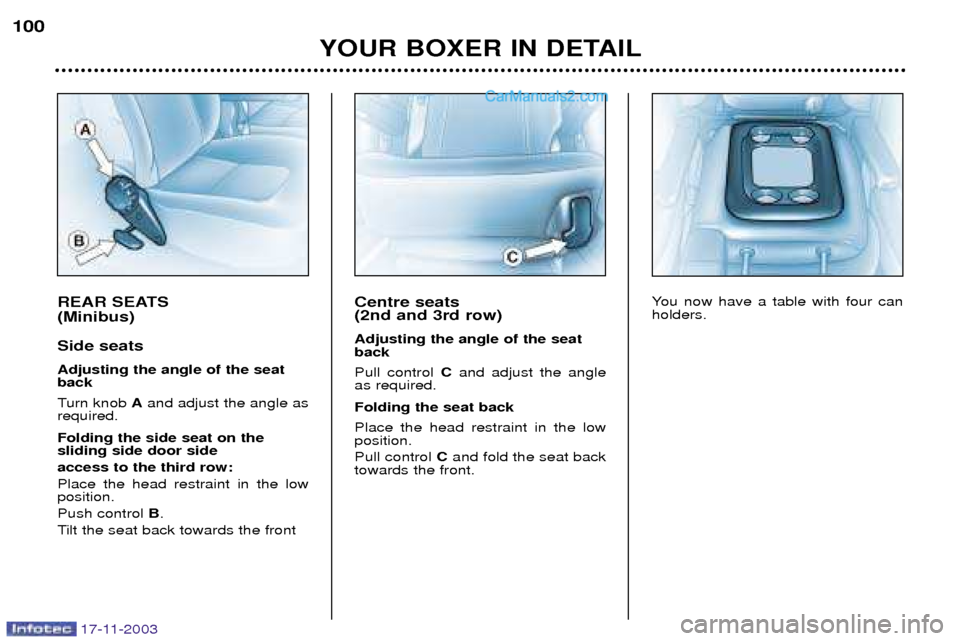

REAR SEATS (Minibus) Side seats Adjusting the angle of the seat back
Turn knob Aand adjust the angle as
required. Folding the side seat on the sliding side door side access to the third row:Place the head restraint in the low position. Push control B.
Tilt the seat back towards the front Centre seats (2nd and 3rd row) Adjusting the angle of the seat back Pull control
Cand adjust the angle
as required. Folding the seat back Place the head restraint in the low position. Pull control Cand fold the seat back
towards the front.
YOUR BOXER IN DETAIL
100
You now have a table with four can holders.

17-11-2003

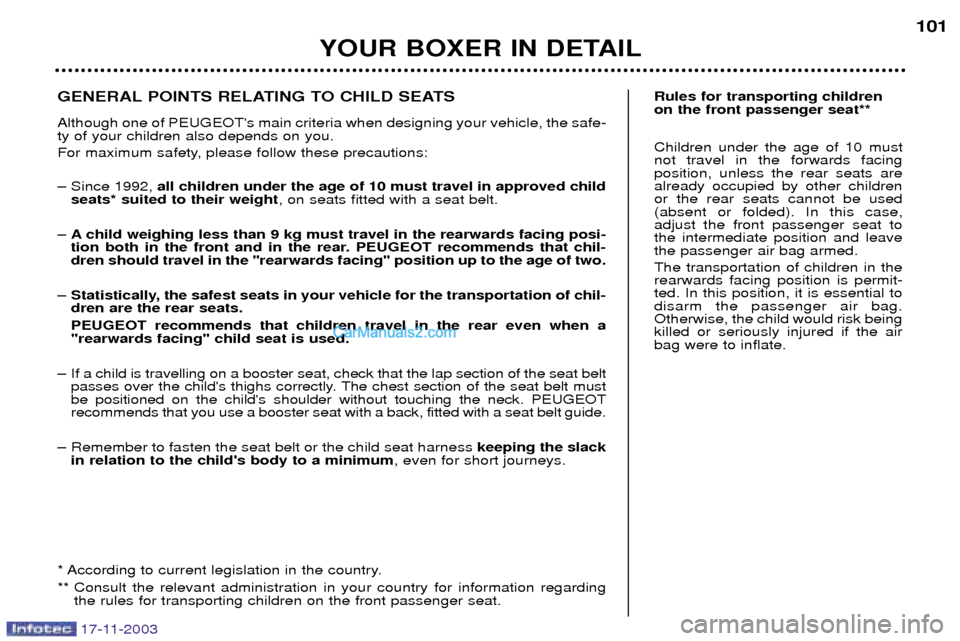

YOUR BOXER IN DETAIL101
Rules for transporting children on the front passenger seat** Children under the age of 10 must not travel in the forwards facingposition, unless the rear seats arealready occupied by other childrenor the rear seats cannot be used(absent or folded). In this case,adjust the front passenger seat tothe intermediate position and leavethe passenger air bag armed. The transportation of children in the rearwards facing position is permit-ted. In this position, it is essential todisarm the passenger air bag.Otherwise, the child would risk beingkilled or seriously injured if the airbag were to inflate.
GENERAL POINTS RELATING TO CHILD SEATS Although one of PEUGEOT's main criteria when designing your vehicle, the safe- ty of your children also depends on you.
For maximum safety, please follow these precautions:
Ð Since 1992,
all children under the age of 10 must travel in approved child
seats* suited to their weight , on seats fitted with a seat belt.
Ð A child weighing less than 9 kg must travel in the rearwards facing posi-
tion both in the front and in the rear. PEUGEOT recommends that chil-dren should travel in the "rearwards facing" position up to the age of two.
Ð Statistically, the safest seats in your vehicle for the transportation of chil-dren are the rear seats. PEUGEOT recommends that children travel in the rear even when a "rearwards facing" child seat is used.
Ð If a child is travelling on a booster seat, check that the lap section of the seat belt passes over the child's thighs correctly. The chest section of the seat belt mustbe positioned on the child's shoulder without touching the neck. PEUGEOTrecommends that you use a booster seat with a back, fitted with a seat belt guide.
Ð Remember to fasten the seat belt or the child seat harness keeping the slack
in relation to the child's body to a minimum , even for short journeys.
* According to current legislation in the country.
** Consult the relevant administration in your country for information regarding the rules for transporting children on the front passenger seat.

17-11-2003
YOUR BOXER IN DETAIL
128

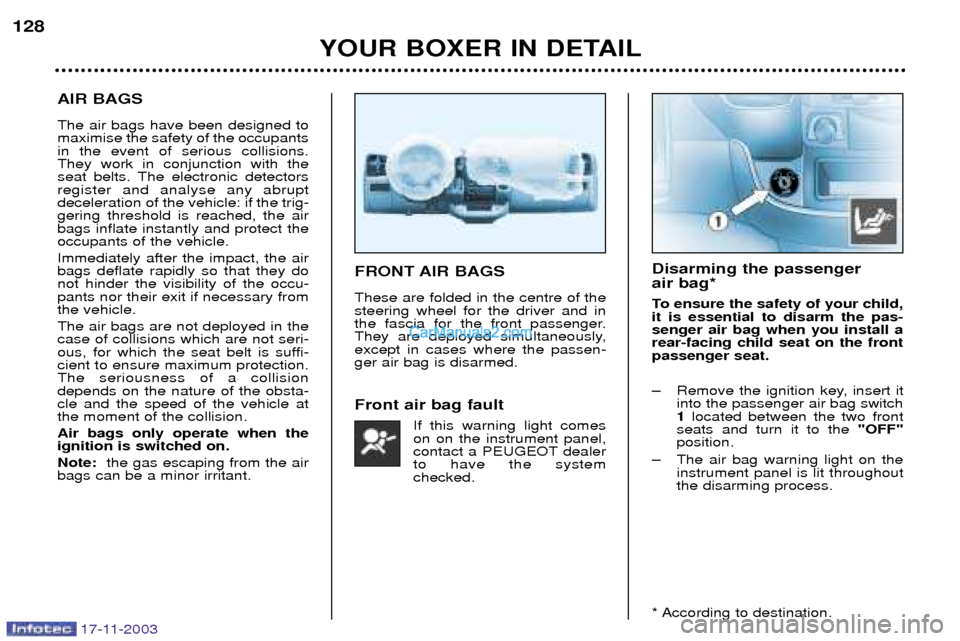

AIR BAGS The air bags have been designed to maximise the safety of the occupantsin the event of serious collisions.They work in conjunction with the
seat belts. The electronic detectorsregister and analyse any abruptdeceleration of the vehicle: if the trig-gering threshold is reached, the airbags inflate instantly and protect theoccupants of the vehicle. Immediately after the impact, the air bags deflate rapidly so that they donot hinder the visibility of the occu-pants nor their exit if necessary fromthe vehicle. The air bags are not deployed in the case of collisions which are not seri-
ous, for which the seat belt is suffi-cient to ensure maximum protection.The seriousness of a collisiondepends on the nature of the obsta-cle and the speed of the vehicle atthe moment of the collision. Air bags only operate when the ignition is switched on. Note:
the gas escaping from the air
bags can be a minor irritant. FRONT AIR BAGS These are folded in the centre of the steering wheel for the driver and in
the fascia for the front passenger.
They are deployed simultaneously,except in cases where the passen-ger air bag is disarmed. Front air bag fault
If this warning light comes on on the instrument panel,
contact a PEUGEOT dealerto have the systemchecked. Disarming the passenger air bag*
To ensure the safety of your child, it is essential to disarm the pas-senger air bag when you install arear-facing child seat on the frontpassenger seat.
Ð Remove the ignition key, insert it
into the passenger air bag switch 1located between the two front
seats and turn it to the "OFF"
position.
Ð The air bag warning light on the instrument panel is lit throughoutthe disarming process.
* According to destination.
