Page 4 of 181
4YOUR BOXER AT A GLANCE
17-11-2003
THE KEYS The keys allow you to switch on the ignition and operate the pas-senger air bag disarming switchas well as to independently oper-ate the locks on the front doors,the fuel filler cap and the glovebox. Central locking
From the driver's door, the keys allow you to lock and unlock thefront, passenger and rear doors. If one of the doors is open, it is impossible to operate the centrallocking. The remote control performs the same functions at a distance.The remote control key Locking Press button
Ato lock the vehicle.
UnlockingPress button Bto unlock the vehi-
cle. STARTING
STOP position:
the ignition is off. 1st notch, MAR (Accessories) position:
the ignition is off but
the accessories can be used.
AVV (Starting) position:
operates the starter.
PARK position: position enabling you to leave the side lights on when parked,
with the ignition off and the keyremoved.
106
Page 106 of 181
17-11-2003
YOUR BOXER IN DETAIL
106

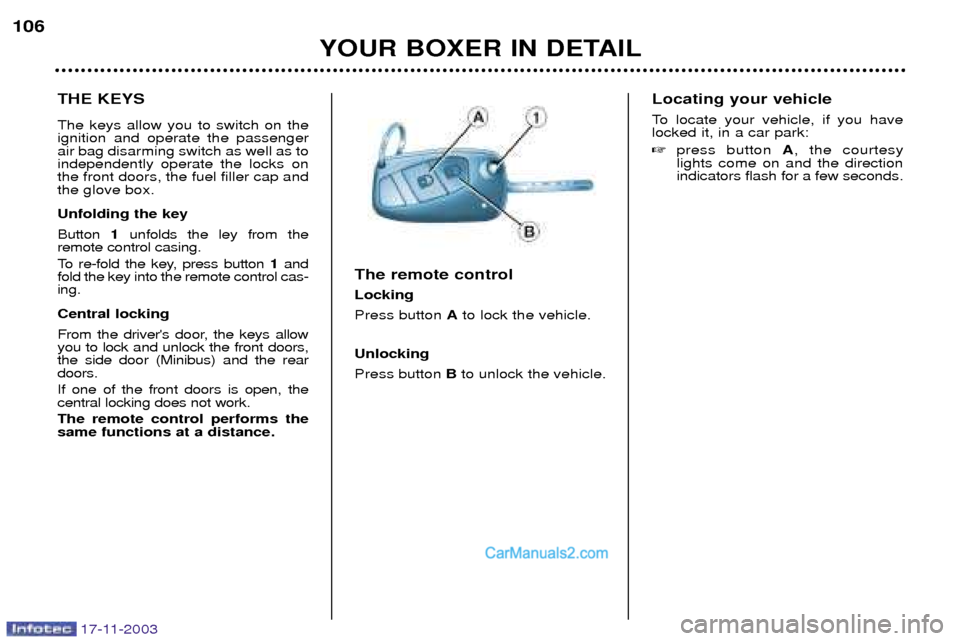

THE KEYS The keys allow you to switch on the ignition and operate the passengerair bag disarming switch as well as toindependently operate the locks onthe front doors, the fuel filler cap andthe glove box. Unfolding the key Button
1unfolds the ley from the
remote control casing.
To re-fold the key, press button 1and
fold the key into the remote control cas- ing. Central locking
From the driver's door, the keys allow you to lock and unlock the front doors,the side door (Minibus) and the reardoors. If one of the front doors is open, the central locking does not work. The remote control performs the same functions at a distance. The remote control Locking Press button
Ato lock the vehicle.
UnlockingPress button Bto unlock the vehicle. Locating your vehicle
To locate your vehicle, if you have locked it, in a car park:
press button A, the courtesy
lights come on and the direction indicators flash for a few seconds.
Page 107 of 181
YOUR BOXER IN DETAIL107

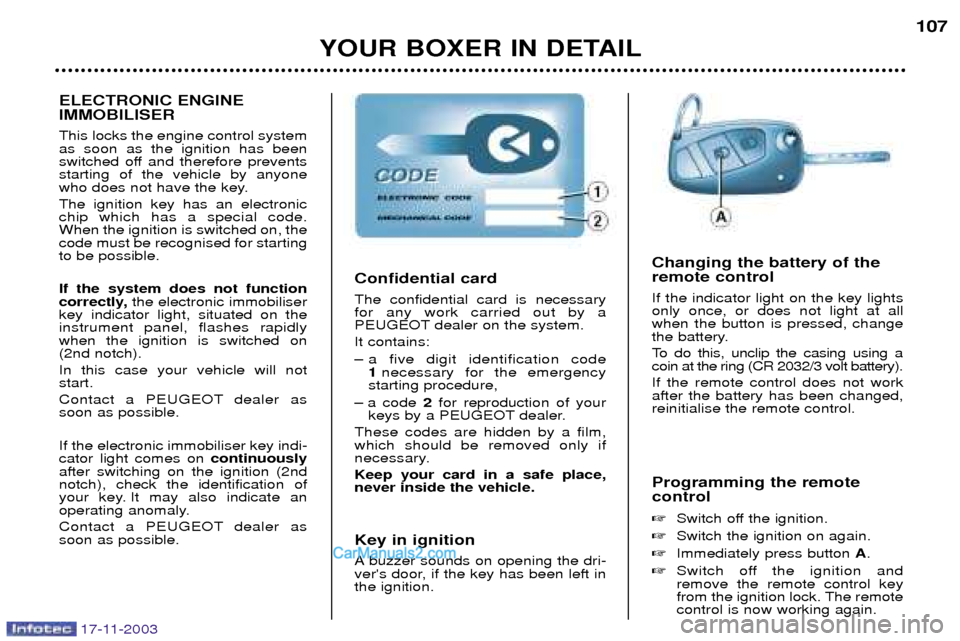

Programming the remote control Switch off the ignition.
Switch the ignition on again.
Immediately press button A.
Switch off the ignition and remove the remote control key
from the ignition lock. The remotecontrol is now working again.
Confidential card The confidential card is necessary for any work carried out by a
PEUGEOT dealer on the system. It contains:
Ð a five digit identification code
1necessary for the emergency
starting procedure,
Ð a code 2for reproduction of your
keys by a PEUGEOT dealer.
These codes are hidden by a film, which should be removed only if
necessary. Keep your card in a safe place, never inside the vehicle. Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition. Changing the battery of the remote control If the indicator light on the key lights only once, or does not light at allwhen the button is pressed, change
the battery.
To do this, unclip the casing using a
coin at the ring (CR 2032/3 volt battery). If the remote control does not work after the battery has been changed,reinitialise the remote control.
ELECTRONIC ENGINE IMMOBILISER This locks the engine control system as soon as the ignition has been
switched off and therefore preventsstarting of the vehicle by anyone
who does not have the key. The ignition key has an electronic chip which has a special code.When the ignition is switched on, thecode must be recognised for startingto be possible. If the system does not function
correctly,
the electronic immobiliser
key indicator light, situated on theinstrument panel, flashes rapidlywhen the ignition is switched on(2nd notch). In this case your vehicle will not start.
Contact a PEUGEOT dealer as soon as possible. If the electronic immobiliser key indi- cator light comes on continuously
after switching on the ignition (2ndnotch), check the identification of
your key. It may also indicate an
operating anomaly.
Contact a PEUGEOT dealer as soon as possible.
17-11-2003
Page 108 of 181
17-11-2003
YOUR BOXER IN DETAIL
108

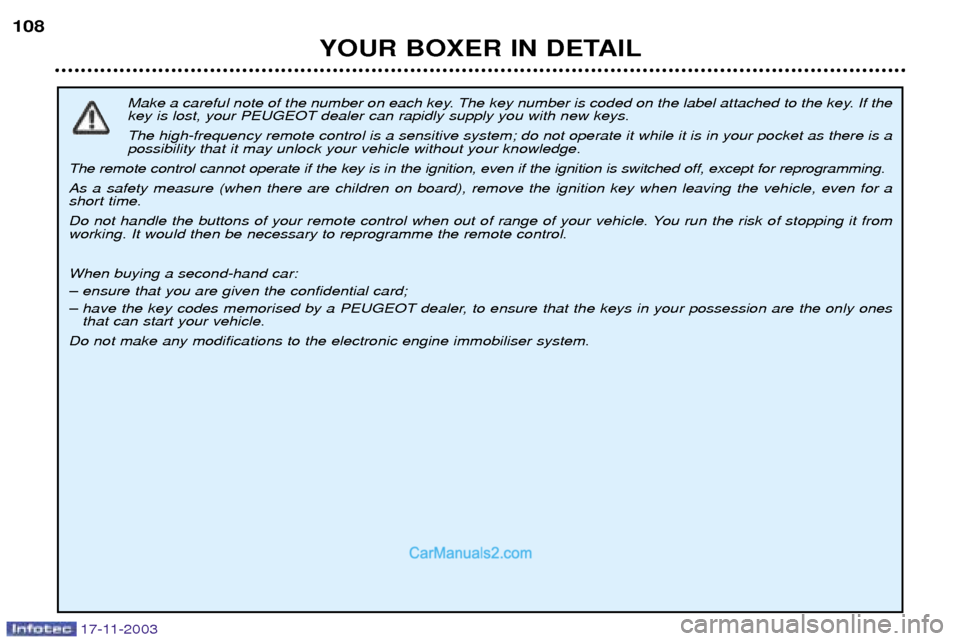

Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the key is lost, your PEUGEOT dealer can rapidly supply you with new keys. The high-frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle without your knowledge.
The remote control cannot operate if the key is in the ignition, even if the ignition is switched off, except for reprogramming .
As a safety measure (when there are children on board), remove the ignition key when leaving the vehicle, even for ashort time.
Do not handle the buttons of your remote control when out of range of your vehicle. You run the risk of stopping it from working. It would then be necessary to reprogramme the remote control. When buying a second-hand car:
Ð ensure that you are given the confidential card;
Ð have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones that can start your vehicle.
Do not make any modifications to the electronic engine immobiliser system.
Page 109 of 181
YOUR BOXER IN DETAIL107

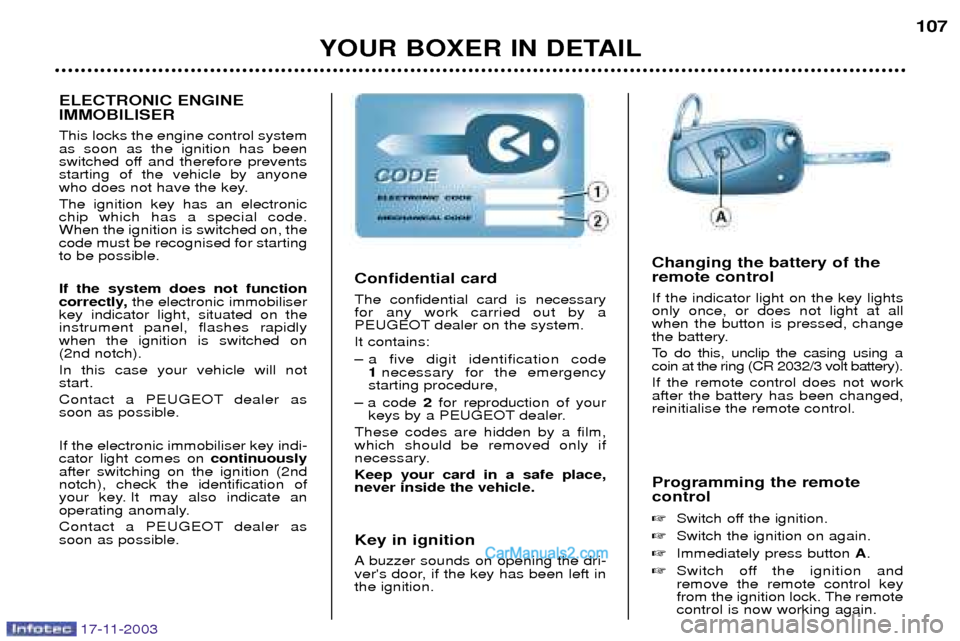

Programming the remote control Switch off the ignition.
Switch the ignition on again.
Immediately press button A.
Switch off the ignition and remove the remote control key
from the ignition lock. The remotecontrol is now working again.
Confidential card The confidential card is necessary for any work carried out by a
PEUGEOT dealer on the system. It contains:
Ð a five digit identification code
1necessary for the emergency
starting procedure,
Ð a code 2for reproduction of your
keys by a PEUGEOT dealer.
These codes are hidden by a film, which should be removed only if
necessary. Keep your card in a safe place, never inside the vehicle. Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition. Changing the battery of the remote control If the indicator light on the key lights only once, or does not light at allwhen the button is pressed, change
the battery.
To do this, unclip the casing using a
coin at the ring (CR 2032/3 volt battery). If the remote control does not work after the battery has been changed,reinitialise the remote control.
ELECTRONIC ENGINE IMMOBILISER This locks the engine control system as soon as the ignition has been
switched off and therefore preventsstarting of the vehicle by anyone
who does not have the key. The ignition key has an electronic chip which has a special code.When the ignition is switched on, thecode must be recognised for startingto be possible. If the system does not function
correctly,
the electronic immobiliser
key indicator light, situated on theinstrument panel, flashes rapidlywhen the ignition is switched on(2nd notch). In this case your vehicle will not start.
Contact a PEUGEOT dealer as soon as possible. If the electronic immobiliser key indi- cator light comes on continuously
after switching on the ignition (2ndnotch), check the identification of
your key. It may also indicate an
operating anomaly.
Contact a PEUGEOT dealer as soon as possible.
17-11-2003
Page 110 of 181
17-11-2003
YOUR BOXER IN DETAIL
108
Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the key is lost, your PEUGEOT dealer can rapidly supply you with new keys. The high-frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle without your knowledge.
The remote control cannot operate if the key is in the ignition, even if the ignition is switched off, except for reprogramming .
As a safety measure (when there are children on board), remove the ignition key when leaving the vehicle, even for ashort time.
Do not handle the buttons of your remote control when out of range of your vehicle. You run the risk of stopping it from working. It would then be necessary to reprogramme the remote control. When buying a second-hand car:
Ð ensure that you are given the confidential card;
Ð have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones that can start your vehicle.
Do not make any modifications to the electronic engine immobiliser system.
Page 111 of 181
17-11-2003
YOUR BOXER IN DETAIL109

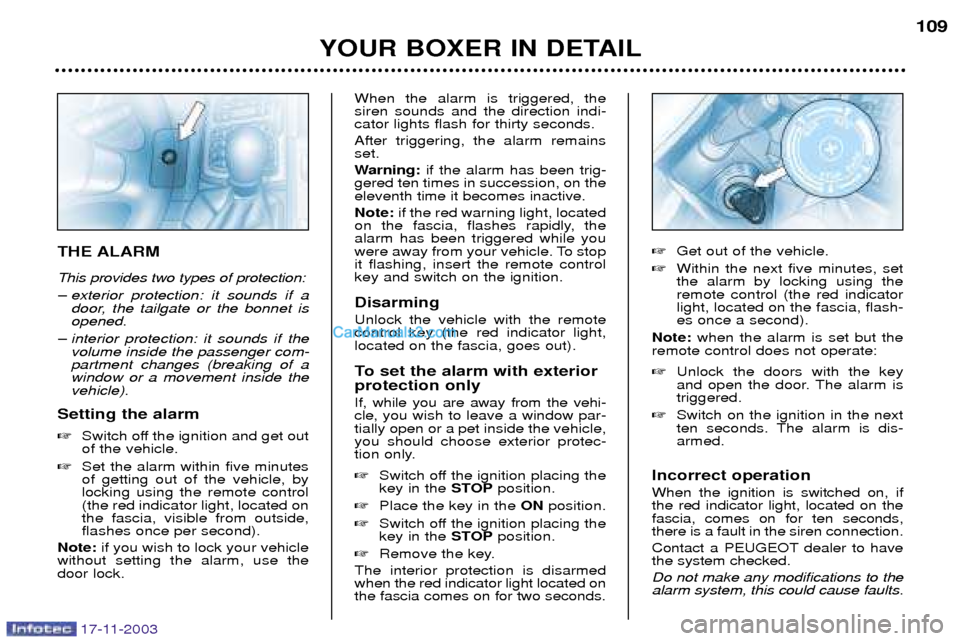

THE ALARM This provides two types of protection:
Ð exterior protection: it sounds if a
door, the tailgate or the bonnet is opened.
Ð interior protection: it sounds if the volume inside the passenger com-partment changes (breaking of awindow or a movement inside thevehicle).
Setting the alarm Switch off the ignition and get out of the vehicle.
Set the alarm within five minutesof getting out of the vehicle, bylocking using the remote control(the red indicator light, located onthe fascia, visible from outside,flashes once per second).
Note: if you wish to lock your vehicle
without setting the alarm, use thedoor lock. When the alarm is triggered, thesiren sounds and the direction indi-cator lights flash for thirty seconds. After triggering, the alarm remains set.
Warning:
if the alarm has been trig-
gered ten times in succession, on the eleventh time it becomes inactive. Note: if the red warning light, located
on the fascia, flashes rapidly, the alarm has been triggered while you
were away from your vehicle. To stopit flashing, insert the remote controlkey and switch on the ignition. Disarming Unlock the vehicle with the remote control key (the red indicator light,located on the fascia, goes out).
To set the alarm with exterior protection only If, while you are away from the vehi- cle, you wish to leave a window par-
tially open or a pet inside the vehicle,you should choose exterior protec-
tion only. Switch off the ignition placing the key in the STOPposition.
Place the key in the ONposition.
Switch off the ignition placing thekey in the STOPposition.
Remove the key.
The interior protection is disarmedwhen the red indicator light located onthe fascia comes on for two seconds.
Get out of the vehicle.
Within the next five minutes, setthe alarm by locking using theremote control (the red indicatorlight, located on the fascia, flash-es once a second).
Note: when the alarm is set but the
remote control does not operate: Unlock the doors with the key
and open the door. The alarm istriggered.
Switch on the ignition in the next
ten seconds. The alarm is dis-armed.
Incorrect operation When the ignition is switched on, if the red indicator light, located on thefascia, comes on for ten seconds,there is a fault in the siren connection.
Contact a PEUGEOT dealer to have the system checked. Do not make any modifications to the alarm system, this could cause faults.
Page 153 of 181
17-11-2003
PRACTICAL INFORMATION
142

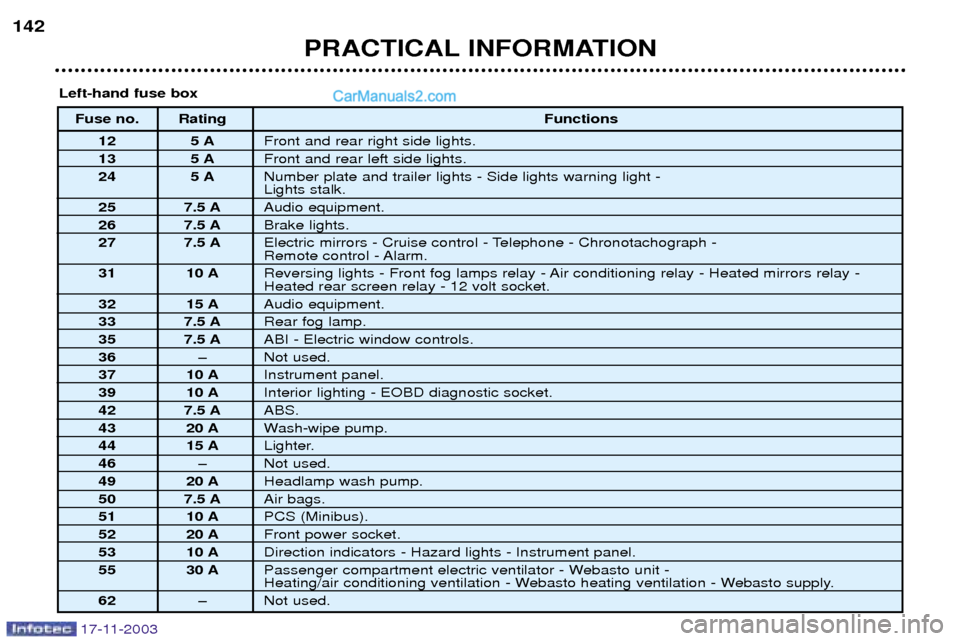

Fuse no. Rating
Functions
12 5 A Front and rear right side lights.
13 5 A Front and rear left side lights.
24 5 A Number plate and trailer lights - Side lights warning light - Lights stalk.
25 7.5 A Audio equipment.
26 7.5 A Brake lights.
27 7.5 A Electric mirrors - Cruise control - Telephone - Chronotachograph -
Remote control - Alarm.
31 10 A Reversing lights - Front fog lamps relay - Air conditioning relay - Heated mirrors relay - Heated rear screen relay - 12 volt socket.
32 15 A Audio equipment.
33 7.5 A Rear fog lamp.
35 7.5 A ABI - Electric window controls.
36 Ð Not used.
37 10 A Instrument panel.
39 10 A Interior lighting - EOBD diagnostic socket.
42 7.5 A ABS.
43 20 A Wash-wipe pump.
44 15 A Lighter.
46 Ð Not used.
49 20 A Headlamp wash pump.
50 7.5 A Air bags.
51 10 A PCS (Minibus).
52 20 A Front power socket.
53 10 A Direction indicators - Hazard lights - Instrument panel.
55 30 A Passenger compartment electric ventilator - Webasto unit -
Heating/air conditioning ventilation - Webasto heating ventilation - Webasto supply.
62 Ð Not used.
Left-hand fuse box
Page 154 of 181
17-11-2003
PRACTICAL INFORMATION143

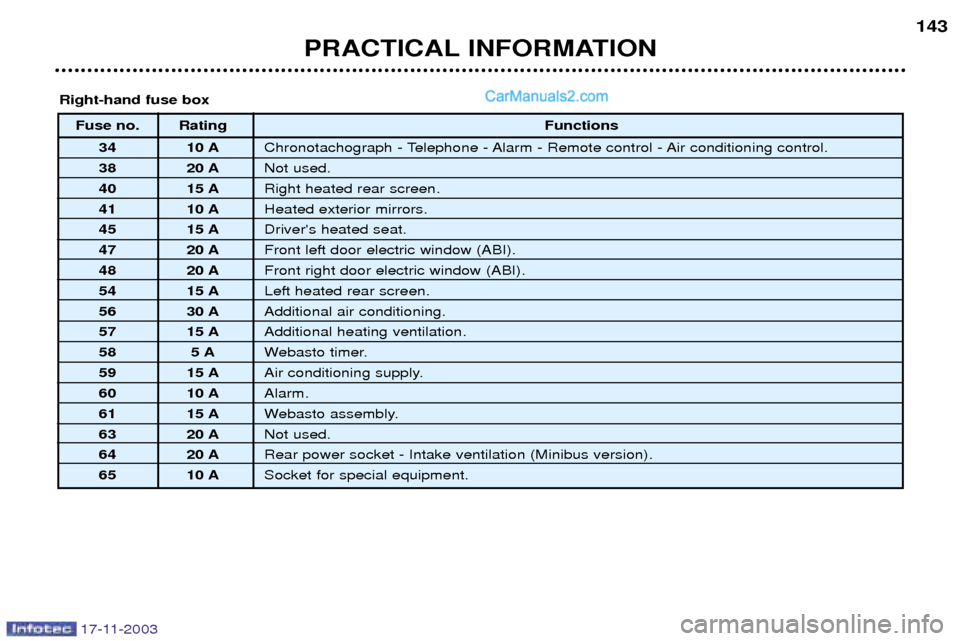

Fuse no. Rating
Functions
34 10 A Chronotachograph - Telephone - Alarm - Remote control - Air conditioning control.
38 20 A Not used.
40 15 A Right heated rear screen.
41 10 A Heated exterior mirrors.
45 15 A Driver's heated seat.
47 20 A Front left door electric window (ABI).
48 20 A Front right door electric window (ABI).
54 15 A Left heated rear screen.
56 30 A Additional air conditioning.
57 15 A Additional heating ventilation.
58 5 A Webasto timer.
59 15 A Air conditioning supply.
60 10 A Alarm.
61 15 A Webasto assembly.
63 20 A Not used.
64 20 A Rear power socket - Intake ventilation (Minibus version).
65 10 A Socket for special equipment.
Right-hand fuse box
