PEUGEOT EXPERT 2001 Owners Manual

VEHICLE PRESENTATIONVI-1
92
VA N
Normal door VAN WITH LONG WHEELBASE
Normal door
VAN WITH LONG WHEELBASEOffset side door

GENERAL INFORMATION*Glazed and panel vans93VI-2
Weights (kg) Unladen weight 1 370 1 375 1 400/1 415
Gross vehicle weight 2 185 2 190 2 215/2 315
Payload 815 815 815/900
Gross train weight 3 485 3 290 3 500
Gross trailer weight (with brakes)** 1 300 1 100 1 300
Gross trailer weight (without brakes)** 720 685 750Max. roof rack load 100 100 100
Engine type
2.0i 16V 1.9 D 2.0 HDi
(95bhp/110bhp)
Cubic capacity (cc) 1 997 1 868 1 997
French fiscal rating 11 6 6
Calculated maximum speed in km/h (mph) 175 (108) 138 (86) 160 (100)
* According to model or country
** Towing weights Always keep within the towing weight limits of your vehicle.
You must observe the towing loads and speed limits as specified by local legislation. To learn more about the towing
capacity of your vehicle and its maximum authorised GTW, contact your dealer.

GENERAL INFORMATION*
Glazed and panel vans longwheelbaseVI-2
94
* According to model or country
** Towing weights Always keep within the towing weight limits of your vehicle.
You must observe the towing loads and speed limits as specified by local legislation. To learn more about the towing
capacity of your vehicle and its maximum authorised GTW, contact your dealer.
Weights (kg) Unladen weight 1 410 1 445
Gross vehicle weight 2 205 2 315
Payload 795 900
Gross train weight 3 305 3 500
Gross trailer weight (with brakes)** 1 100 1 300
Gross trailer weight (without brakes)** 705 730Max. roof rack load 100 100
Engine type
1.9 D 2.0 HDi
(95bhp/110bhp)
Cubic capacity (cc) 1 868 1 997
French fiscal rating 6 6
Calculated maximum speed in km/h (mph) 138 (86) 157 (98)

GENERAL INFORMATION*Combi95VI-2
(1) 95 bhp (2) 110 bhp
* According to model or country
** Towing weights Always keep within the towing weight limits of your vehicle.
You must observe the towing loads and speed limits as specified by local legislation. To learn more about the towing
capacity of your vehicle and its maximum authorised GTW, contact your dealer.
Weights (kg) Unladen weight 1 550 ➟1 692 1 551 ➟1 576 1 522 ➟1 570
Gross vehicle weight 2 285 2 205 2 330
Payload 815 815 815
Gross train weight 3 585 3 305 3 500
Gross trailer weight (with brakes)** 1 300 1 100 1 300
Gross trailer weight (without brakes)** 750 750 750Max. roof rack load 100 100 100
Engine type
2.0i 16V 1.9 D 2.0 HDi
(95bhp/110bhp)
Cubic capacity (cc) 1 997 1 868 1 997
Number of seats 5-6-8-9 8-9 5-6-8-9
French fiscal rating 9 6 7
Calculated maximum speed in km/h (mph) 175 (108) 138 (86) 160(1) / 165(2)

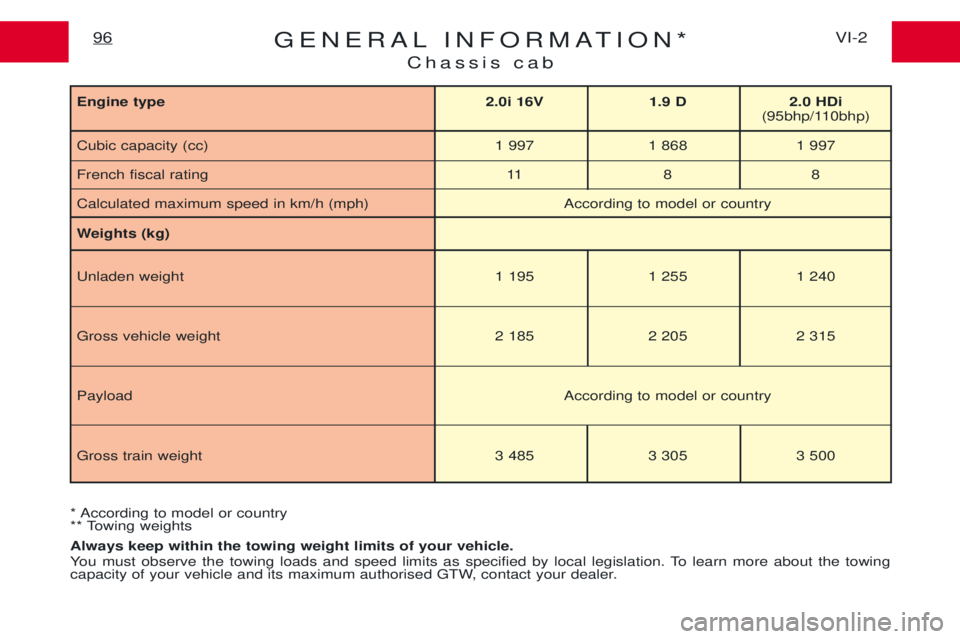

GENERAL INFORMATION*Chassis cabVI-2
96
Weights (kg) Unladen weight 1 195 1 255 1 240
Gross vehicle weight 2 185 2 205 2 315
Payload According to model or country
Gross train weight 3 485 3 305 3 500
Engine type
2.0i 16V 1.9 D 2.0 HDi
(95bhp/110bhp)
Cubic capacity (cc) 1 997 1 868 1 997
French fiscal rating 11 8 8
Calculated maximum speed in km/h (mph) According to model or country
* According to model or country
** Towing weights Always keep within the towing weight limits of your vehicle.
You must observe the towing loads and speed limits as specified by local legislation. To learn more about the towing
capacity of your vehicle and its maximum authorised GTW, contact your dealer.

GENERAL INFORMATION*Chassis cab longwheelbase97VI-2
* According to model or country
** Towing weights Always keep within the towing weight limits of your vehicle.
You must observe the towing loads and speed limits as specified by local legislation. To learn more about the towing
capacity of your vehicle and its maximum authorised GTW, contact your dealer.
Engine type 1.9 D 2.0 HDi
(95bhp/110bhp)
Cubic capacity (cc) 1 868 1 997
French fiscal rating 8 8
Calculated maximum speed in km/h (mph) According to model or country
Weights (kg) Unladen weight 1 255 1 280
Gross vehicle weight 2 205 2 315
Payload According to model or country
Gross train weight 3 305 3 500

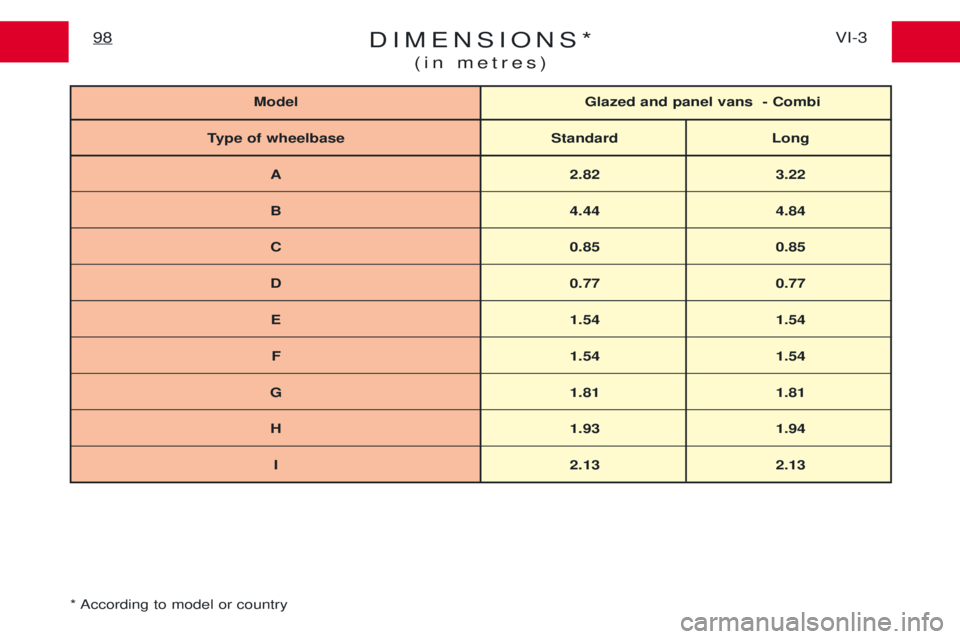

DIMENSIONS*(in metres)VI-3
98
* According to model or country
Model Glazed and panel vans - Combi
Type of wheelbase Standard Long
A 2.82 3.22
B 4.44 4.84
C 0.85 0.85
D 0.77 0.77
E 1.54 1.54
F 1.54 1.54
G 1.81 1.81
H 1.93 1.94
I 2.13 2.13

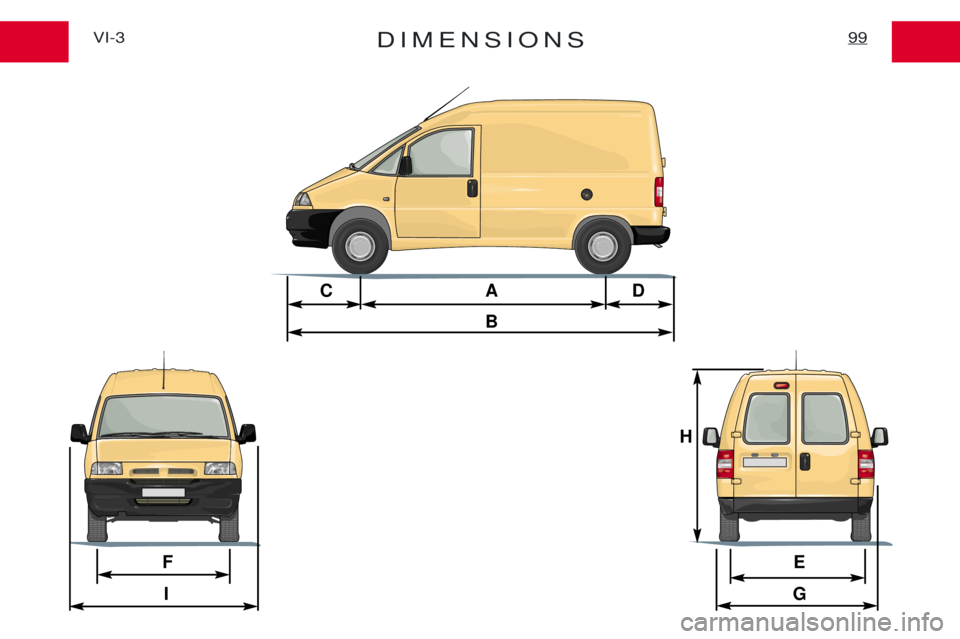

DIMENSIONS99VI-3
CADB
F E
I G
H

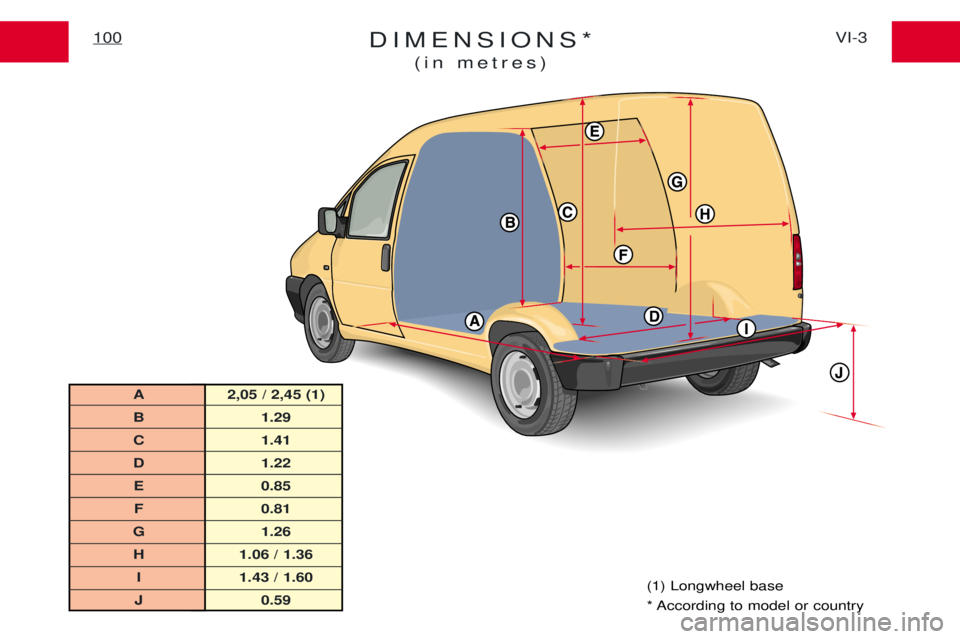

DIMENSIONS*(in metres)VI-3
100
(1) Longwheel base
* According to model or country
A 2,05 / 2,45 (1)
B 1.29
C 1.41
D 1.22
E 0.85 F 0.81
G 1.26 H 1.06 / 1.36 I 1.43 / 1.60
J 0.59

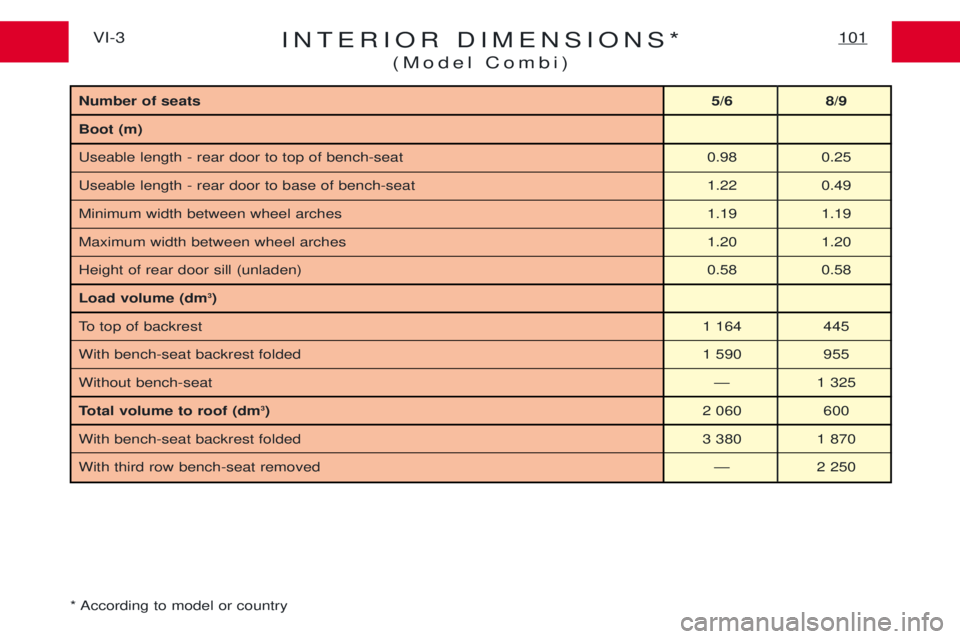

INTERIOR DIMENSIONS*(Model Combi)101VI-3
* According to model or country
Number of seats 5/6 8/9
Boot (m) Useable length - rear door to top of bench-seat 0.98 0.25
Useable length - rear door to base of bench-seat 1.22 0.49
Minimum width between wheel arches 1.19 1.19
Maximum width between wheel arches 1.20 1.20
Height of rear door sill (unladen) 0.58 0.58
Load volume (dm 3
)
To top of backrest 1 164 445
With bench-seat backrest folded 1 590 955
Without bench-seat Ñ 1 325
Total volume to roof (dm 3
) 2 060 600
With bench-seat backrest folded 3 380 1 870
With third row bench-seat removed Ñ 2 250
