PEUGEOT EXPERT 2001 User Guide

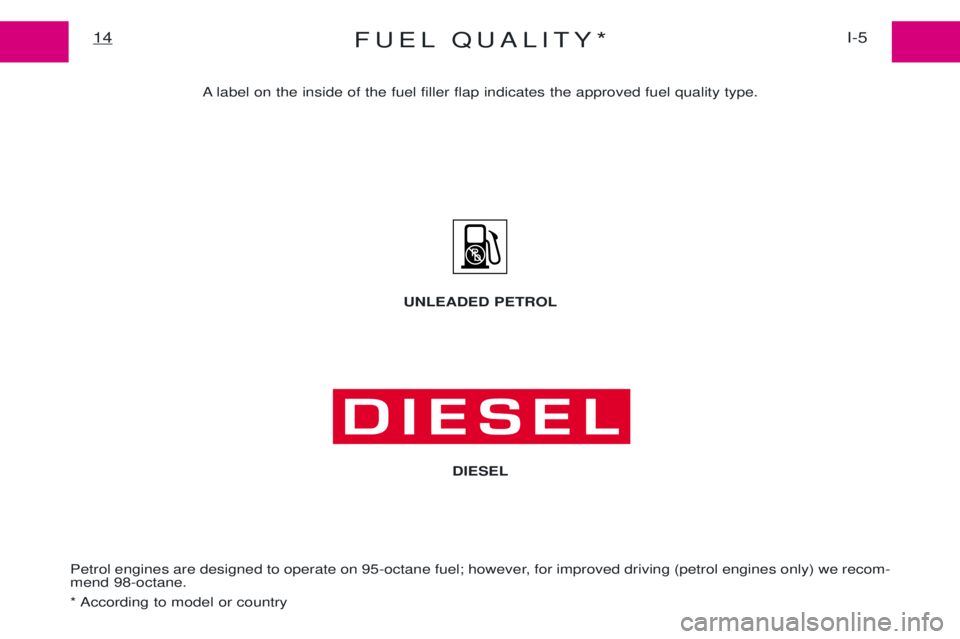

FUEL QUALITY*I-5
14
A label on the inside of the fuel filler flap indicates the approved fuel quality type.
Petrol engines are designed to operate on 95-octane fuel; however, for improved driving (petrol engines only) we recom- mend 98-octane.
* According to model or country UNLEADED PETROL
DIESEL

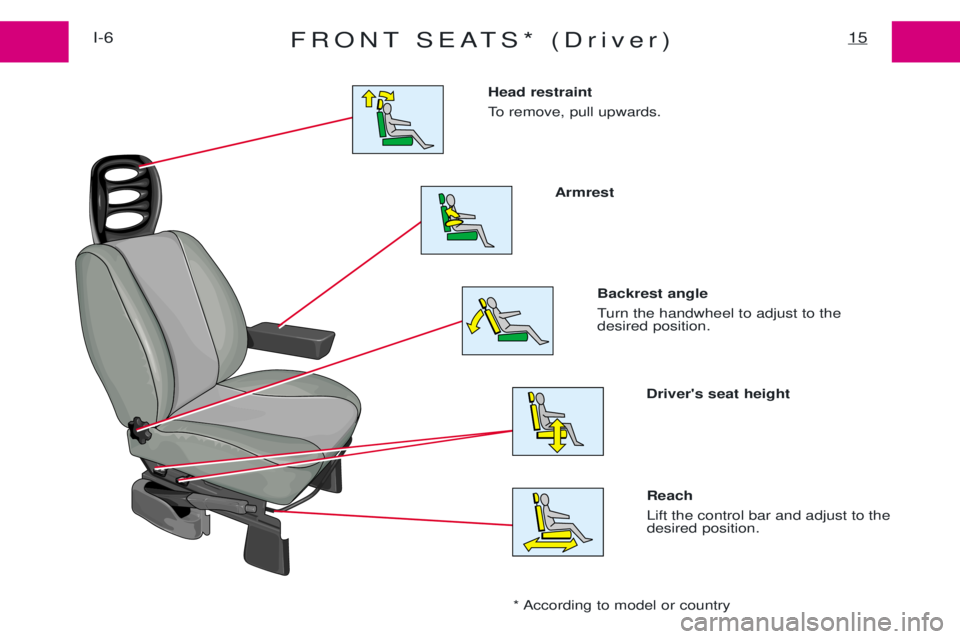

FRONT SEATS* (Driver)15I-6Reach Lift the control bar and adjust to the desired position.
Head restraint
To remove, pull upwards.
Armrest
Backrest angle
Turn the handwheel to adjust to the desired position. Driver's seat height
* According to model or country

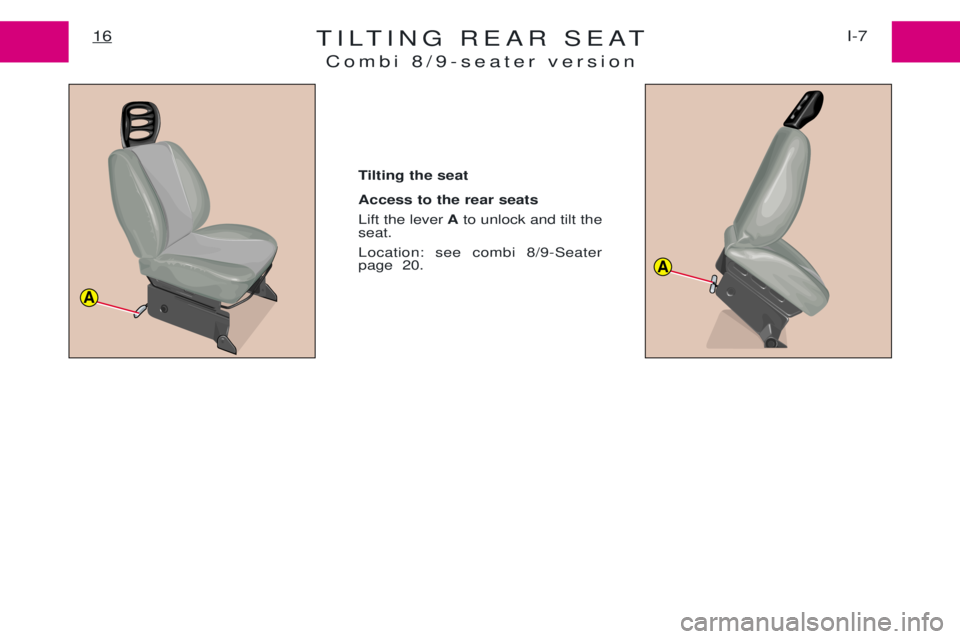

TILTING REAR SEATCombi 8/9-seater version16I-7
Tilting the seat Access to the rear seats Lift the lever Ato unlock and tilt the
seat. Location: see combi 8/9-Seater page 20.
A
A

REAR BENCH-SEATCombi 8/9-seater versionI-9
18
AA
BB
B
When carrying out seat
removal and refitting opera- tions, be careful not to trap your hands.
Tilting the seat back Lift lever
Aand tilt the seat back for-
wards.
To make it easier to manoeuvre lever A, the exertion of slight pres-
sure on the top of the seat backbefore tilting is recommended. Removing the rear seat After tilting the seat back, lift lever
B.
Incline the seat forwards and remo- ve it from its fixing points. Refitting the rear seat Position the front feet in the fixing points.
Tilt the folded seat rearwards and straighten out the seat back. Check the assembly is locked
into place properly.

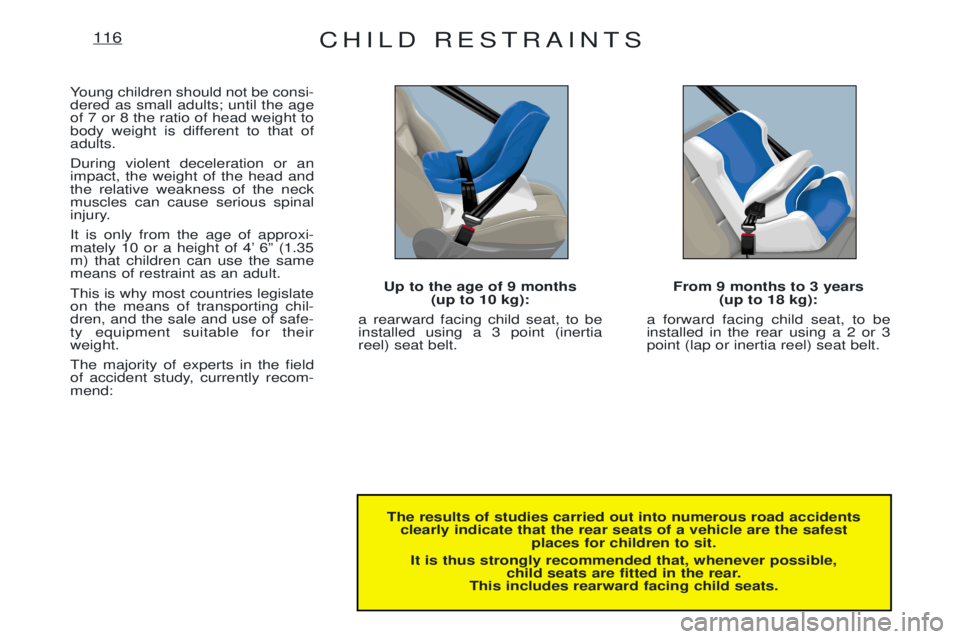

CHILD RESTRAINTS116
The results of studies carried out into numerous road accidentsclearly indicate that the rear seats of a vehicle are the safest places for children to sit.
It is thus strongly recommended that, whenever possible, child seats are fitted in the rear.
This includes rearward facing child seats.
Young children should not be consi- dered as small adults; until the ageof 7 or 8 the ratio of head weight to
body weight is different to that ofadults. During violent deceleration or an impact, the weight of the head andthe relative weakness of the neckmuscles can cause serious spinal
injury. It is only from the age of approxi-
mately 10 or a height of 4Õ 6Ó (1.35m) that children can use the samemeans of restraint as an adult. This is why most countries legislate on the means of transporting chil-dren, and the sale and use of safe-ty equipment suitable for theirweight. The majority of experts in the field
of accident study, currently recom-mend:
Up to the age of 9 months
(up to 10 kg):
a rearward facing child seat, to beinstalled using a 3 point (inertiareel) seat belt. From 9 months to 3 years
(up to 18 kg):
a forward facing child seat, to beinstalled in the rear using a 2 or 3point (lap or inertia reel) seat belt.

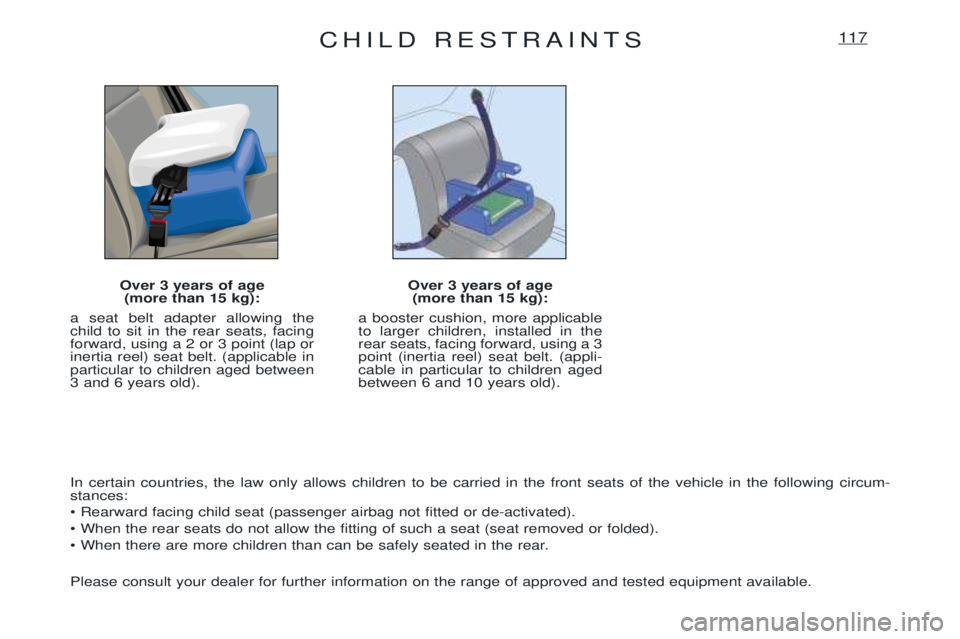

CHILD RESTRAINTS117
Over 3 years of age(more than 15 kg):
a seat belt adapter allowing the child to sit in the rear seats, facingforward, using a 2 or 3 point (lap orinertia reel) seat belt. (applicable inparticular to children aged between3 and 6 years old). In certain countries, the law only allows children to be carried in the front seats of the vehicle in the following circum- stances: ¥ Rearward facing child seat (passenger airbag not fitted or de-activated).¥ When the rear seats do not allow the fitting of such a seat (seat removed or folded).
¥ When there are more children than can be safely seated in the rear. Please consult your dealer for further information on the range of approved and tested equipment available. Over 3 years of age
(more than 15 kg):
a booster cushion, more applicable to larger children, installed in therear seats, facing forward, using a 3point (inertia reel) seat belt. (appli-cable in particular to children agedbetween 6 and 10 years old).

STEERING WHEEL ADJUSTMENTI-817
IMPORTANT
As a safety measure,
these manoeuvres must not be carried out when driving.
The height of the steering wheel can be adjusted.
When stationary, first adjust your seat to the most suitable position.
Unlock the steering wheel by pushing the adjustment control.Adjust the height of the steering wheel then lock it by pulling the adjustment control fully towards you. Make sure that you can see all the displays on the fascia panel.

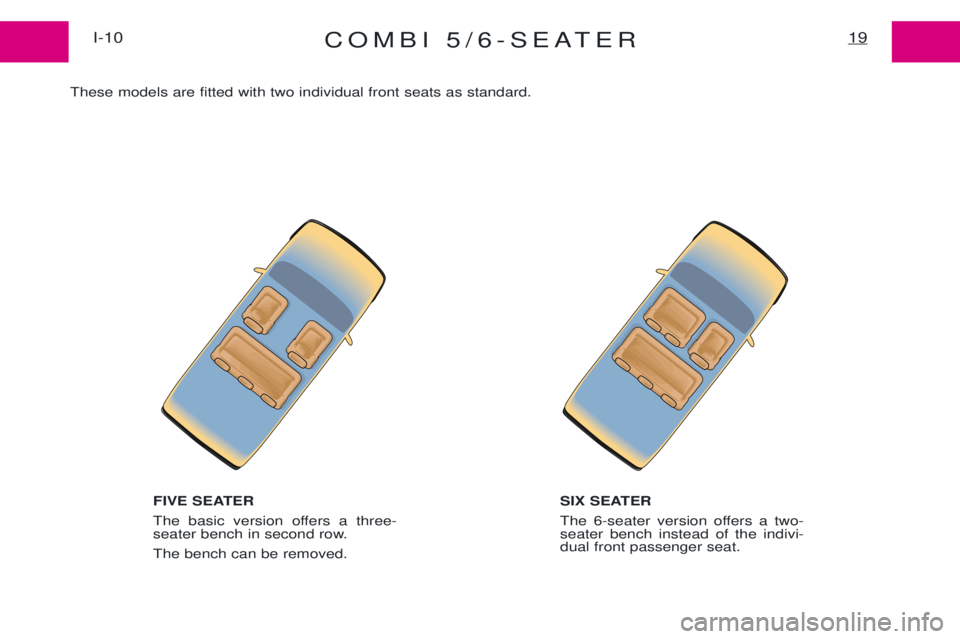

COMBI 5/6-SEATER19I-10
These models are fitted with two individual front seats as standard.
FIVE SEATER
The basic version offers a three-
seater bench in second row. The bench can be removed. SIX SEATER
The 6-seater version offers a two- seater bench instead of the indivi-dual front passenger seat.

COMBI 8/9-SEATERI-10
20

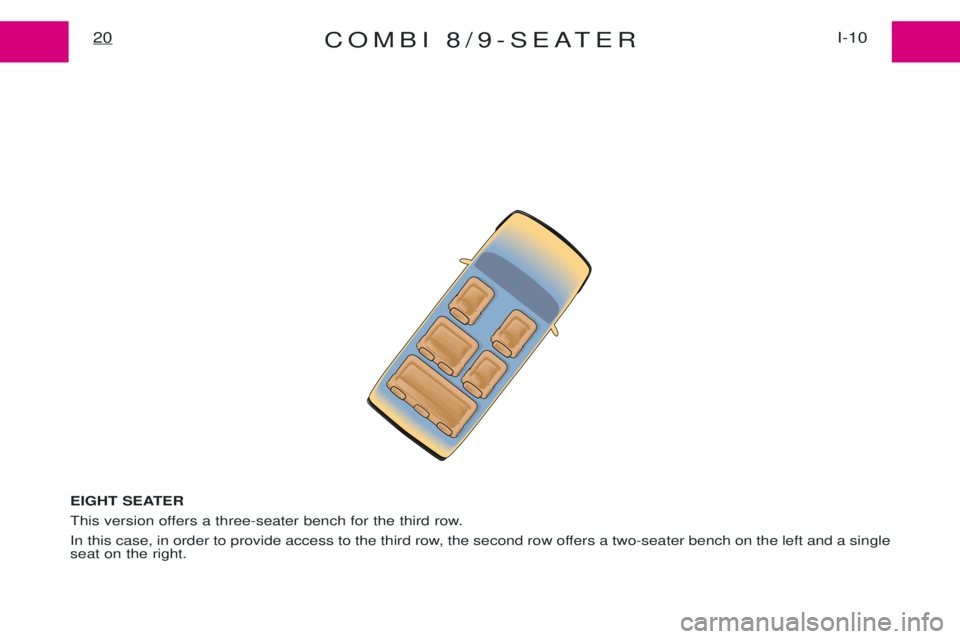

EIGHT SEATER
This version offers a three-seater bench for the third row.
In this case, in order to provide access to the third row, the second row offers a two-seater bench on the left and a single seat on the right.

COMBI 8/9-SEATER21I-10

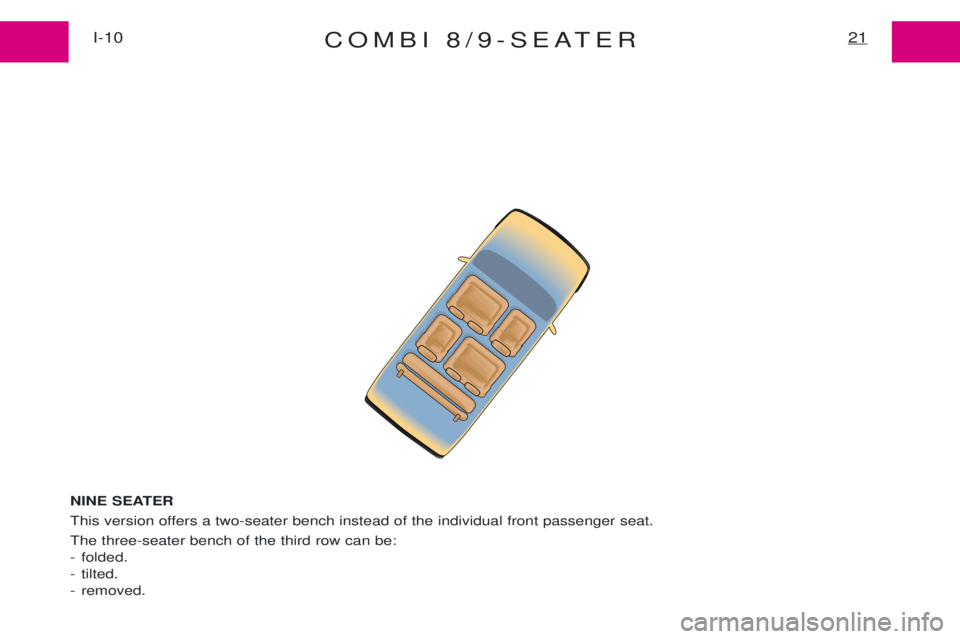

NINE SEATER
This version offers a two-seater bench instead of the individual front passenger seat.The three-seater bench of the third row can be:
- folded.
- tilted.
- removed.
